HACO GSX3006 GUILLOTINES

The New HACO Design Hydraulic guillotine shears of the GSX range are driven by top mounted cylinders.
Our long experience in the production of hydraulic guillotine shears guarantees a product of exceptional design and great efficiency.

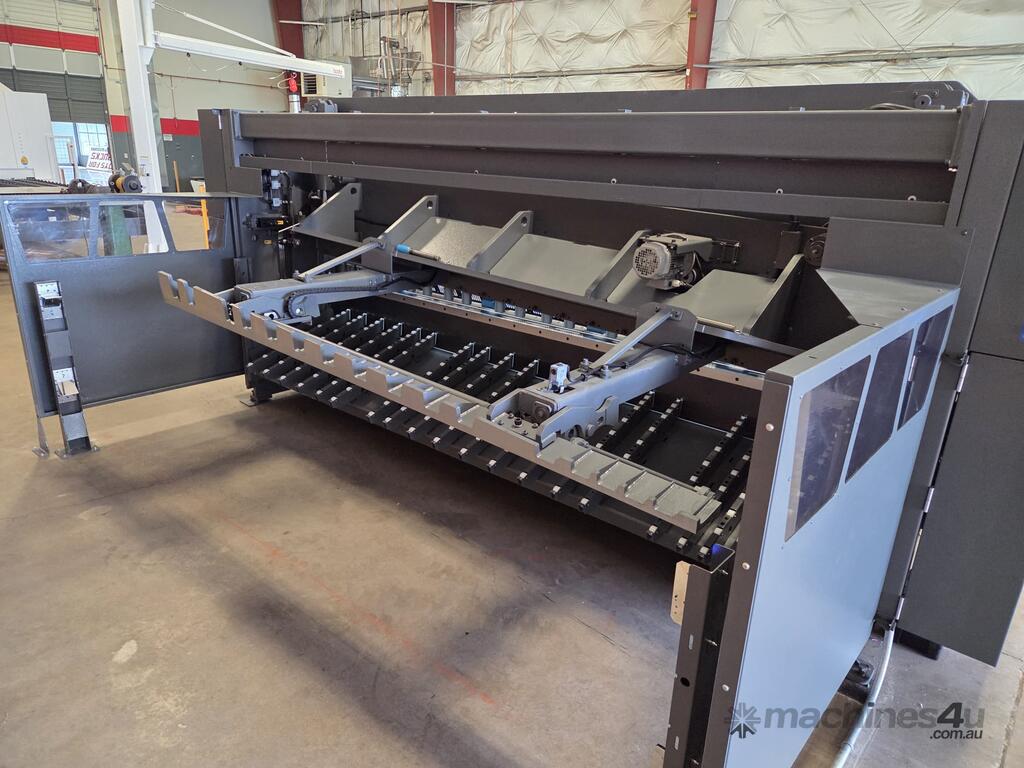

The fully open rear side provides the operator the possibility of easy removal or adapting different conveying and
stacking systems to the machine.

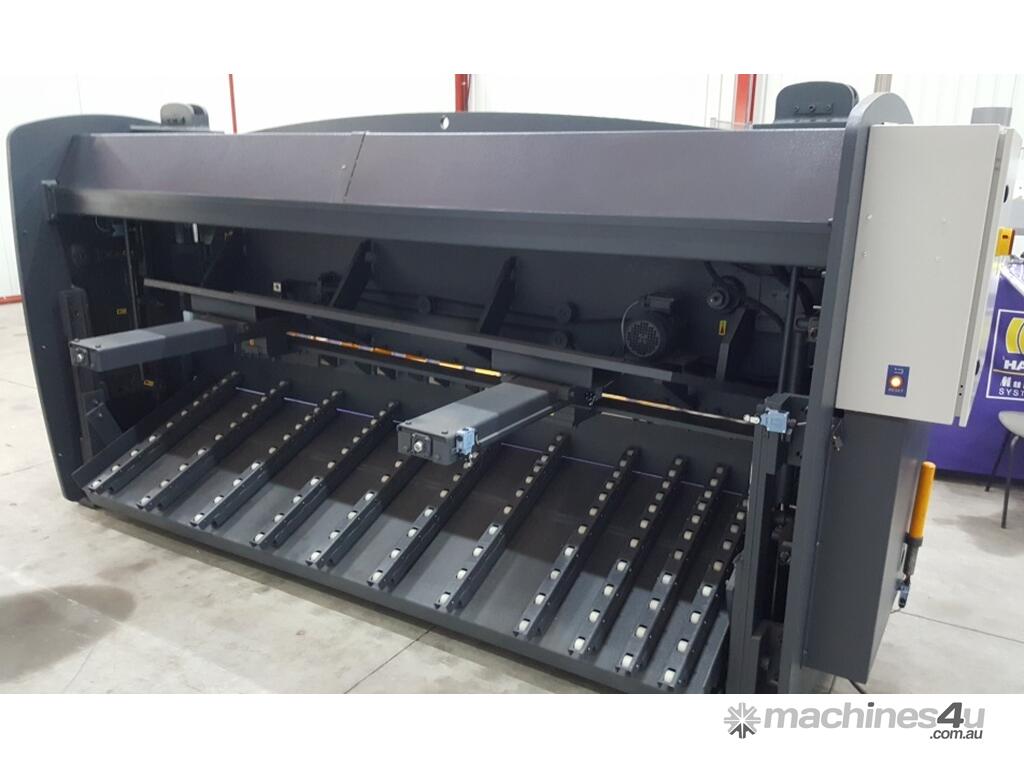

The all-welded interlocked construction makes the machine virtually indestructible. The GSX shears are well
equipped and have as standard the SC101T Touch Screen Control.

The automatic rake and blade clearance setting on the GSX guillotines are controlled by the SC101T control. We adjust the rake angle on the GSX guillotines by pumping more oil into or releasing oil out of the right cylinder.

To set the blade gap, the SC101T controls 2 hydraulic cylinders which push the ram of the blade gap forward or backwards. The ram is guided between 4 spring loaded bearings.

The rake and clearance are set automatically by entering the material and thickness of the sheet to be cut.

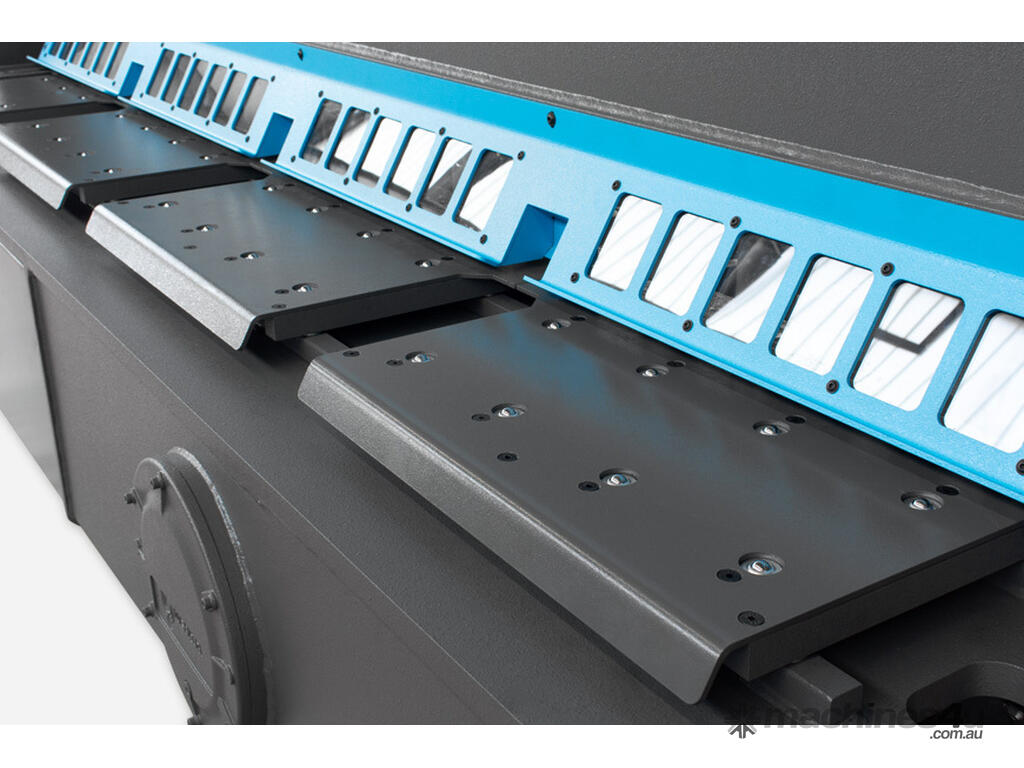

The sheet hold-downs on the GSX guillotine models are hydraulic controlled. The hold-downs use a separate hydraulic circuit with separate pump. A pressure activated switch is used for the right pressure setting. The hold-downs on both sides of the shear are installed closer together to cut small plates

The GSX guillotines come standard with a shadow light function, to enable cutting of plate.

The GSX guillotines come standard with a high speed servo-driven backgauge. The position accuracy of the backstop is 0.1mm. A swing away type backgauge enables cutting of sheets longer than the standard stroke length. (Optional)

All Haco guillotines delivered to Australia are equipped with the European Safety Specifications. To allow much easier and safer access to the rear of the guillotine and to prevent injury while cutting HACO uses a CE approved light guard system.

HACO GSX guillotines are made as of 3000mm x 6mm up to 12.000mm x 32mm.


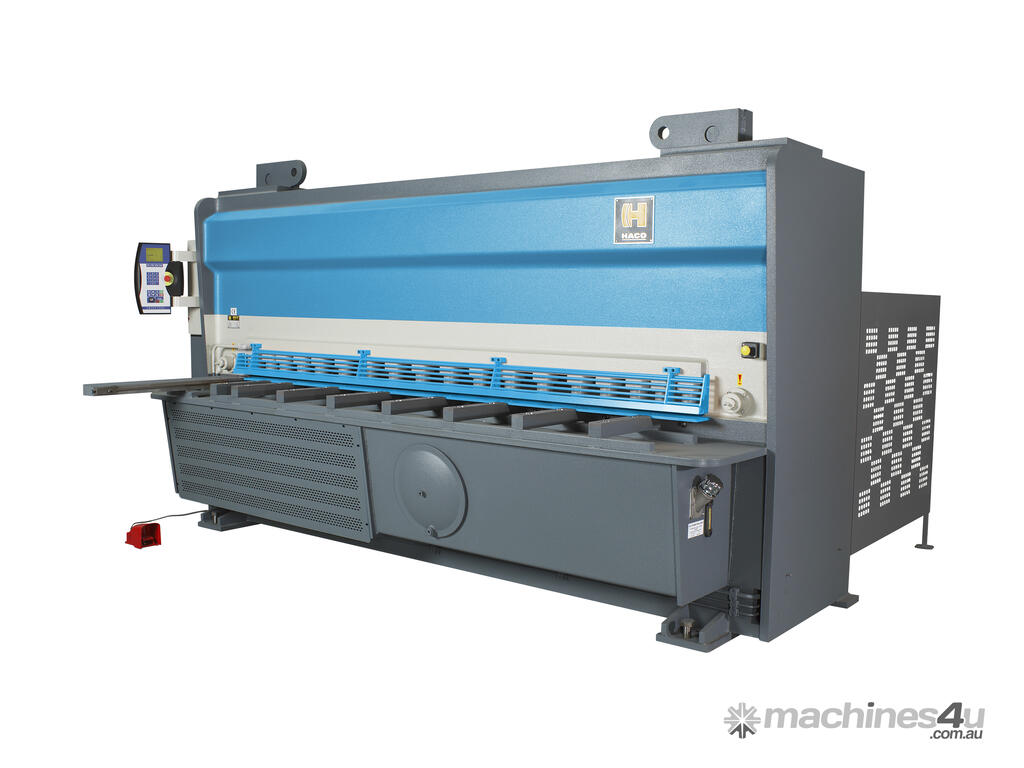

Standard Features:

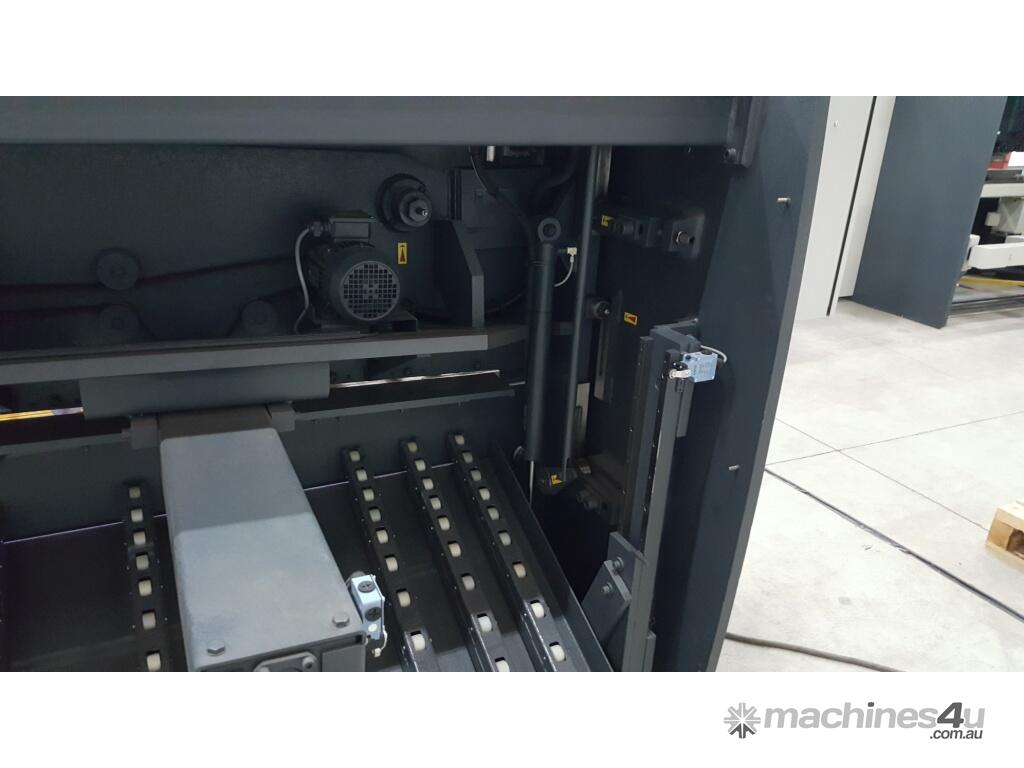

Hydraulic motor-pump group arranged in front under the table of the machine, leaving the back-side completely free for easy removal or mounting conveying or stacking systems to the machine.
2 Upper-driven push-down cylinders.

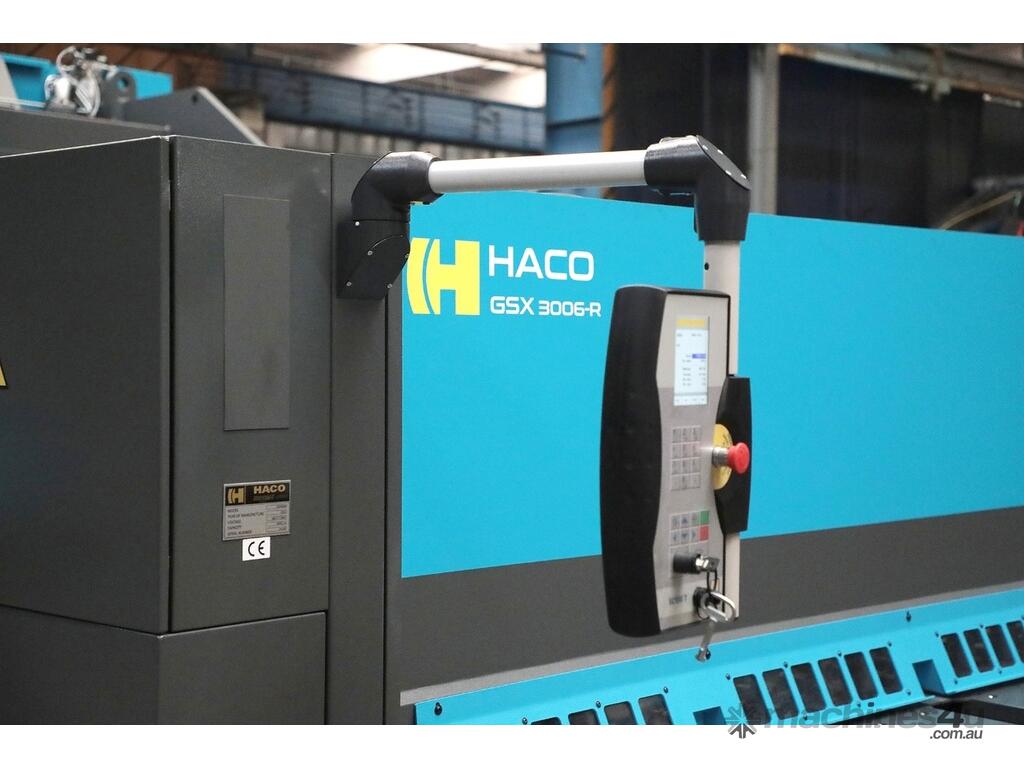

All operator controls are conveniently located at the left-hand side of the machine in the immediate reach of the operator.
SC101T Touch Screen Control for automatic backstop setting, blade gap and rake angle setting
Tilting plate hold downs, pressure of which is independent from the shearing pressure, in order to clamp properly each sheet thickness.
High shock resistant premium quality blades with 4 cutting edges on all other models.
Servo driven back gauge, positioned by the SC101T control.

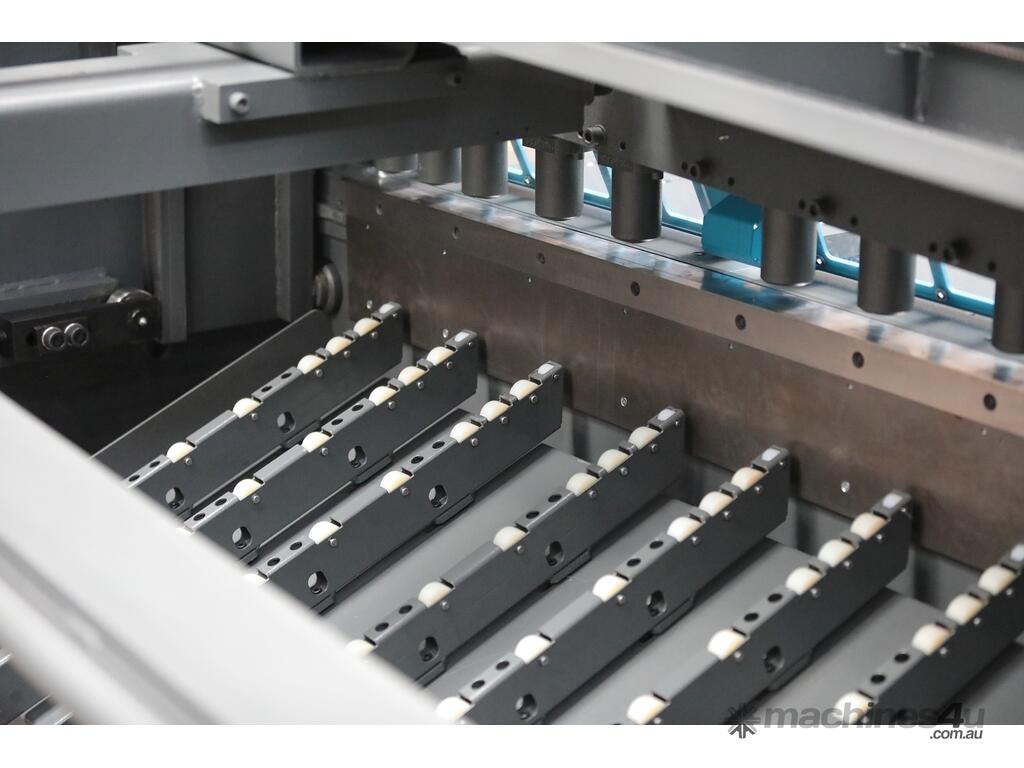

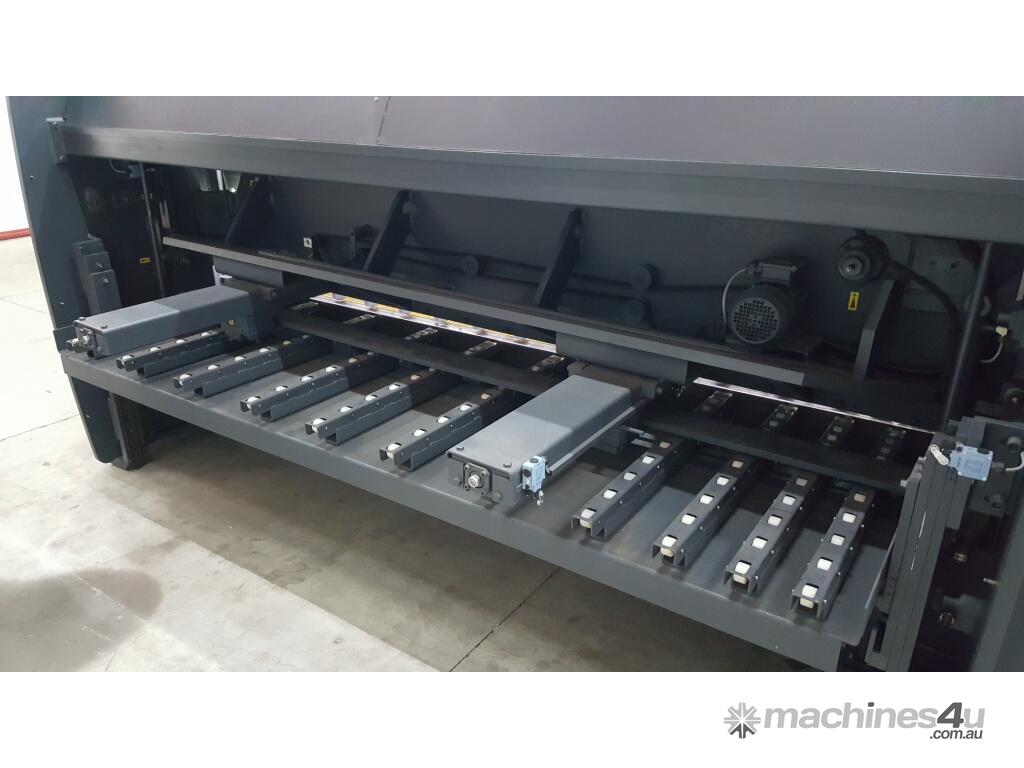

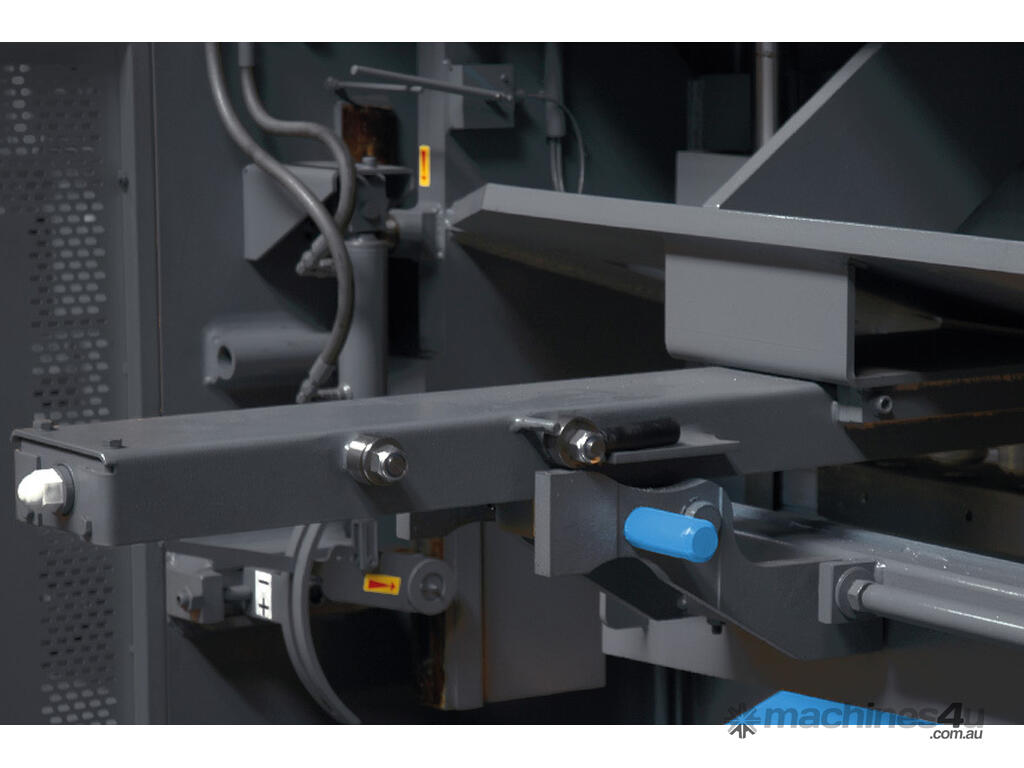

Shearing table with a number of square iron blocks, easing the sheet feed-in and increasing drastically operator's safety.
Squaring arm of 1000mm with scale, T-slot and disappearing stop, attached to the left side of the machine.
SBS System (Sheet Back to Sender)Sheet Support (Option)
Movable foot pedal control.
Instructions and maintenance manual.
Filled oil tank.
Service tools
Installation, commissioning and training by a HACO service technician based in Australia can be arranged.

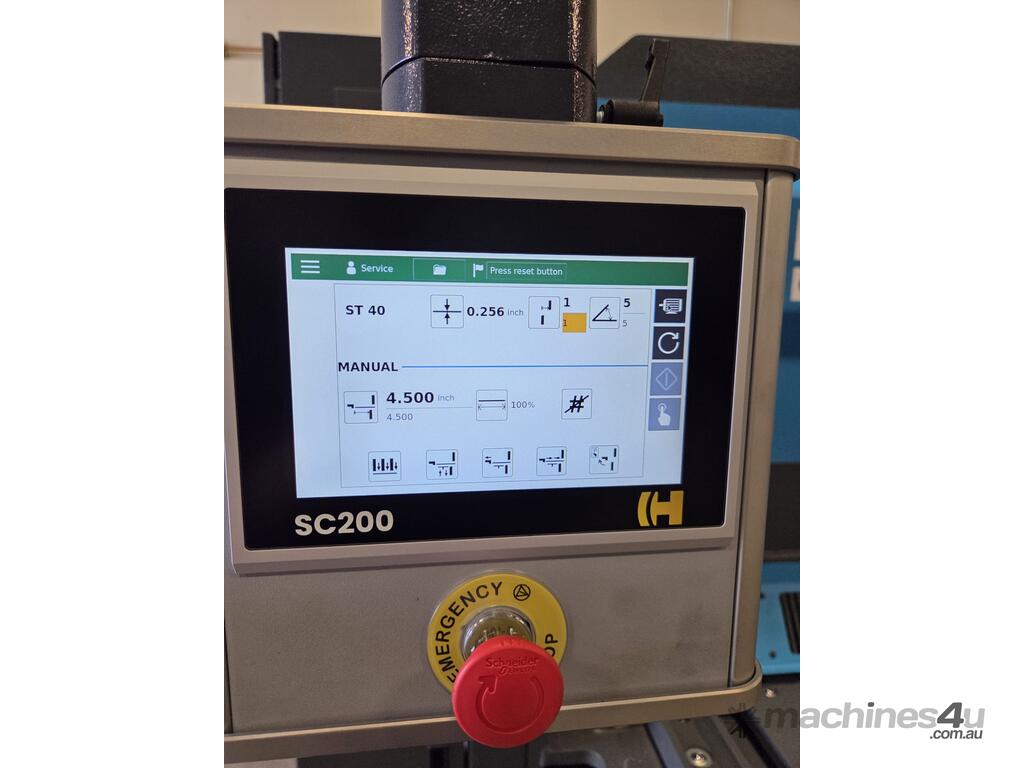

Features of the SC101T control:

LCD screen 5.7"Touchscreen
Memory capacity : Max 500 programs with max. 255 steps.
Material list of max. 32 materials
Each program contains the basic cutting parameters such as material type, material thickness, Blade gap and cutting angle setting
Electro-hydraulic blade gap setting
Electro-hydraulic cutting angle setting
Cutting length adjustment.
Automatic programmable retraction of the back gauge.
Backlash compensation.
Delayed sheet release selector
Mode selection Inch-Metric.
(Preset) counter with 0-stop.
Programmable backstop settings
Built in Counters (Piece Counter, Pump Time, Cutting Time, Cutting cycles)

Options SBS System (Sheet Back to Sender)
