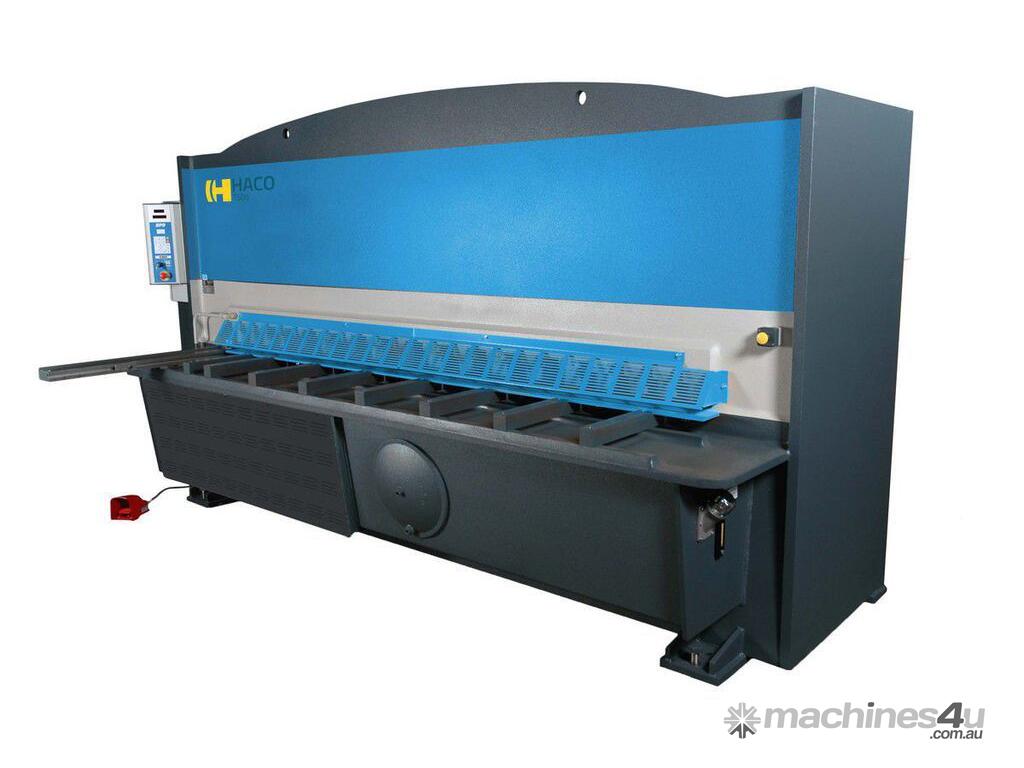

HACO TS & TSX 3006 GUILLOTINES

*** MADE IN EUROPE ***

All HACO TS and TSX guillotines are recognized for being well-built, accurate and cost-effective, meeting the demand for the high-precision sheet metal and heavy fabrication market, to run small- or high-volume production.

All our TS shears are equipped with power rake angle adjustment from the SP 9 control panel and quick blade gap adjustment. All TSX type models are available with our SC100T 5.7" Colour LCD touch screen controls.

These machines are delivered with an extensive range of standard features. The TS/TSX series shears remain the pacesetters in the price/quality ratio market of today. With thousands of units running day after day all over the world, we are convinced of the durability and craftsmanship of these machines

Standard Features:
Hydraulic motor-pump group arranged at the back of the machine, easily accessible and protected by a sheet.
2 under driven cylinders. Electro-hydraulic adjustment of the rake angle by push buttons in the control panel.
All operator controls are conveniently located at the left-hand side of the machine within the immediate reach of the operator.

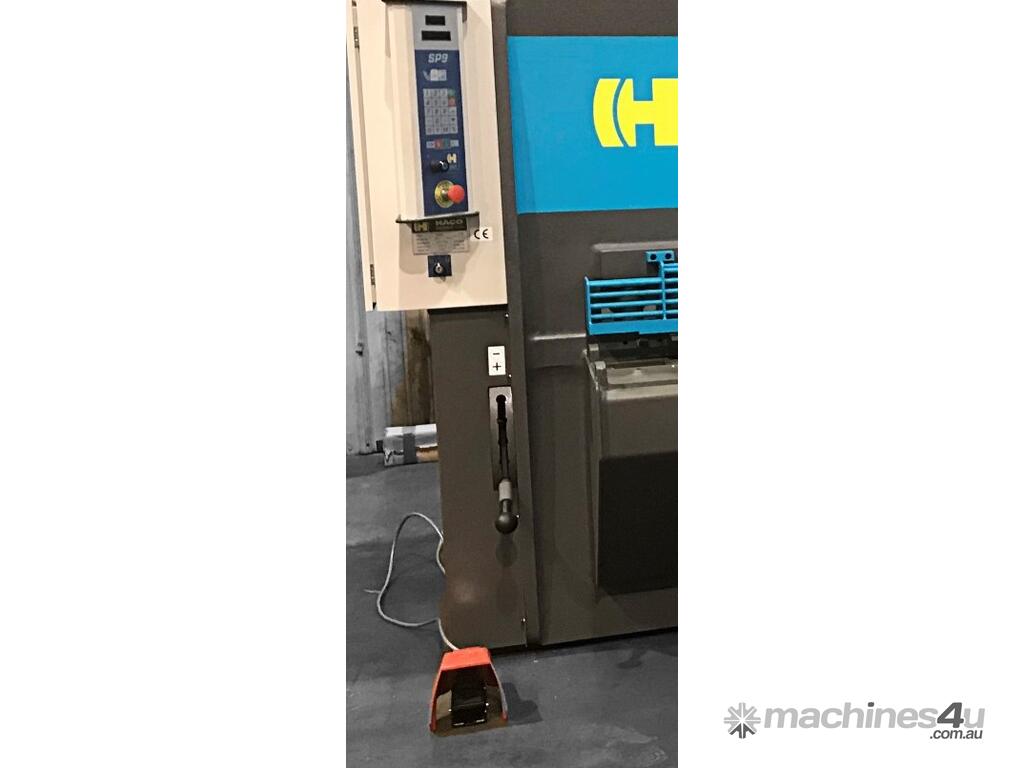

The standard SP9 control offers the following functions: automatic positioning of the backgauge to the preselected position with digital read-out, stroke control and selection for backgauge retraction.

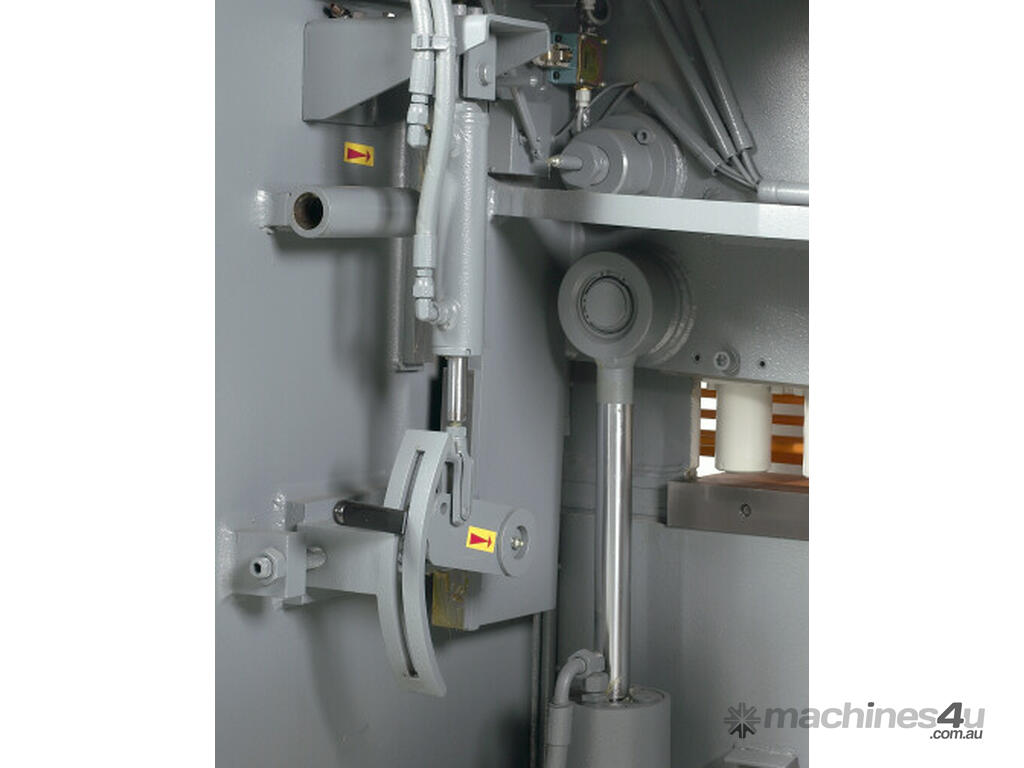

Quick blade gap setting - on 6mm-models by one easily accessible lever at the front of the machine.

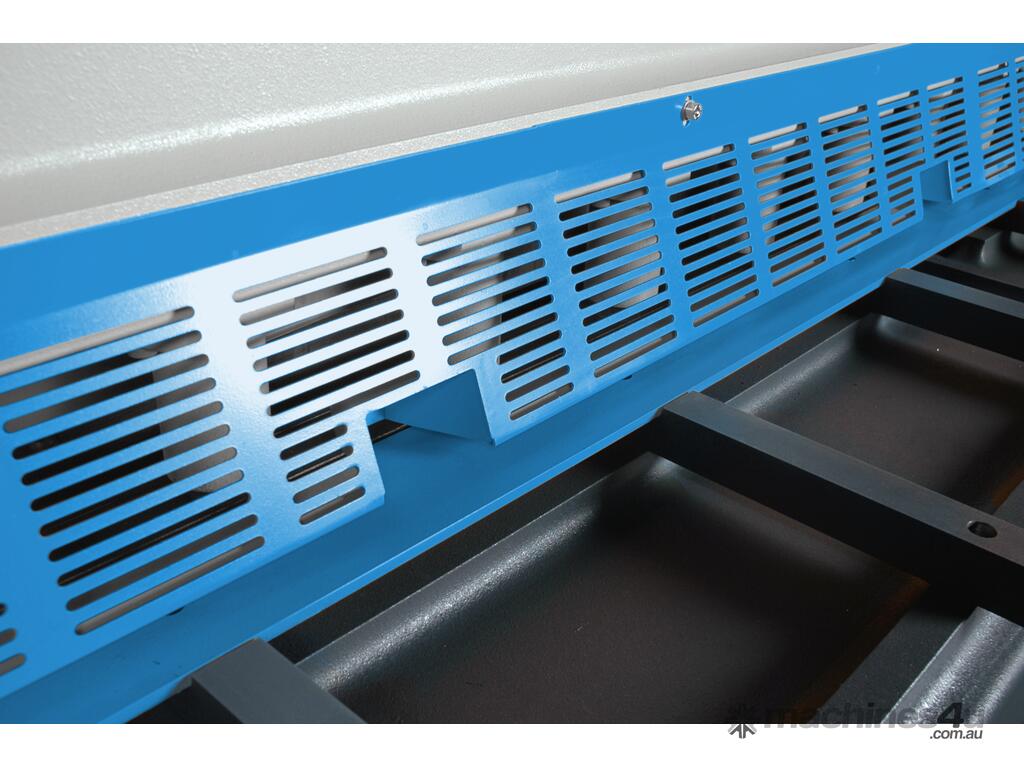

Tilting sheet hold-downs, pressure of which is independent from the shearing pressure, in order to clamp properly each sheet thickness. These hold-downs are arranged more closely on the left and the right hand side to conveniently cut small sheets.
Hydraulic and electric overload protection.
4 edged cutting blades.
Motorised backgauge on ballscrews.

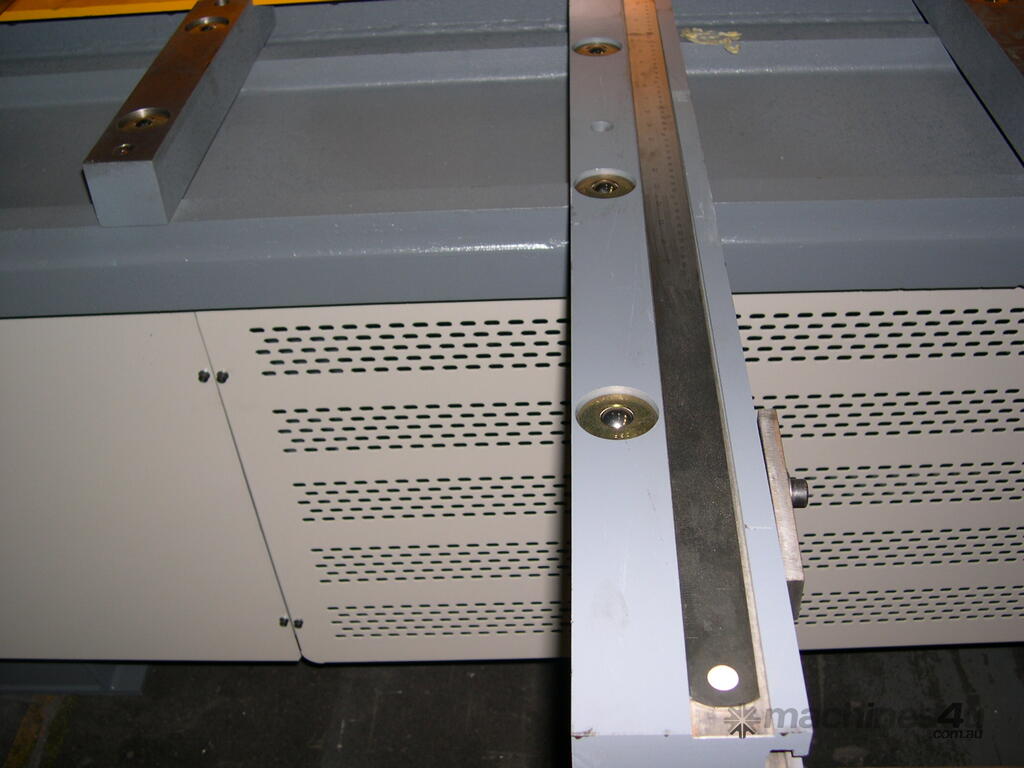

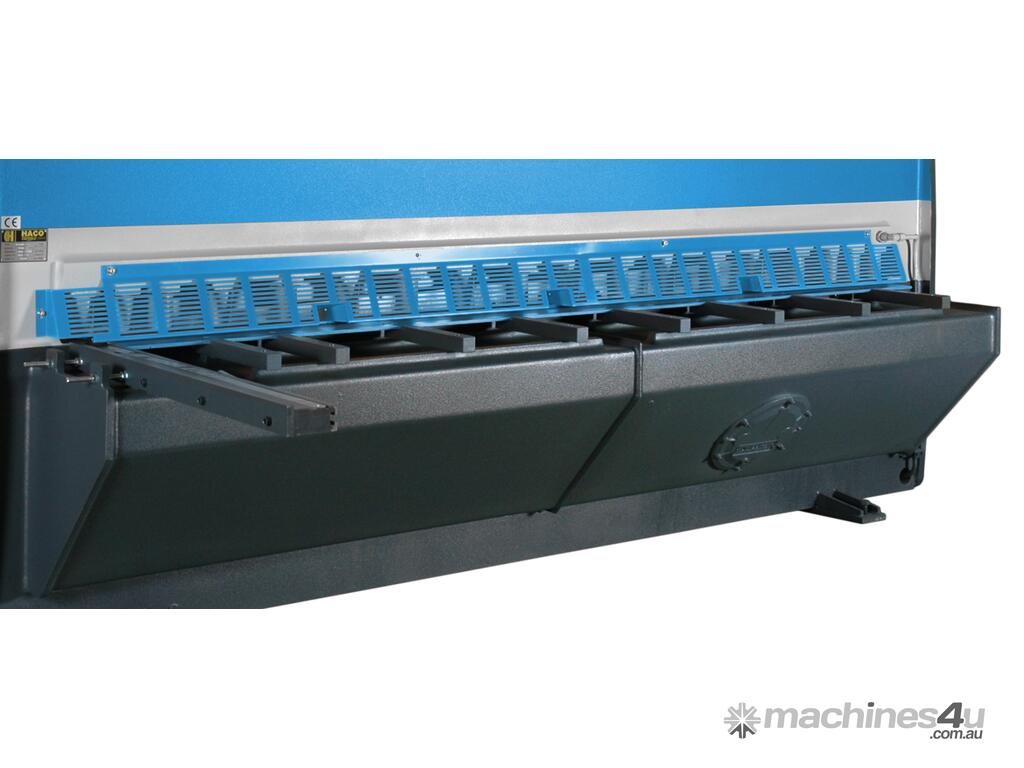

Shearing table with a number of square iron blocks, for easy the sheet feed-in and increasing drastically operator's safety.

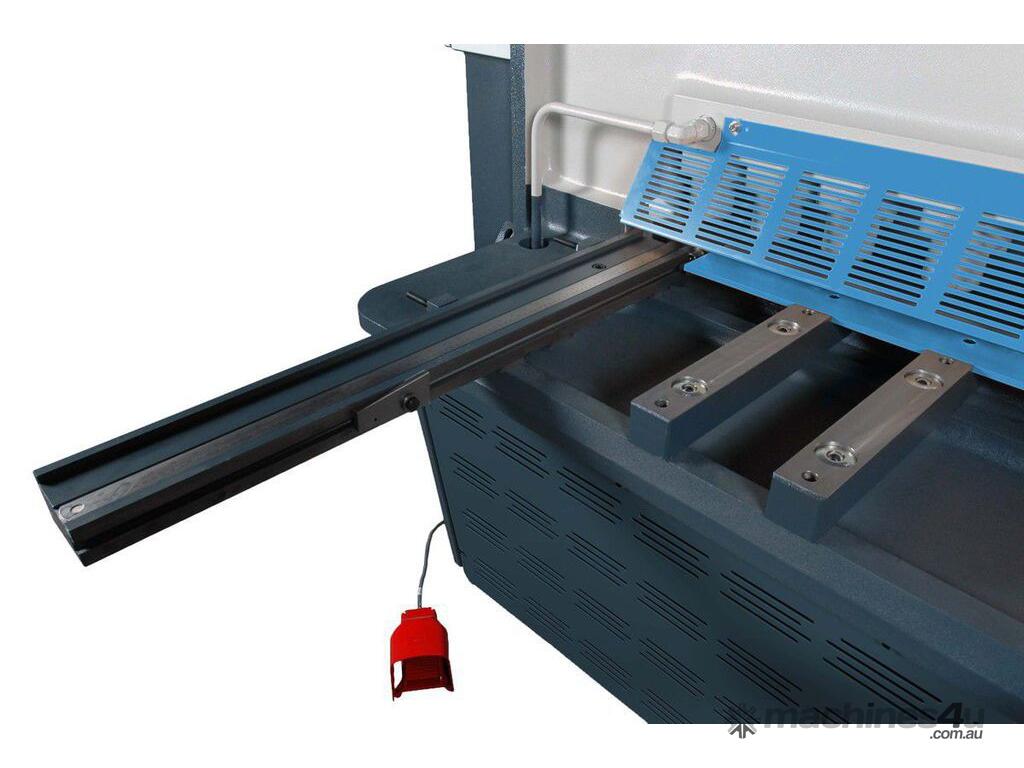

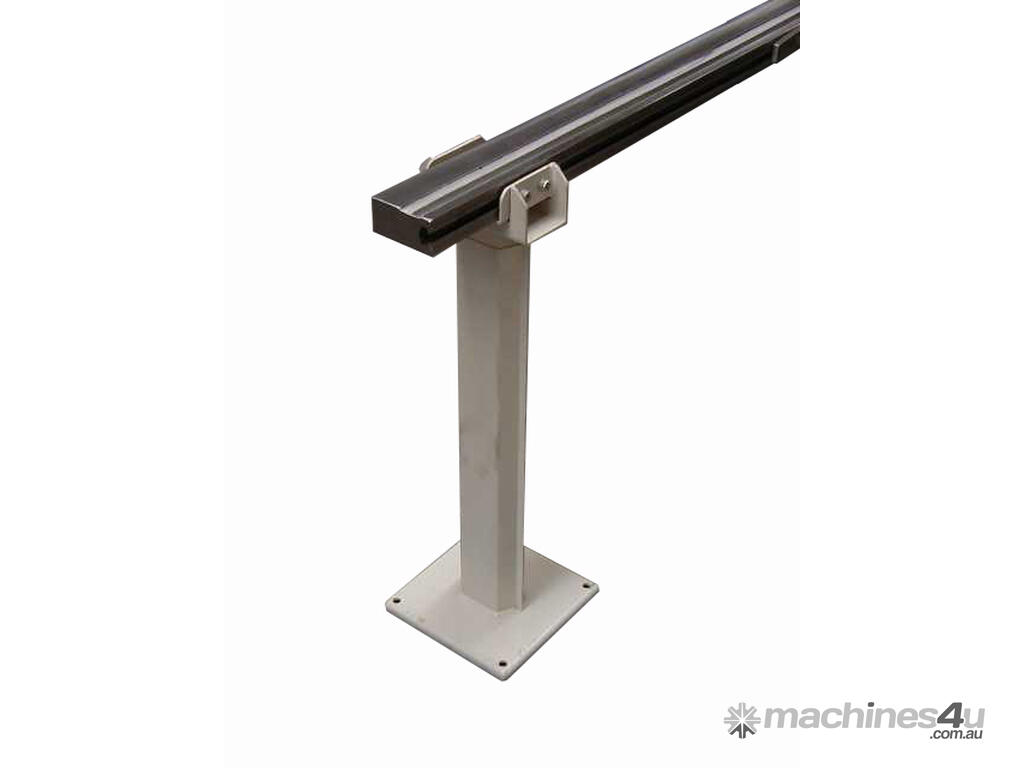

Squaring arm of 1000mm, with scale, T-slot and disappearing stop, attached to the left side of the machine.
Movable foot-pedal control.
CE-certified

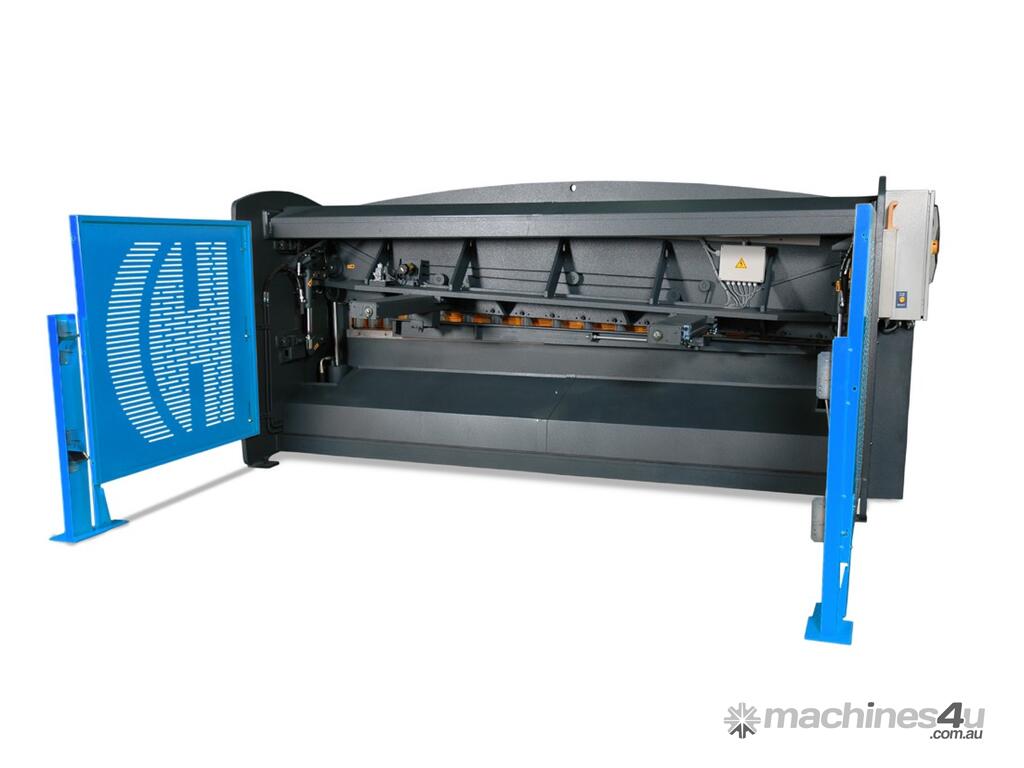

Light guarding at the rear of the machine, combined with side fencing
Instruction and maintenance manuals.
Service tools
Installation, commissioning and training by a HACO service technician based in Australia.

The TS3006 and TS3012 are executed with our SP9 control, showing following features:

Automatic positioning of the backgauge to the preselected position with digital readout, stroke control and selection for backgauge retraction..
Automatic programmable retraction of the backgauge.
Possibility of jog mode on backgauge.
Preselection of cutting angle
Preselection of cutting length

The TSX3006 and TSX3012 are executed with our very modern looking SC100T control, showing following features:

5.7inch colour LCD touch screen display
Memory capacity : Max 500 programs with max. 255 steps per program.
Material list of max. 32 materials
Each program contains the basic cutting parameters such as material type, material thickness, blade gap and cutting angle setting
Electro-hydraulic blade gap setting
Electro-hydraulic cutting angle setting
Cutting length adjustment.
Automatic programmable retraction of the back gauge.
Backlash compensation.
Delayed sheet release selector
Mode selection Inch-Metric.
(Preset) counter with 0-stop
Programmable backstop settings

Programming modes :

Manual :
All cutting parameters such as material type, sheet thickness, cutting angle and blade gap are programmed manually.

Automatic :
By entering the sheet thickness for any type of steel programmed in the control, the control automatically sets the blade gap and the cutting angle as a function of the sheet thickness.
All parameters can be manually modified according to the actual data entered
