HAEGER FASTENER INSERT PRESS

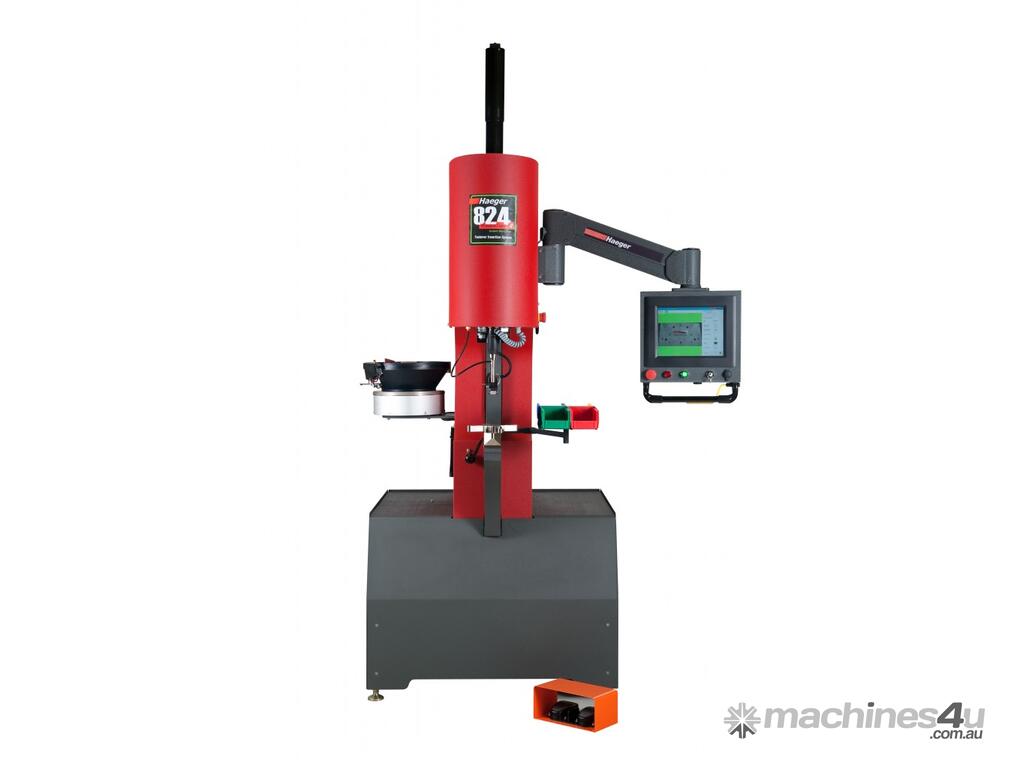

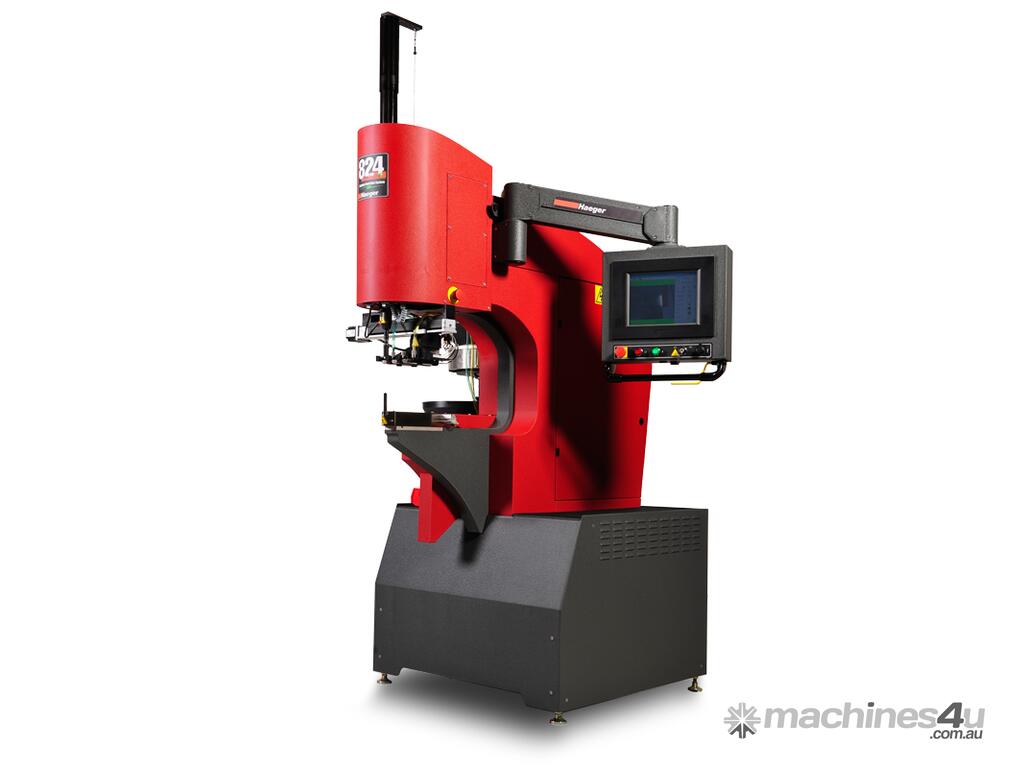

Haeger® 824 OneTouch-5e
Operation: Fully Automatic
Type: Hydraulic
Force: 16,000 lbs. / 72 kN
Throat Depth: 24 in. / 610 mm

Product Details
824 OneTouch-5e
can be upgraded to Robotic Interface extra $28k

4 Station Automatic Lower Tool Changer
An integrated cartridge with 4 tooling stations automatically retracts, indexes and positions
up to 4 different tools in the lower tool holder. Maximum accessibility around the lower tool
allows for parts with tall flanges to fit on the machine.

4 Station Automatic Upper Tool Changer
4 Insertion Stations and 4 Tool positions (total of 8 pre-programmed
positions) provide the ability to automatically feed up to 4 different
sizes and types of fasteners in one handling.
Productivity of 1 insertion every 2.5 seconds,
while tools are changed within 3 seconds.
Fastener Detection and Fastener Length
detection provides FULL process control in
every station.

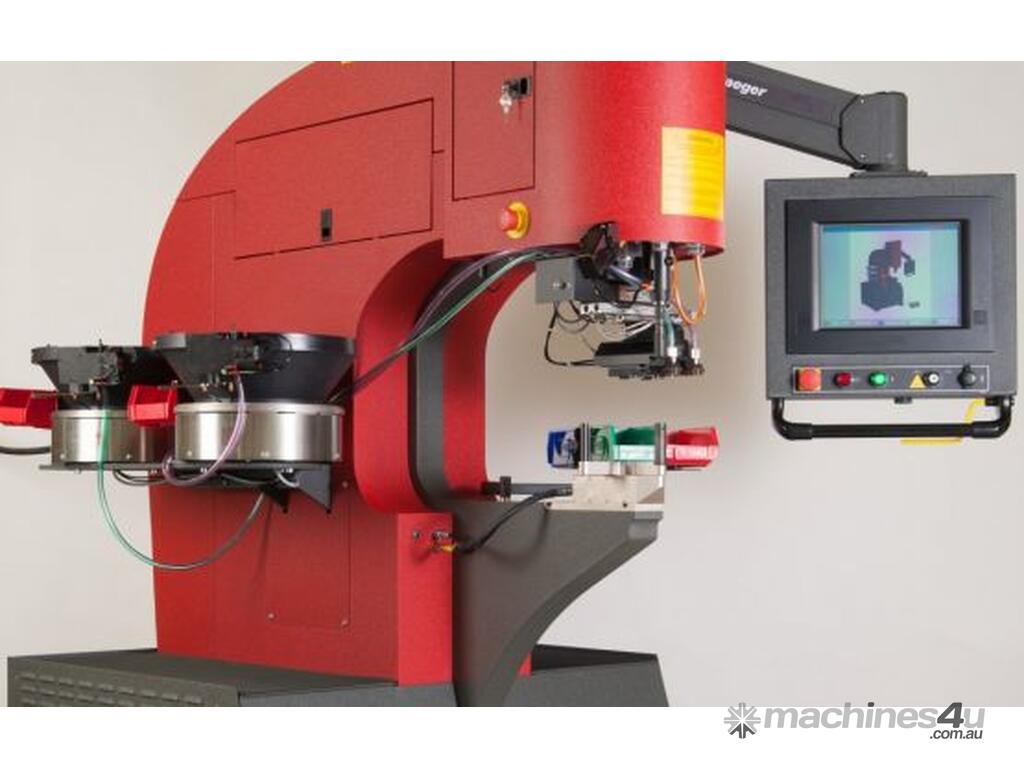

Fast & Easy Tooling Setup on 4 MAS 350 - Modular Autofeed Systems
A unique new drive system in combination
with a complete new bowl design incorporating
all the latest bowl feeding technologies.
A long list of advantages, but what does thismean for you?
• Tool Change from 3 minutes to 3 seconds per MAS 350 through a one piece tool module.
•No more manual bowl setting required. Software automatically sets the proper
vibration rate, air eject time and required
air pressure to allow for failure free fastener
feed. ‘From a full bowl down to the last
one out!’ Reliable Feeding. Faster Changeover.
No Training Required.
• Larger bowl design in combination with new drive
allows for fastener sizes M1.5 through M10 all to be
fed in the same bowl
•Deeper bowl design in combination with new bowl
tooling design allows for fastener lengths up to 40mm
all to be fed in the same bowl
• New drive design allows for a 1 single tool piece,
resulting in faster and easier tool change
•Change in bowl material resulting in fasteners
becoming less dirty from ‘air-dust’ or individual
rubbing
• Lower mounting position allowing for easier filling and
emptying.

Integrated Tooling Storage
Easy and transparent storage of Multi-Modules for
the MAS-350 Auto Feed System in combination with
separate storage for the Shuttle Modules and upper and
lower tools. Both storage positions located where you
need the tooling, eliminating unnecessary searching
and walking around allowing faster and easier tooling
changeovers.

Easier and Faster Programming
1: The all new intuitive Version 10 Insertion Logic
TM Software with Insertion Graphics® and integrated
Statistic Process Control allows for more functionality
while reducing programming time.
2: V 10 Insertion Logic
® provides you with the
recommended operating time for the part programmed
and stores any corrected errors during the insertion
process, allowing you to provide this data with your
deliveries to your customers.

Energy Saving
New Variable Speed Hydraulics reduces energy
consumption up to 30% compared to conventional
hydraulic systems.

Best Operator Ergonomics

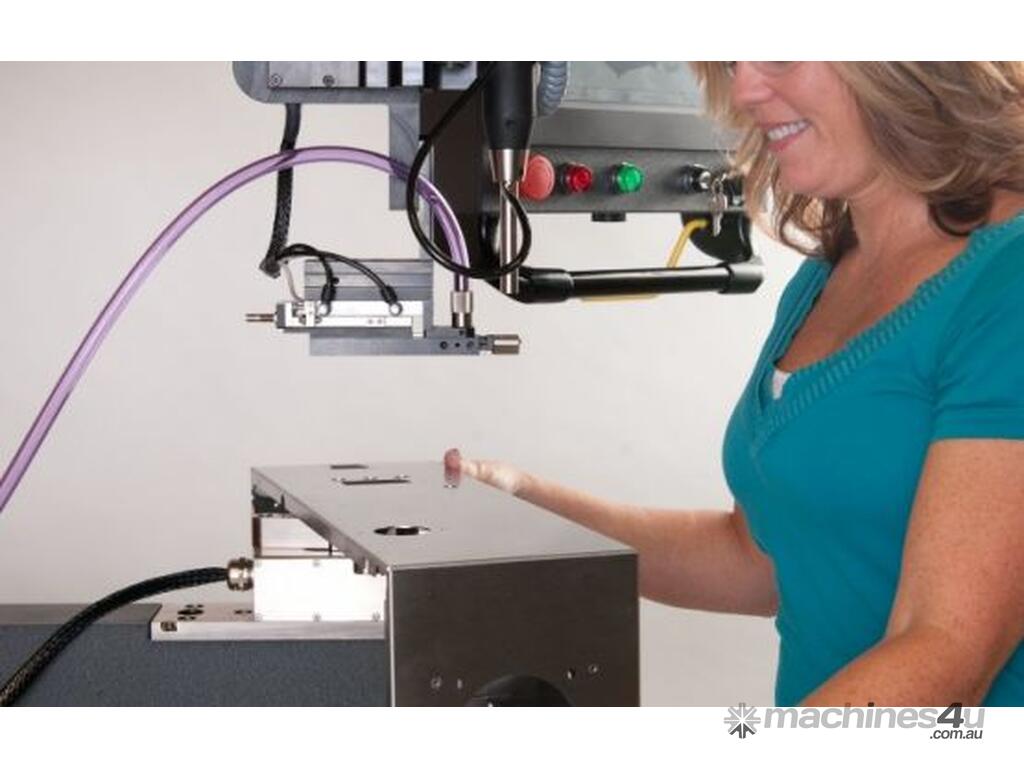

Operator control pendant can be adjusted in 6
directions, allowing for easy access and the best view of
screen instructions while standing up or sitting down.
