HANNSA - Vertical Machining Center / Box Way Series [made in Taiwan]

Delahenty Machinery offer the full range of HANNSA Vertical Machining Center / Box Way machines.

Contact us to today to discuss you project. Delahenty Machinery - Helping You to Boost Your Productivity!

Model: YH1000-A(BT50)
X, Y, Z-AXIS TRAVEL:
1020 x 610 x 610 mm
- Four box ways on base.
- Box ways on three axes.
- 10000 rpm belt-drive spindle.
- 6000rpm belt-drive spindle.
- BT50 spindle taper.
- 24 tool arm type magazine.
-Fully enclosed splash guard.

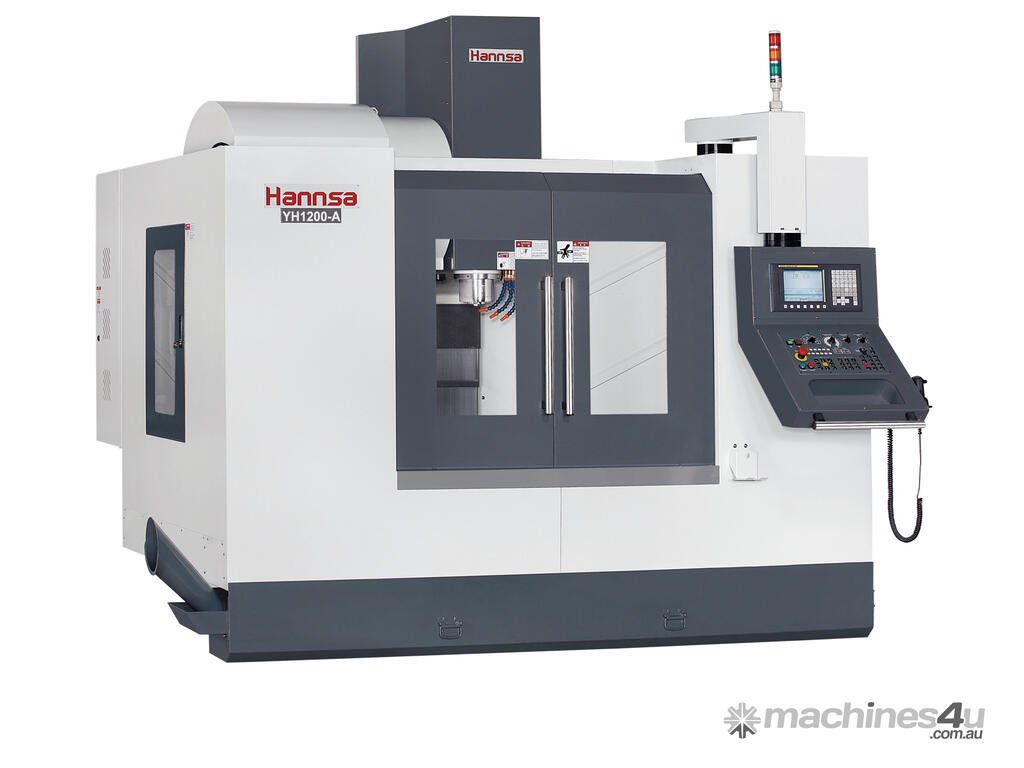

YH1200-A / 1400-A - (4 Slideways)
X, Y, Z-AXIS TRAVEL:
1200 x 610 x 610 mm (YH1200-A)
1400 x 610 x 610 mm (YH1461-A)
- Four box ways on base.
- Box ways on three axes.
-10000 rpm belt-drive spindle
- BT40 spindle taper.
- 24 tool arm type magazine
- Fully enclosed splash guard.

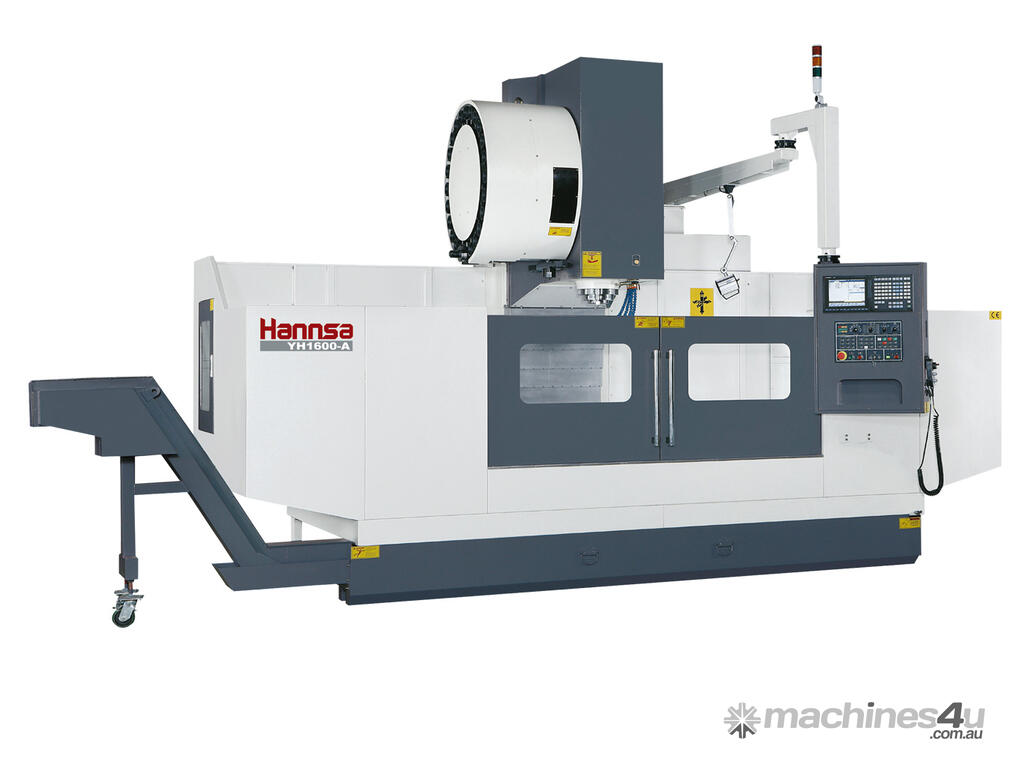

YH1400-A / 1600-A / 1800-A - (4 Slideways)
X, Y, Z-AXIS TRAVEL:

1400 x 810 x 810 mm (YH1400-A)
1600 x 810 x 810 mm (YH1600-A)
1800 x 810 x 810 mm (YH1800-A)

-Four box ways on base.
-Box ways on three axes.
-6000 rpm gear-drive spindle.
-BT50 spindle taper.
-24 tool arm type magazine.
-Semi- enclosed splash guard is standard.
-Fully enclosed splash guard is optional.
-------------------------------------------------------------------------------------------

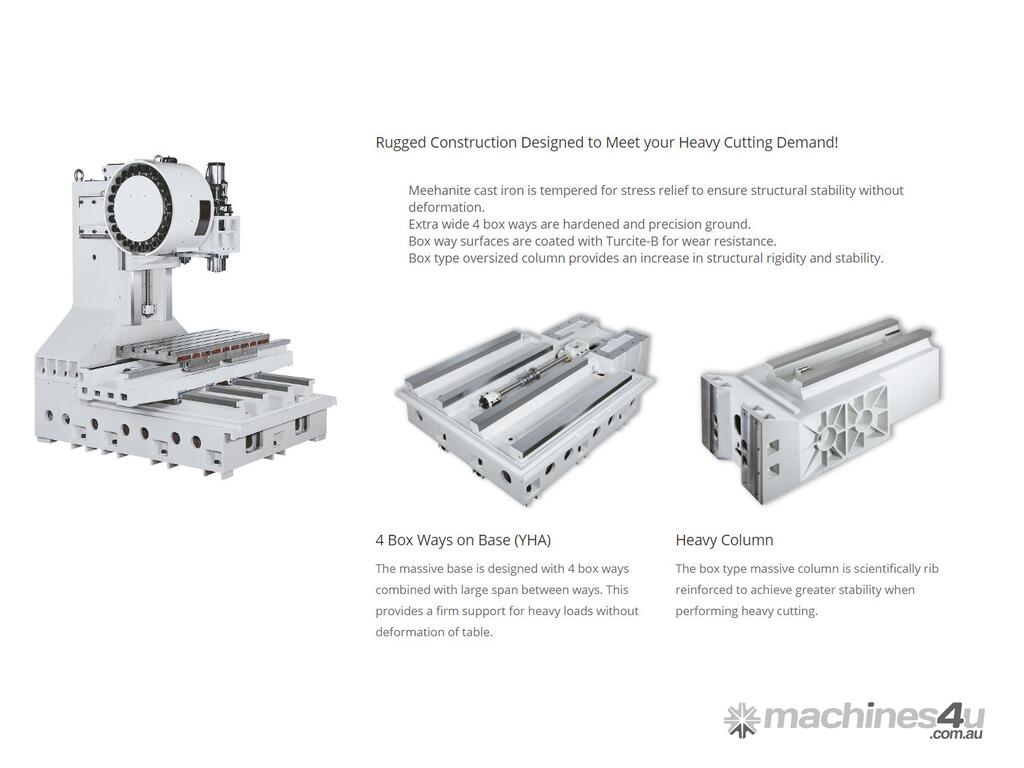

Rugged Construction Designed to Meet your Heavy Cutting Demand!
Meehanite cast iron is tempered for stress relief to ensure structural stability without deformation.
Extra wide 4 box ways are hardened and precision ground.
Box way surfaces are coated with Turcite-B for wear resistance.
Box type oversized column provides an increase in structural rigidity and stability.
4 Box Ways on Base (YHA)
The massive base is designed with 4 box ways combined with large span between ways. This provides a firm support for heavy loads without deformation of table.

Heavy Column
The box type massive column is scientifically rib reinforced to achieve greater stability when performing heavy cutting.
