HANNSA - Vertical Machining Center / Linear Way Series [made in Taiwan]

Delahenty Machinery offer the full range of HANNSA Vertical Machining Center / Linear Way machines.

Contact us to today to discuss you project.
Delahenty Machinery - Helping You to Boost Your Productivity!


SMALL HIGH-SPEED PRECISION MACHINING SERIES

Special Designed for High Speed Machining Parts

YL 850-B
X, Y, Z-AXIS TRAVEL:
850 x 510 x 530 mm
- Linear ways on three axes.
- 10000 rpm belt-drive spindle.
- BT40 spindle taper.
- 24 arm type.
- Fully enclosed splash guard.

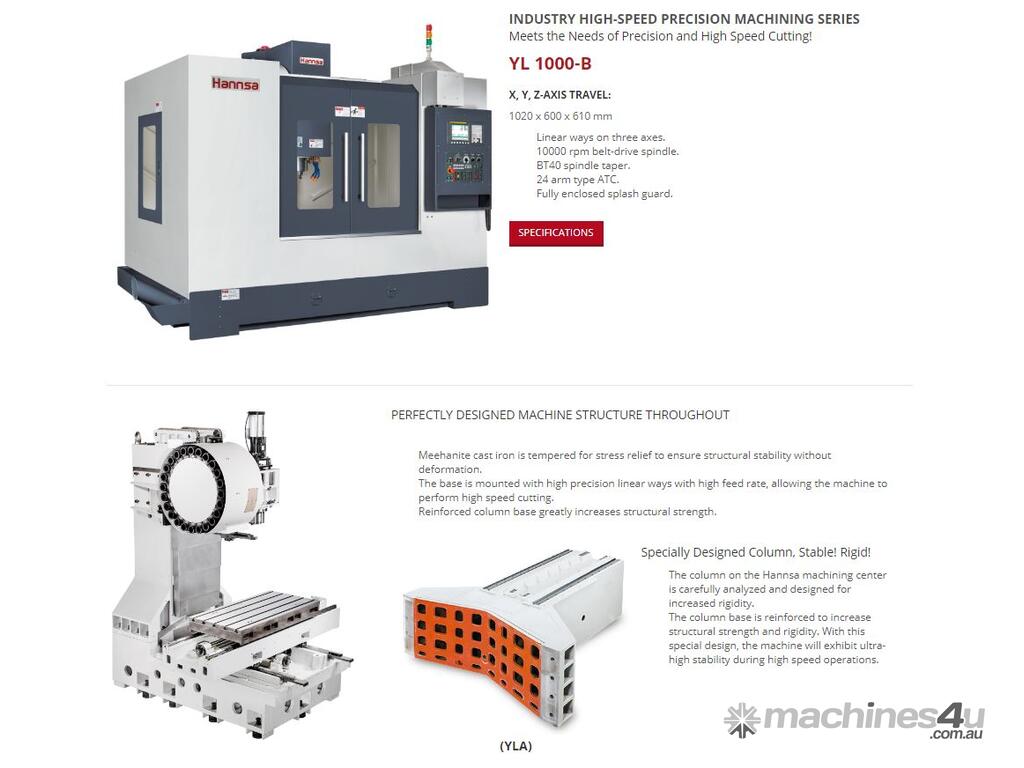

YL 1000-B
X, Y, Z-AXIS TRAVEL:
1020 x 600 x 610 mm
- Linear ways on three axes.
- 10000 rpm belt-drive spindle.
- BT40 spindle taper.
-24 arm type ATC.
-Fully enclosed splash guard.

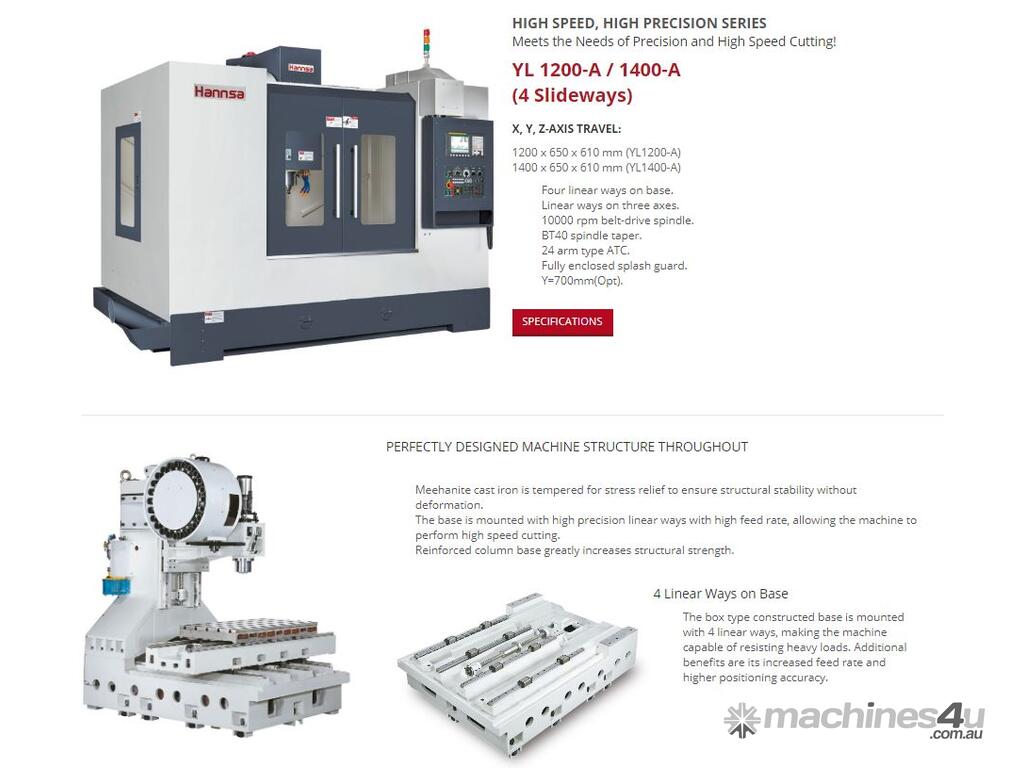

YL 1200-A / 1400-A - (4 Slideways)
X, Y, Z-AXIS TRAVEL:
1200 x 650 x 610 mm (YL1200-A)
1400 x 650 x 610 mm (YL1400-A)
- Four linear ways on base.
- Linear ways on three axes.
- 10000 rpm belt-drive spindle.
- BT40 spindle taper.
- 24 arm type ATC.
- Fully enclosed splash guard.
- Y=700mm(Opt).

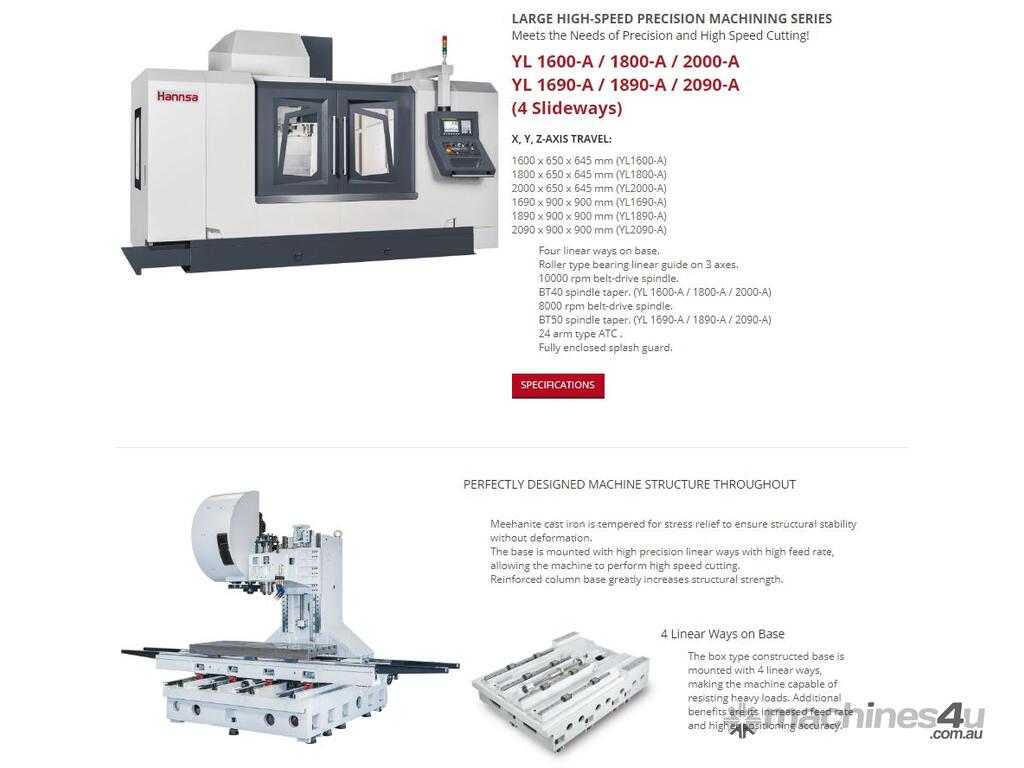

YL 1600-A / 1800-A / 2000-A - (4 Slideways)
YL 1690-A / 1890-A / 2090-A - (4 Slideways)
X, Y, Z-AXIS TRAVEL:
1600 x 650 x 645 mm (YL1600-A)
1800 x 650 x 645 mm (YL1800-A)
2000 x 650 x 645 mm (YL2000-A)
1690 x 900 x 900 mm (YL1690-A)
1890 x 900 x 900 mm (YL1890-A)
2090 x 900 x 900 mm (YL2090-A)

- Four linear ways on base.
- Roller type bearing linear guide on 3 axes.
- 10000 rpm belt-drive spindle.
- BT40 spindle taper. (YL 1600-A / 1800-A / 2000-A)
- 8000 rpm belt-drive spindle.
- BT50 spindle taper. (YL 1690-A / 1890-A / 2090-A)
- 24 arm type ATC .
- Fully enclosed splash guard.

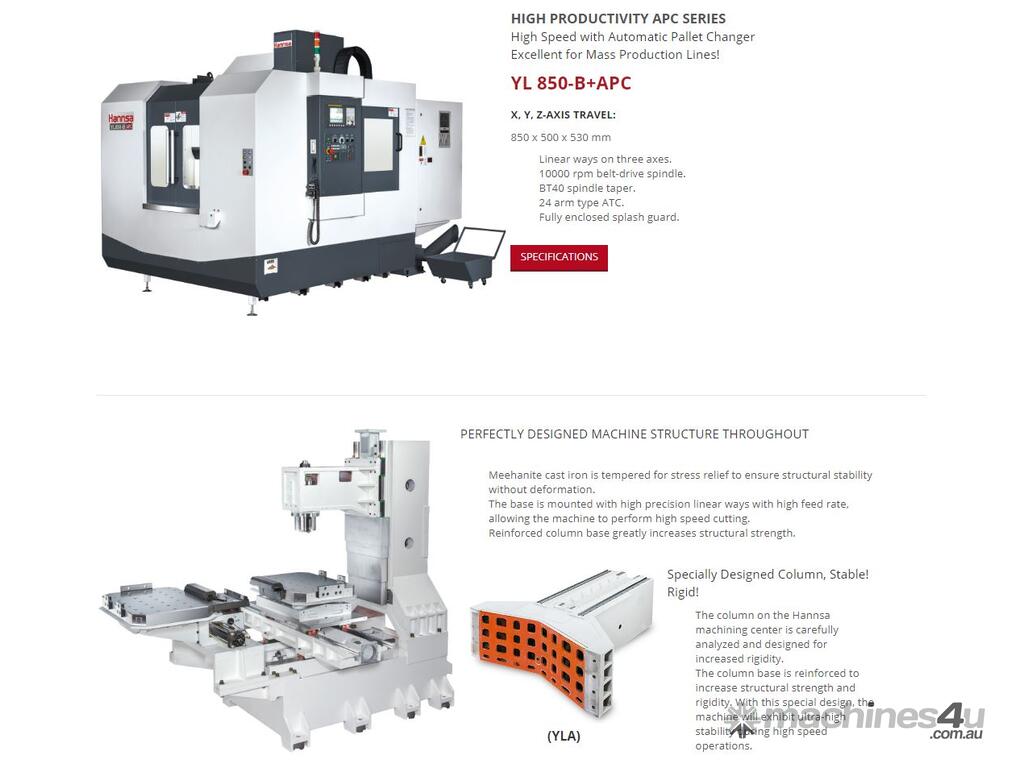

YL 850-B+APC
X, Y, Z-AXIS TRAVEL:
850 x 500 x 530 mm
- Linear ways on three axes.
- 10000 rpm belt-drive spindle.
- BT40 spindle taper.
- 24 arm type ATC.
- Fully enclosed splash guard.
