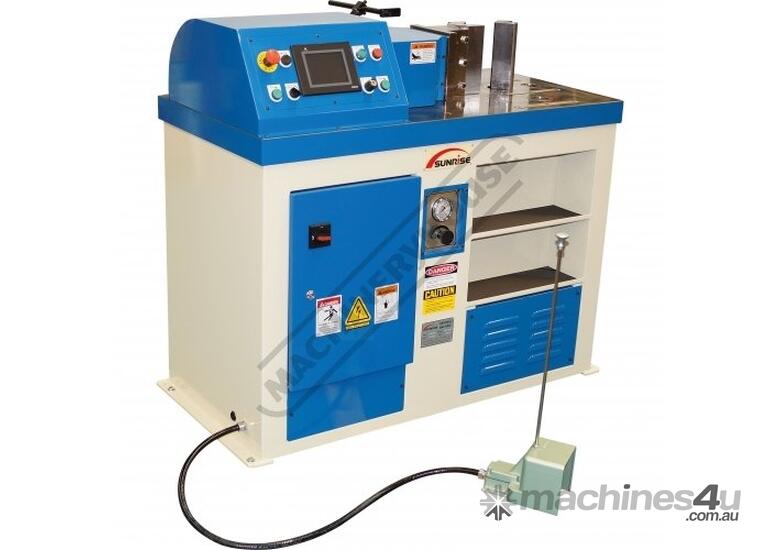

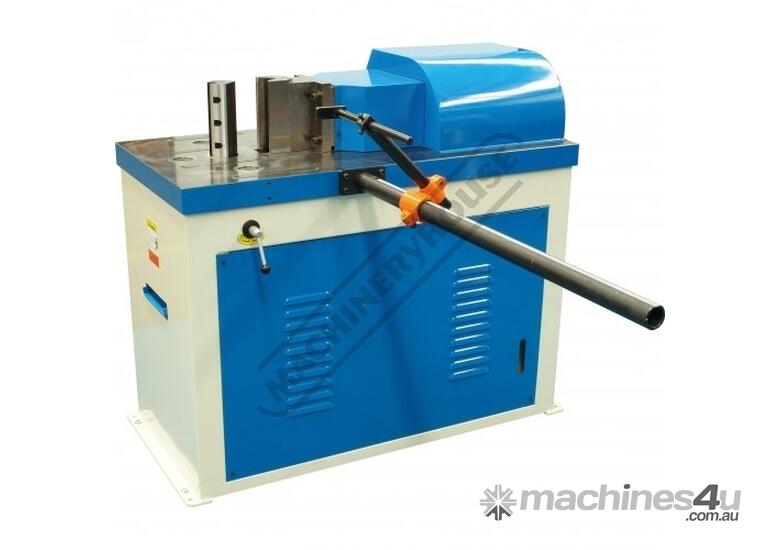

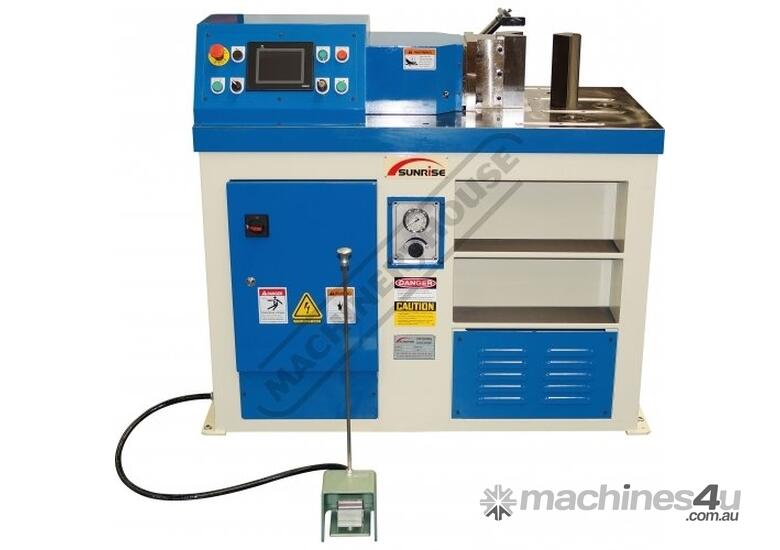

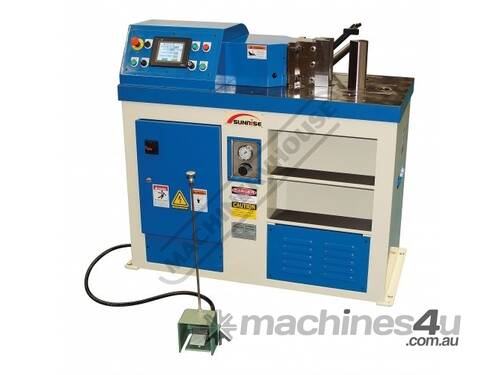

HBM-40 Hydraulic NC Horizontal Bender 40 Tonne Force, Programmable Touch Screen Control with 1016mm

SUNRISE HBM-40 Hydraulic NC Horizontal Bender 40 Tonne Force, Programmable Touch Screen Control with 1016mm Manual Backgauge 200 x 12mm bending Capacity
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: P157

The hydraulic horizontal bending machine is the new addition to the SUNRISE product line of high quality and reliable hydraulic metal working machines. A wide range of tooling is available for different bending operations.

Features:
Easy to learn programmable Omron CP controller
Omron NC touch screen control features 50 programs each program has up to 10 steps and bend counter
Automatic manual and jog modes
±0.1mm cylinder stroke repeatability & accuracy
210mm high x 80mm vee bending die
2 storage shelves 480 x 220 x 170mm (LxHxD)
Adjustable pressure dial with gauge
Includes 1000mm manual backgauge


Specifications:
ORDER CODE: P157
MODEL: HBM-40
Capacity (Tonne): 40
Back Gauge (Type): Manual - 1000mm
Bending Capacity - Mild Steel (mm): 200 x 12
Vee Die Size - (Height x Vee Width) (mm): 210 x 80
Ram Stroke (mm): 250
Forward / Reverse - Speed (mm/sec): 9.6 / 14.5
Fixing Holes - Diameter x Number (mm / No.): Ø83 x 1, Ø58 x 3
Motor Power (kW / hp): 3.75 / 5
Voltage / Amperage (V / amp): 415
Floor Space (L x W x H) (mm): ~
Dimensions (L x W x H) (mm): 1590 x 980 x 1410
Nett Weight (kg): 990


To Purchase Online Please Visit The Machineryhouse & Search For 'P157'
