SUNRISE HBM-40NC Hydraulic NC Horizontal Bender 40 Tonne Force, Programmable Touch Screen Control with 1016mm NC Backgauge 200 x 12mm bending Capacity
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: P157C

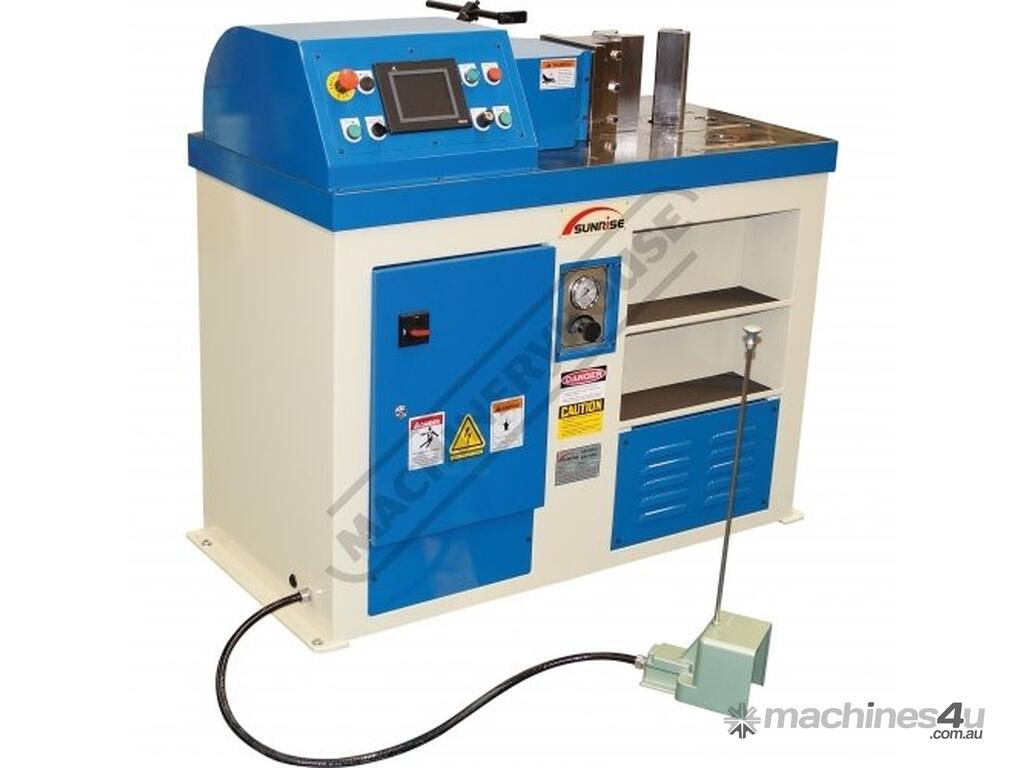

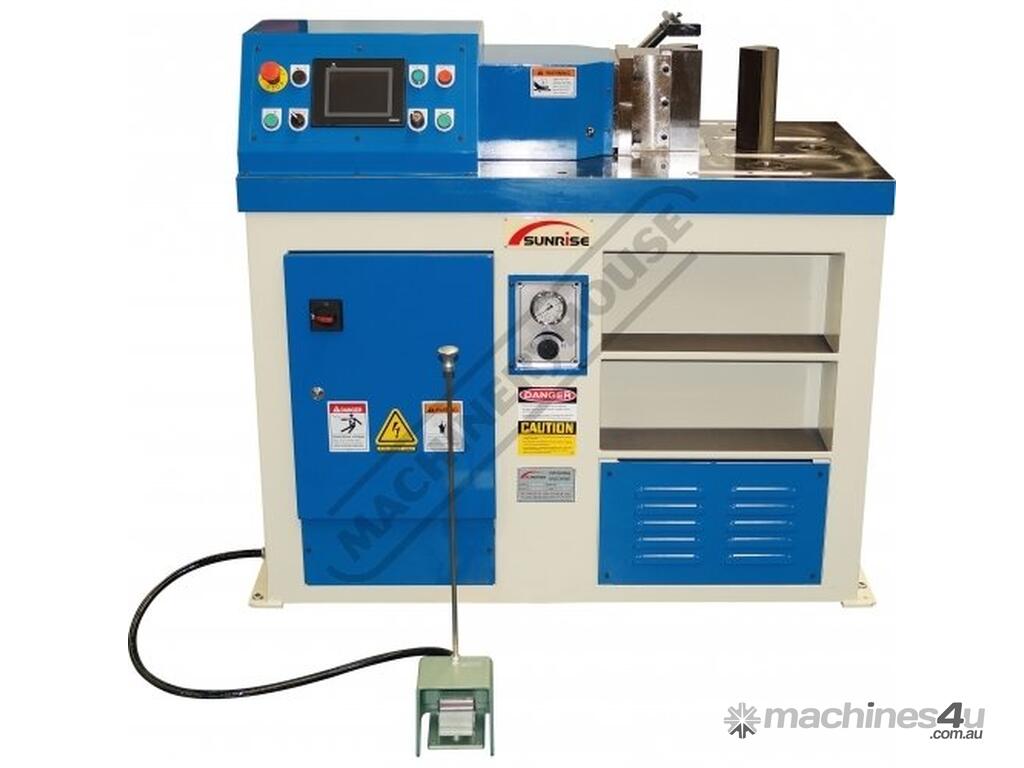

The HBM-40NC hydraulic horizontal bending machine with NC controlled backgauge is the new addition to the SUNRISE product line of high quality and reliable hydraulic metal working machines. A wide range of tooling is available for different bending operations.

Features:
Easy to learn programmable Omron CP controller

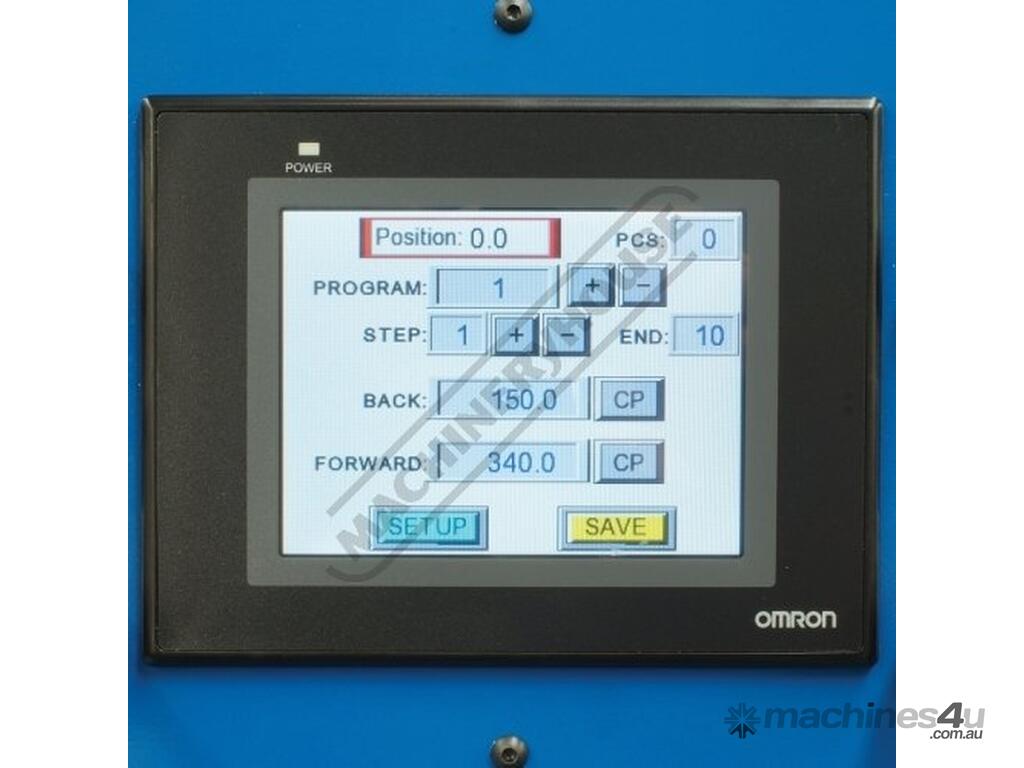

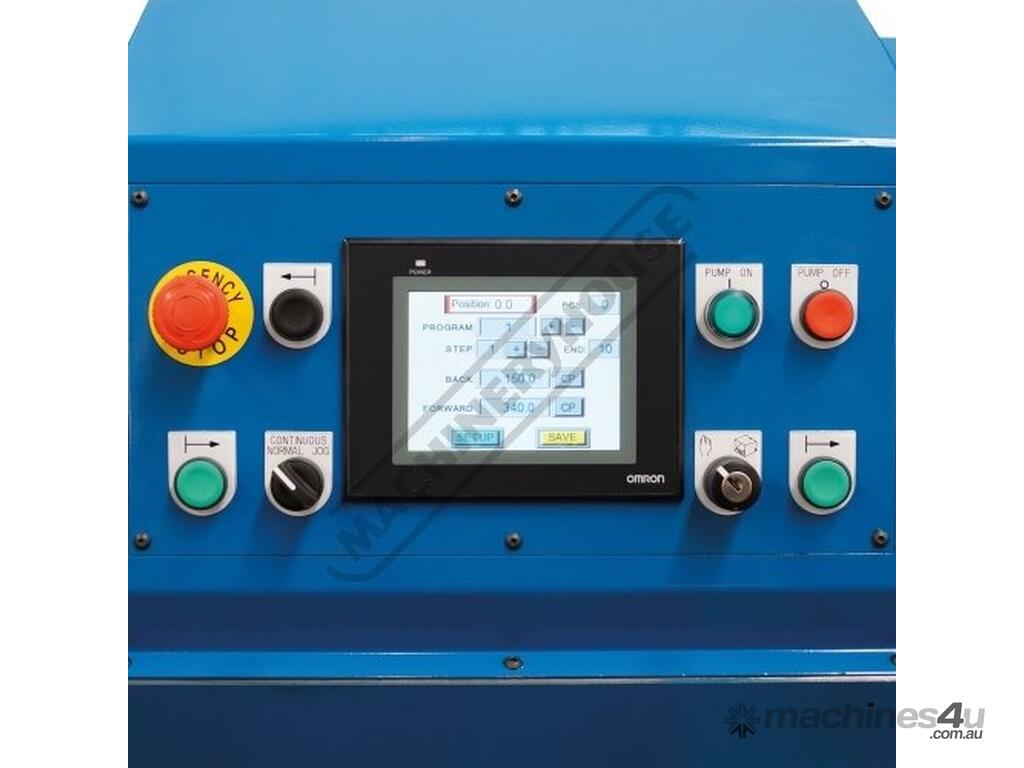

Omron NC touch screen control features 50 programs each program has up to 10 steps and bend counter

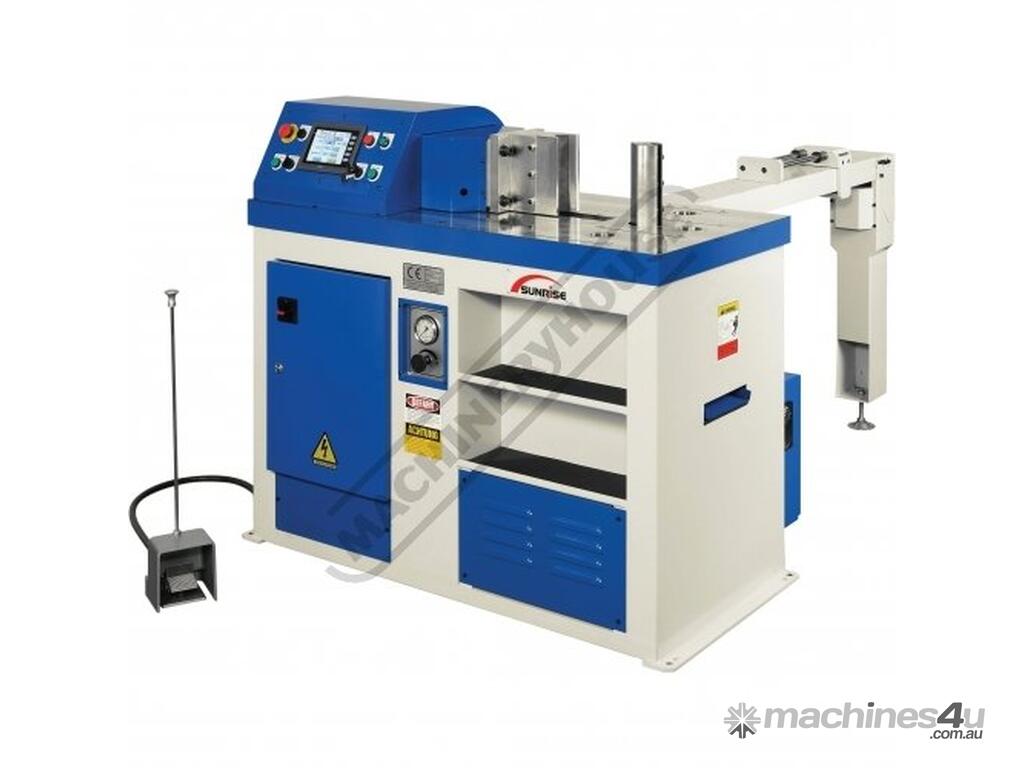

Omron NC controlled backgauge with 1000mm travel
Automatic manual and jog modes
±0.1mm cylinder stroke repeatability & accuracy

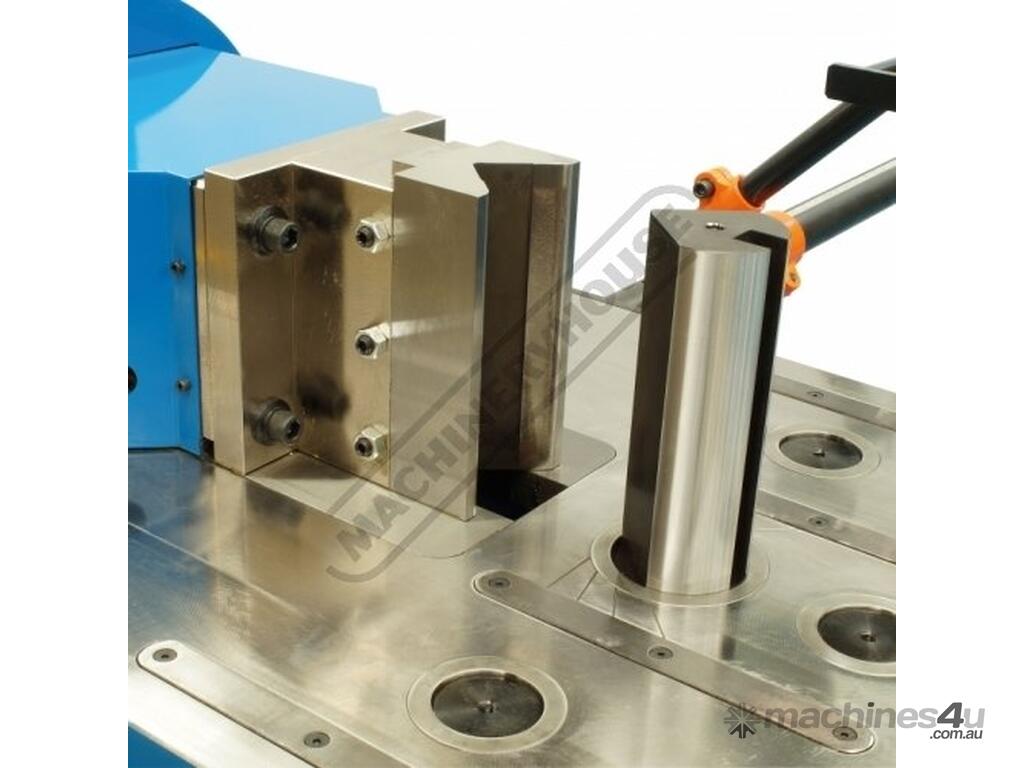

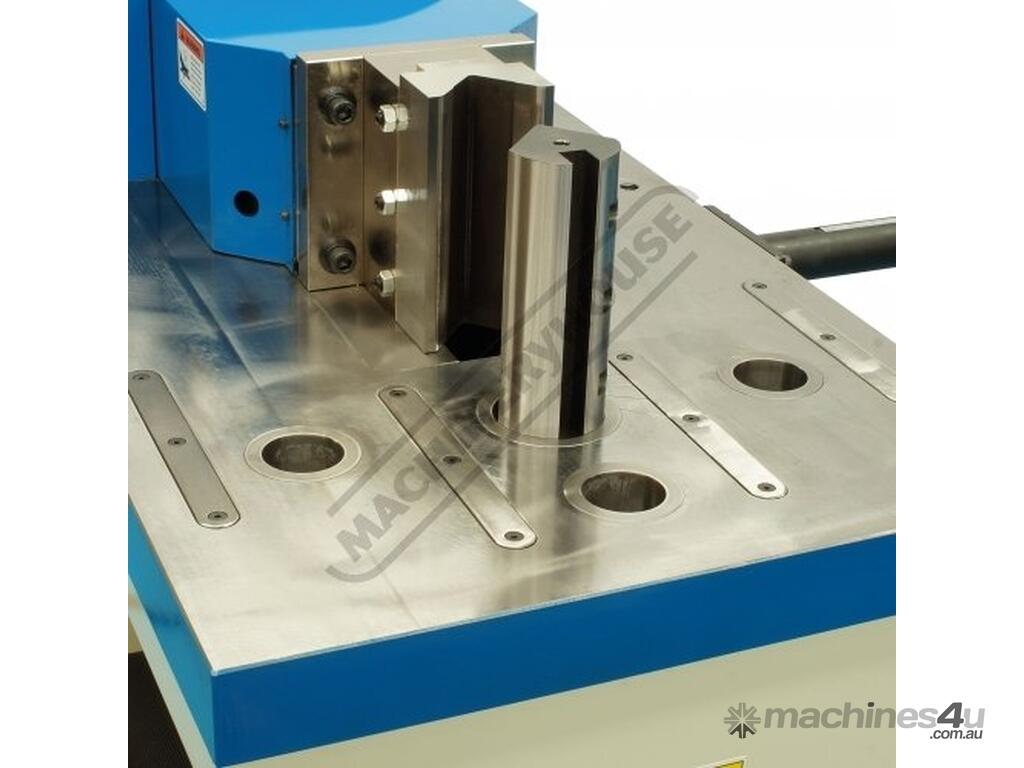

210mm high x 80mm vee bending die

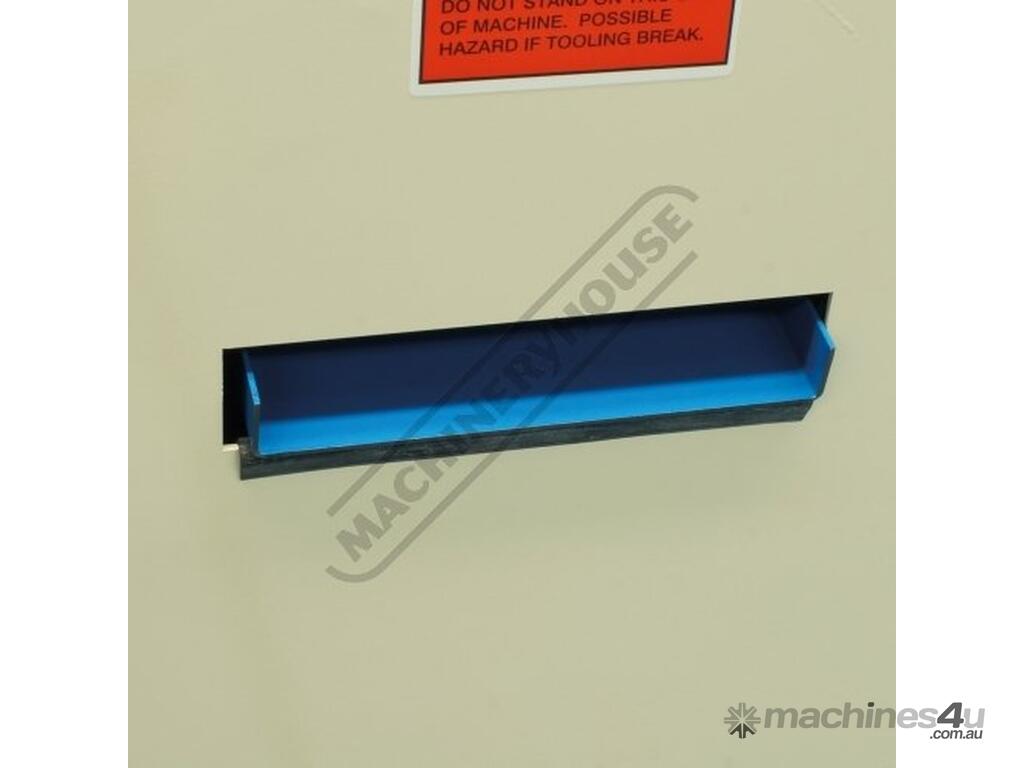

2 storage shelves 480 x 220 x 170mm (LxHxD)

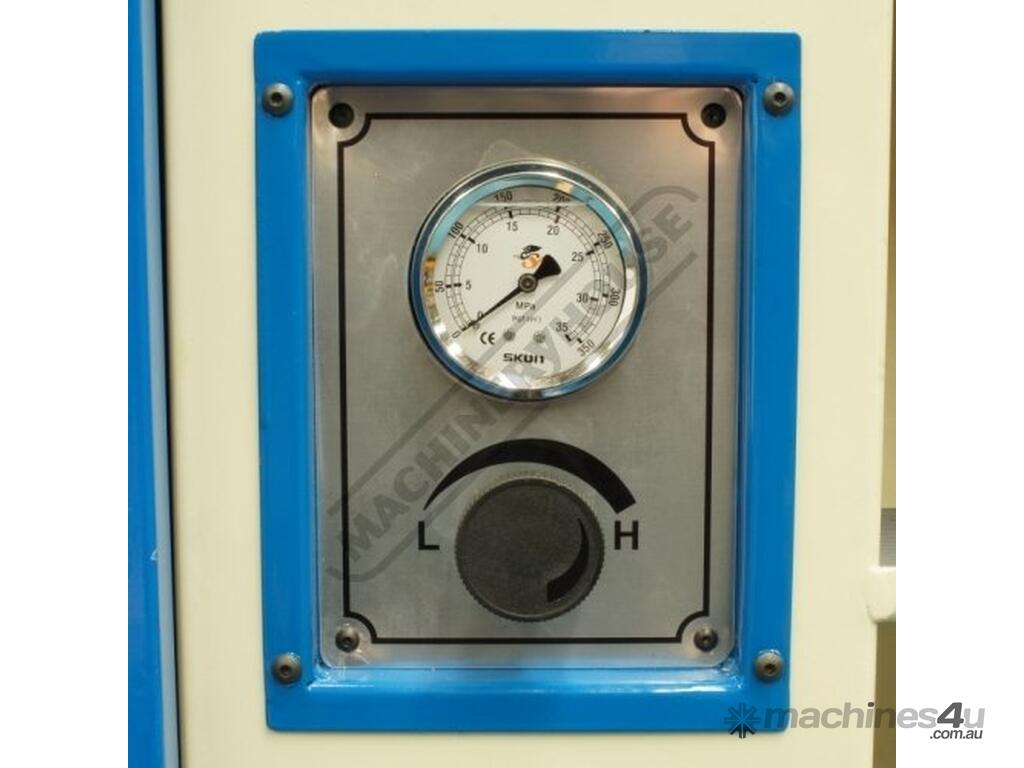

Adjustable pressure dial with gauge


Specifications:
ORDER CODE: P157C
MODEL: HBM-40NC
Capacity (Tonne): 40
Back Gauge (Type): NC Controlled - 1000mm
Bending Capacity - Mild Steel (mm): 200 x 12
Vee Die Size - (Height x Vee Width) (mm): 210 x 80
Ram Stroke (mm): 250
Forward / Reverse - Speed (mm/sec): 9.6 / 14.5
Fixing Holes - Diameter x Number (mm / No.): Ø83 x 1, Ø58 x 3
Motor Power (kW / hp): 3.75 / 5
Voltage / Amperage (V / amp): 415
Floor Space (L x W x H) (mm): ~
Dimensions (L x W x H) (mm): 1590 x 1330 x 1420
Nett Weight (kg): 1145
