HBM-75 Hydraulic NC Horizontal Bender 75 Tonne Force, Programmable Touch Screen Control with 1016mm

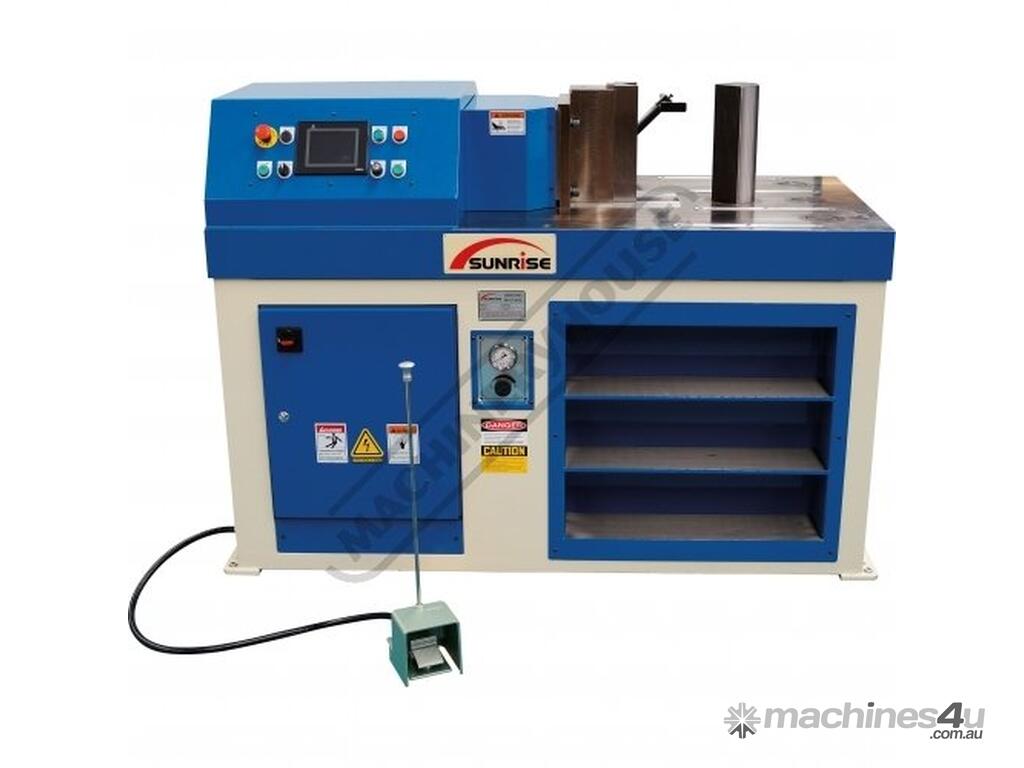

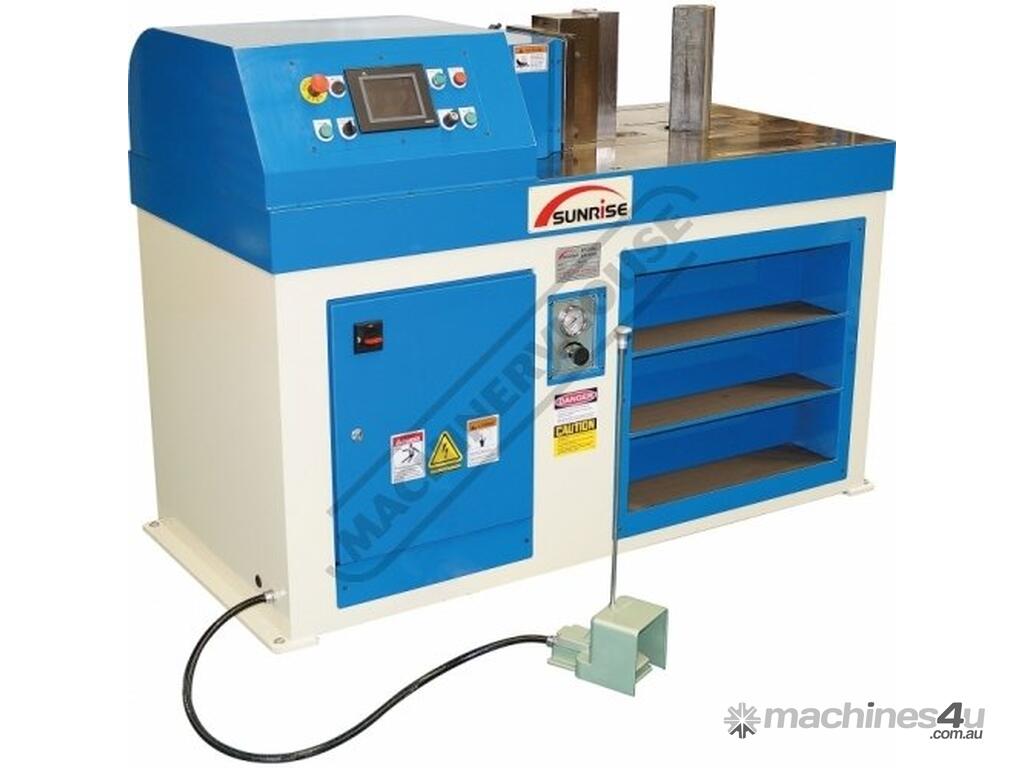

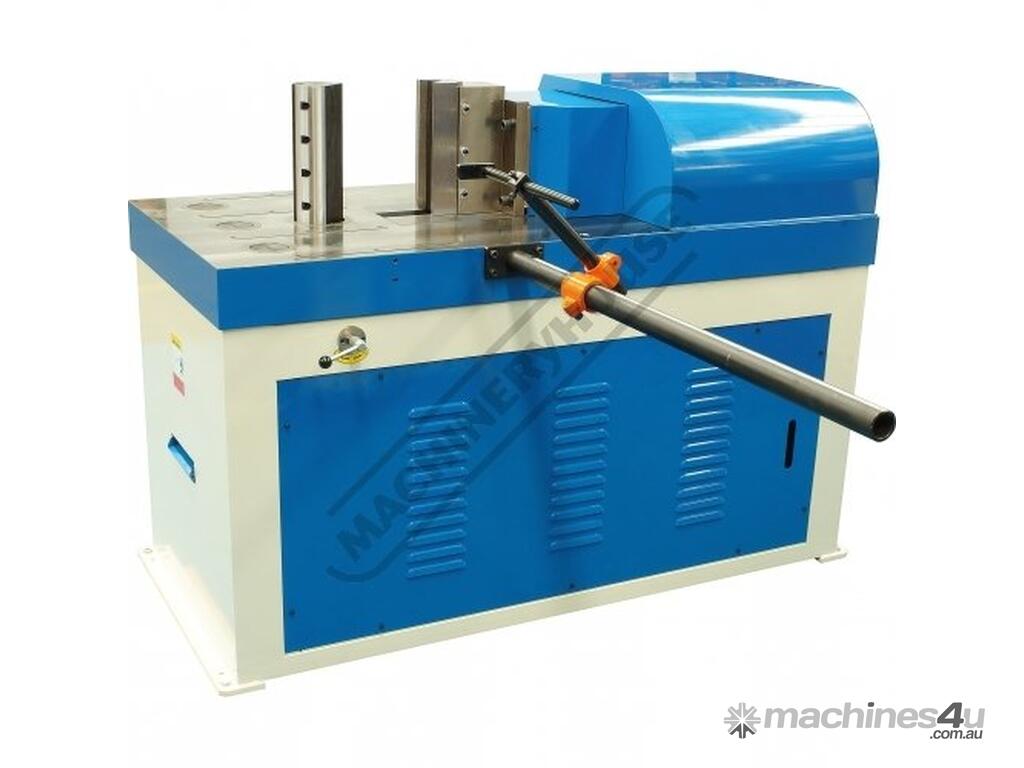

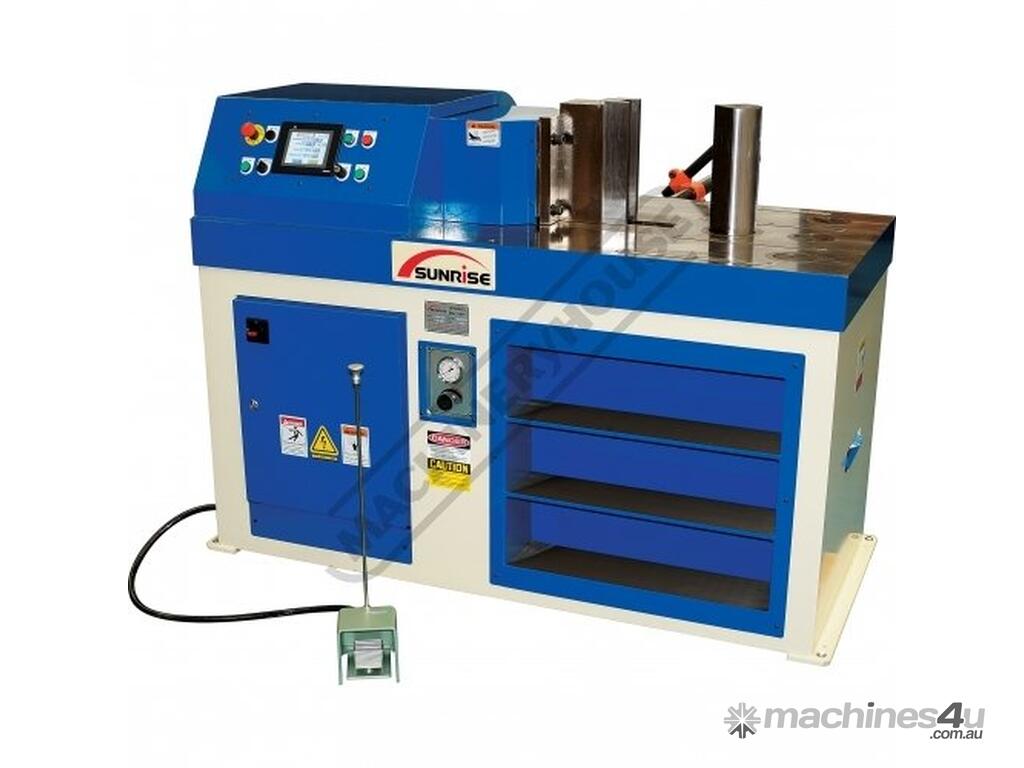

SUNRISE HBM-75 Hydraulic NC Horizontal Bender 75 Tonne Force, Programmable Touch Screen Control with 1016mm Manual Backgauge 300 x 12mm bending Capacity
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: P159

The hydraulic horizontal bending machine is the new addition to the SUNRISE product line of high quality and reliable hydraulic metal working machines. A wide range of tooling is available for different bending operations.

Features:
Easy to learn programmable Omron CP controller

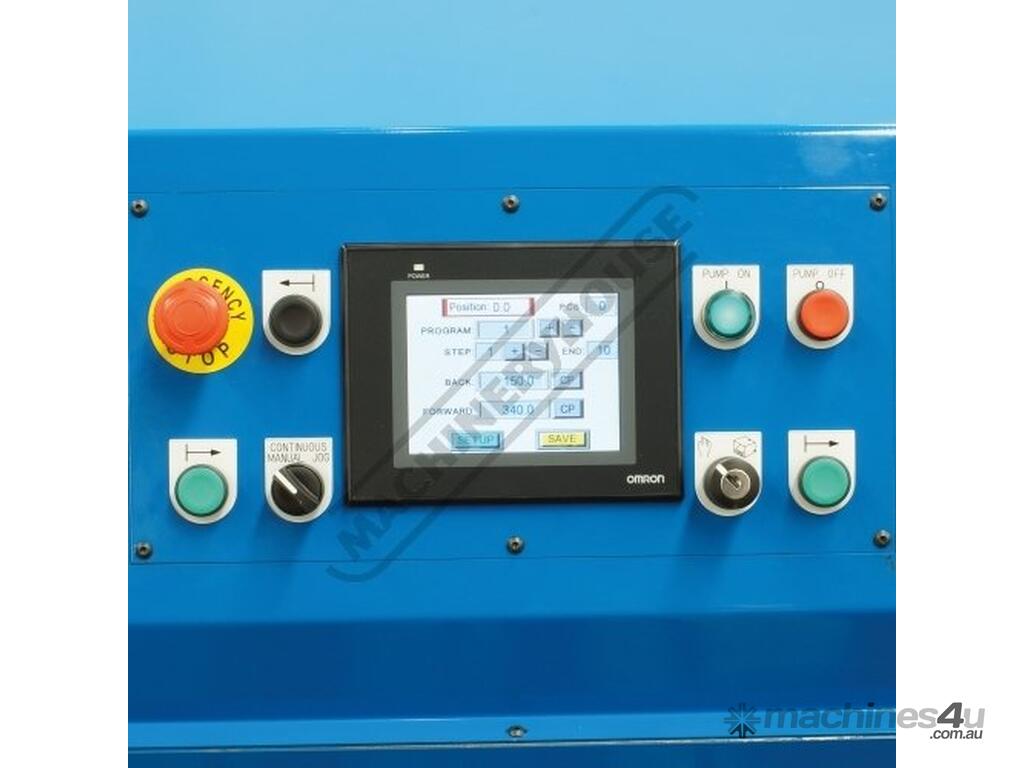

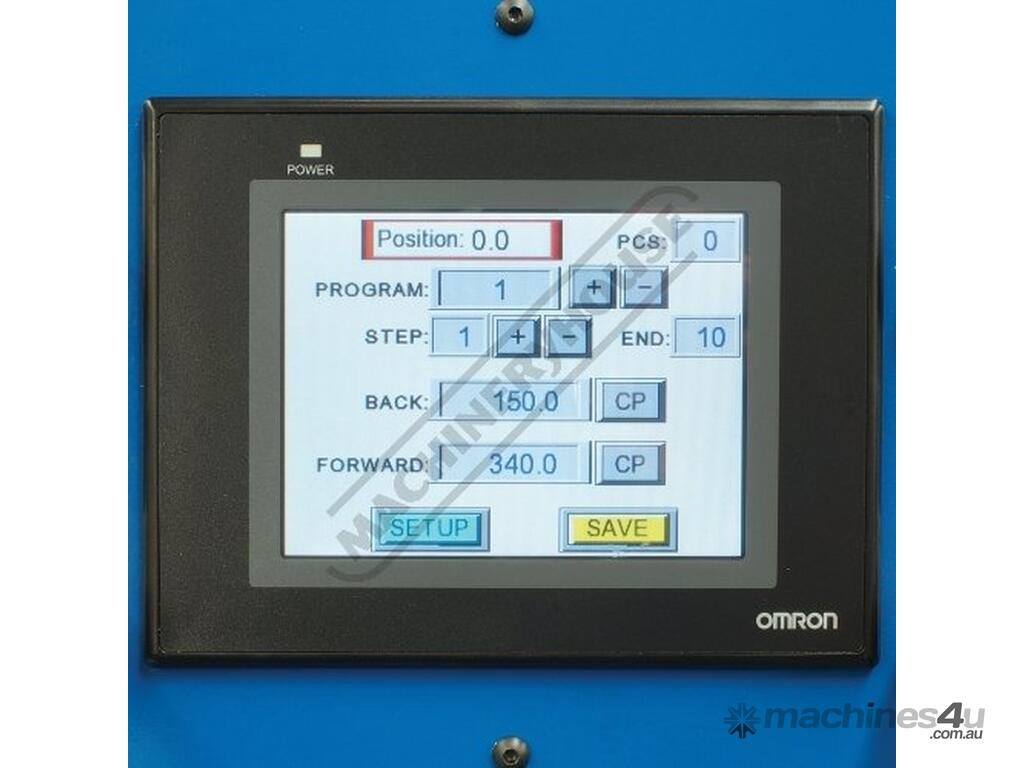

Omron NC touch screen control features 50 programs each program has up to 10 steps and bend counter
Automatic manual and jog modes
±0.1mm cylinder stroke repeatability & accuracy

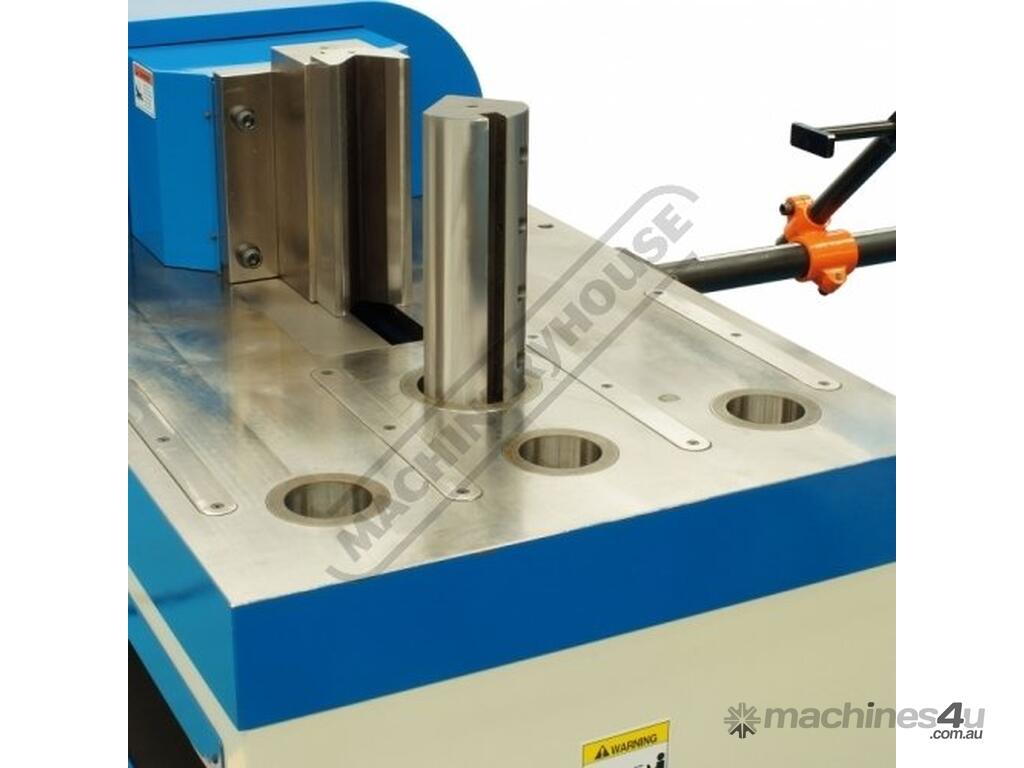

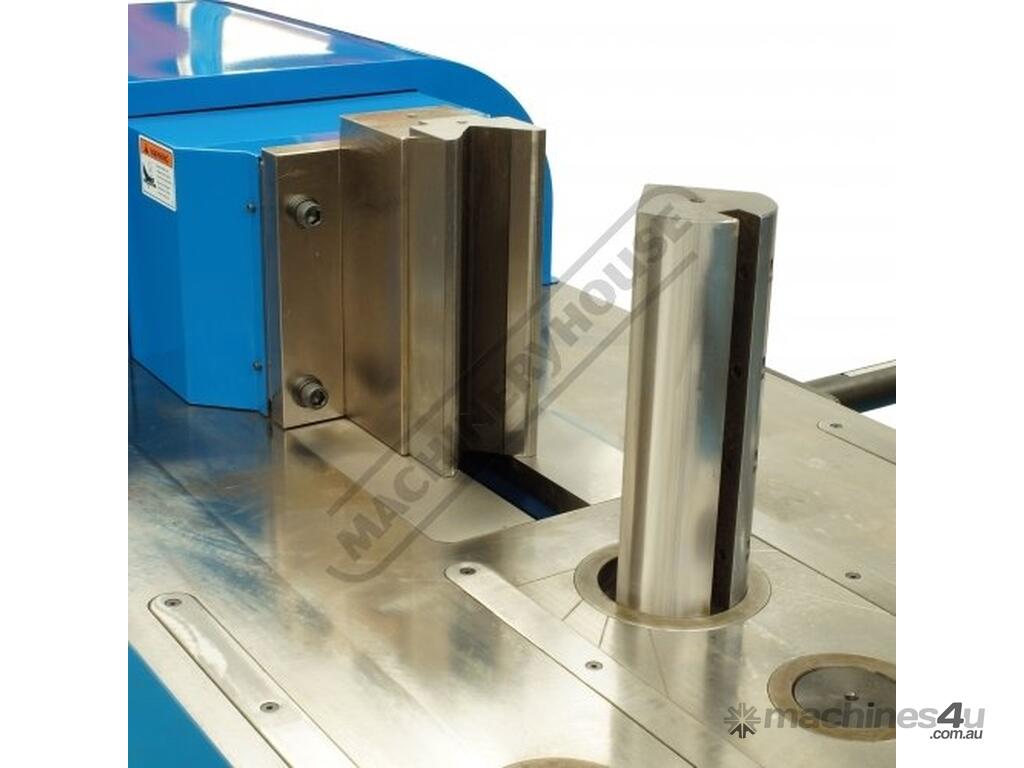

310mm high x 80mm vee bending die
3 storage shelves 680 x 190 x 180mm (LxHxD)

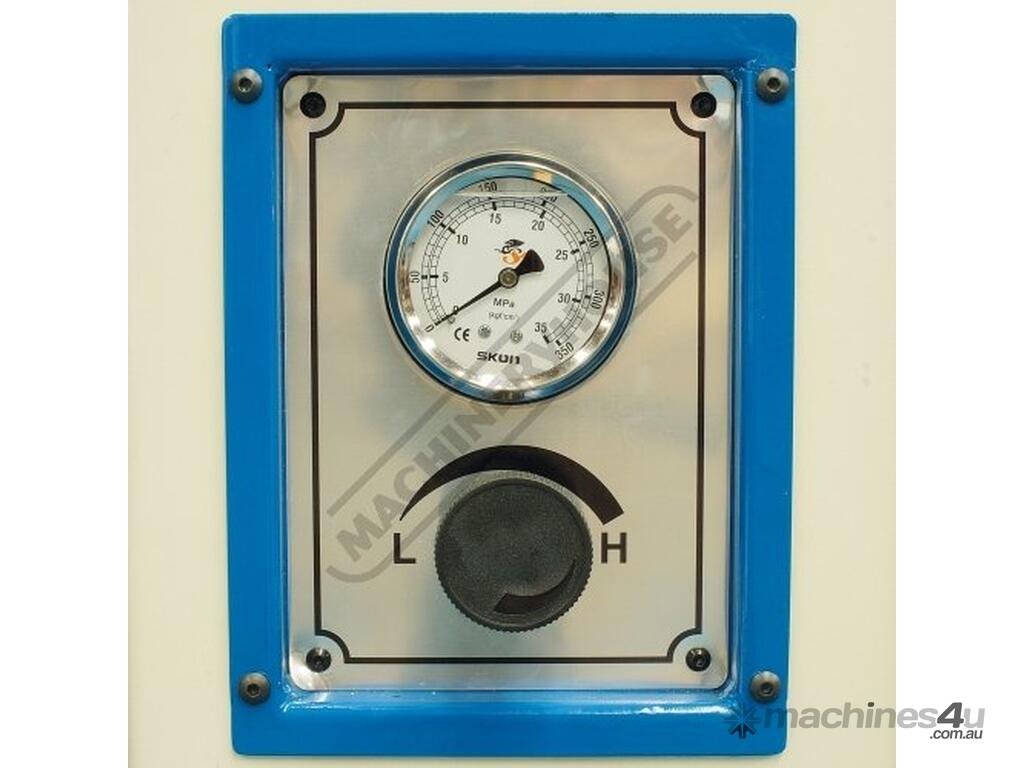

Adjustable pressure dial with gauge

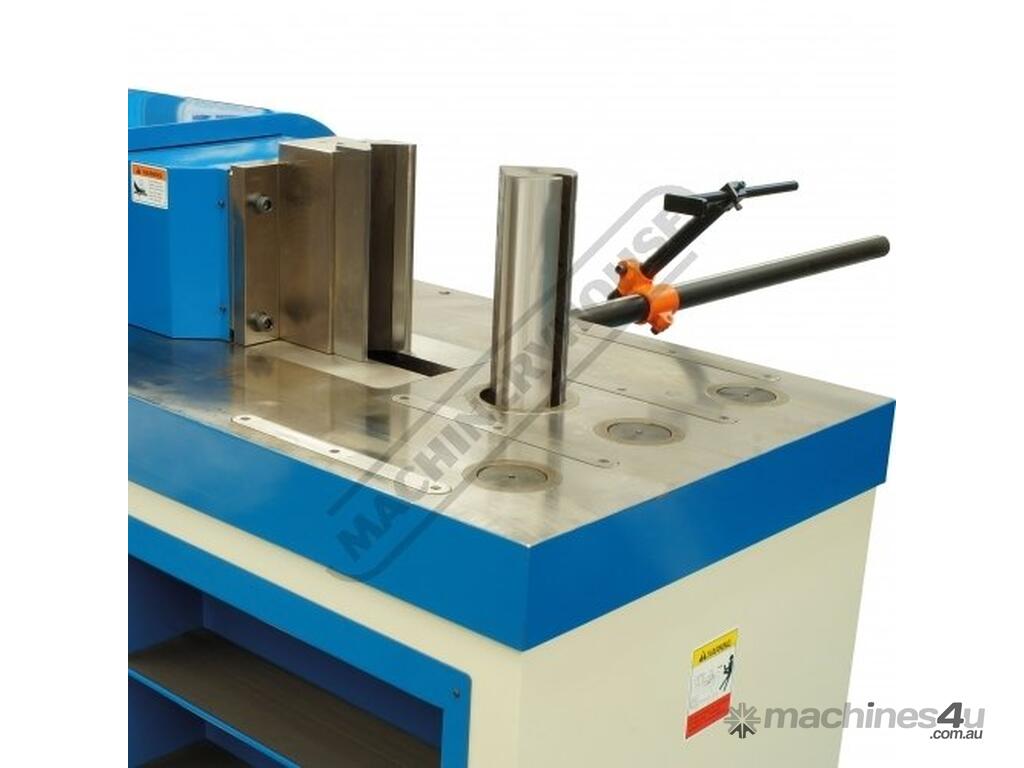

Includes 1000mm manual backgauge


Specifications:
ORDER CODE: P159
MODEL: HBM-75
Capacity (Tonne): 75
Back Gauge (Type): Manual - 1016mm
Bending Capacity - Mild Steel (mm): 300 x 12
Vee Die Size - (Height x Vee Width) (mm): 310 x 80
Ram Stroke (mm): 350
Forward / Reverse - Speed (mm/sec): 8.9 / 9.9
Fixing Holes - Diameter x Number (mm / No.): Ø118 x 1, Ø83 x 3
Motor Power (kW / hp): 5.5 / 7.5
Voltage / Amperage (V / amp): 415
Floor Space (L x W x H) (mm): ~
Dimensions (L x W x H) (mm): 2020 x 1130 x 1500
Nett Weight (kg): 2025


To Purchase Online Please Visit The Machineryhouse & Search For 'P159'
