HBM-75NC Hydraulic NC Horizontal Bender 75 Tonne Force, Programmable Touch Screen Control with 1016m

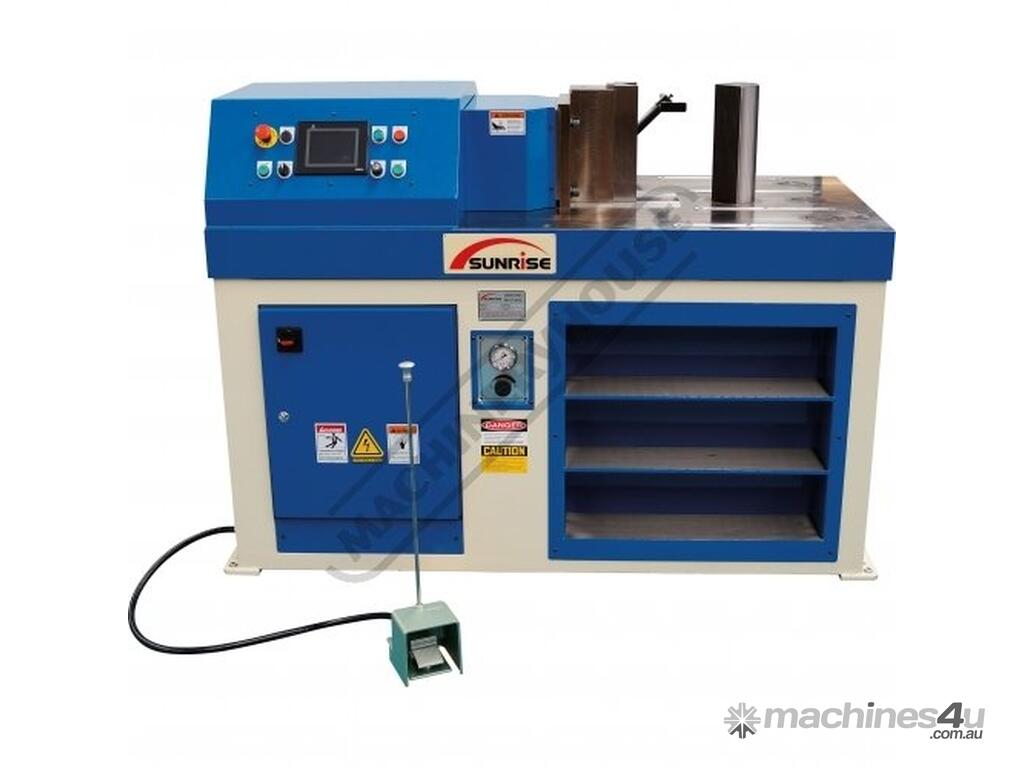

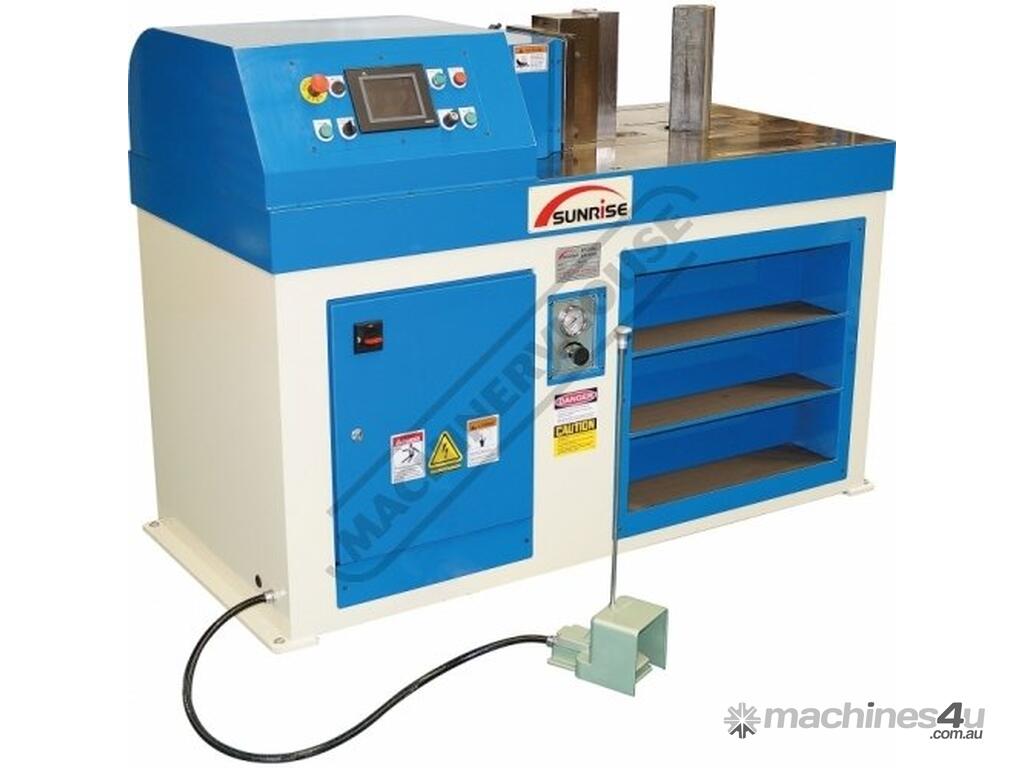

SUNRISE HBM-75NC Hydraulic NC Horizontal Bender 75 Tonne Force, Programmable Touch Screen Control with 1016mm NC Backgauge 300 x 12mm bending Capacity
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: P159C

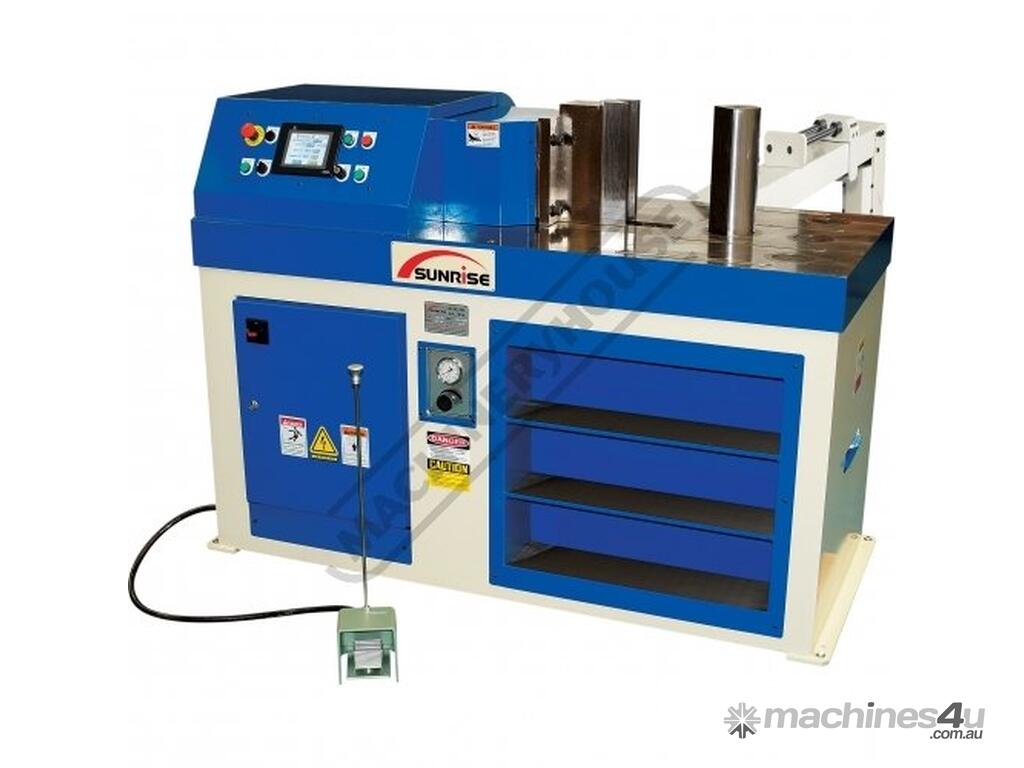

The HBM-75NC hydraulic horizontal bending machine with NC controlled backgauge is the new addition to the SUNRISE product line of high quality and reliable hydraulic metal working machines. A wide range of tooling is available for different bending operations.The HBM-40NC hydraulic horizontal bending machine with NC controlled backgauge is the new addition to the SUNRISE product line of high quality and reliable hydraulic metal working machines. A wide range of tooling is available for different bending operations.

Features:
Easy to learn programmable Omron CP controller

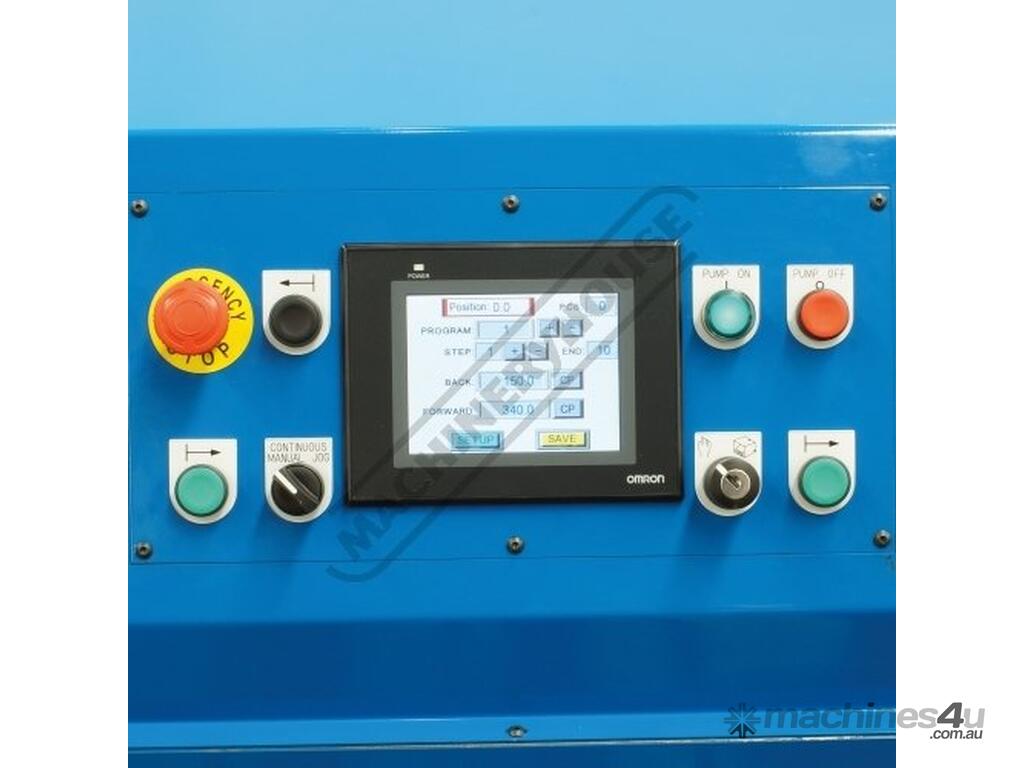

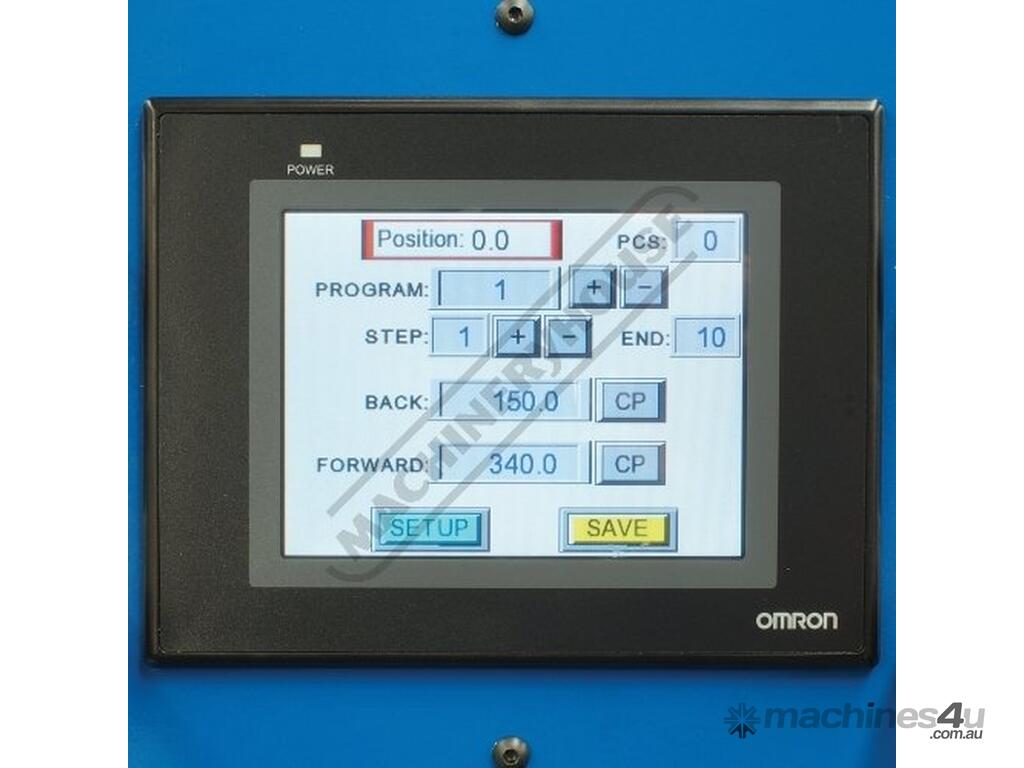

Omron NC touch screen control features 50 programs each program has up to 10 steps and bend counter
Omron NC controlled backgauge with 1000mm travel
Automatic manual and jog modes
±0.1mm cylinder stroke repeatability & accuracy

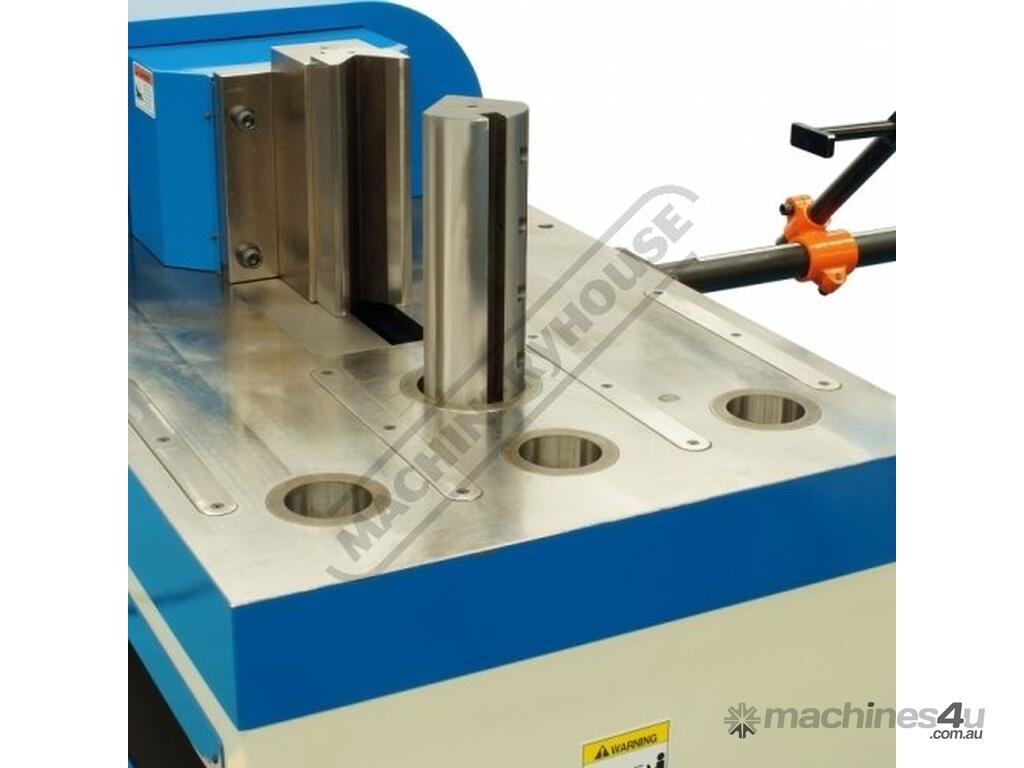

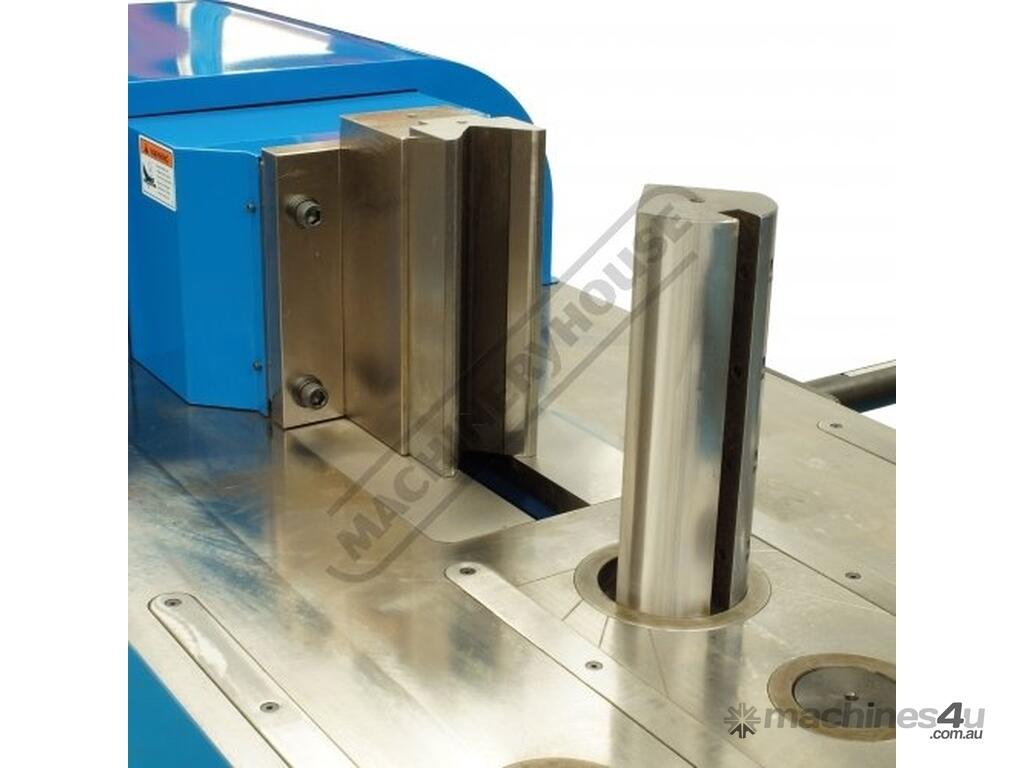

310mm high x 80mm vee bending die

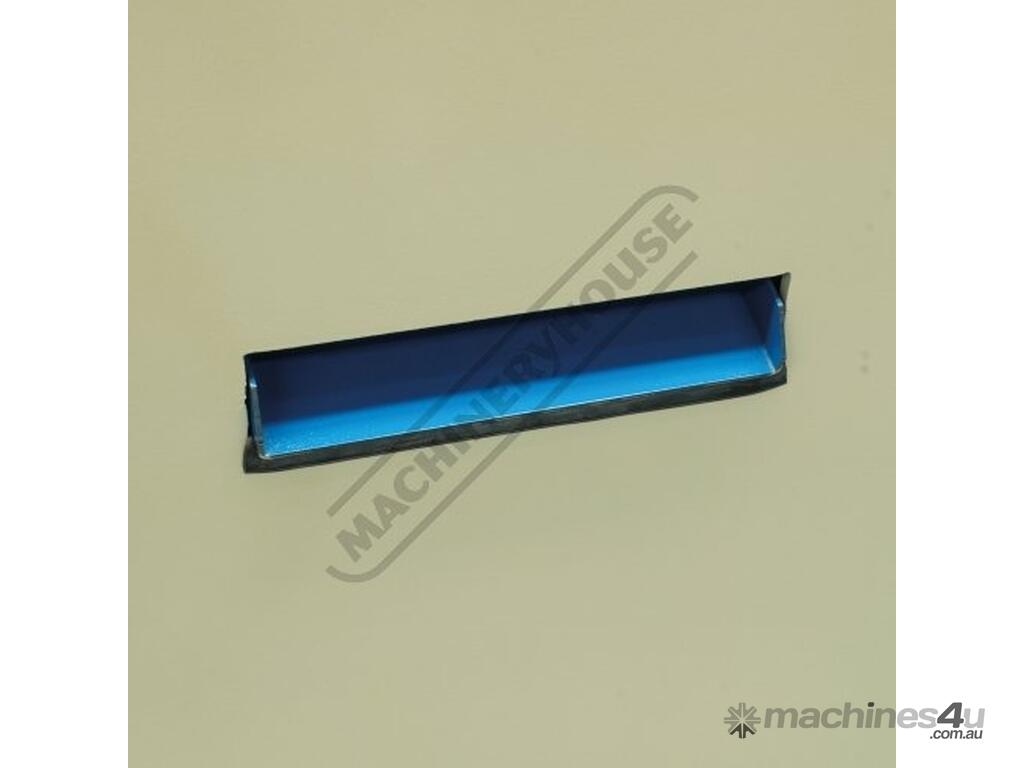

3 storage shelves 680 x 190 x 180mm (LxHxD)

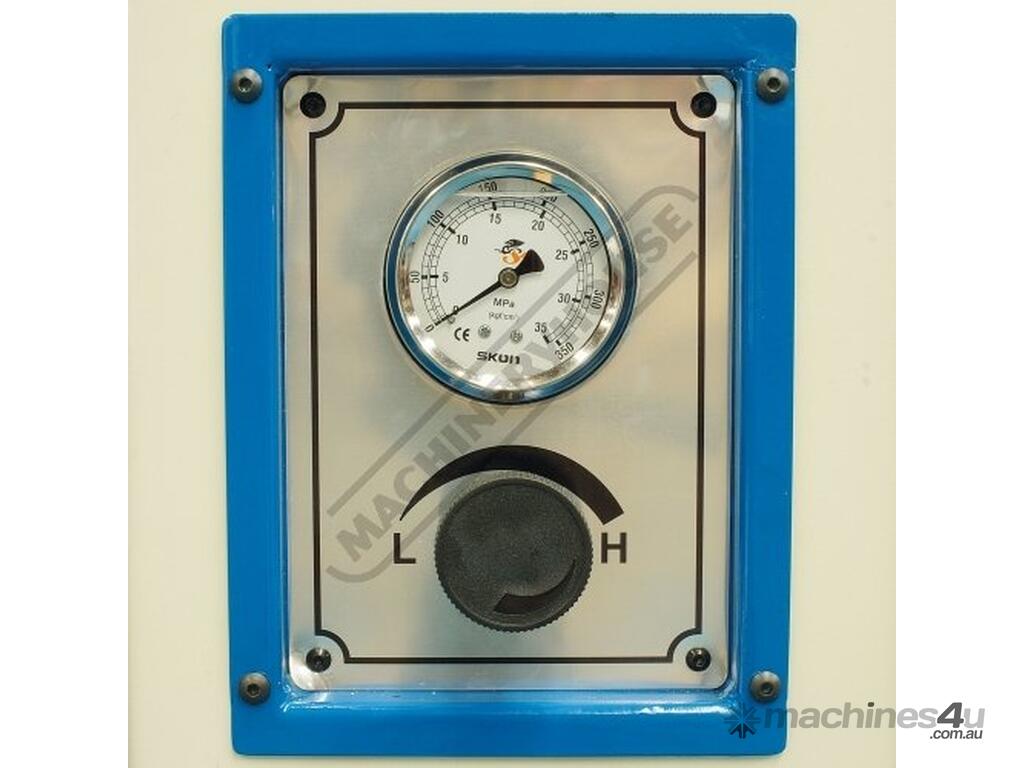

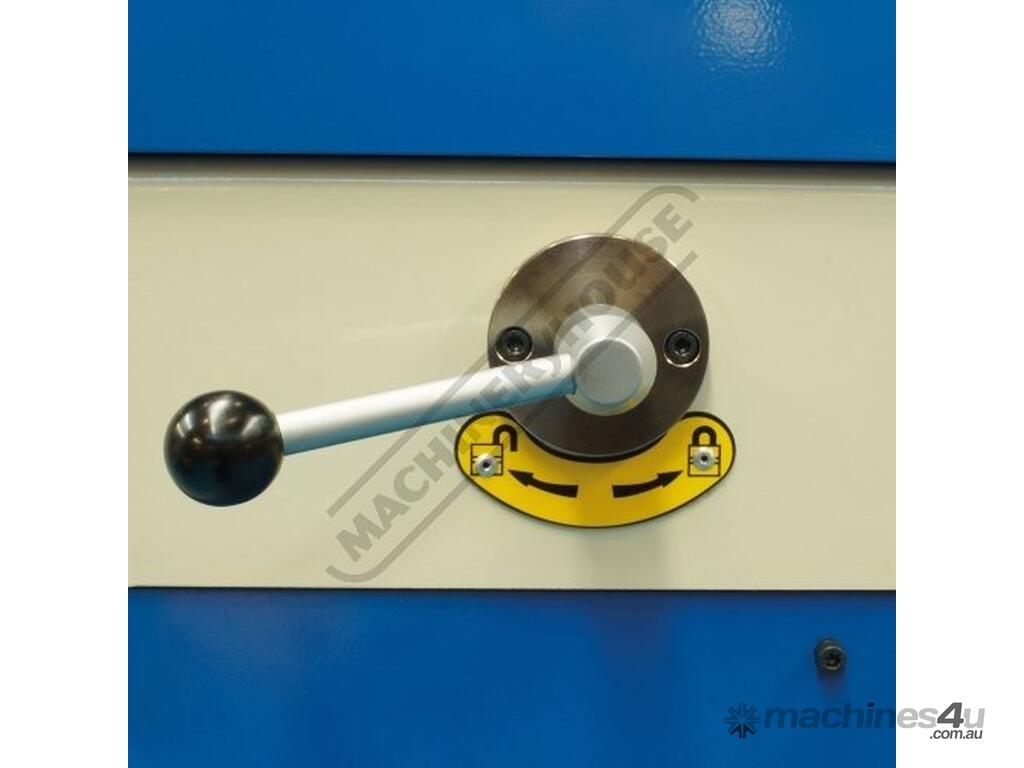

Adjustable pressure dial with gauge


Specifications:
ORDER CODE: P159C
MODEL: HBM-75NC
Capacity (Tonne): 75
Back Gauge (Type): NC Controlled - 1016mm
Bending Capacity - Mild Steel (mm): 300 x 12
Vee Die Size - (Height x Vee Width) (mm): 310 x 80
Ram Stroke (mm): 350
Forward / Reverse - Speed (mm/sec): 8.9 / 9.9
Fixing Holes - Diameter x Number (mm / No.): Ø118 x 1, Ø83 x 3
Motor Power (kW / hp): 5.5 / 7.5
Voltage / Amperage (V / amp): 415
Floor Space (L x W x H) (mm): ~
Dimensions (L x W x H) (mm): 2020 x 1480 x 1500
Nett Weight (kg): 2190
