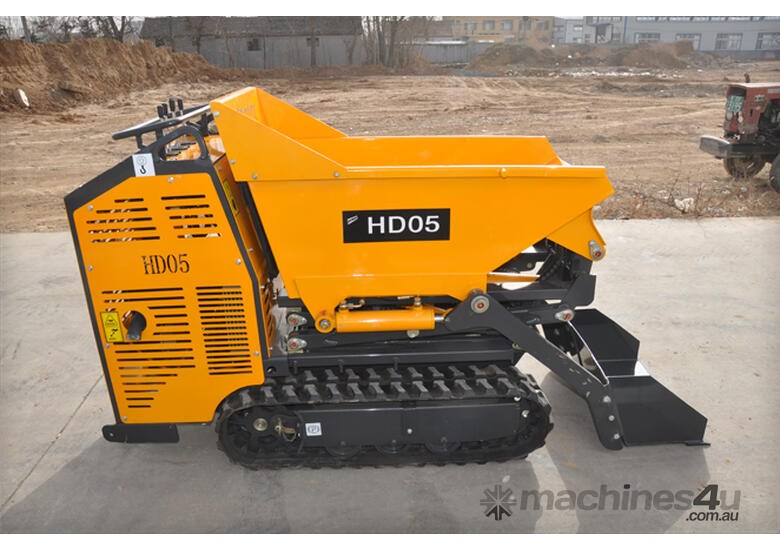

HD05 Mini Dumper (With Self Load Bucket) 800mm Wide

HYSOON HD05 Mini Dumper (Petrol ONLY) designed to work in narrow spaces for the professional & DIY
Integral type Chassis ensures easy operation and maintenance.
Hydrostatic transmission technology improves machine stability.

The open-style design of left-side, right-side and back cover guards allows the operator to fill the fuel & engine oil and exchange the engine air filter for the dumper conveniently.

The cover guards on the operating system can be removed facilitating quick and easy repairs to the dumper.
Intuitive designed operation controls are easy and comfortable to use.

Rubber tracks offer the best of all worlds with low ground pressure, high performance movement and excellent traction.

Heavy duty skip suitable for different kinds of mateials such as building, farming and so on.

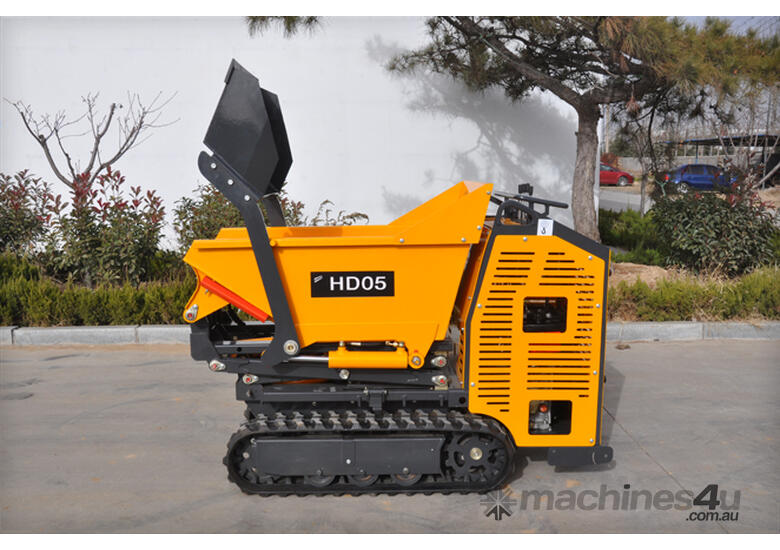

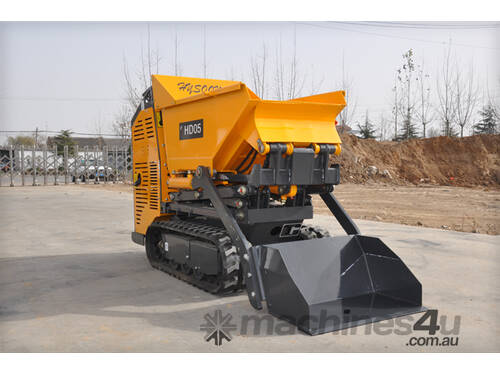

The self-loading shovel ensures efficient loading of the dumper.

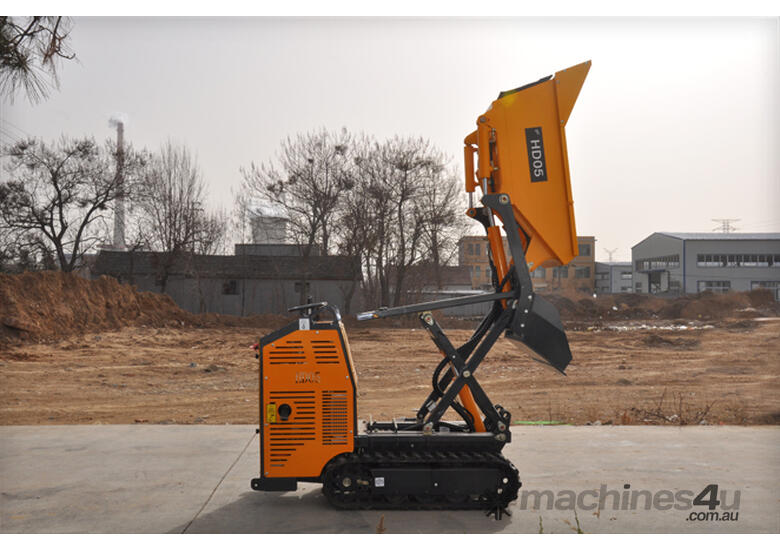

1447mm ultra high dumping height facilitates easy loading of trucks.

* HD05 mini dumper own compact size ,can ensures the dumper to transport kinds of materials in small (narrow)space.
* very easy to maintenance . Thanks to the open-style design of left-side, right-side and back cover guards; you can fill oil and exchange filters for the dumper conveniently.
* High efficiency :Auto charging system can save your time and effort to load all kinds of material into the skip. 1447mm dumping height can transport various materials to the truck.


Standard Specification:
• Engine:Petrol engine (13.5HP)
• Tyre:Rubber track
• Motor:cycloid motor
• Hydraulics Pumps:gear pump
• Bucket:With self loading bucket
• With X-support
• Size (length *width *height): 1895*69581220mm
• Bucket capacity: 0.2cbm
• Rated load:500kg
• Operating weight:600kg


Facts about HD05
Specially designed motor support sleeve
When compared with conventional two-motor drive machines, the HD05 Dumper adopts a four hydraulic motor direct drive system that drives the wheels . This reduces transmission components such as sprockets, chains, sprocket shafts, bearings, etc., and avoids the hidden problems that those components could cause.

Common to mini diggers on the market now with a four hydraulic motor design is that the motor is mounted on the side plate of the rack, with the motor output shaft cantilever mounts over the tyres. The motor output shaft is then unsupported and operational forces could reduce the service life of the motor. Also motor maintenance and disassembly must be done from the inside of the rack and it is a complex task.

However, the mini digger's four-motor-driving system is connected to the frame through a specially designed motor support sleeve and the forces transmitted to the motor output shaft have been reduced by more than 50%, significantly improving the service life of the motor. At the same time, the motor can be easily removed by loosening the bolts of the externally mounted motor support sleeve, reducing maintenance downtime and labour costs if required.

Mini Dumpers designed to work in narrow spaces for the professional & DIY
When the HD05 Dumper is fitted with either track or narrow tyre, the width of the whole machine is easily driven into the backyard or through narrow gates. The maximum working height of the HD05 Dumper mini digger's hinge pin is significantly more than some others on the market.


Warranty
Hysoon Australia covers all the machines and attachments with a full 12-month warranty on all parts and labor.
