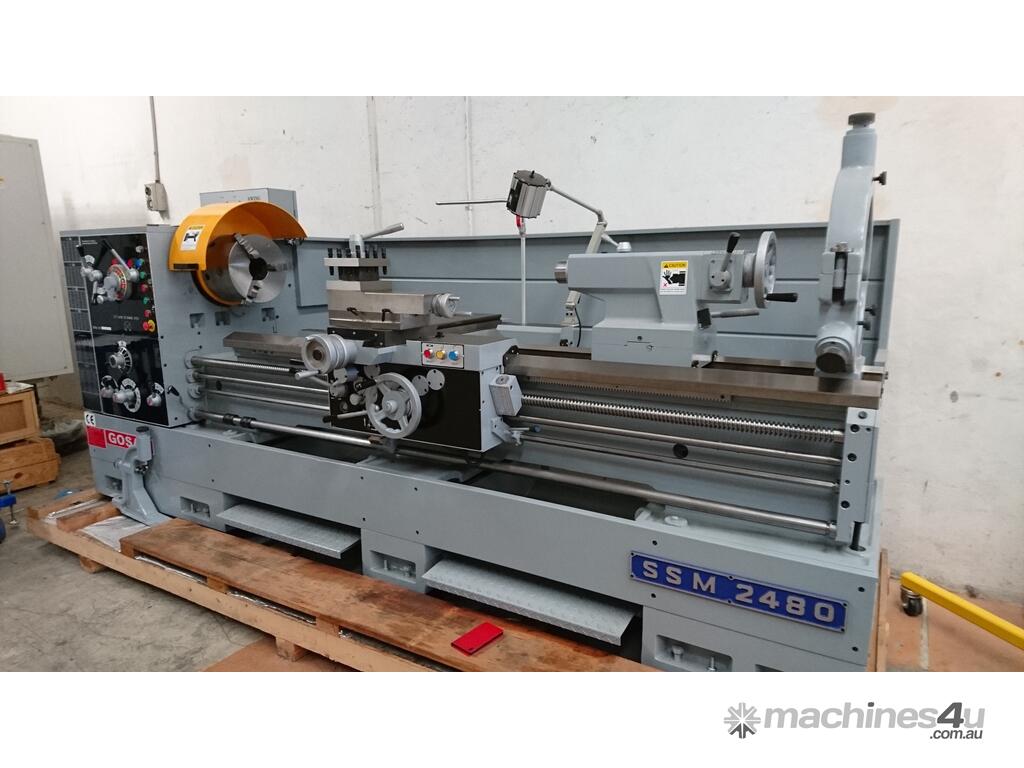

HEAVY DUTY LATHE (15HP Main motor; spindle bore 105mm 4-1/8inch)

Quality Taiwanese lathes with excellent safety and reliability
High-quality, Taiwanese-built Gosan lathes are an excellent choice for metalworking professionals – with a wide range to meet individual requirements. They feature advanced safety features such as interlock chuck guards and electromagnetic braking – as well as excellent thread cutting capabilities.

FEATURES
4-1/8in (105mm) Spindle bore; D1-11 camlock spindle nose; 3-bearing spindle support.
18 Spindle speeds, 10-1200 rpm, with electro-magnetic brake.
Electro-magnetic clutch mounted in Headstock, for spindle speed changed without stopping motor.
Automatic forced lubrication in headstock is moved by a direct motor drive lubrication gear pump, and oil tank is equipped in the leg of machine to minimize the cooling of oil.
Heavy duty geared head; hardened and ground gears.
15HP Main spindle motor.

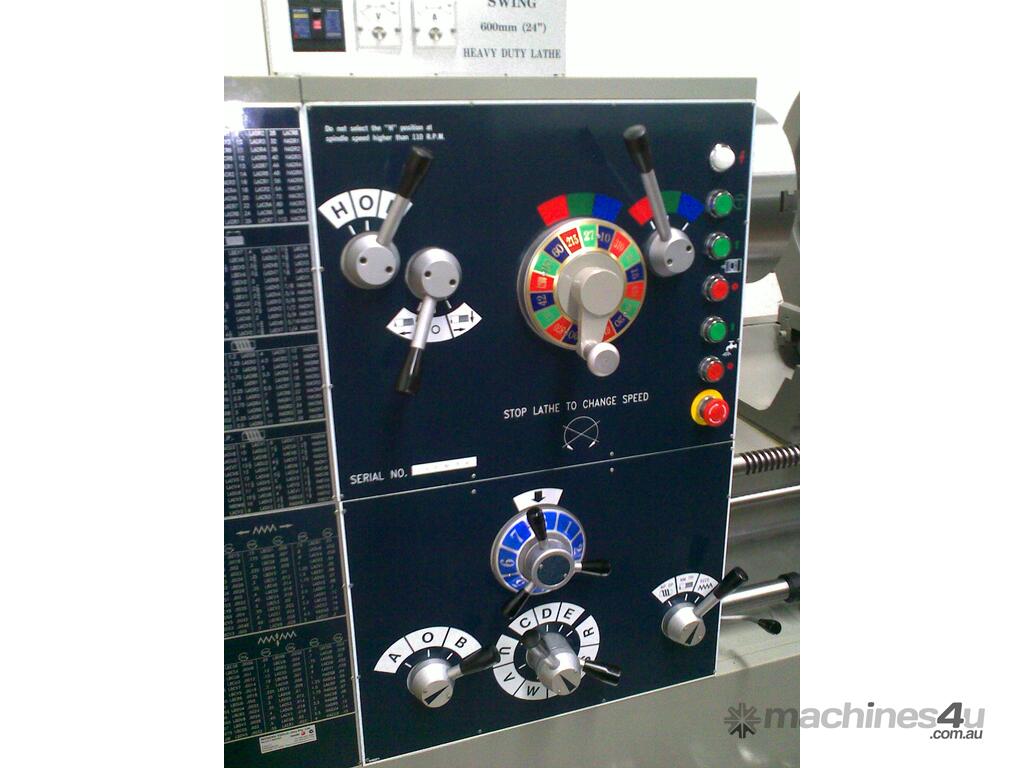

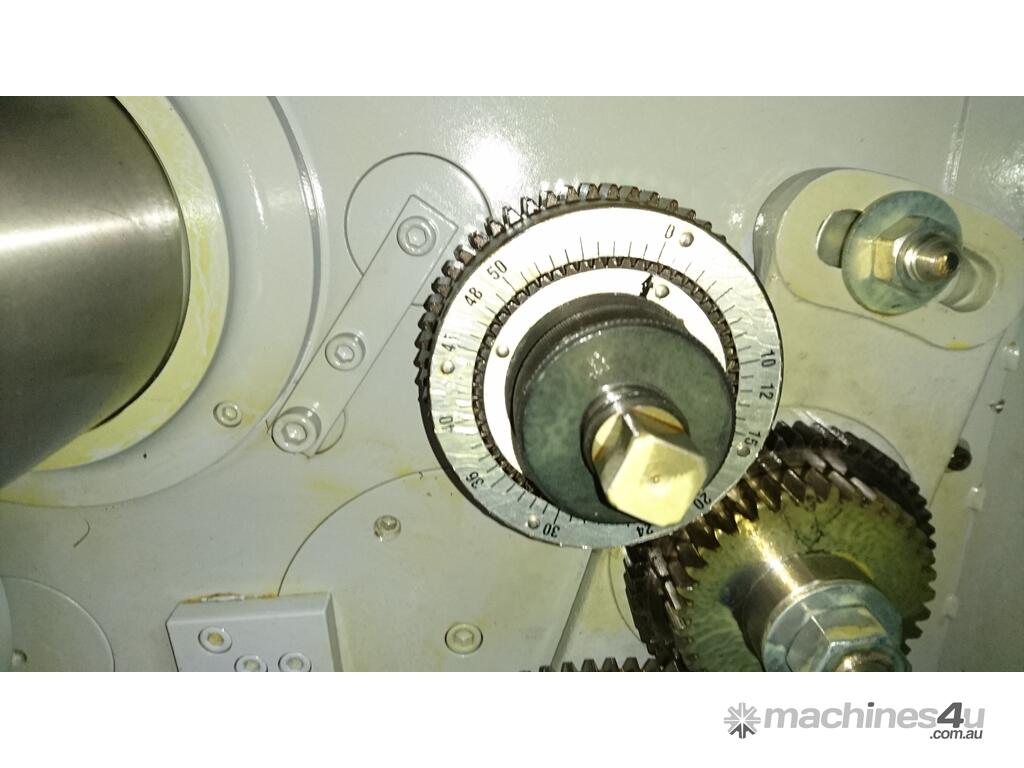

Quick-change universal gearbox for inch, metric, DP, MP, threading, and multiple thread, all function without any change gears.
Four-way rapid carriage movement.
Automatic lubrication in saddle and apron assembly.
Adjustable overload clutch in apron to ensure proper cutting load.
2 speeds tailstock barrel.

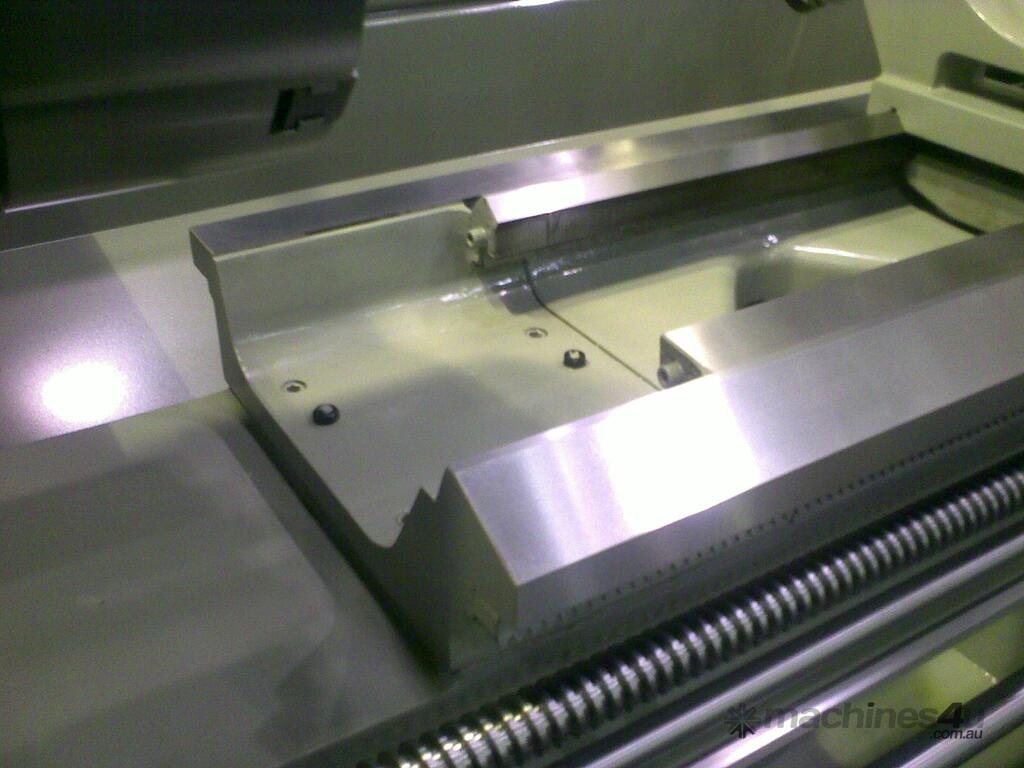

19in. (485mm) wide bed ways, induction hardened and ground.
