HEAVY DUTY LATHE 45"- 60" SWING NEW

Condition:
New - Build-To-Order

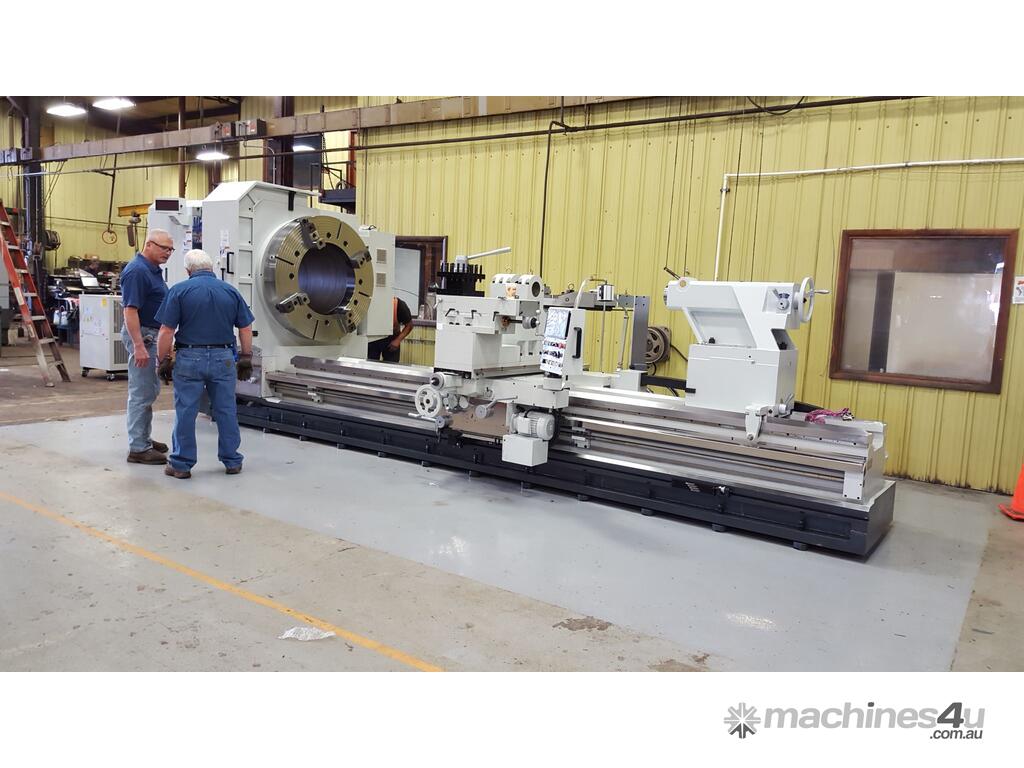

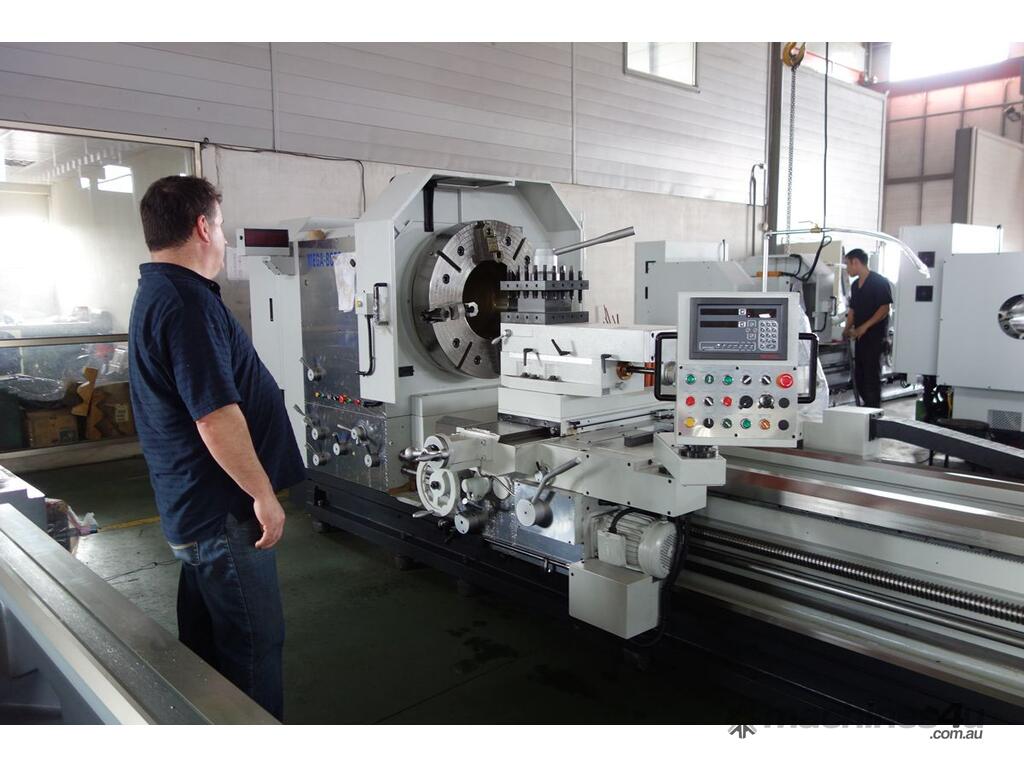

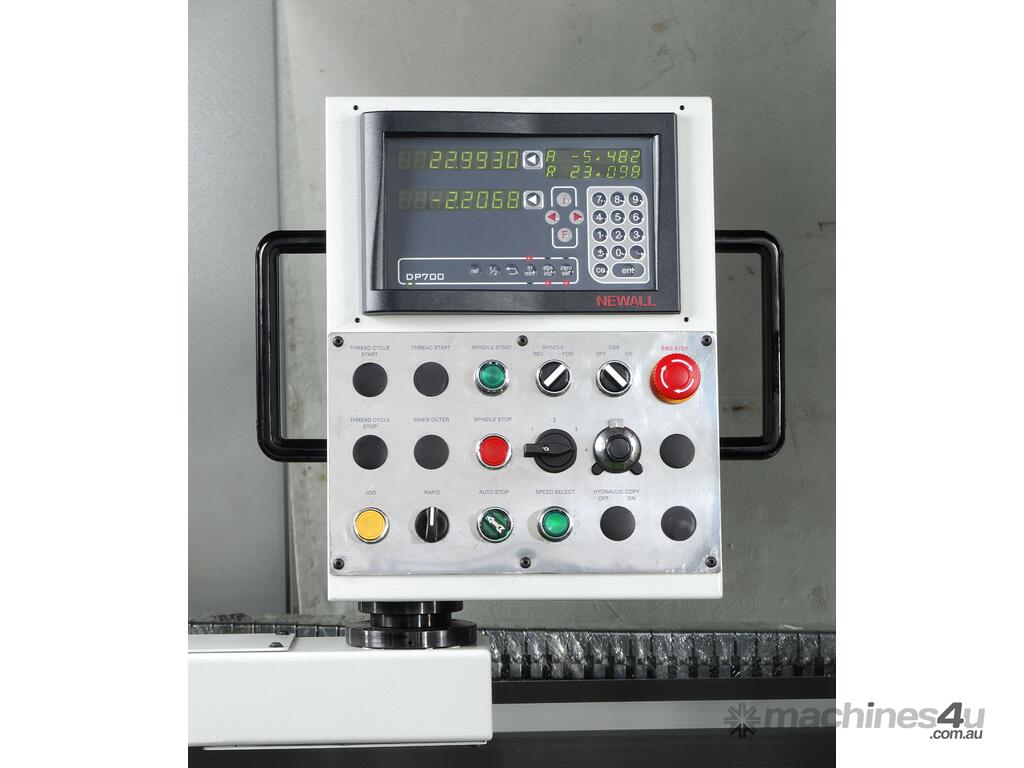

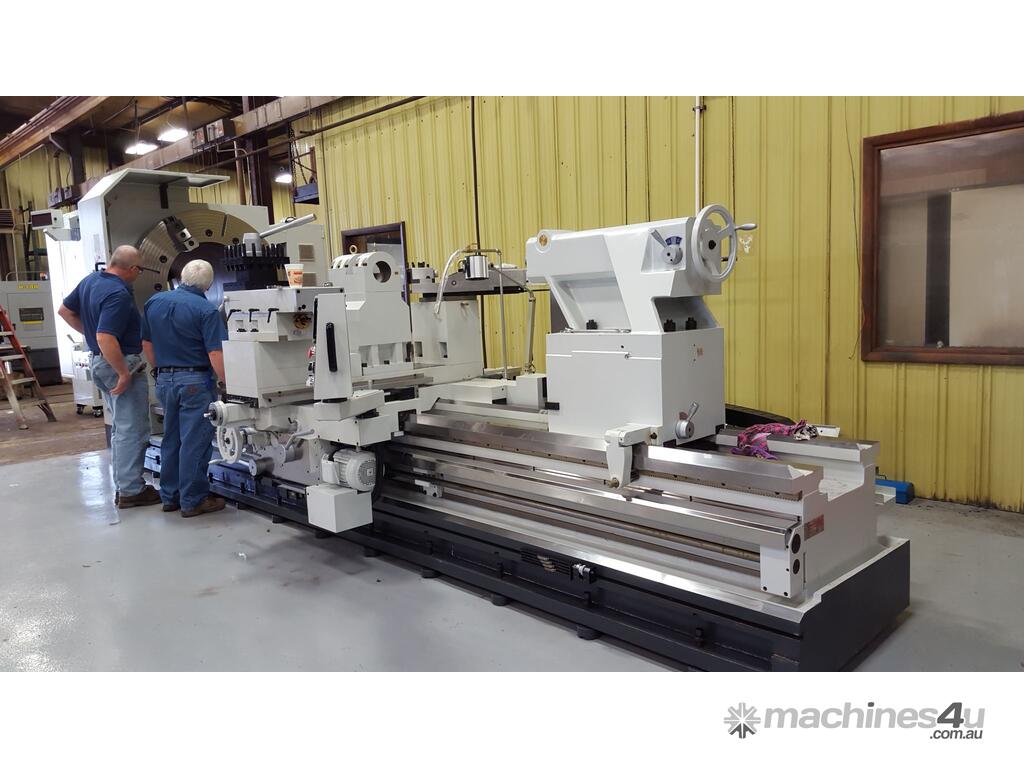

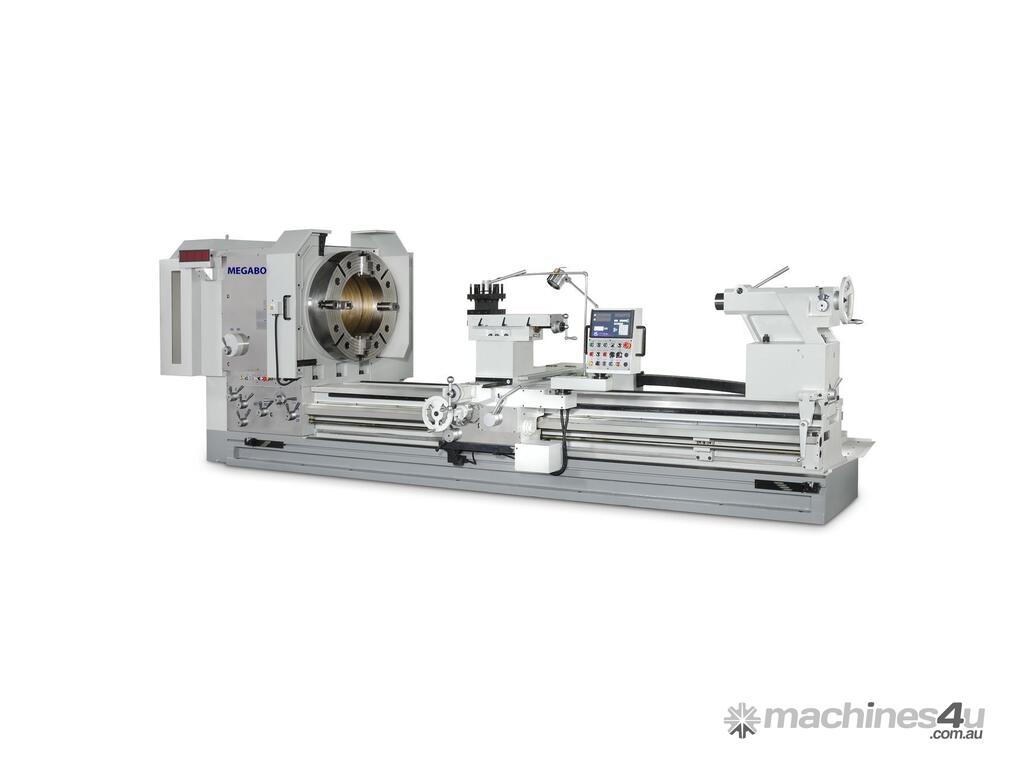

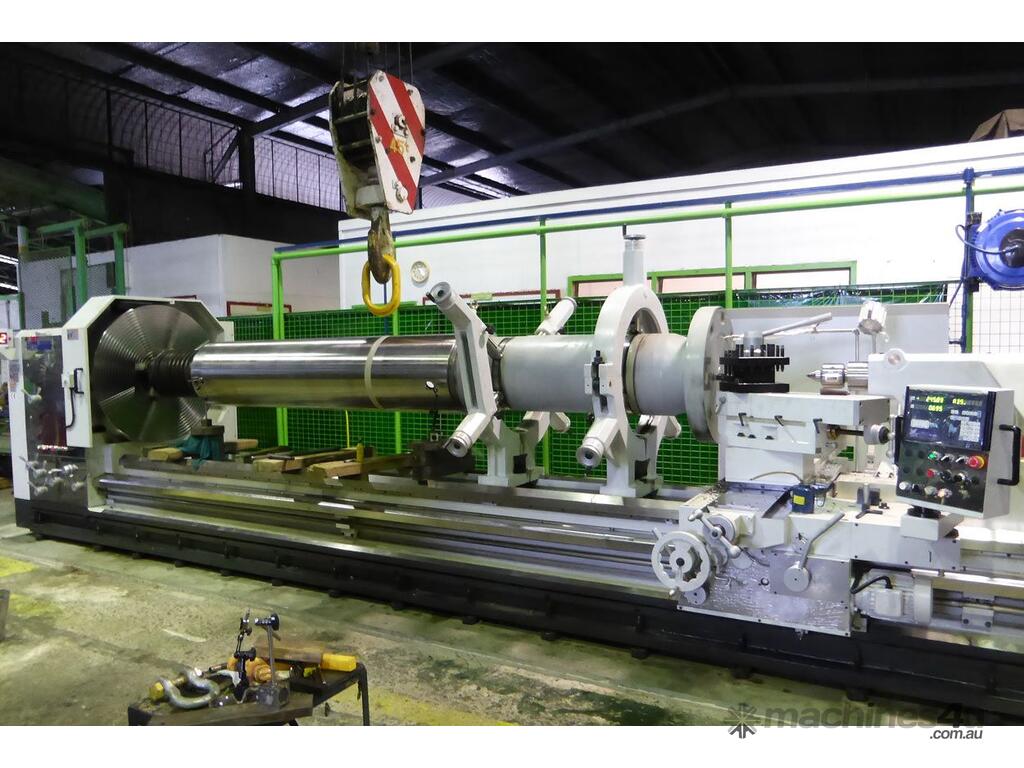

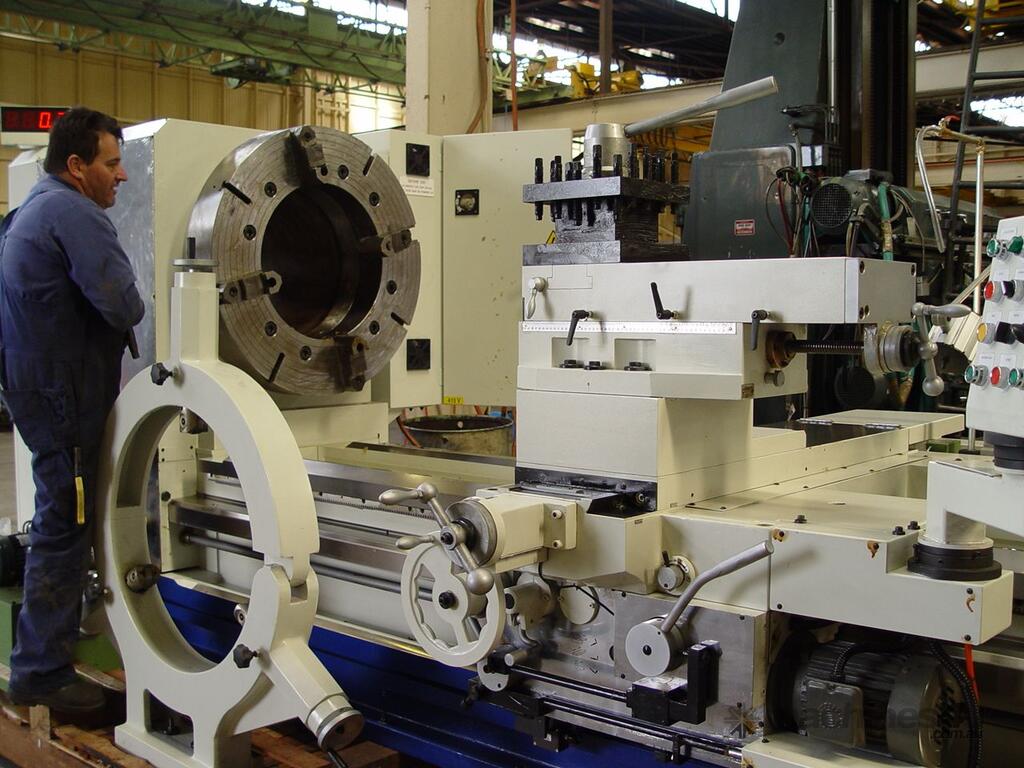

The Megabore PB range is the most popular at the low end of the heavy duty series, offering a true heavy duty Lathe at a very attractive price. Photos show some of the configurations we can customize for your specific requirements. The machine can be offered with copy system and semi-auto threading also. Features. * One piece bed, floor type casting. * 2 shear bed way with extra way supporting the apron. * All ways are hardened and ground. * Alloy steel spindle with opposed taper roller bearings. * Hardened and ground gears, shafts. * Electromagnetic spindle brake. * 18-speed geared headstock. * 6-way rapid traverse and power feed to top slide. * Totally enclosed universal inch / metric gear box. * Digital Read Out. Please contact us for a quotation.

Swing 1,165 mm
Swing Options 1165 -1530 MM
Swing Over Cross Slide 840 mm
Swing Over Cross Slide Options 840 - 1210 MM
Centers 4,000 mm
Center Options 1500 - 12000 MM
Spindle Bore 6"
Spindle Bore Options 6 - 30 inches


Equipped:
* 1 dead centre, MT #6.
* 2-speed tailstock quill (manual).
* One piece stainless steel leadscrew cover.
* Coolant pump.
* Follow type splash guard.
* Rear side chip and water collect plate.
* Thread chasing dial.
* Water and oil collect plate under apron.
* Work lamp.
