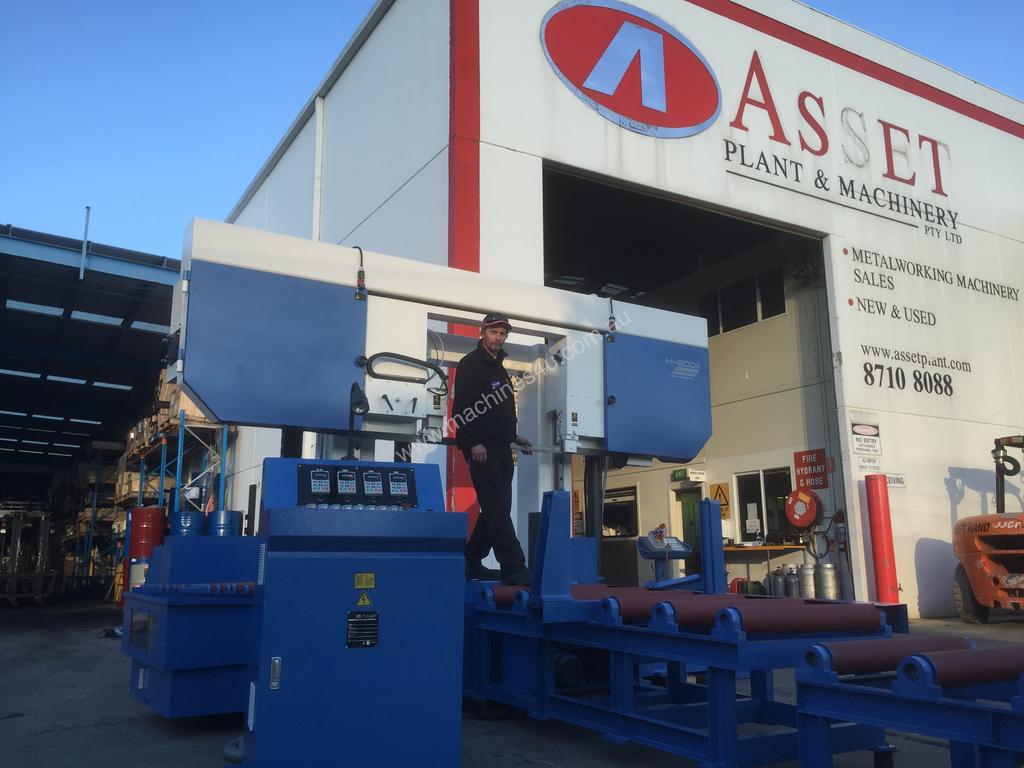

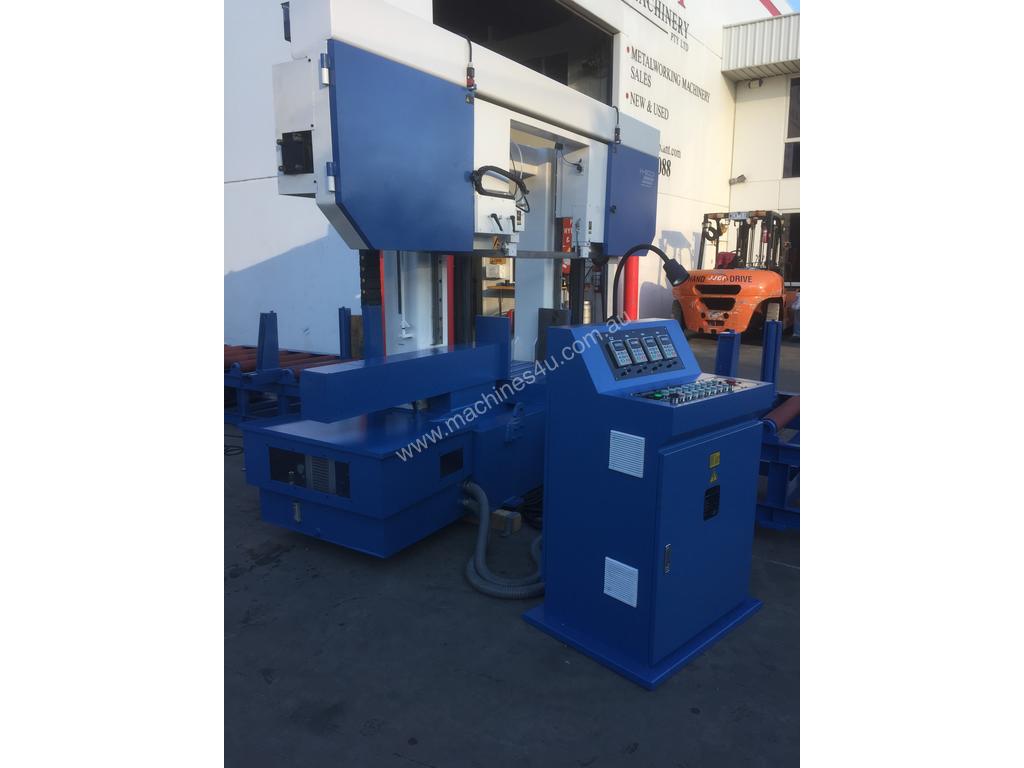

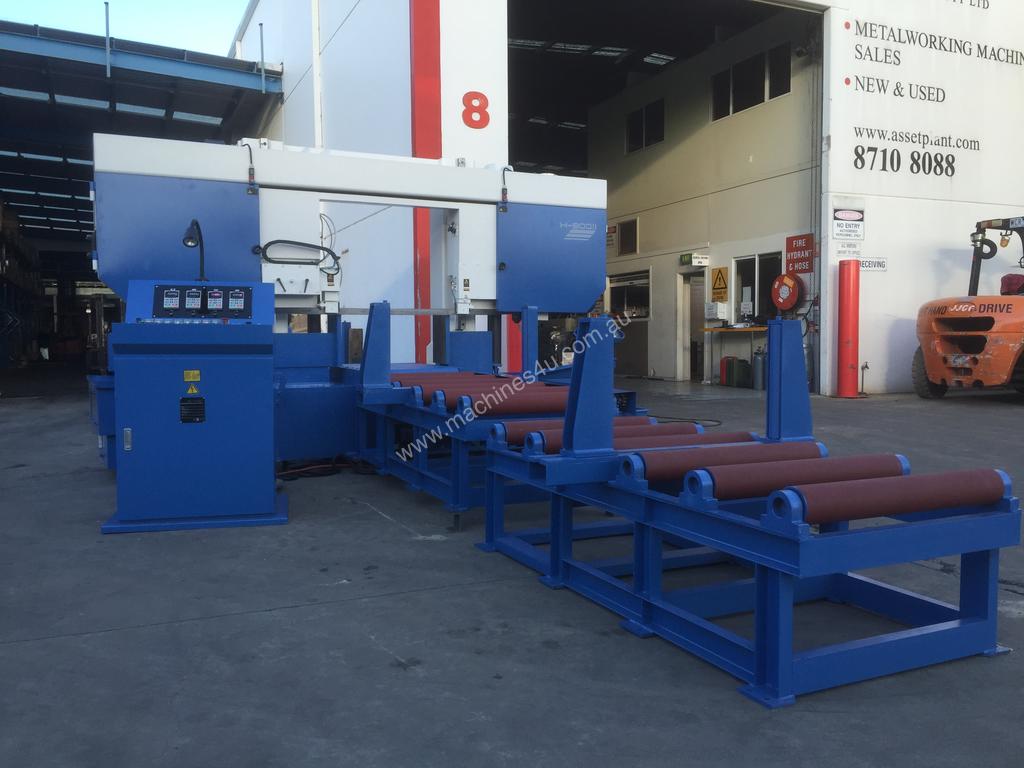

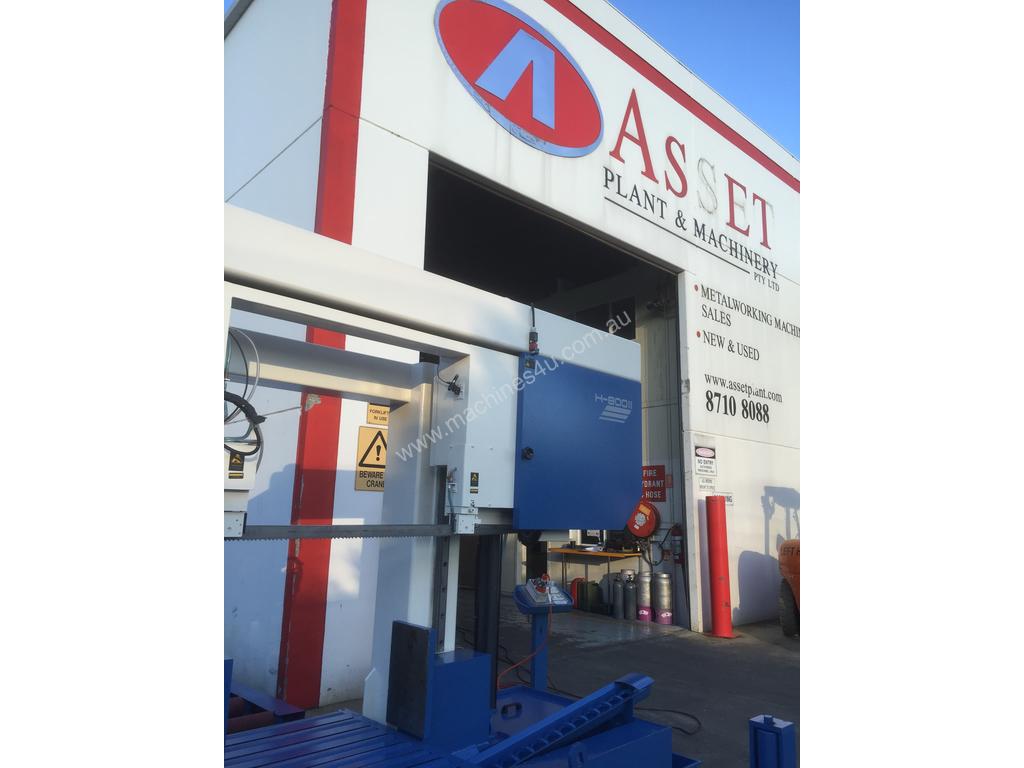

H-800 Double Column Bandsaw. STEELMASTER. 800mm Round & Square Capacity, Power 1000mm Infeed Table Hydraulic Blade Tensioner & Vice, Laser Guide, Motorized Blade Cleaner.
Description
Our large gantry series combines a modern machine tool design with our manufacturers extensive experience in efficient, cost effective cutting of large work pieces.
Precision guided via dual ground guided cylinders, this ensures stability, reliability, performance & high accuracy.
Auto return, hydraulic blade tensioning and powered infeed table - all contribute to this heavy build machine partnering you for processing of all heavy metal cutting applications.
Features

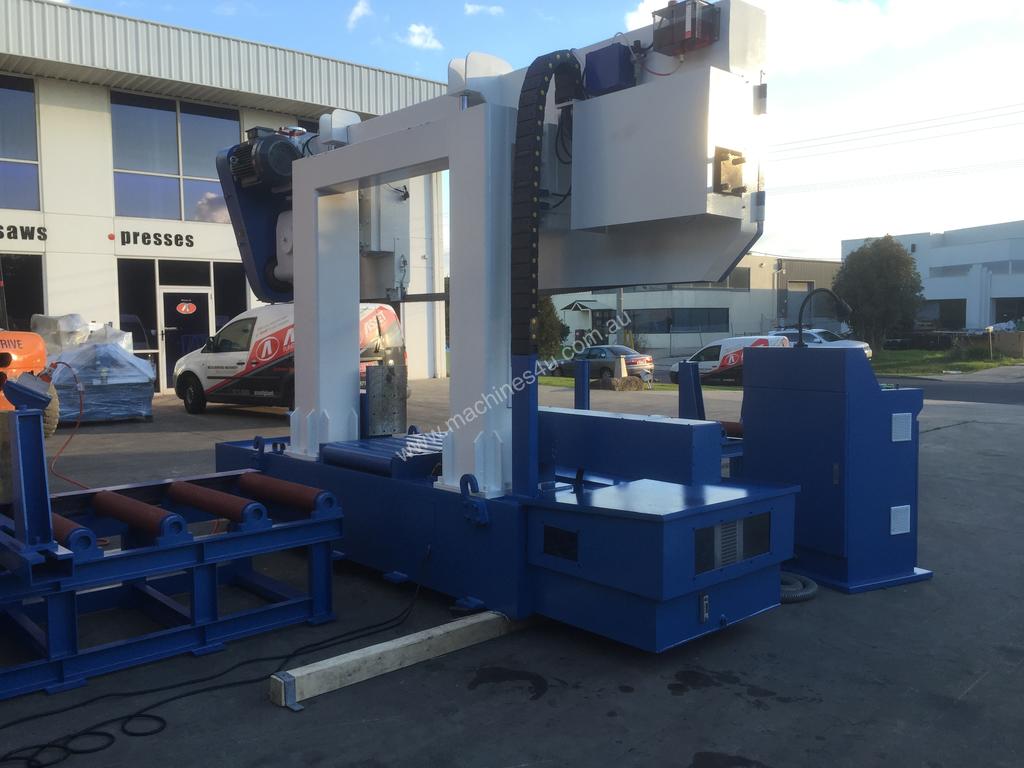

?large double columns precision ground for additional support
?power assisted work table
?hydraulic blade tensioner
?hydraulic vice clamping
?variable hydraulic down feed & auto return

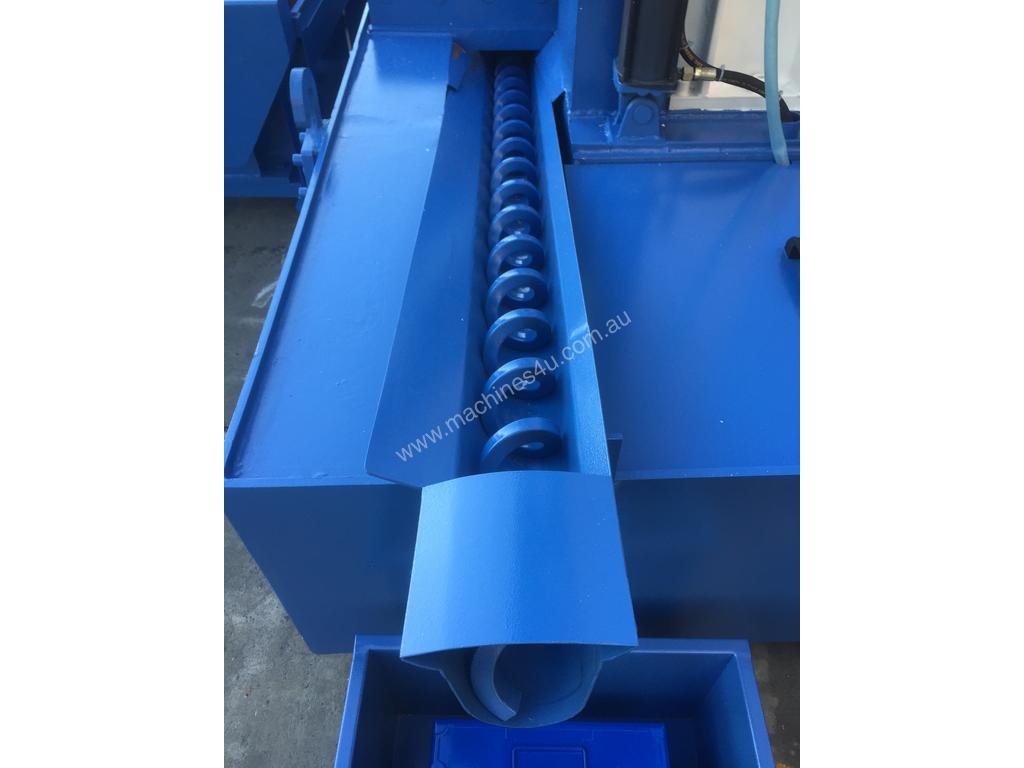

?automatic chip conveyor

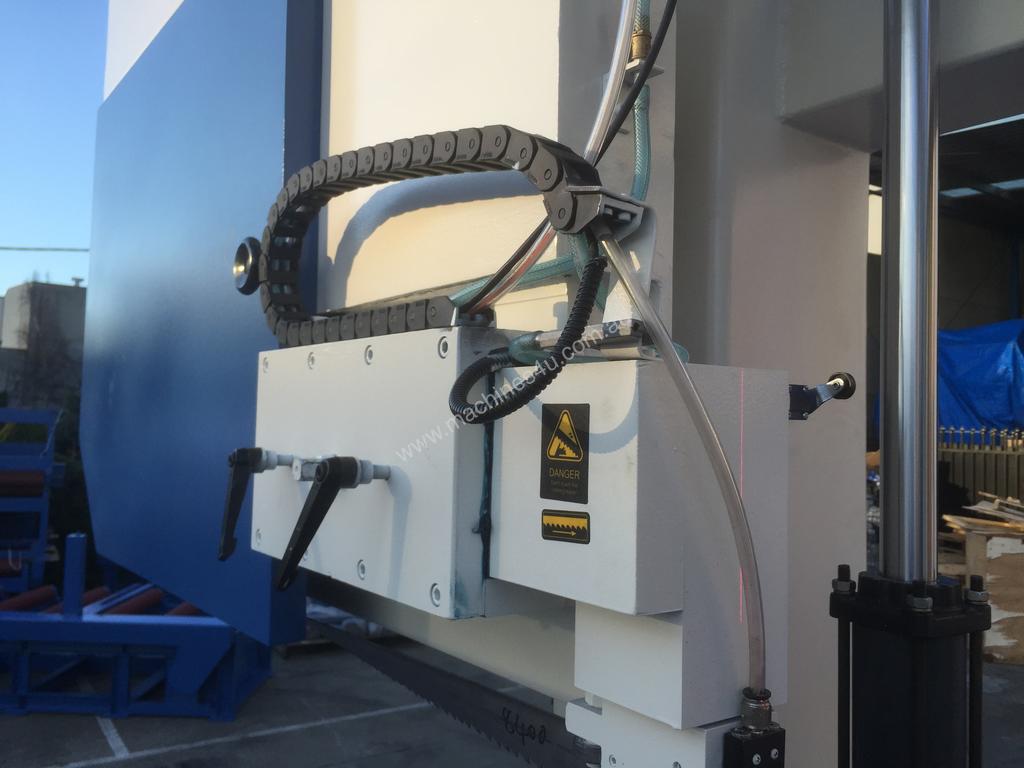

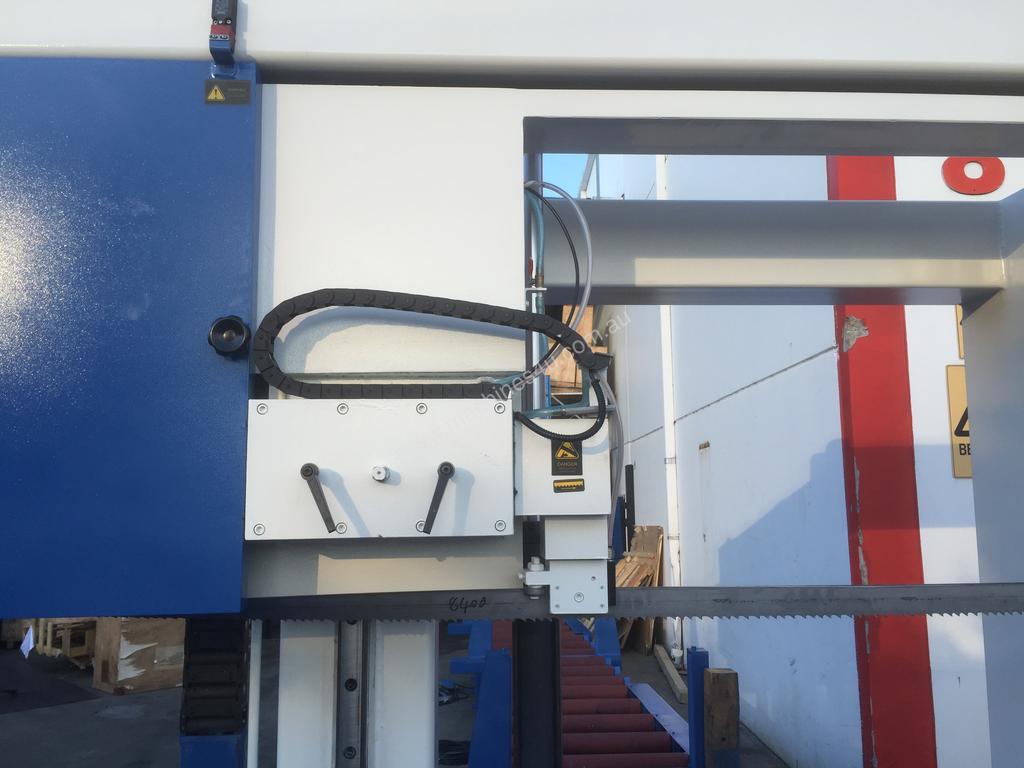

?carbide & bearing blade guides
?breakage sensor

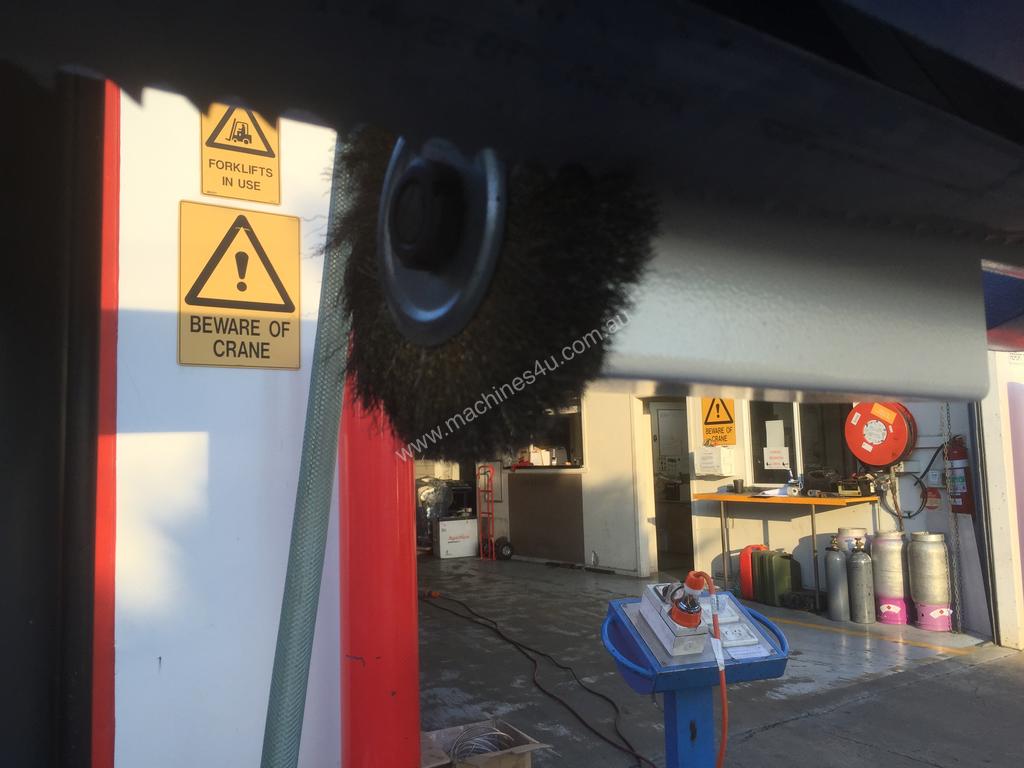

?powered brush cleaner

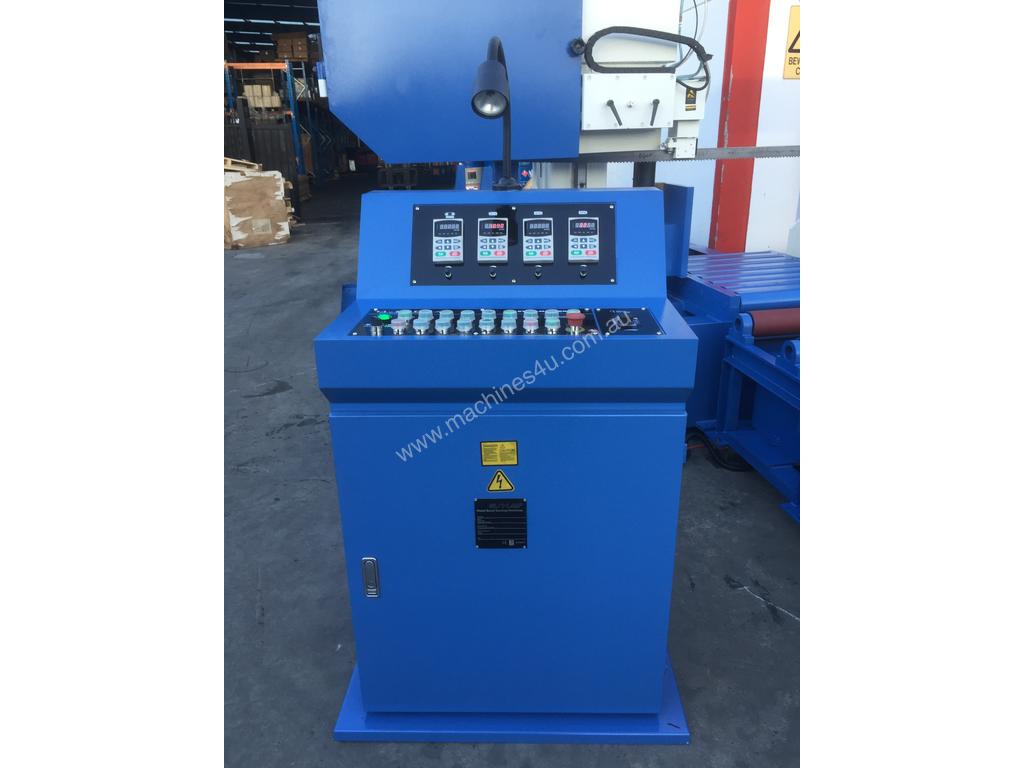

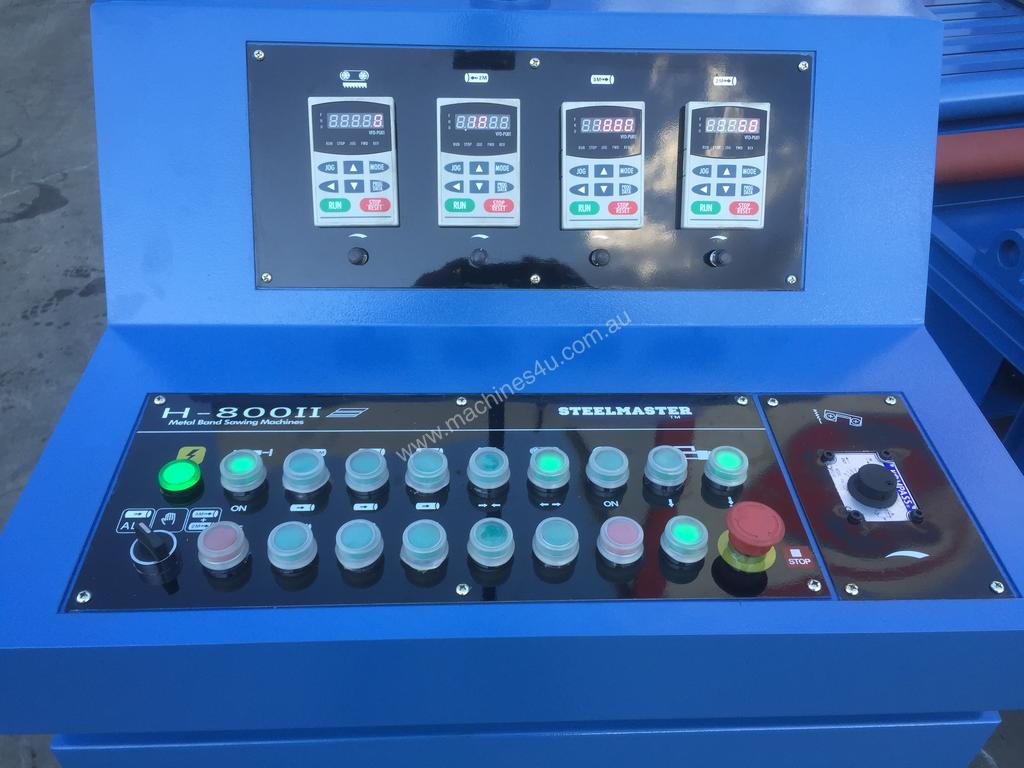

?centralized control panel

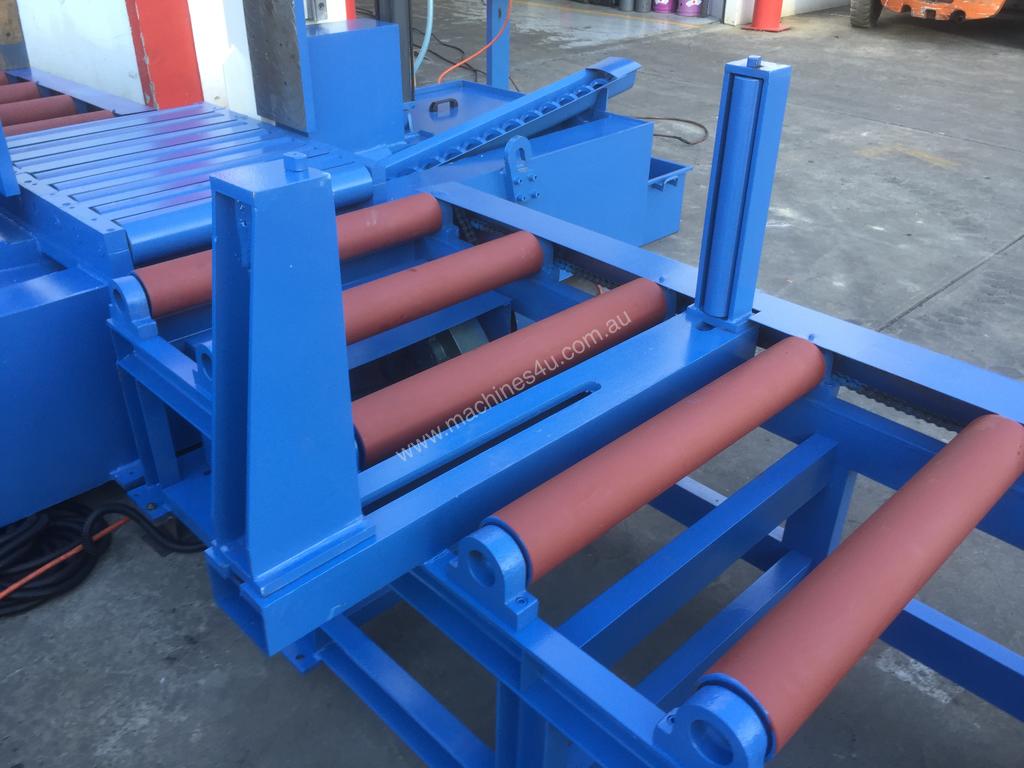

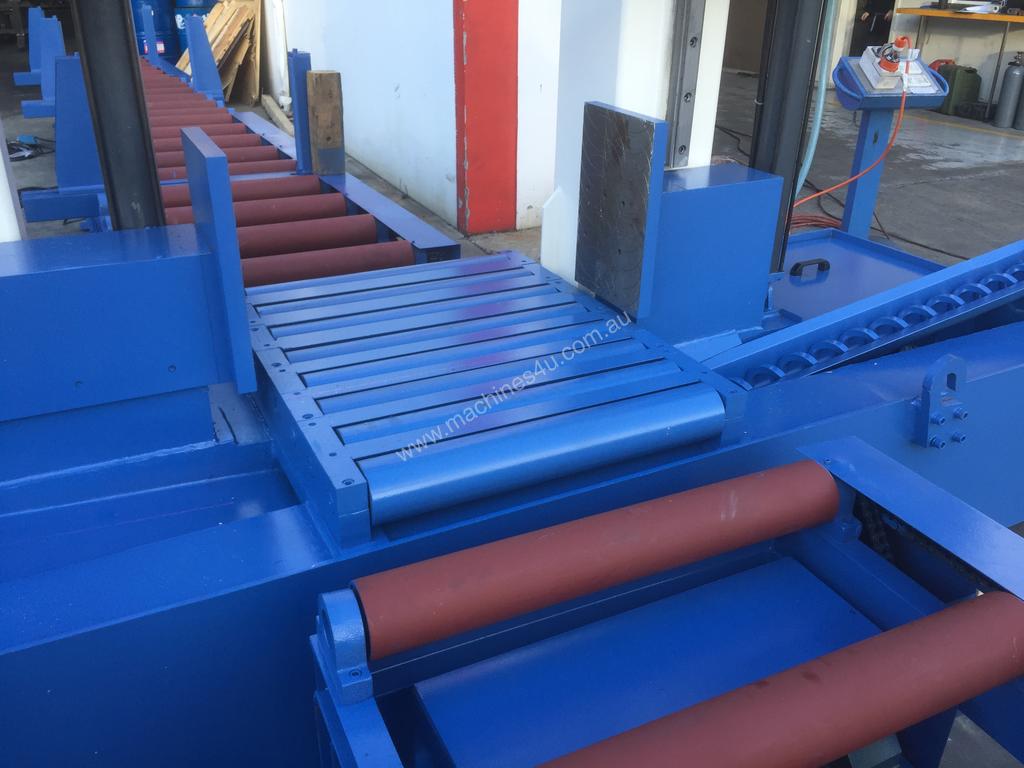

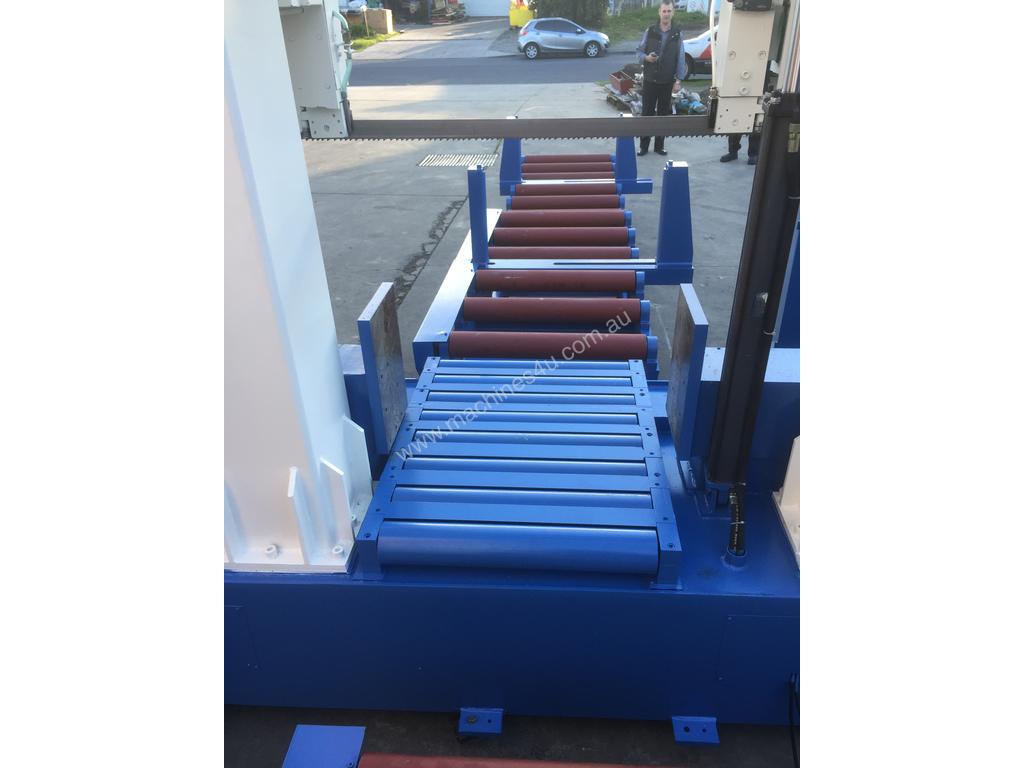

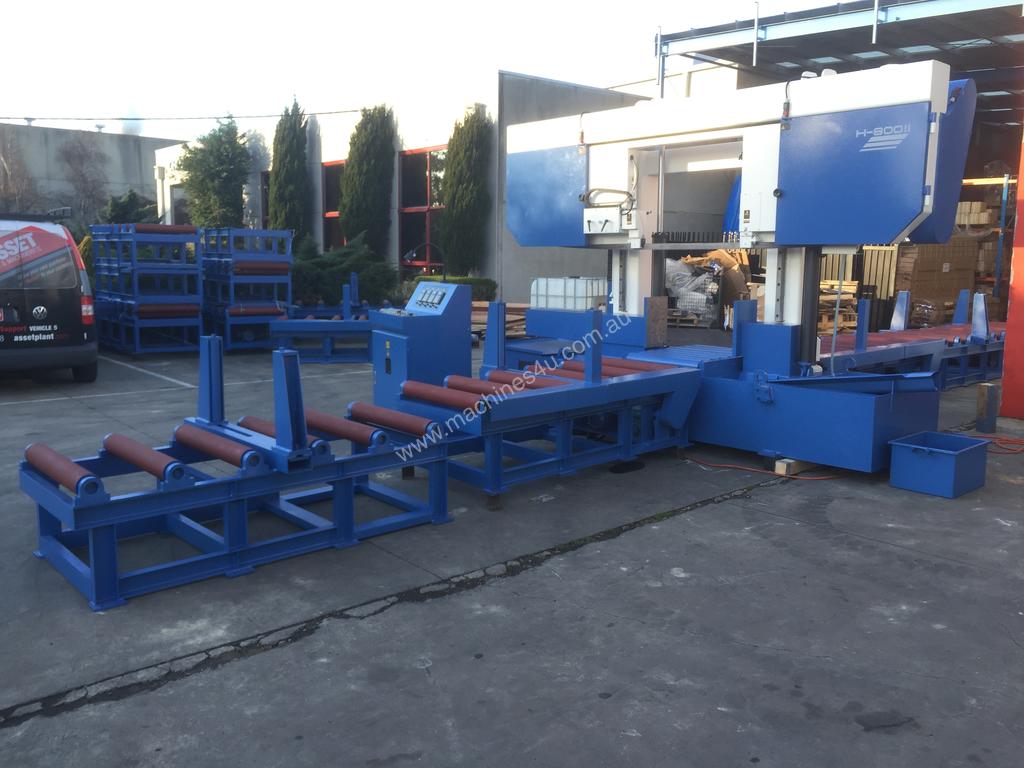

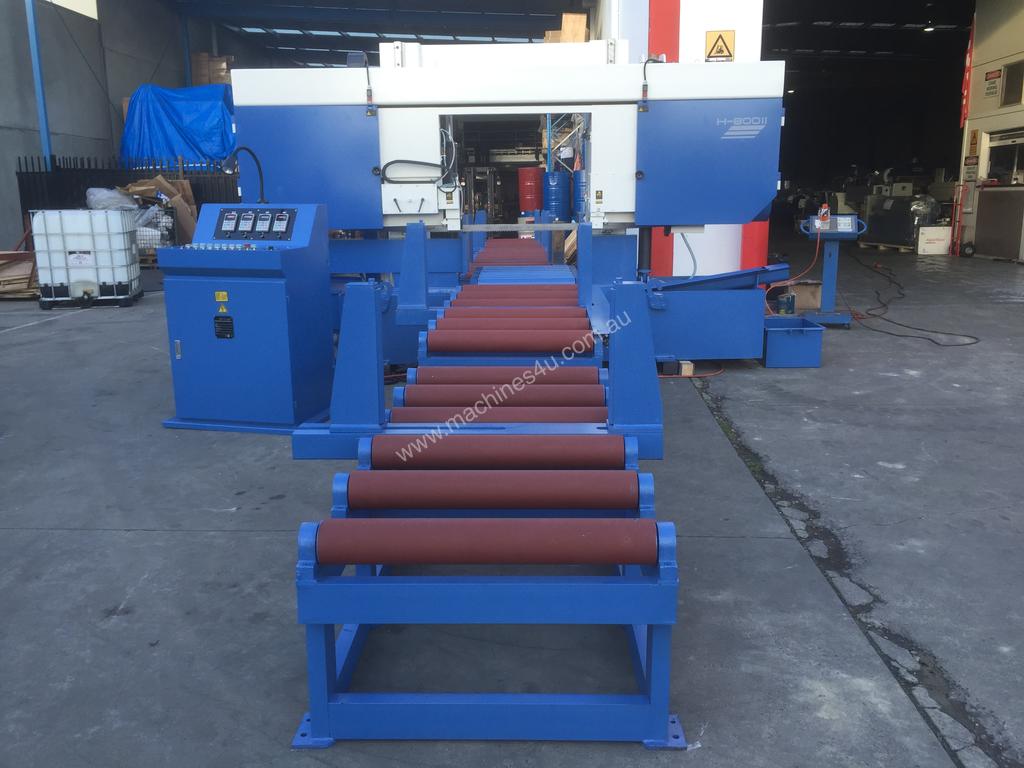

?powered in feed roller table 1000mm in length
?laser guide
?coolant
?halogen work light

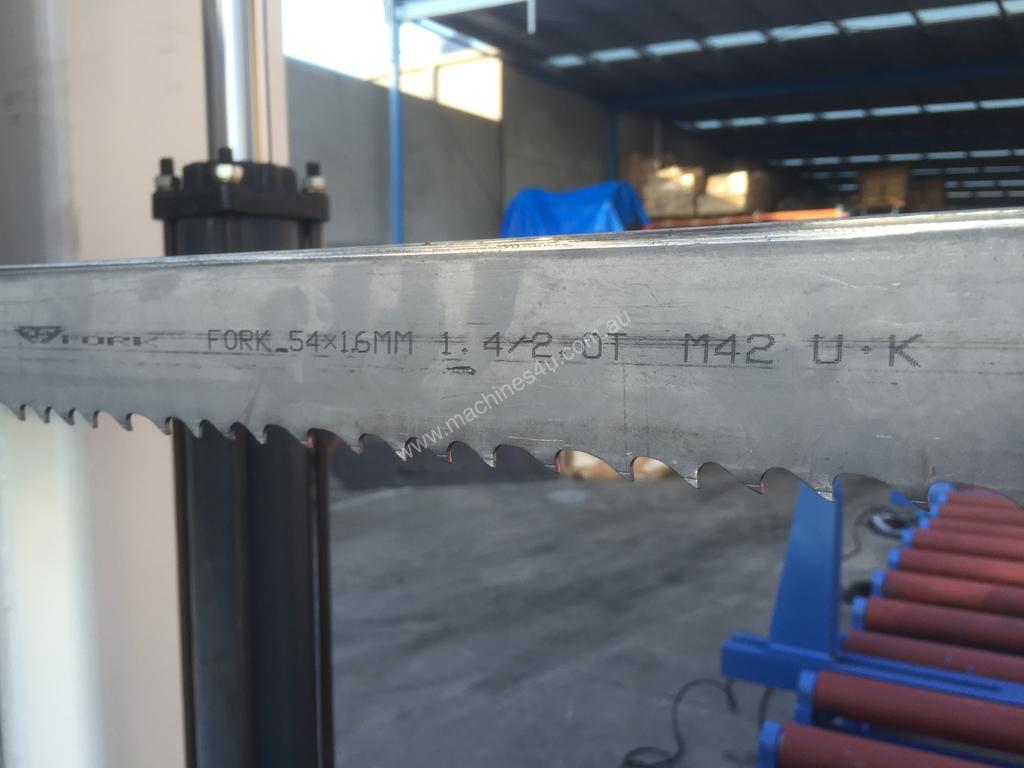

?one piece bi metal blade fitted
?CE compliance
?tool kit
Technical Data
?800mm round capacity
?800mm x 800mm square capacity.
?speed range: 23/37/55 m/min
?blade size: 8400mm x 54mm z 1.6
?in feed table: 1000mm
?dimensions: 4500mm x 1750mm x 2580mm
?weight: 8500Kg
## Additional Powered & Un Powered Conveyors Available On Customers Request ##
We guarantee the best service & technical advice
*** BUY DIRECT FROM THE IMPORTER & SAVE ***
* EX STOCK FOR IMMEDIATE DELIVERY AUSTRALIA & N.Z*
## WE ALSO OFFER A WIDE RANGE OF USED MACHINERY FOR SALE ##
Call Direct or look on the Asset
MAKE YOUR NEXT PURCHASE AN ``ASSET`` TO YOUR COMPANY!
Please contact us for more information.
