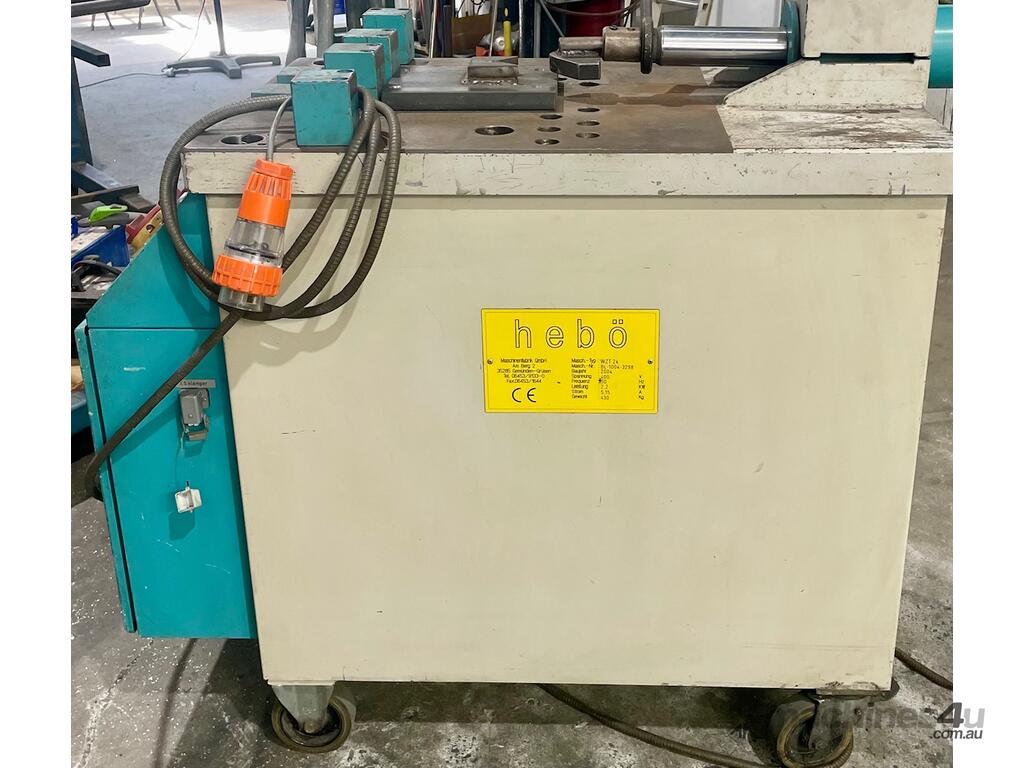

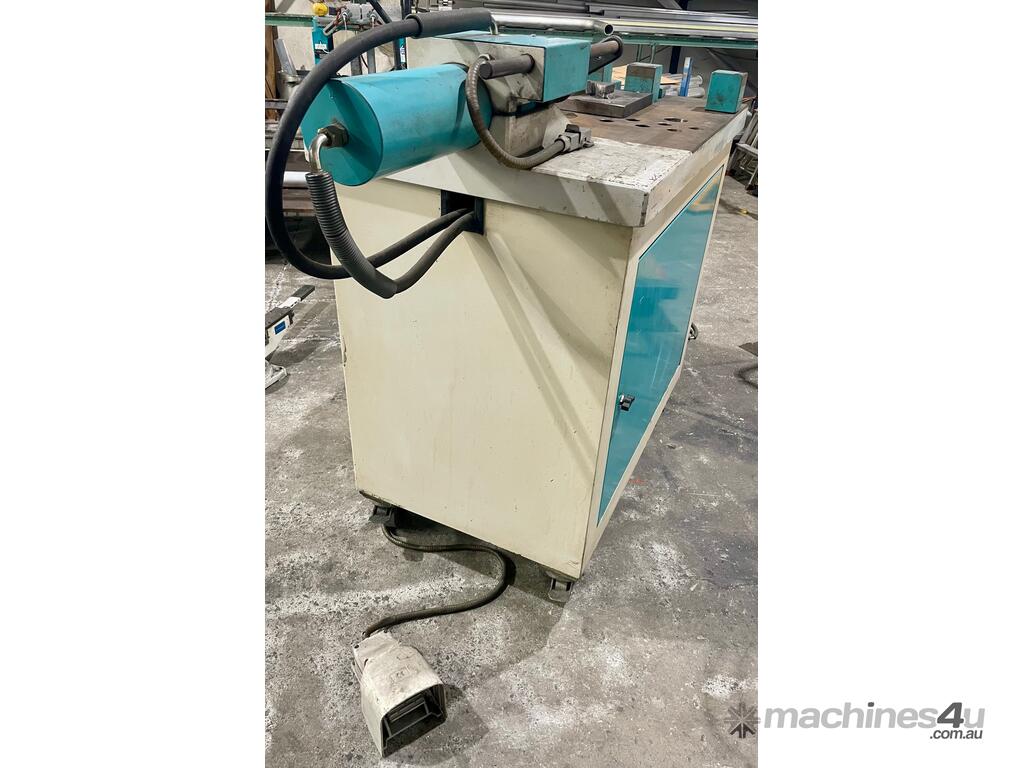

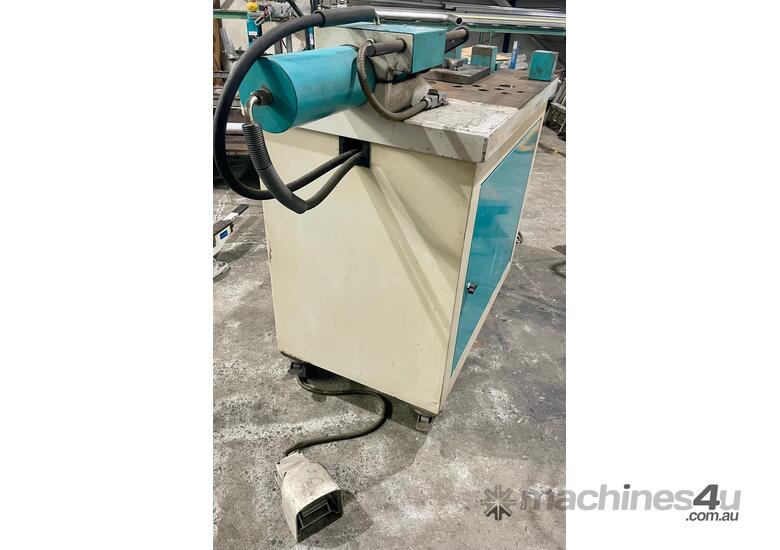

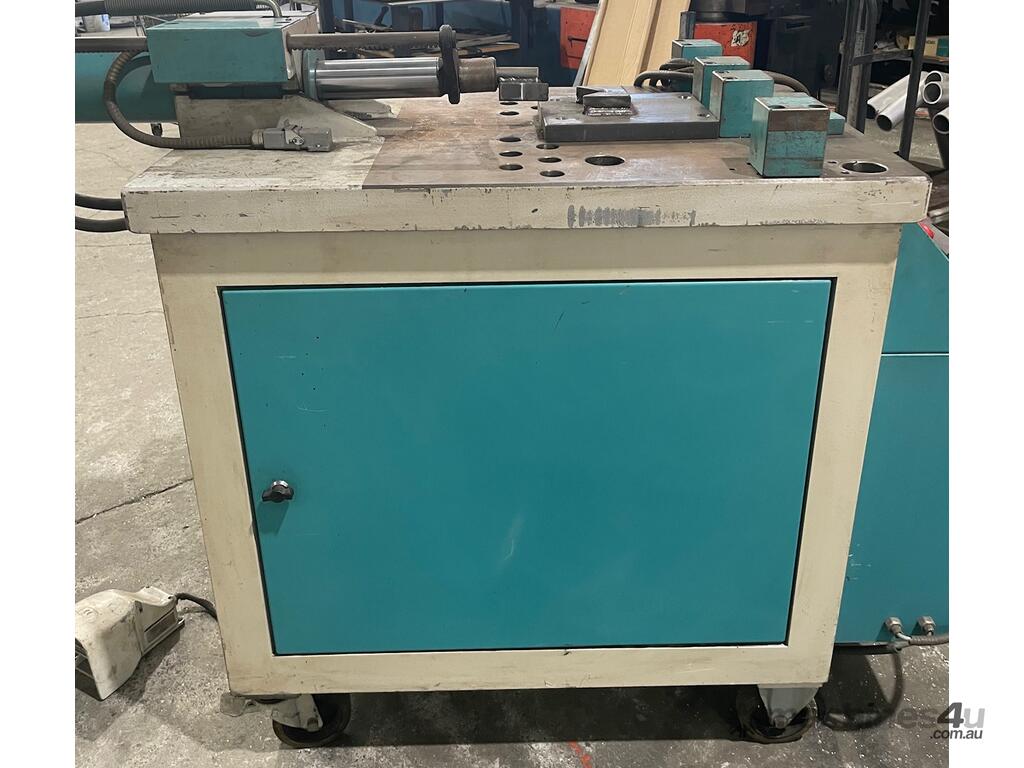

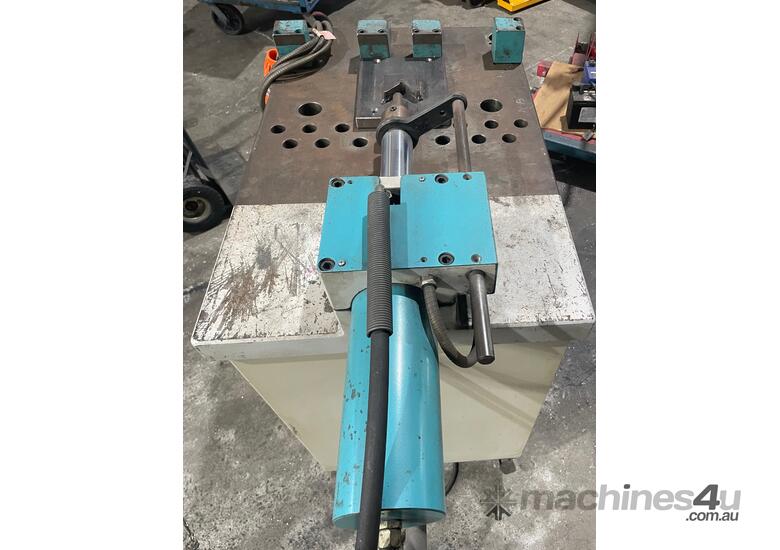

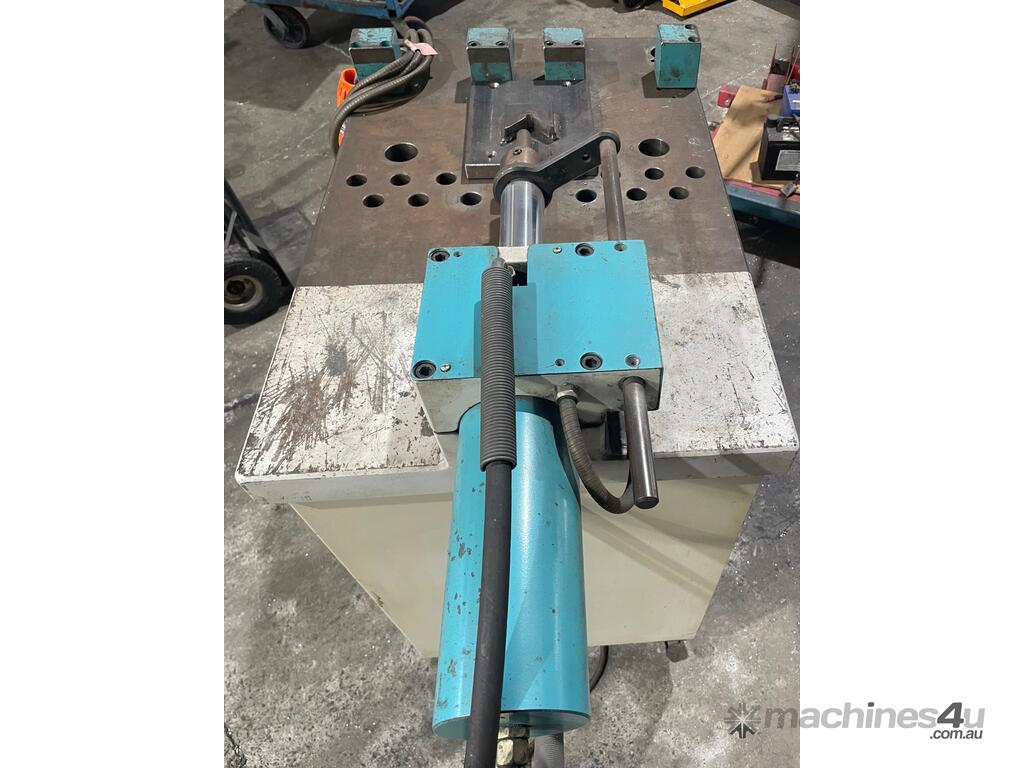

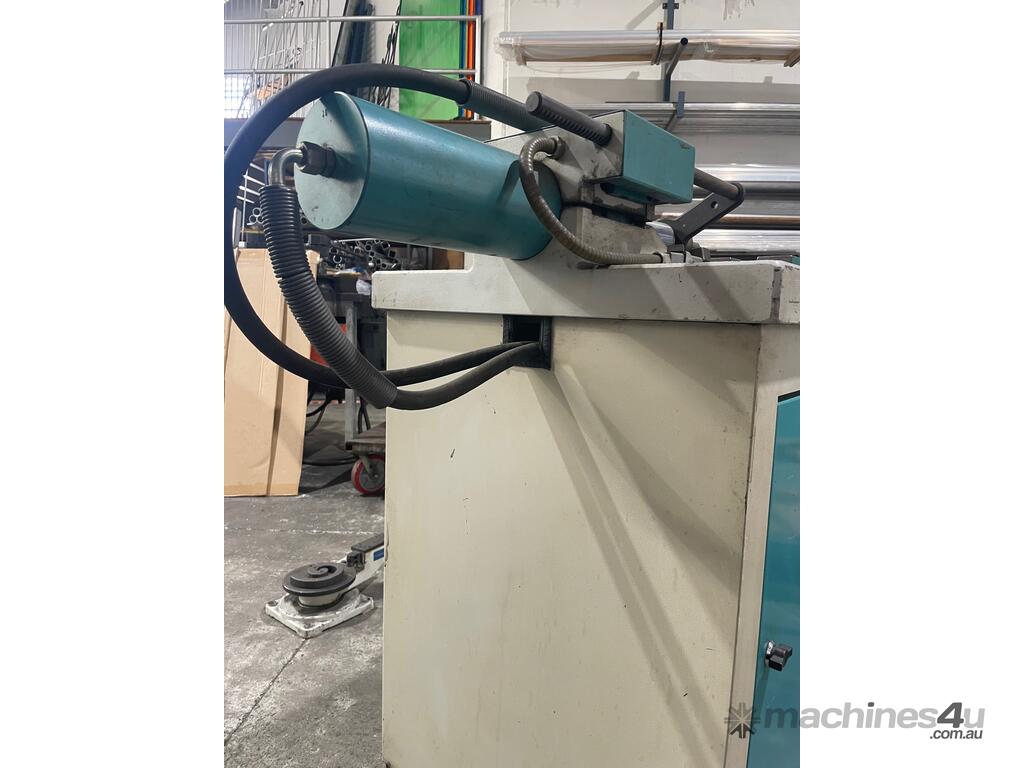

HEBO - Hydraulic Bending Machine - Model WZT24

EMBOSSING TWISTING FLARE SCROLL - REDUCED PRICE: A$ 35,000 + GST

Description:

Straightening and bending machine

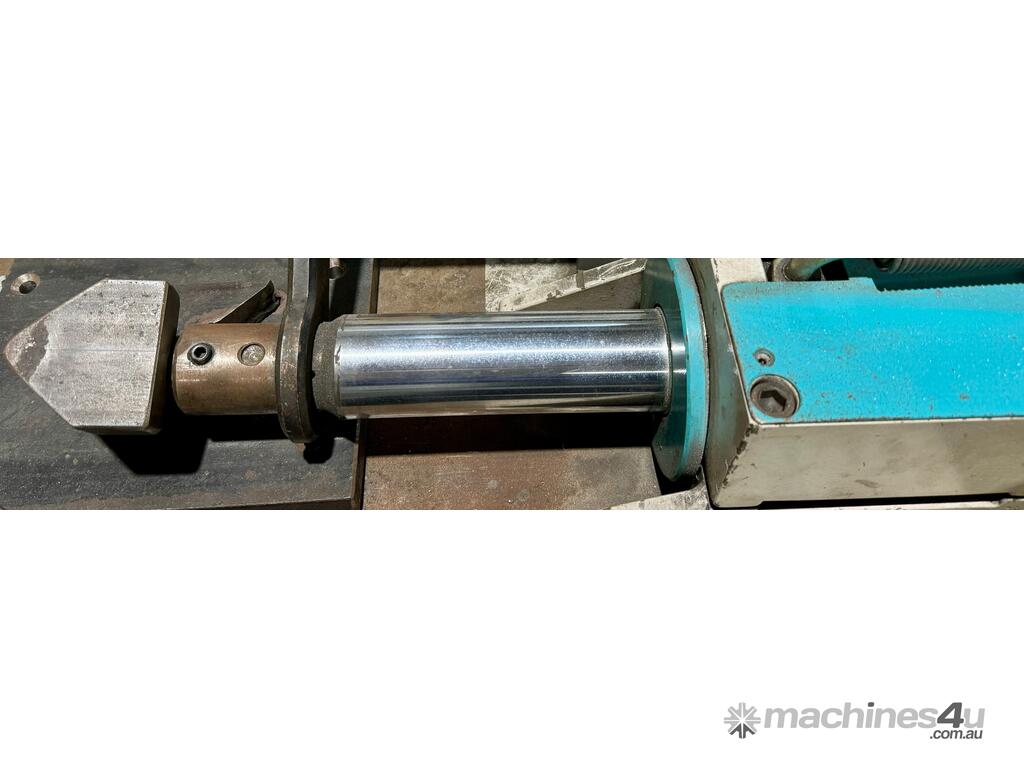

Bending of profiles, pipes, tubes, or straightening work.
It can be equipped with appropriate forming tools and accessories.

Specifications:

-Motor rated power 2.2 KW
-Max. compressive force 240 KN (24 to.)
-Stroke 300 mm

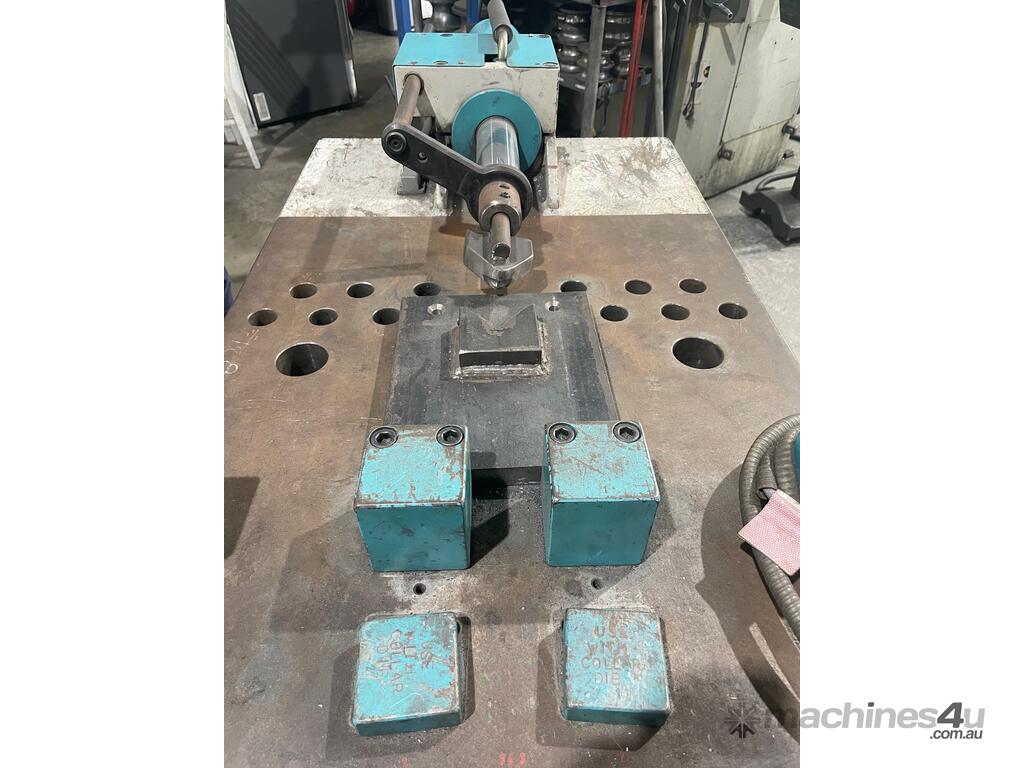

-Tool table 950 x 600 mm
-Weight 430 kg
-Dimensions 1150 x 600 x 1400 mm

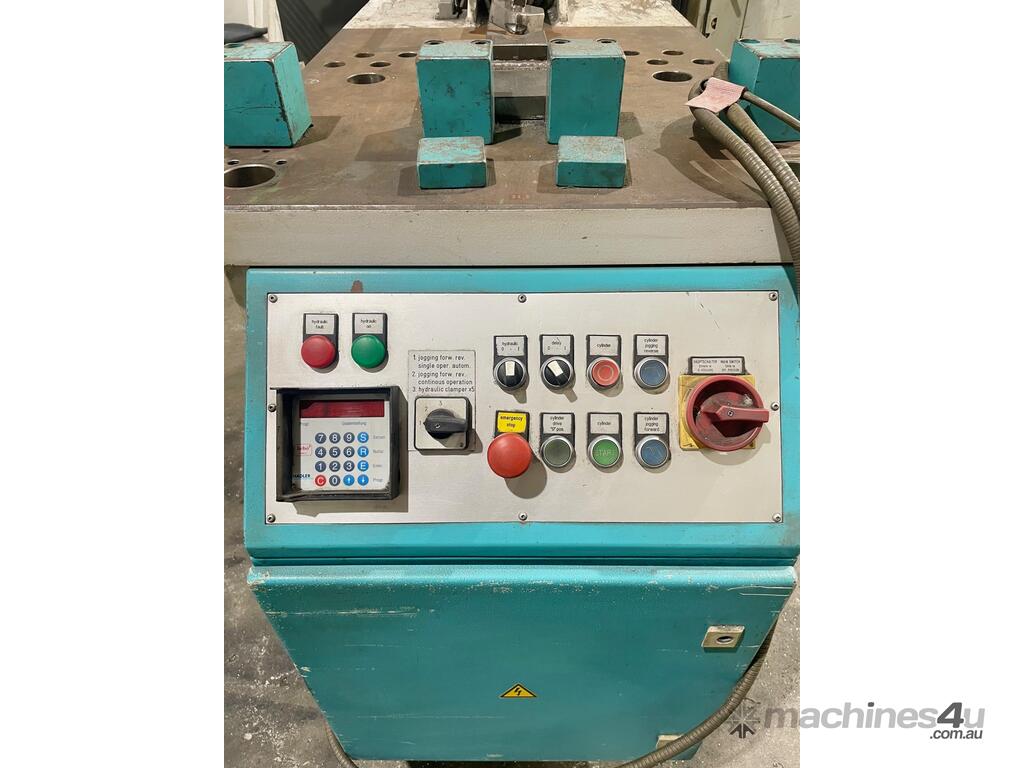

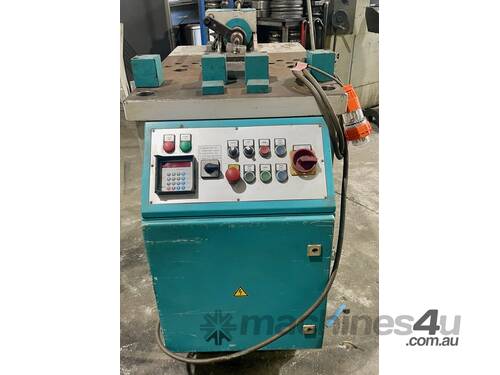

The hydraulic unit is controlled by the SPS computer.  The machine is supplied with an additional hydraulic coupling for connecting hydraulic attachments.  Bending tools or attachments can be added to the unit.
Operations possible:
-Making belly pickets
-Bending profiles
-Straightening works
-Bending of tubes
-24 ton capacity

EAS3 End-forging Attachment

Endforging unit with two driven shafts, which can make both narrow and wide forges, as well as spear points.  The material must be heated before operation.
Operations possible:
-Square material up to 1’’ x 1’’
-Round material up to 1’’
-Flat material up to 3/8’’ x 2’’

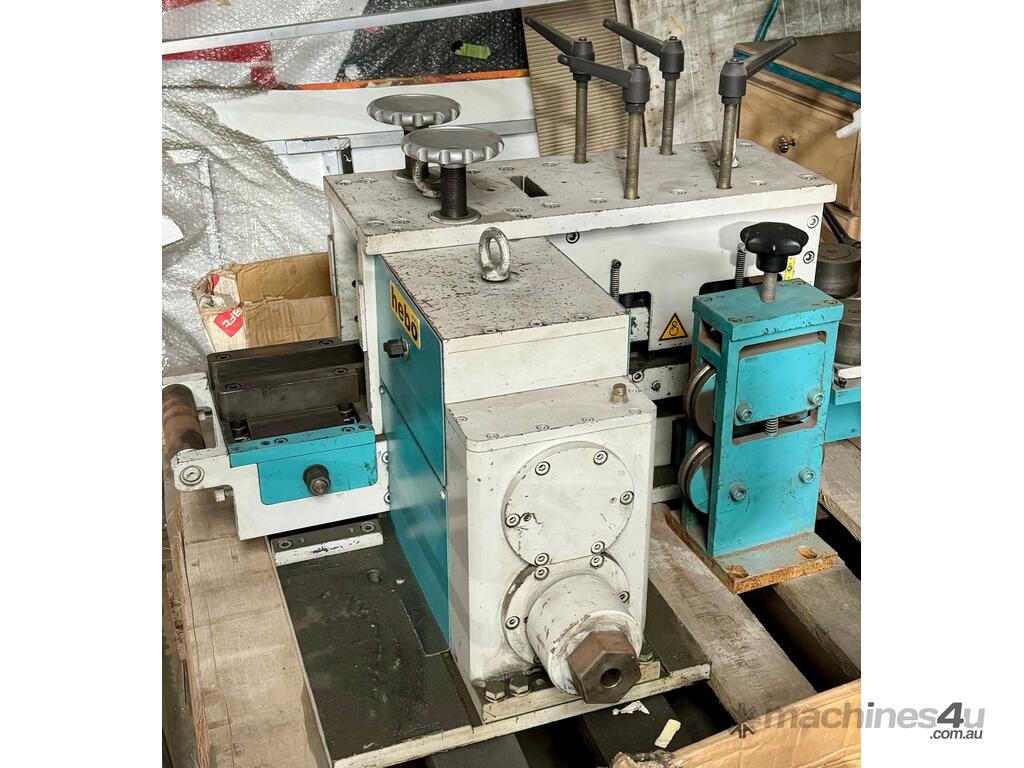

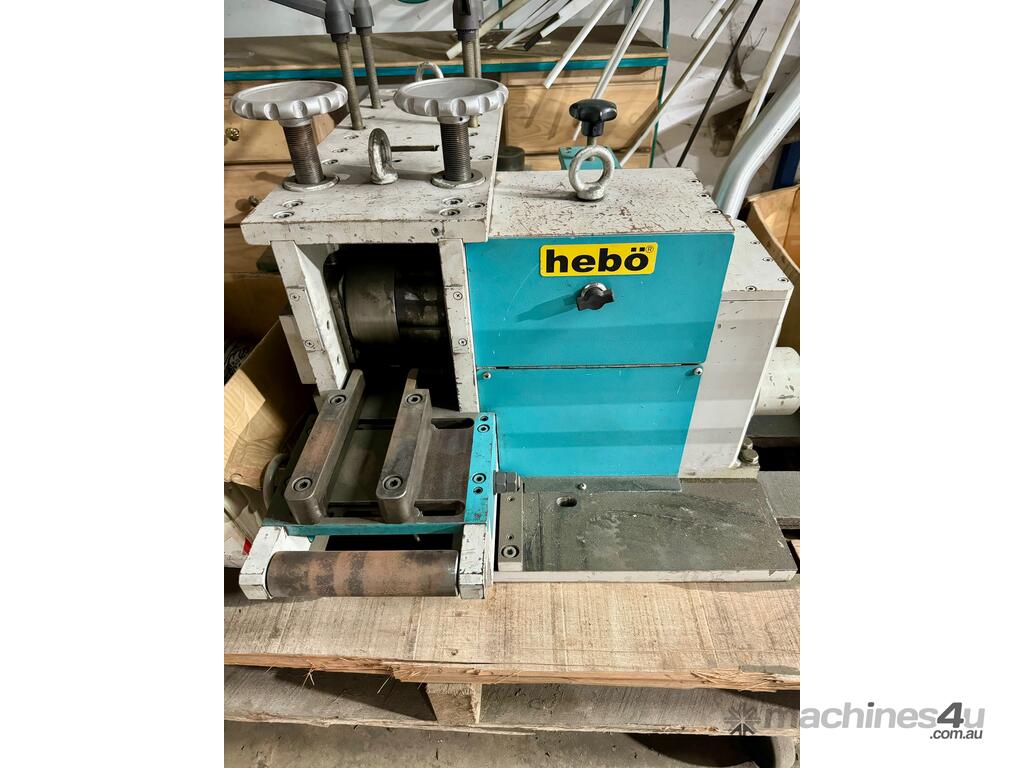

HPT2GEmbossing Attachment

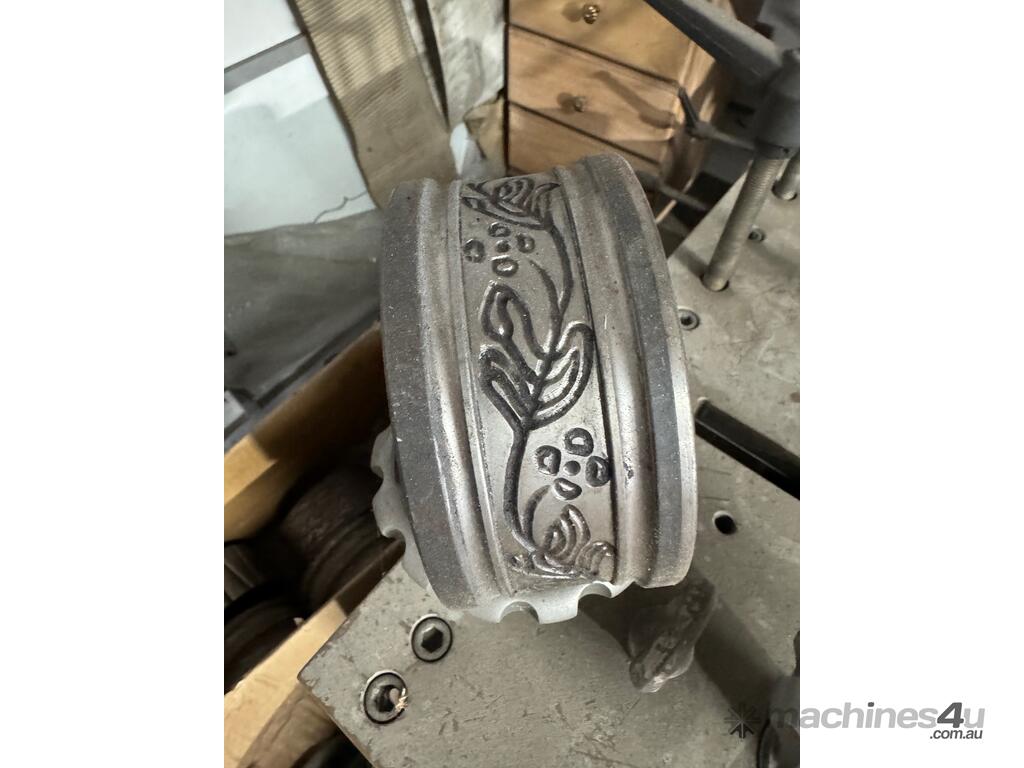

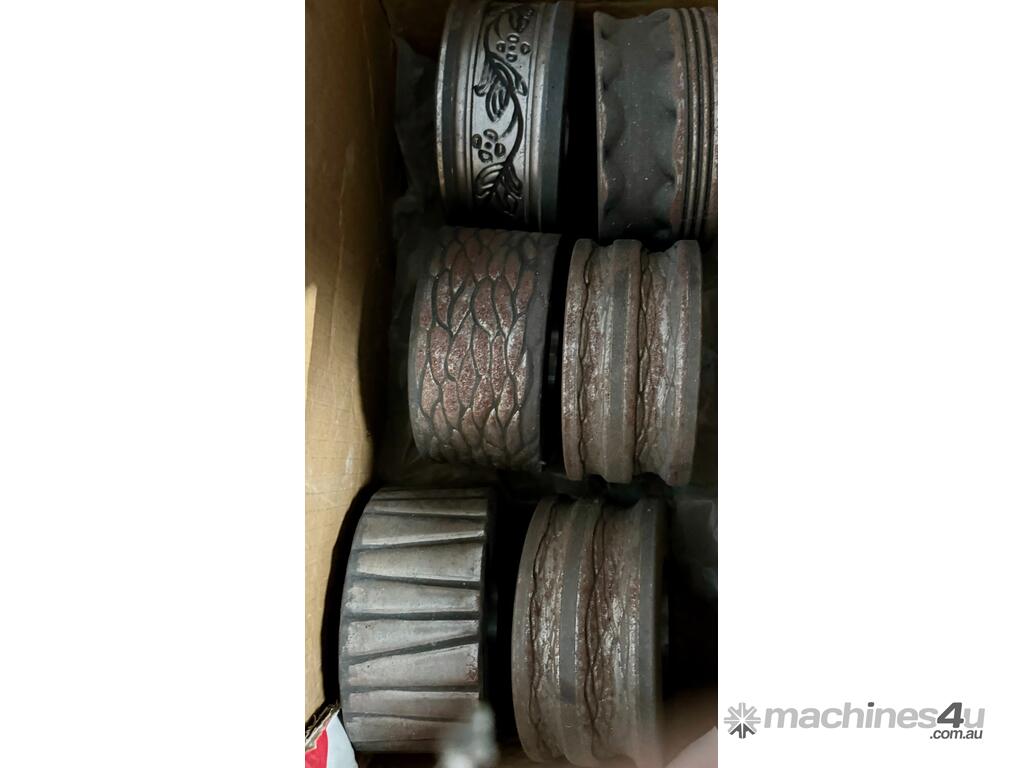

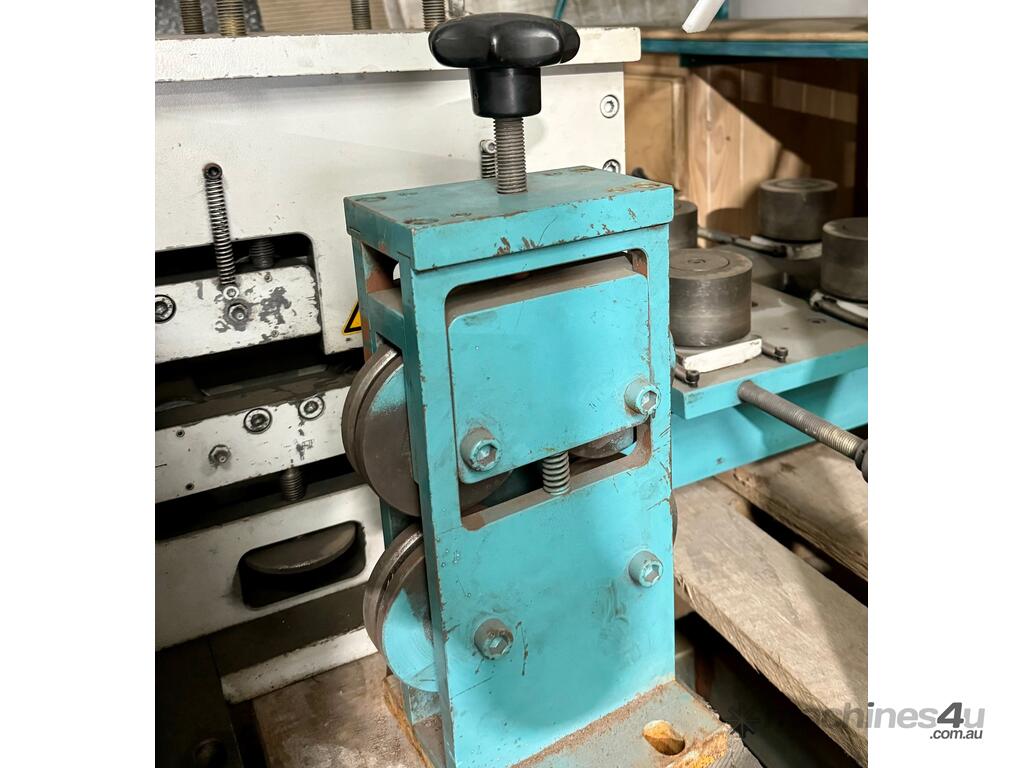

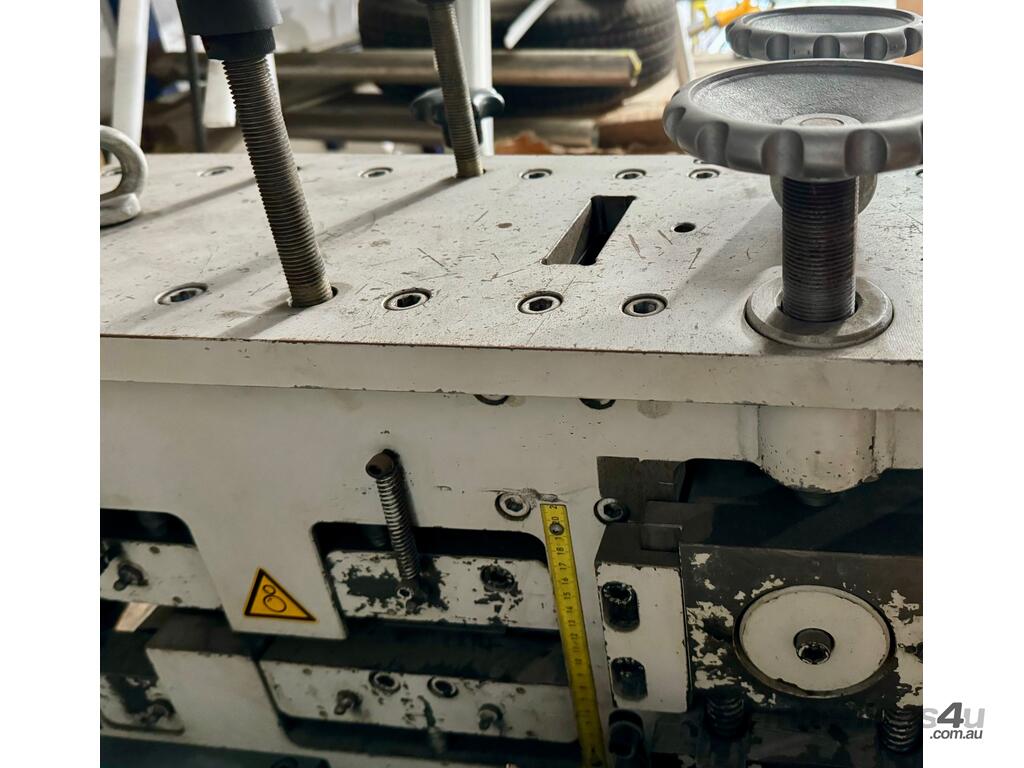

HPG2B unit is for embossing and texturing material.  It is a very fast way to quickly add value to metal.  The unit allows for quick tool change by utilizing a ring plug-in system.  It also has double driven shafts which allows you to emboss two sides at once.  The machine also incorporates a vertical and horizontal straightening device for straightening the material as it feeds through the machine.
Operations possible:
-Square material up to 1’’ x 1’’
-Flat material up to 3/8’’ x 2’’
-Round material up to 1’’
-Tubes up to 2’’ x 2’’

STM5 Motor Unit with twisting

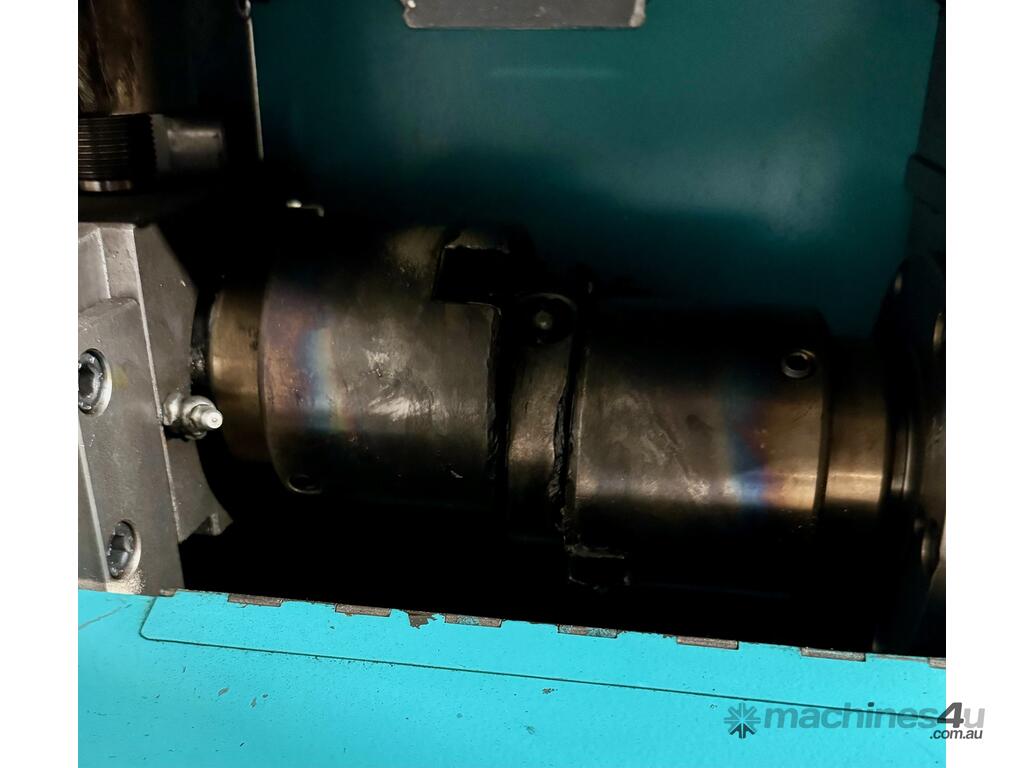

The motor unit is controlled by the SPS computer.  The mass production machine for the professional.  Powerful motor unit with frequency inverter for high precise operation and variable speed.  The machine in its basic version is supplied for twisting bars.
Operations possible:
-Bar twisting (up to 1.25’’ x 1.25’’ capacity)
-Basket production

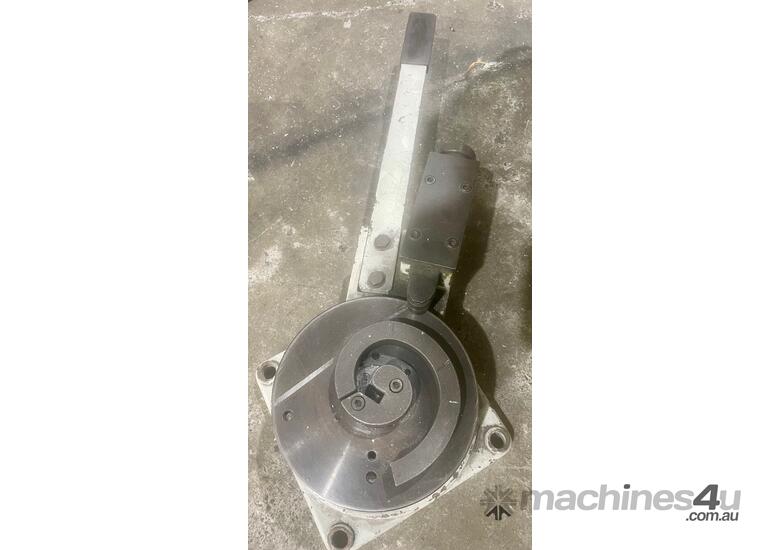

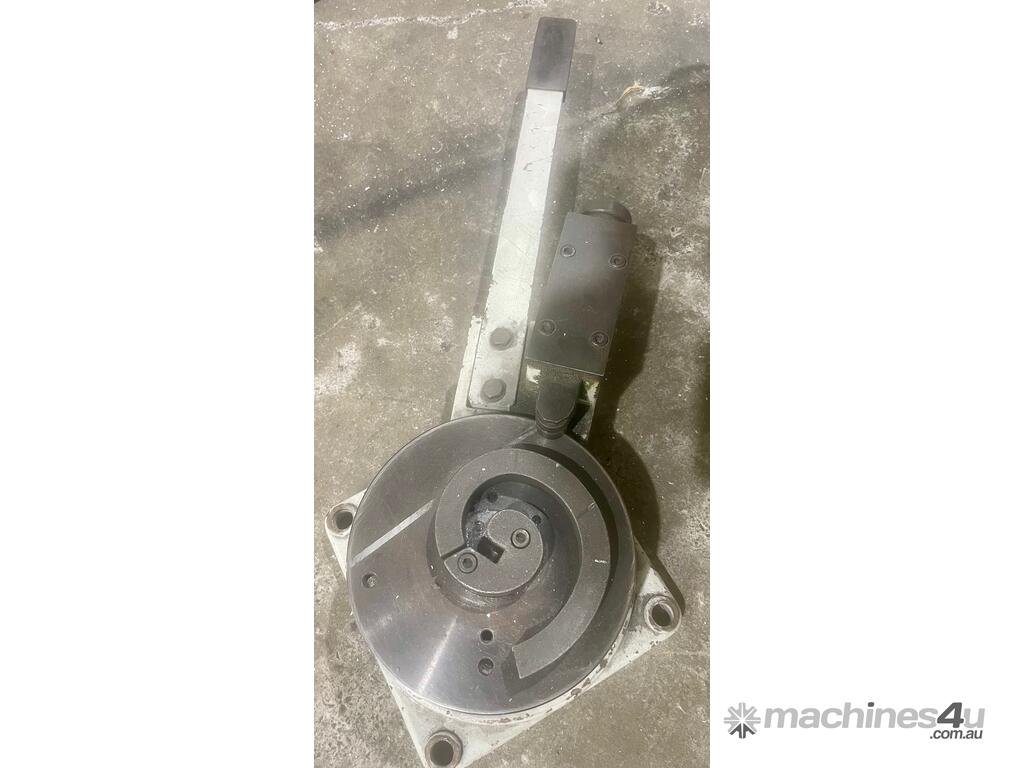

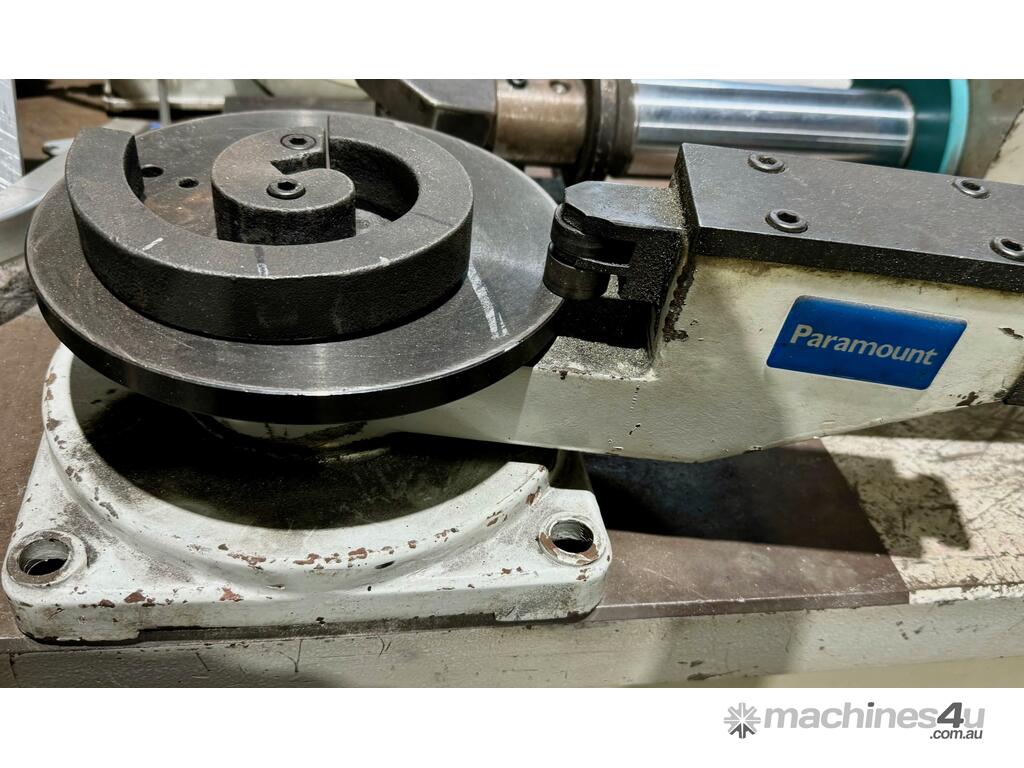

-Scroll bending
-Embossing and texturing
-Endforging
-Hydraulic bending
