Hermle recently took an order for 50 MACHINES, from ROLLS ROYCE! We're confident that goes a long way to demonstrate the calibre of Hermle Machining Centres.
----------
NEW Hermle C60/MT CNC Vertical 5 Axis Machining Centre.
Features and inclusions:
- Traverse X-Y-Z: 1200 x 1300 x 900mm
- Spindle speed: 9000/10000/12000/15000/18000rpm
- Rapid traverse: 50m/min
- Control unit: iTNC 530 / S 840 D sl

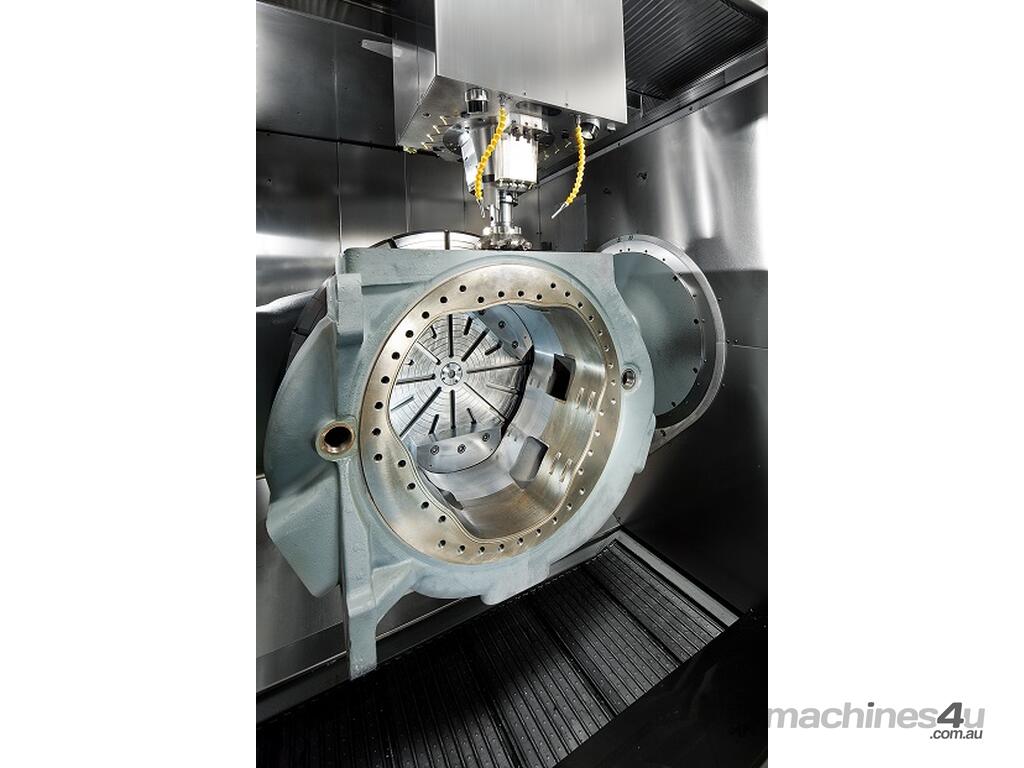

NC swivelling rotary tables:
- Tables with torque: 900mm diam. / 1350mm diam. x 100mm
- Swivelling range: +/- 130 degrees
- A/C axis speed: 15/30rpm
- Max. table load: 2500kg
C60 U MT dynamic NC swivelling rotary table:
- Control unit: TNC 640 / S 840 D sl
- Table with torque: 1200mm diam.
- Swivelling range: +/- 130 degrees
- A/C axis speed: 15/400rpm
- Max. turning table load: 1500kg
- Max. milling table load: 2500kg

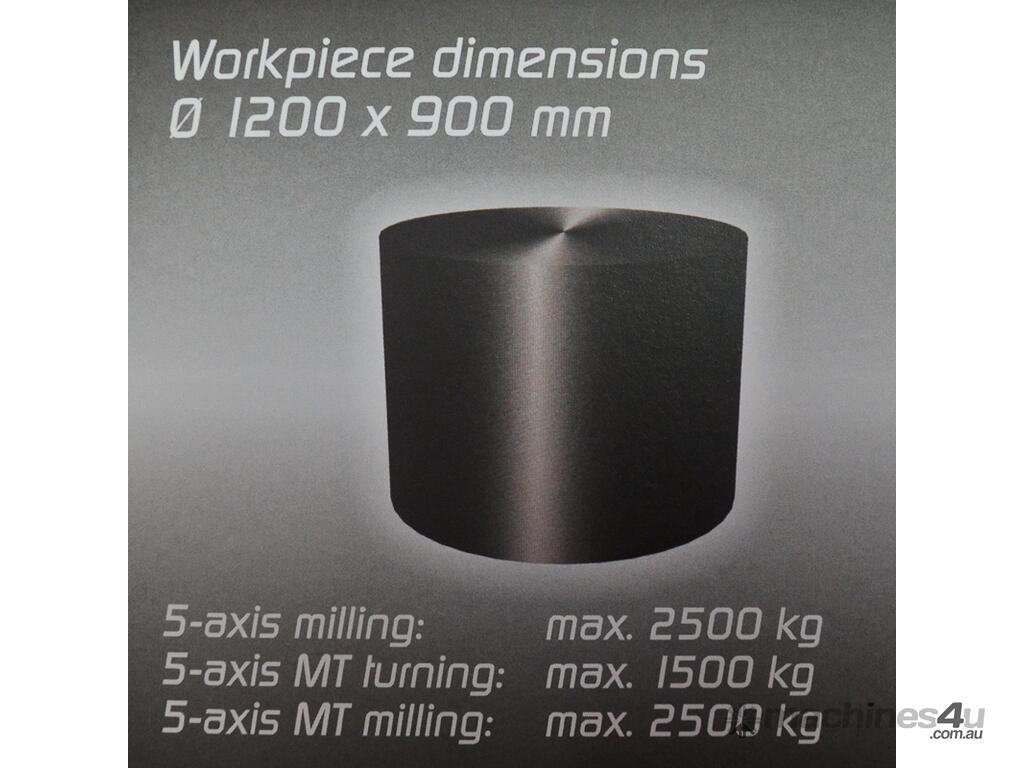

This mega machining centre is capable of machining up to 2500kg in 5 axes with a collision circle of up to 1400mm diameter. It also uses high-tech spindles with high torque or high speed values. The C60 requires no foundation and does not have to be disassembled before transportation.
