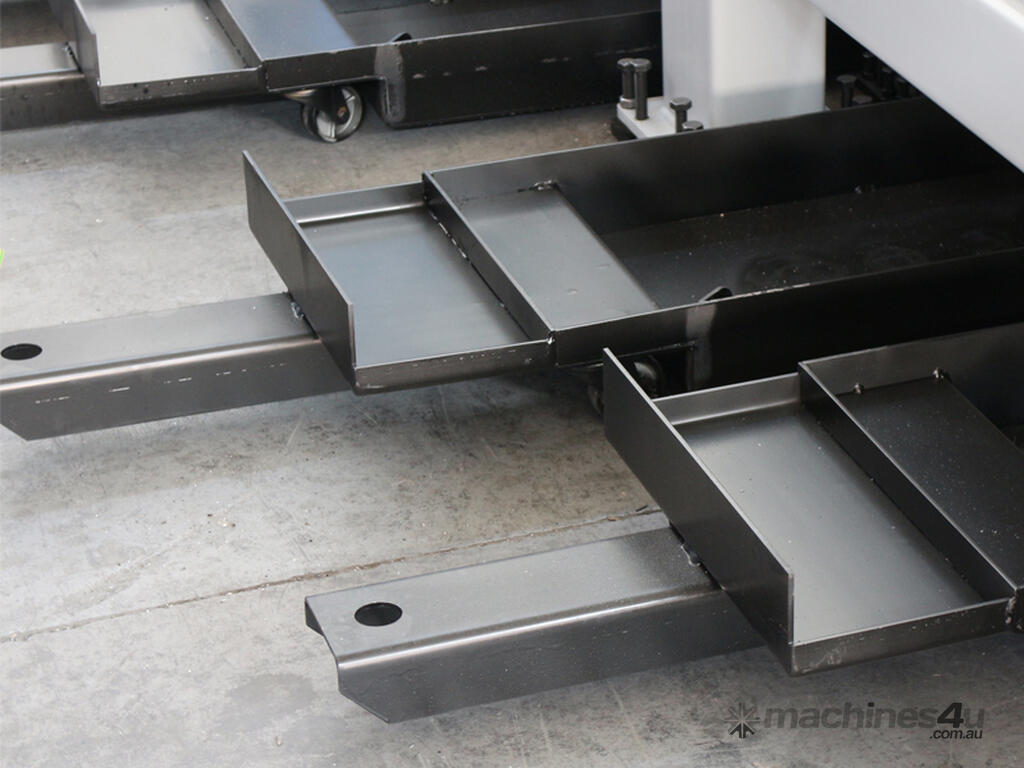

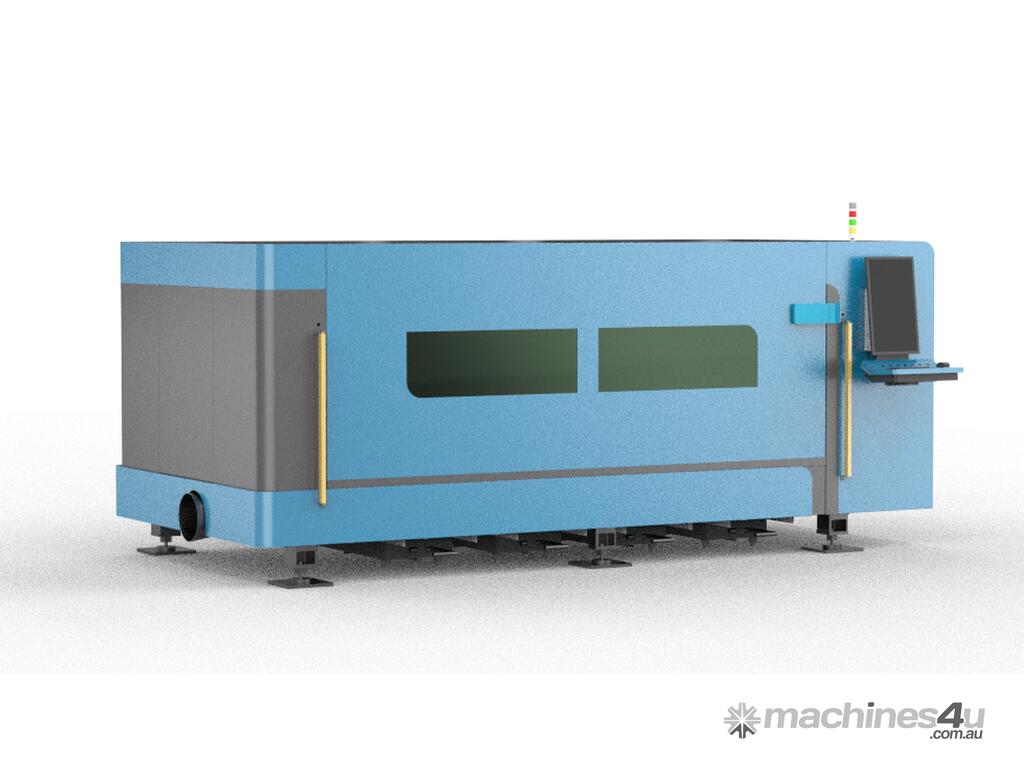

Haco Fiber Laser Machine 3000w no exchange table system (table slides out front of machine)
Model HFL3015C-3000W
Laser Type Fiber Laser IPG
Laser Power 3000 W
Stroke of X-Axis 3020mm
Stroke of Y-Axis 1520mm
Stroke of Z-Axis 80mm
Machine Dimension 4500*3600*2550 mm
Gross weight 4500 kg
Cutting Parameters
Material Max cutting thickness 3000W
Mild steel 20 mm 16mm pierce
Stainless Steel 8 mm
Aluminum Alloy 6 mm
Brass 2 mm
Accessories included
Control Software Cypcut CNC System
Cypnest Offline Nesting Software
IPC High stability industry PC
Voltage Regulator Standard Configuration
Inner Camera Standard Configuration
Automatic lubrication system Standard Configuration
Collect Trolley Standard Configuration
Options
Precitec Laser Head

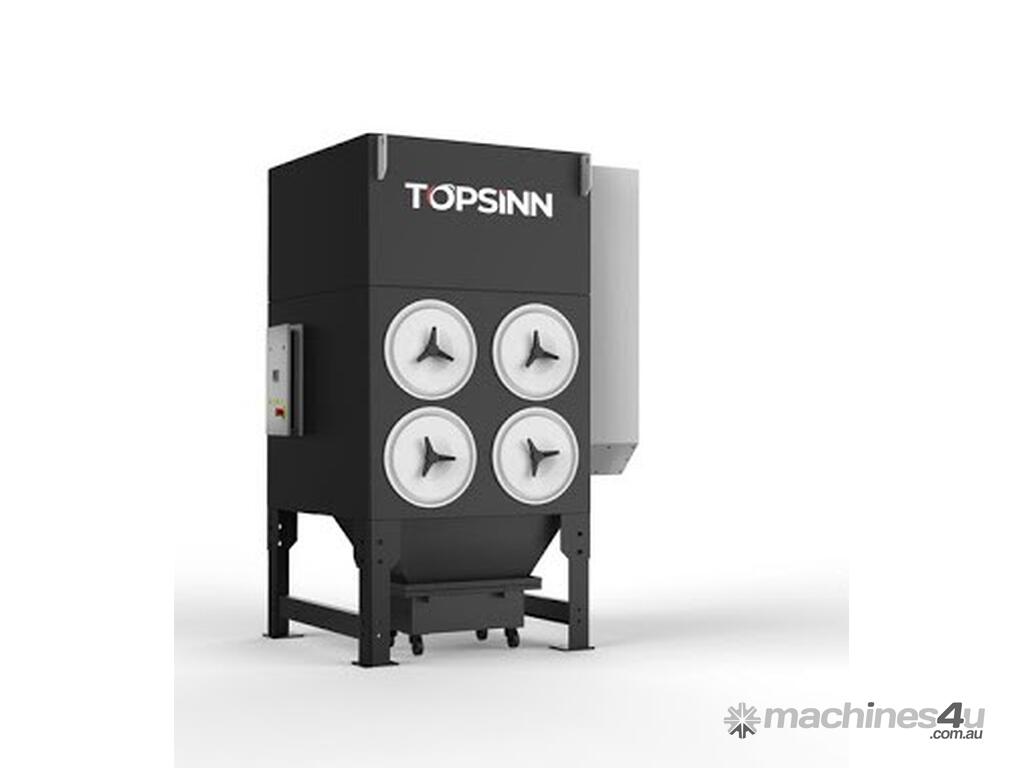

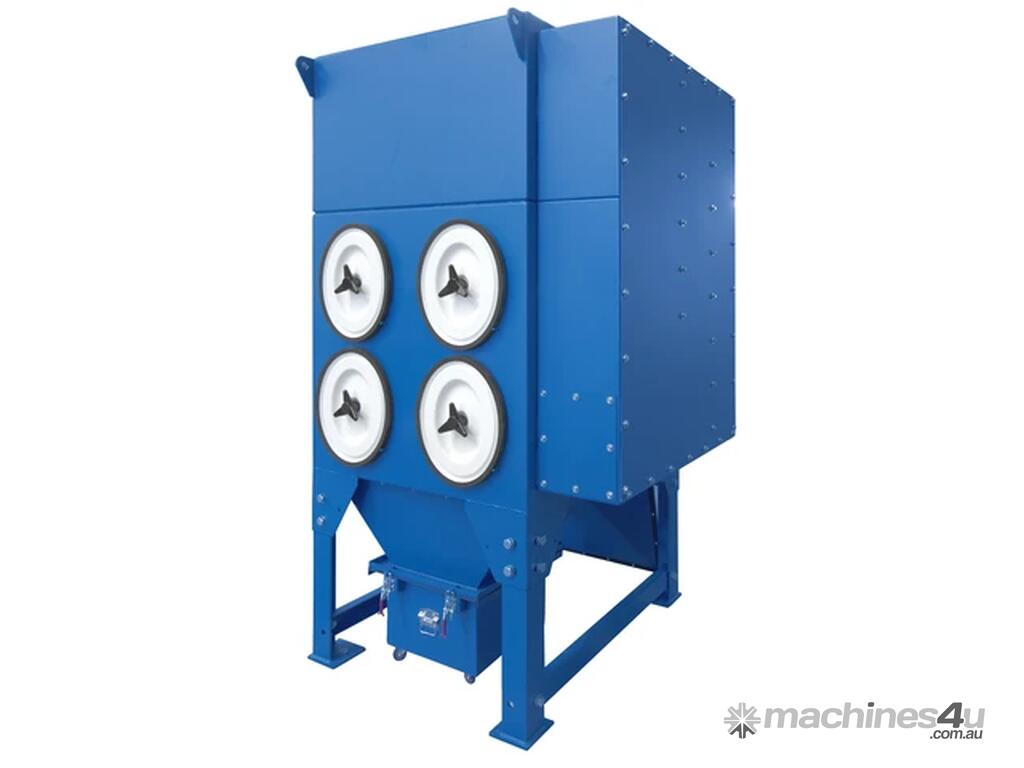

Fume-Dust Extractor
perfect machine when space is limited only need 8.5m x 5.5m of space
smaller IPG wattage available
6Kw Machine also available in this model Price TBA
