Haco - Fiber Laser Machine 3000w
Model HFL-GT3015+6M

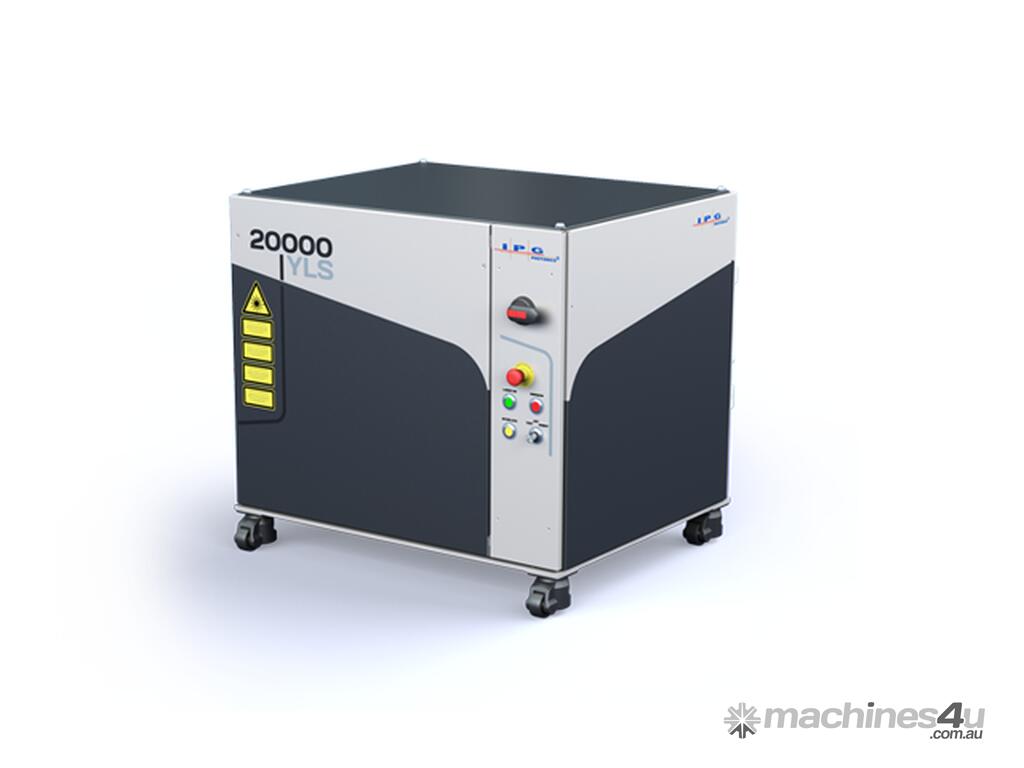

Laser Type Fiber Laser IPG
Laser Power 3000 W
Stroke of X-Axis 3020mm
Stroke of Y-Axis 1520mm
Stroke of Z-Axis 330mm
Machine Dimension 9300*3900*2000 mm
Gross weight 9000 kg

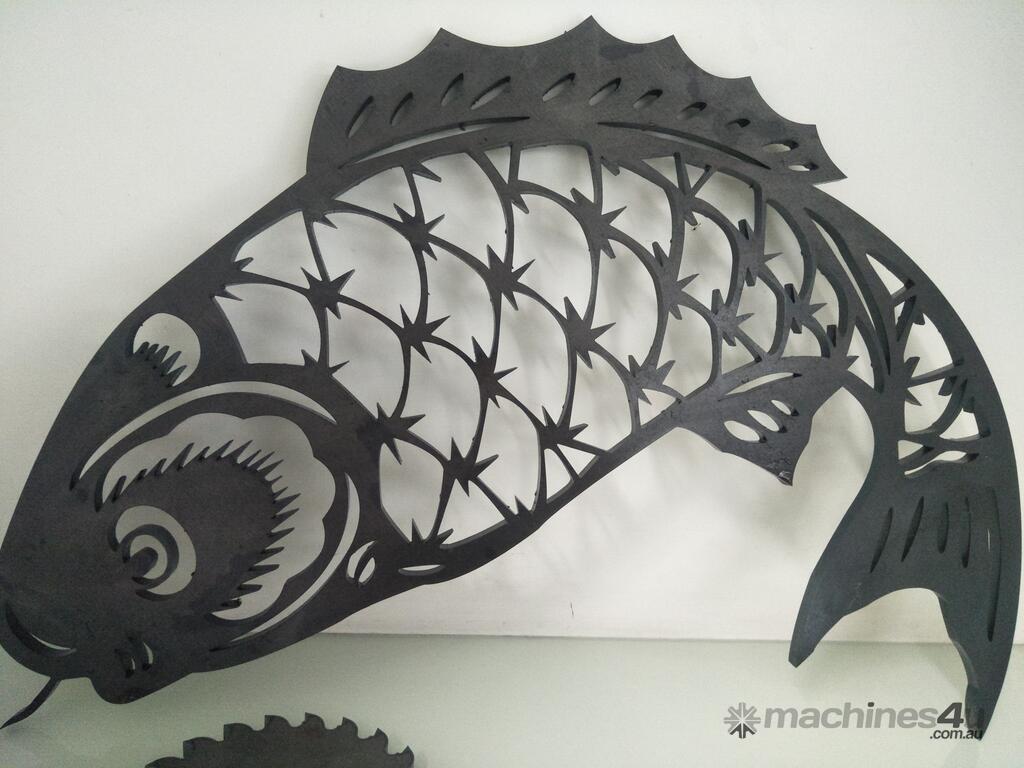

Cutting Parameters Plate
Material Max cutting thickness 3000W

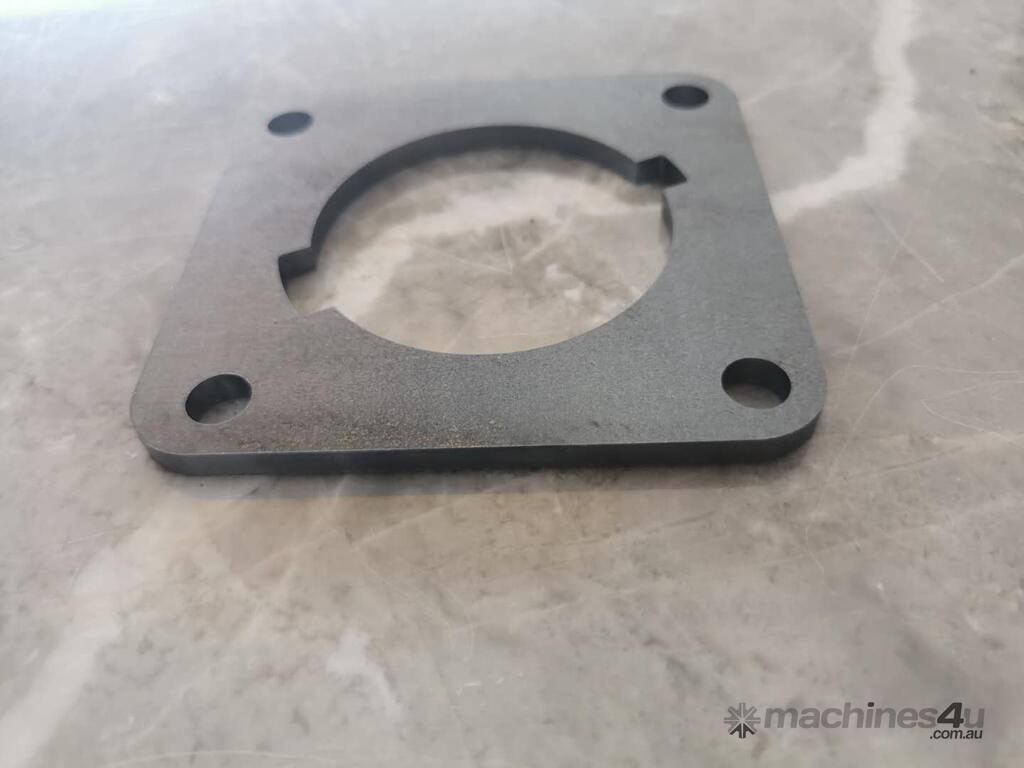

Mild steel 20 mm 16 mm Pierce
Stainless Steel 8 mm
Aluminum Alloy 6 mm
Brass 6 mm

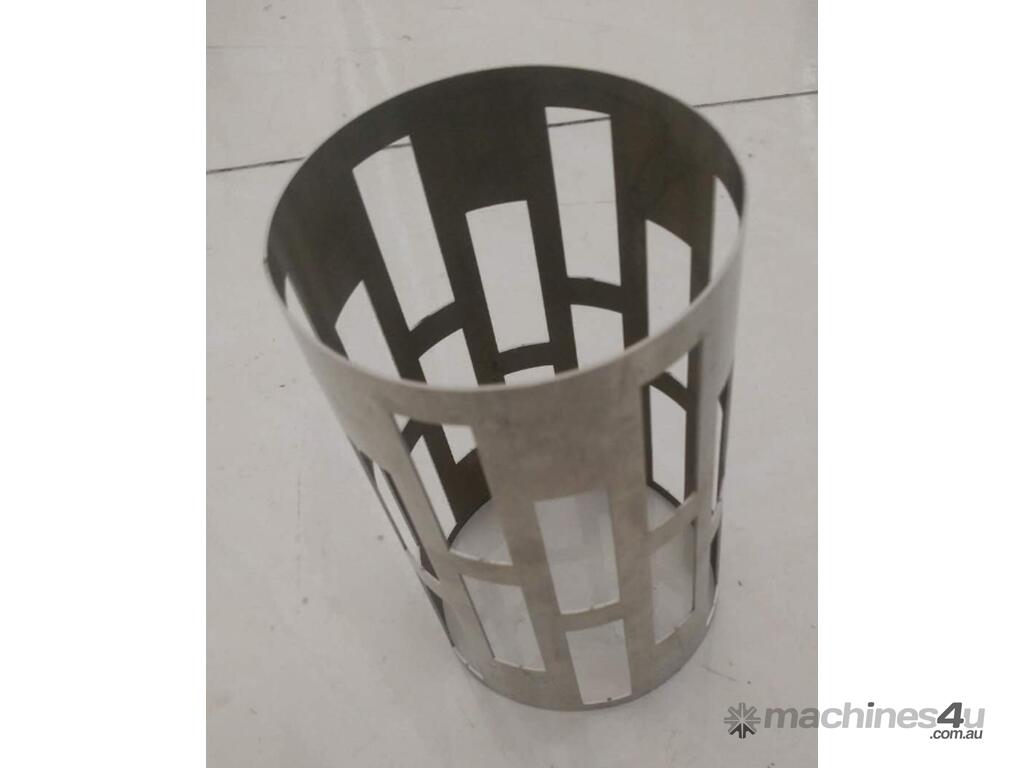

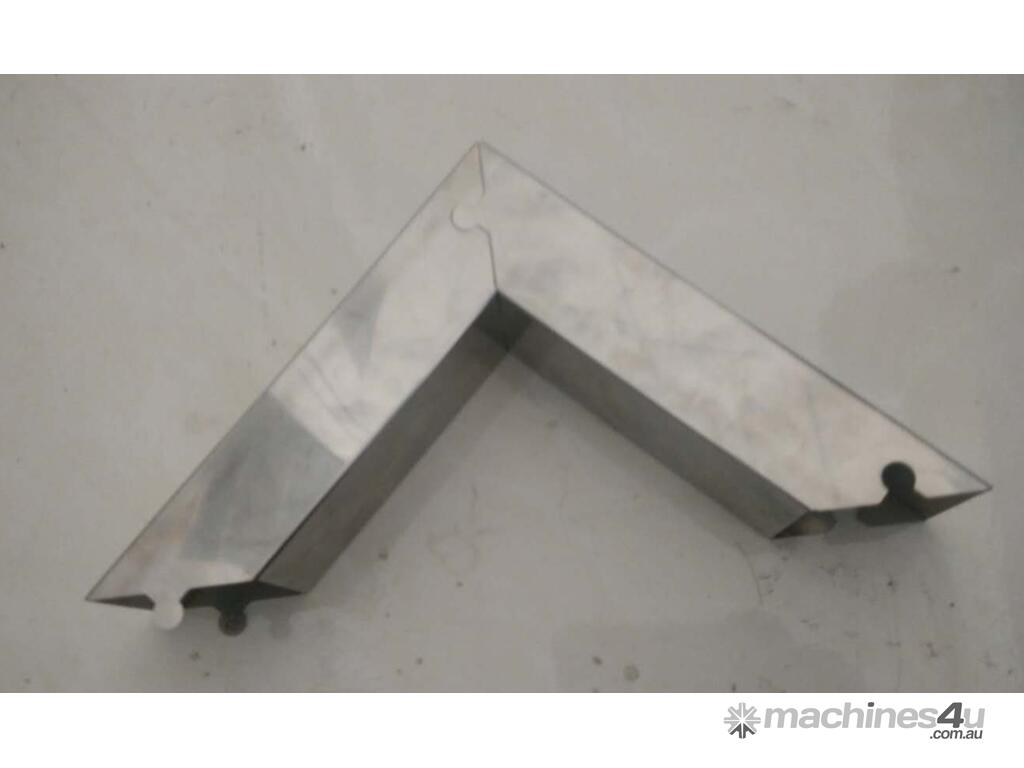

Tube Cutting
Rd 20mm - 220mm
Sq 15mm - 150mm
Automatic Chuck
6m Pipe/Tube but max 1.5m cut
Accessories included
Control Software Cypcut Most popular control system
Nesting software Integrated with Cypcut
Tube Laser Software
IPC High stability industry PC
Exhaust Blower Standard Configuration (not fume-dust this is optional at more-price)
Voltage Regulator Standard Configuration
Inner Camera Standard Configuration
Automatic lubrication system Standard Configuration

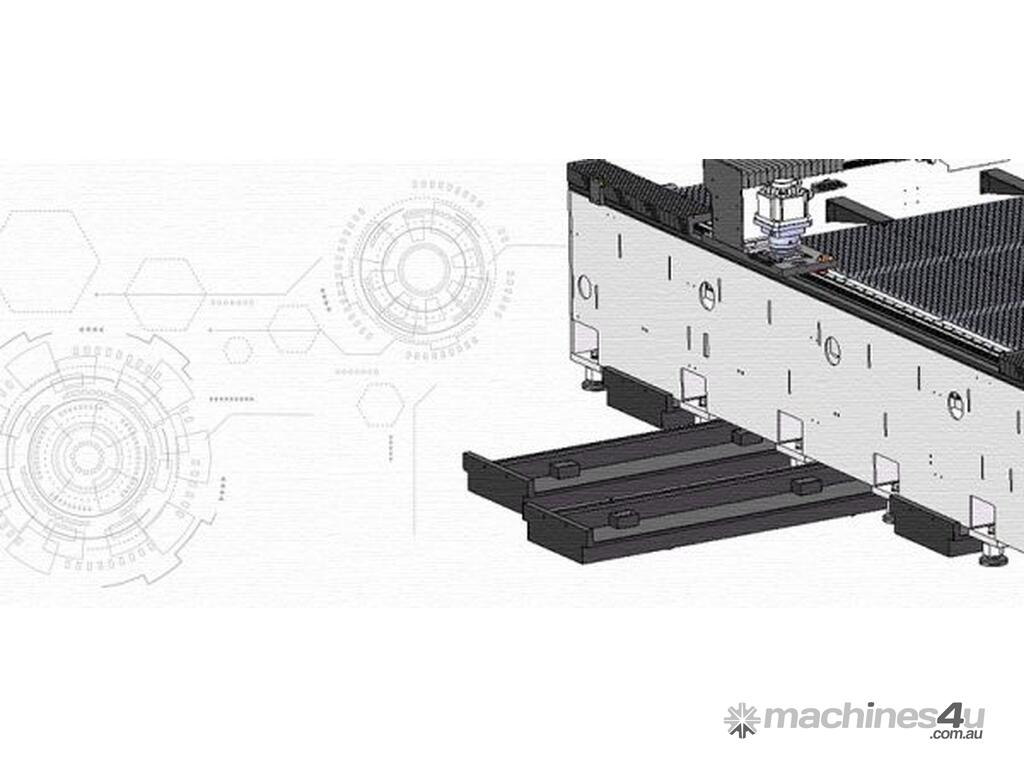

Collect Trolley Standard Configuration
Remote Control Standard Configuration
Options
Precitec Laser Head

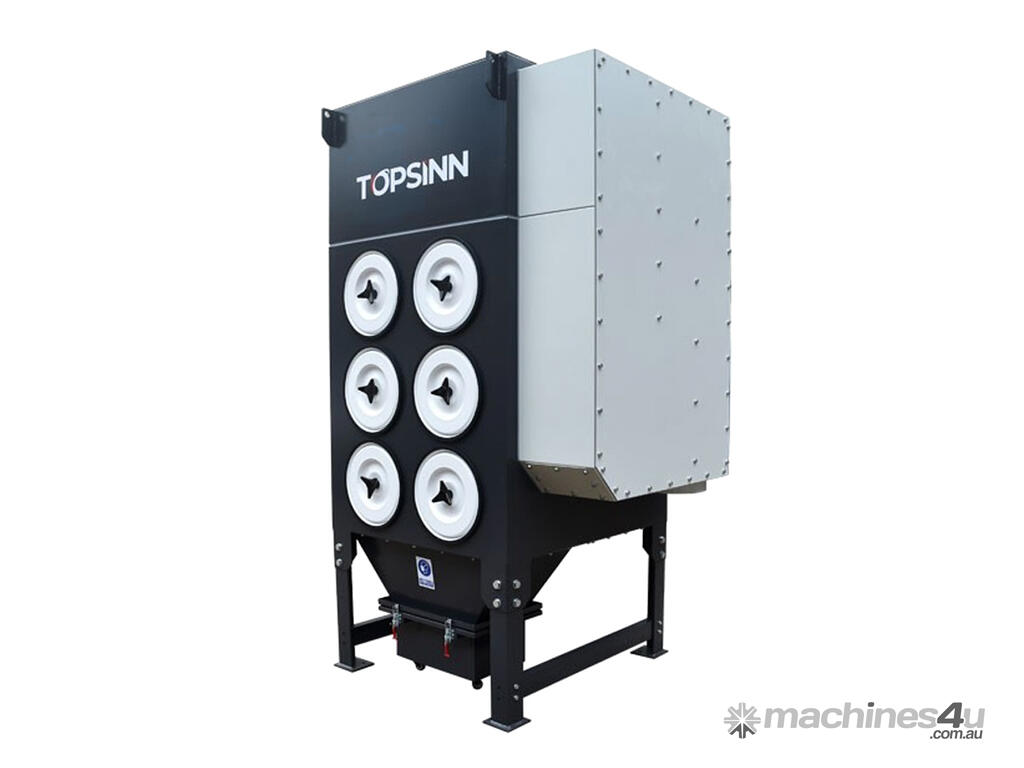

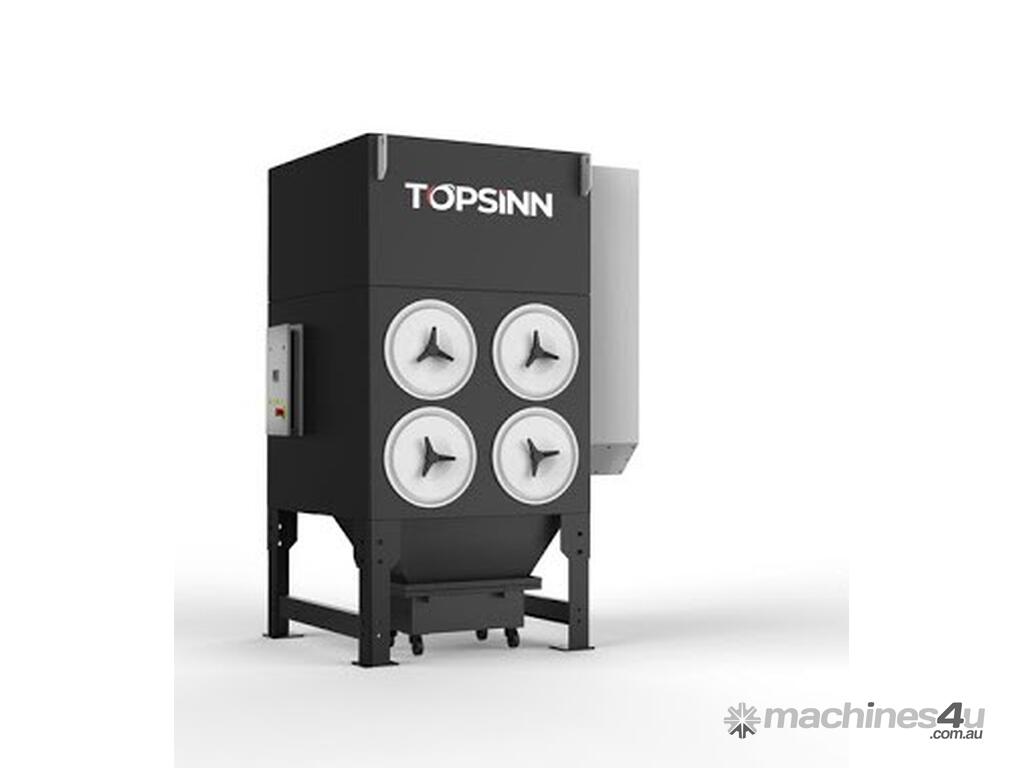

Dust-Fume Collector
