HG-460B Hydraulic NC Guillotine 1300 x 6mm Mild Steel Shearing Capacity 1-Axis Ezy-Set NC-89 Control

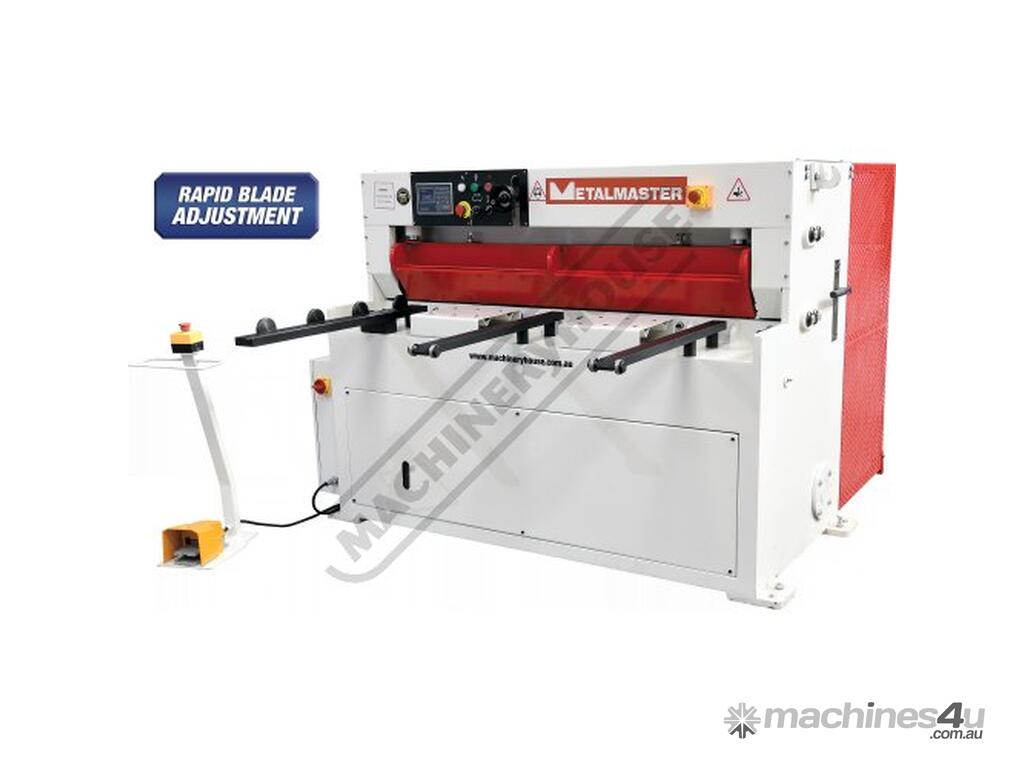

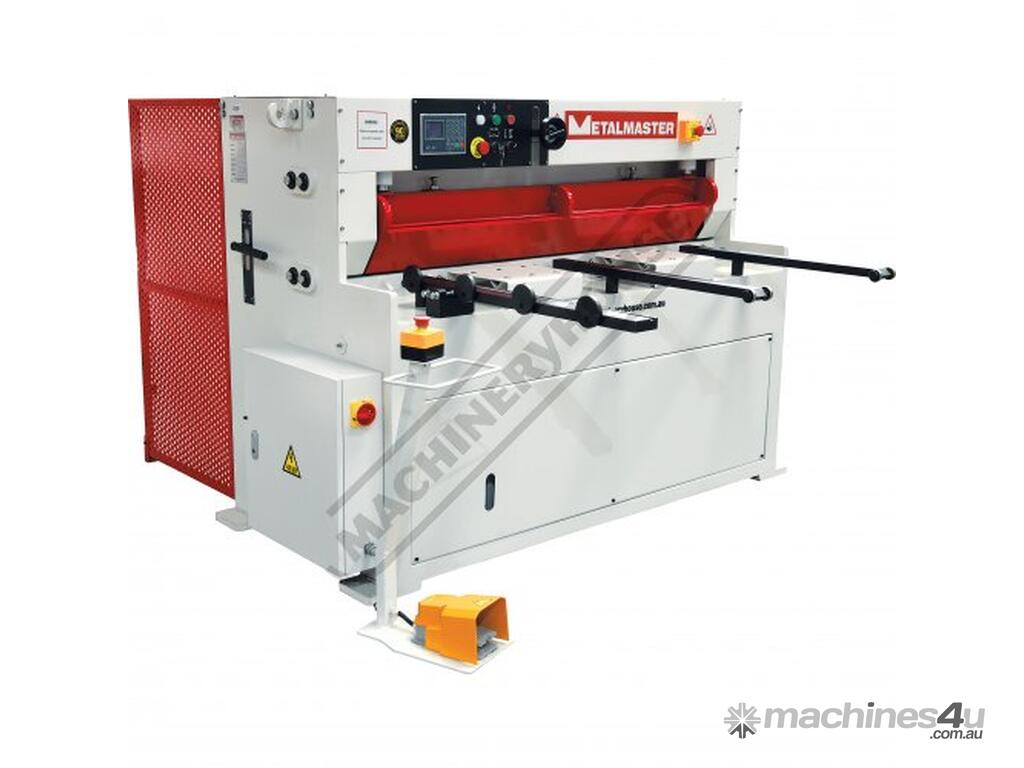

METALMASTER HG-460B Hydraulic NC Guillotine 1300 x 6mm Mild Steel Shearing Capacity 1-Axis Ezy-Set NC-89 Controlled Backgauge & Includes Rapid Blade Adjustment
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: S923

Features:
1300mm x 6mm cutting capacity
5.5kW / 7.5hp 415V motor

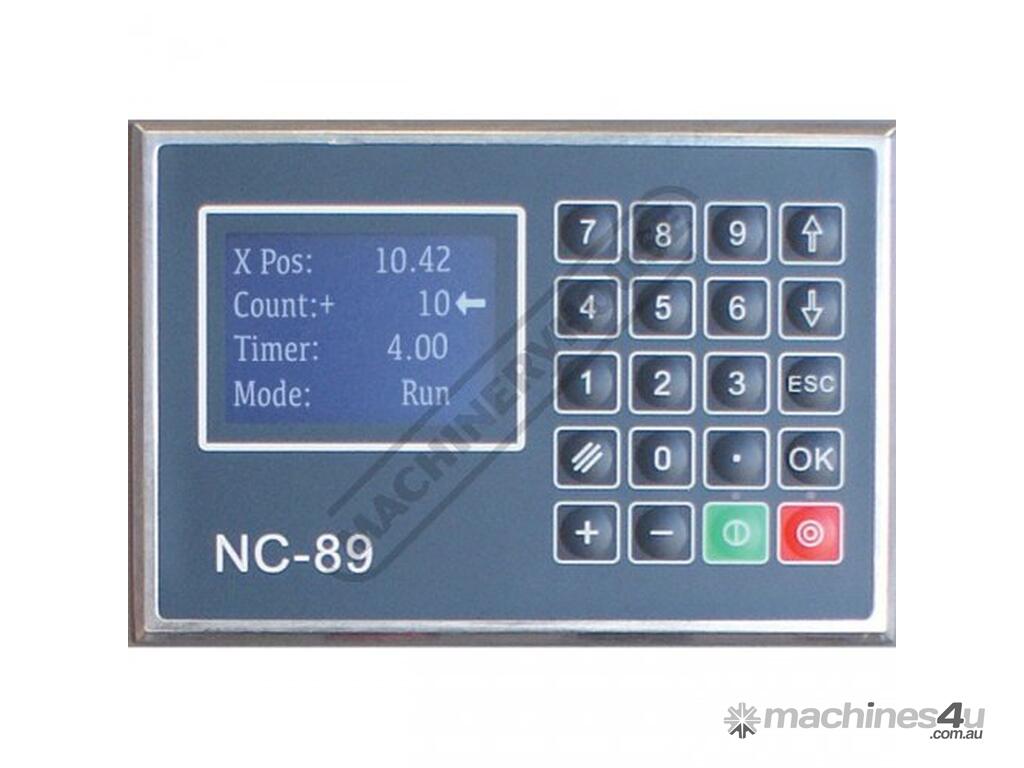

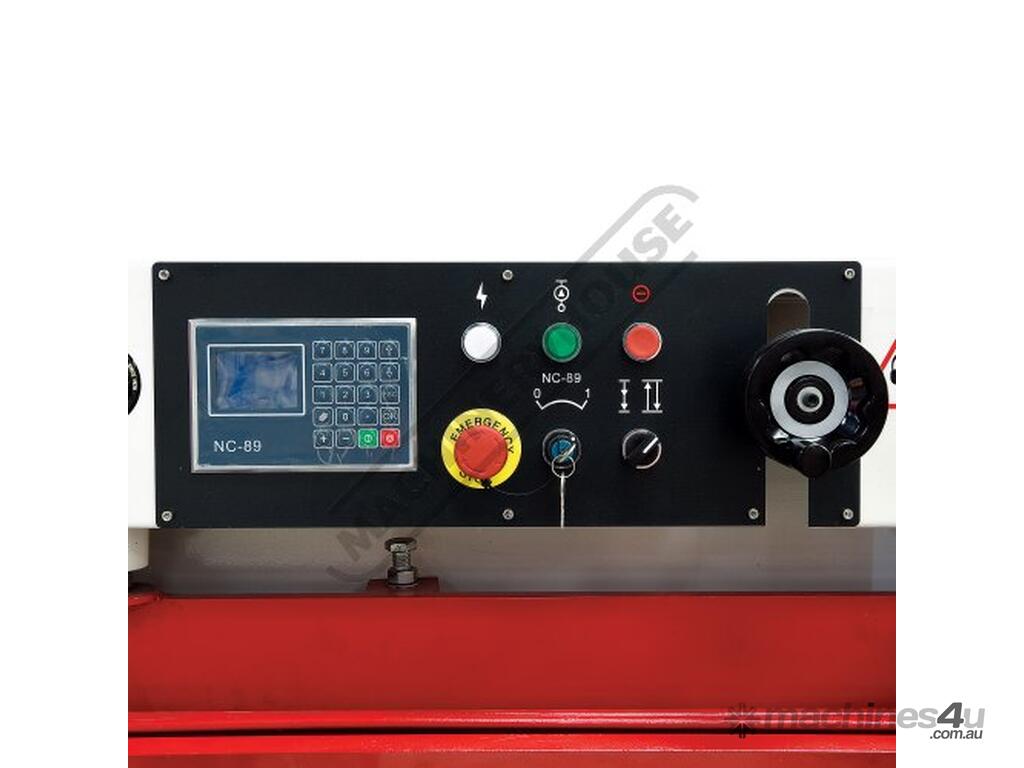

Ezy-Set NC-89 Go-To digital display controlled backgauge with DRO counter

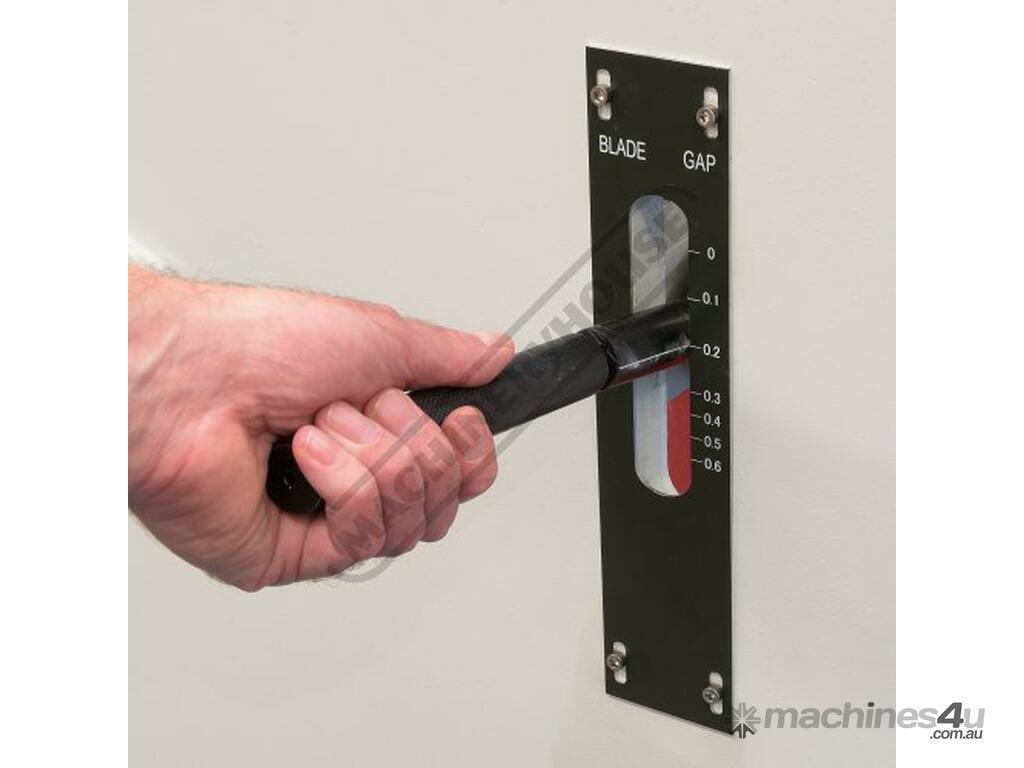

Quick action blade clearance adjustment for shearing material 1 - 6mm
Hydraulic material clamping for accurate shearing

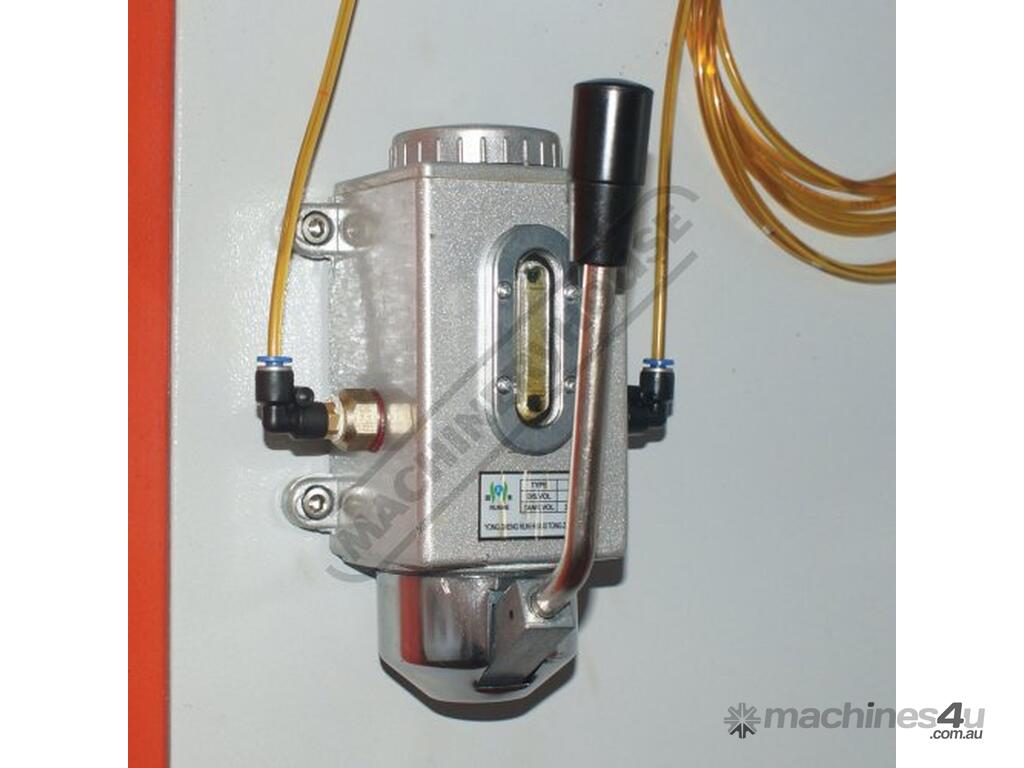

One shot lubrication pump & reservoir for slideway protection
Blades made from 9CrSi material suitable for cutting stainless steel

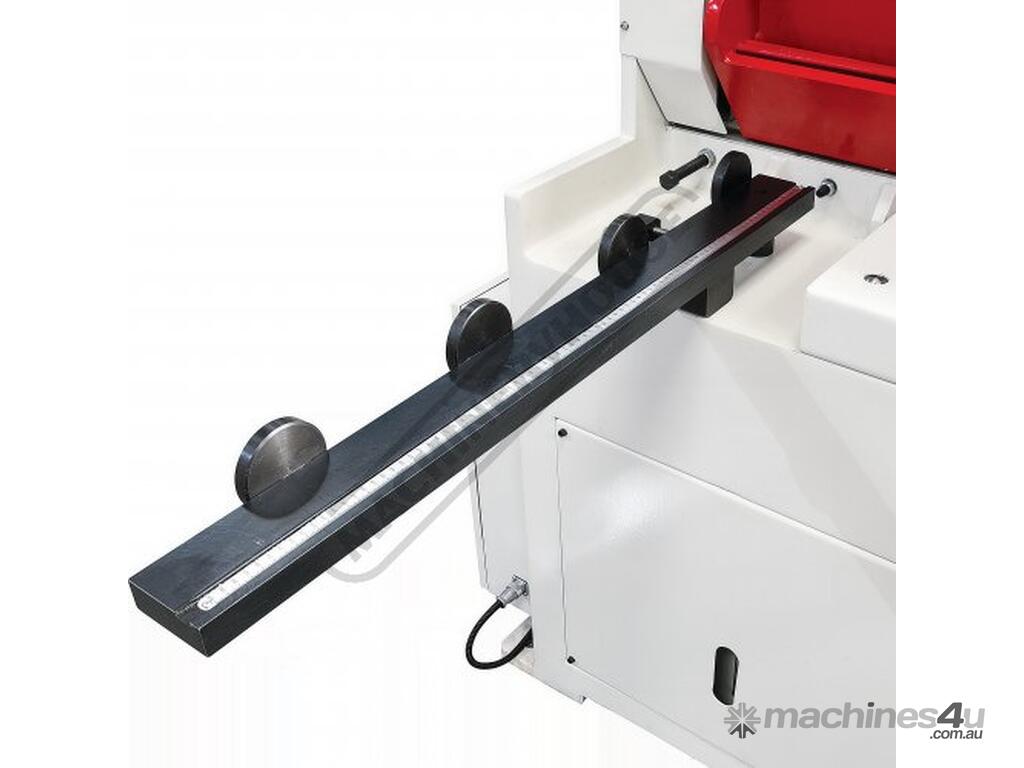

Transfer balls inserted into work table allowing larger sheets to be easily positioned to the cut position and squaring arm

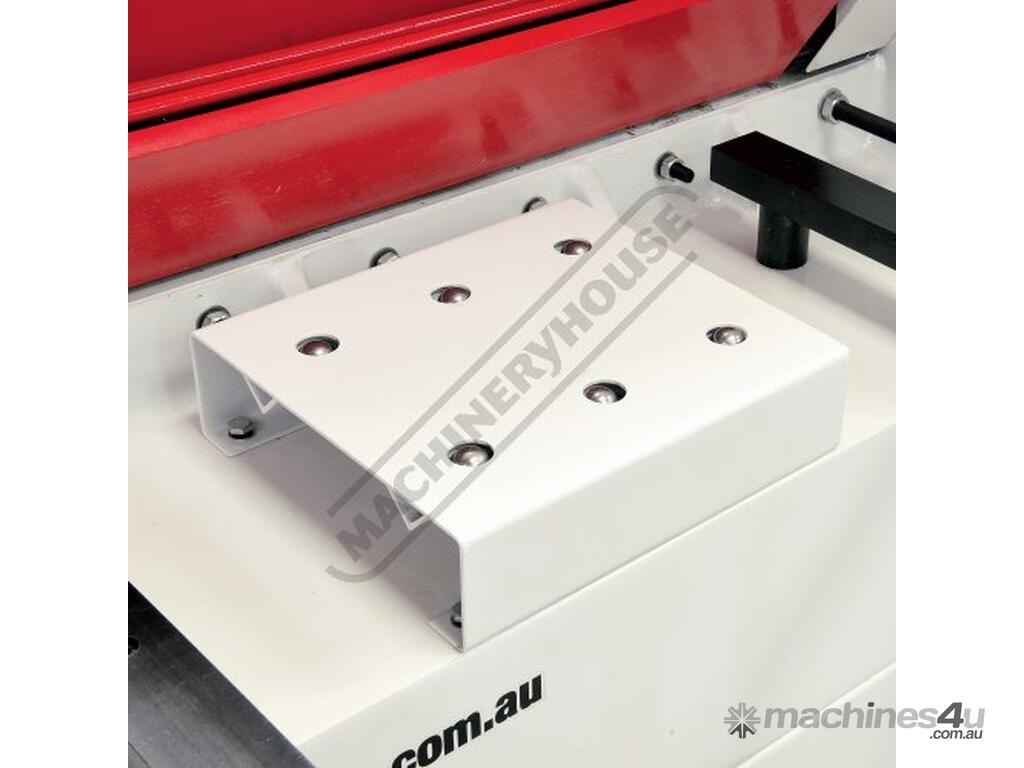

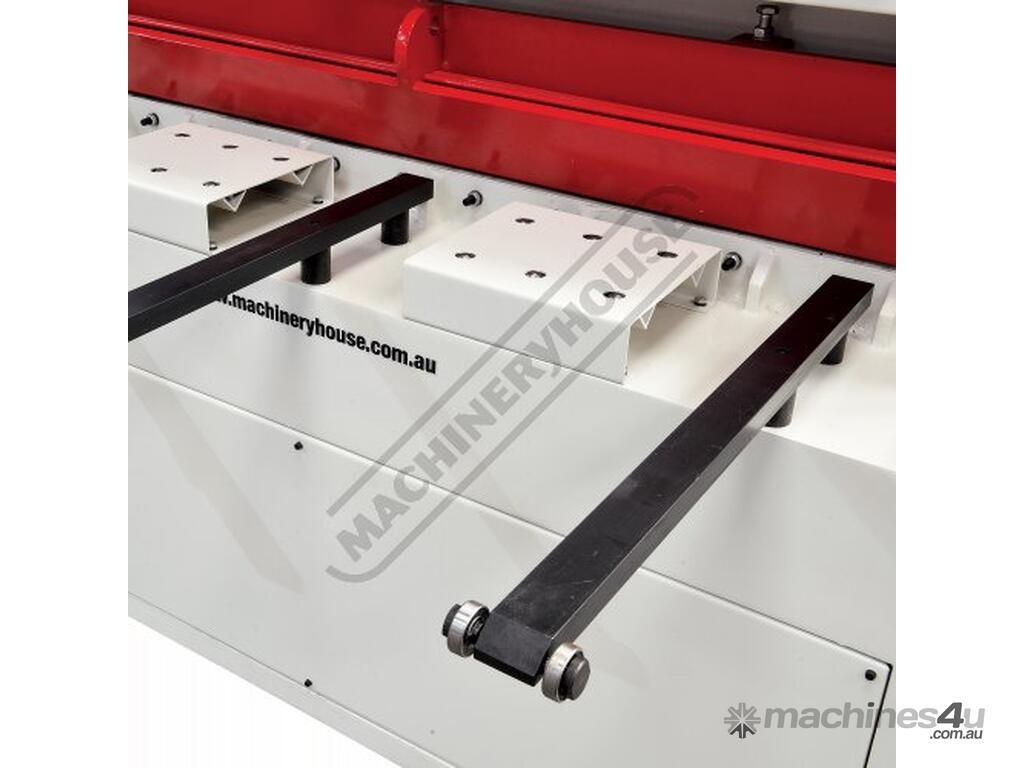

Front sheet supports with ball bearing guides preventing material damage when setting up

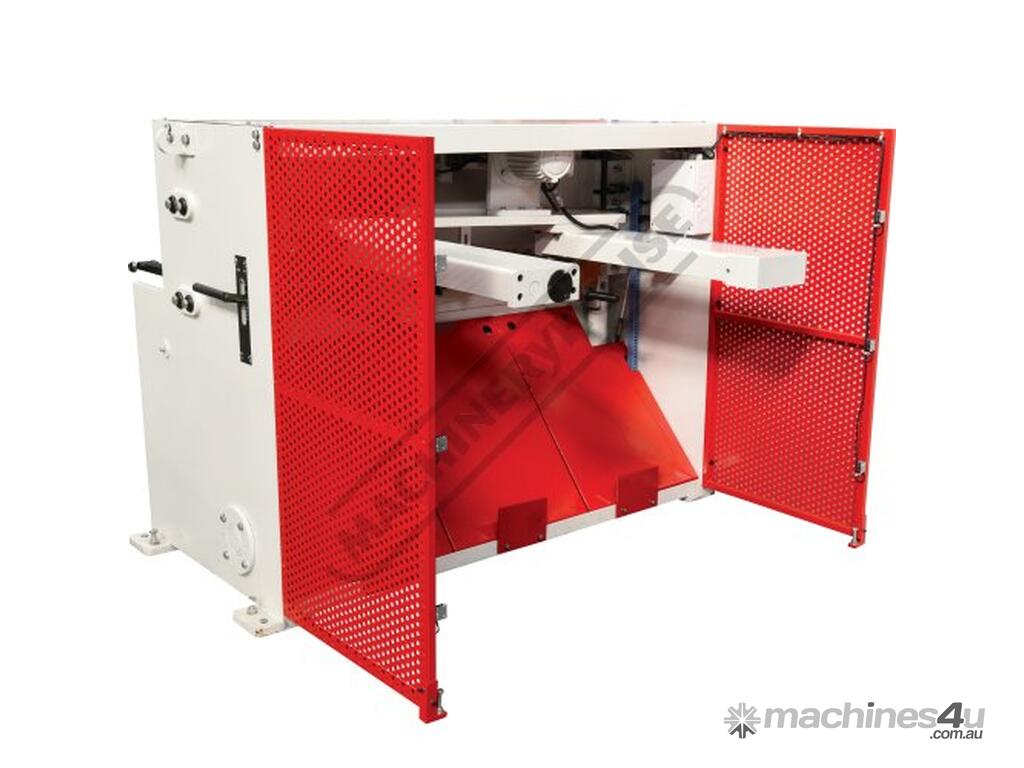

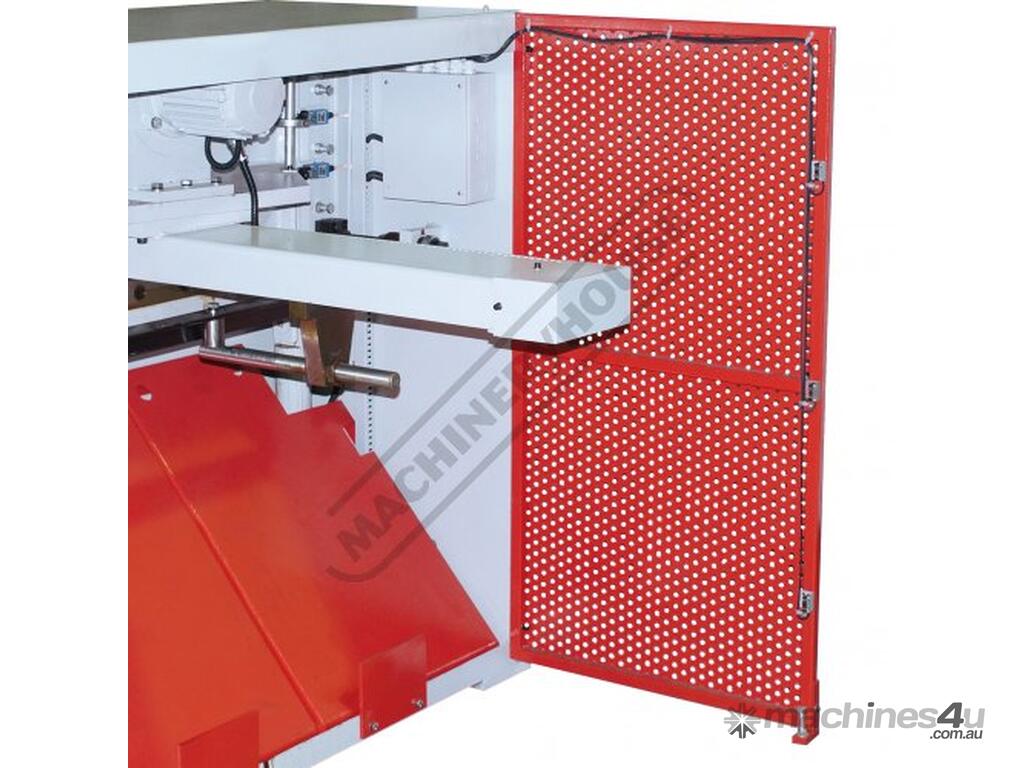

Three safety photo electric light beams on rear guarding
Safety reset rear guarding button mounted to back of electrical box
Heavy duty under driven machine construction
Equipped with shadow line lighting-alignment device

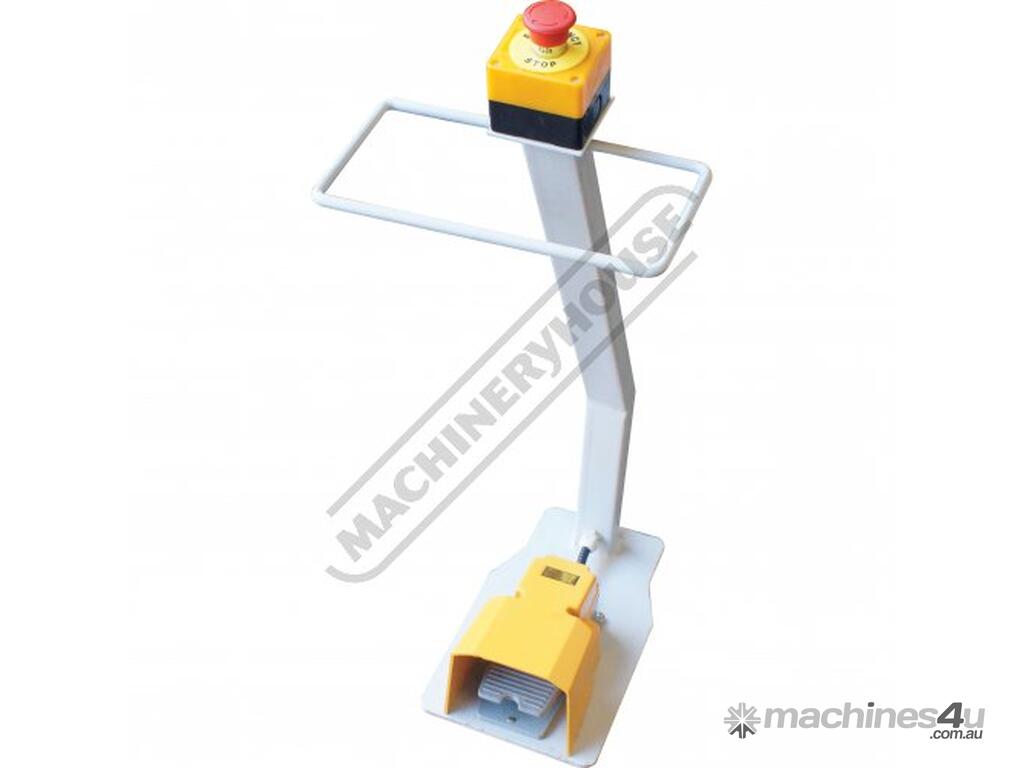

Roving foot pedal control
Mild steel capacity is rated on hot rolled material with 250MPA

Pre-Commissioning:
1. Guillotine is run & tested prior delivery
2. Hydraulic oil is included with machine


Specifications:
ORDER CODE: S923
MODEL: HG-460B
Shearing Capacity - Mild Steel (mm): 6
Shearing Capacity - Stainless Steel (mm): 4
Shearing Length (mm): 1300
NC Control (Type): Ezy-Set NC-89
Backgauge (Type): Leadscrew
Backgauge Travel (mm): 700
Pneumatic Sheet Supports: ~
Quick Action Blade Clearance Adjustment: Yes
Strokes / min (SPM): 12
Blade Angle (deg): 2º
Blade Angle (deg): ~
Throat Depth (mm): ~
Motor Power (kW / hp): 5.5 / 7.5
Voltage / Amperage (V / amp): 415
Floor Space Requirements (L x W x H) (mm): 1990 x 2230 x 1312
Nett Weight (kg): 2046
