HGL-3106 Hydraulic Swing Beam Guillotine - EURO 3060 x 6mm Mild Steel Shearing Capacity 1-Axis NC Cy

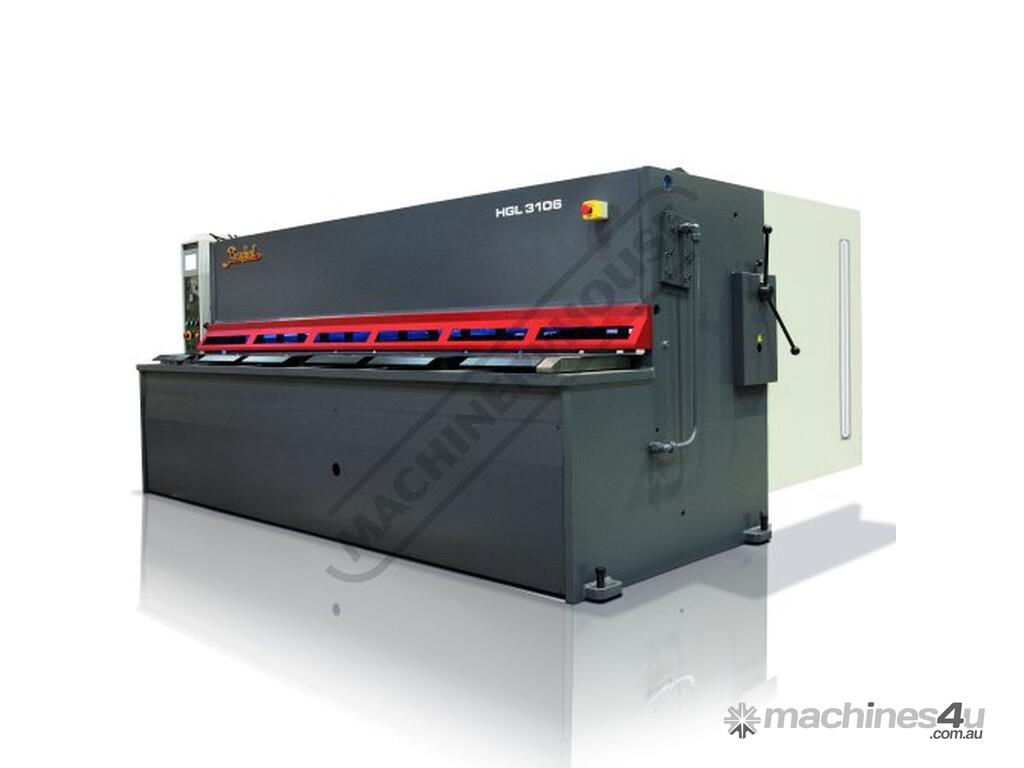

BAYKAL HGL-3106 Hydraulic Swing Beam Guillotine - EURO 3060 x 6mm Mild Steel Shearing Capacity 1-Axis NC Cybelec Cybtouch 8W Touch Screen Control & Hardened Ballscrew Backgauge
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: S859A

Features:
Cybelec Cybtouch 8W NC touch colour screen control intuitive interface online help and many other user friendly automatic functions
1000mm hardened ballscrew backgauge with 0.1 mm precision with digital readout display
Shear blades are tough and wear-resistant made from Böhler K110 alloyed steel manufactured in Austria : Top blade - two cutting edges & Bottom blade - four cutting edges
Swinging top beam working on high precision and self aligning roller bearings
Rapid blade gap adjustment allow operator to quick adjust for material thickness
LED shadow line lighting provides clear line on material
Steel front guard with clear & obstruction free view
Swing away backgauge enables operator to cut longer than 1000mm
Individual hydraulic hold down system provide excellent material clamping
Ball transfer on table allows material to slide with ease
1000mm squaring arm with scale T-slot and flip-stop
1000mm front material support arms
Stroke counter keeps count per cut
Rear safety light guarding

Made in Turkey
Mild steel capacity is rated on hot rolled material with 250MPA

Pre-Commissioning:
1. Guillotine is run & tested prior delivery
2. Hydraulic oil is included with machine

Includes:
- CYBELEC CYBTOUCH-8W FEATURES:
- Easy operating
- Large vivid and high-contrast fully touchscreen
- Simple pages clear display large keys
- Intuitive user-friendly interface
- Complete programming for efficient mass-production with multiple cuts
- Easy single cuts thanks to the Easy page
- On-line help and interactive warning pop-ups
- Comfortable wireless data backup and software updating using PC or Notebook
- USB memory stick port for data transfer/backup
- Large variety of languages available



Specifications:
ORDER CODE: S859A
MODEL: HGL-3106
Shearing Capacity - Mild Steel (mm): 6
Shearing Capacity - Stainless Steel (mm): 4
Shearing Length (mm): 3060
NC Control (Type): Cybelec Cybtouch 8W
Backgauge (Type): Ballscrew
Backgauge Travel (mm): 1000
Pneumatic Sheet Supports: ~
Quick Action Blade Clearance Adjustment: Yes
Strokes / min (SPM): 20
Blade Angle (deg): 1.6º
Blade Angle (deg): ~
Throat Depth (mm): ~
Motor Power (kW / hp): 11 / 15
Voltage / Amperage (V / amp): 415
Floor Space Requirements (L x W x H) (mm): ~
Nett Weight (kg): 5500


To Purchase Online Please Visit The Machineryhouse & Search For 'S859A'
