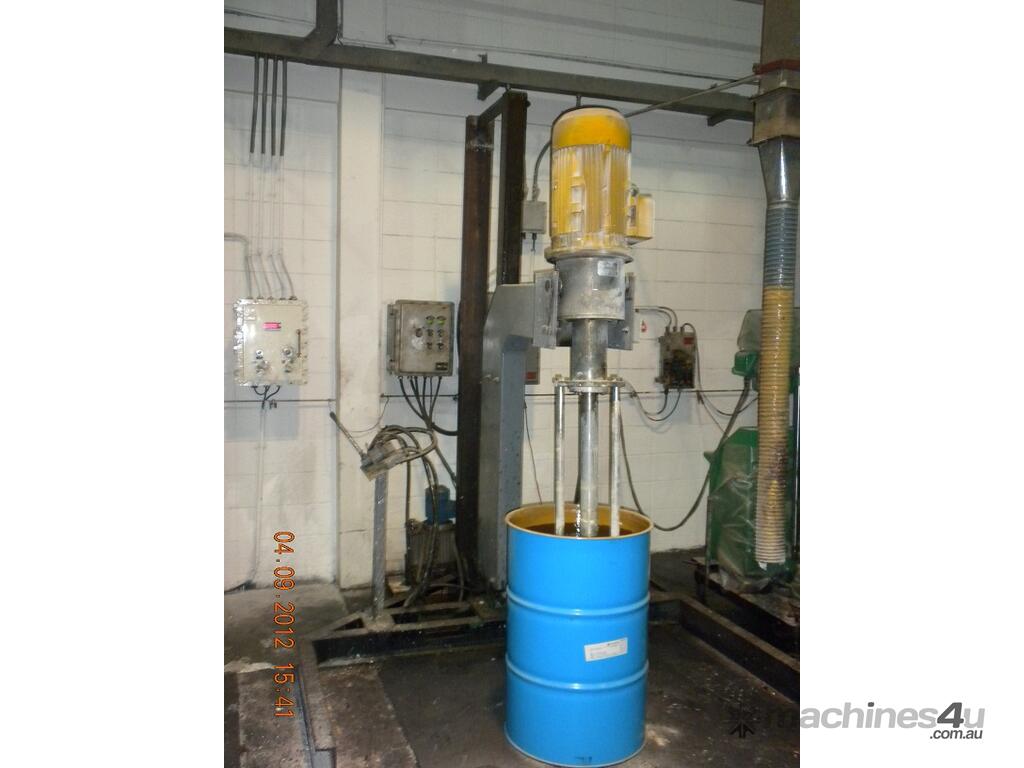

High shear Homogenizer disperser/blender for high viscosity liquids/emulsions.

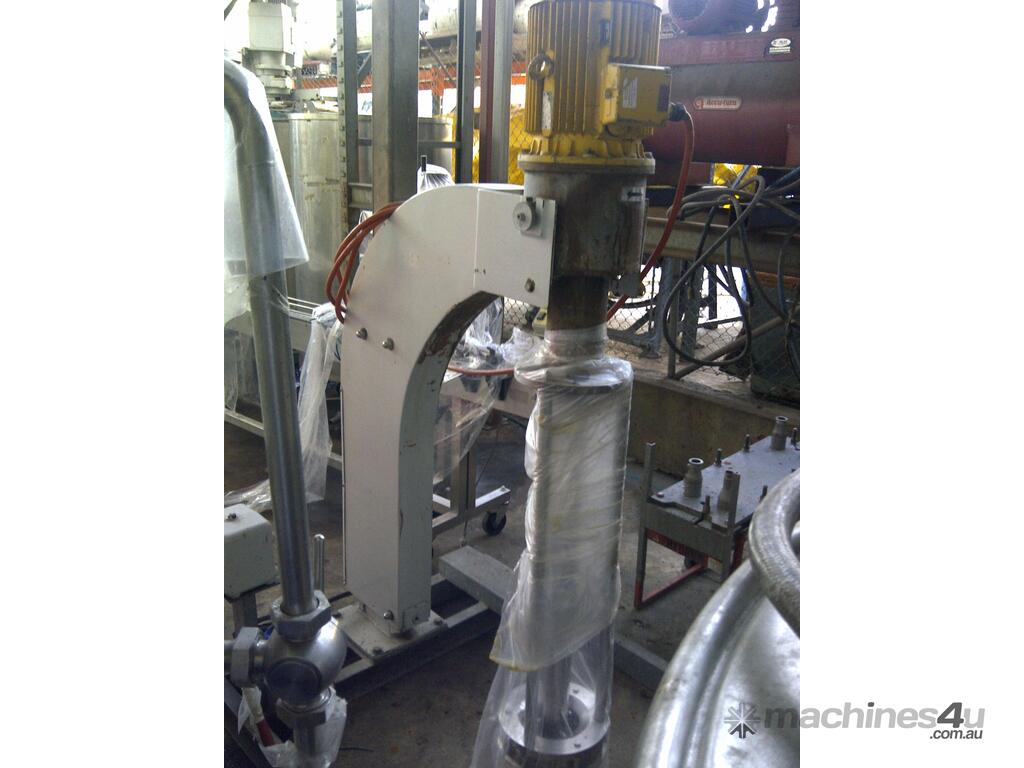

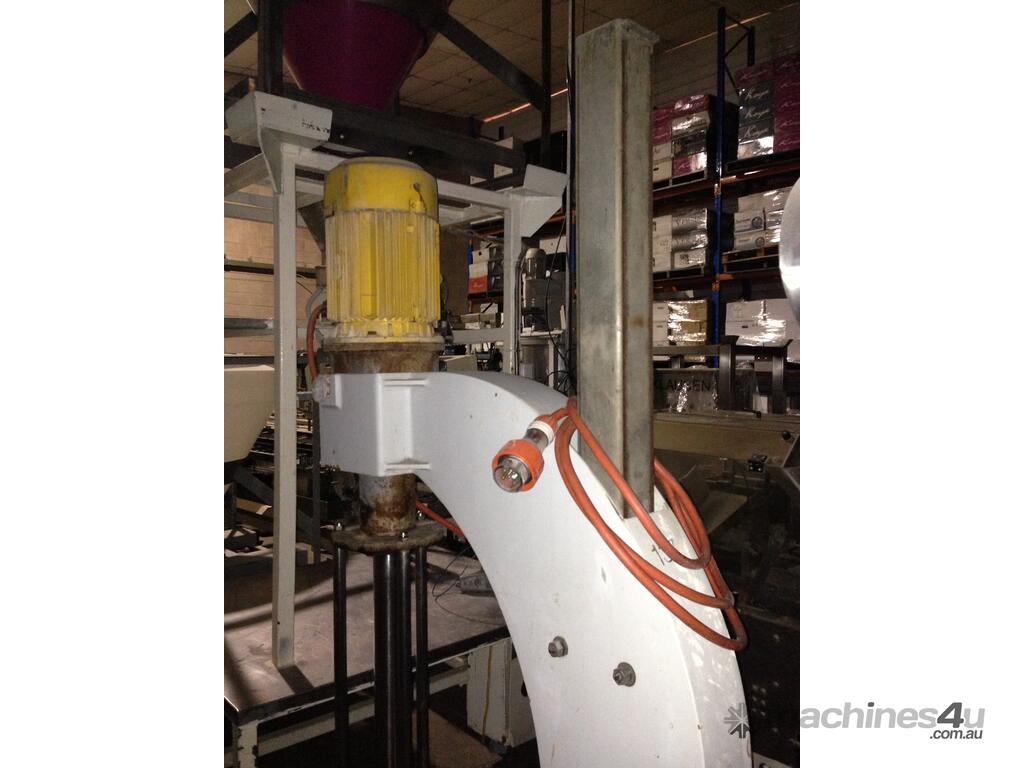

Klausen engineering made, BatchRanger model FMG10 7.5kW Exe motor, complete with Hydraulically lifted stand

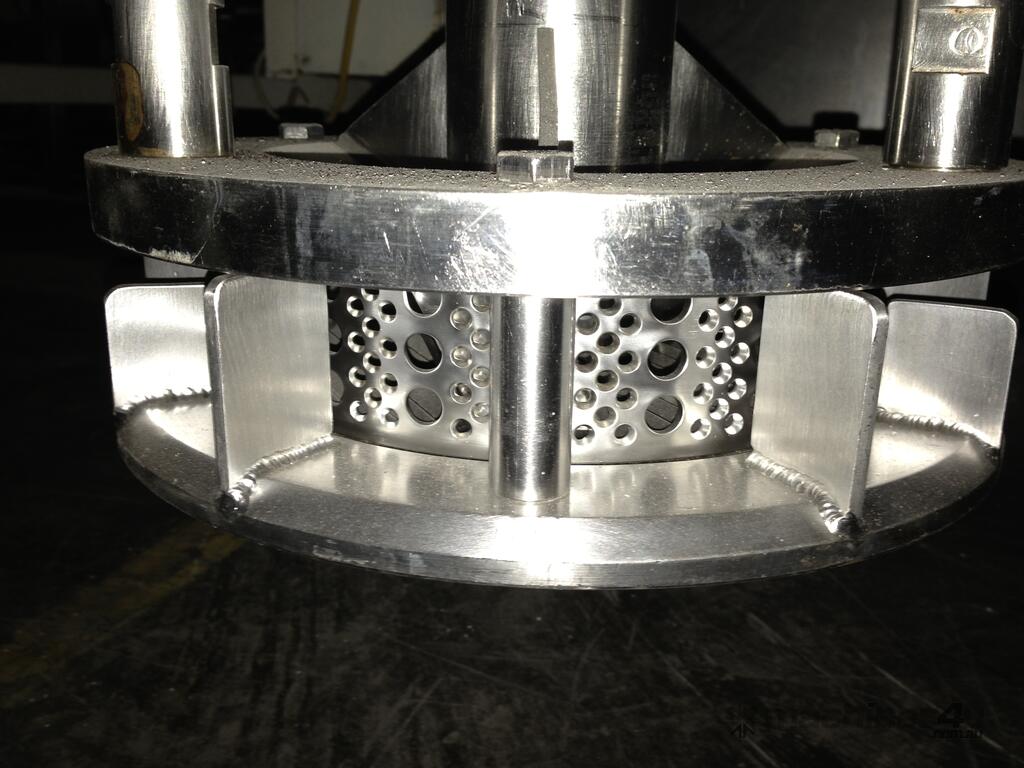

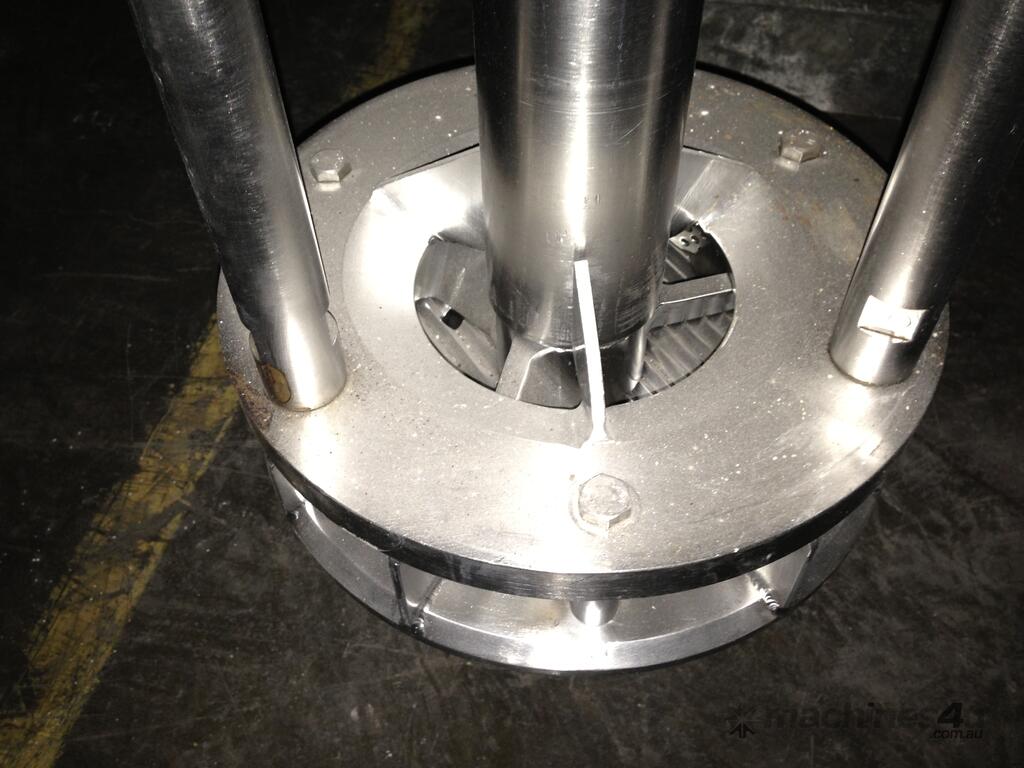

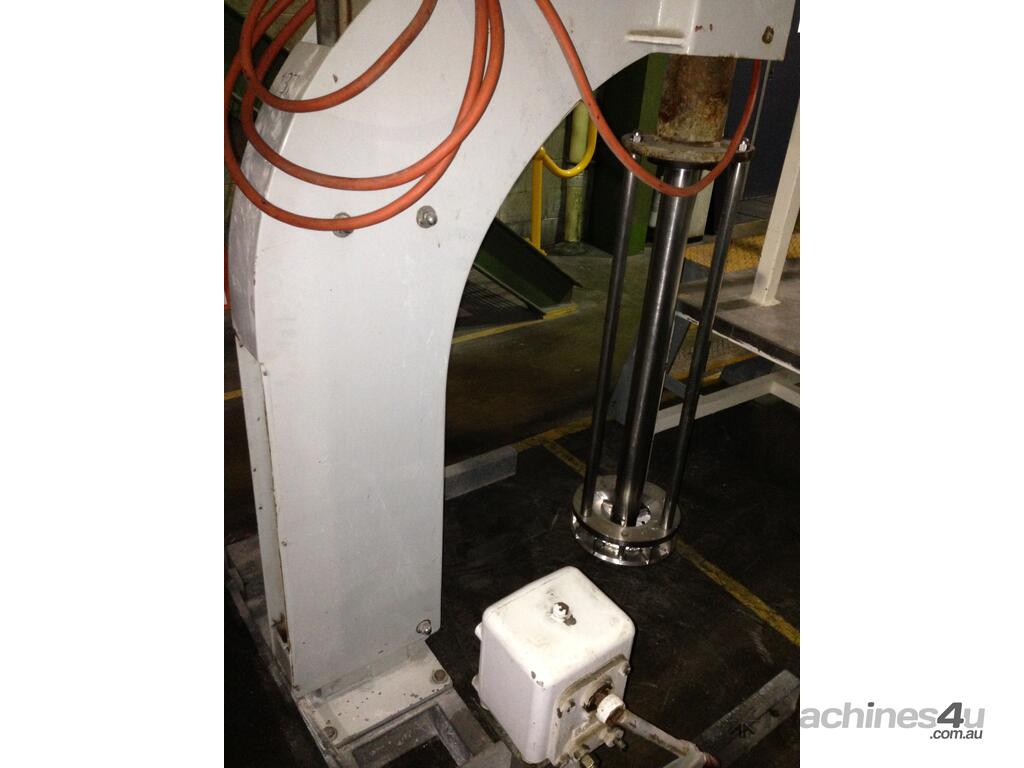

Consists of an Stainless steel shrouded impeller set inside a perforated stator screen/shroud of 300mm diameter.

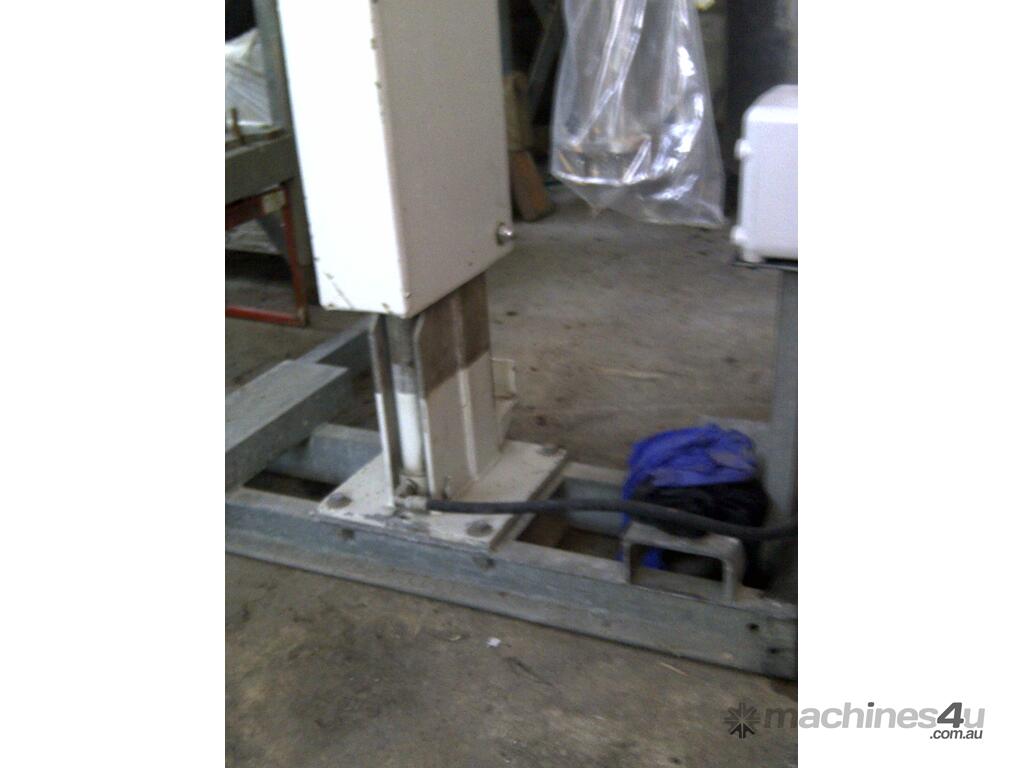

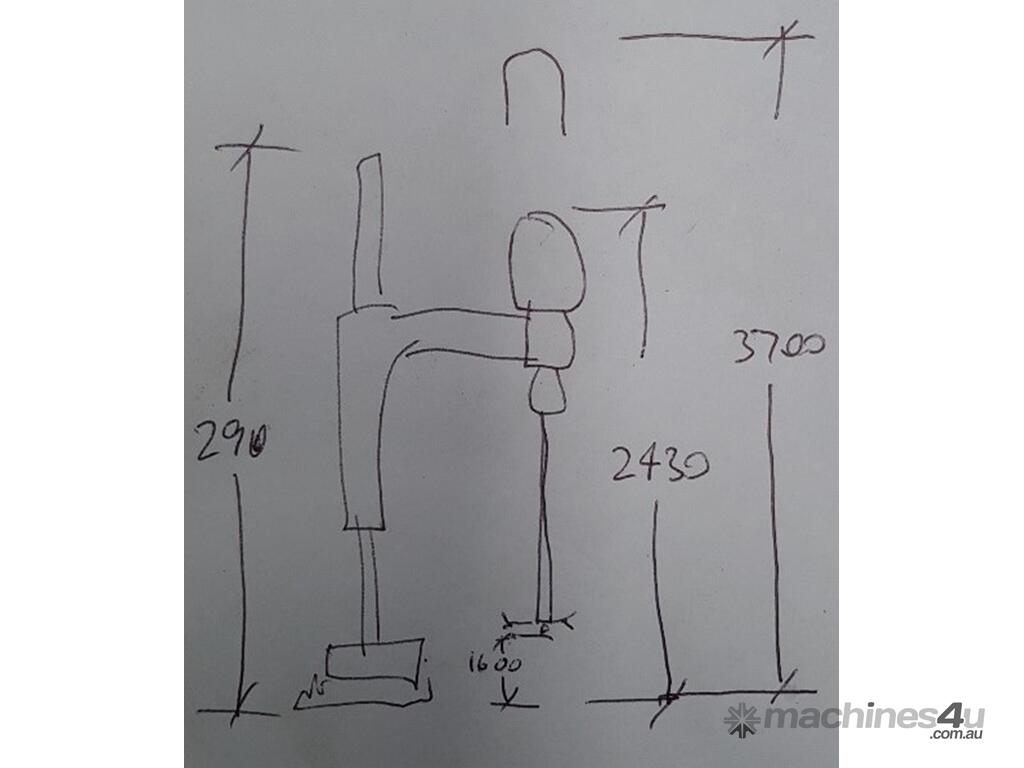

The arms of the impeller (central shaft and support rods for the shroud) are all of Stainless Steel and the immersion depth for mixing is approximately 900 mm. The arrangement can be raised and lowered by hydraulic hand pump by approx 600mm to allow a tank to be inserted below.
The unit can process volumes from as low as 20 liters to 1000 liters (depending on the product)

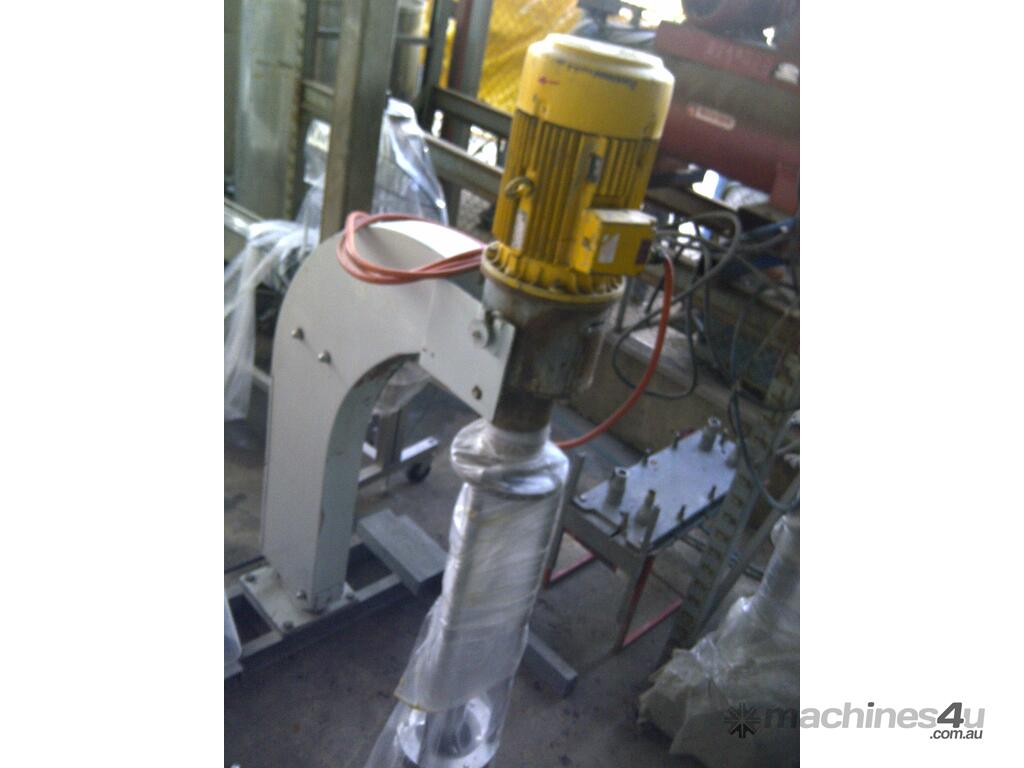

The unit is driven by 7.5 kW flameproof motor ( customer to confirm that it meets local regulations for flameproof motors before use)
The unit can be lifted by Fork lift tines and placed at higher platform locations if required.
