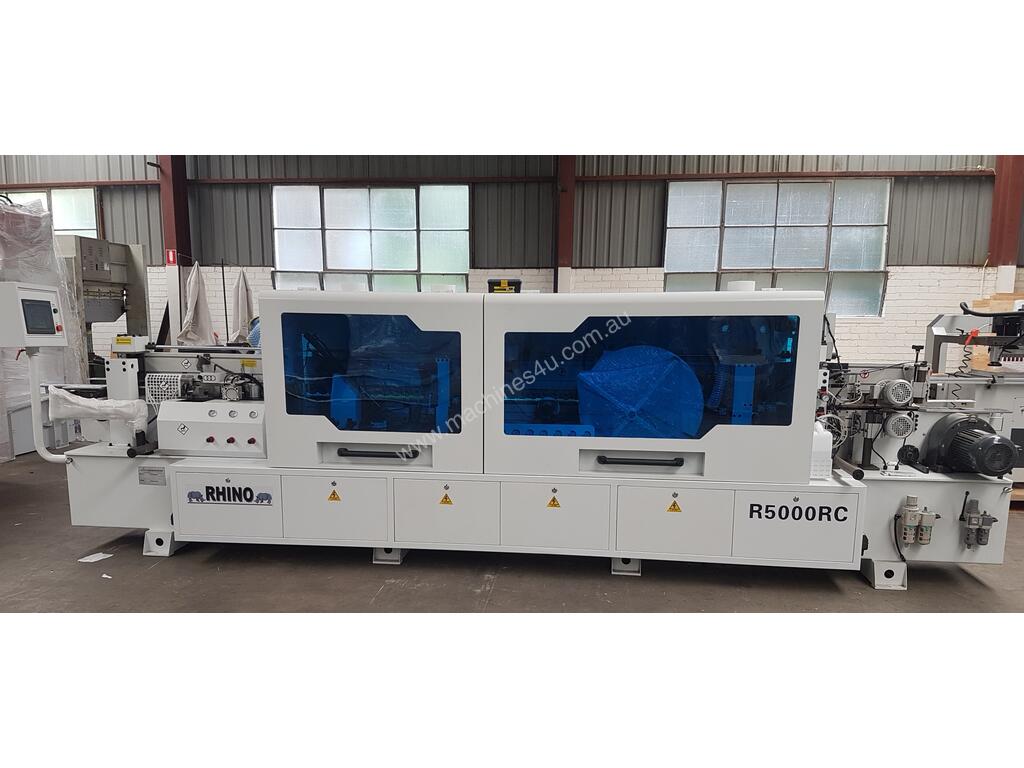

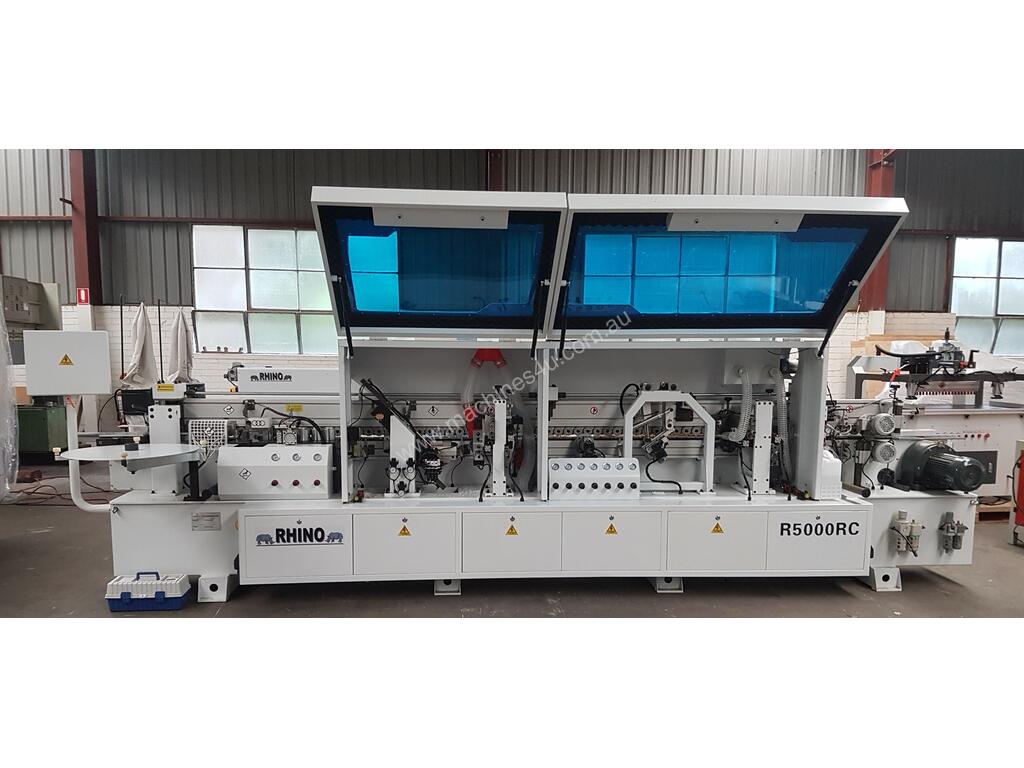

HIGH SPEED CORNER ROUNDING RHINO R5000 RC EDGEBANDER

NEW RHINO R5000RC (Rapid Change) AUTOMATIC HEAVY DUTY CORNER ROUNDING EDGEBANDER, VARIABLE FEED SPEED UPTO 20MT/MIN.

Edgebander features:
Heavy duty steel fabricated frame suitably braced in load carrying areas, and the frame is
heat treated prior to machining.

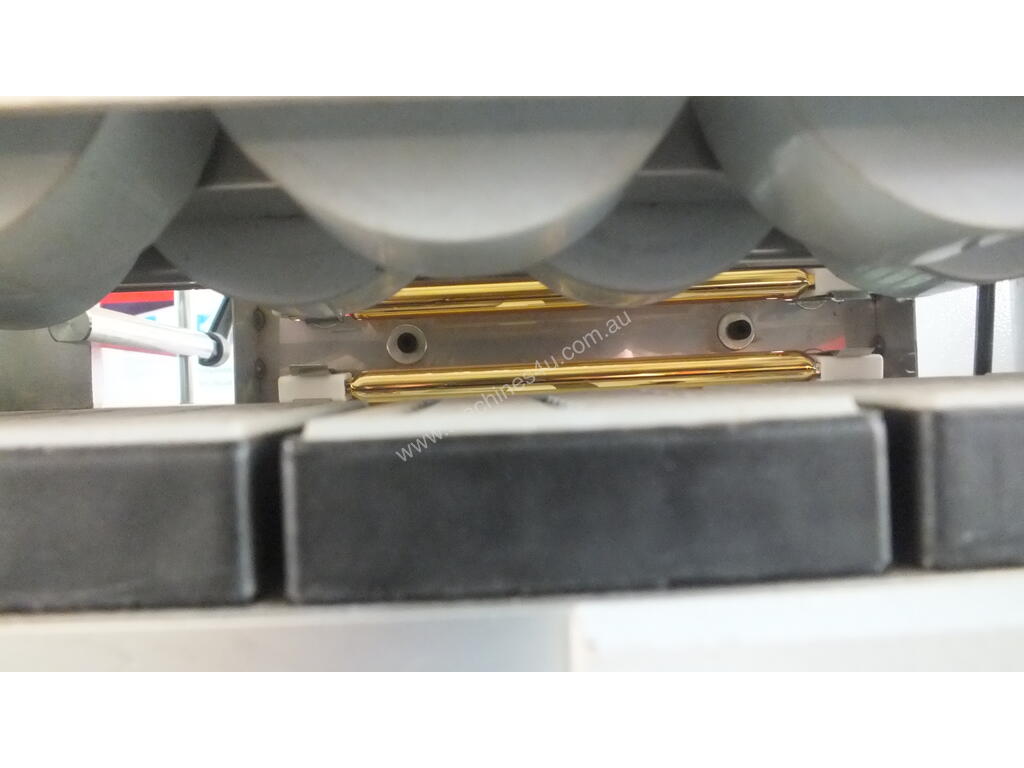

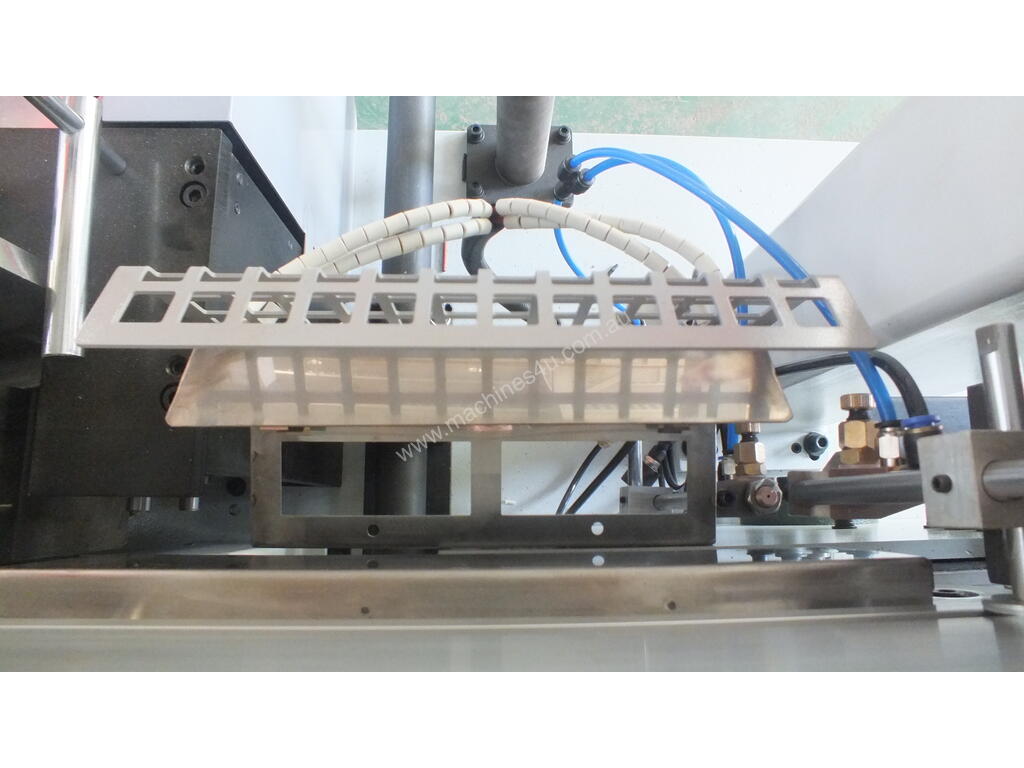

Infrared heating on infeed fence to effectively heat board for strong tape adhesion 2 x 600W lamps
Hot melt Teflon lined glue pot with stand by temperature switch.
Edge strip application unit with pneumatic guillotine.

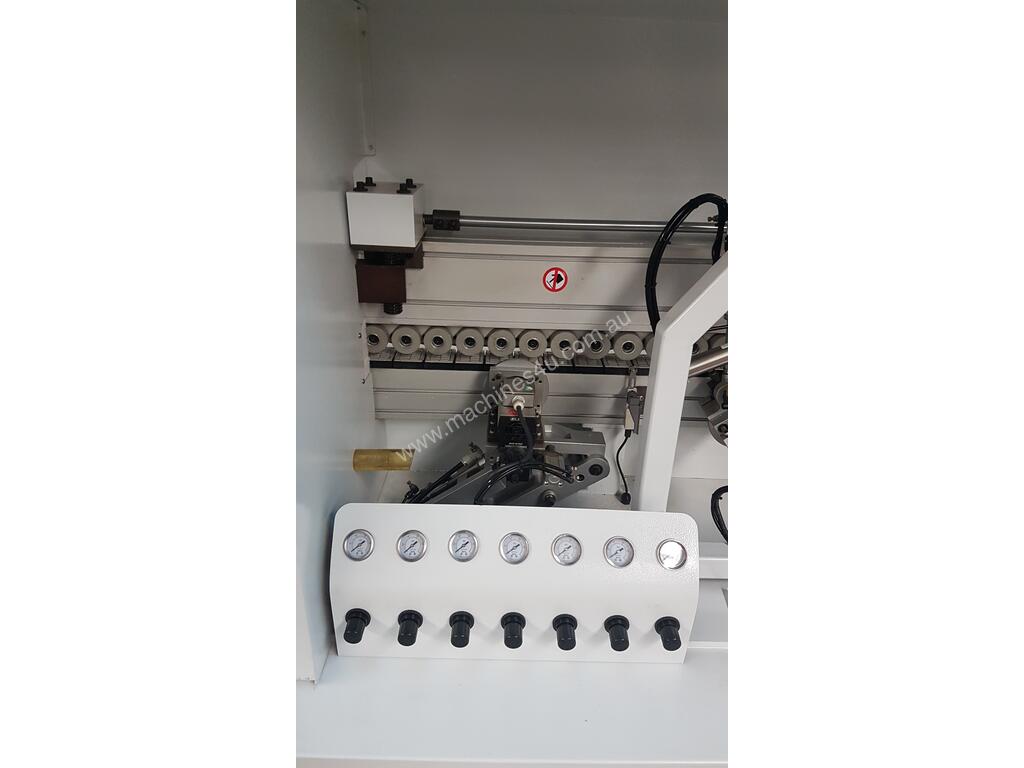

Four roller pressure unit with pneumatic pressure.
End trimming unit – cut off saws with angle adjustment, running on German linear guides
for accuracy & long life. End trim motors Italian made Elte 2 x 0.55kW, 12,000rpm.
Main Top & bottom trimming unit – tiltable to 45º, with 2mm radius cutters, incorporating
Italian Elte 2 x 0.7kW 18,000rpm motors.

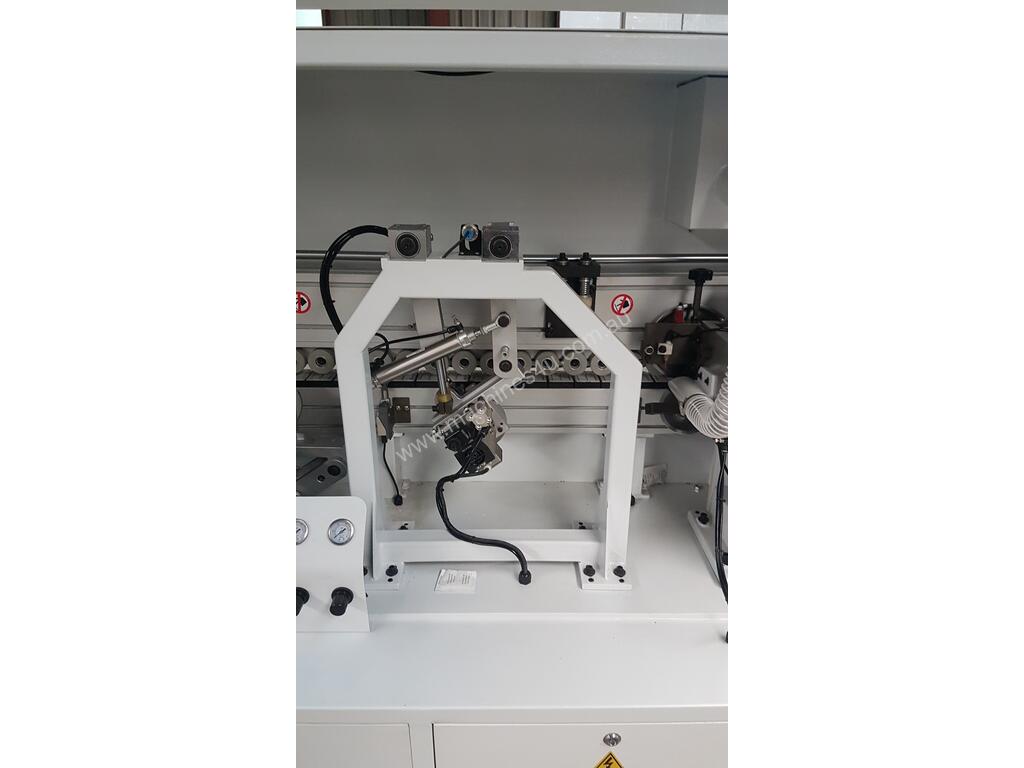

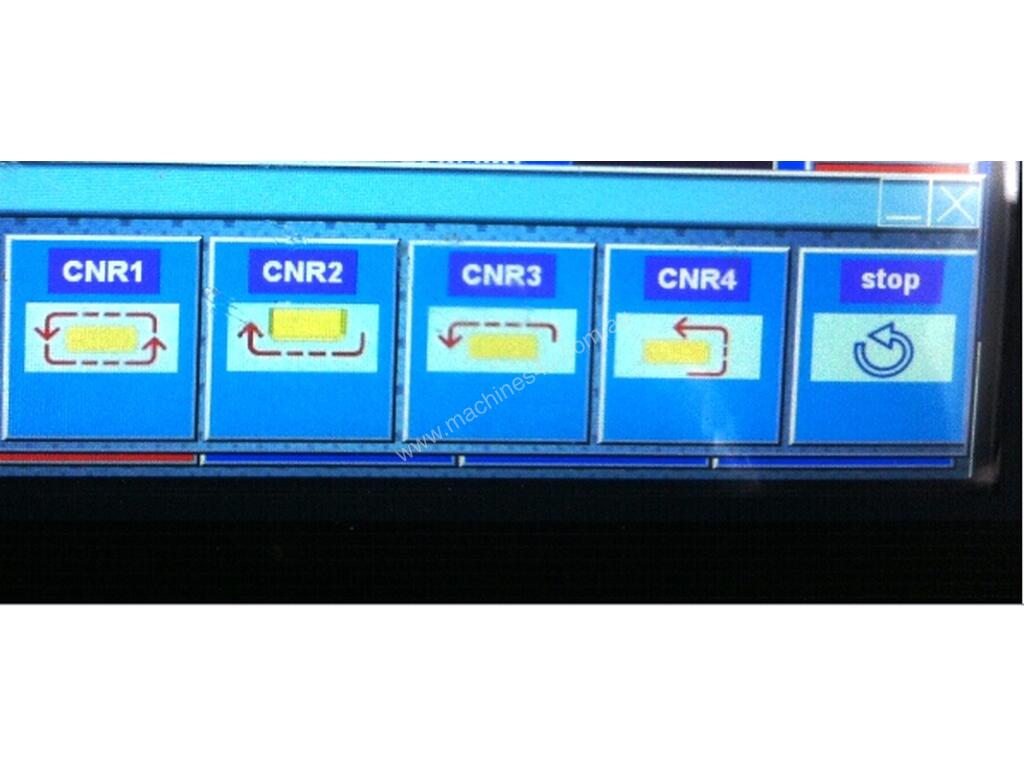

Two (2) unit CORNER ROUNDING station with two motorized cutter units to travel

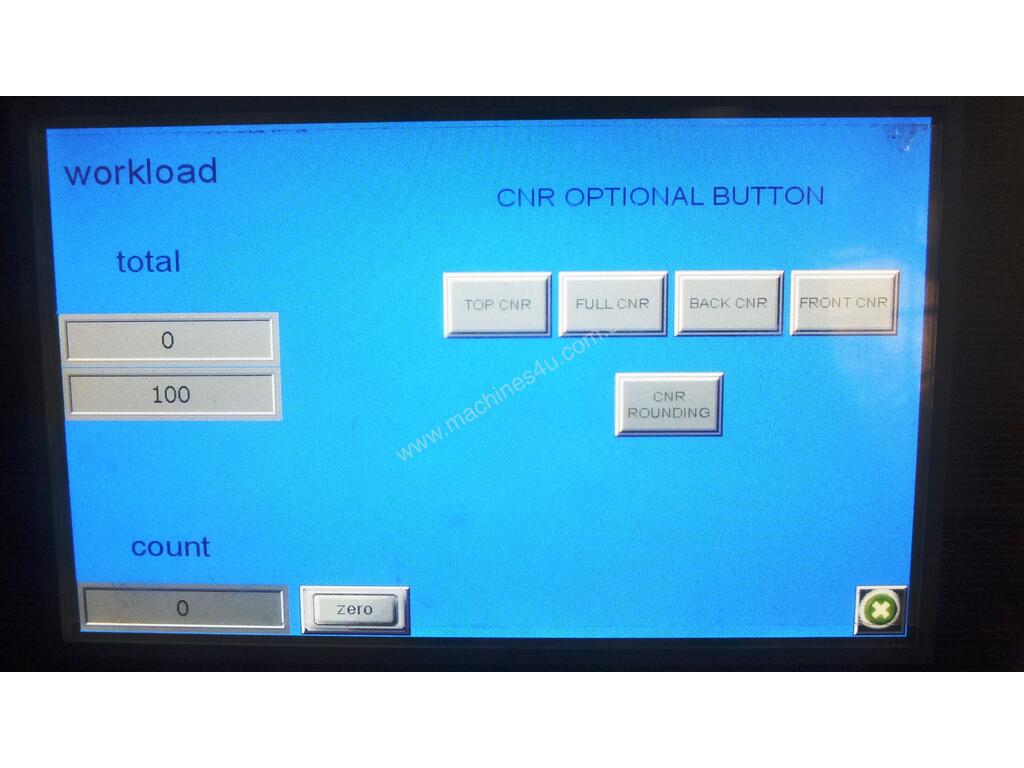

around curved ends of panels, with 4 corner rounding options! Corner rounding motors
Italian made Elte 2 x 0.3kW, 18,000rpm.
Top and bottom radius scraper unit to fine finish PVC edging.
Top and bottom Flat Glue Scrapers.
White oil spray system to enhance PVC finish when buffering.
Top and bottom buffers

Edgebanders working units:
Full safety covers over motorized cutting and trimming units
Insulated sound proof hood with fluorescent light inside hood

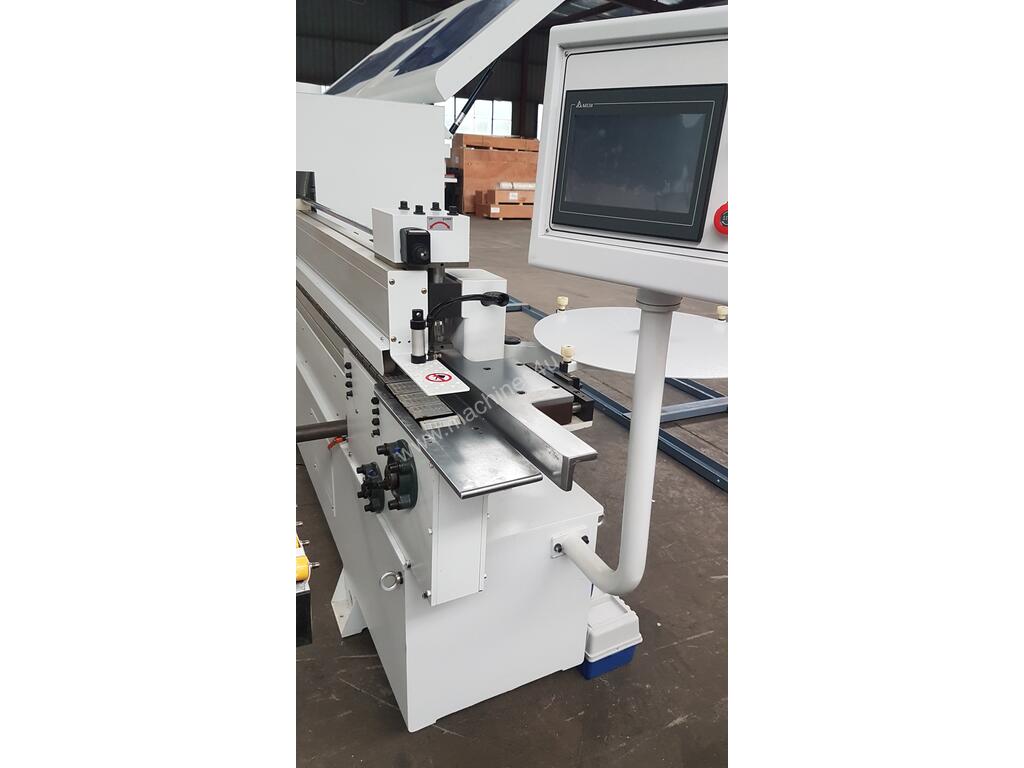

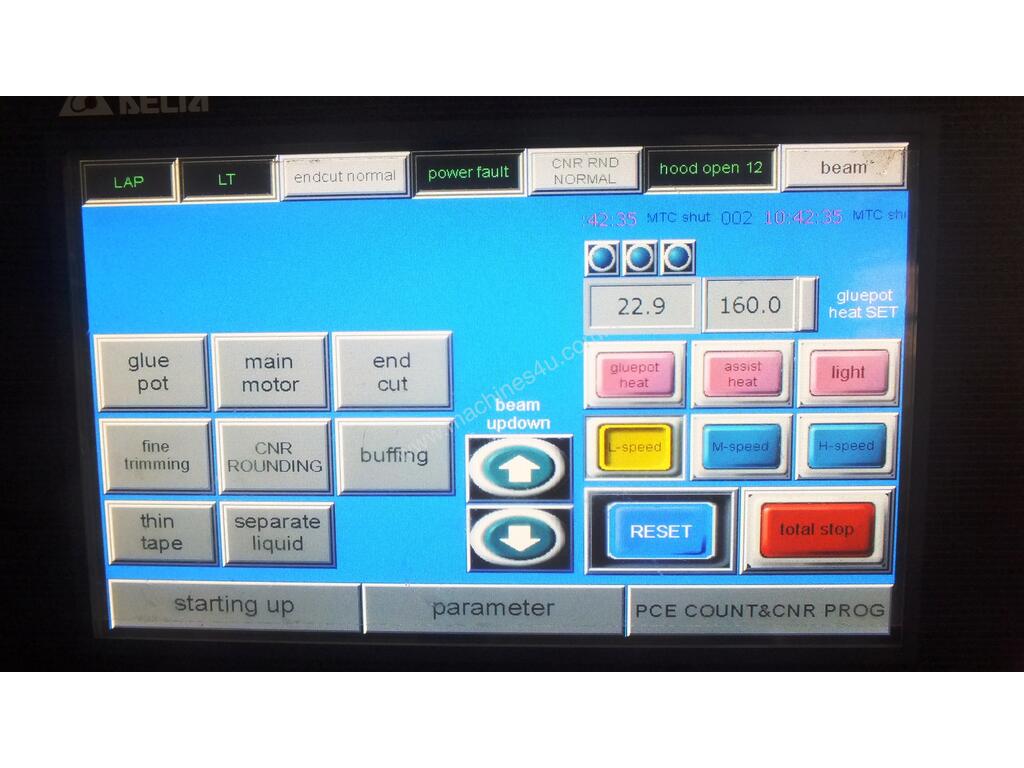

DELTA touch screen electrical control panel at in feed position

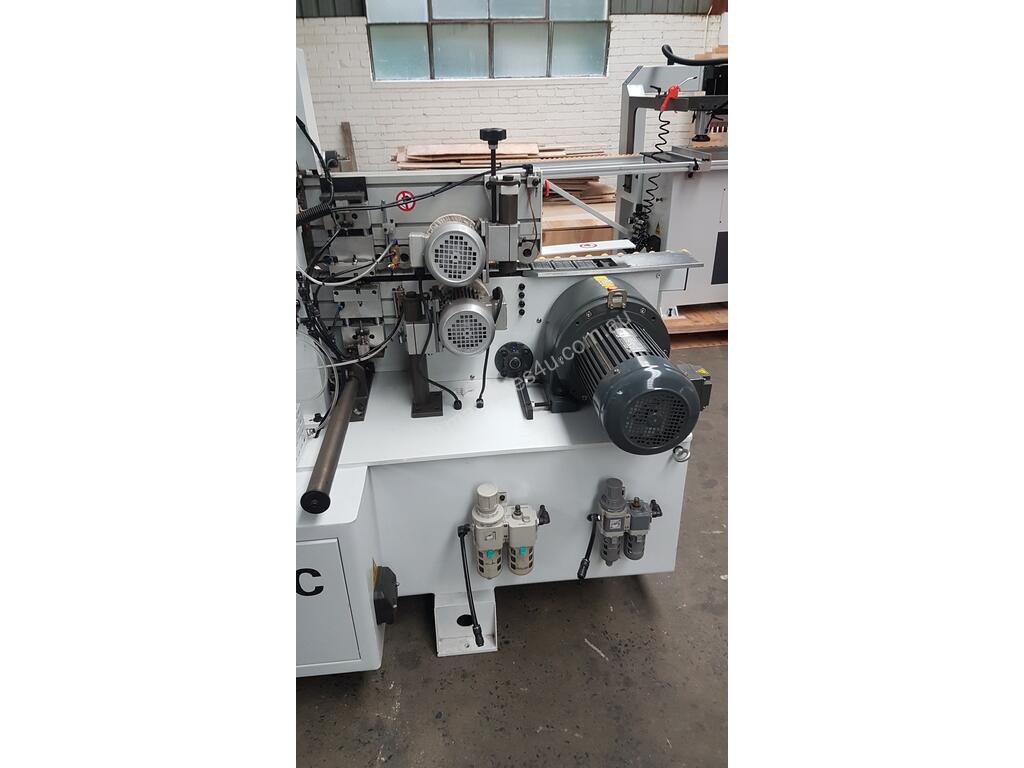

Feed track drive motor 2.5kW / 1350rpm driven through heavy duty gearbox, with feed
rates variable to 20 metres/min. Feed speed selected from console switch.
Inch Jogging Feed button to assist setting up
Large windows in safety hoods for better visibility
Pneumatic gate prevents panels being fed in too close to one another
Mechanical digital readout on motorized height setting on top beam for different panel
thicknesses
Precision linear guides on cut off saws
Italian made Elite high frequency motors on saws and trimmers.
DELTA Frequency Inverter for speed control

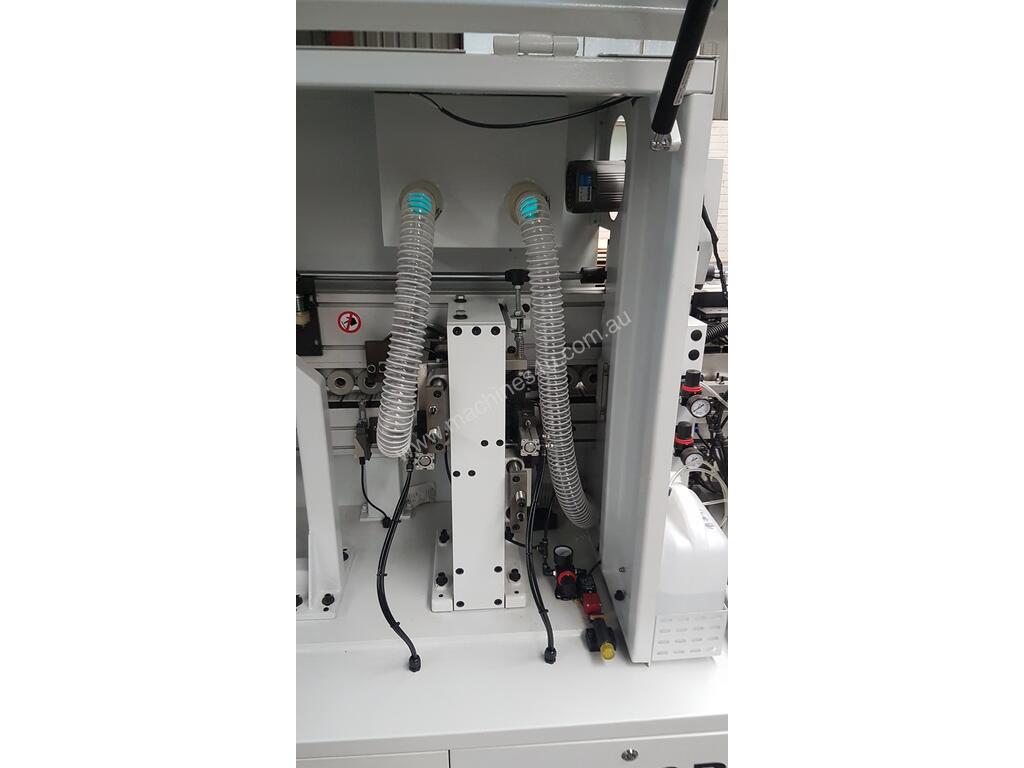

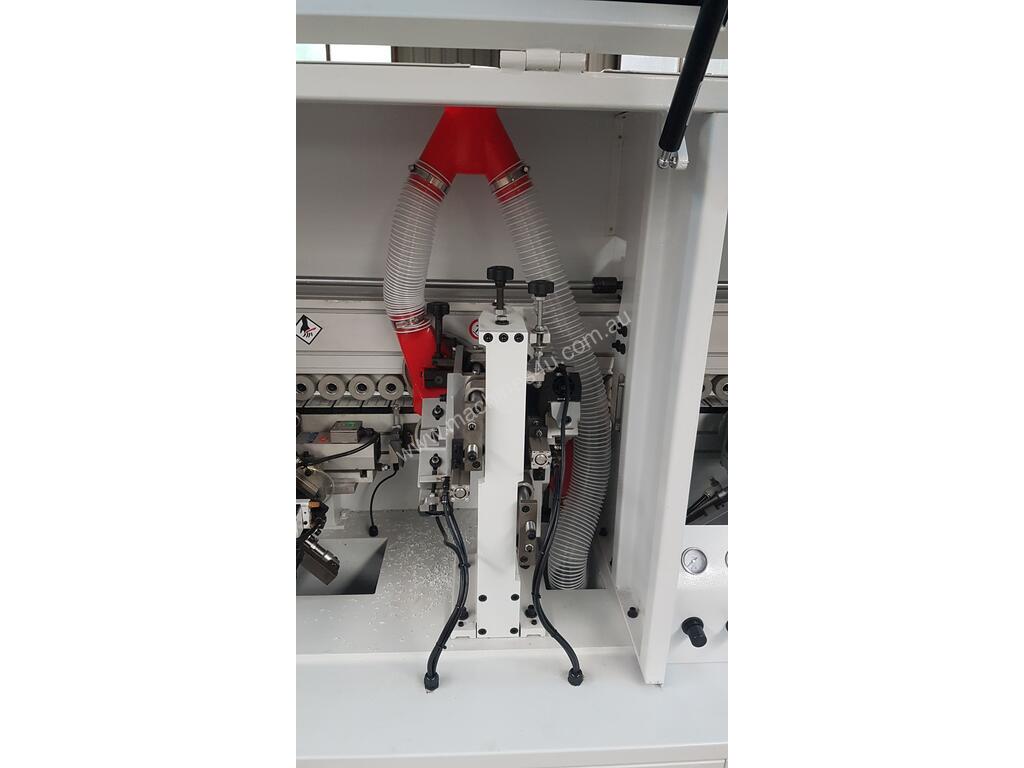

Dust extraction on all working units to one central manifold
Built in electrics for dust extraction unit
RAPID CHANGE set up from 1mm to 2mm edge strip by push button from Delta Touch Screen for thick/thin tape selection. The Rapid Change system automatically controls
adjustment of the tape feed, main top & bottom trimming and top & bottom radius scrapers.

PRICE ON APPLICATION

Delivery time around 12 weeks from order and deposit

Call today for detail offer including delivery and installation!
