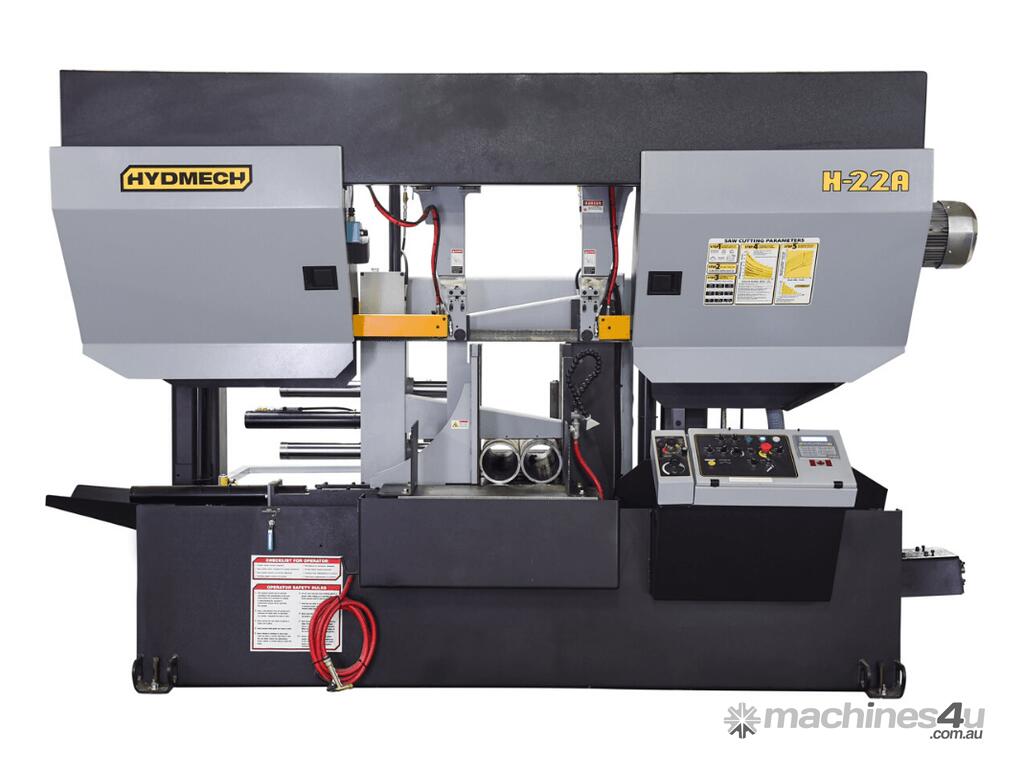

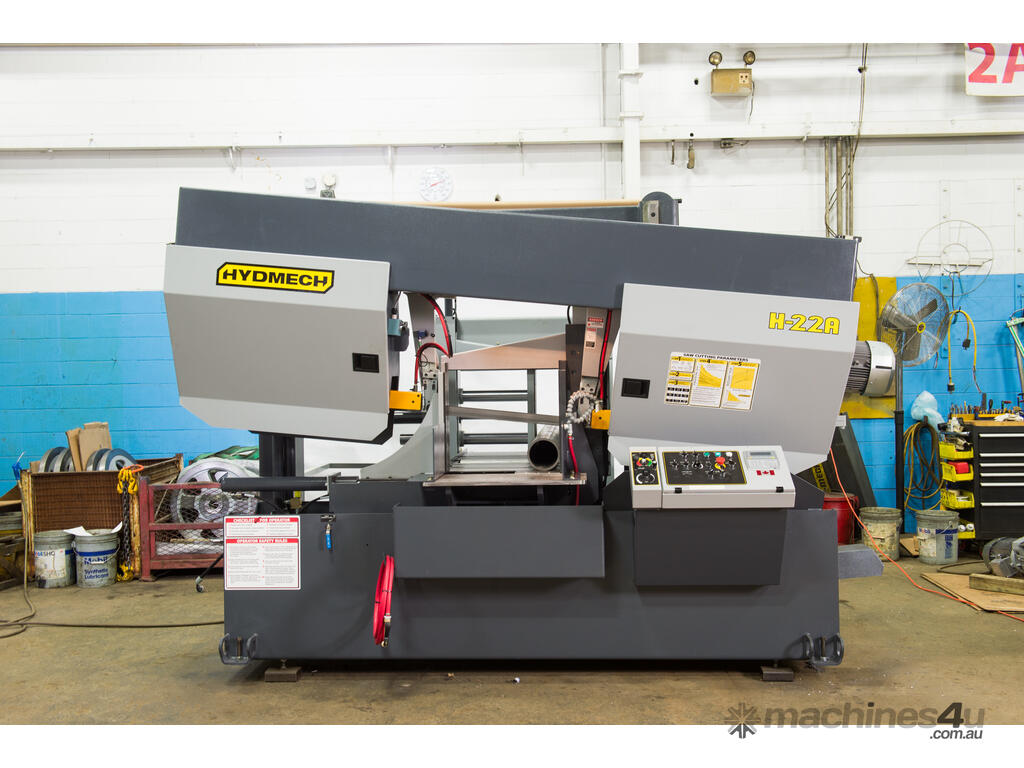

HIGH SPEED SHUTTLE FEED - HYDMECH H22A Automatic Bandsaw - Twin Column Horizontal

The H-22A is a fast automatic horizontal CNC band saw providing accurate 90° metal cutting for heavy-duty applications.

With its high speed shuttle feed, and its optional 6° degree canted head, it's recommended when cutting larger beams, structural steel, and bundles of square tubing which allows for more efficient cutting and improved blade life.

Capacity: 558 x 558mm, 10 HP motor, and 2`` blade
.
UNIQUE FEATURES

• One piece design – no alignment necessary

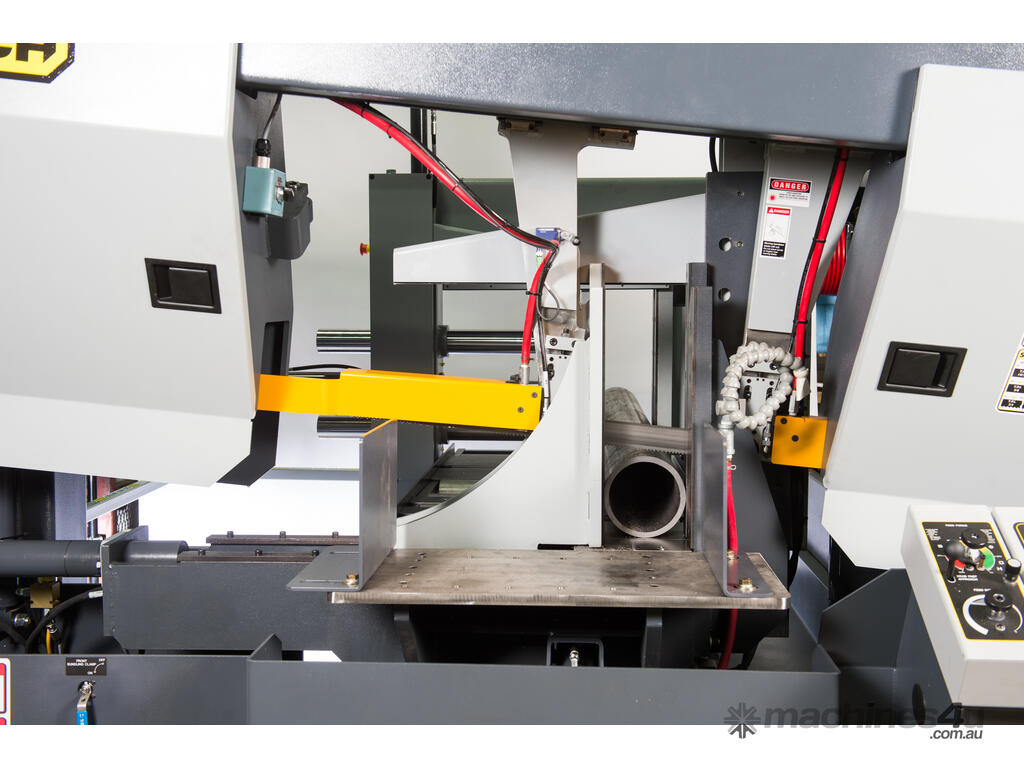

• Spilt front vice allows for short remnant length

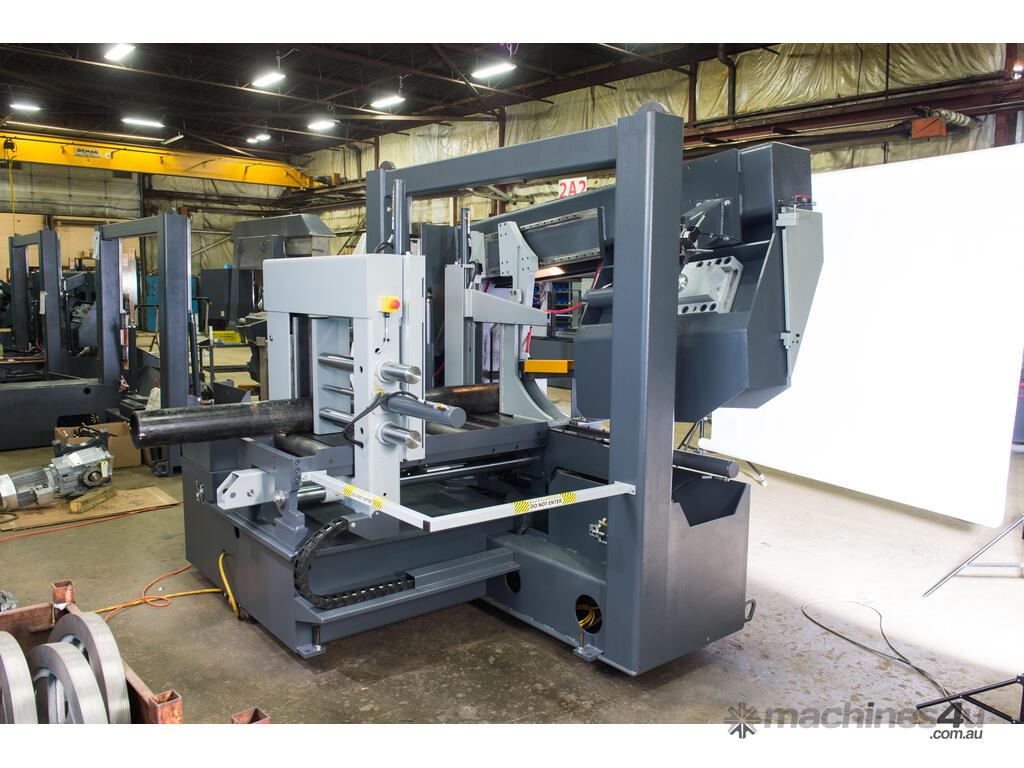

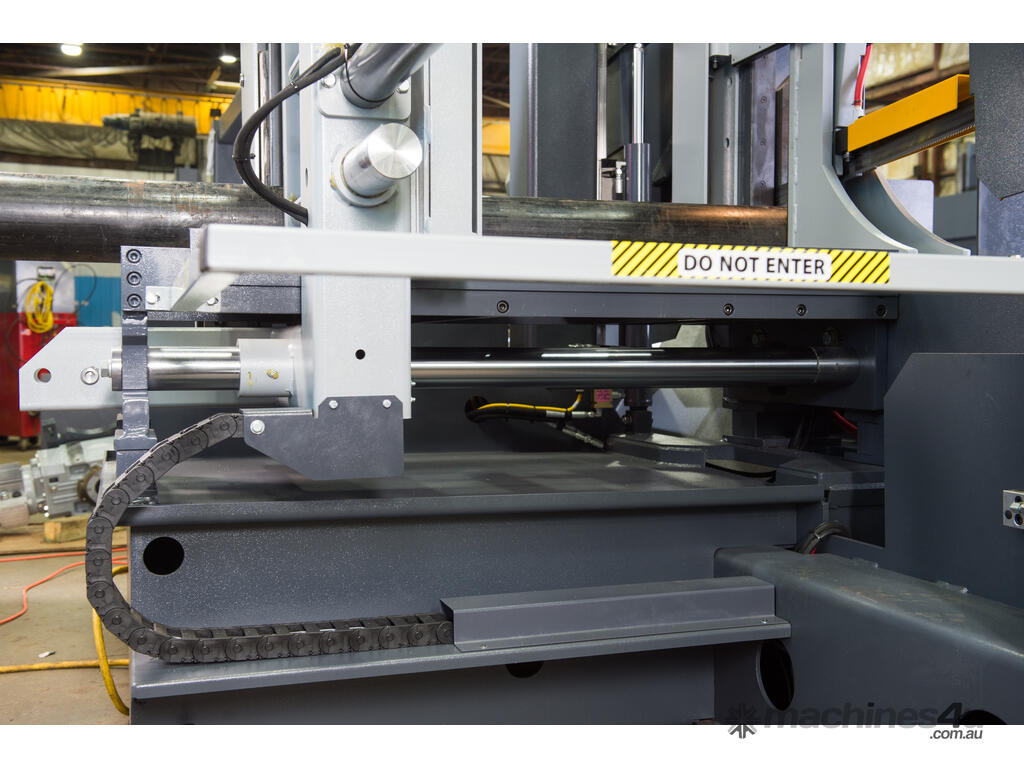

• Shuttle features automatic multi-indexing up to 860mm in a single stroke with automatic kerf compensation (also available in 3000mm version).

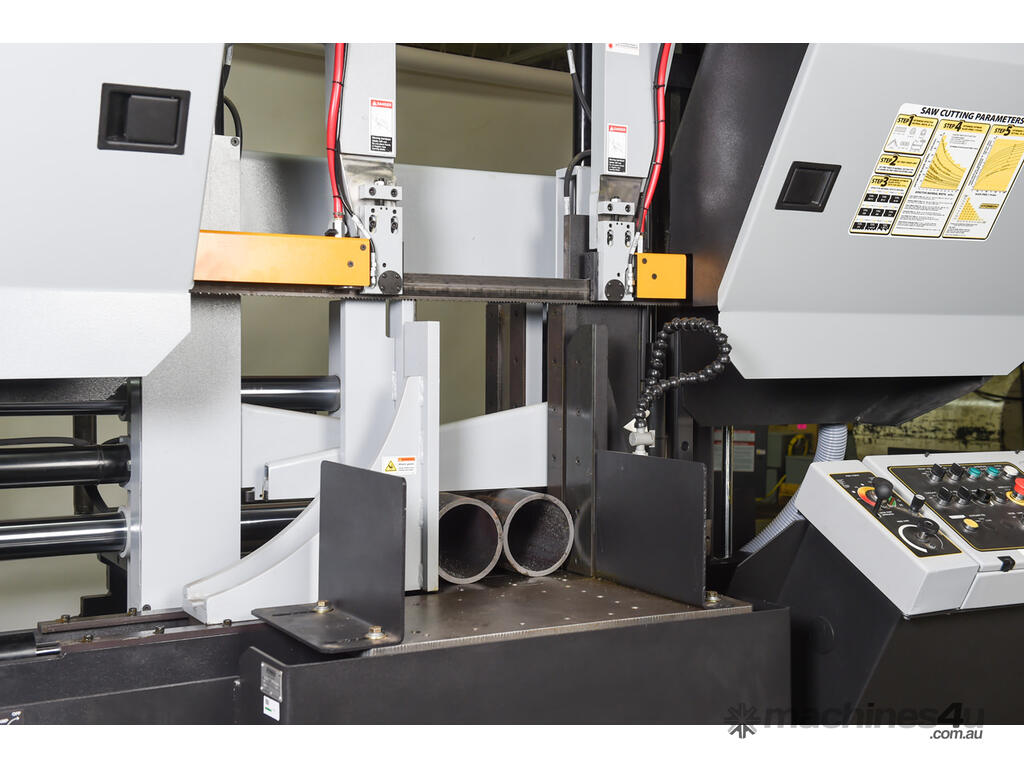

• Steel guide arms. The idler side guide arm is mechanically connected to the front vise moveable jaw for proper guide arm
spacing at all times.

• Hydraulic positive down feed

• Blade chamber separates material from cut part

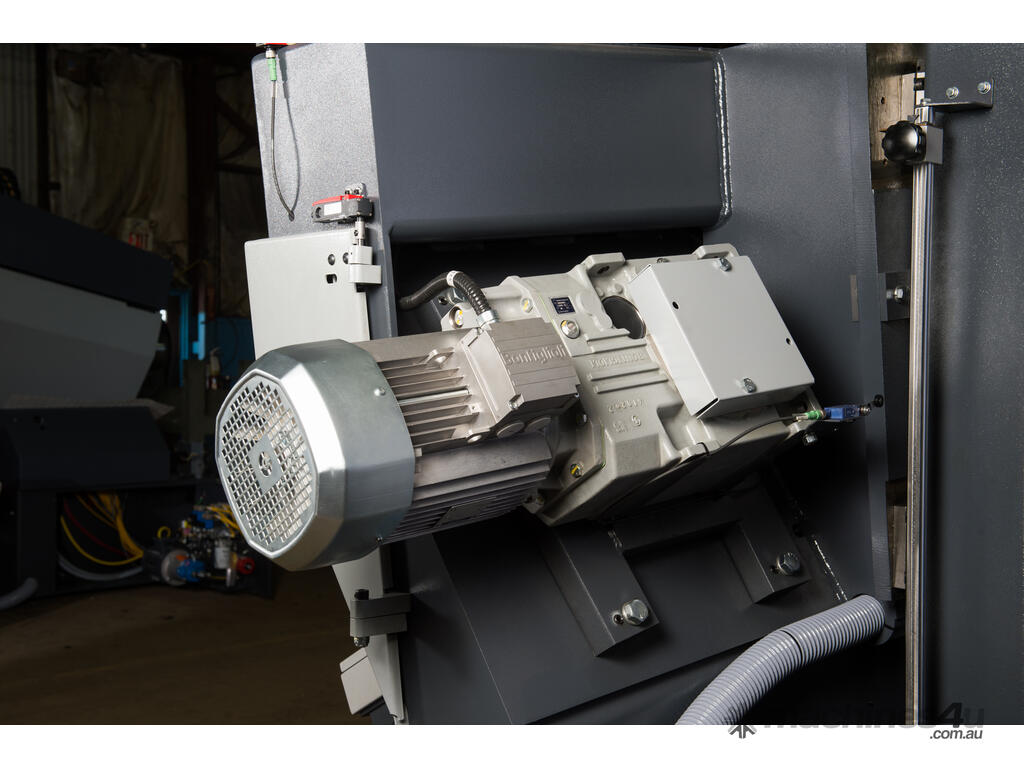

• 10 HP VFD. True direct blade drive – no belts/pulleys Full capacity, full stroking hydraulic vises

• High resolution feed rate valve allows for constant feed rate when cutting special alloys

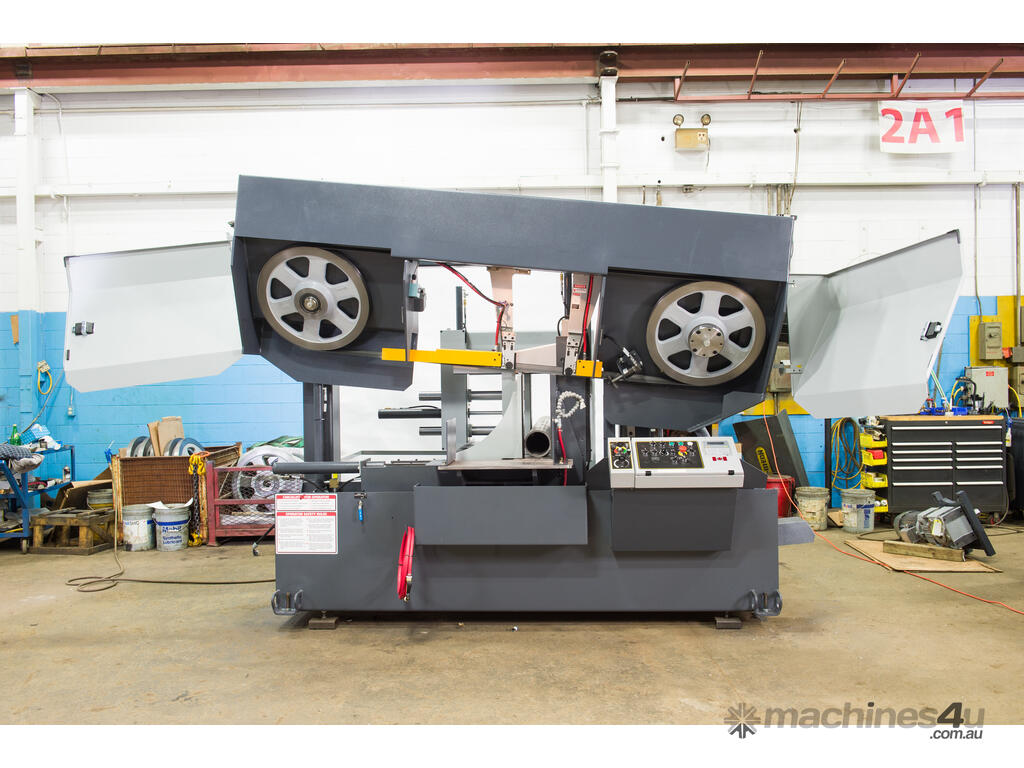

• Cast iron band wheels

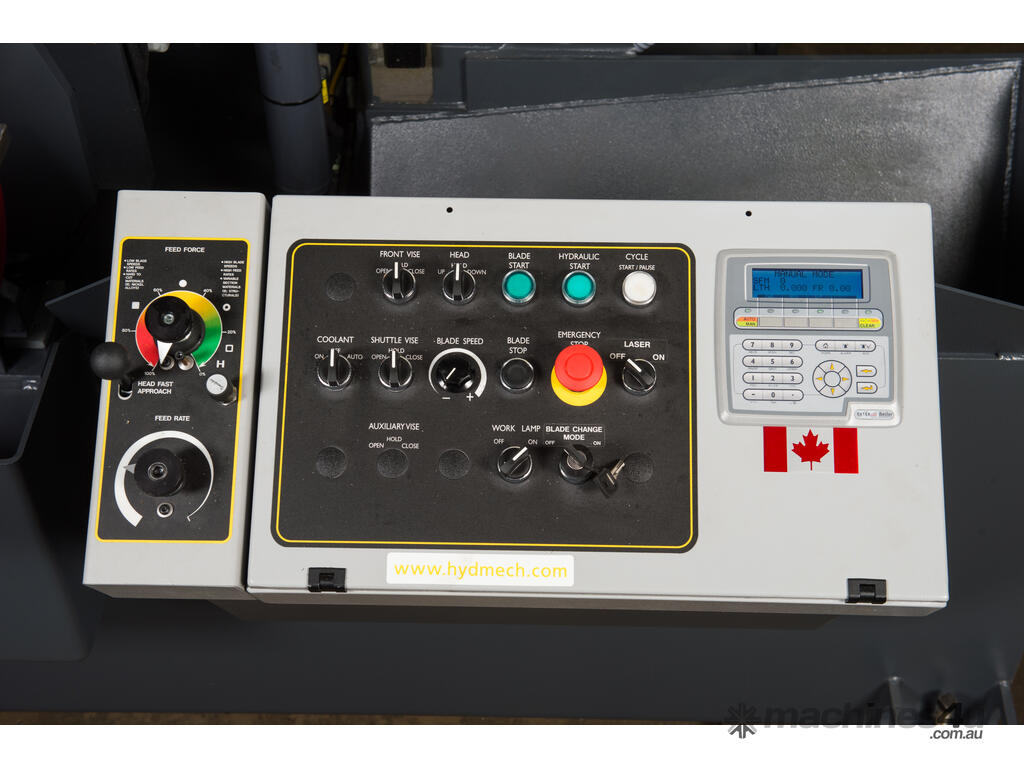

• Automatic PLC control programmable up to 99 jobs with 5 in queue.

• Replaceable blade brush

• Robust steel base

• Automatic chip removal auger

• Out of stock switch

• Easy access electrical panel and hydraulics

• Blade breakage switch

• Hydraulic band tensioning with digital readout

• Hydraulic carbide guide tensioning

• Hardened, replaceable wear plates

• Safety door interlocks

• Flood coolant with wash down hose

• Work light

• Variable vice pressure
