HM-46B Mill Drill - Geared & Tilting Head - 415V Table Travel: (X) - 485mm (Y) - 175mm (Z) - 430mm I

HAFCO-METALMASTER HM-46B Mill Drill - Geared & Tilting Head - 415V Table Travel: (X) - 485mm (Y) - 175mm (Z) - 430mm Includes Digital Readout System & Dovetail Column
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: M139D

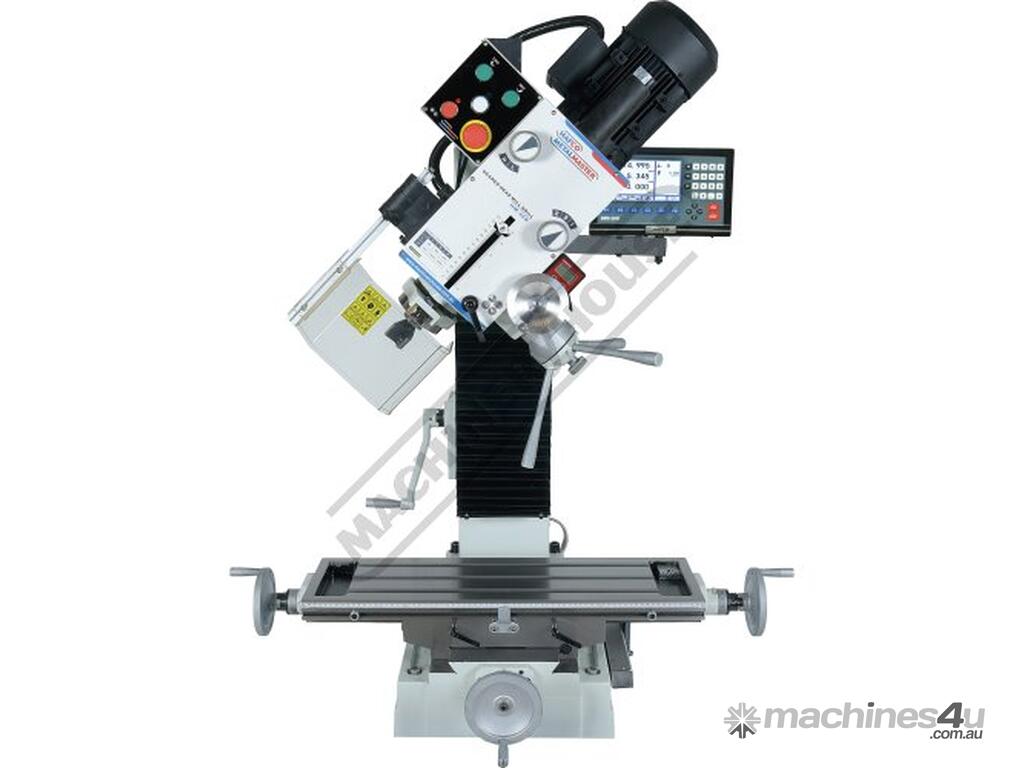

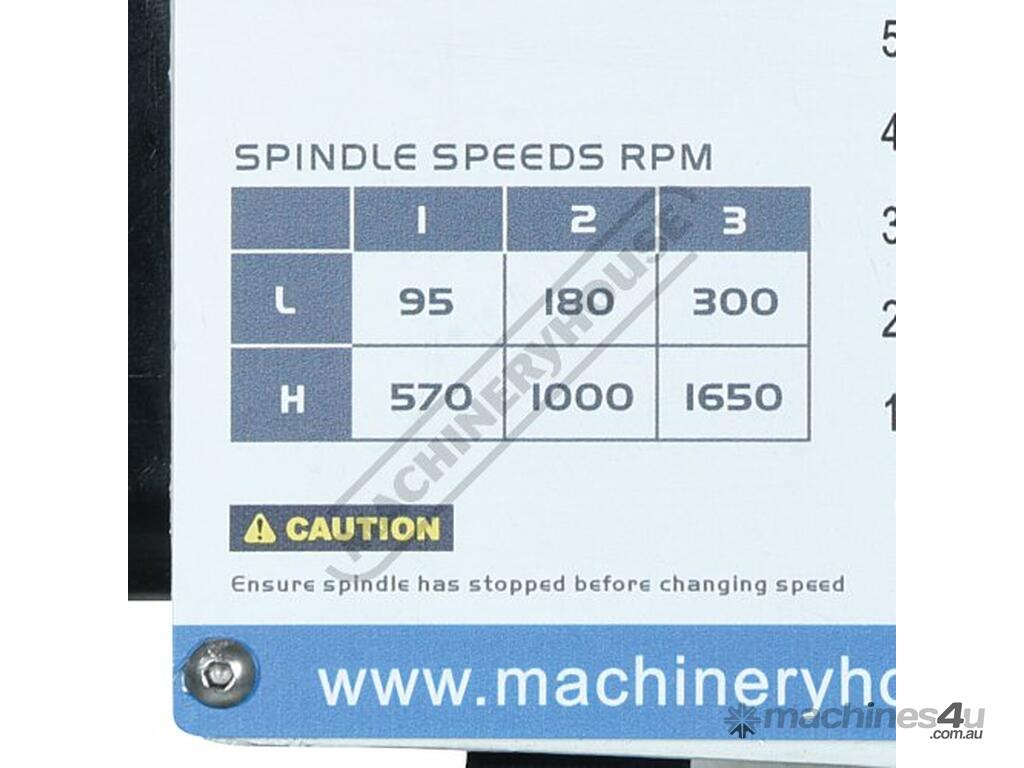

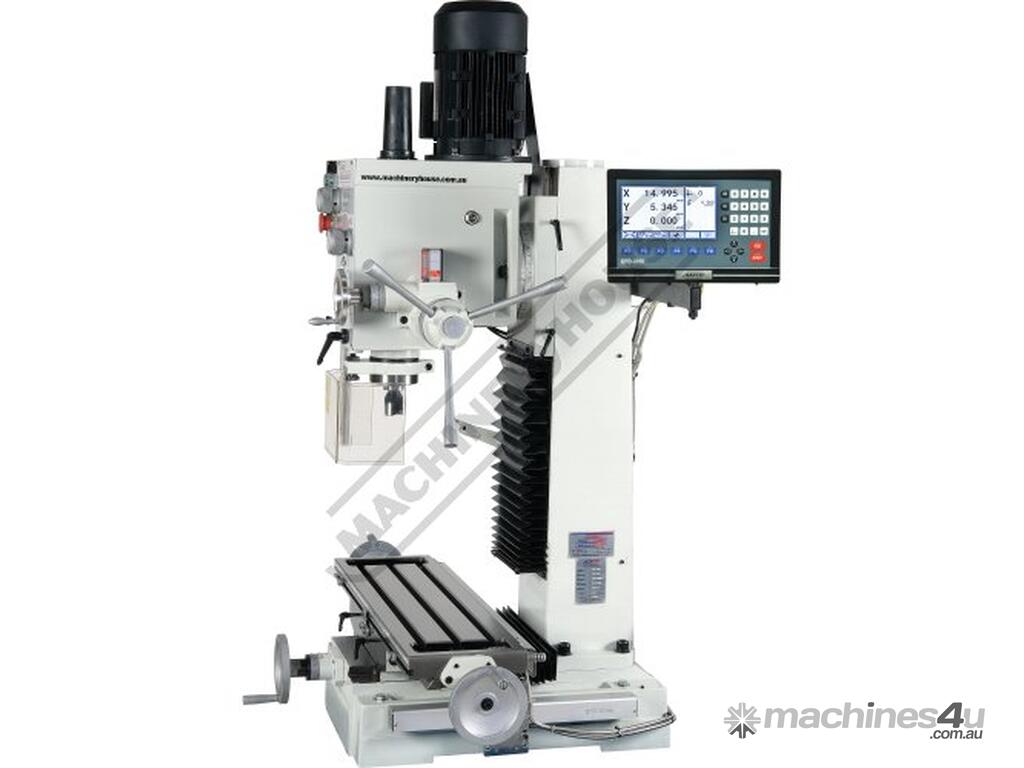

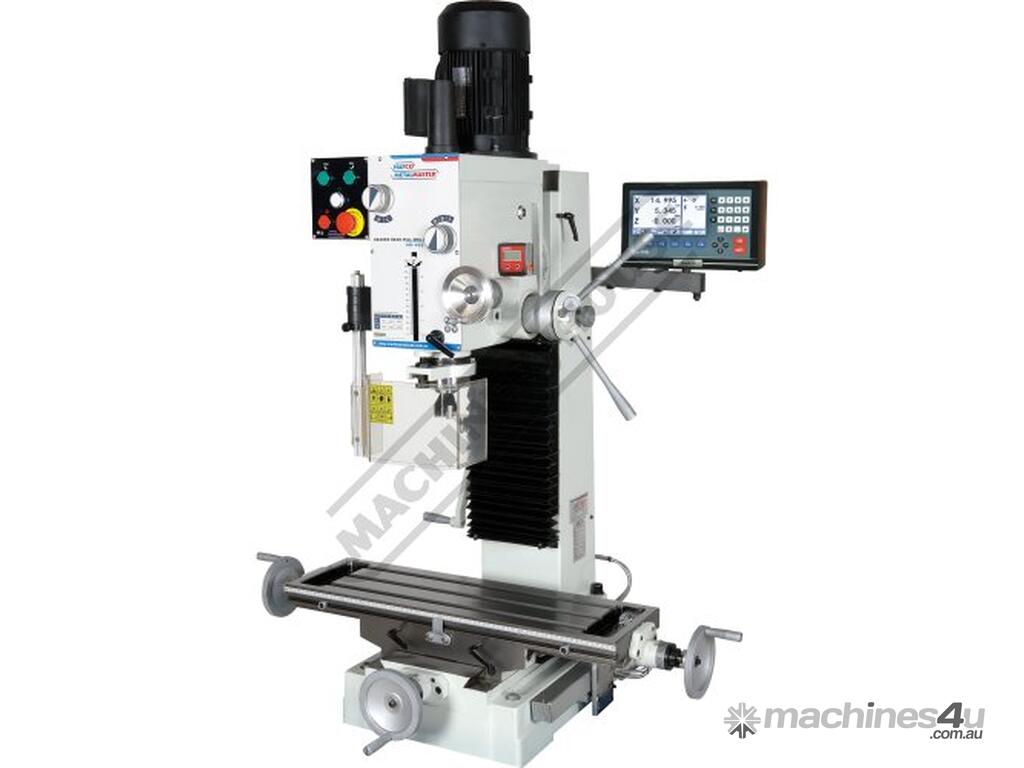

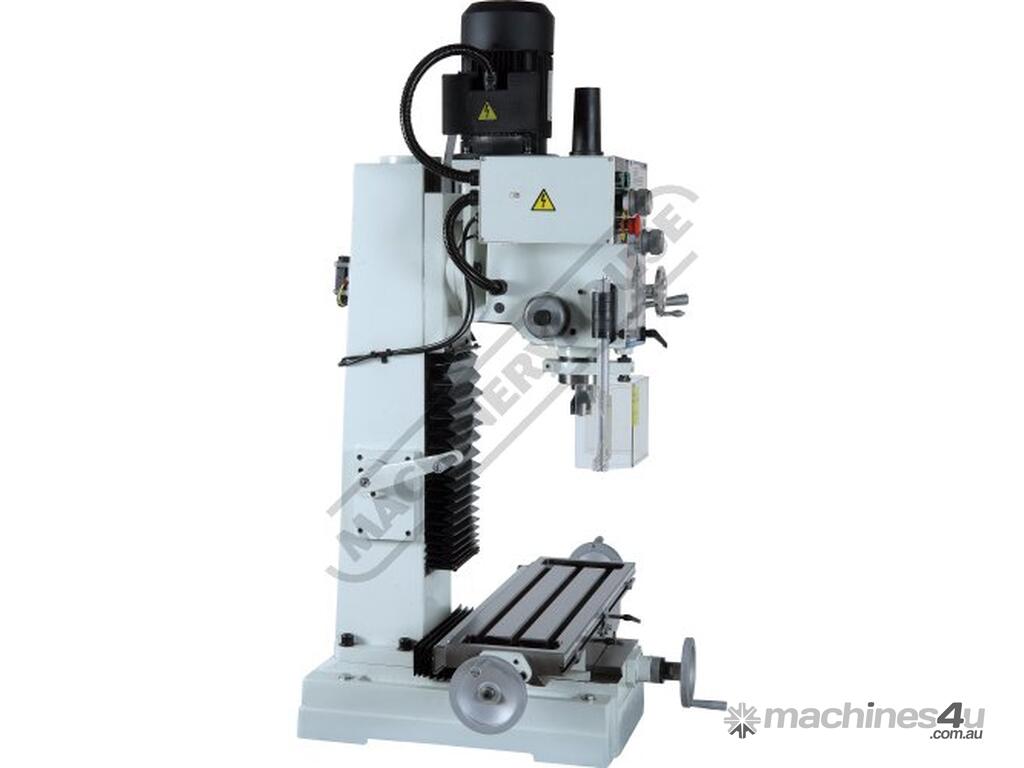

This HM-46B 415V milling machines is similar in overall size to the popular HM-32 but with the additional benefit of a 3-Axis digital readout counter fitted with 2-Axis X & Y scales for accurate table positioning with ease, 6-speeds 95-1650rpm, gear driven head which can be tilted up to 90º either side of the vertical. This feature allows the head to be positioned in a variety of positions, allowing a whole range of milling, slotting, grooving, drilling and boring operations to be carried out on different angles. In addition the milling head is also mounted to a vertical dovetail slide system that allows the head to maintain on the exact same centre position when raising or lowering.

The usual handle-driven down feed is available for precision drilling and there is a fine manual down-feed control for precise vertical milling.

The motor is controlled by a separate forward and reverse on/off button switches.

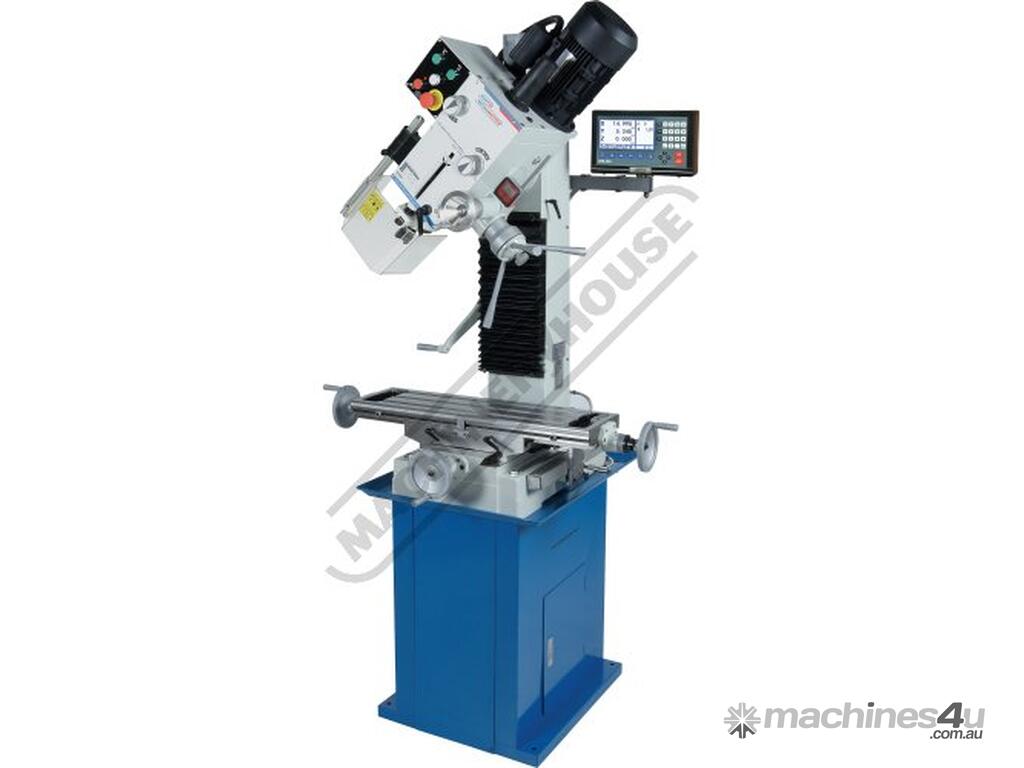

There is a heavy duty steel stand available as an extra, strongly recommended bearing in mind the weight of the machine.

Also available is an optional power feed attachment which fits to the left hand end of the table and provides a smooth, variable speed longitudinal drive.

Features:

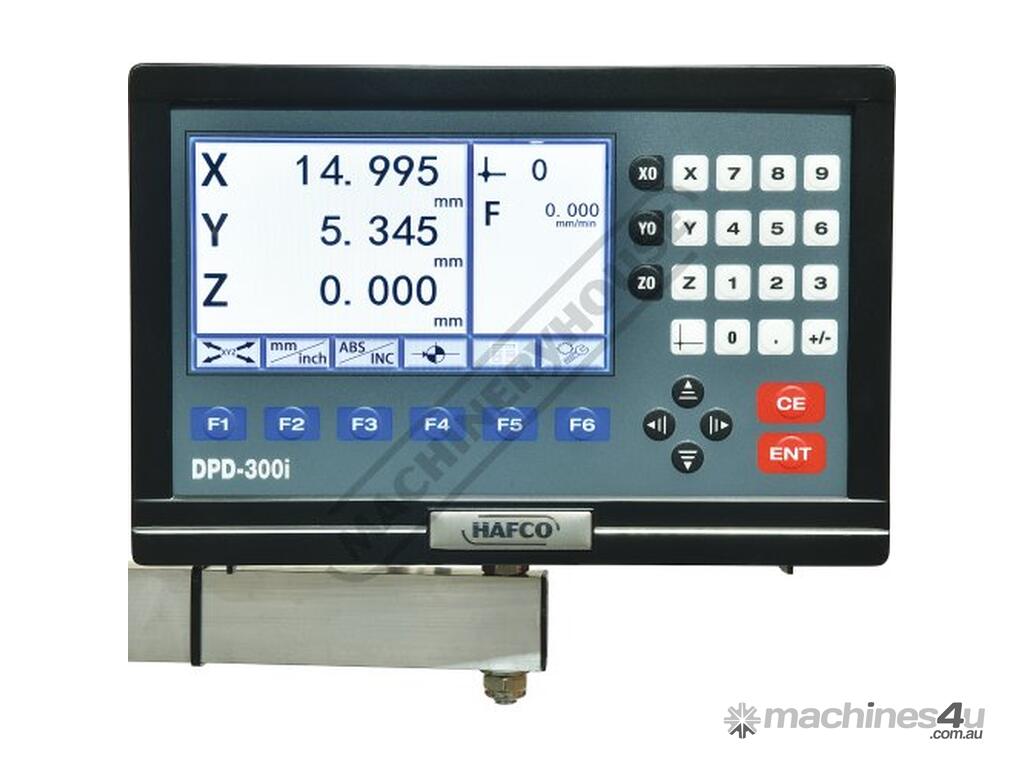

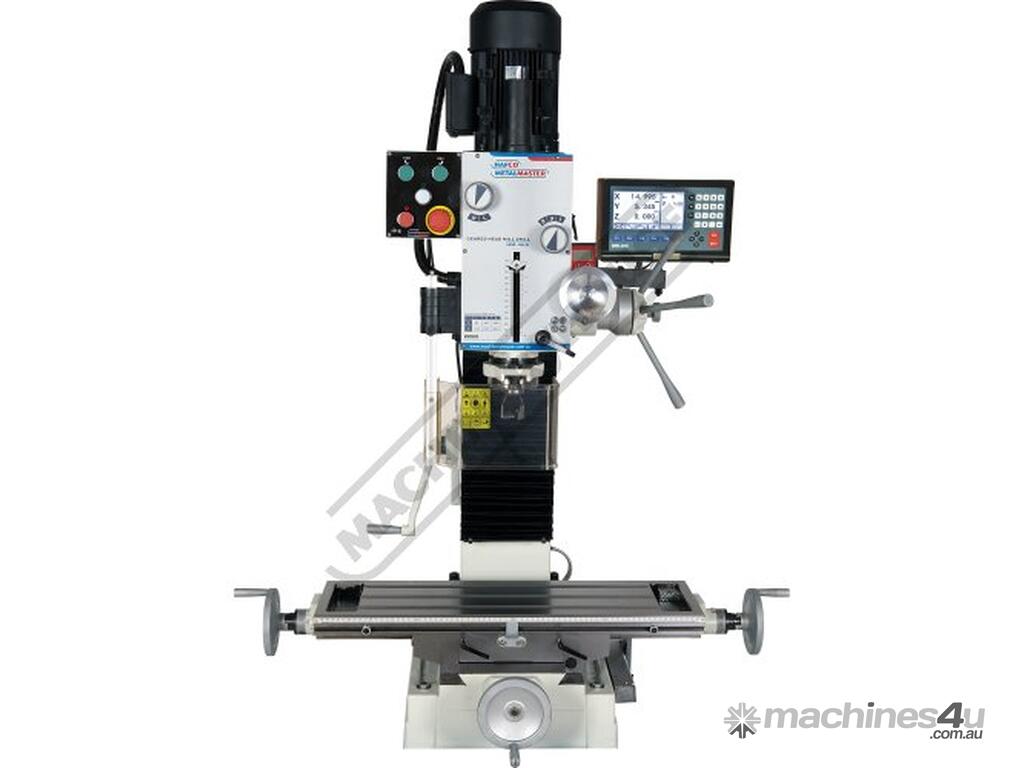

3-Axis digital readout counter fitted with 2-Axis X & Y scales only

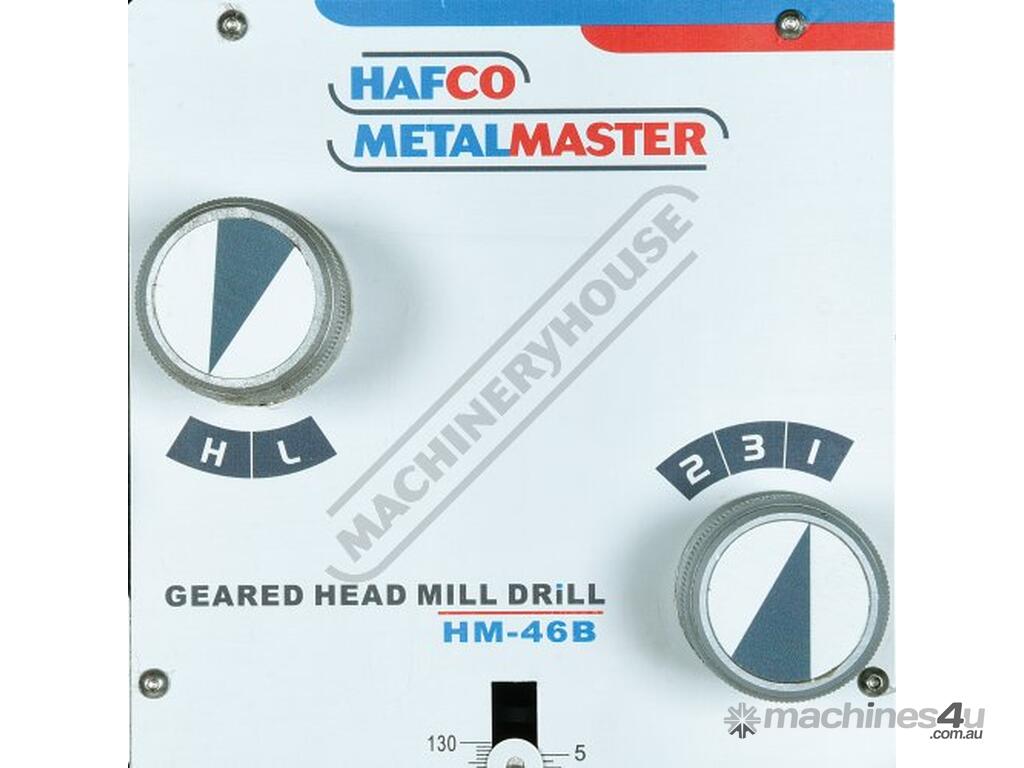

Gear driven head 6 speeds

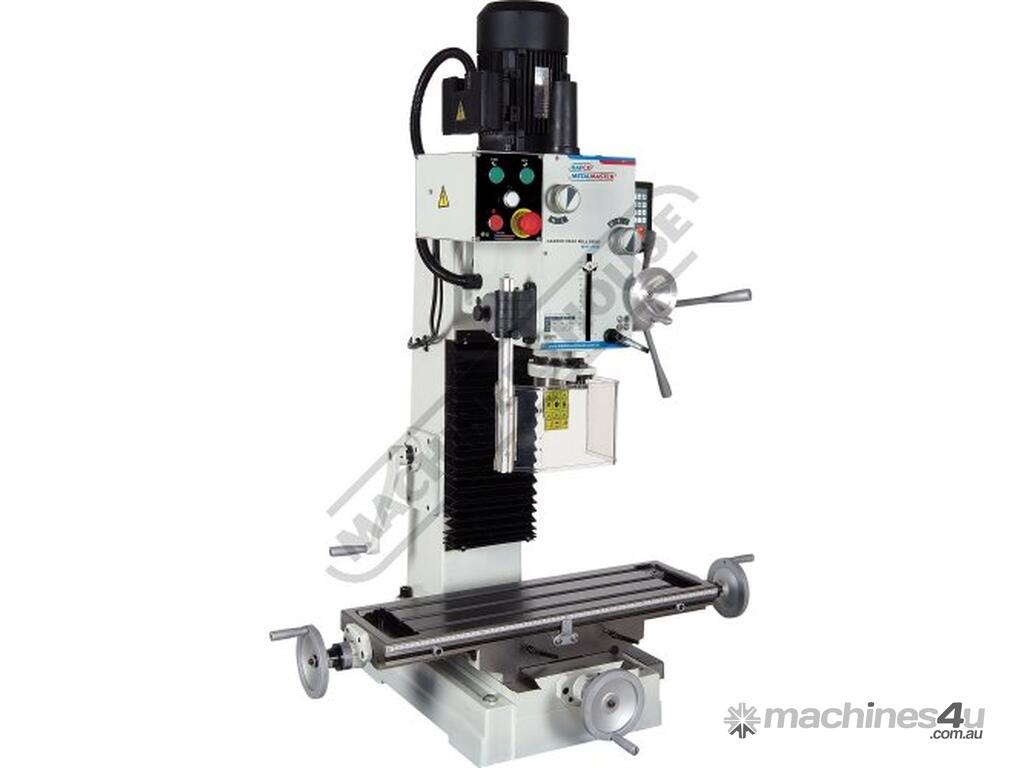

Dovetail vertical Z-axis

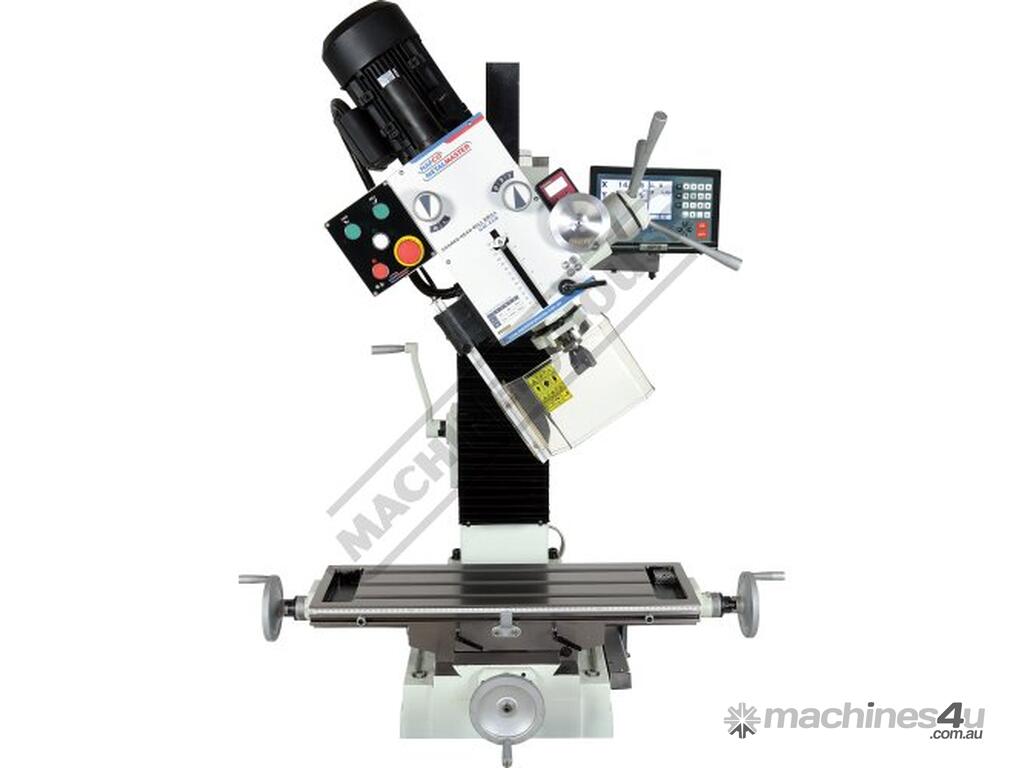

Mill head tilts to ±90º from vertical with digital display

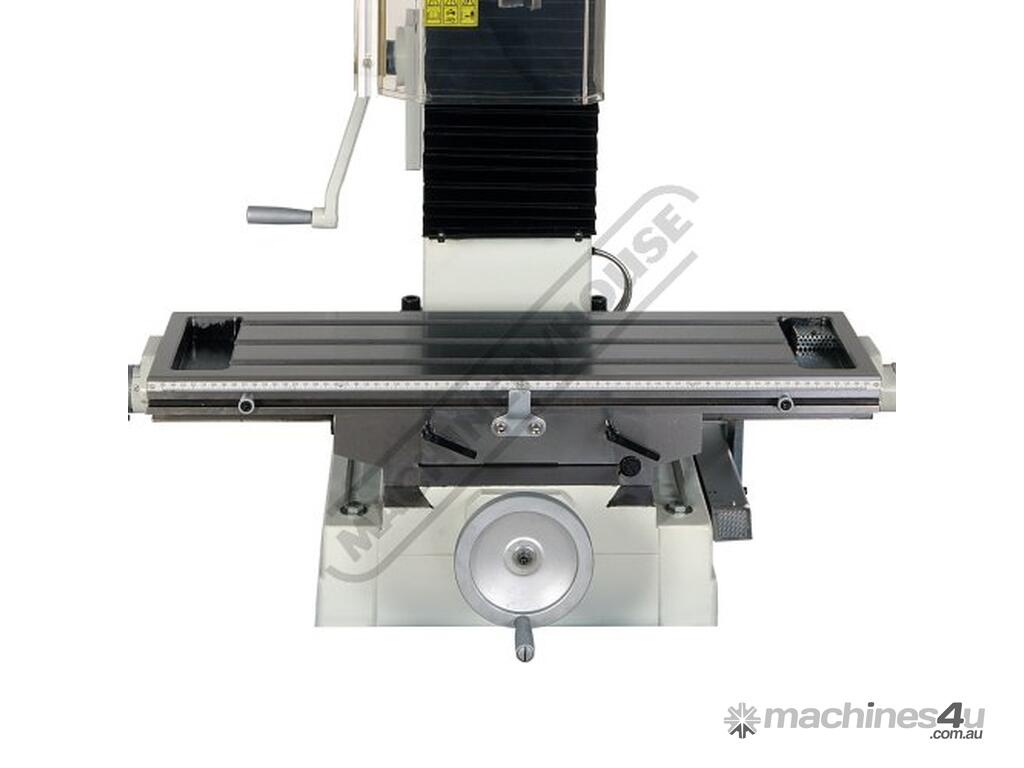

Large 730 x 210mm ground work table with T-slots
Adjustable leadscrew nuts eliminating backlash on both axis

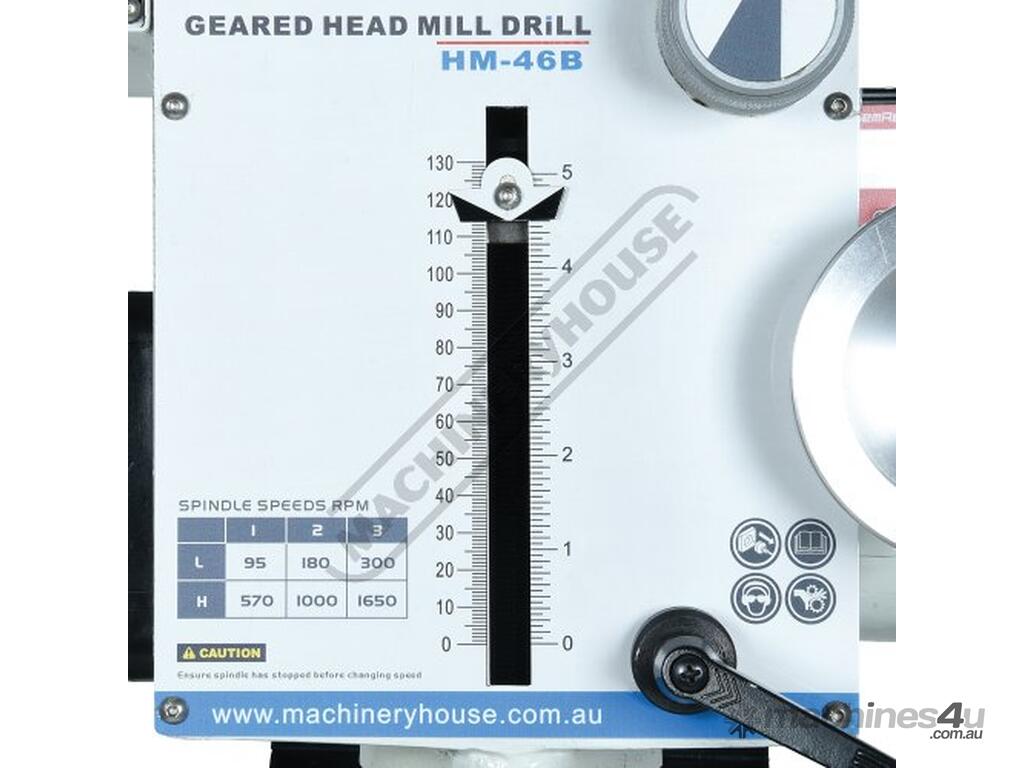

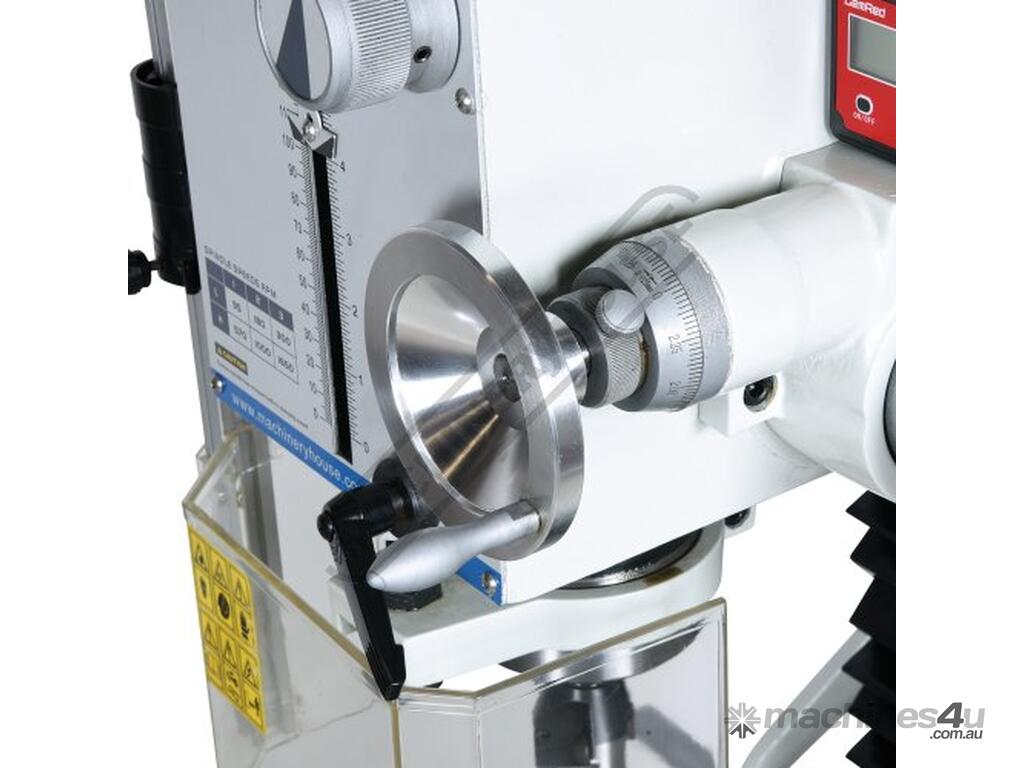

Fine feed hand wheel operating quill feed

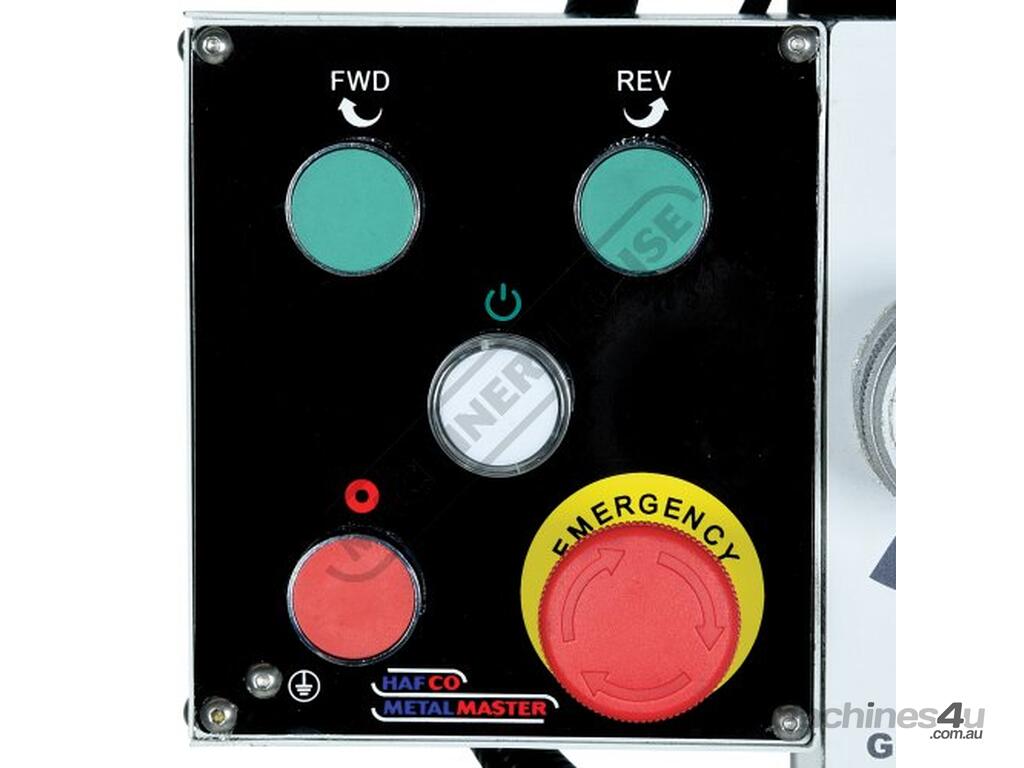

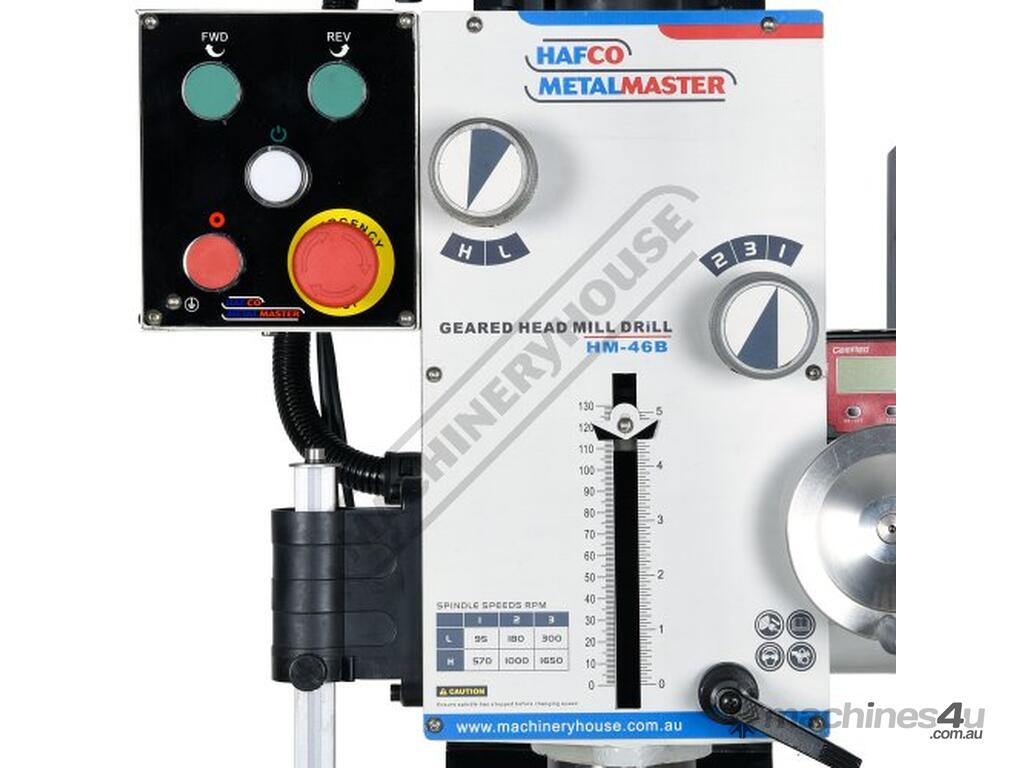

Forward and reverse on/off button switches

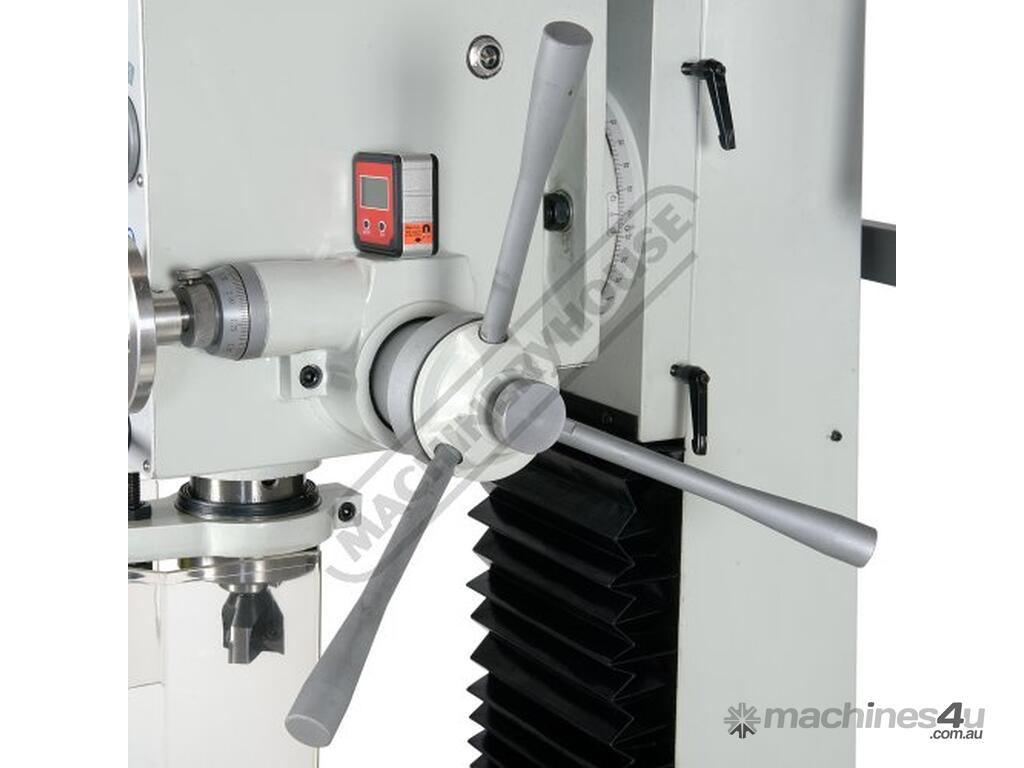

Digital tilting head gauge
3MT spindle with 75mm diameter quill
Adjustable table and drill length stops

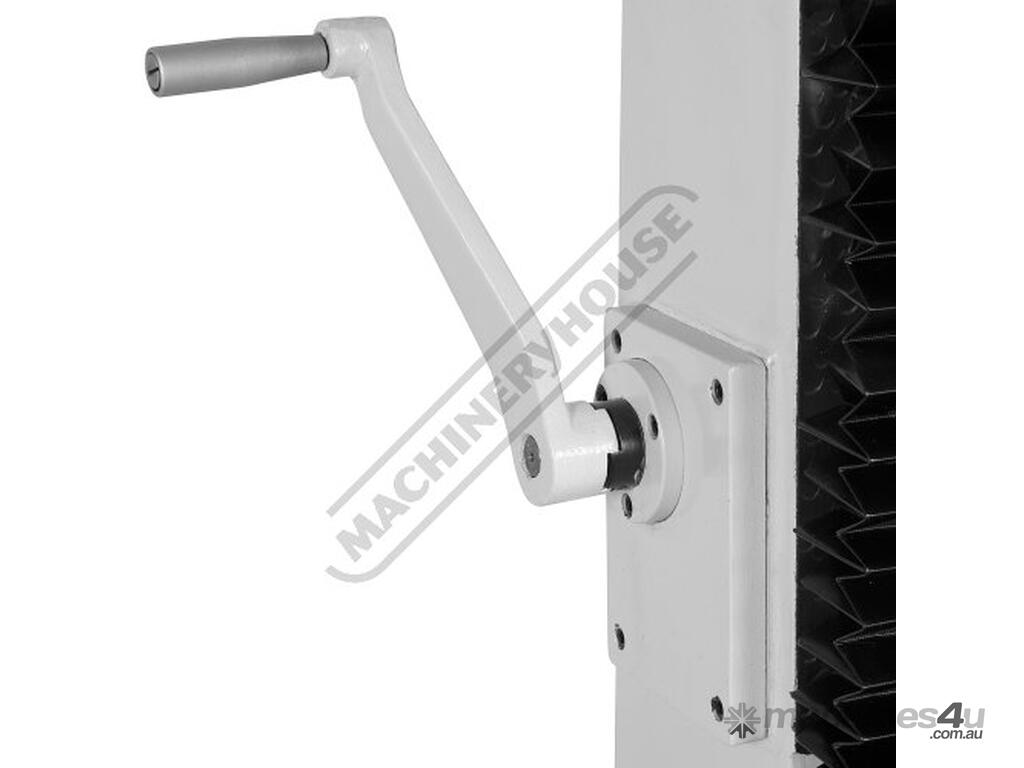

Rack and pinion wind-up head
Rear slide-way cover and slide clamps on all axis
Spindle lock for quill
Table lock on both axis
Metric dial graduations 0.05mm for X & Y axis

* Note: X & Y travels maybe reduced due to digital readout scales and safety stops
* Note: Digital readout requires 10amp 240V power

Includes:
- 3-Axis digital readout counter fitted with 2-Axis X & Y scales only
- Digital tilting head gauge

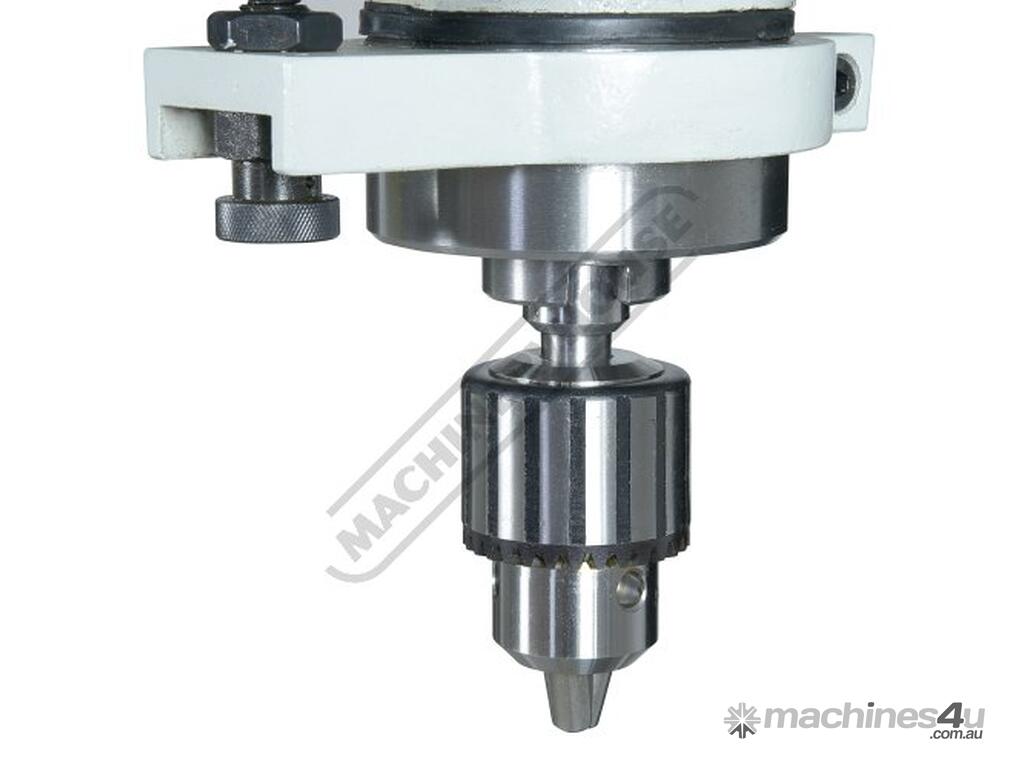

- Drill chuck & arbor

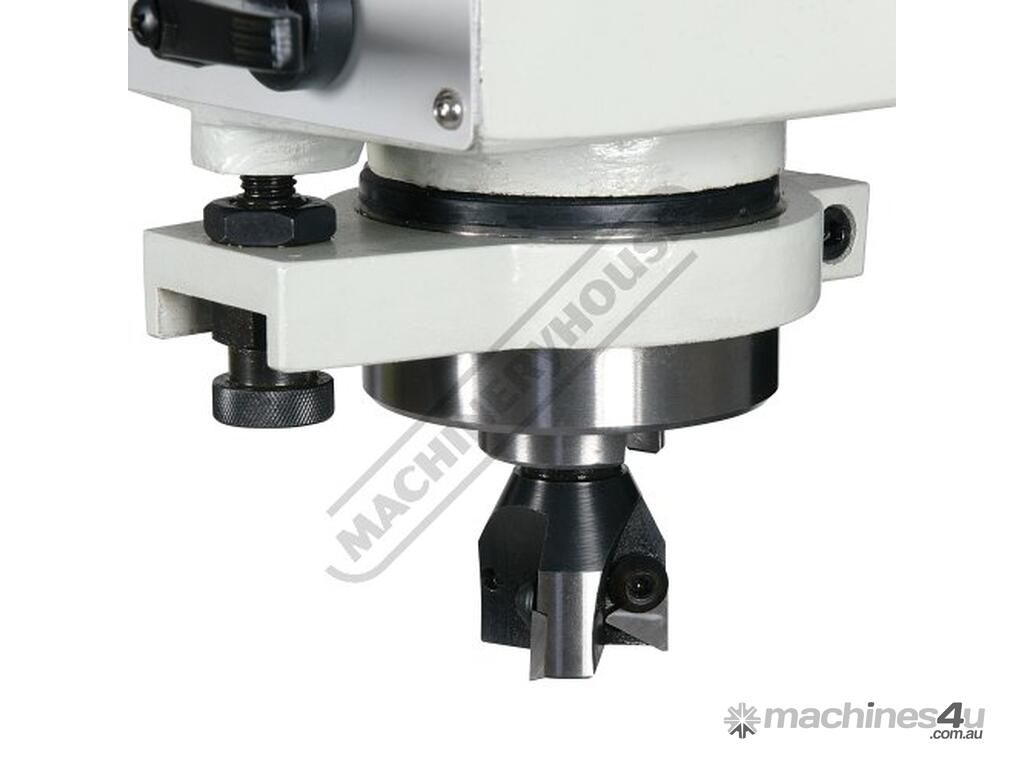

- Face cutter & arbor
- Interlocked spindle safety guard
- 3-2MT sleeve
- M12 drawbar
- 1/2" x 12tpi whitworth drawbar


Specifications:
ORDER CODE: M139D
MODEL: HM-46B
Digital Readout: 3-Axis Counter, X, Y Scales
Type: Vertical
Table Size (mm): 730 x 210
Column Type: Dovetail
Spindle Taper - Vertical: 3MT
Spindle Taper - Horizontal: ~
Longitudinal Travel (X-Axis) (mm): 485*
Cross Travel (Y-Axis) (mm): 175*
Vertical Travel (Z-Axis) (mm): 430
Type of Slides: Dovetail
Ram Travel (mm): ~
Spindle to Table (mm): 485
Spindle to Base: ~
Spindle Travel / Diameter (mm): 120 / 75
Throat Depth (max.) (mm): 265
Tilting Head (Left ~ Right): ±90º
Tilting Head (Forward ~ Back): Fixed
Drilling Capacity (mm): 31.5
End Milling Capacity (mm): 28
Face Milling Capacity (mm): 80
Power Feed - Quill (mm/rev): ~
Power Feed - Longitudinal (X-Axis) (mm/min): Optional
Power Feed - Cross (Y-Axis) (mm/min): ~
Power Feed - Vertical (Z-Axis) (mm/min): ~
Table T-Slot Size (inch / mm): 14
Work Table Load Capacity (kg): 55
Spindle Speeds Vertical (No./ rpm): 6 (95 - 1650)
Spindle Speeds Horizontal (No./ rpm): ~
Spindle Speeds - Universal Head: ~
Motor Power - Vertical Spindle (kW / hp): 1.5 / 2
Motor Power - Horizontal Spindle (kW / hp): ~
Motor Power - Universal Head: ~
Voltage / Amperage (V / amp): 415 /
Nett Weight (kg): 380
