HM-47B Mill Drill - Geared & Tilting Head with Digital Readout System Table Travel: (X) - 540mm (Y)

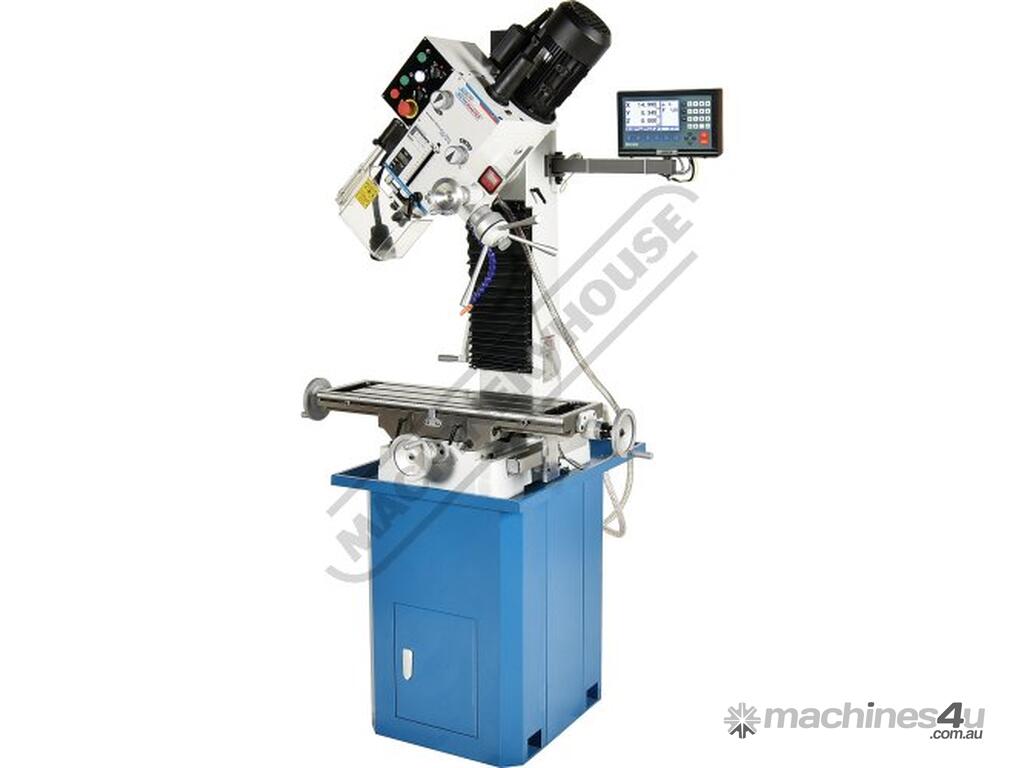

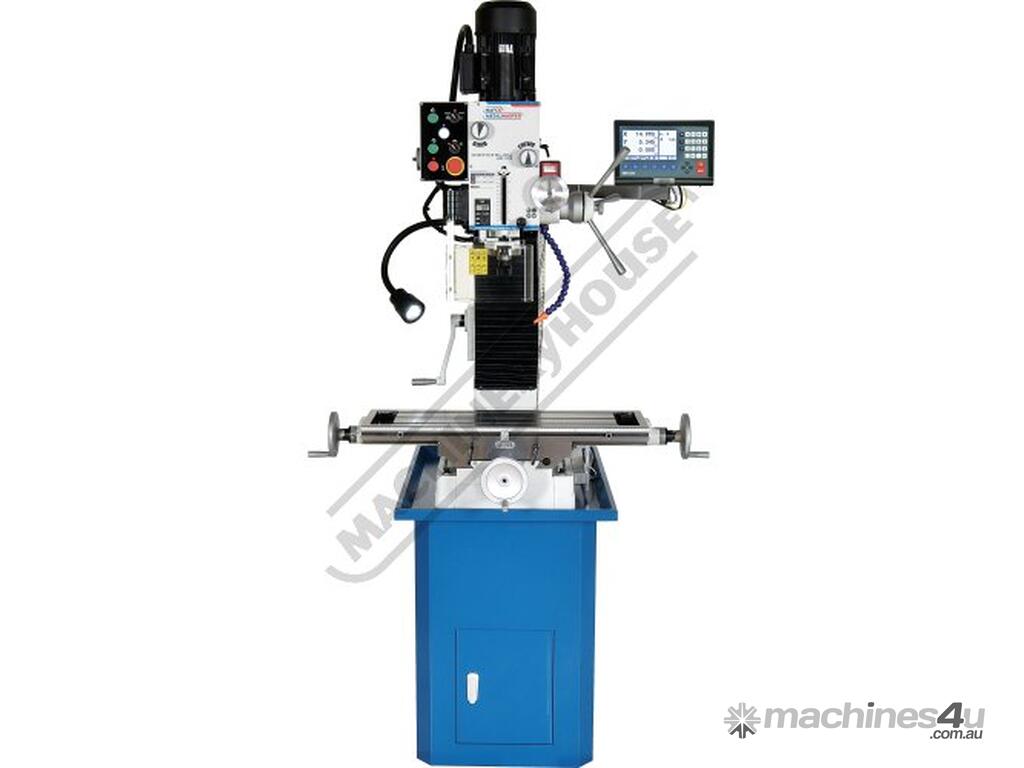

HAFCO-METALMASTER HM-47B Mill Drill - Geared & Tilting Head with Digital Readout System Table Travel: (X) - 540mm (Y) - 205mm (Z) - 385mm Includes Digital Readout System, Dovetail Column & Stand
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: M140D

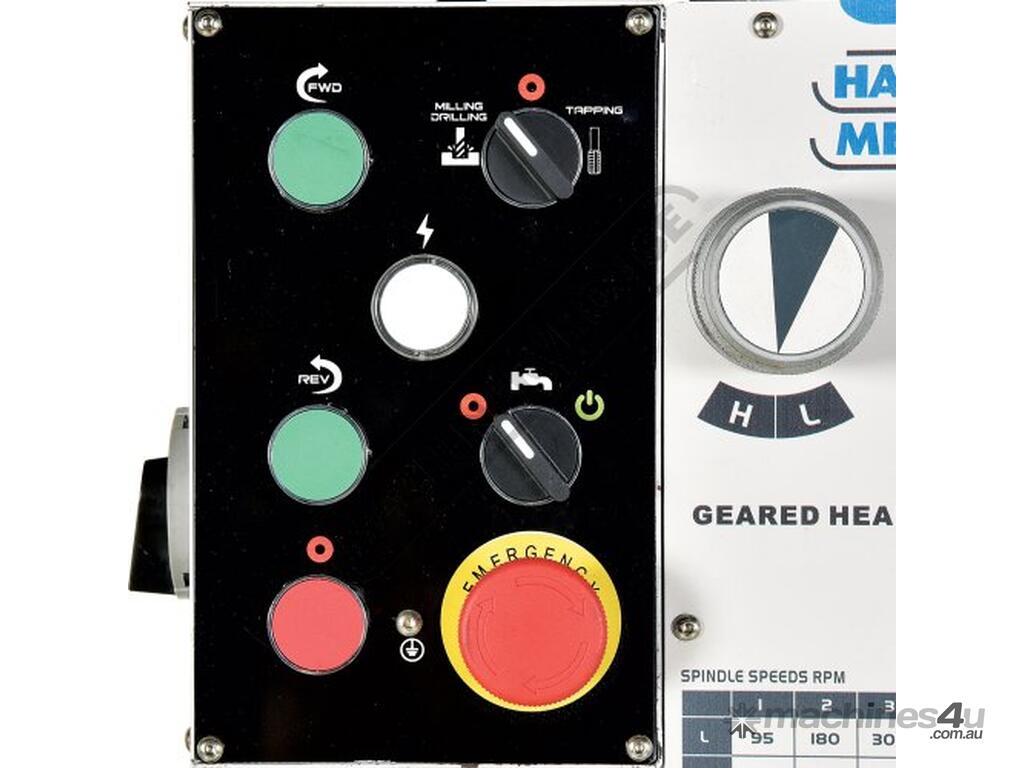

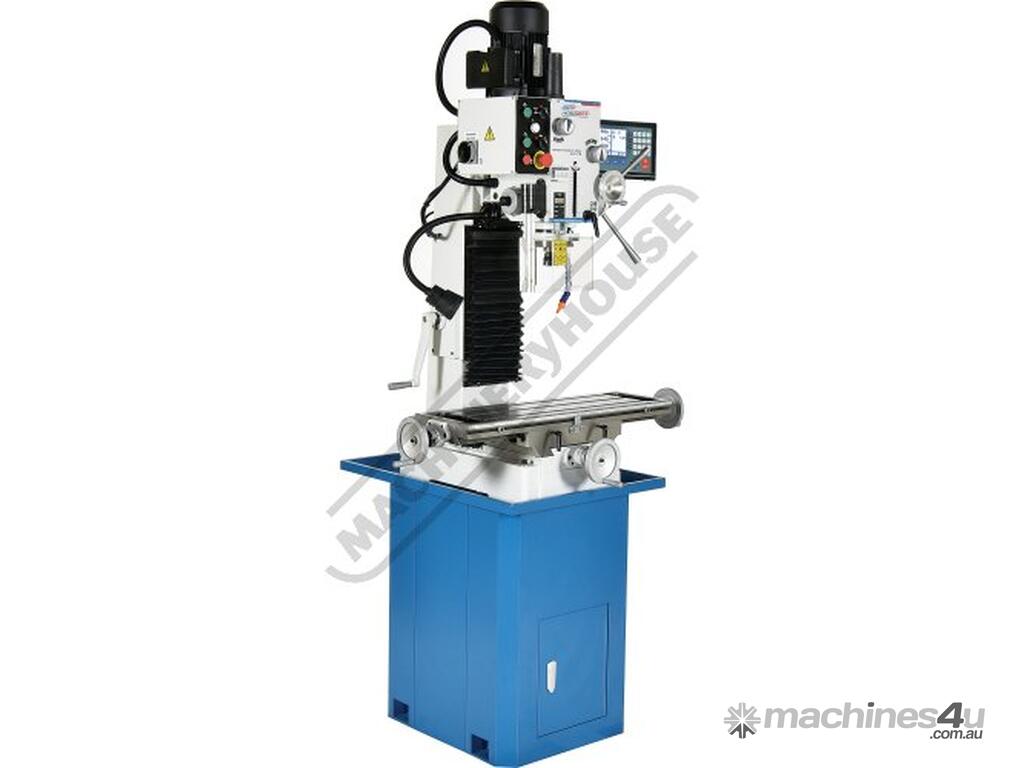

This NEW HM-47B milling machines is somewhat like the HM-46B model, but with the additional benefit of a larger machine worktable with more travels, a tapping function switch to allow you to control the required depth when tapping holes, a coolant pump system with flexible hose & nozzle, a halogen work light on a flexible arm to adjust the light beam as needed and a very sturdy fabricated stand with an access panel.

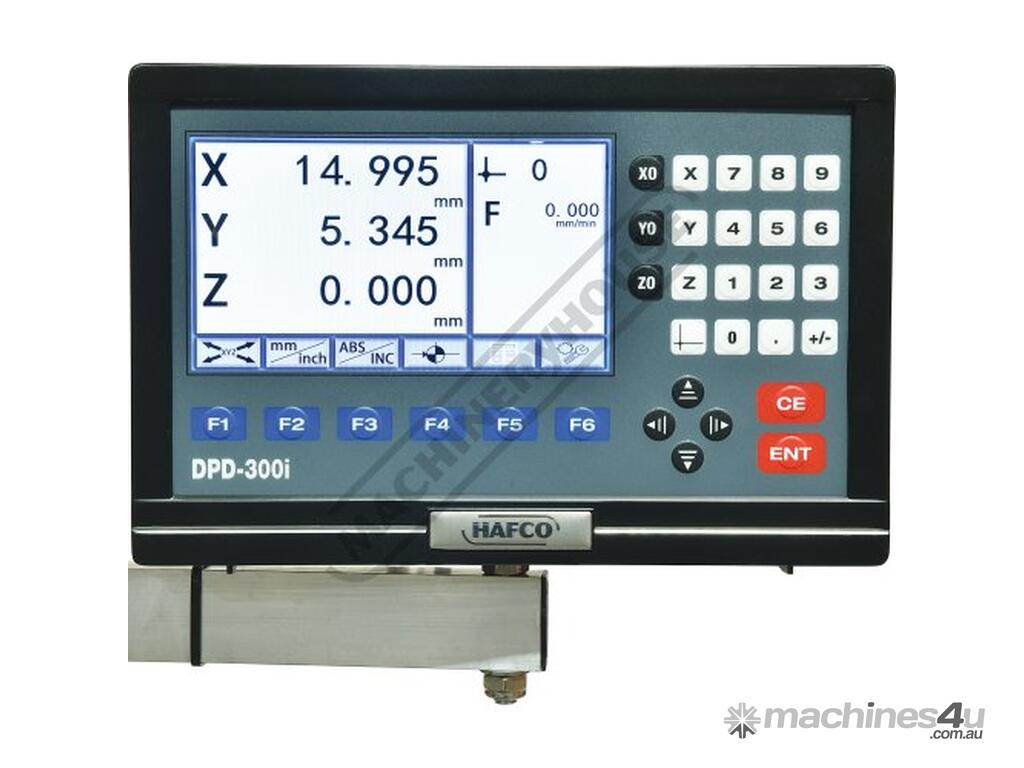

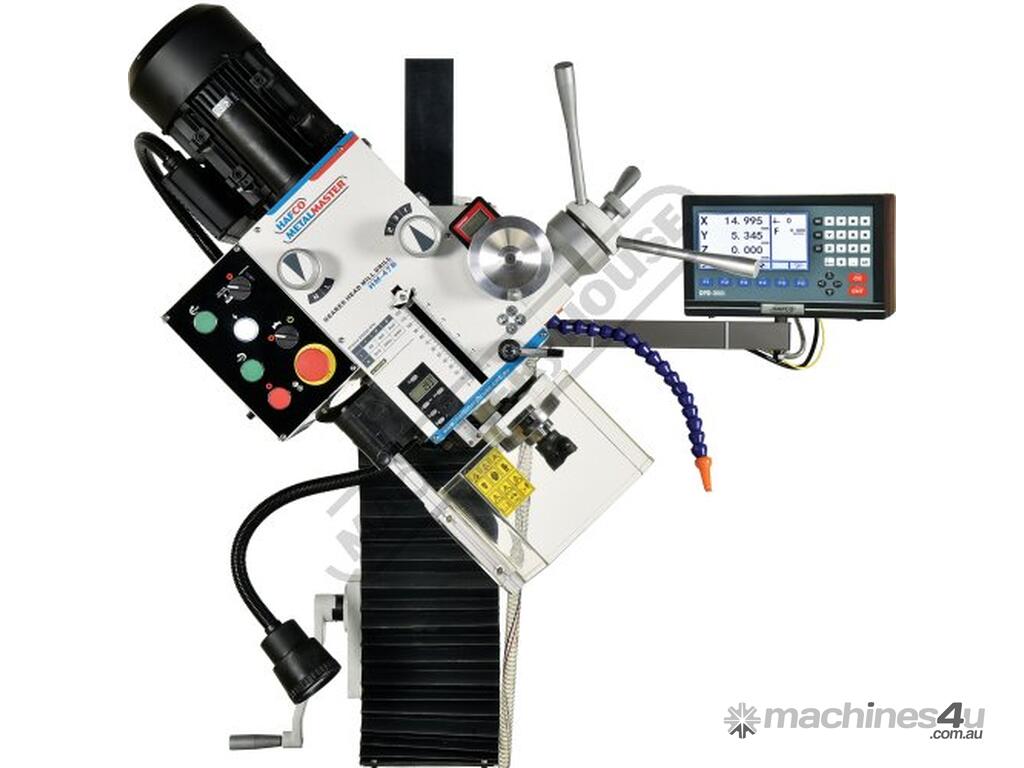

The HM-47B also has a 3-Axis digital readout counter fitted with 2-Axis X & Y scales for accurate table positioning with ease, 6-speeds 95-1650rpm, gear driven head which can be tilted up to 90º either side of the vertical. This feature allows the head to be positioned in a variety of positions, allowing a whole range of milling, slotting, grooving, drilling and boring operations to be carried out on different angles. The milling head is also mounted to a vertical dovetail slide system that allows the head to maintain on the exact same centre position when raising or lowering.

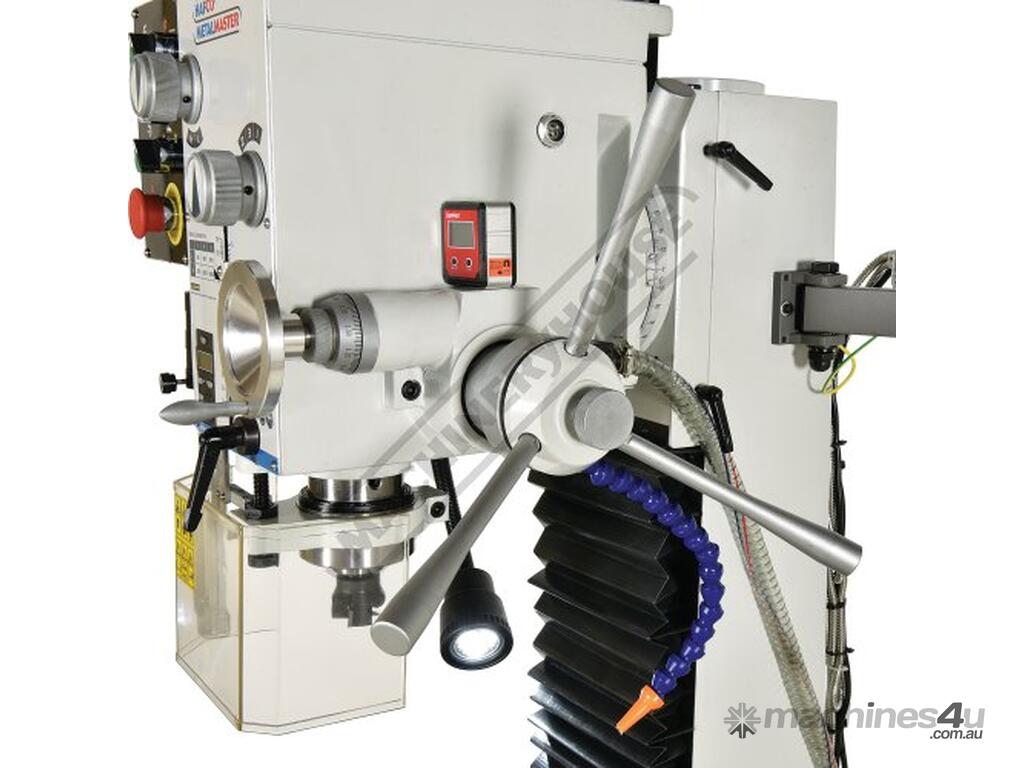

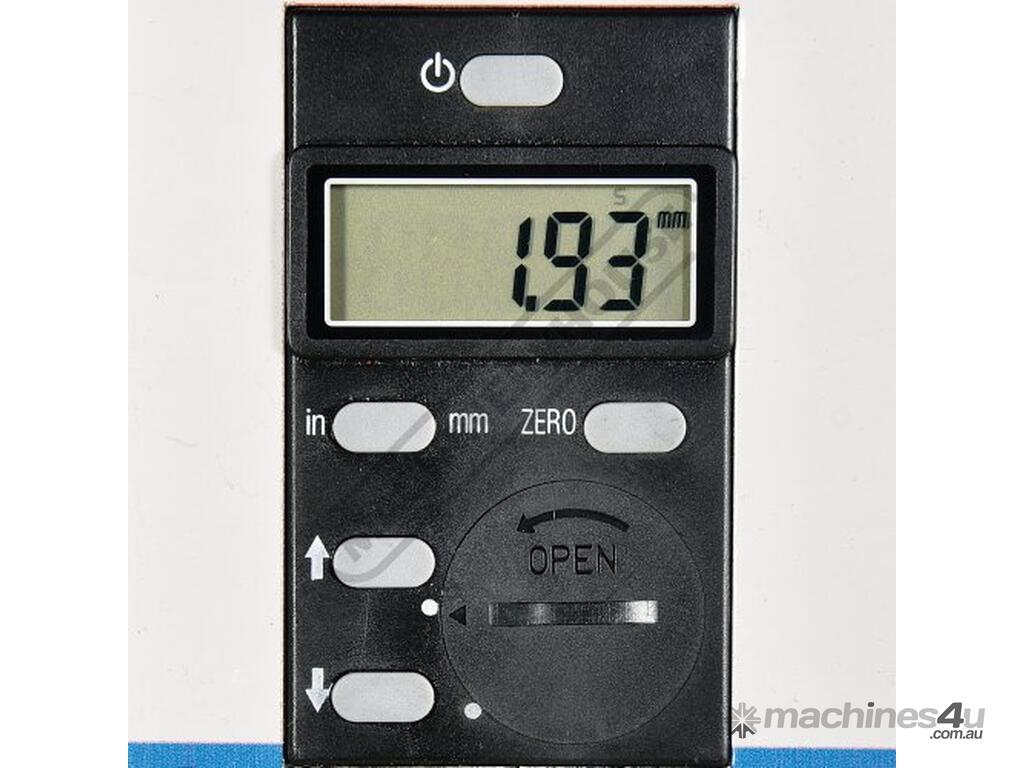

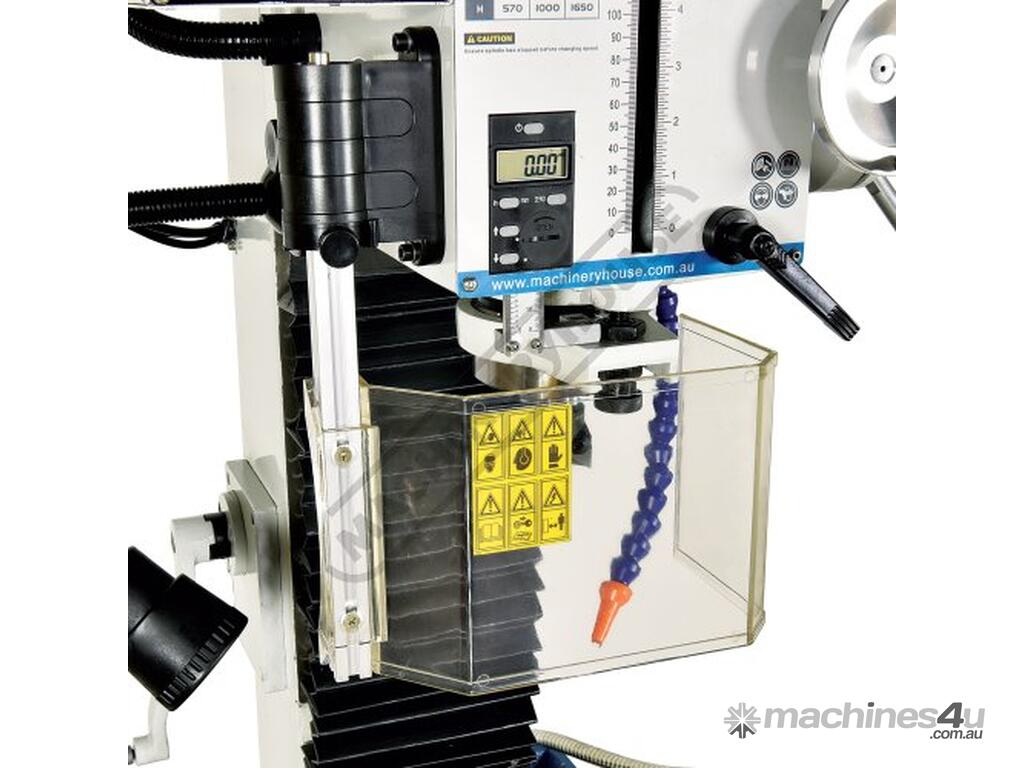

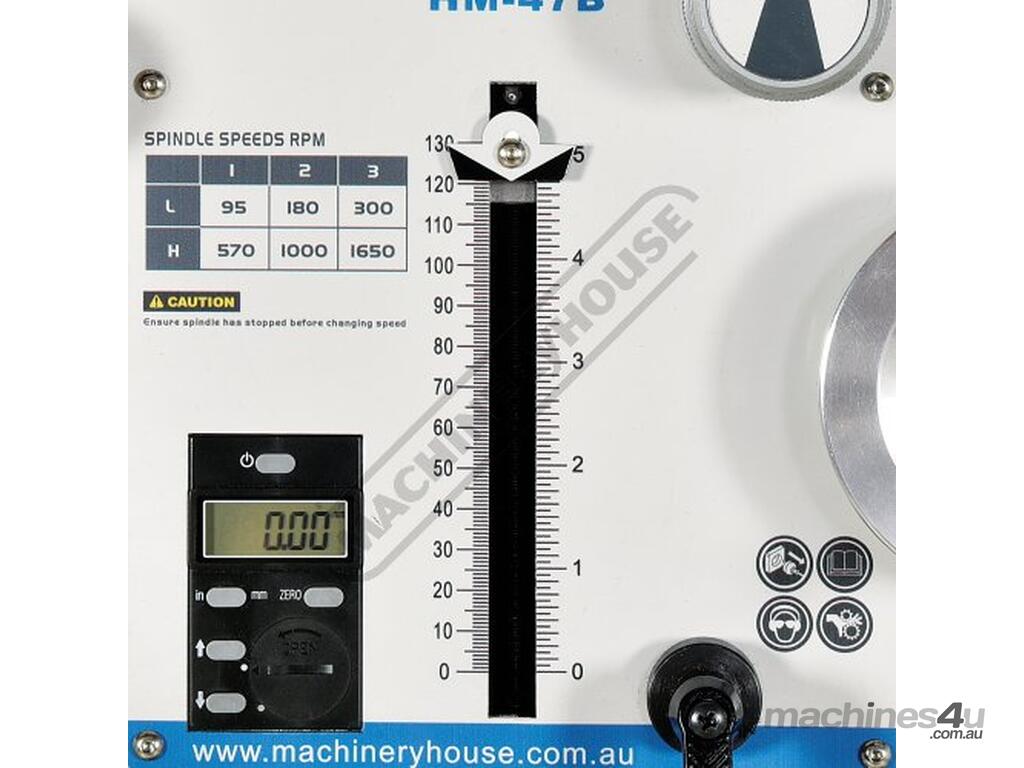

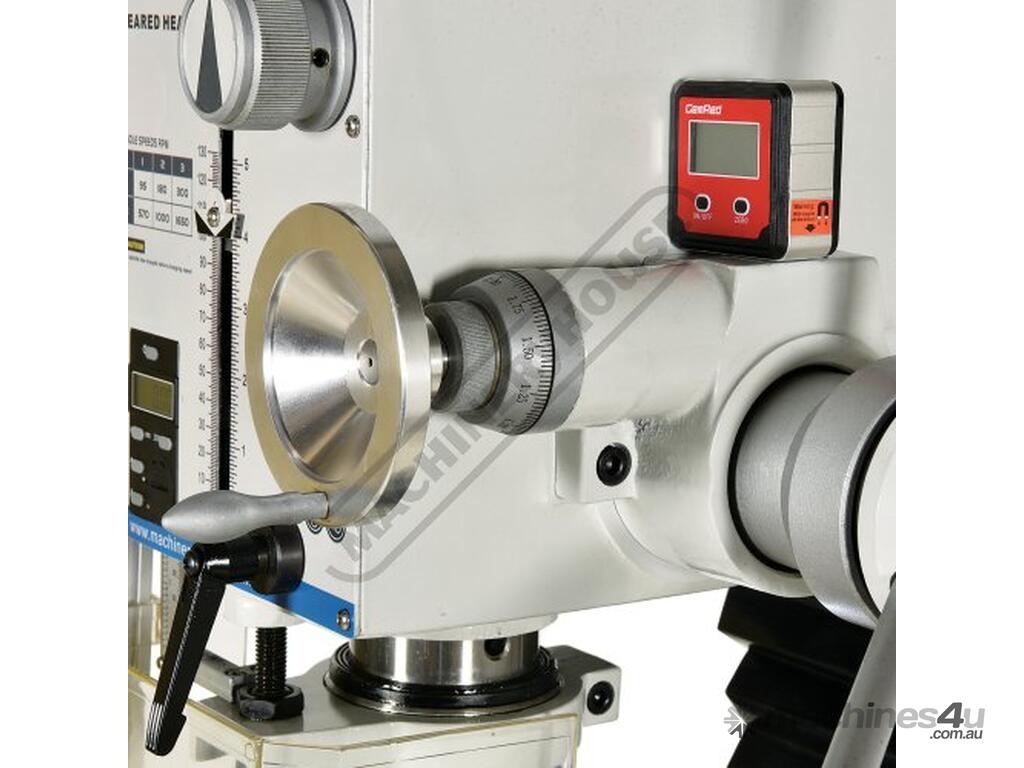

The quill movement is also coupled to a digital depth counter mounted on the face of the machine for convenience and allows you to achieve accurate drilling or milling depths. Tilting the head can be also measured accurately via the digital head gauge mounted on the right side of the mill head.

Also available is an optional power feed attachment which fits to the left-hand end of the table and provides a smooth, variable speed longitudinal drive.

Features:
3-Axis digital readout counter fitted with 2-Axis X & Y scales only

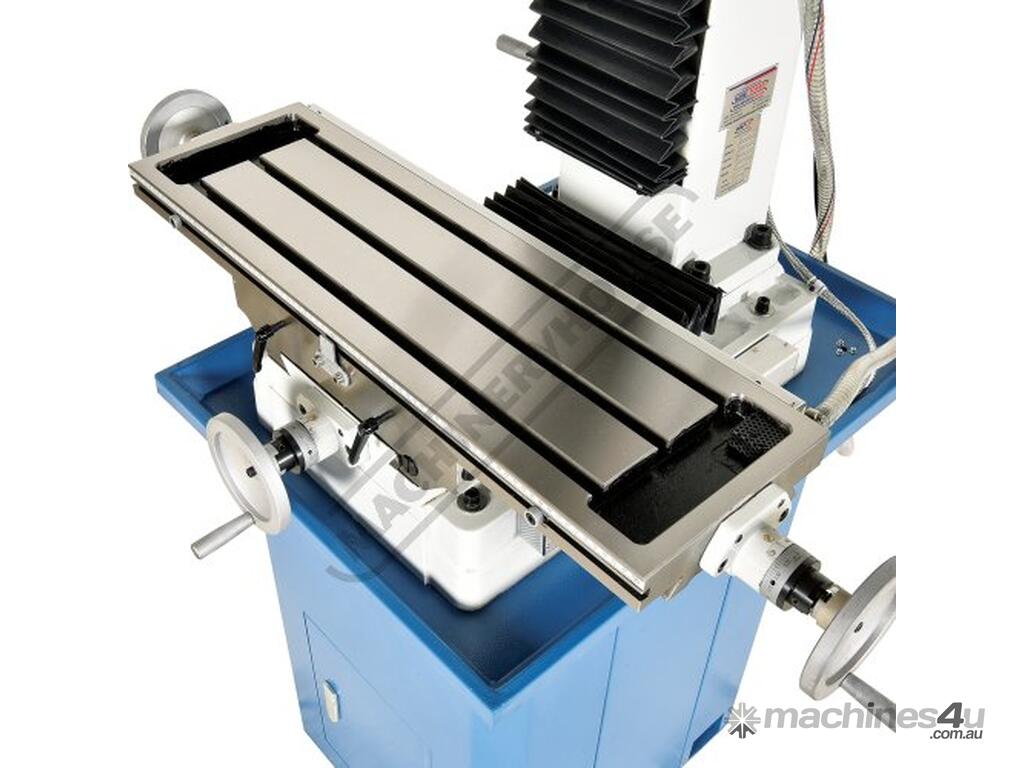

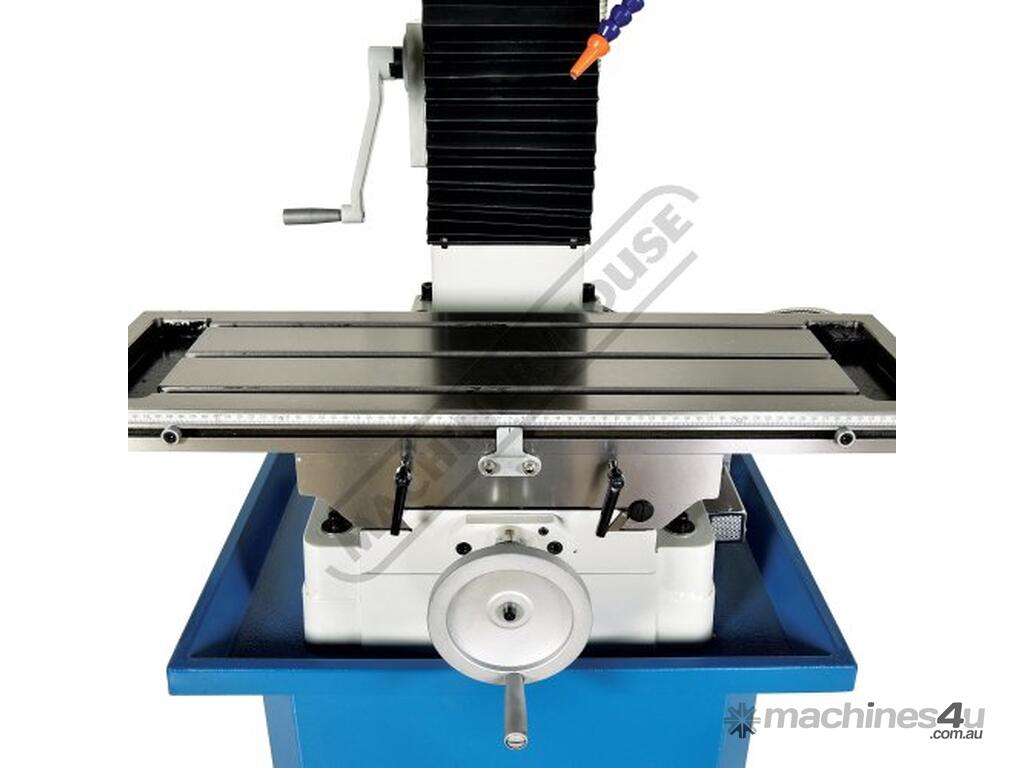

Large 800 x 240mm ground work table with T-slots
Powerful 2HP-240V gear driven head

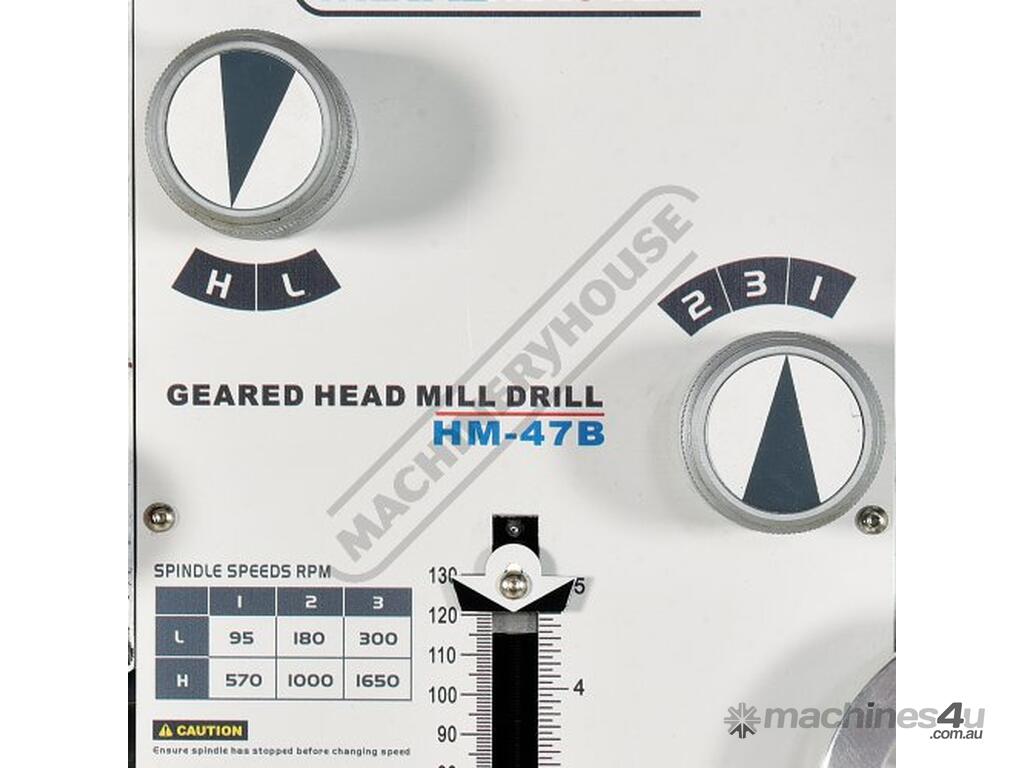

6 spindle speeds ranging from 95-1650rpm

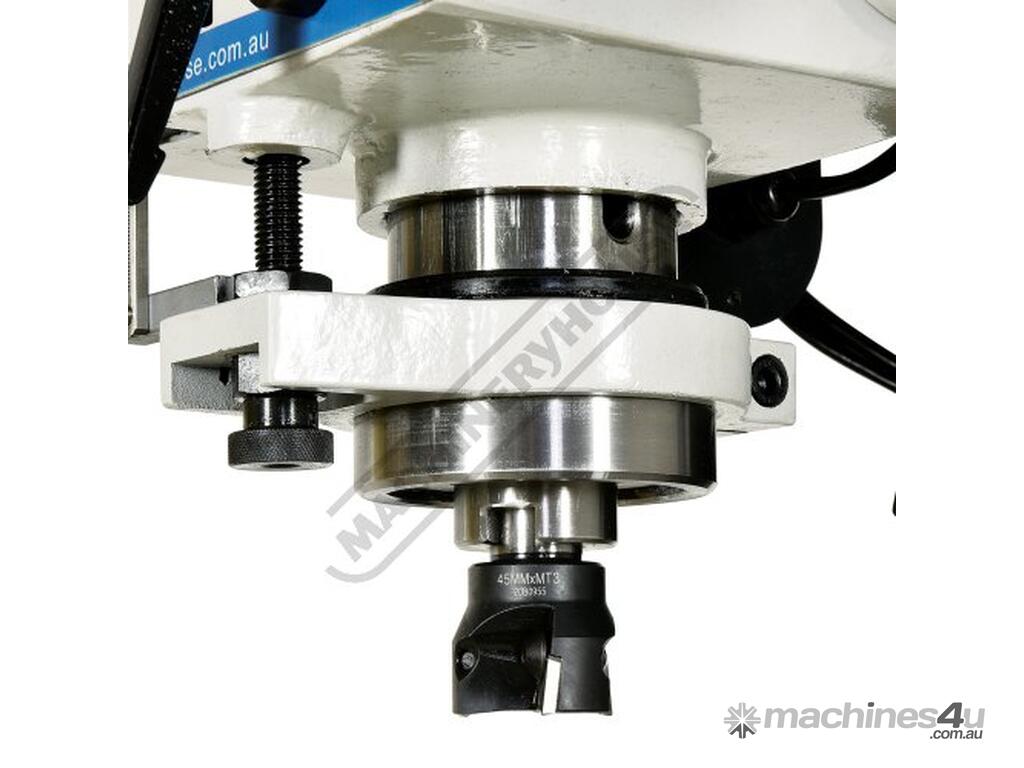

3MT spindle with 75mm diameter lockable quill
Drilling/Milling & Tapping Functions

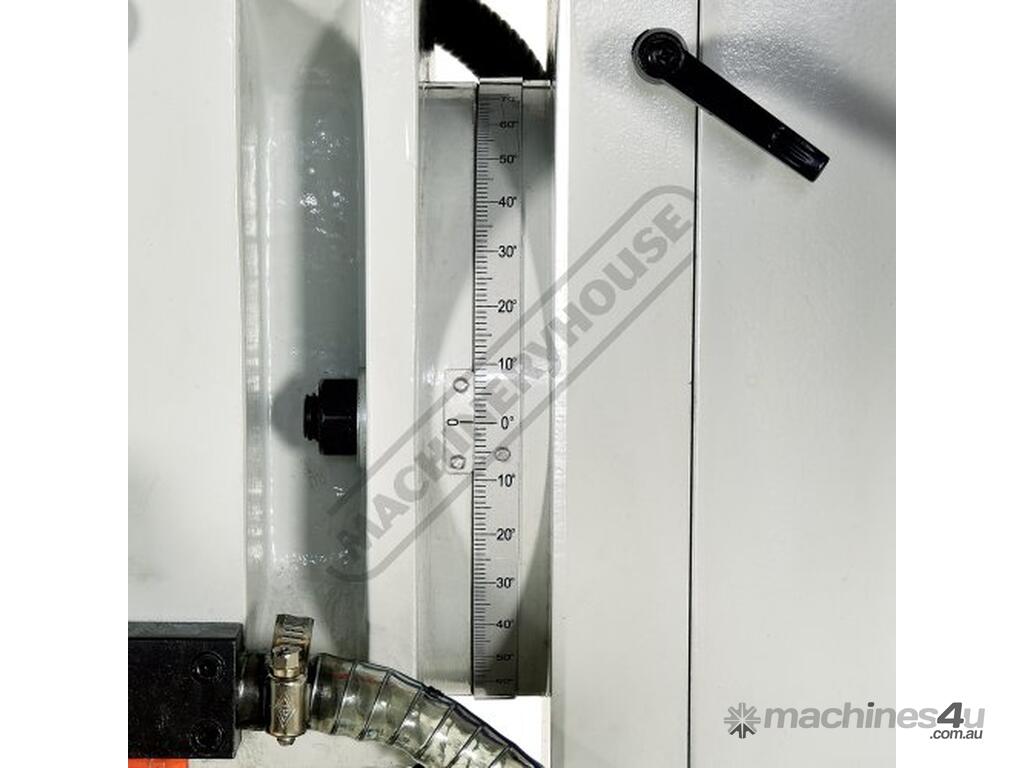

Mill head tilts to ±90º from vertical with digital display

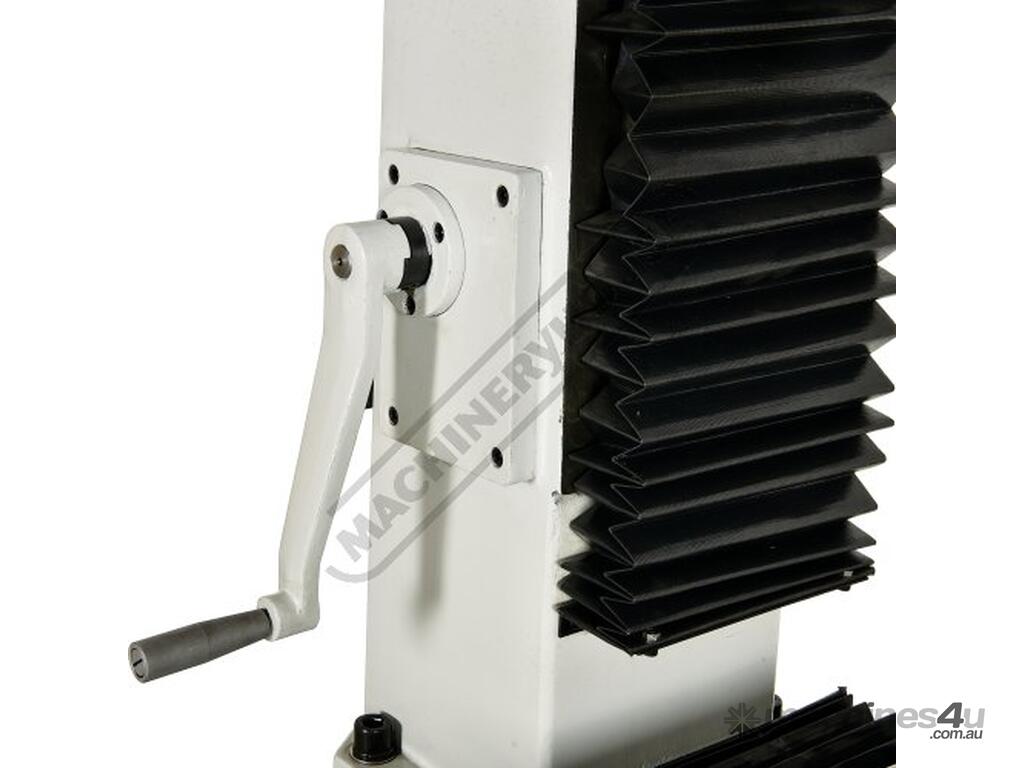

Dovetail vertical Z-Axis with rack and pinion wind-up head
Adjustable leadscrew nuts eliminating backlash on both axis
Adjustable table stops with table locks
Fine down feed handwheel operating quill feed with adjustable stop
Digital depth display with zero reset for quill (Includes LR44 battery)
Digital display bevel box to set head tilting (Includes AAA battery)
Forward and reverse on/off switch

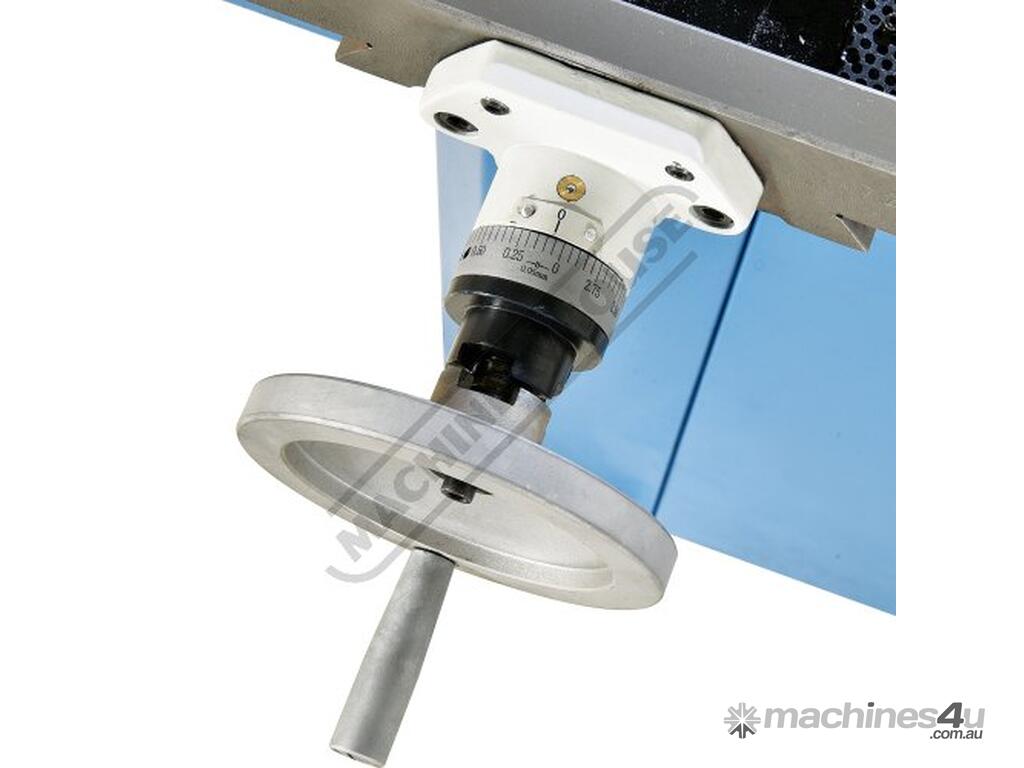

Metric dial graduations 0.05mm for X & Y-Axis
Rear slide-way cover and slide clamps on all axis
Fixed control panel
Coolant system with flexible hose
Heavy duty fabricated stand with coolant & swarf tray

* Note: X & Y travels maybe reduced due to digital readout scales and safety stops

Includes:
- 3-Axis digital readout counter fitted with 2-Axis X & Y scales only
- Heavy duty fabricated stand with coolant & swarf collection tray
- Coolant system
- Halogen light
- Digital depth display
- Digital tilting head gauge
- Drill chuck & arbor
- Drill sleeve – 3MT – 2MT
- Face cutter & arbor
- Interlocked spindle safety guard
- 1/2" x 12TPI drawbar
- M12 x 1.75mm drawbar



Specifications:
ORDER CODE: M140D
MODEL: HM-47B
Digital Readout: 3-Axis Counter, X, Y Scales
Type: Vertical
Table Size (mm): 800 x 240
Column Type: Dovetail
Spindle Taper - Vertical: 3MT
Spindle Taper - Horizontal: ~
Longitudinal Travel (X-Axis) (mm): 540*
Cross Travel (Y-Axis) (mm): 205*
Vertical Travel (Z-Axis) (mm): 385
Type of Slides: Dovetail
Ram Travel (mm): ~
Spindle to Table (mm): 485
Spindle to Base: ~
Spindle Travel / Diameter (mm): 120 / 75
Throat Depth (max.) (mm): 265
Tilting Head (Left ~ Right): ±90º
Tilting Head (Forward ~ Back): Fixed
Drilling Capacity (mm): 31.5
End Milling Capacity (mm): 28
Face Milling Capacity (mm): 80
Power Feed - Quill (mm/rev): ~
Power Feed - Longitudinal (X-Axis) (mm/min): Optional
Power Feed - Cross (Y-Axis) (mm/min): ~
Power Feed - Vertical (Z-Axis) (mm/min): ~
Table T-Slot Size (inch / mm): 14
Work Table Load Capacity (kg): 55
Spindle Speeds Vertical (No./ rpm): 6 (95 - 1650)
Spindle Speeds Horizontal (No./ rpm): ~
Spindle Speeds - Universal Head: ~
Motor Power - Vertical Spindle (kW / hp): 1.5 / 2
Motor Power - Horizontal Spindle (kW / hp): ~
Motor Power - Universal Head: ~
Voltage / Amperage (V / amp): 240 / 10
Nett Weight (kg): 430


To Purchase Online Please Visit The Machineryhouse & Search For 'M140D'
