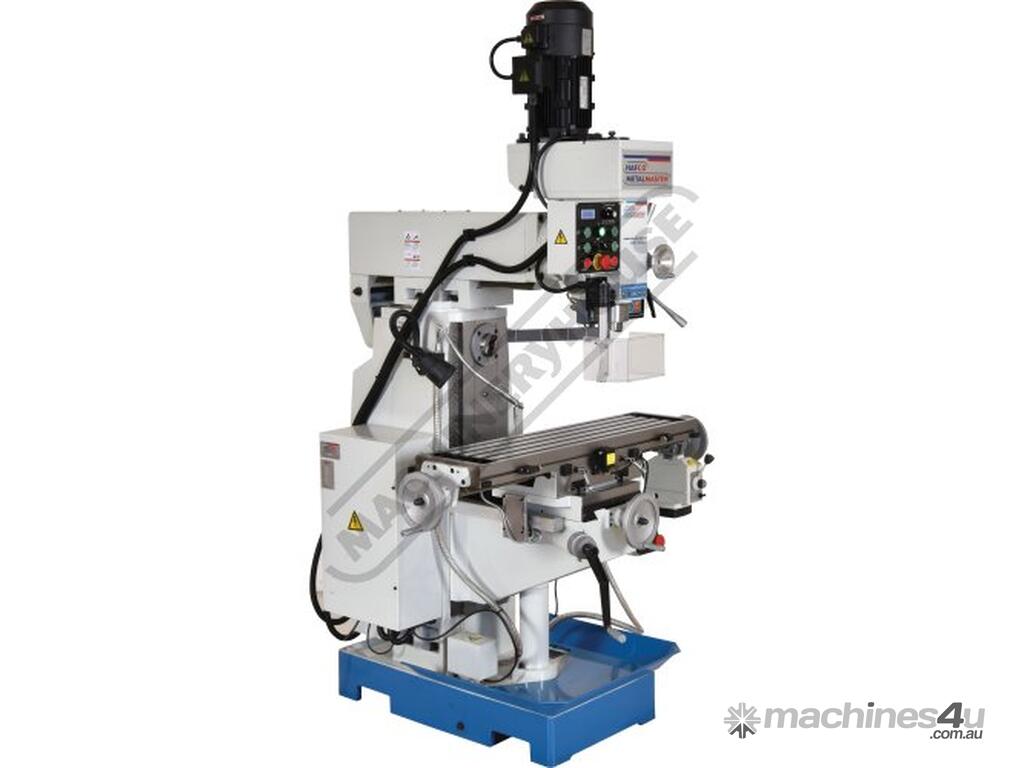

HM-54GV Workshop Turret Milling Machine Inverter Variable Speed, Geared Head - Horizontal & Vertical

HAFCO-METALMASTER HM-54GV Workshop Turret Milling Machine Inverter Variable Speed, Geared Head - Horizontal & Vertical Table Travel: (X) - 600mm (Y) - 200mm (Z) - 340mm Includes Digital Readout System & Swivel Table
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: M579

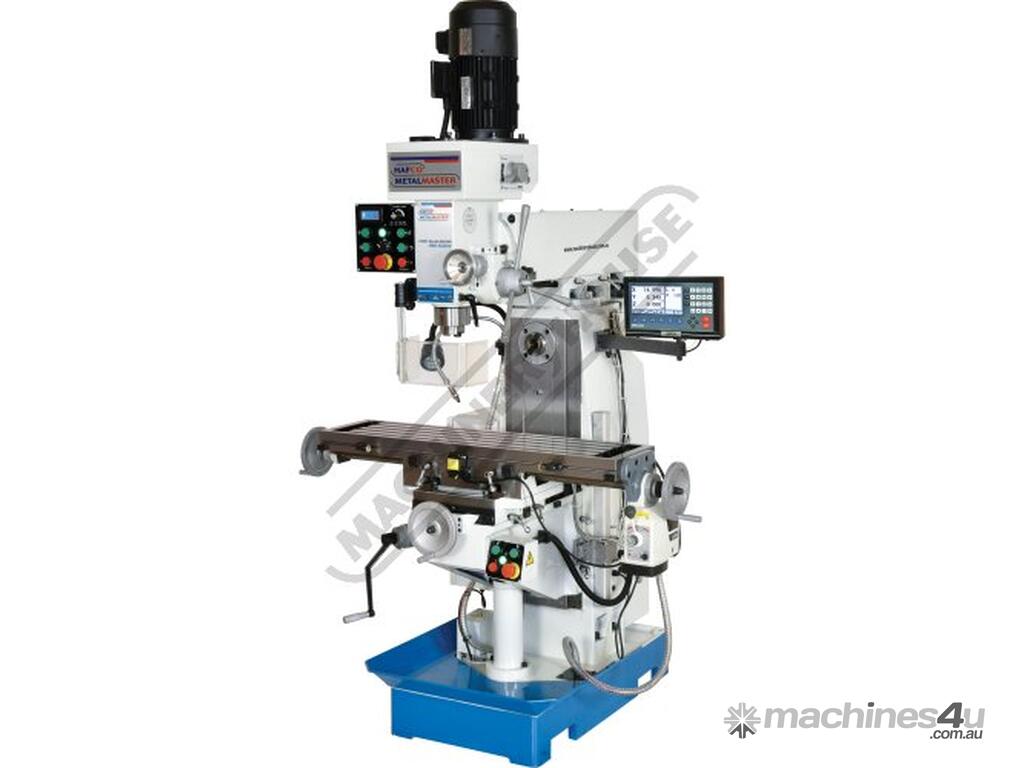

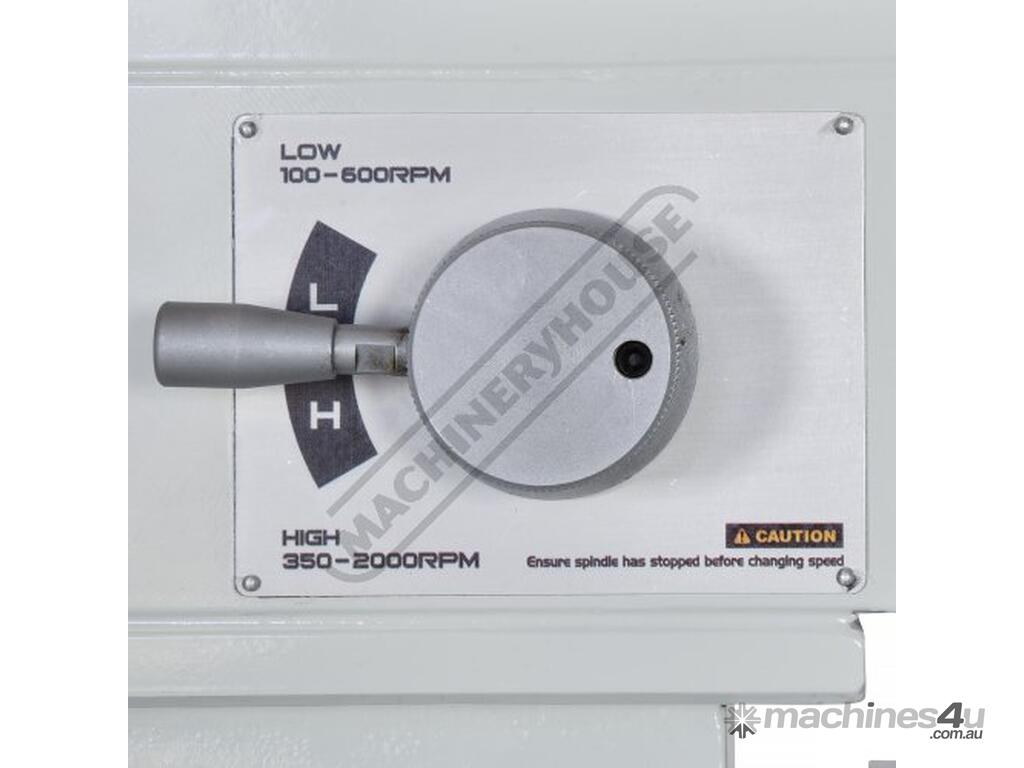

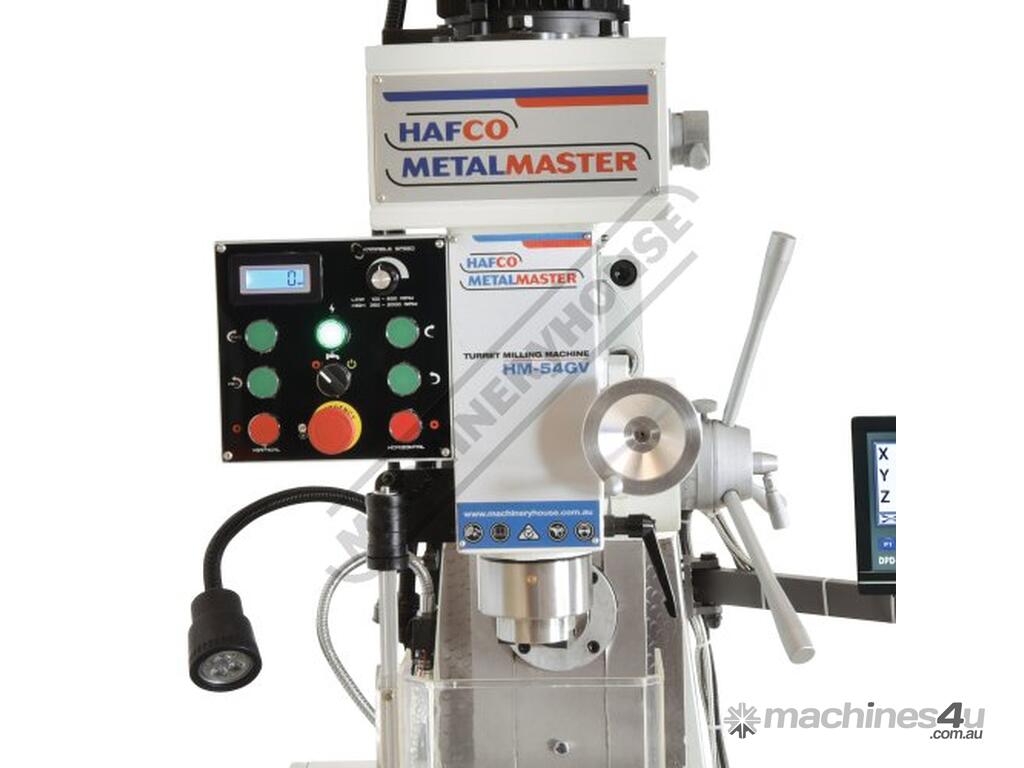

This HM-54GV geared head vertical and horizontal turret milling machine now includes a inverter variable speed drive on the vertical spindle, with a powerful continuous-load 2.2kW / 3hp vertical motor and a 2hp motor for the horizontal spindle, intended for trade use. The work table is precision made with adjustable dovetail guides and is recognised for its 600mm X axis by 200mm Y axis travel. There is a three armed handle on the side for drilling also incorporating a fine feed control hand wheel on the front for milling. The hi-low geared head selector lever mounted on right side of milling head allows for quick change off speed range.

Other features include 3-Axis digital readout system, taper roller bearing support for the spindle, easy-to-read drilling depth stop, low voltage LED work light, coolant system, X axis power feed unit, drill chuck, 1" & 1-1/4" horizontal arbors, 2 & 3 morse taper adaptors. The combination of generous sized vertical support and rugged cast iron construction throughout reduces vibration and guarantees accurate and chatter-free operation.

Extra Features:
Swivel table
1" & 1-1/4" horizontal arbors

Features:

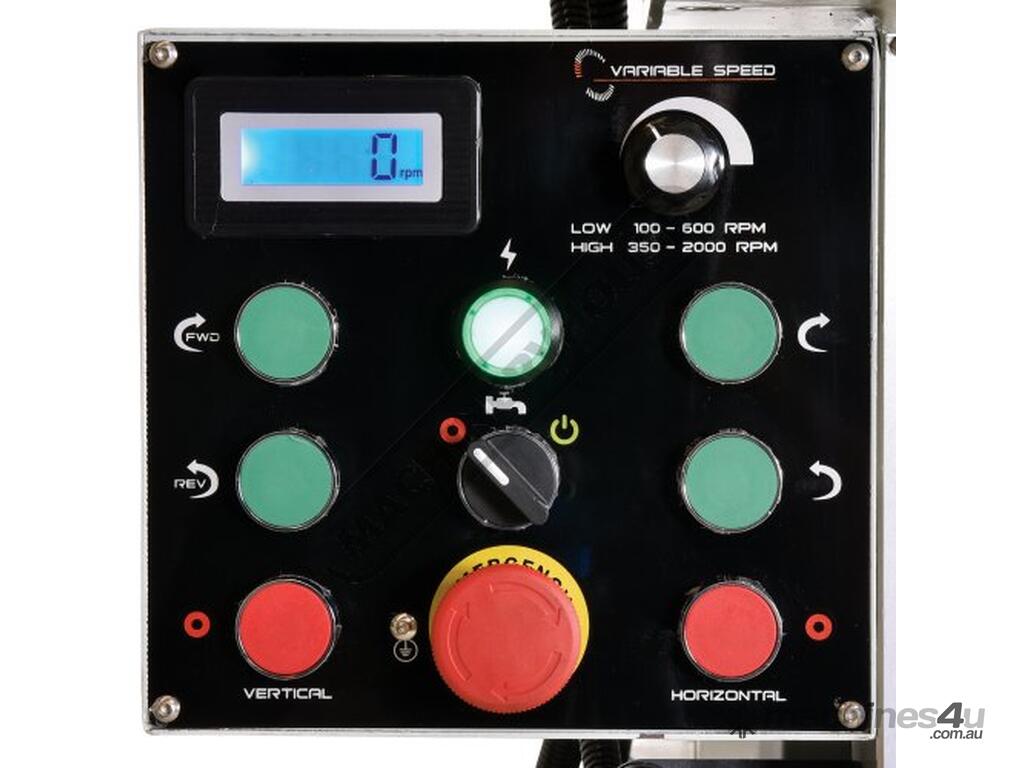

Electronic inverter variable spindle speeds

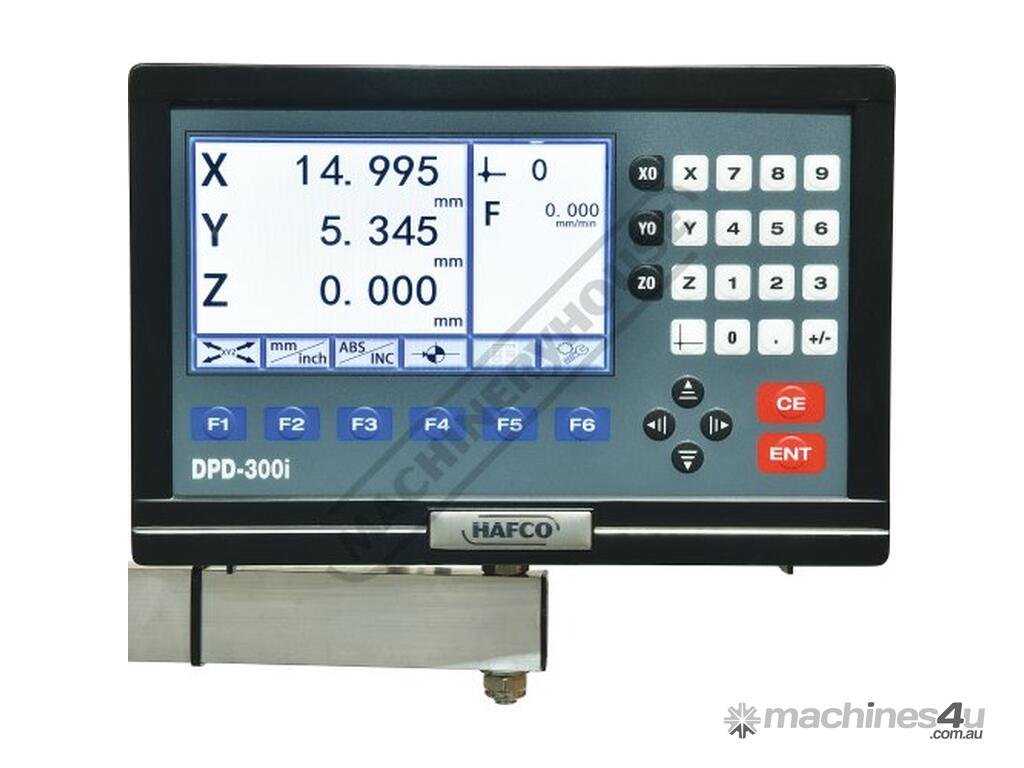

3 Axis digital readout system
Swivel table left & right with graduated scale

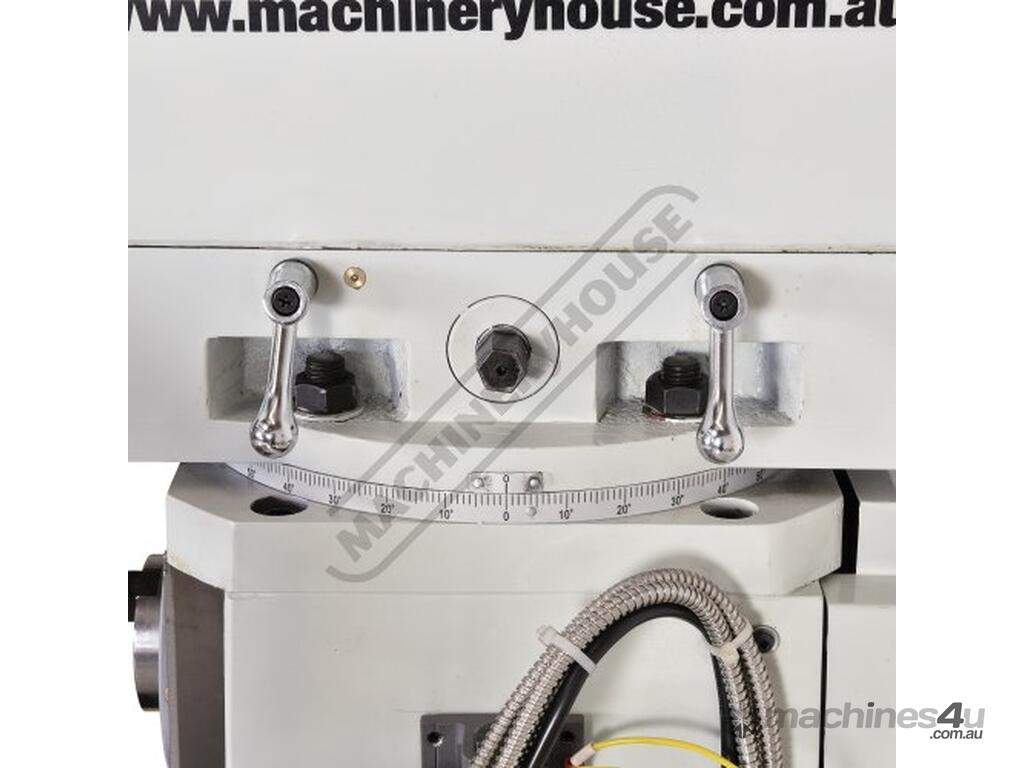

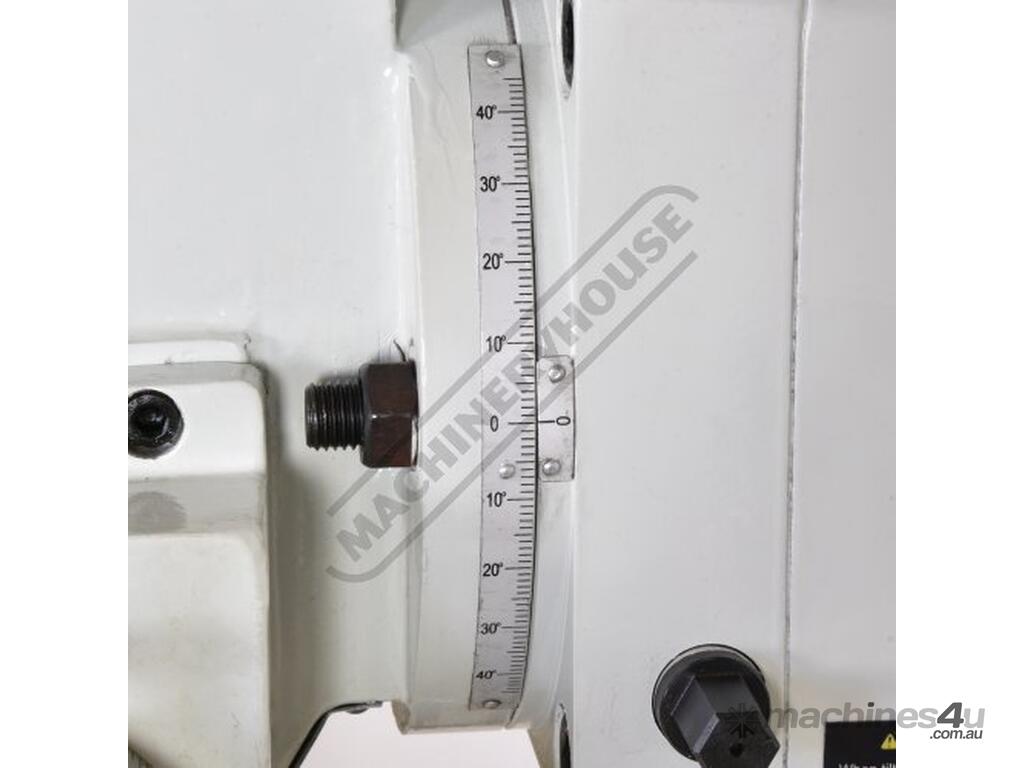

Mill head tilts to ±45º left to right

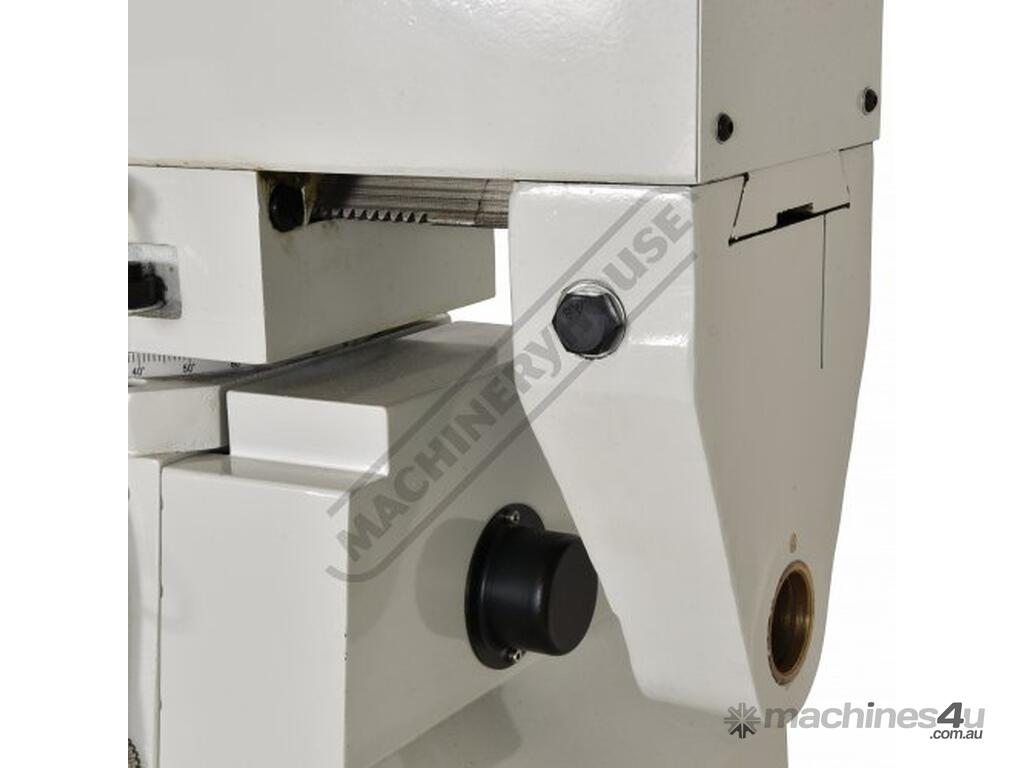

450mm horizontally sliding and rotating ram

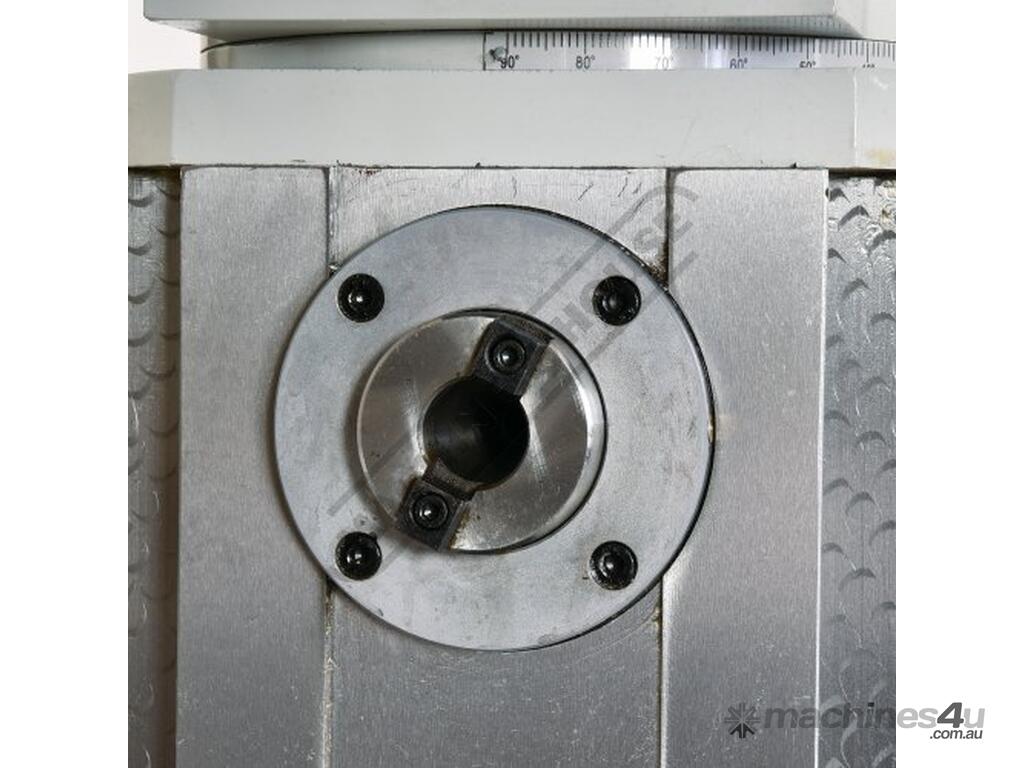

NT30 Horizontal and vertical spindles that are hardened and ground
Precision-ground dovetail slide-ways and table
Precision milling table incorporating machined T slots

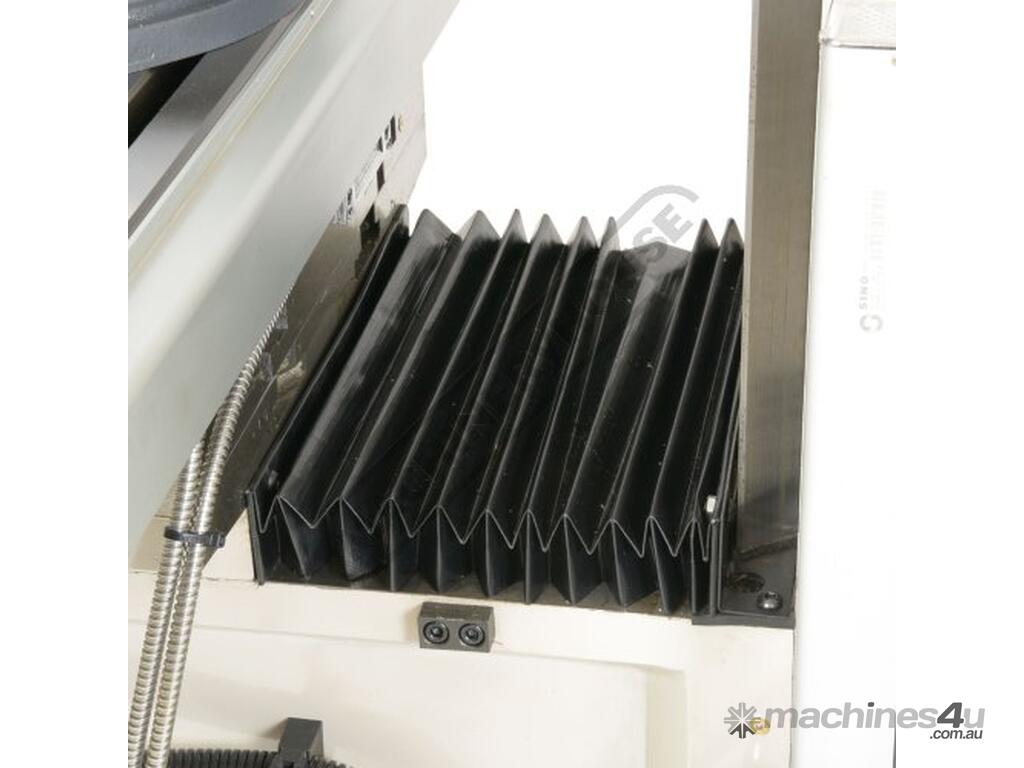

Rear concertina slide-way cover

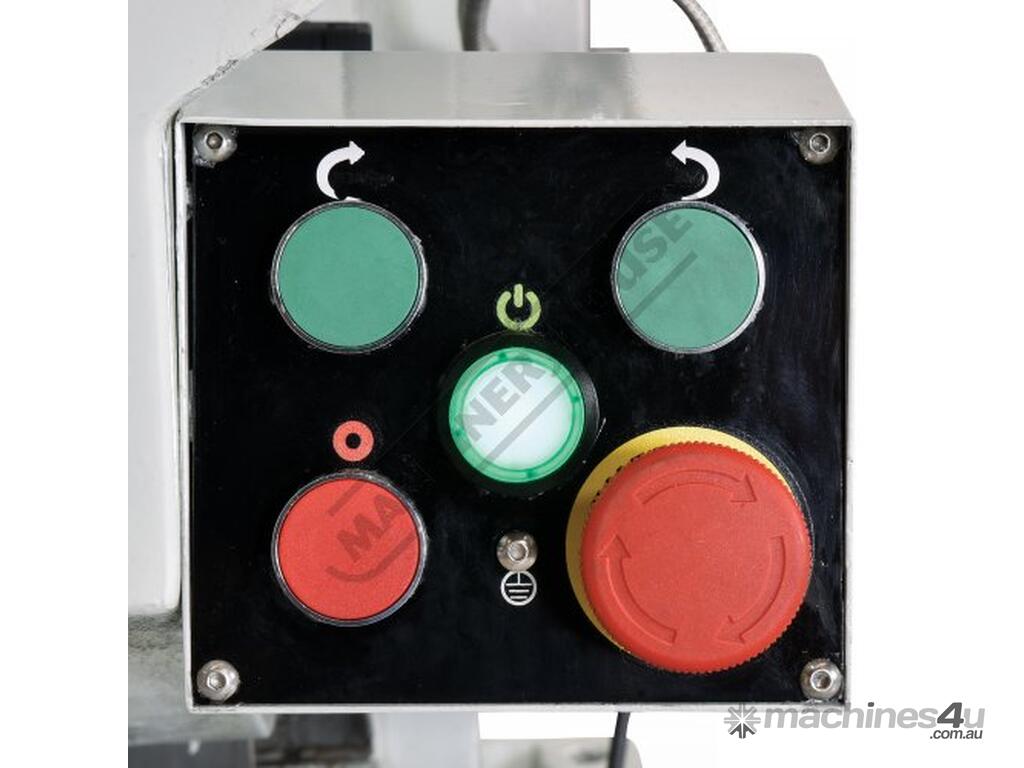

Forward and reverse button switch

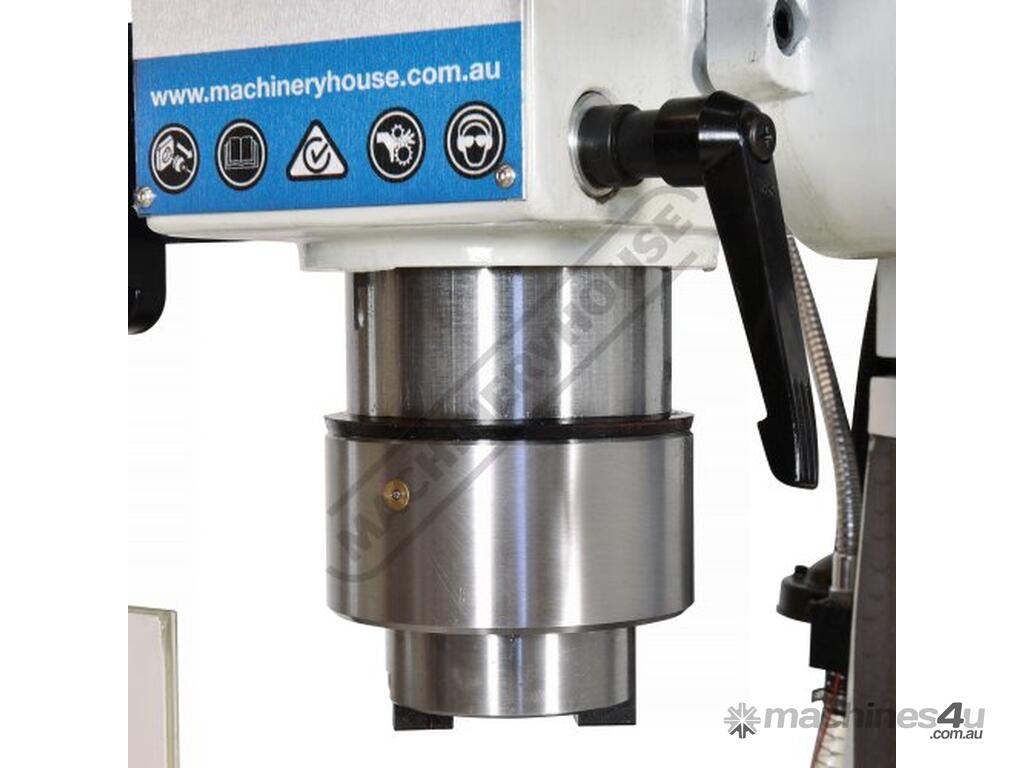

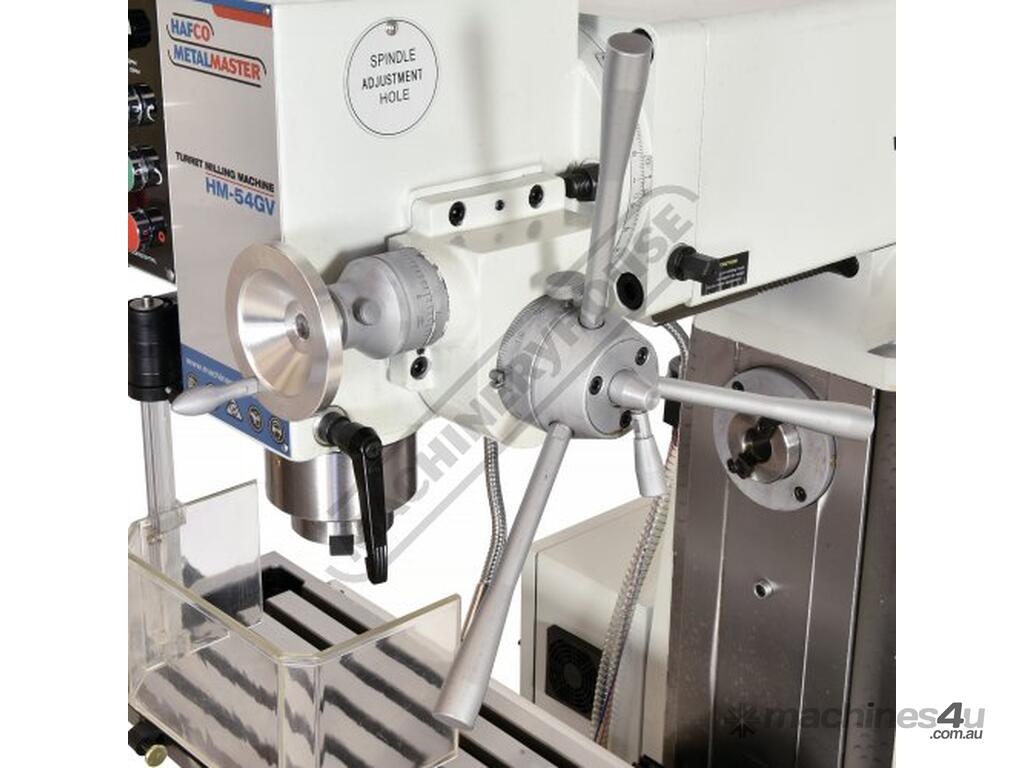

Fine hand wheel operated quill feed
Swarf & splash tray
Spindle lock for quill
Metric dial graduations 0.02mm for X Y & Z-Axis

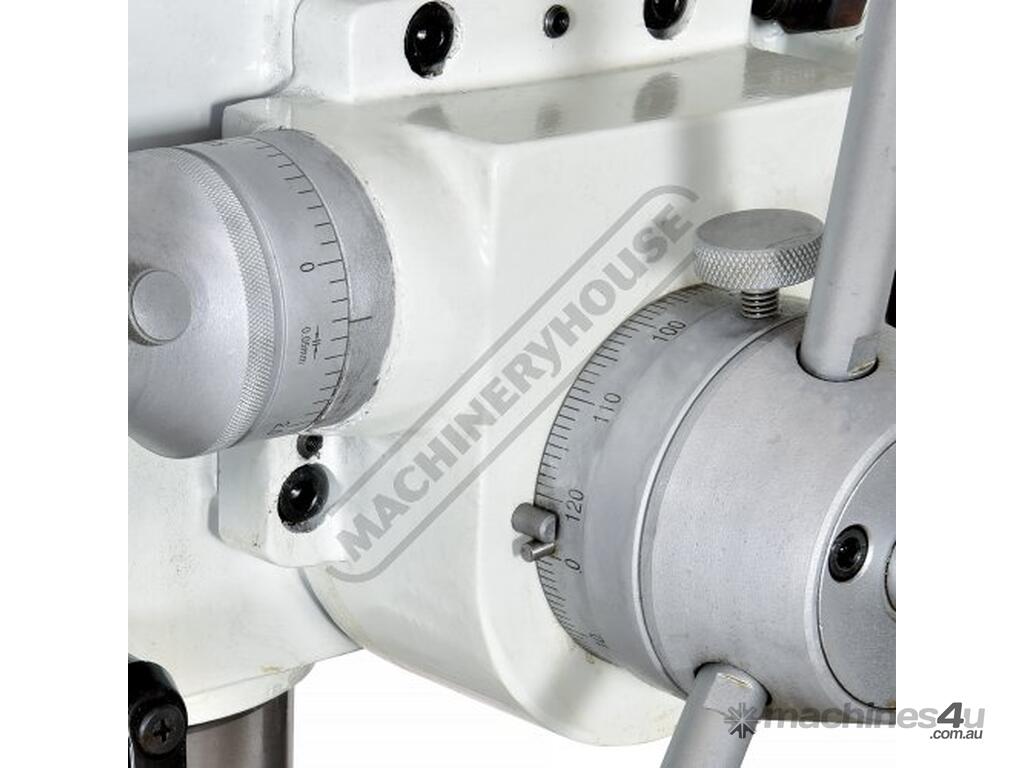

Vertical quill hand-wheel dial graduations 0.05mm
All slides utilise dovetail construction for maximum rigidity
Includes 1" & 1-1/4" arbors for the horizontal spindle

* Note: X travel maybe reduced due to digital readout scales and safety stops

Includes:
- Electronic inverter variable spindle speeds
- 3 Axis digital readout system
- X-Axis power-feed

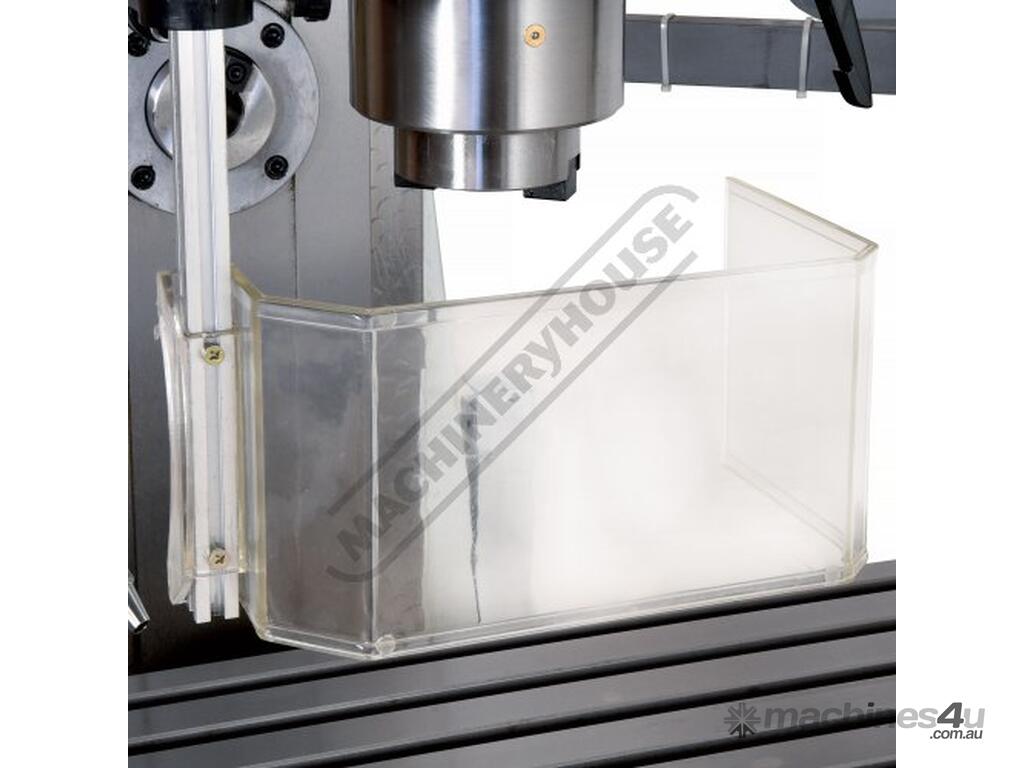

- Safety cutter guard
- Swarf tray

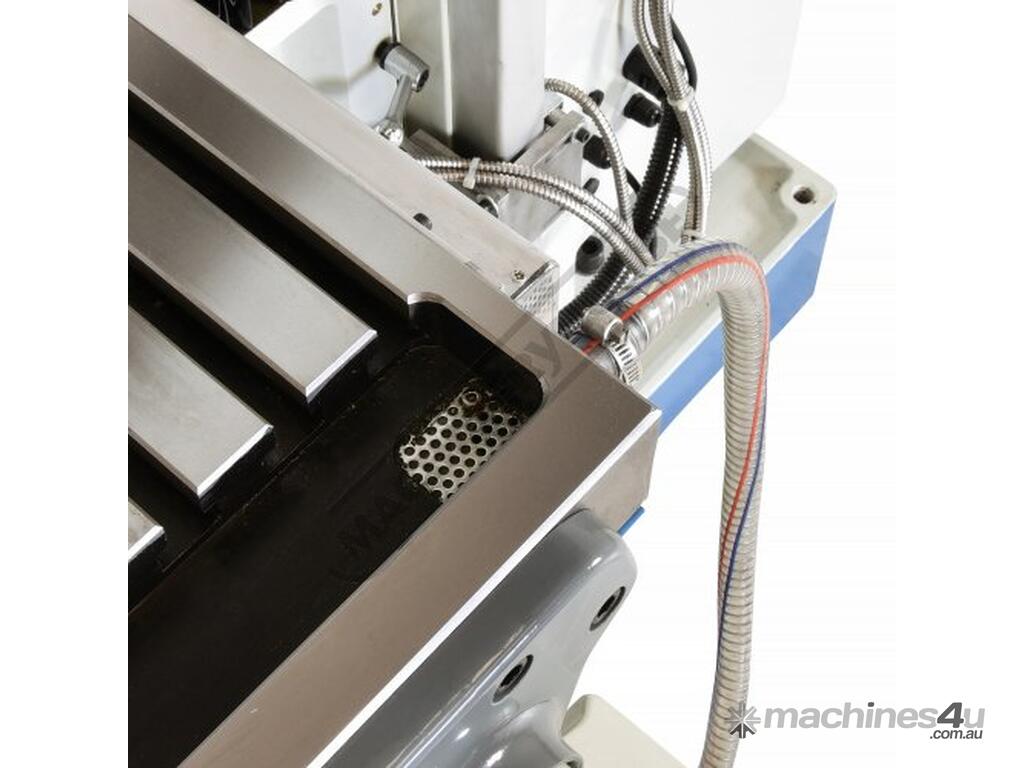

- Coolant system

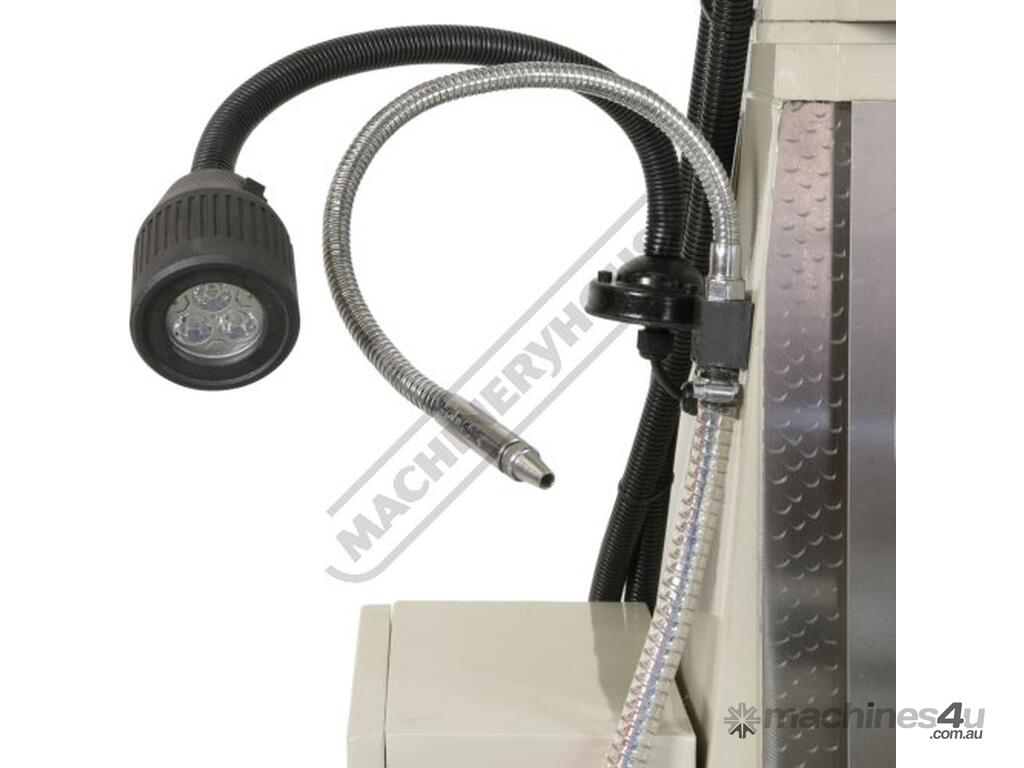

- LED work light
- Drill chuck & arbor
- NT30 to 3MT adaptor
- 2MT & 3MT adaptors
- M12 x 1.75mm Drawbar



Specifications:
ORDER CODE: M579
MODEL: HM-54GV
Digital Readout: 3-Axis Digital Readout
Type: Vertical & Horizontal
Table Size (mm): 1000 x 240
Column Type: ~
Spindle Taper - Vertical: NT30
Spindle Taper - Horizontal: NT30
Longitudinal Travel (X-Axis) (mm): 600*
Cross Travel (Y-Axis) (mm): 200*
Vertical Travel (Z-Axis) (mm): 340
Type of Slides: Dovetail
Ram Travel (mm): 450
Spindle to Table (mm): 375
Spindle to Base: ~
Spindle Travel / Diameter (mm): 120 / 90
Throat Depth (max.) (mm): 640
Tilting Head (Left ~ Right): ±45º
Tilting Head (Forward ~ Back): Fixed
Drilling Capacity (mm): 40
End Milling Capacity (mm): 25
Face Milling Capacity (mm): 80
Power Feed - Quill (mm/rev): Manual
Power Feed - Longitudinal (X-Axis) (mm/min): 20 - 2000
Power Feed - Cross (Y-Axis) (mm/min): Optional *
Power Feed - Vertical (Z-Axis) (mm/min): Optional *
Table T-Slot Size (inch / mm): 14
Work Table Load Capacity (kg): 160
Spindle Speeds Vertical (No./ rpm): Variable (100 - 2000)

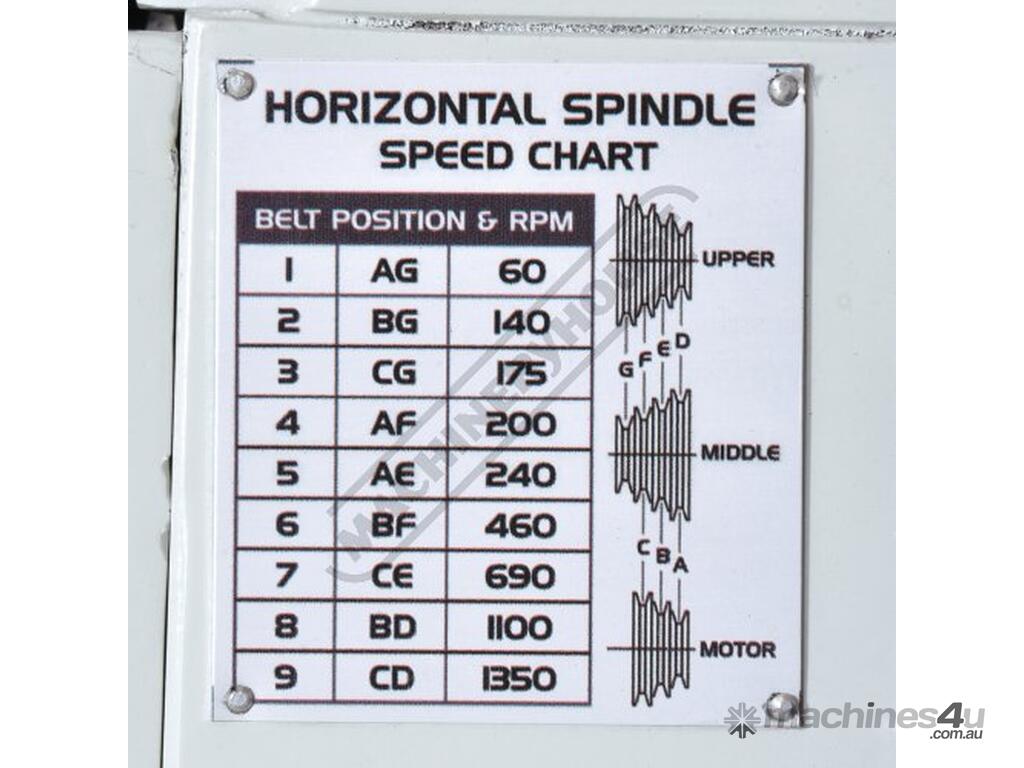

Spindle Speeds Horizontal (No./ rpm): 9 (60 - 1350)
Spindle Speeds - Universal Head: ~

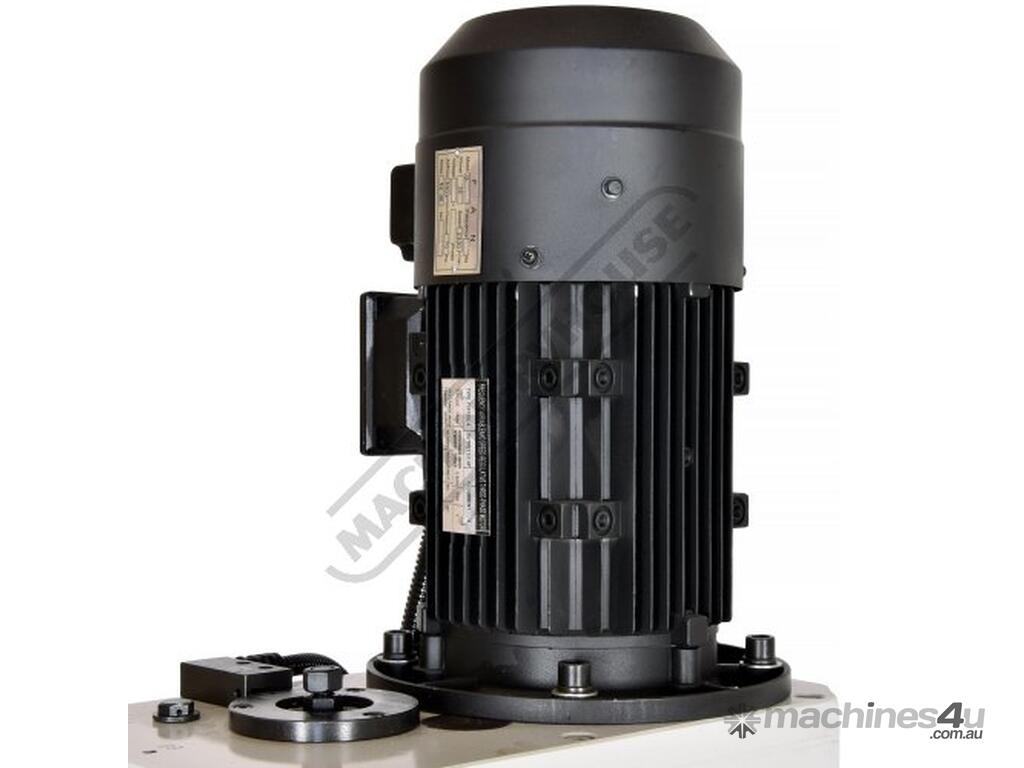

Motor Power - Vertical Spindle (kW / hp): 2.2 / 3
Motor Power - Horizontal Spindle (kW / hp): 1.5 / 2
Motor Power - Universal Head: ~
Voltage / Amperage (V / amp): 240 / 10
Nett Weight (kg): 900
