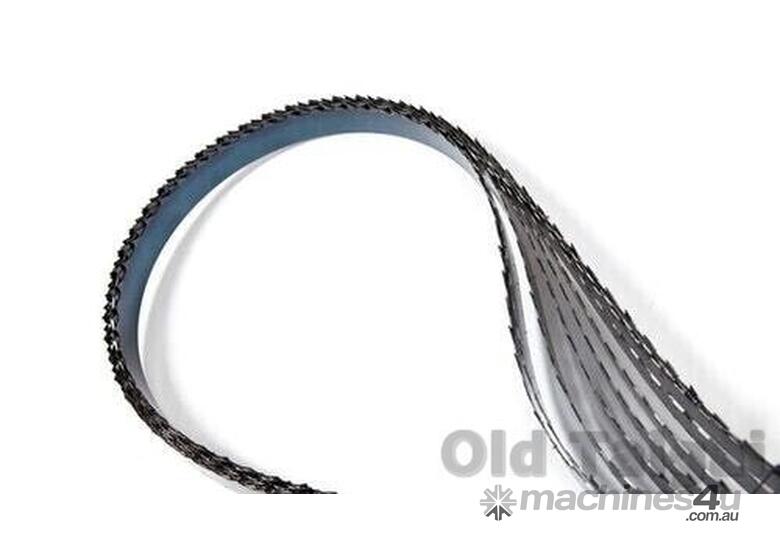

If you’re a sawyer in search of a portable bandsaw mill with a wide capacity for milling popular live edge slabs or big lumber, consider the HM130MAX Stater Pack unmatched value for money including a spare parts kit, Cant hook and a 10 pack of blades! This sawmill boasts a log capacity of 30” (76cm) in diameter and can mill 30” (76cm) width, making it ideal for producing stunning high-value live edge boards. Additionally, the HM130MAX portable sawmill comes equipped with a variety of new features, including the RapidChange™ blade system, auto lube, an operation hour meter and wider cut capability among others.
Weight: 454kg
The HM130MAX is a wide capacity sawmill for sawyers looking to mill popular live edge slabs. Featuring a 30” (76cm) diameter log capacity matched with a 30” (76cm) throat opening that produces stunning high-value live edge boards. The HM130MAX Portable Sawmill is loaded with new features like our RapidChange™ blade system, auto lube, an operation hour meter, wider cut capability and much more.
TECHNICAL SPECIFICATIONS
Engine 14hp Manual/Electric Start Kohler
Blade Engagement System
Centrifugal Clutch (Gas & Go)
Log Diameter 30" [76 cm]
Max Board Width 29" [73 cm]
Max Live Edge Width 30" [76 cm]
Max Board Thickness 7" [18 cm]
Cast Iron Bandwheel Diameter 19" [48 cm]
Standard Cutting Length 10' 5" [3.1 m]
Track Width 37" [94 cm]
Track Extension Length 6' 5" [1.95 m]
Levelling Feet 12
Galvanized Track Rails Yes
Track Bunks 3 x 6" [75 x 150 mm]
Log Clamps 2x Quick Lock
4 Post Head Design Yes
Adjustable Blade Guide Yes
Blade Size 158 x 1.25" [4013 x 32 mm]
RapidChange Blade System Yes
Auto Lubrication Yes
Lubricant Tank Size 13L [3.4gal] Aluminium
Hour Meter Yes
Finish Powder Coat Paint / Galvanized Steel
Sawmill Warranty 2-Year
Engine Warranty 3-Year
Shipping Weight 1000 lbs (454 kg)

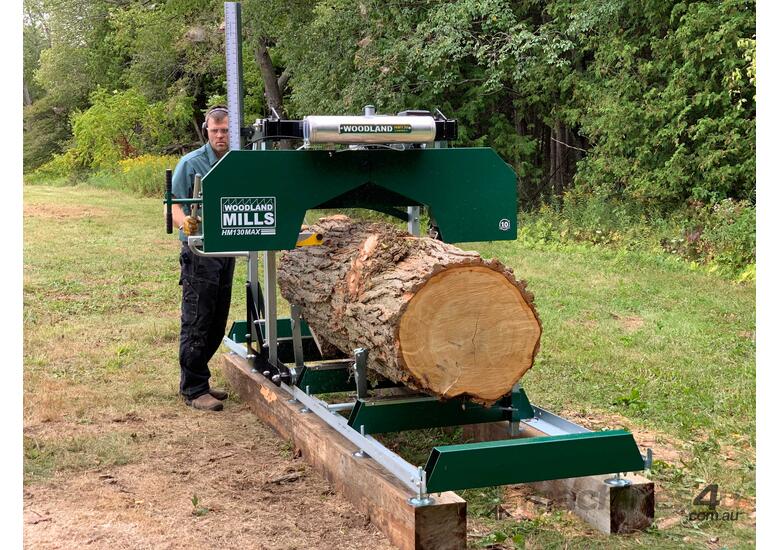

HM130MAX PORTABLE SAWMILL
Now you can produce beautiful wide live edge slabs for tabletops, counters, benches and more. The HM130MAX features a 30” (76cm) diameter log capacity matched with a 30” (76cm) throat opening allowing for sawyers to produce wider cuts. Get more horsepower with the included 14HP Kohler gas powered electric start engine. A heavy-duty 4 post head design with reinforced back beam supports the serious HM130MAX cutting power. All major steel components are powder coated or galvanized steel. The HM130MAX is loaded with new and innovative features like the automatic blade lubricant system that activates when the throttle is engaged and the RapidChange™ blade system makes for quick and tool-less blade changes. HM130MAX is designed to be the most affordable and robust wide cut sawmill in the market.

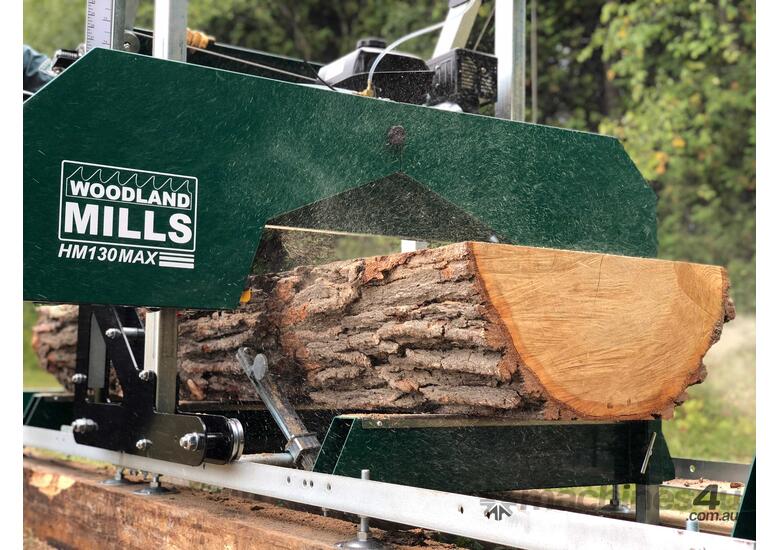

WIDE PRECISION CUTTING
We’ve widened the throat to match the maximum log diameter. This is what gives you the ability to slice right through 30” (76cm) logs without squaring the cant. Cut logs 10’ 5” (3.1m) long with the standard track configuration or unlock unlimited length potential with optional 6’ 5” (1.95m) track extensions. Unbelievable cut accuracy and precision lets you cut veneers as thin as 1/16” (2mm). Cut within 1” (25mm) of the deck ensuring you maximize your usable board foot output.
EFFICIENT POWER FOR BIGGER LOGS
A reliable 14HP 4-cycle Kohler gas powered electric start engine powers the HM130MAX. Featuring a slant cylinder design with a cast iron cylinder bore and overhead valve for easy access. The Quad-Clean 4 stage air filtration systems ensures only clean air enters the engine for maximum power and engine lifecycle. The industrial centrifugal clutch offers easy gas-and-go operation. An electric and recoil start option come standard. A 12V battery is required for electric start and is not included with purchase.
