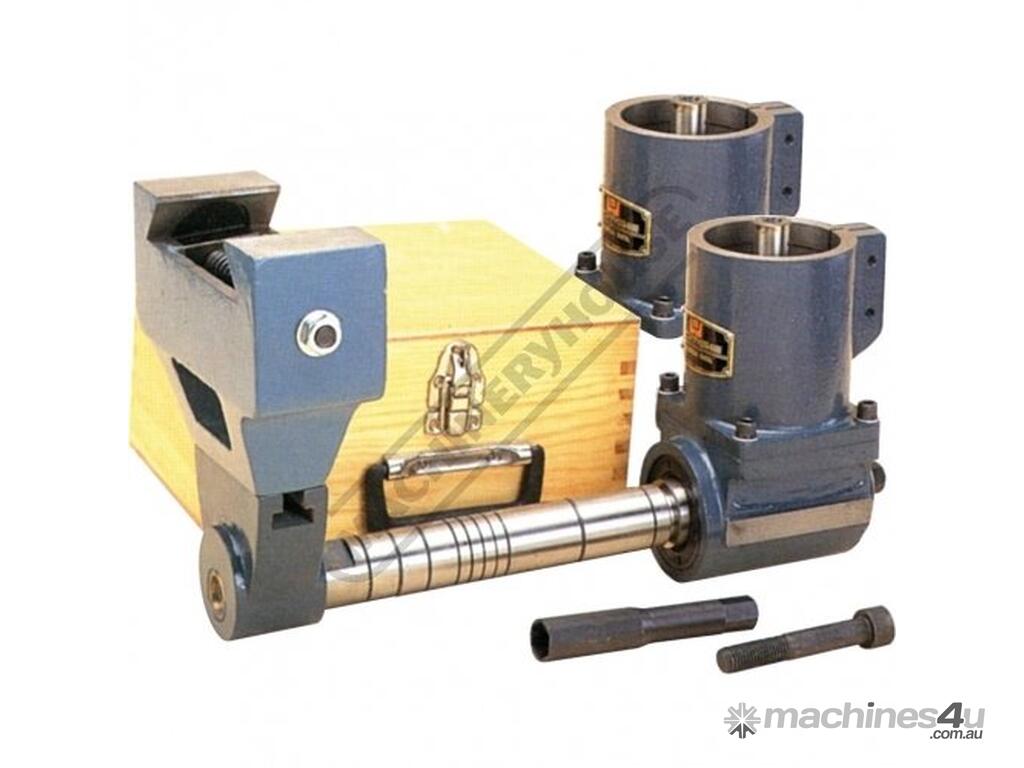

HMA-4105 NT40 Horizontal Milling Attachment Suits Ø105 & 86mm Quills

HAFCO-METALMASTER HMA-4105 NT40 Horizontal Milling Attachment Suits Ø105 & 86mm Quills
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: M217

Manufactured in Taiwan

Used on vertical milling machine where horizontal work is required.
Designed to simplify right angle work without the need for special tooling or complex fixtures.

Note! If using with an air powered drawbar the drive motor of the drawbar needs to be removed as the quill is lowered so that the horizontal attachment can be secured. As the quill is lowered the air drawbar is dis-engaged and cannot be used. For this application use a standard drawbar.

Features:
Arbor support suits dovetail widths of 140-170mm
Supplied in deluxe wooden case
Arbor Ø1" x 12" in length


Specifications:
ORDER CODE: M217
MODEL: HMA-4105
Taper: NT40
Quill Diameter (mm): Ø105 & 86
Maximum Speed (rpm): 2000
A (deg): 50°
B (mm): 140 - 170
C (mm): 181
D (mm): 181
E (mm): 270
F (mm): 230
G (mm): 45
Nett Weight (kg): 34


To Purchase Online Please Visit The Machineryhouse & Search For 'M217'
