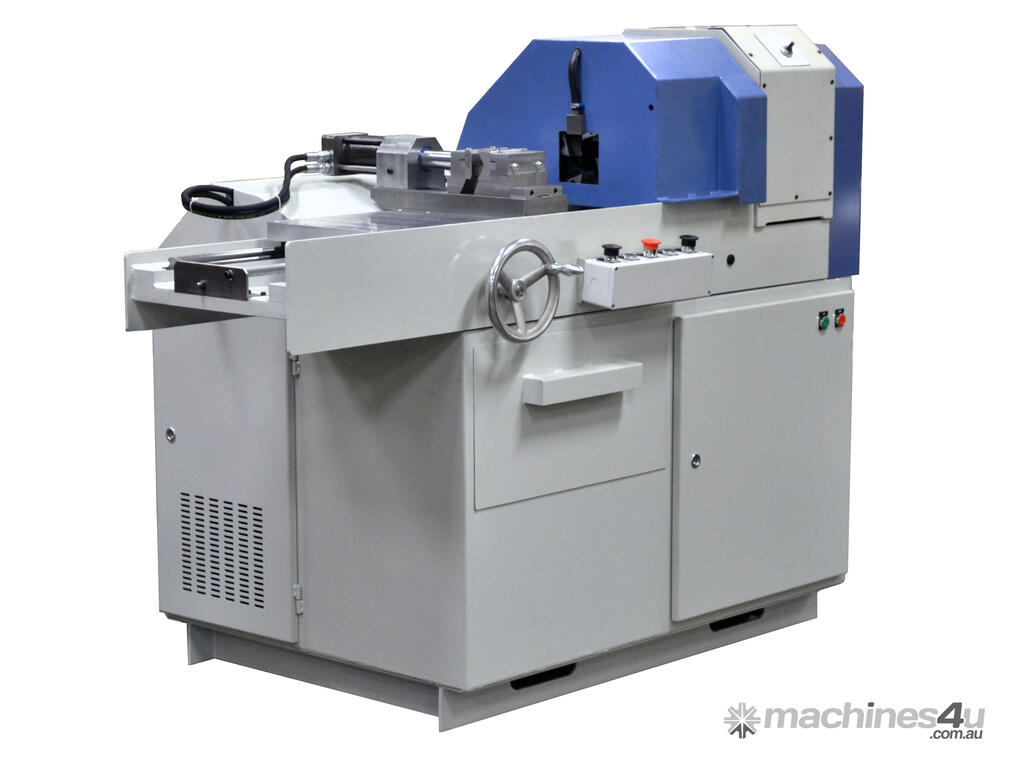

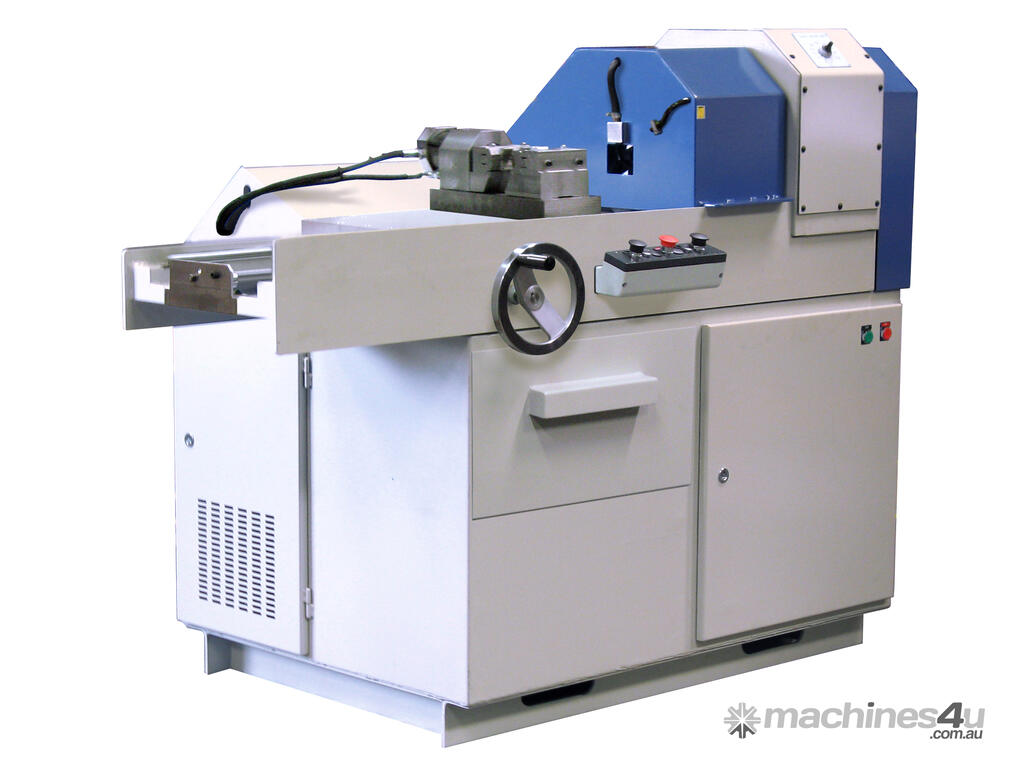

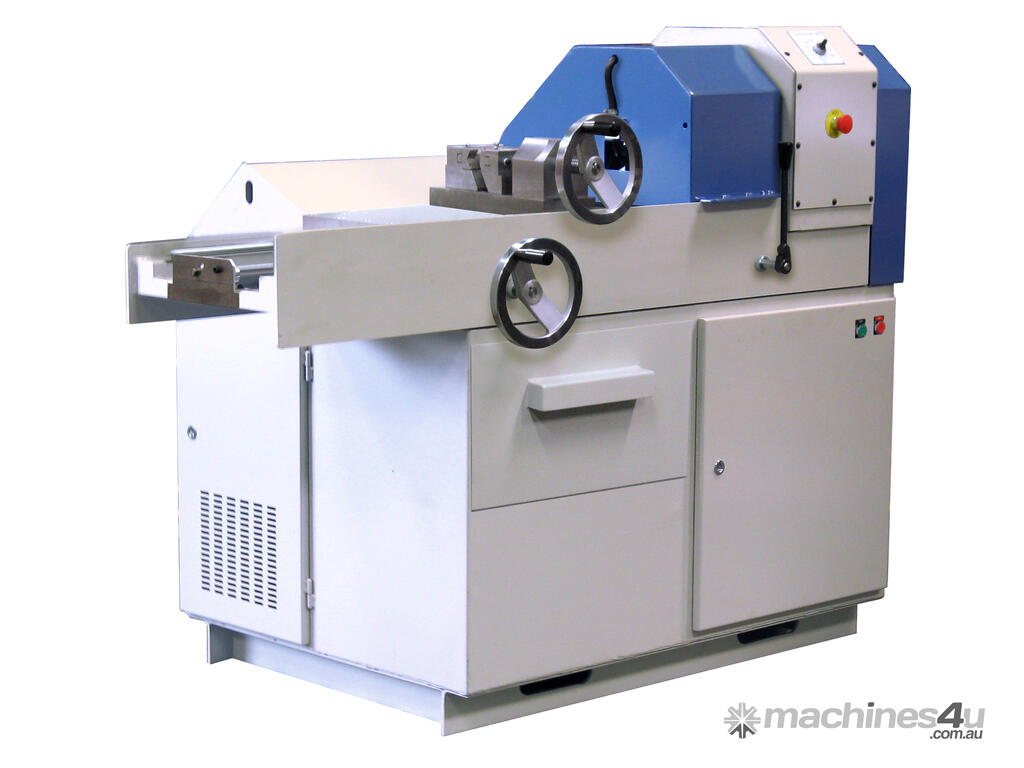

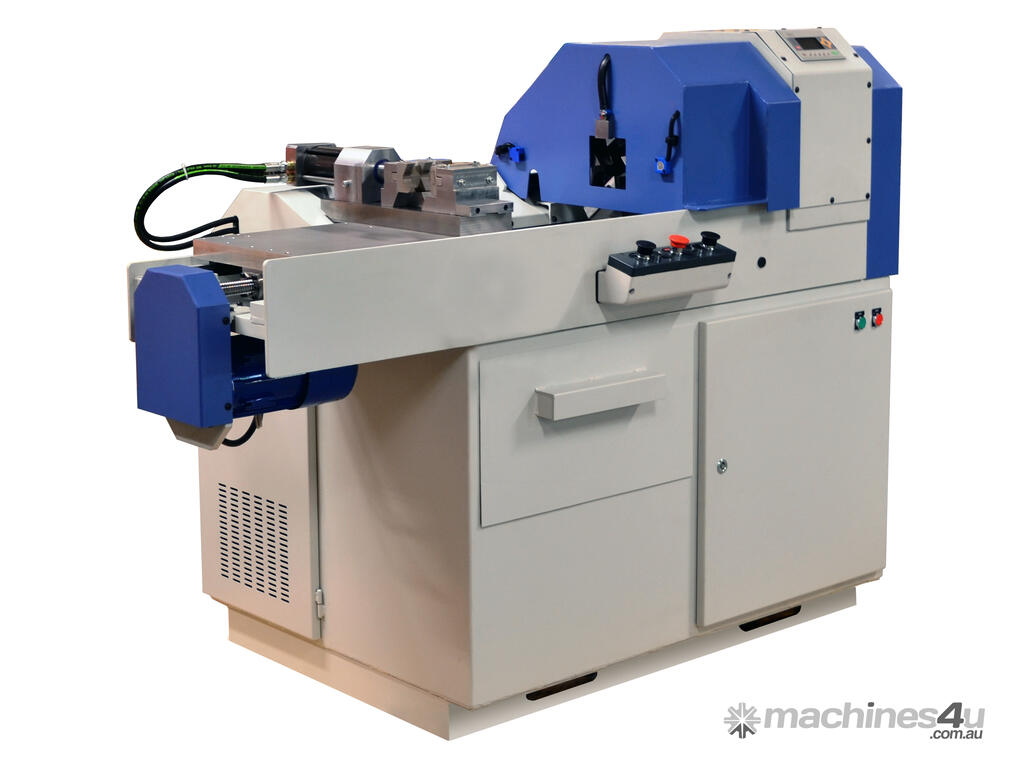

HMV Thread Cutting Machine

HMV Threading Machine are a heavy duty threading machines in the range of M8 to M100 bolt threads and have types from Manual to Semi-Automatic with manual clamping to hydraulic clamping of the material, Manual opening die head or hydraulic opening die head, Semi-Auto models have Hydraulic Vice, Hydraulic opening die head, auto sledge movement and are fully synchronized with pitch of thread, machines can also be fitted with pipe threads
GM07-50M Thread Range M8-M50
Thread length 475mm
Manual Vice Clamping
Manual Opening of Die Head
Manual Operated Sledge Movement
GM07-50H Same as above with option
Hydraulic Vice Clamping
Hydraulic Opening of Die Head
GM07-50SA Same as Above with options
Auto Sledge Movement
Fully Synchronized with Pitch Thread
GM07-100H Thread Range M16-M100
Thread Length 425mm
Hydraulic Vice Clamping
Hydraulic Opening of Die Head
Manual Operated Sledge Movement
GM07-100SA Thread Range M16-M100
Thread Length 425mm
Hydraulic Vice Clamping
Hydraulic Opening of Die Head
Auto Sledge Movement
Fully Synchronized with Pitch Thread

Machines can be optioned for longer threads with extra 120mm up to 360mm longer with total length 835mm of thread
