HN-220 Hydraulic Sheet Metal Notcher - 90º 200 x 200 x 4mm Mild Steel Capacity 200 x 200 x 2mm Stain

HAFCO-METALMASTER HN-220 Hydraulic Sheet Metal Notcher - 90º 200 x 200 x 4mm Mild Steel Capacity 200 x 200 x 2mm Stainless Steel Capacity
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: S232

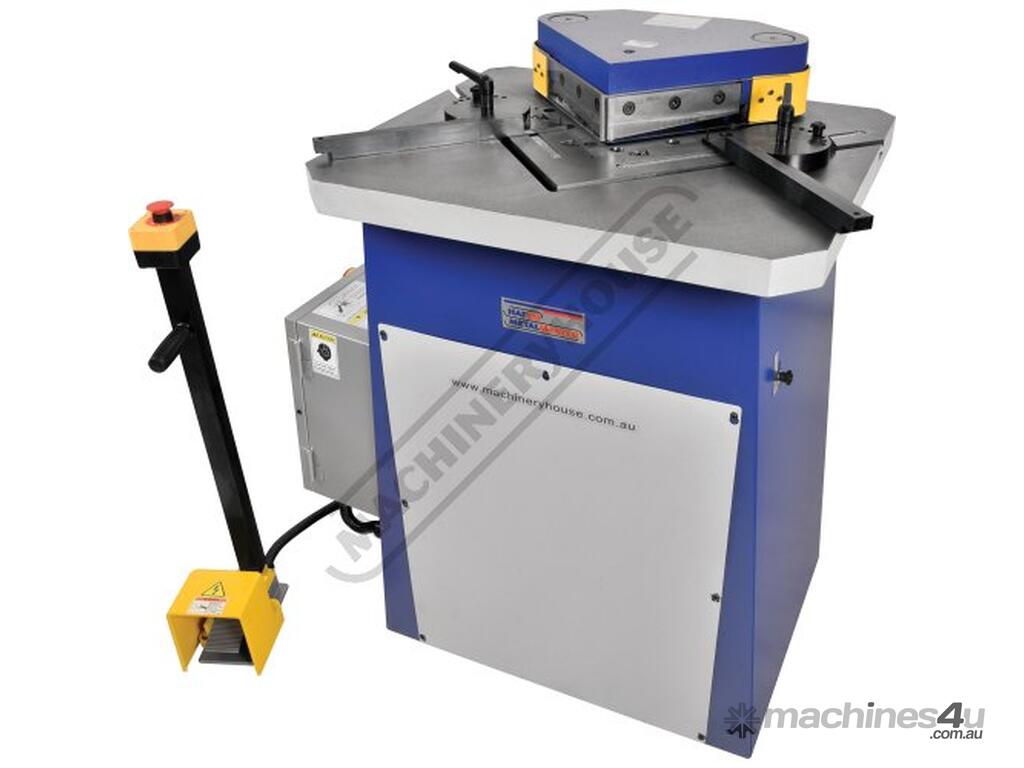

If you are in the market for a great quality & reliable 90º Sheet Metal Notcher, then we suggest the HN-220 hydraulic sheet metal notcher from hafco Metalmaster is what you will need in your manufacturing or engineering workshop. This machine has fixed blades and is great for making the perfect & accurate 90º cuts up to 200 x 200 x 4mm mild steel. The waste notch cuts are ejected from the rear chute of the machine, so it is recommended to place an appropriate container bin behind the machine for the excess waste material to slide into.

The blades on this machine have been designed to be negatively raked, and this helps to pull the material into the guide stops during the cut to give you accurate repeatability every time. The HN-220 has a powerful 3hp, 415V motor behind an excellent hydraulic pump that drives the cutter blade through the material. The operator controls the cutting action via the roving foot pedal that can be moved in position for either a left or right foot operator.

Features:
Industrial HN-220 is a hydraulic operated notcher that makes cutting effortless through mild steel & stainless steel

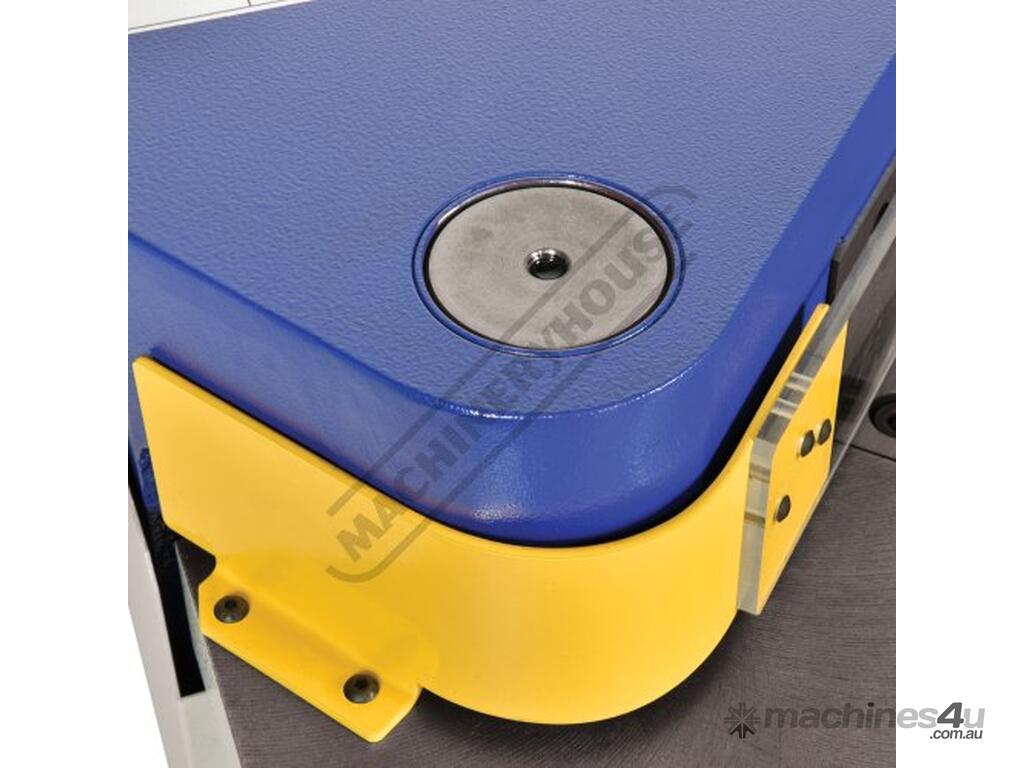

A transparent safety blade guard enables scribed lines to be quickly and accurately lined to cutting blade

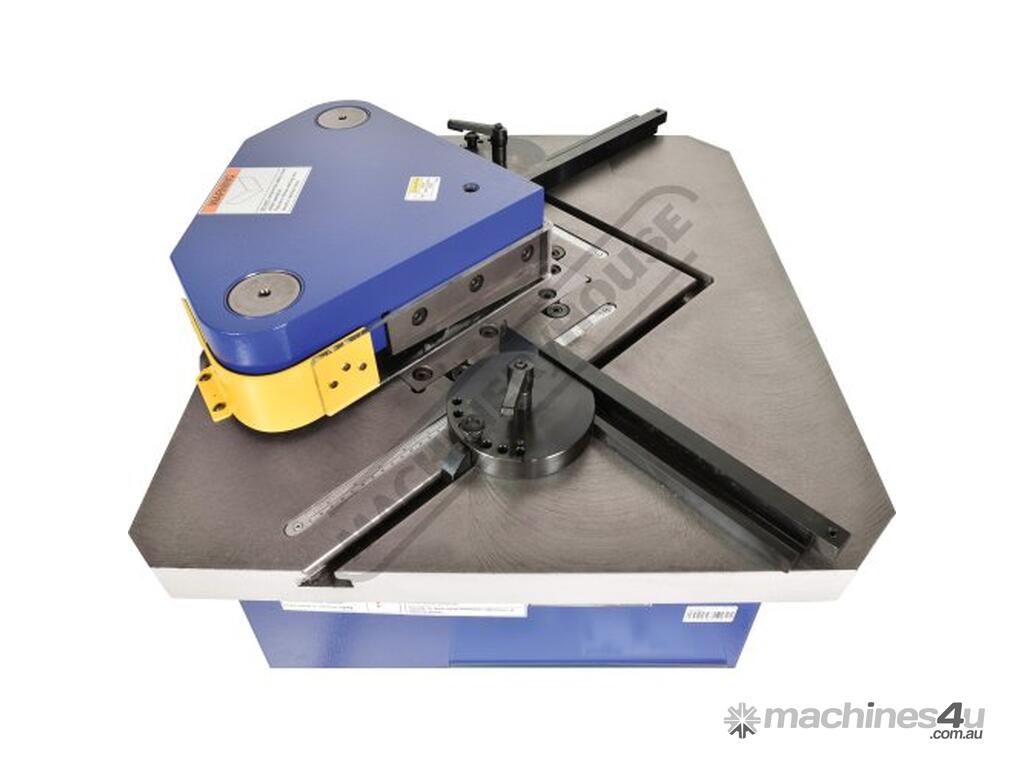

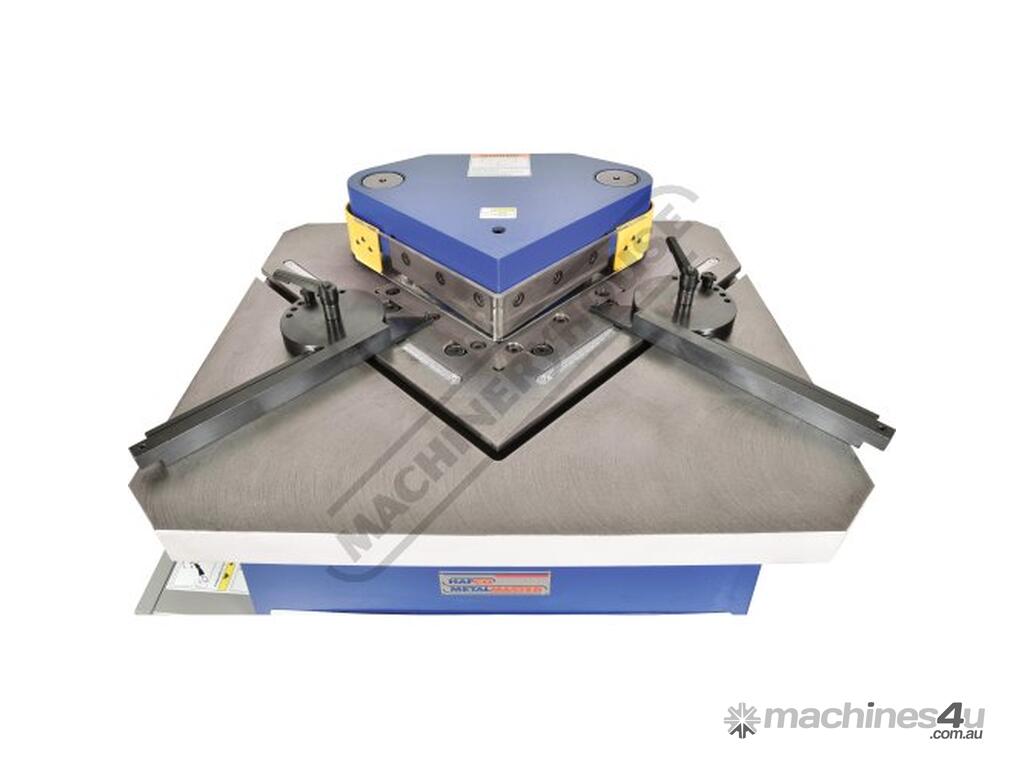

Adjustable material stops and guides on both sides of the cutting blade

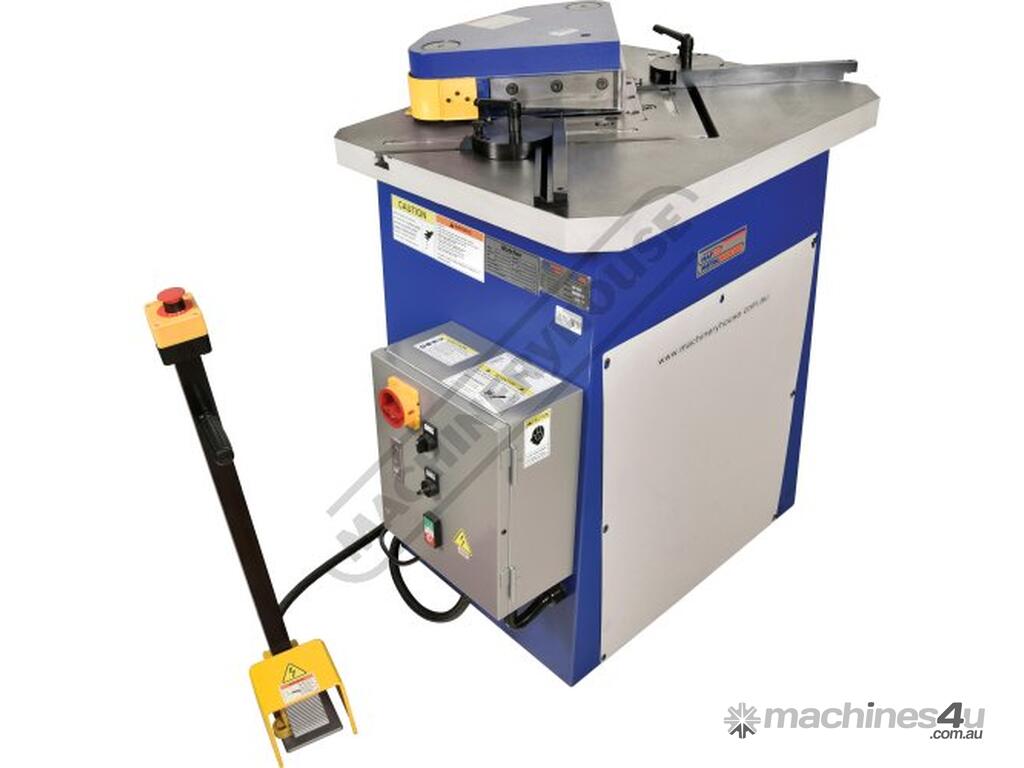

Roving foot pedal controls cutting action that incorporates a pedestal emergency stop
Heavy constructed cast iron working table

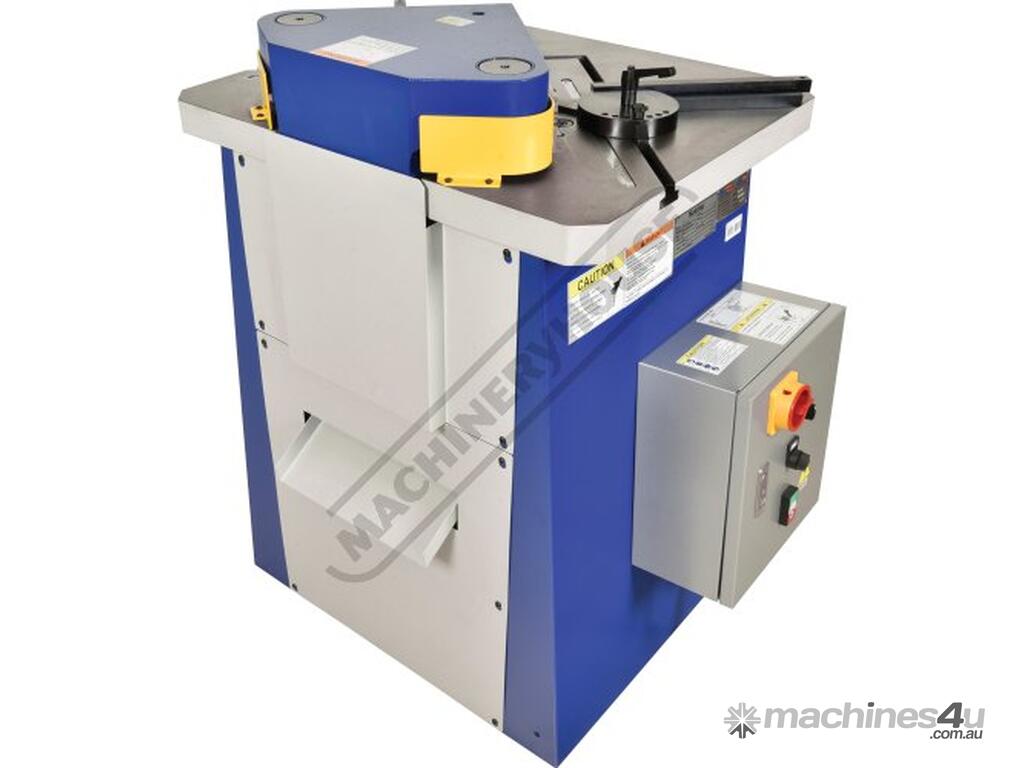

Scrap material is ejected out form rear of machine
Manufactured in Taiwan


Specifications:
ORDER CODE: S232
MODEL: HN-220
Notching Capacity - Mild Steel (mm): 200 x 200
Notching Thickness - Mild Steel (mm): 4
Notching Thickness - Stainless Steel (mm): 2
Table Size (mm): 700 x 600
Motor Power (kW / hp): 2.2 / 3
Motor Voltage (V): 415
Nett Weight (kg): 410
