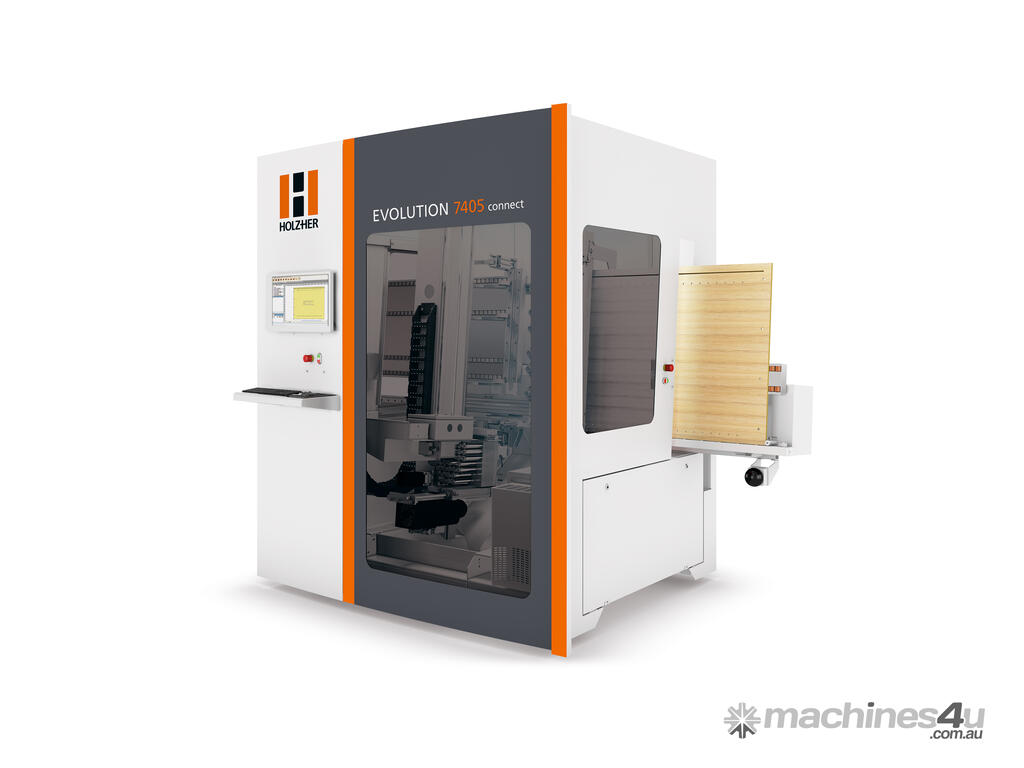

HOLZ-HER Evolution 7405 Connect CNC

The EVOLUTION 7405 Connect is the all round talent in the EVOLUTION family. Just as the 7405 4mat it also offers users precision edge routing for all four workpiece edges and the resulting complete formating.

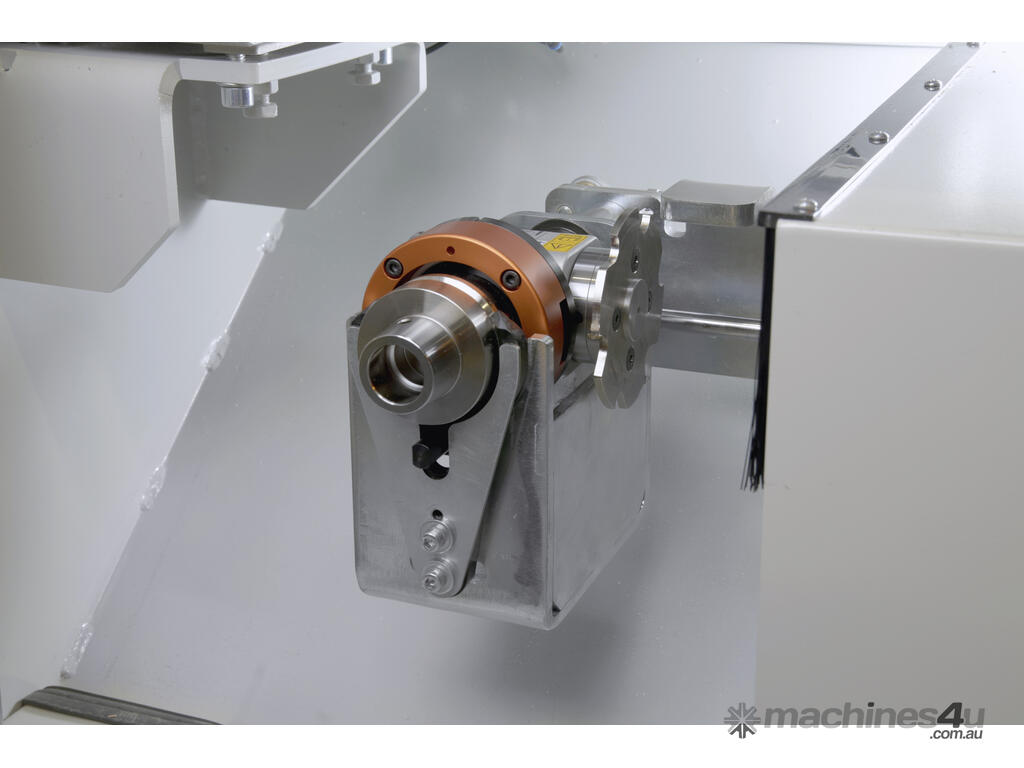

The Connect version also provides entirely new capabilities, such as machining pockets and grooves, e.g. for P-System connectors from Lamello. Naturally, you can cut pockets for these - as well as other - connectors on all four edges as well as in the X and Y directions. For this purpose HOLZ-HER has supplemented the EVOLUTION to include an additional seventh tool changer location as well as a newly developed attachment and the matching programming macro.

The technical data for the EVOLUTION series speaks for itself: A through dimension of 1200 mm in height and unlimited machining in length with minimum space requirement at the same time. Material thicknesses of 8 to 70 mm make the vertical machining centers from HOLZ-HER all-round machines for producing everything from drawers to body parts, furniture fronts and rear walls; in short complete machining of all your products.

Above all, the EVOLUTION 7405 Connect has provisions for arresting the workpiece at the rear, permitting the entire circumference to be machined including horizontal drilling operations without reclamping. The solid design of the EVOLUTION series guarantees you maximum machining quality. In addition, an optional door package, consisting of a specially developed angular gear for lock cases and lock case milling cutters, supplements the possibilities of the EVOLUTION 7405 Connect from HOLZ-HER.

Here is what the HOLZ-HER EVOLUTION series offers
User-Friendly Software
Extreme Machining Dimensions
Solid Design
CNC Machining on Less than 5 m² of Floor Space
10 year guarantee on all linear guides
Vector Speed 68 m/min

Here is what the HOLZ-HER EVOLUTION 7405 Connect offers
Connect Package Lamello Clamex connector set
CAMPUS V7 Machine Control
Drilling Unit and Cutter Unit as Standard Features
Complete Processing

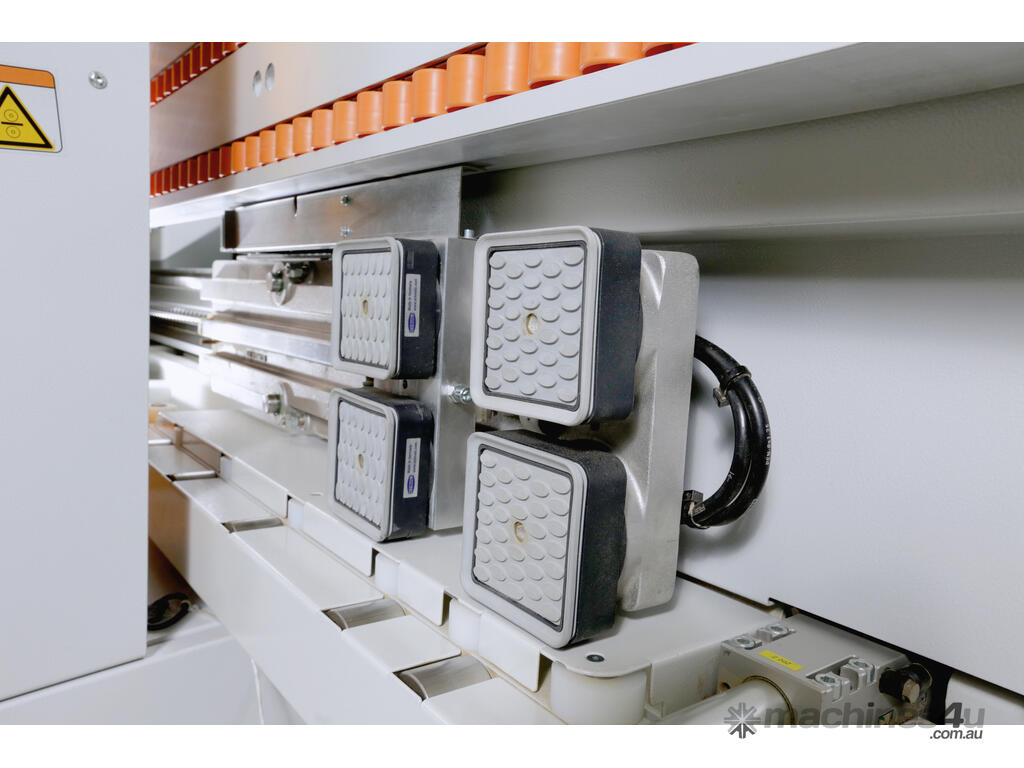

Unique Clamping Concept
Precision Direct Drives
Generous Access
