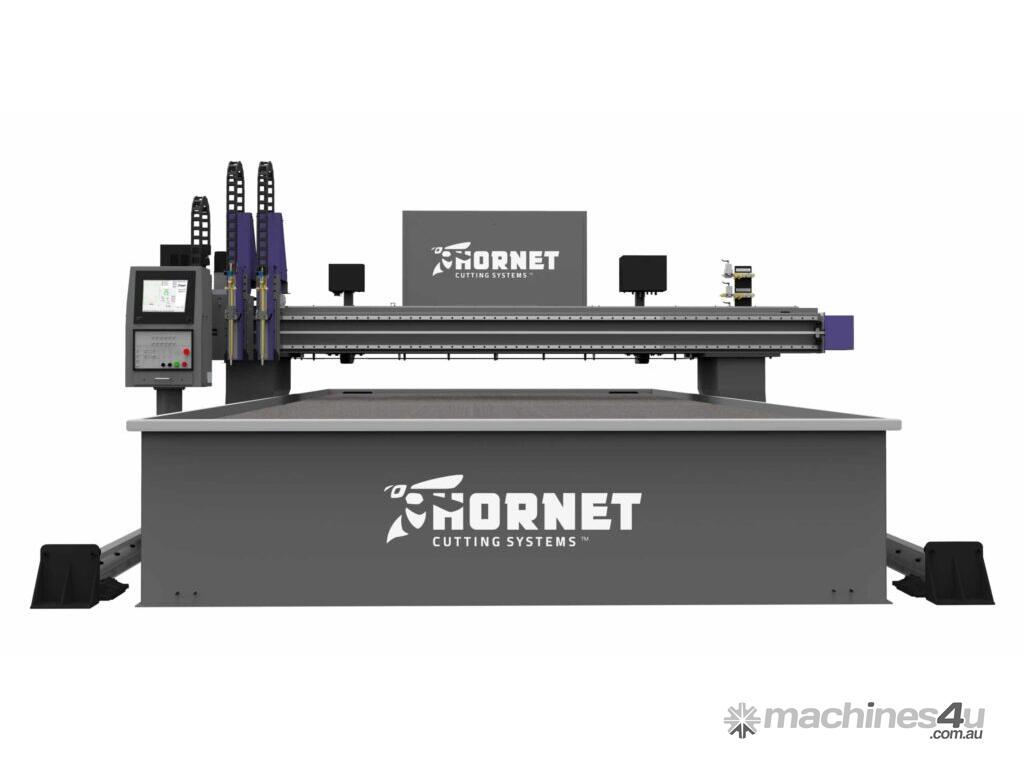

HORNET - CNC PLASMA CUTTING MACHINE - MEGA 2000 [made in USA]

The New Standard for Accuracy, Power and Reliability in a Heavy-Duty Plasma Cutting Table.
One of our largest and most capable plasma cutter systems, the MEGA HORNET 2000 can tackle nearly any job.

The Mega Hornet 2000 CNC plasma machine’s huge frame and massive servo drives will deliver decades of reliable service to shipyards, service centers and manufacturers.
A welded and stress relieved gantry beam and fabricated steel end trucks enable the MEGA HORNET 2000 to span up to 20 feet (6.1m) and carry up to 12 cutting and marking processes.

The Mega Hornet 2000 plasma cutter includes the Hypertherm Edge Connect CNC control with support for True Hole™ technology.
MEGA HORNET 2000 plasma cutting systems incorporate the industry’s most reliable AC servo amplifiers and servo motors, precision planetary gearboxes, precision ground cross-axis linear ways and a heavy-duty machined floor-mounted rail system.
The MEGA HORNET 2000 CNC plasma cutting machine is designed for shipyards, service centers, contract shops and manufacturers and is available in widths from 8.2' (2.5 m) to 20' (6.1 m). Lengths of over 150' (45 m) can be supplied.

Standard Features of the Mega Hornet 2000 CNC Plasma Cutting Machine

-12' x 12' (300mm x 300mm) Heavy Wall Front Beam
-8' x 8' (200mm x 200mm) Heavy Wall Rear Beam
-Fabricated & Reinforced 1/4? (6mm) Thick Steel End Trucks

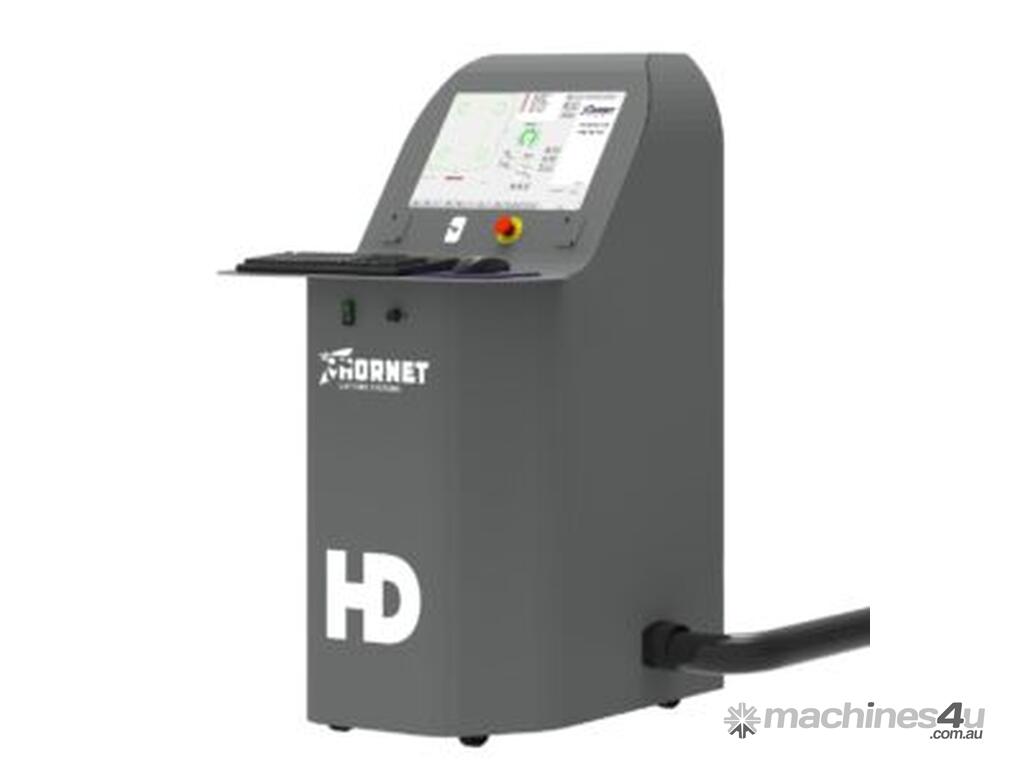

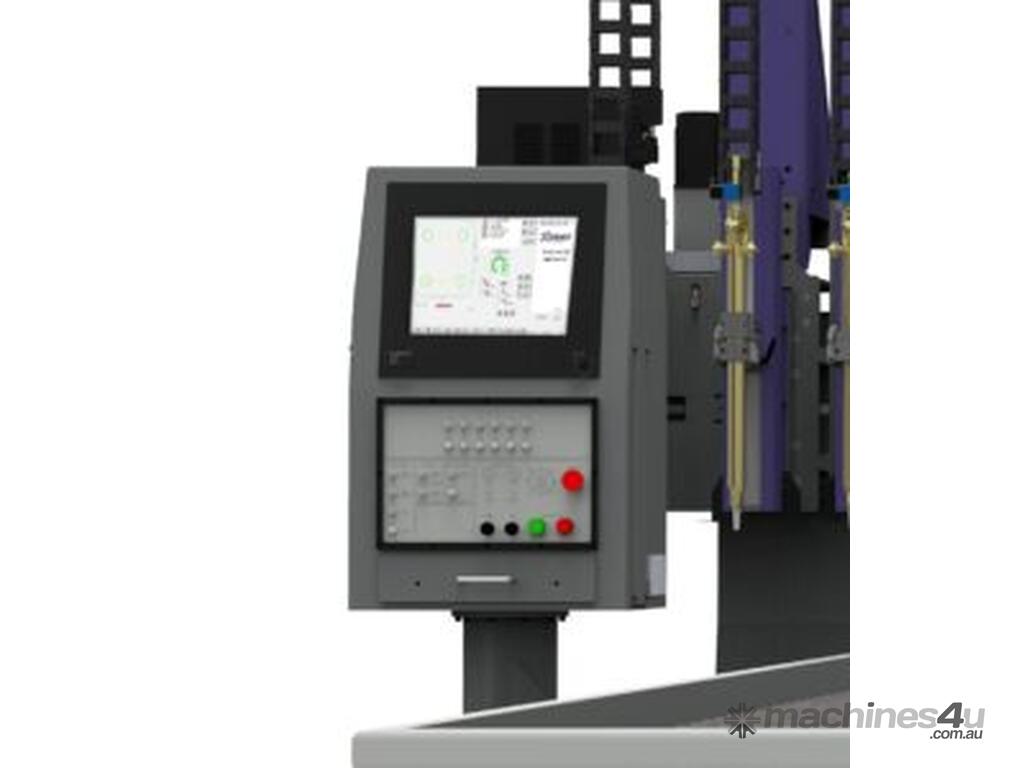

-Hypertherm Automation Edge Connect CNC Control
-Slave carriage stainless steel band drive
-Low backlash planetary gear heads
-1,000 IPM rapid traverse (25.4m/min)
-Triple machined floor-mounted rail system (right)
-Dual linear ways on cross axis
-Flexible Cable Carriers on Cross Axis
-Main Carriage for (1) Plasma station, (1) Oxy-fuel station & (1) Marker station

Options

-Widths from 8.2' (2.5 m) to 20' (6.1 m)
-Rail Systems to 100 ft (30.5 m) or More
-Up to two Contour Bevel Systems
-Up to four plasma torch height control stations
-Up to twelve oxy-fuel stations – straight cutting
-Plasma Torch Lifter with AC Servo Driven Ball Screw
-Plasma Torch Collision Mount
-Digitally controlled heavy-duty electronic oxy-fuel gas manifold
-Phoenix software oxy-fuel cut chart screen captures
-Over-head cable carriers
-Automatic Lubrication Systems
-HydroCLEAN water tables with adjustable water level
-AeroCLEAN zoned and ducted air exhaust table
-Dust collection systems
-Programming software
-Plate Markers (air scribe or plasma)
-Cross-hair laser pointer
