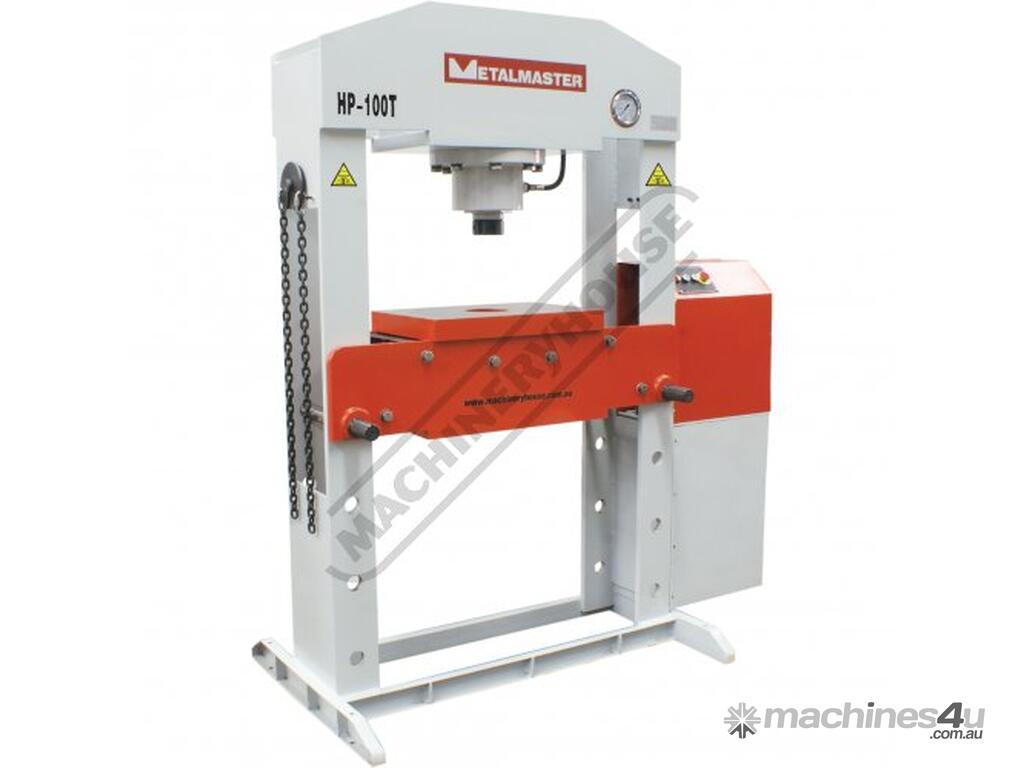

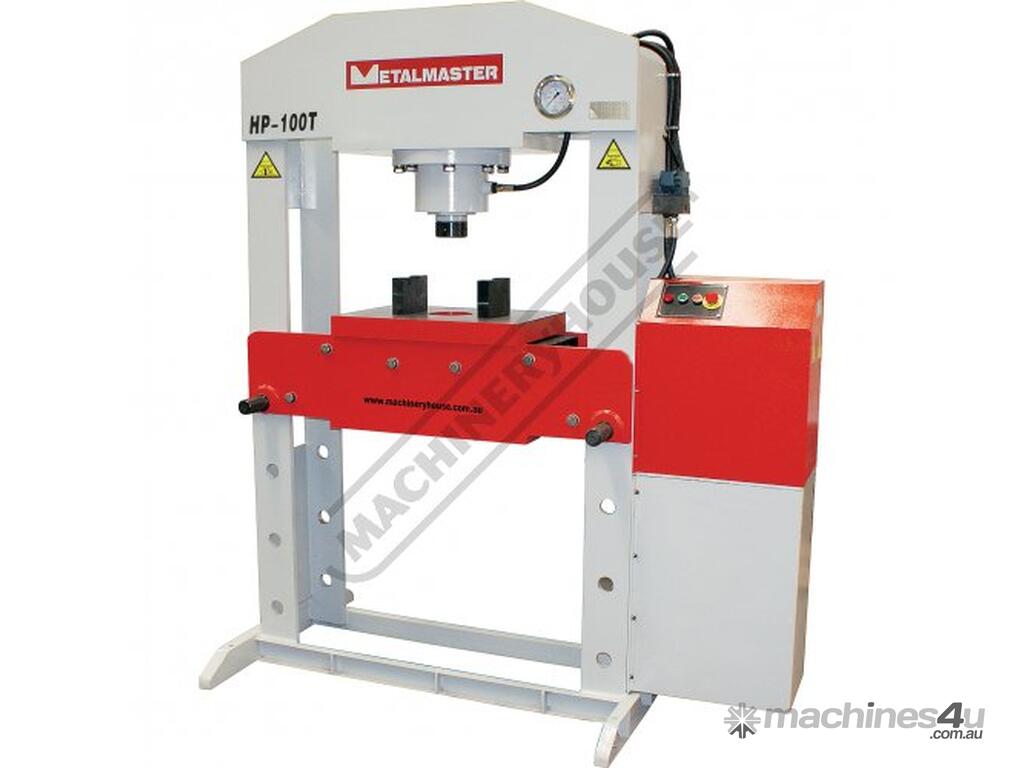

METALMASTER HP-100T Industrial Motorised Hydraulic Press - 100 Tonne Welded Steel Frame Construction Includes Heavy Steel Worktable & Bending Blocks
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: P402

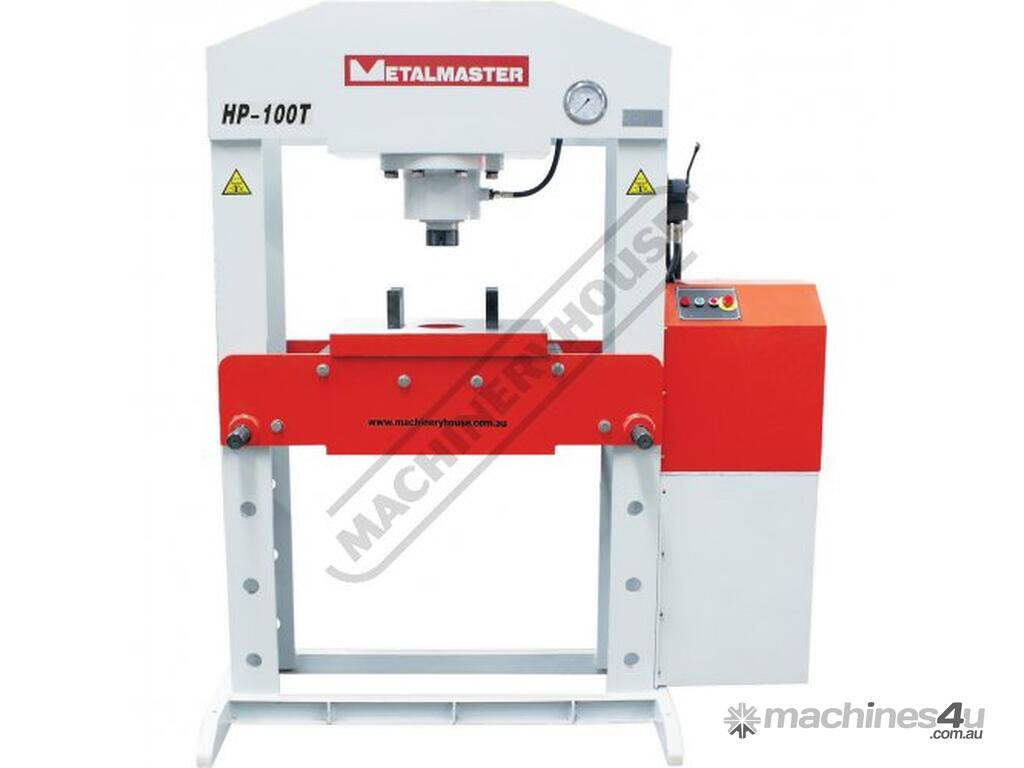

The Metalmaster HP-100T, 100 Tonne electric/hydraulic press is ideal for pressing, bending, forming, straightening and a whole variety of operations. The hydraulic system is equipped with a pressure guage and a joystick lever to control the operation. A heavy one piece steel workplate and a pair of pressing blocks are supplied as standard equipment.

Features:
H frame design with welded steel frame construction
Electric/Hydraulic operation provides smooth consistent pressing action

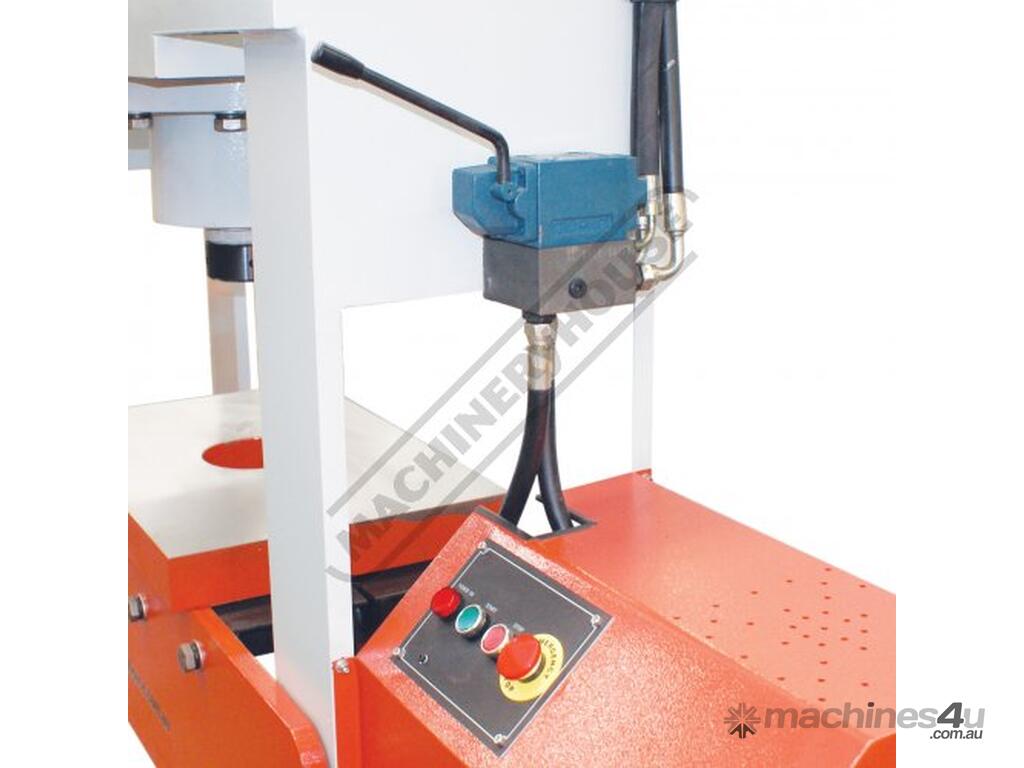

Joystick control for ram stroke and return
350mm Ram stroke
Ram speed down 9.0mm/sec returns 8.4mm/sec

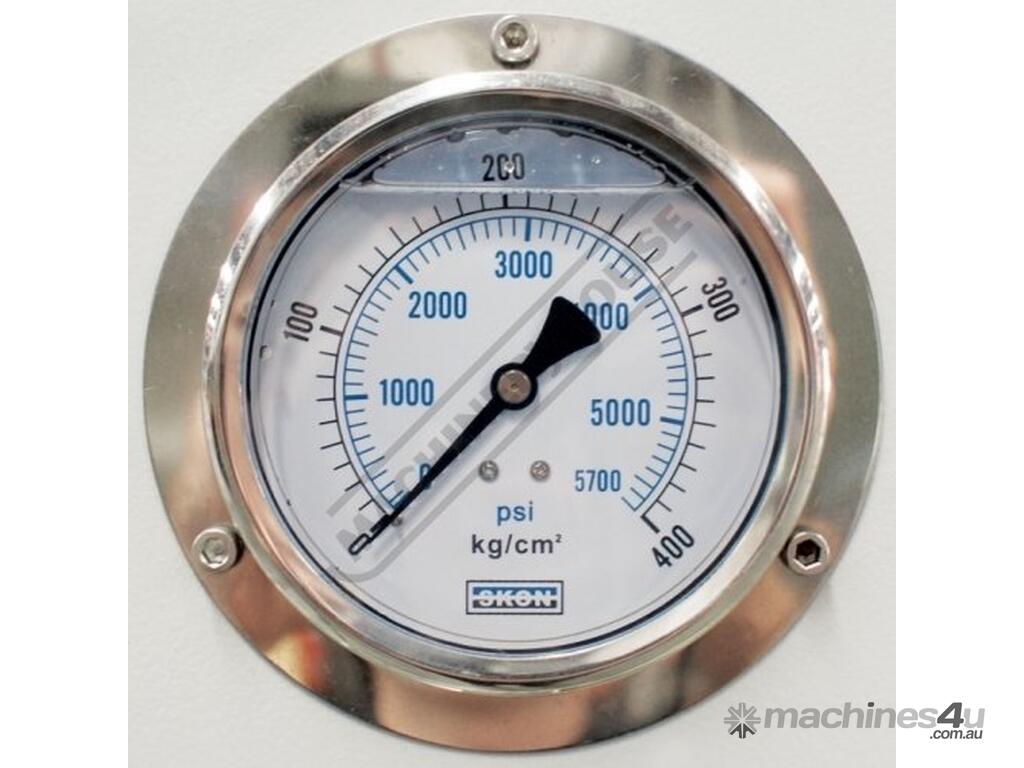

Pressure gauge fitted for easy control of pressing operations
Height adjustable worktable with 4 adjustment positions
Heavy one piece steel work plate and pressing blocks
Work table height easily adjusted with the assiatnce of the ram

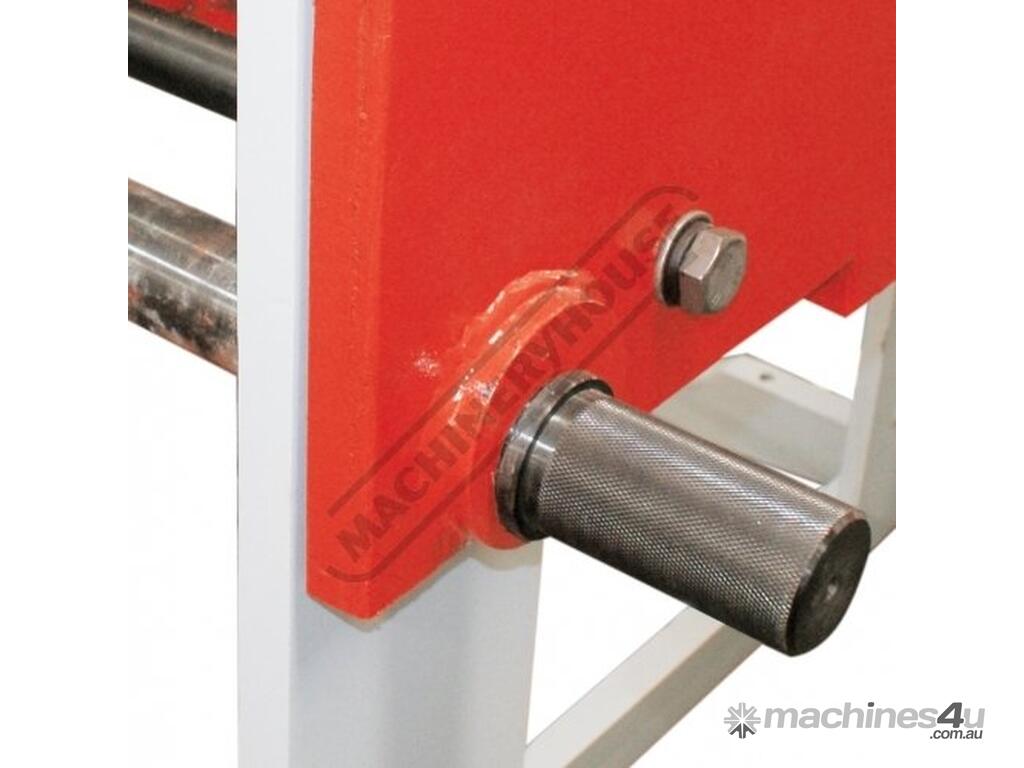

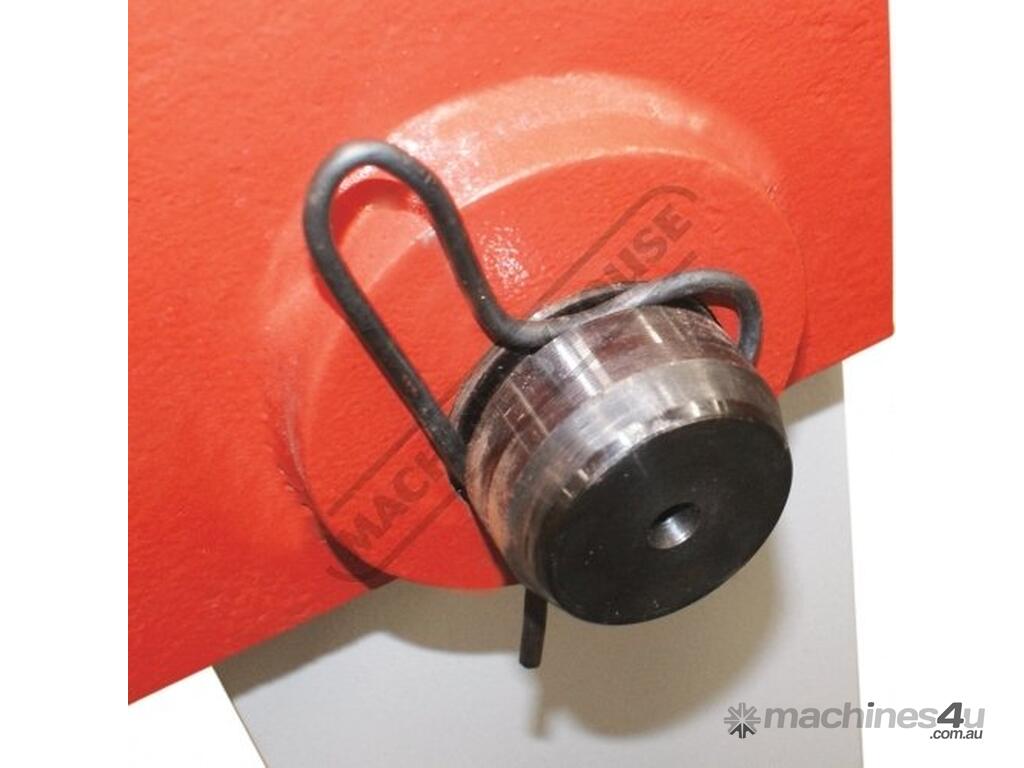

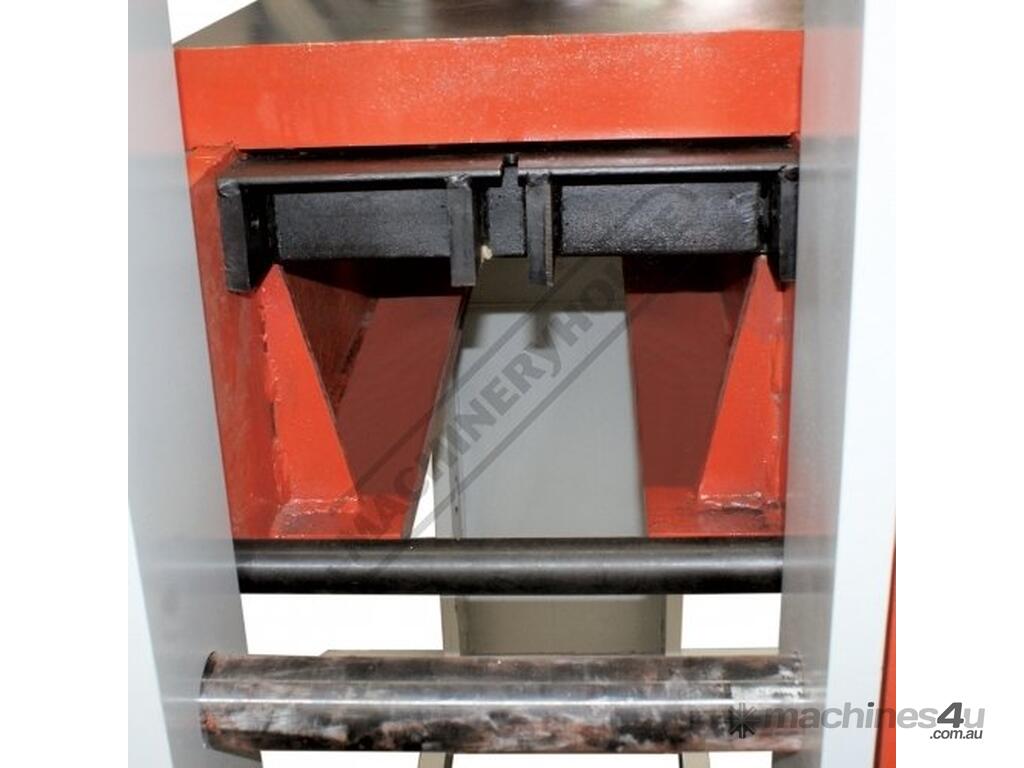

Reinforced table support holes with high tensile setting pins
Safety overload valve
Powerful TEFC motor
Ideal for any industrial workshop for the repair of axles shafts & press fit of bearings & bushings

Includes:
- Heavy one piece steel work plate
- Pair of double sided pressing blocks (Vee & Flat)

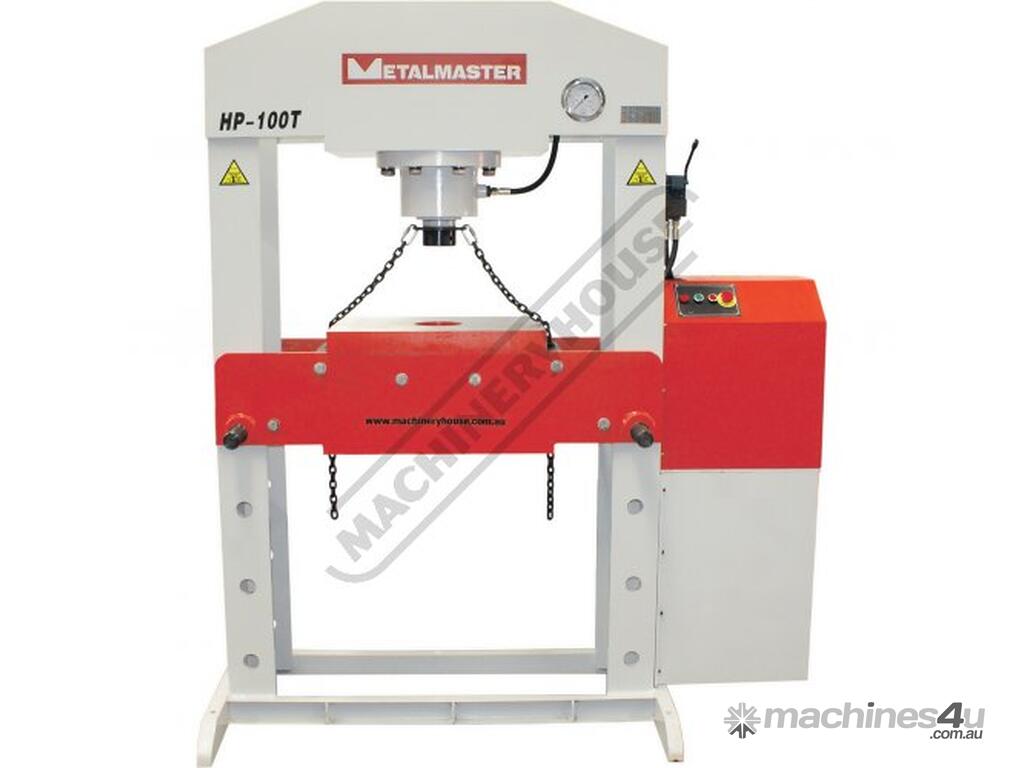

- Table raising and lowering chains



Specifications:
ORDER CODE: P402
MODEL: HP-100T
Pressing Capacity (Tonne): 100
Hydraulic Ram Operation (Type): Motorised System
Hydraulic Ram Operation (Type): ~
Sliding Ram (left-right) (Yes / No): No
Width Between Front Posts (mm): 1050
Width Between Side Posts (mm): 310
Table Top Opening - (Front to Back) (mm): 363
Ram To Table (Max.) (mm): 900
Cylinder Stroke (mm): 350

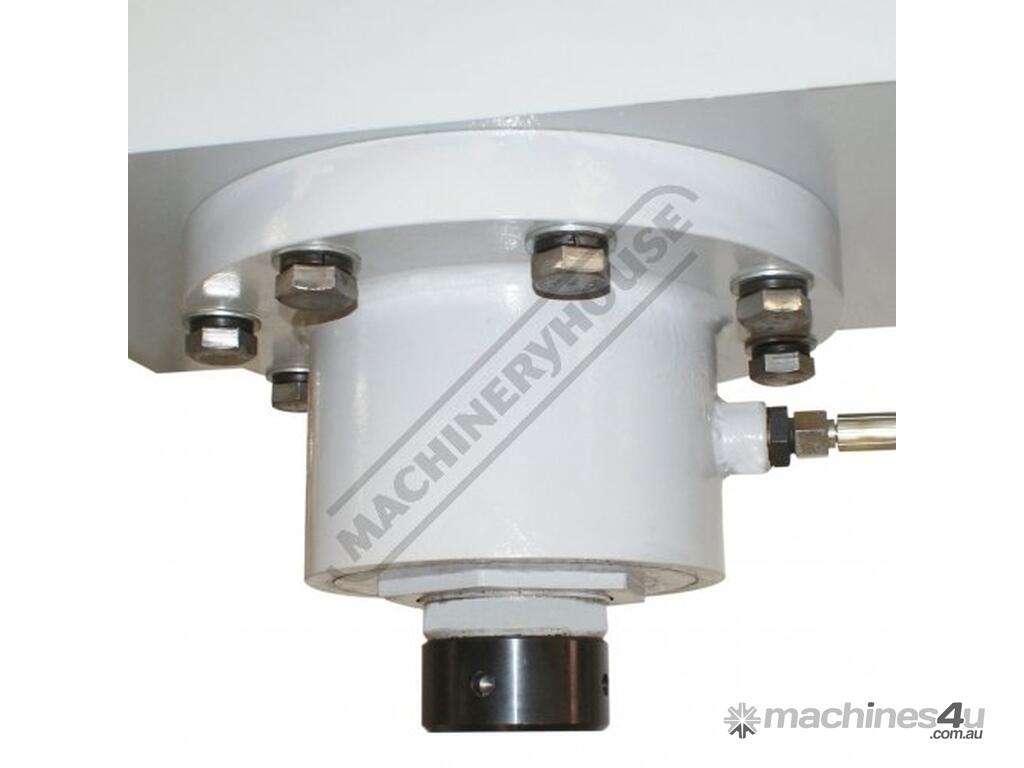

Ram Diameter (mm): Ø100
Piston Diameter (mm): ~
Minimum Air Flow Rate required (L/Min): ~
Motor Power (kW / hp): 7.5 / 10
Voltage (V): 415
Floor Space (W x D x H) (mm): 1920 x 1000 x 2220
Nett Weight (kg): 1342
