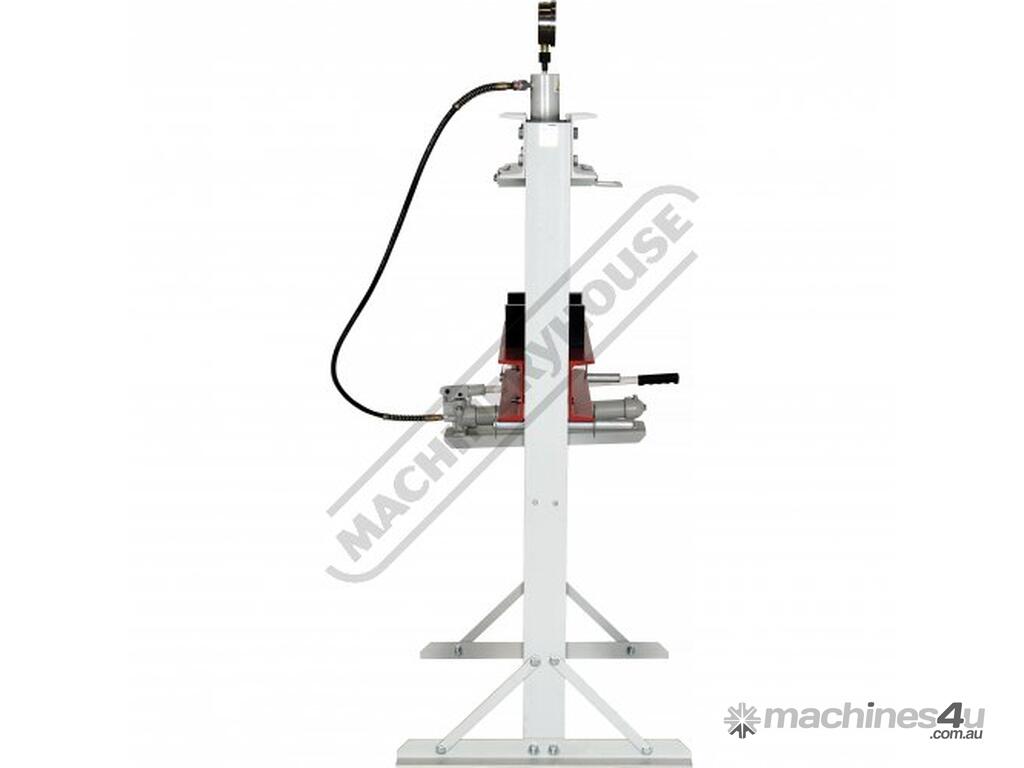

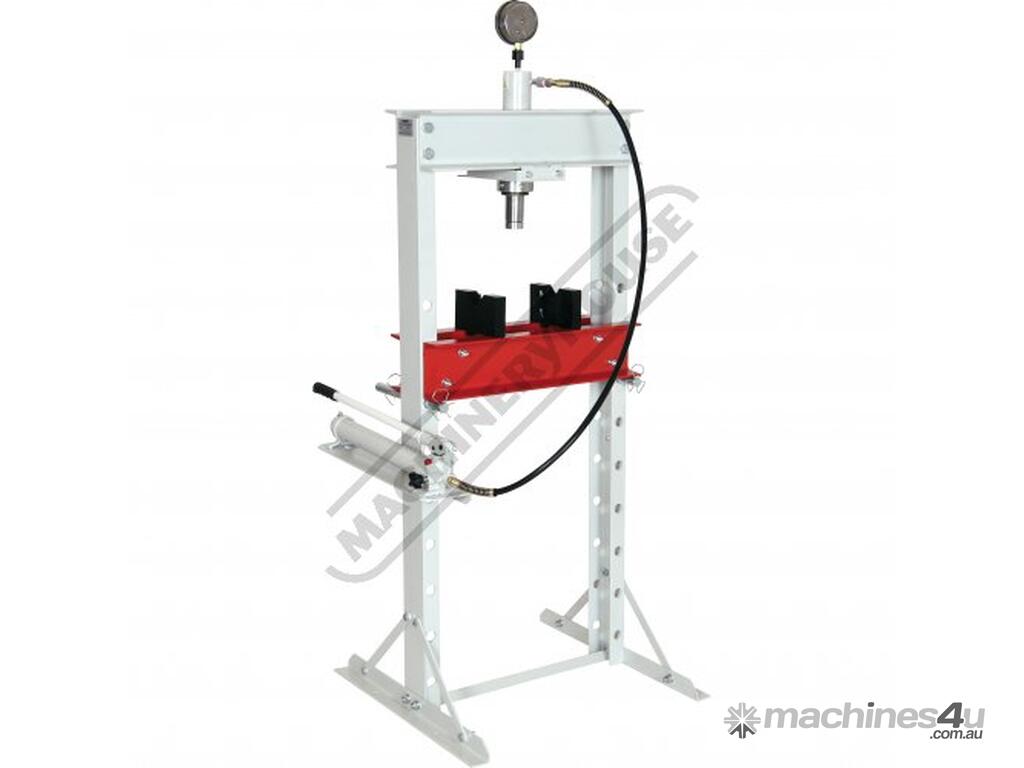

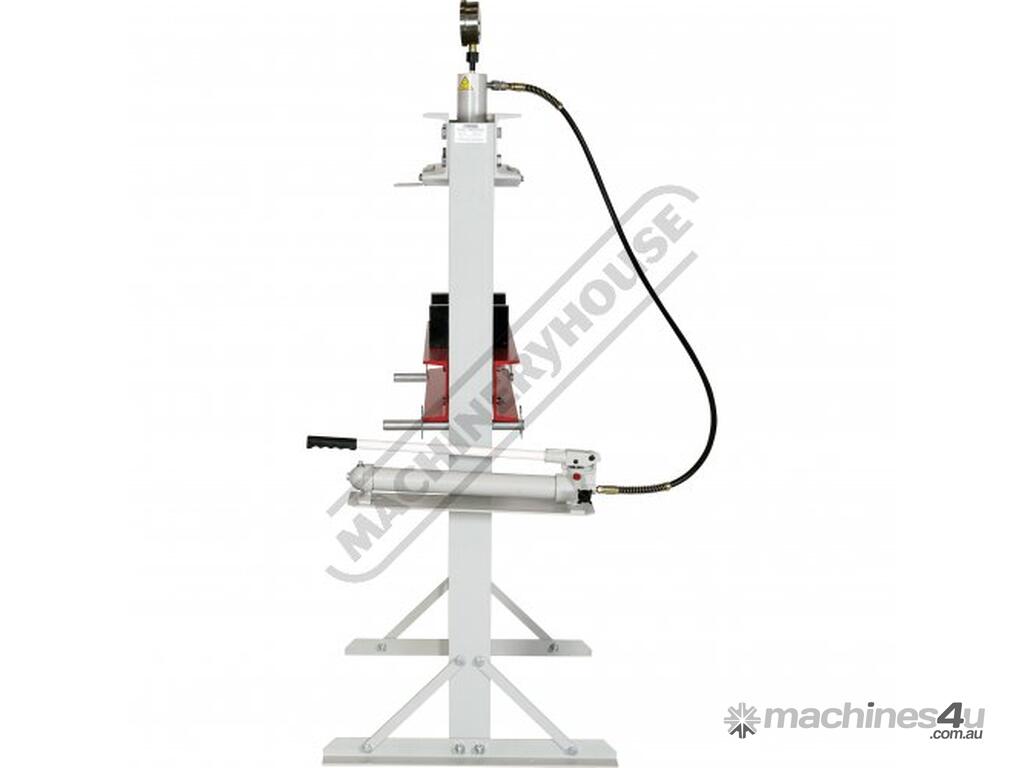

METALMASTER HP-20PP Workshop Hydraulic Press - 20 Tonne High Strength Steel Construction Includes Adjustable Sliding Cylinder Ram, Pressure Gauge & Bending Vee Plates
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: P142

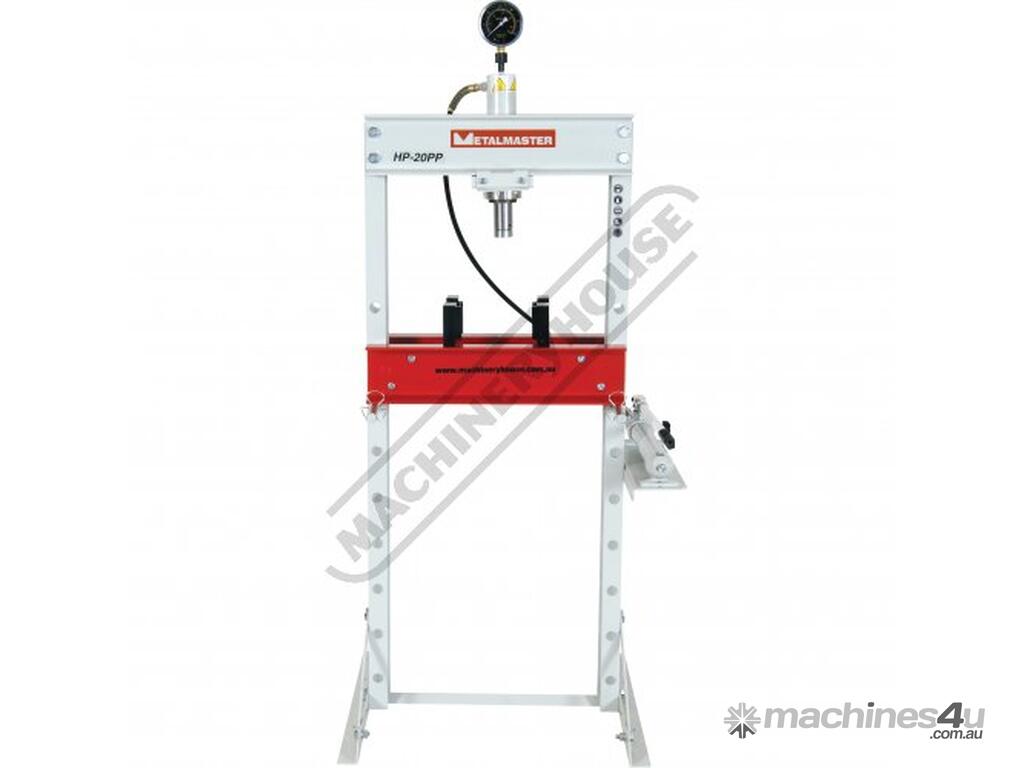

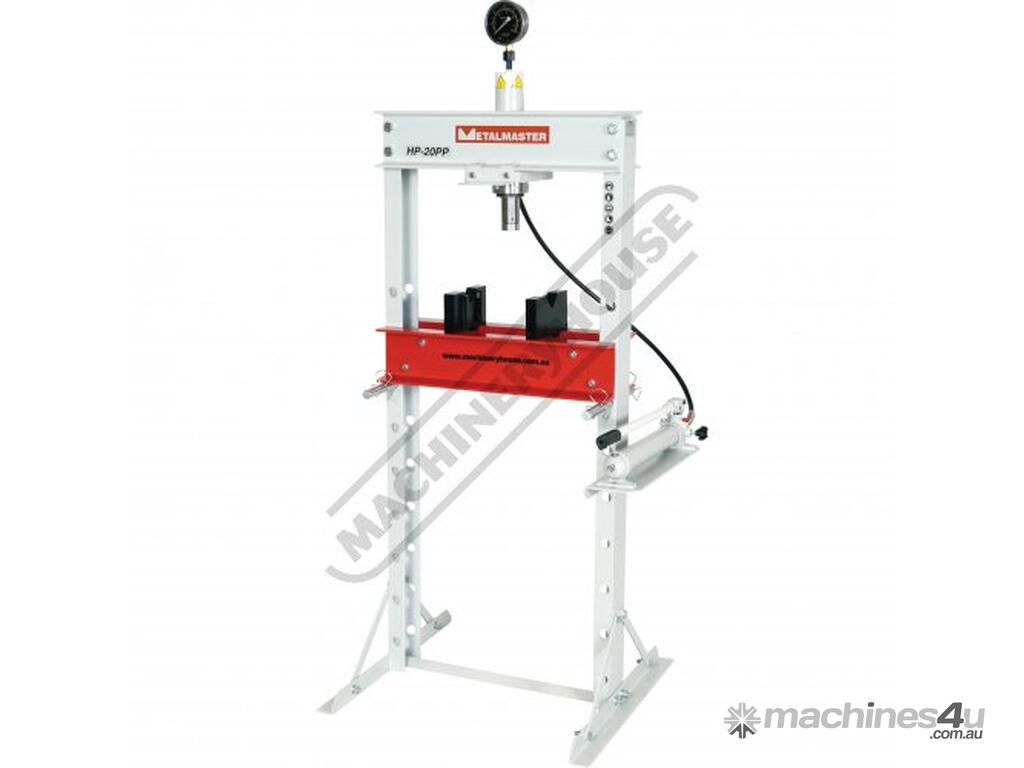

The Metalmaster HP-20PP 20 tonne workshop press has a variety of uses, ideal for removing and installing bushes, ball joints, bearings, gears, pulleys etc. The HP-20PP also has the added feature of a sliding head which can be moved to the side allowing for those offset pressing jobs.

The 20 tonne hydraulic ram and pump unit are also easily removed for use on other pressing jobs outside your workshop such as straightening or bending. The press is supplied with a pressure gauge, two heavy duty pressing plates and is constructed from industrial grade C channel making it ideal for mechanics or the serious home workshop.

Features:
Ideal for removing and installing - Bushing Ball-joints Bearings Gears Pulleys etc

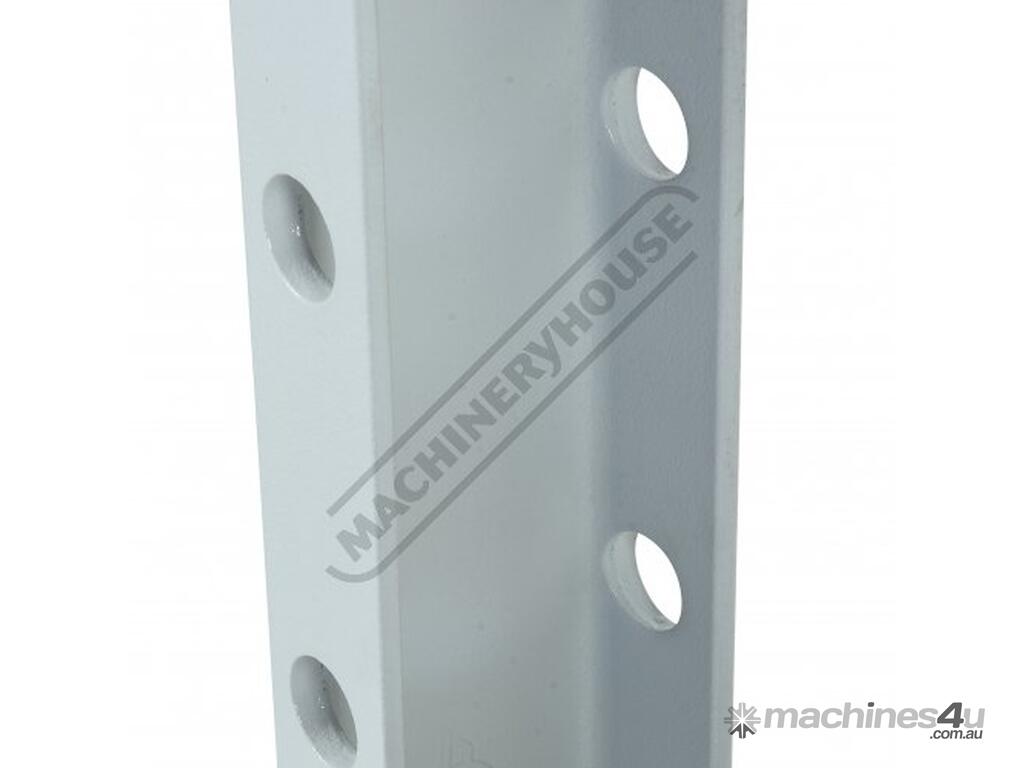

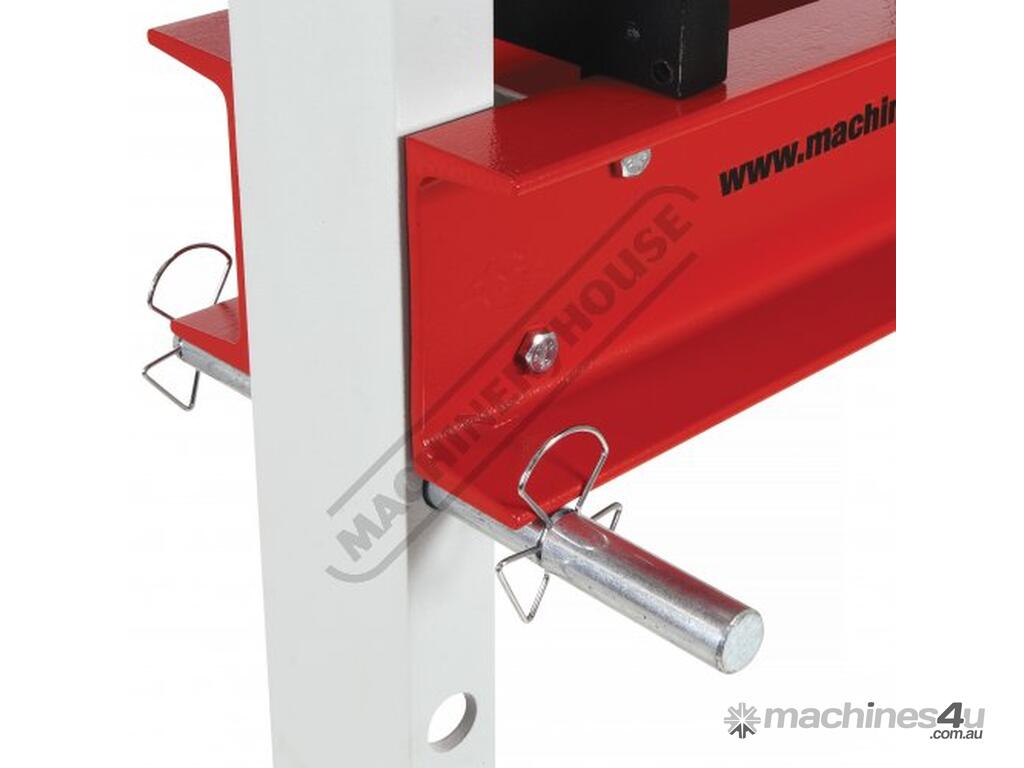

Heavy duty construction with headtable and uprights all made from heavy C channel steel
Hydraulics assembled in a temperature controlled clean room for maximum quality
Hydraulics individually factory tested prior to shipping.

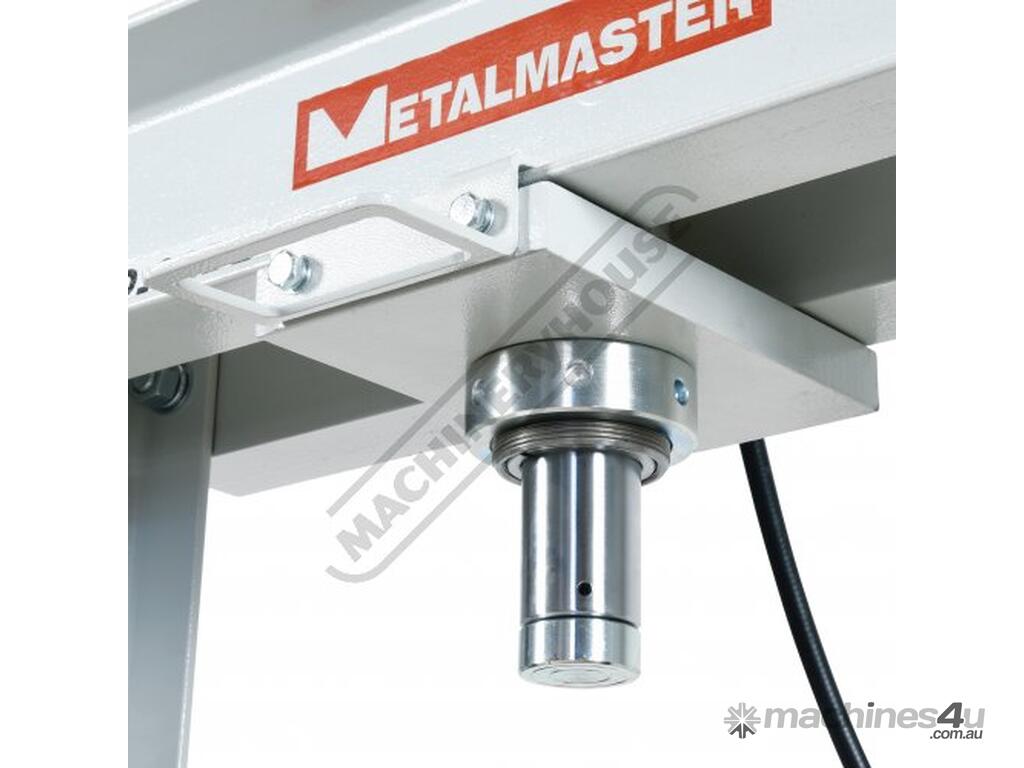

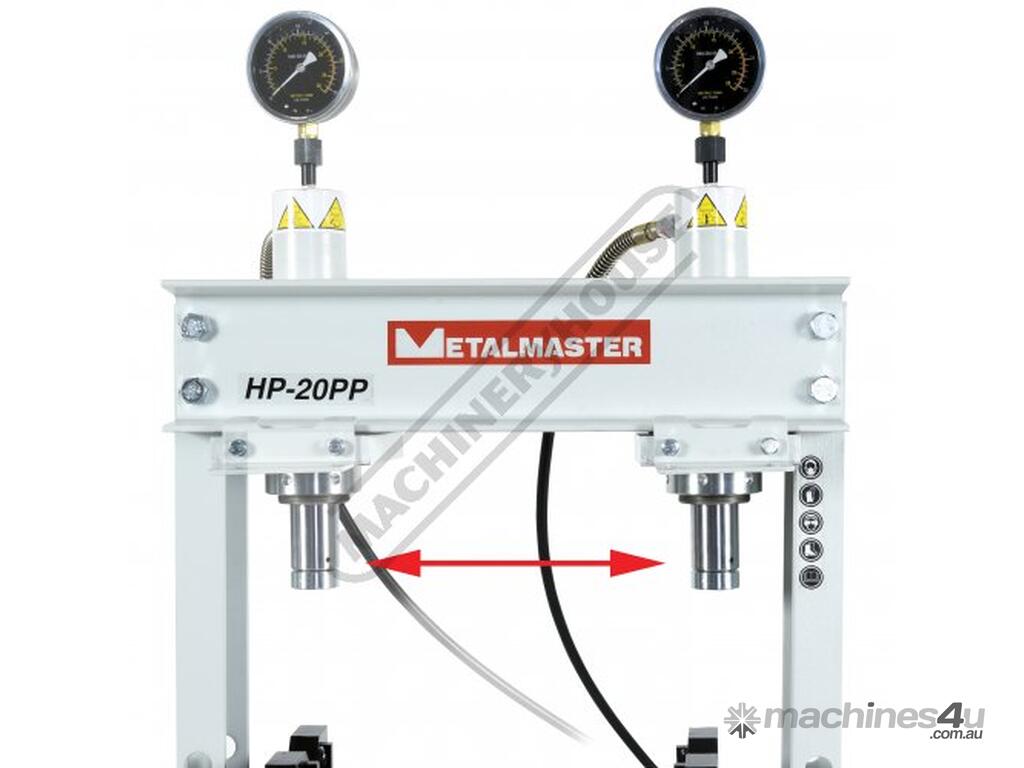

Adjustable sliding head up to 395mm travel between the vertical post

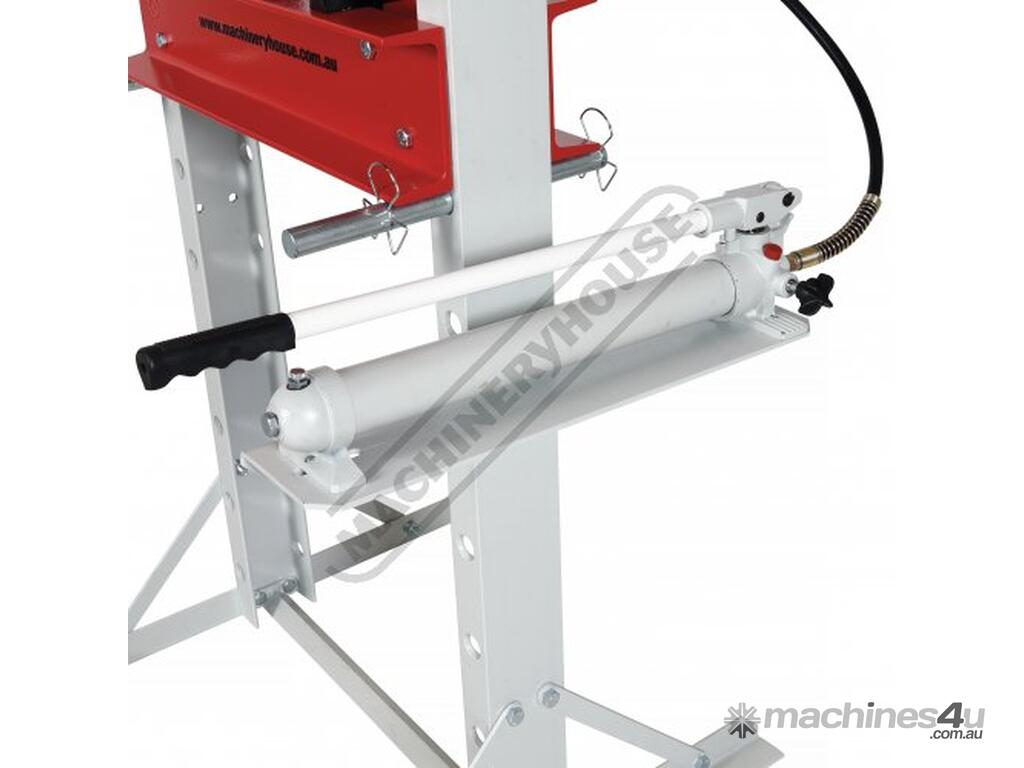

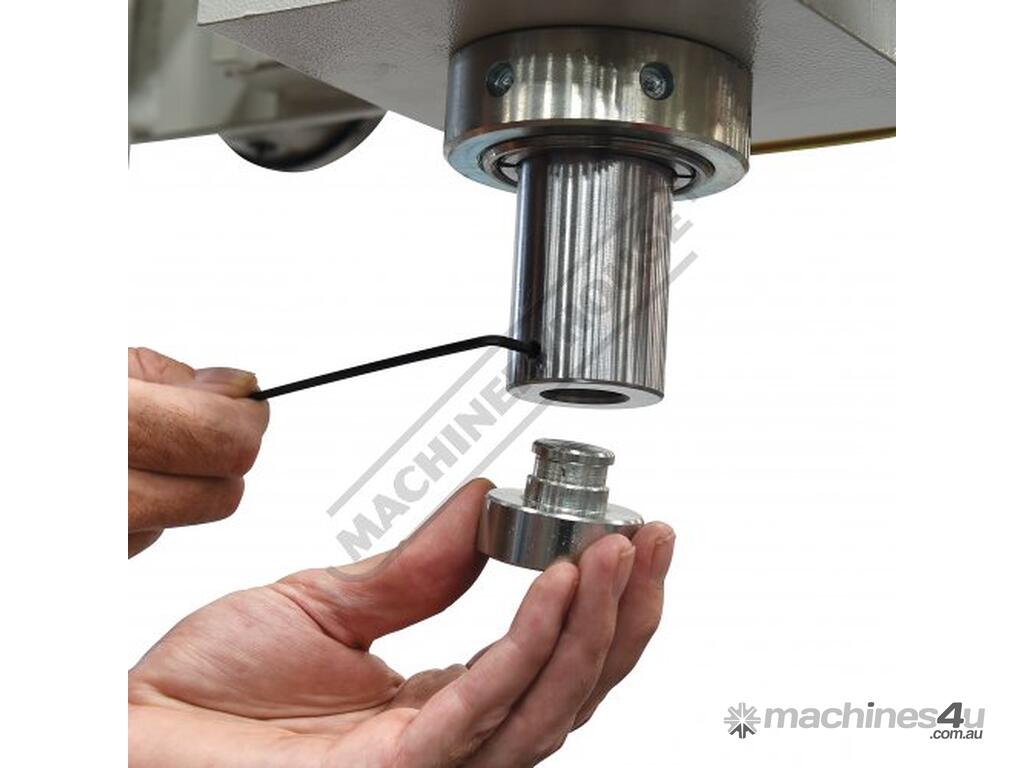

20 tonne hydraulic ram and hand pump easily removed for use on other pressing jobs

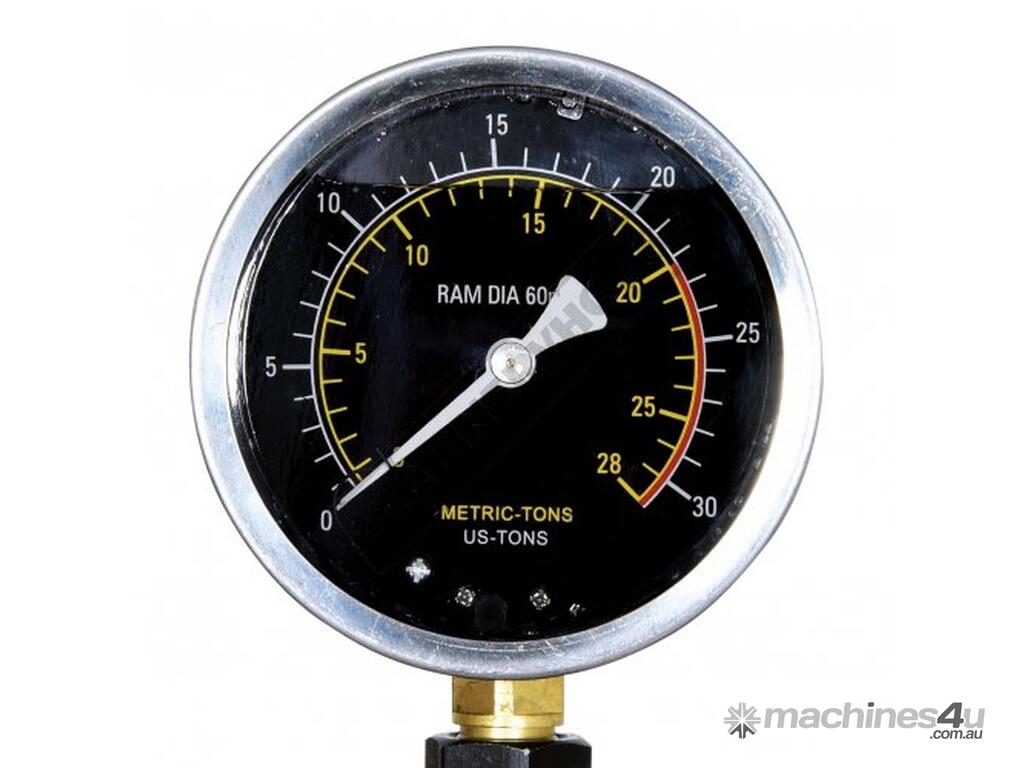

Metric / imperial pressure gauge included

Includes:

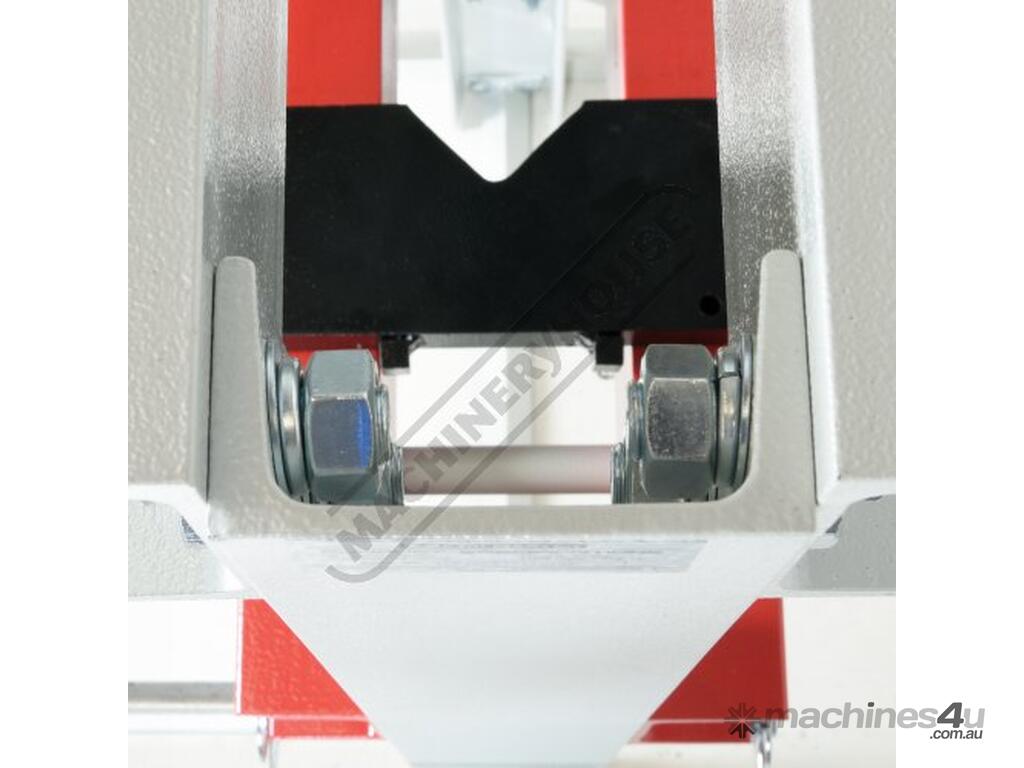

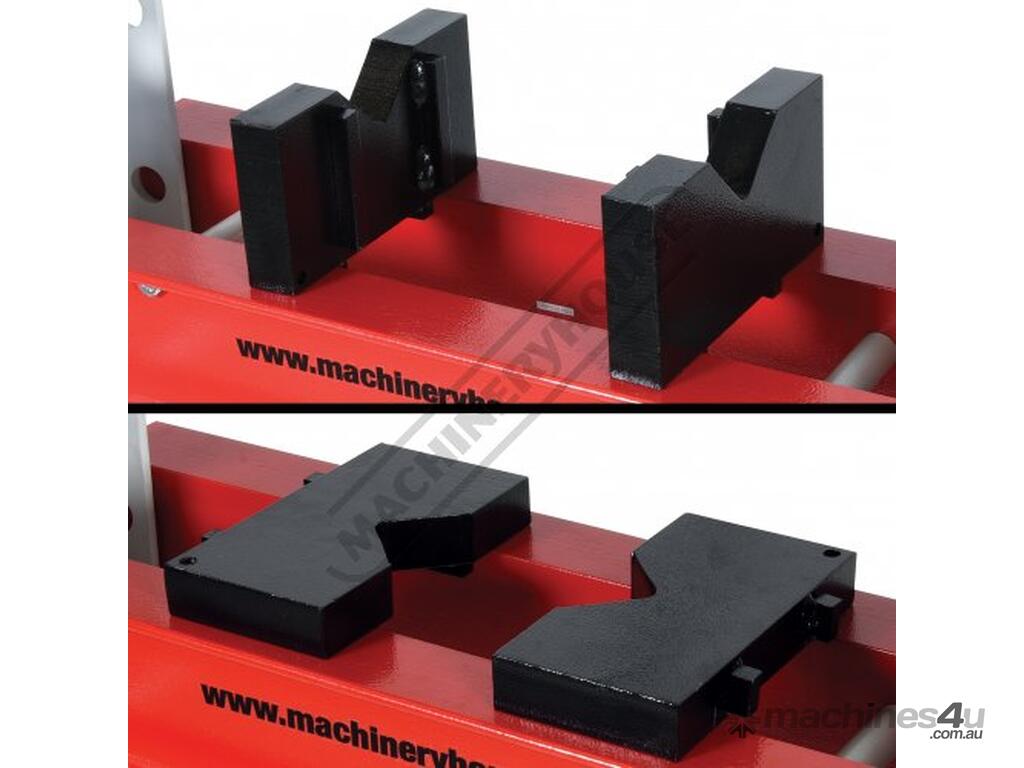

- Complete with bending plates



Specifications:
ORDER CODE: P142
MODEL: HP-20PP
Pressing Capacity (Tonne): 20
Hydraulic Ram Operation (Type): Manual Hand Lever
Hydraulic Ram Operation (Type): ~
Sliding Ram (left-right) (Yes / No): Yes

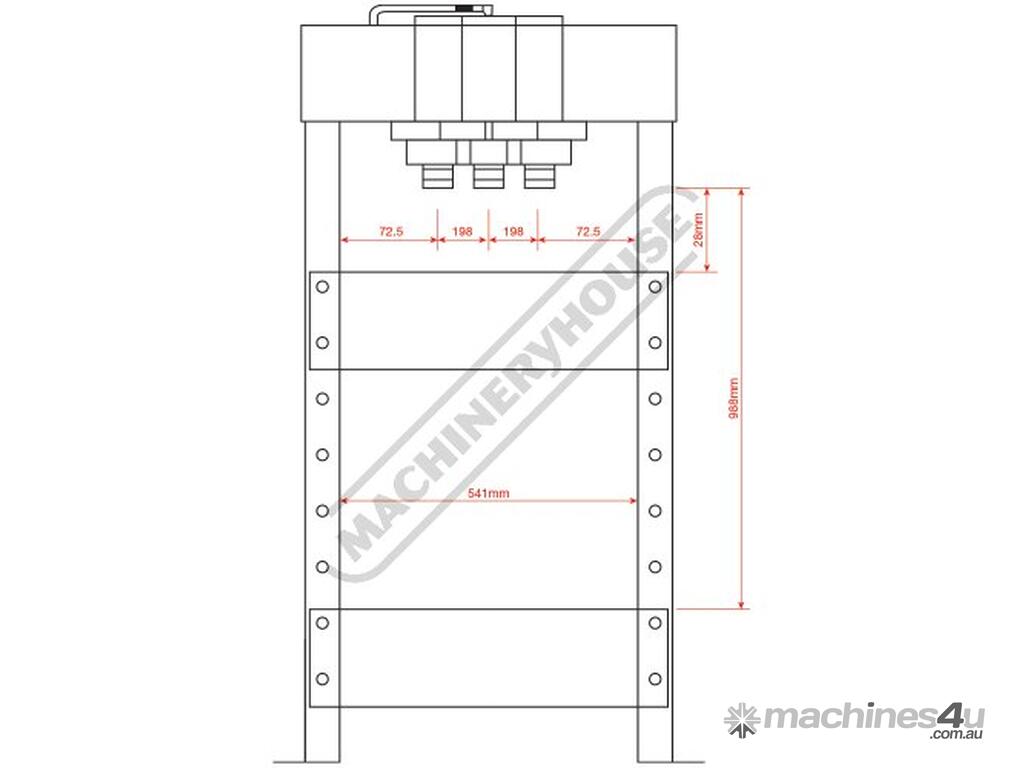

Width Between Front Posts (mm): 541
Width Between Side Posts (mm): 85
Table Top Opening - (Front to Back) (mm): 105
Ram To Table (Max.) (mm): 980
Cylinder Stroke (mm): 185
Ram Diameter (mm): Ø48
Piston Diameter (mm): Ø60
Minimum Air Flow Rate required (L/Min): ~
Motor Power (kW / hp): ~
Voltage (V): ~
Floor Space (W x D x H) (mm): 1100 x 800 x 1780
Nett Weight (kg): 114.5
