HP-20PP Workshop Hydraulic Press & Bush Driver Set 20 Tonne Bending Vee Plates & PDS-2B - Bush Drive

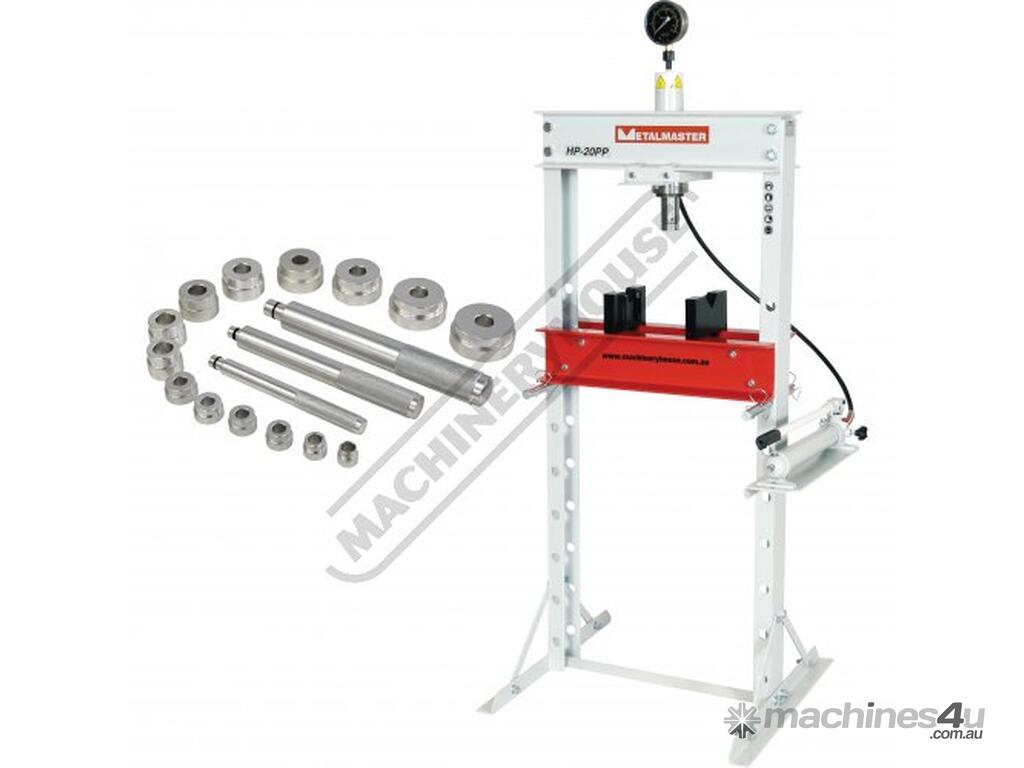

METALMASTER HP-20PP Workshop Hydraulic Press & Bush Driver Set 20 Tonne Bending Vee Plates & PDS-2B - Bush Driver Set - 17 piece
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: K4028

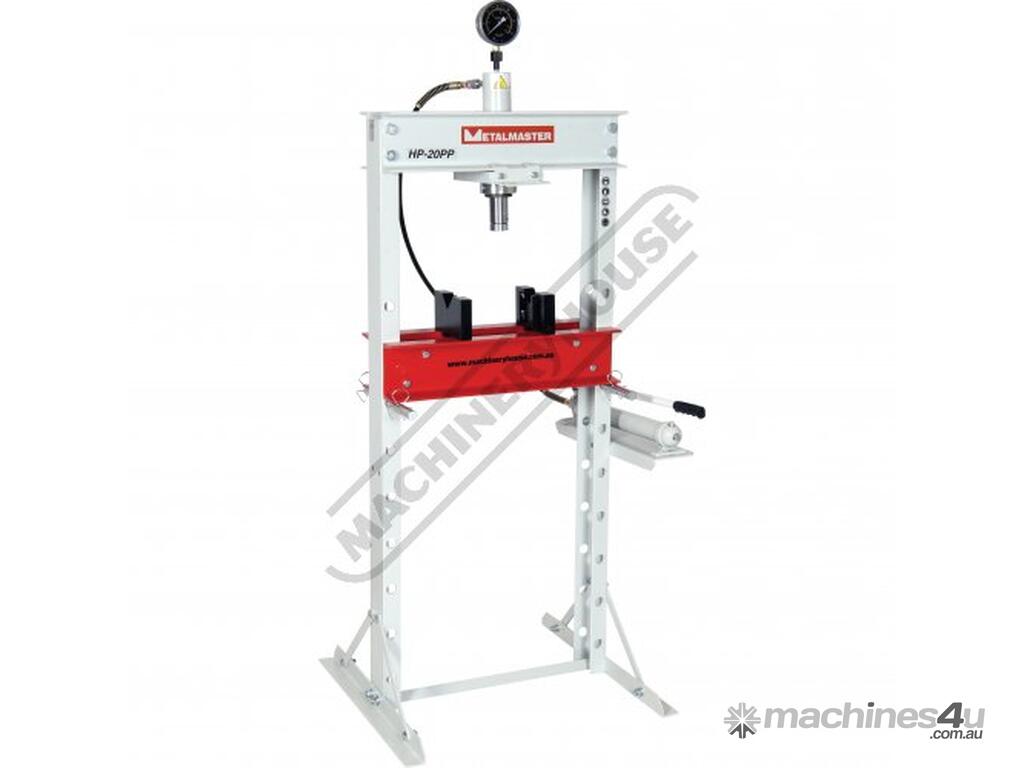

HP-20PP - Workshop Hydraulic Press - 20 Tonne
The Metalmaster HP-20PP 20 tonne workshop press has a variety of uses, ideal for removing and installing bushes, ball joints, bearings, gears, pulleys etc. The HP-20PP also has the added feature of a sliding head which can be moved to the side allowing for those offset pressing jobs.

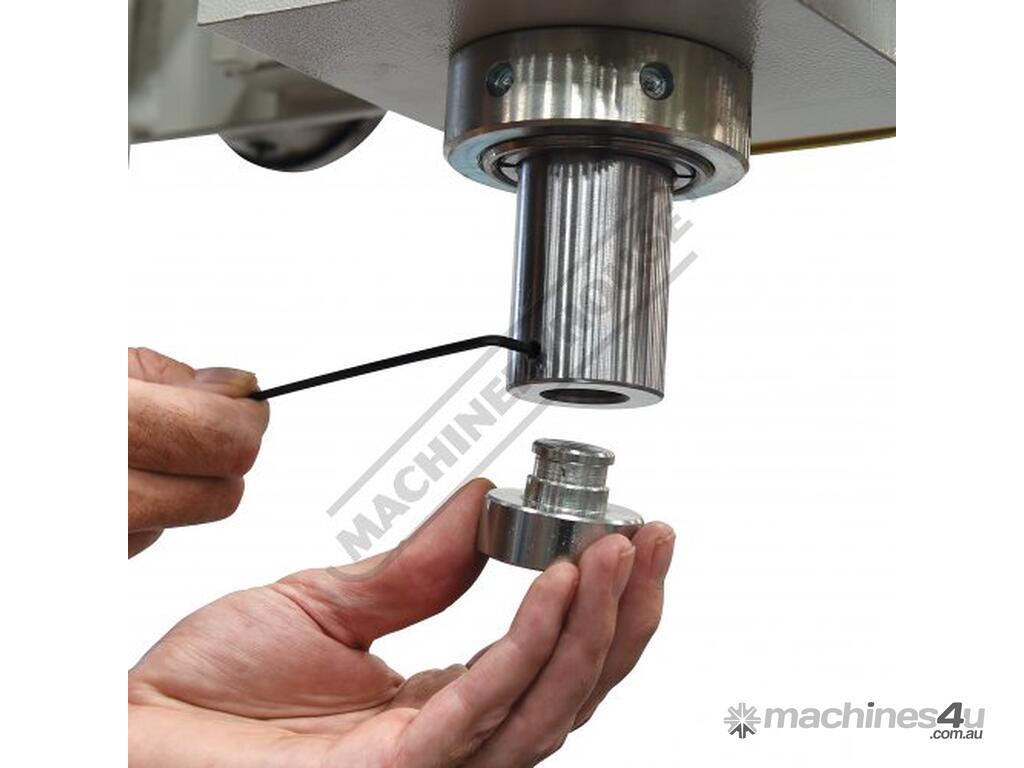

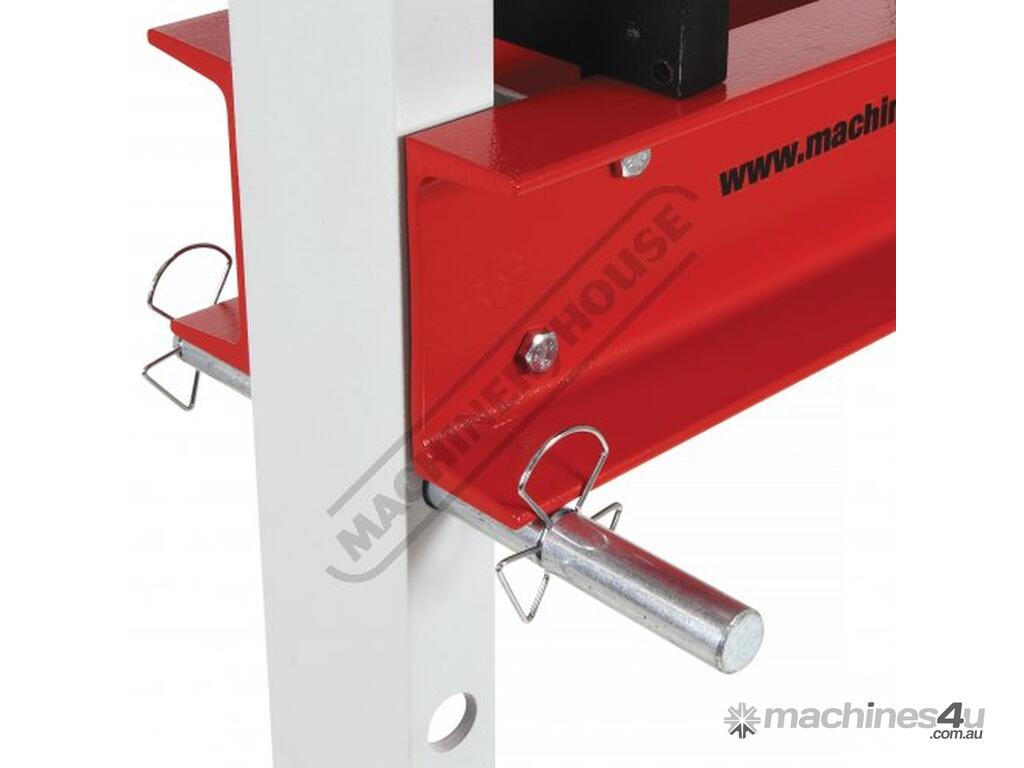

The 20 tonne hydraulic ram and pump unit are also easily removed for use on other pressing jobs outside your workshop such as straightening or bending. The press is supplied with a pressure gauge, two heavy duty pressing plates and is constructed from industrial grade C channel making it ideal for mechanics or the serious home workshop.

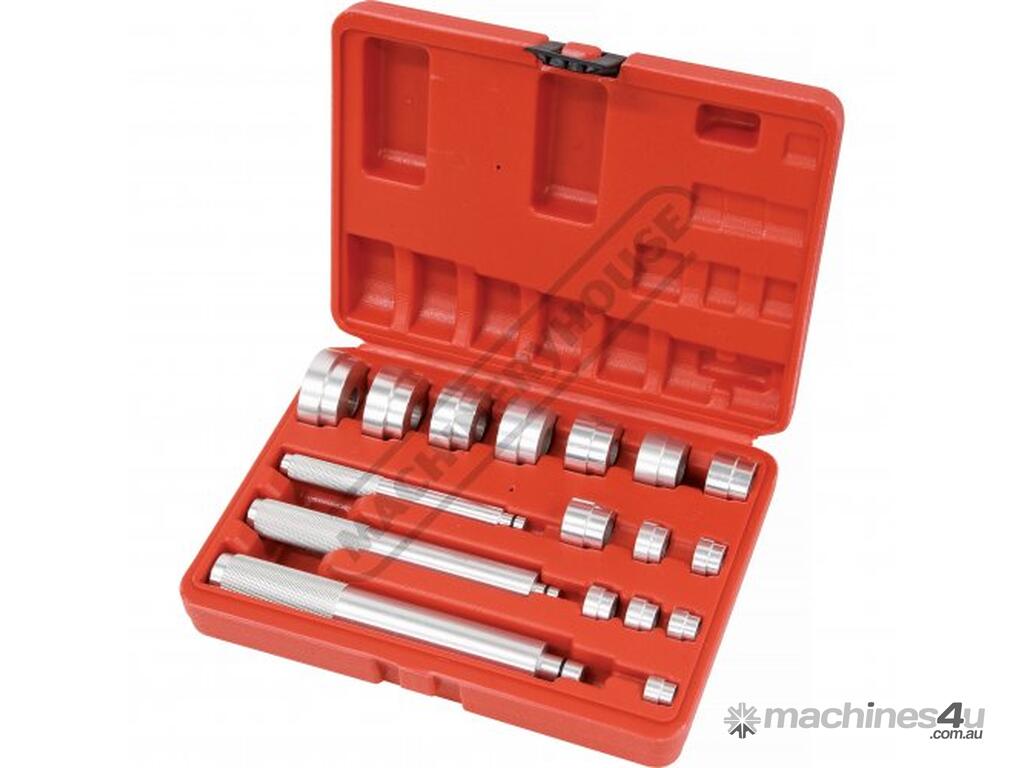

PDS-2B - Bush Driver Set
Enables you to remove and install bushings ranging from 10 - 42mm in diameter on cars, trucks, tractors, construction equipment, electric motors and many other components having bushings.

The aluminium construction won't wear the bushing or effect bushing tolerance, which is critical for efficient operation of the engine, transmission and hubs.

Features:
HP-20PP - Workshop Hydraulic Press - 20 Tonne
Ideal for removing and installing - Bushing Ball-joints Bearings Gears Pulleys etc

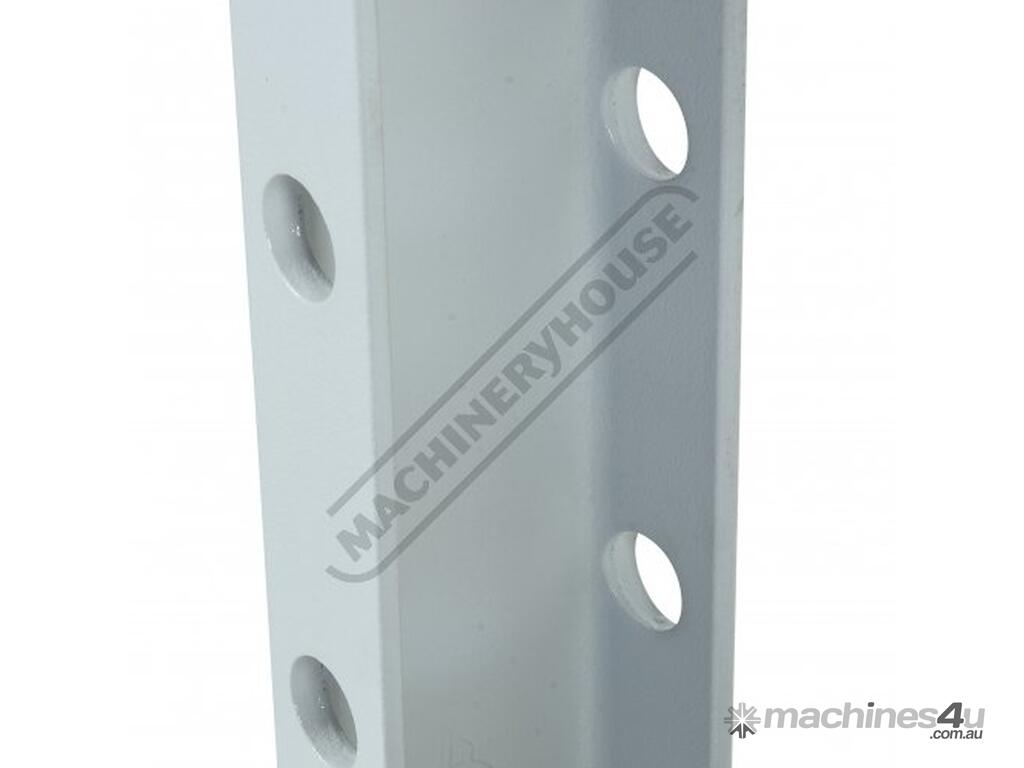

Heavy duty construction with headtable and uprights all made from heavy C channel steel
Hydraulics assembled in a temperature controlled clean room for maximum quality
Hydraulics individually factory tested prior to shipping.

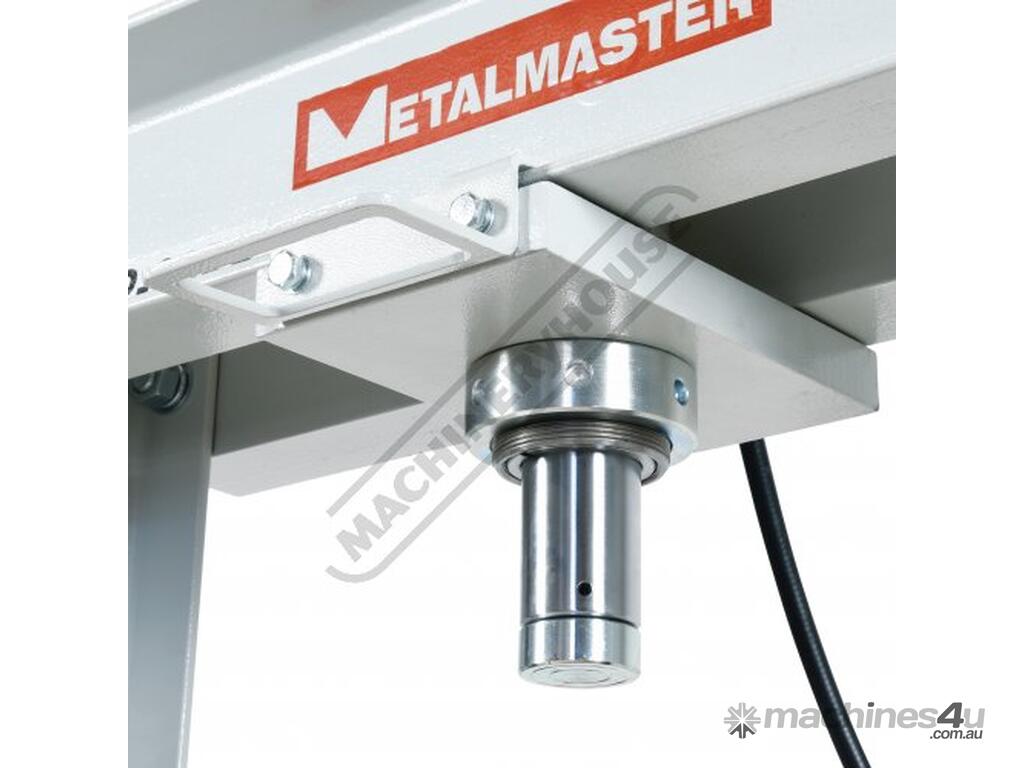

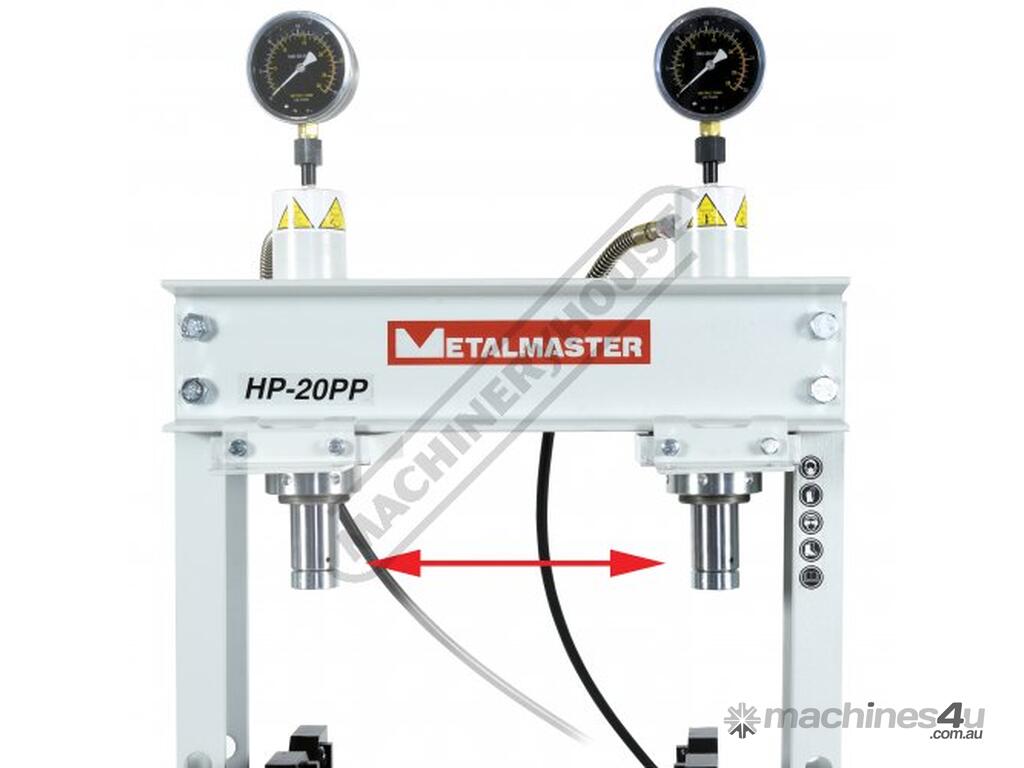

Adjustable sliding head up to 395mm travel between the vertical post

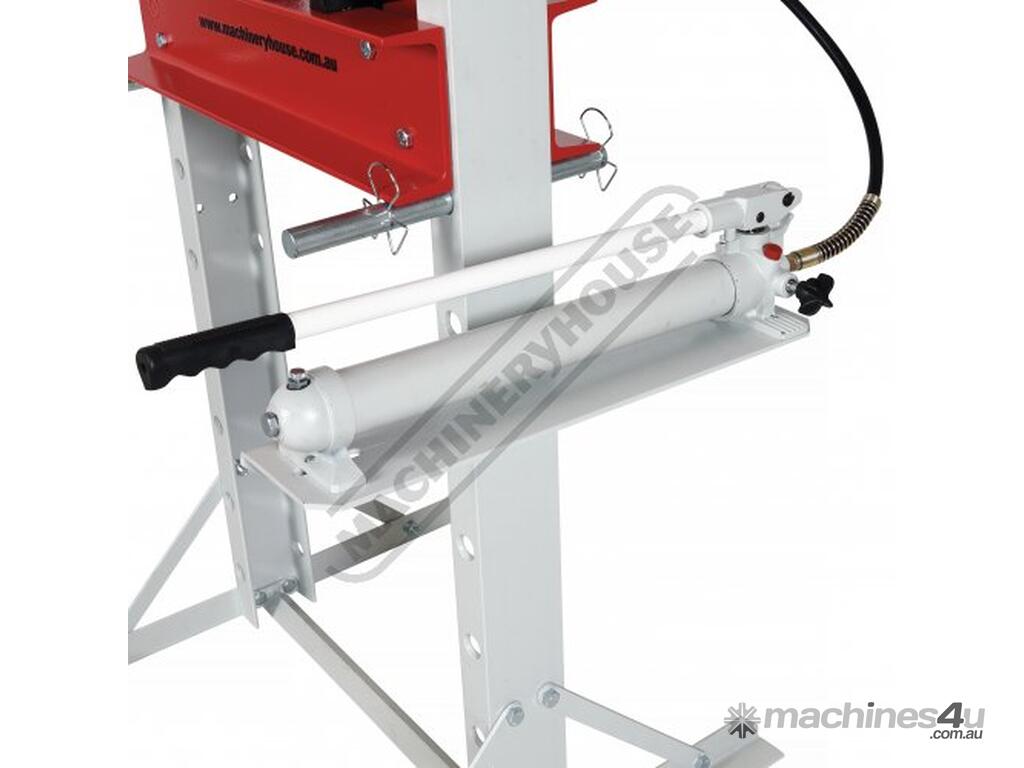

20 tonne hydraulic ram and hand pump easily removed for use on other pressing jobs

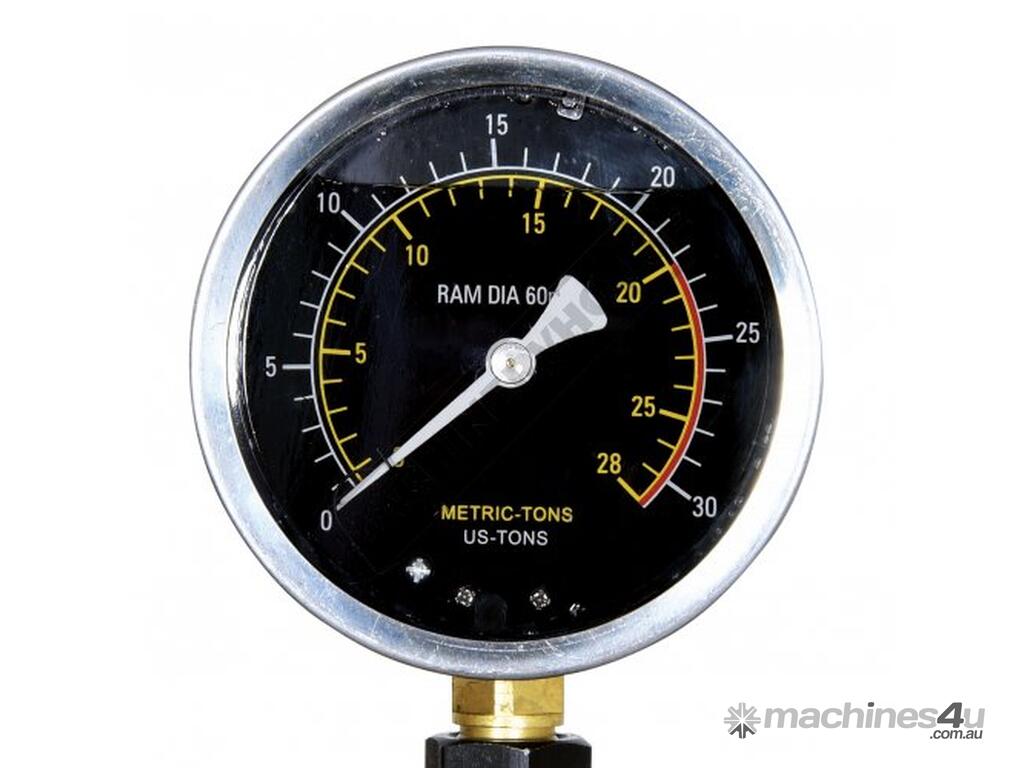

Metric / imperial pressure gauge included
PDS-2B - Bush Driver Set
Includes 14 discs to fit common bush sizes
Manufactured from aluminium

Includes:
- HP-20PP - Workshop Hydraulic Press - 20 Tonne

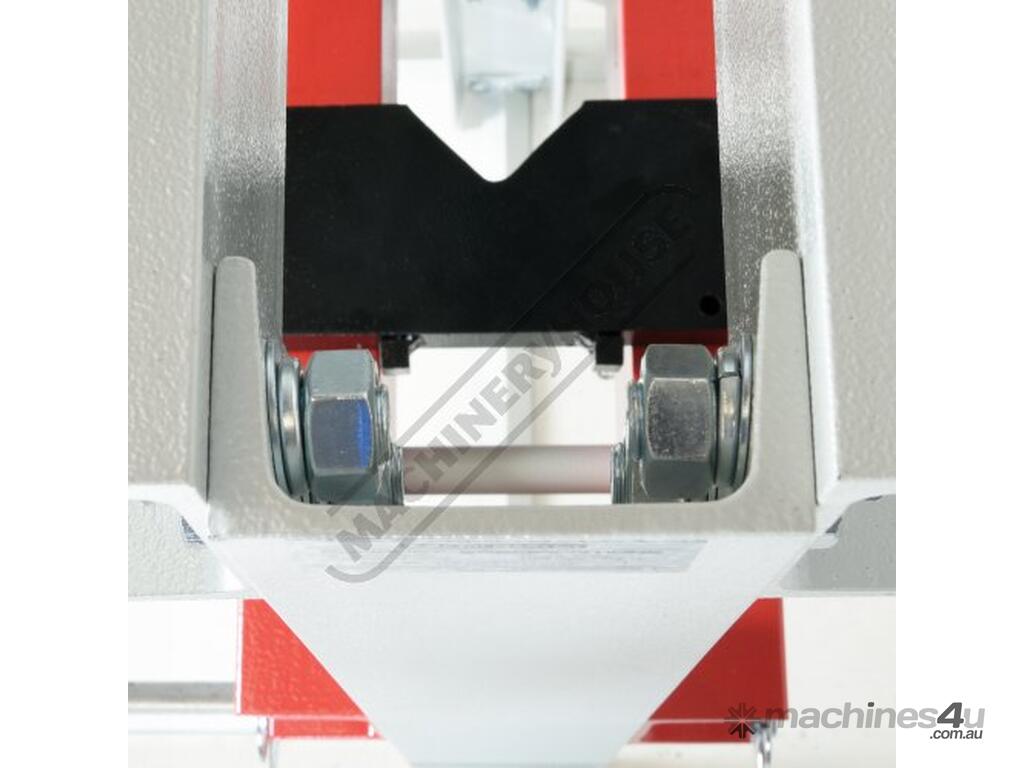

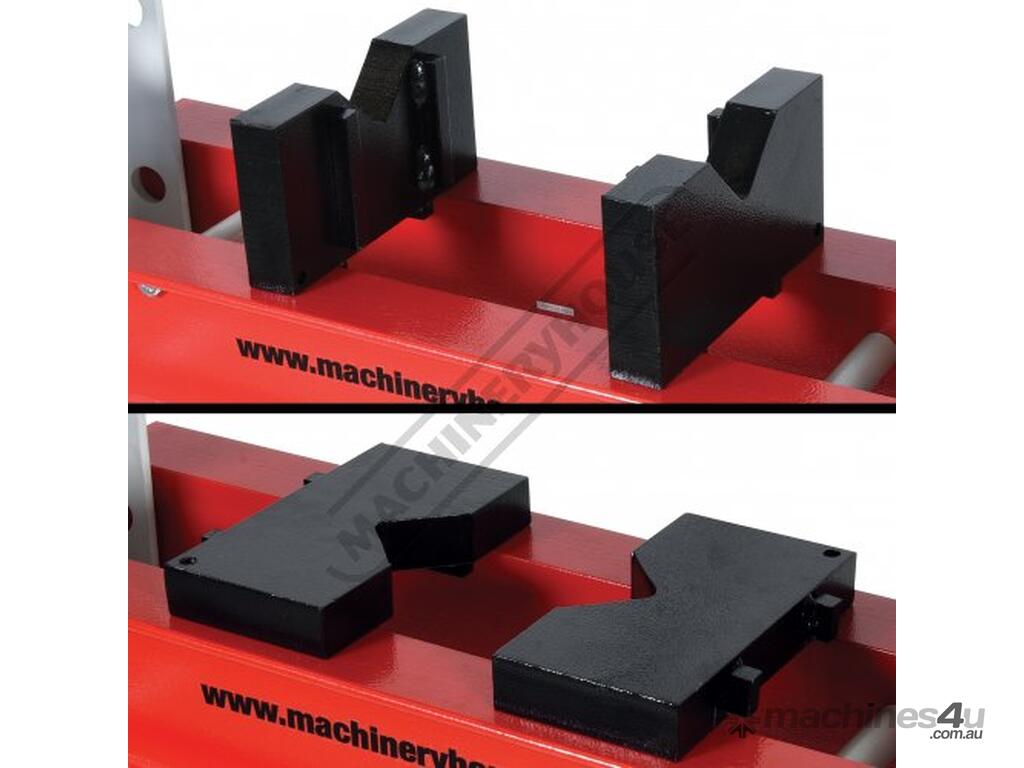

- Includes Adjustable Sliding Cylinder Ram Pressure Gauge & Bending Vee Plates
-
- PDS-2B - Bush Driver Set
- Disc sizes: Ø10-Ø12 Ø12-Ø14 Ø14-Ø16 Ø15-Ø17 Ø16-Ø18 Ø18-Ø20 Ø20-Ø22 Ø22-Ø24 Ø25-Ø27 Ø28-Ø30 Ø30-Ø34 Ø32-Ø36 Ø35-Ø40 Ø38-Ø42mm
- 1 x 115mm drive extension handle
- 1 x 140mm drive extension handle
- 1 x 160mm drive extension handle



Specifications:
ORDER CODE: K4028
MODEL: HP-20PP & PDS-2B
Pressing Capacity (Tonne): 20
Hydraulic Ram Operation (Type): Manual Hand Lever
Hydraulic Ram Operation (Type): ~
Sliding Ram (left-right) (Yes / No): Yes

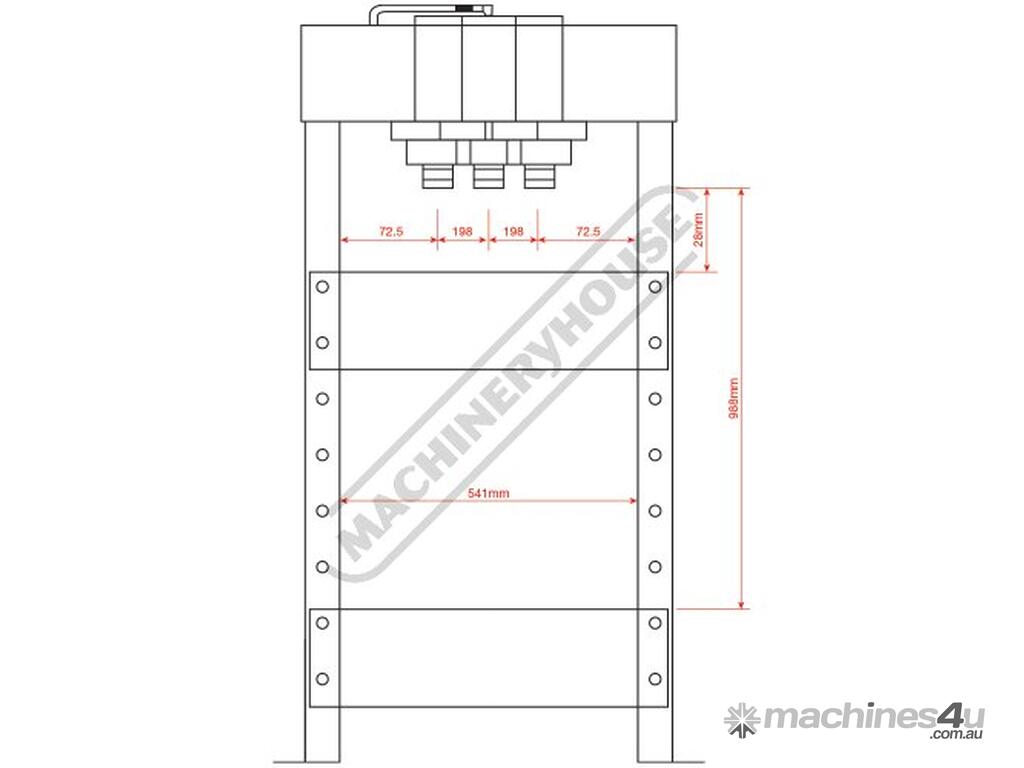

Width Between Front Posts (mm): 542
Width Between Side Posts (mm): 85
Table Top Opening - (Front to Back) (mm): 105
Ram To Table (Max.) (mm): 980
Cylinder Stroke (mm): 185
Ram Diameter (mm): Ø48
Piston Diameter (mm): Ø60
Minimum Air Flow Rate required (L/Min): ~
Motor Power (kW / hp): ~
Voltage (V): ~
Floor Space (W x D x H) (mm): 1100 x 800 x 1780
Nett Weight (kg): 117.5
