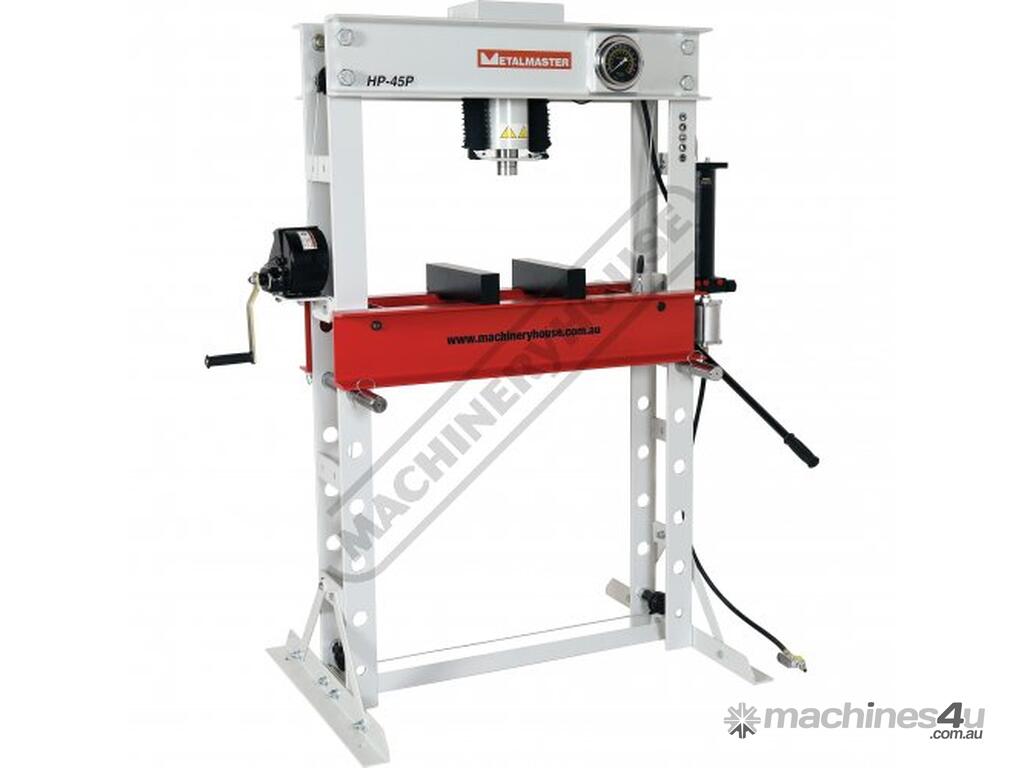

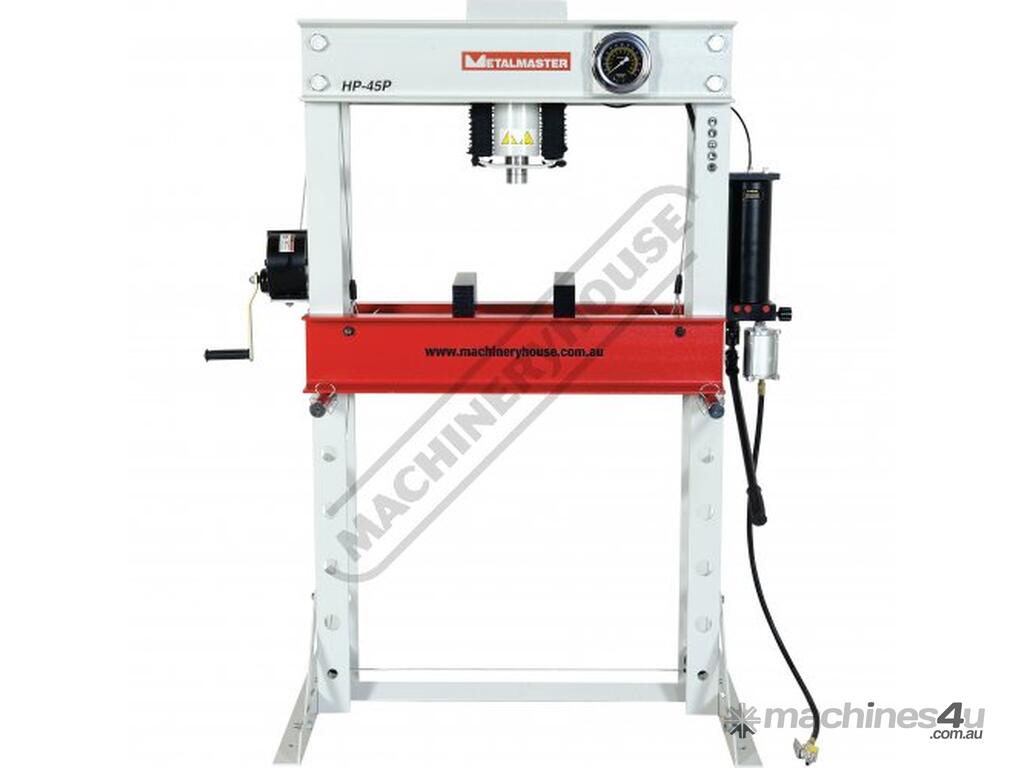

METALMASTER HP-45P Workshop Hydraulic & Pneumatic Press - 45 Tonne High Strength Steel Frame Construction Includes Table Winch System, Pressure Gauge & Bending Blocks
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: P147

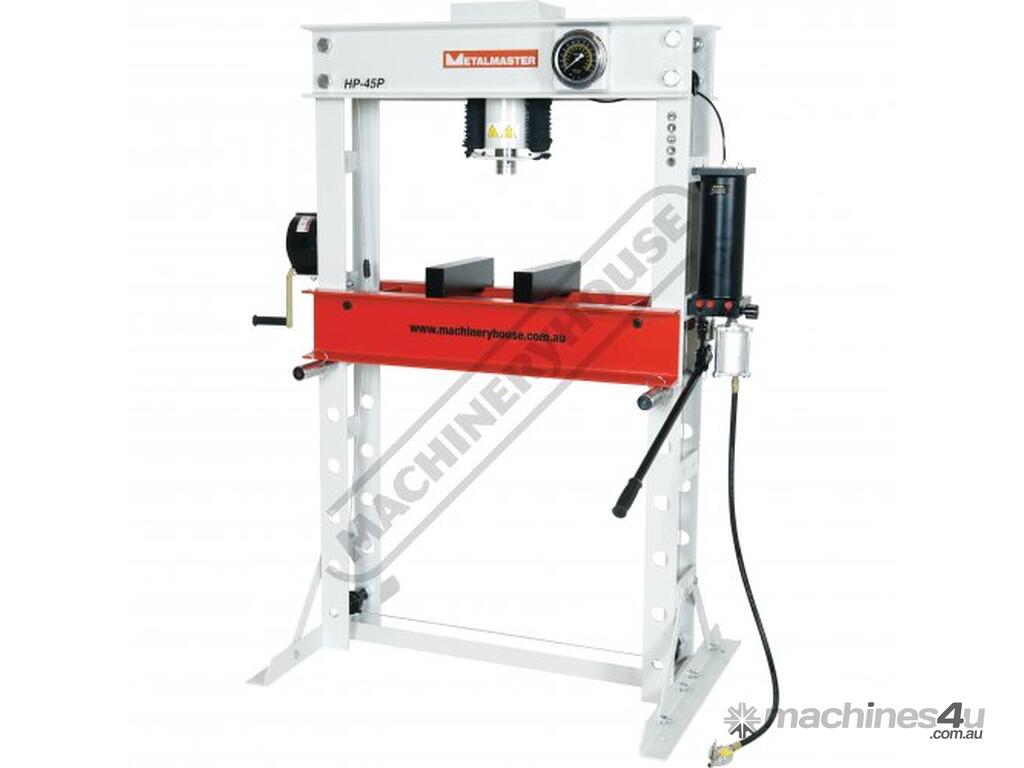

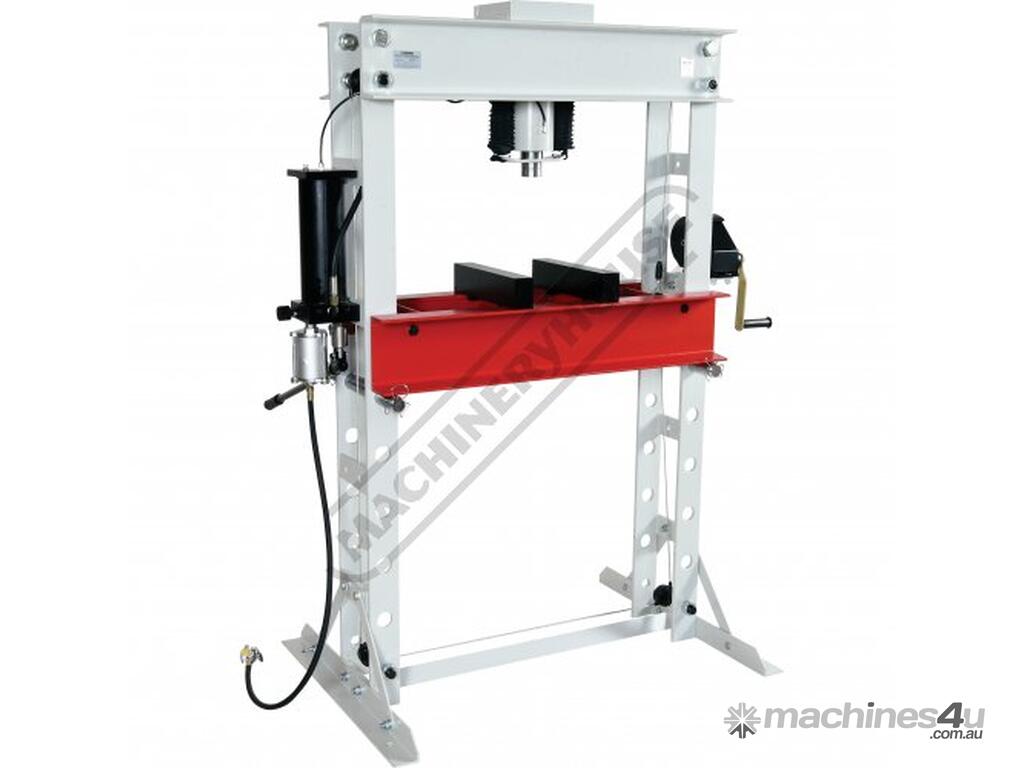

The Metalmaster HP-45P 45 tonne workshop press has a variety of uses, ideal for removing and installing bushes, ball joints, bearings, gears, pulleys etc. The HP-45P is pneumatically or hand operated for easy of use and includes a hydraulic bypass to insure the hydraulic are not overloaded.

This 45 tonne press is manufactured from heavy duty C channel steel with a high strength frame for the highest quality and accuracy. The press is supplied with a winch making tabled height adjustments effortless. The press also includes a pressure gauge, two heavy duty pressing plates, and can be fitted with an optional pneumatic foot pedal, making it ideal for mechanics, farmers or the serious home workshop.

Features:
Ideal for removing and installing - Bushing Ball-joints Bearings Gears Pulleys etc

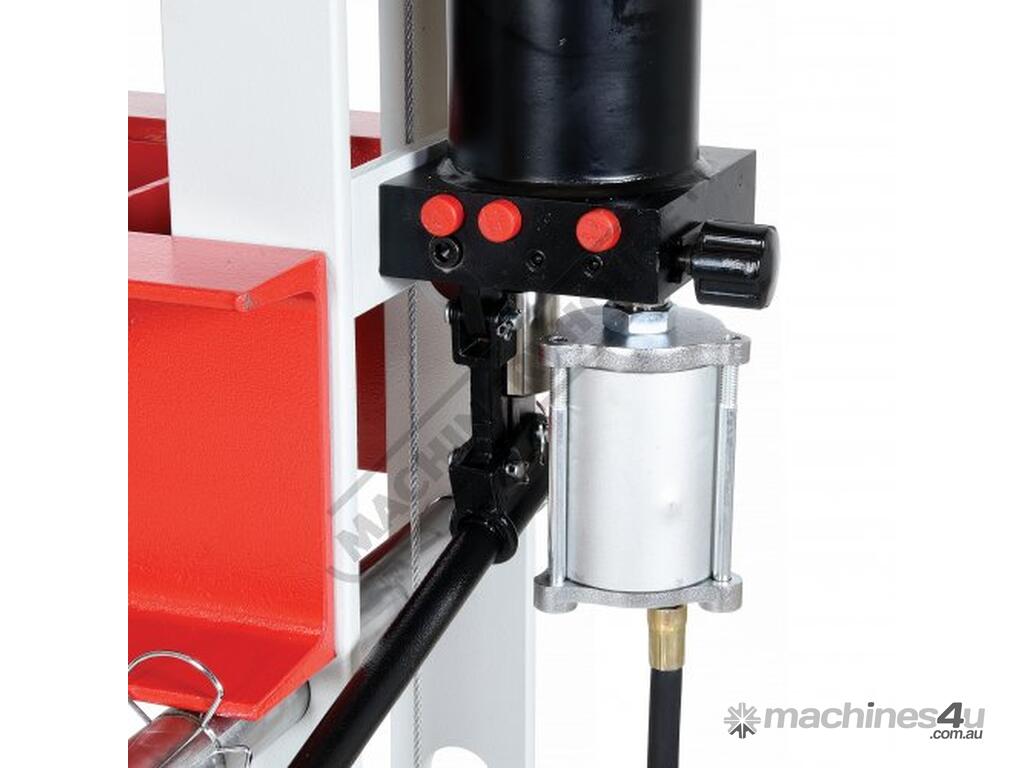

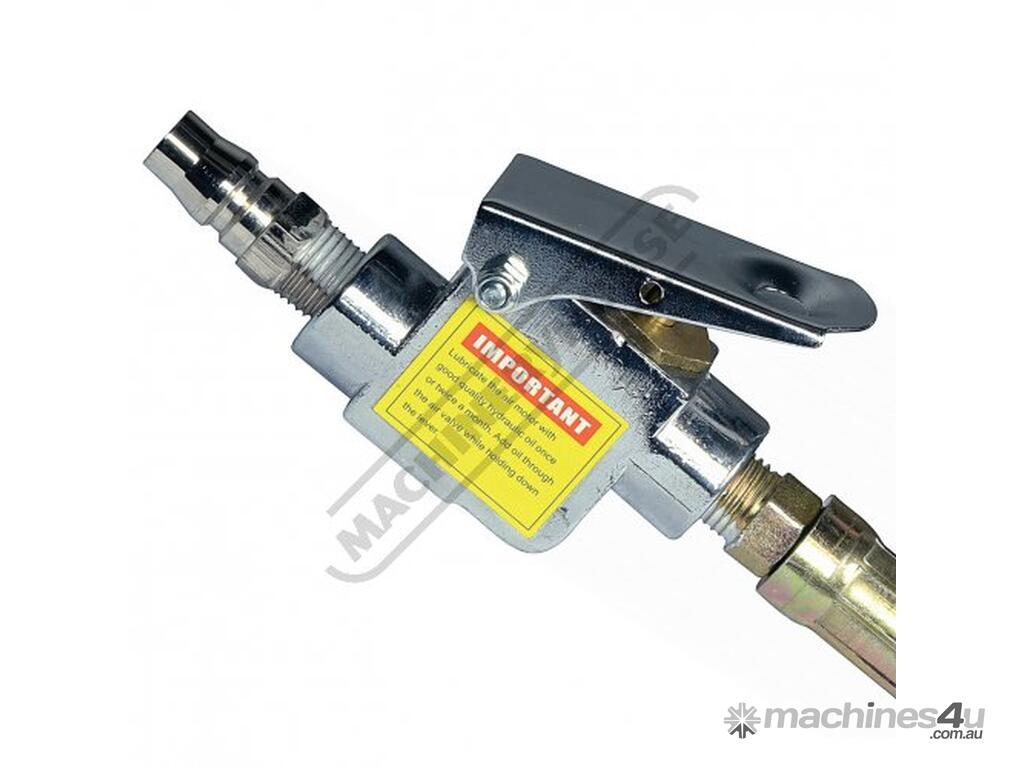

Pneumatic or hand operation
Heavy duty construction with head and table all made from heavy C channel steel with high strength welded frame

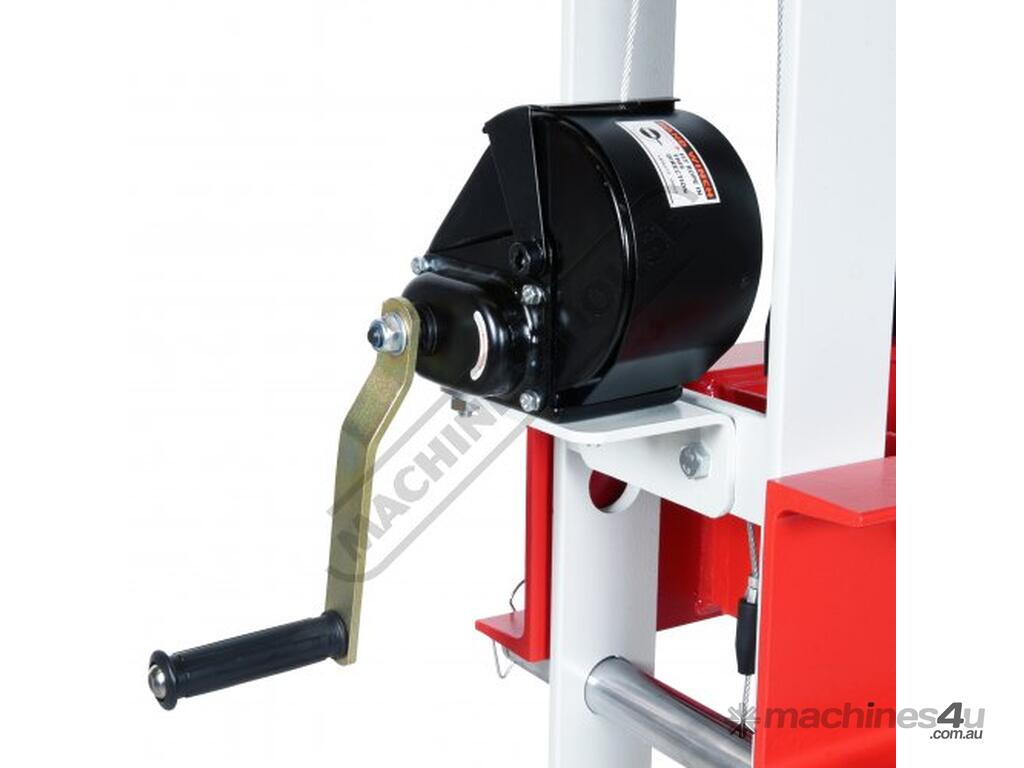

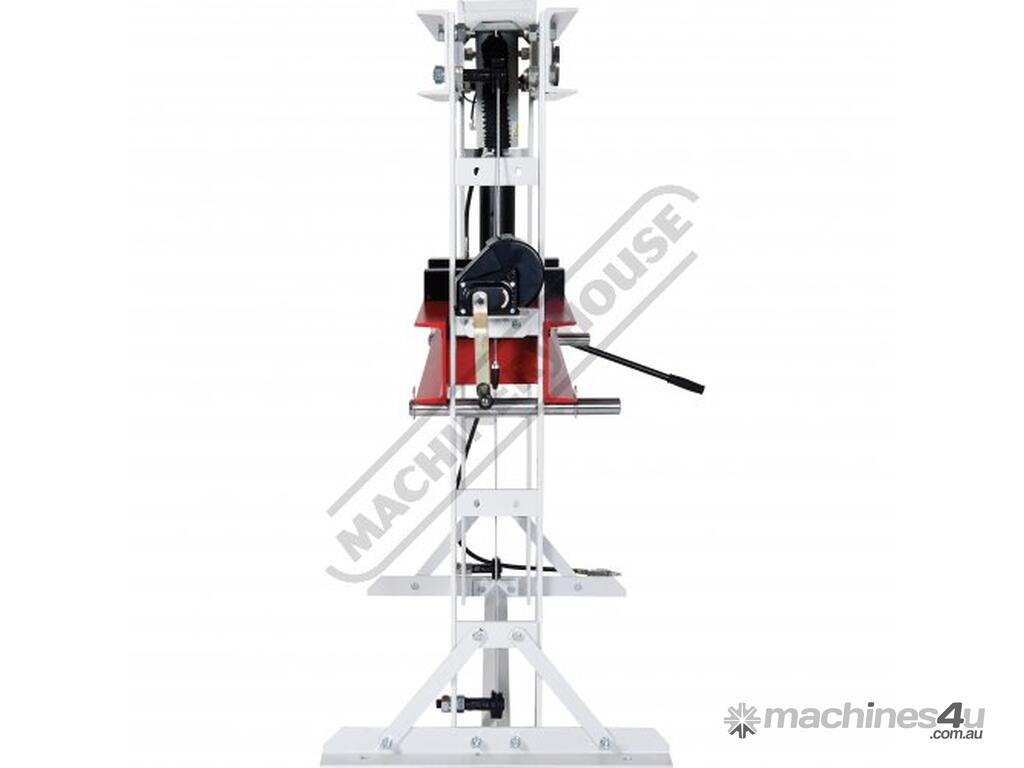

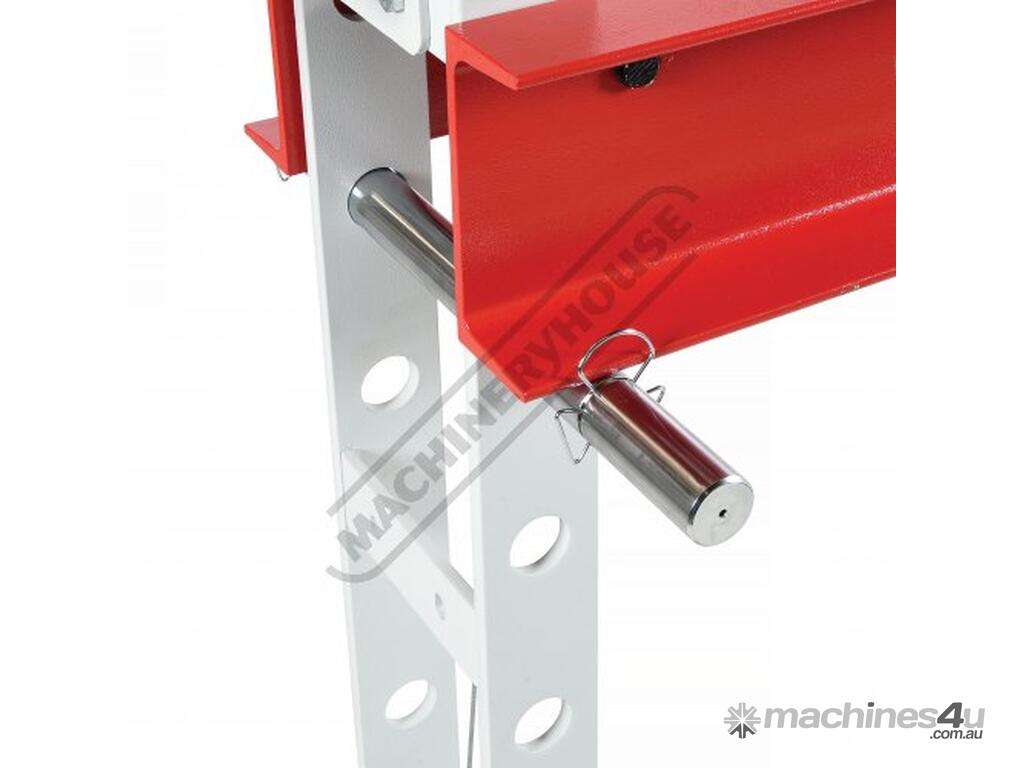

Table height adjustment via winch
Hydraulics assembled in a temperature controlled clean room for maximum quality
Hydraulics individually factory tested prior to shipping.

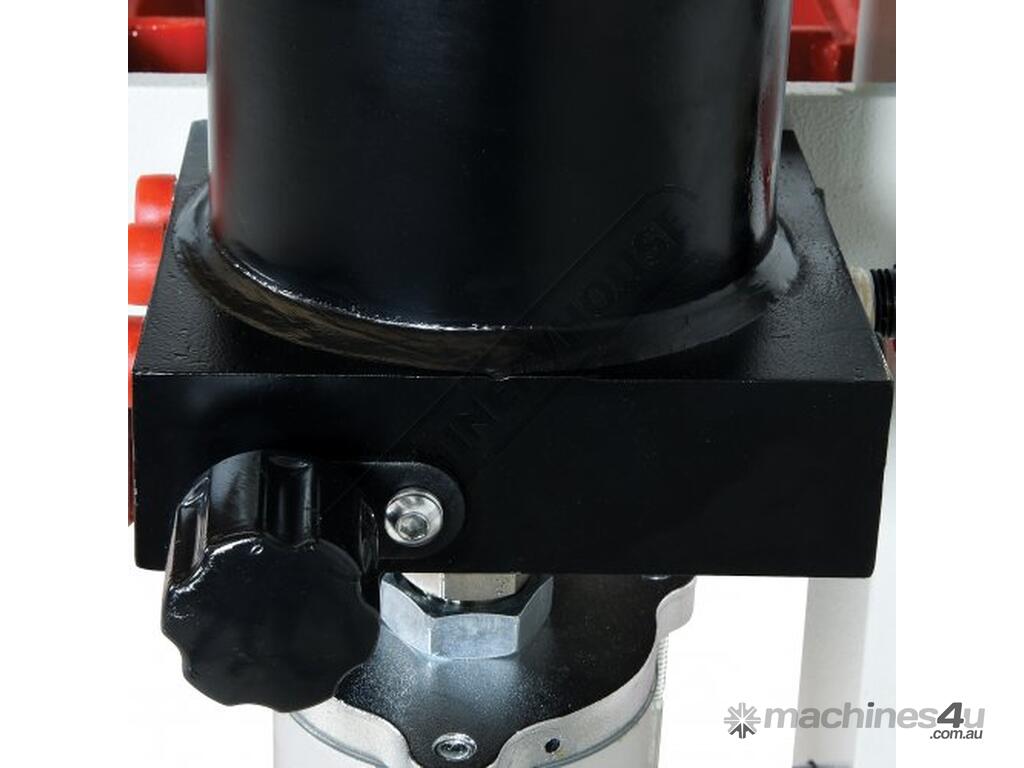

Hydraulic bypass to avoid overloading

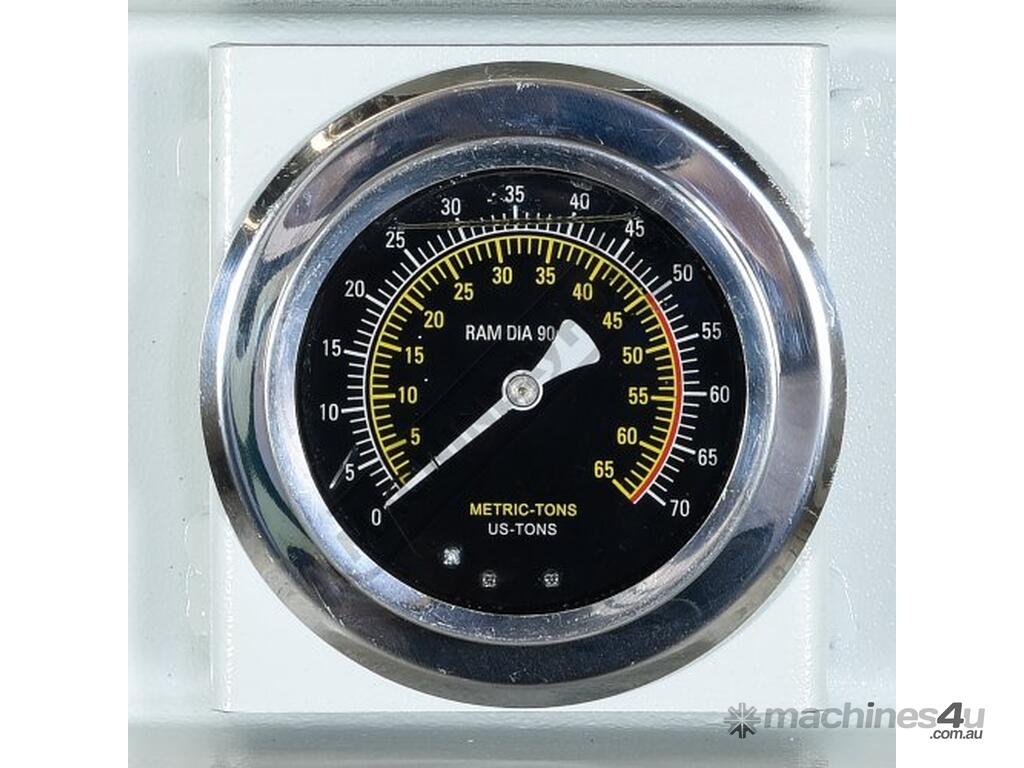

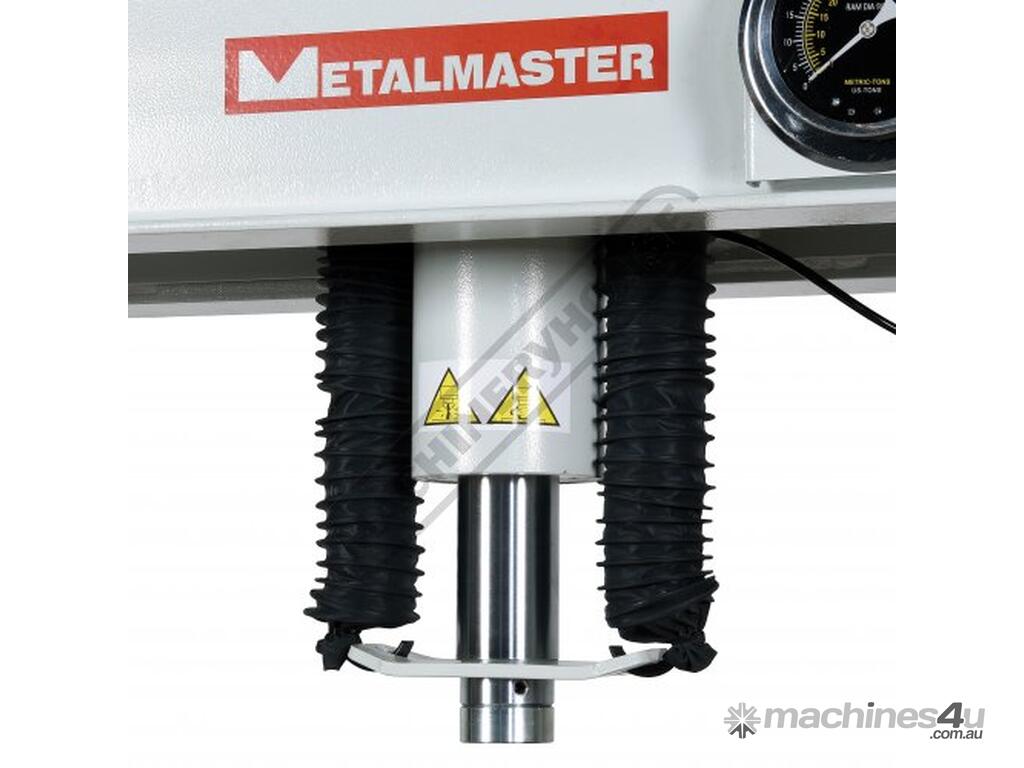

Metric / imperial pressure gauge included
NOTE: Minimum Air Flow Rate required is 200 liters/minute

Includes:

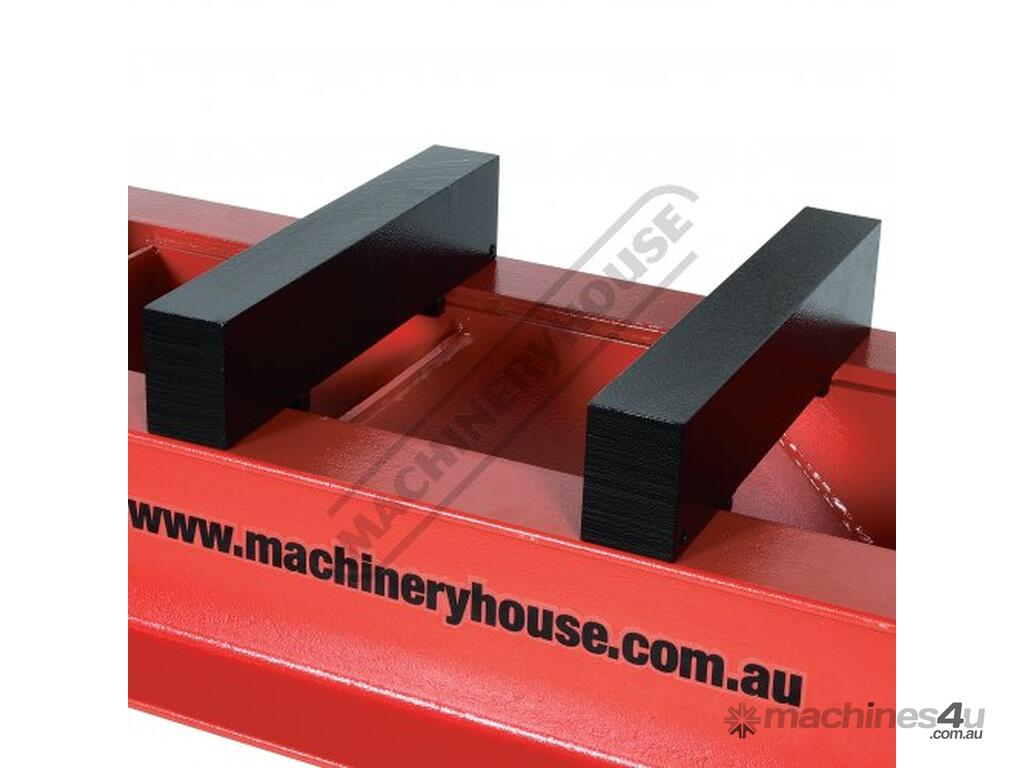

- Complete with bending blocks



Specifications:
ORDER CODE: P147
MODEL: HP-45P
Pressing Capacity (Tonne): 45
Hydraulic Ram Operation (Type): Manual Hand Lever /
Hydraulic Ram Operation (Type): Pneumatic System
Sliding Ram (left-right) (Yes / No): No

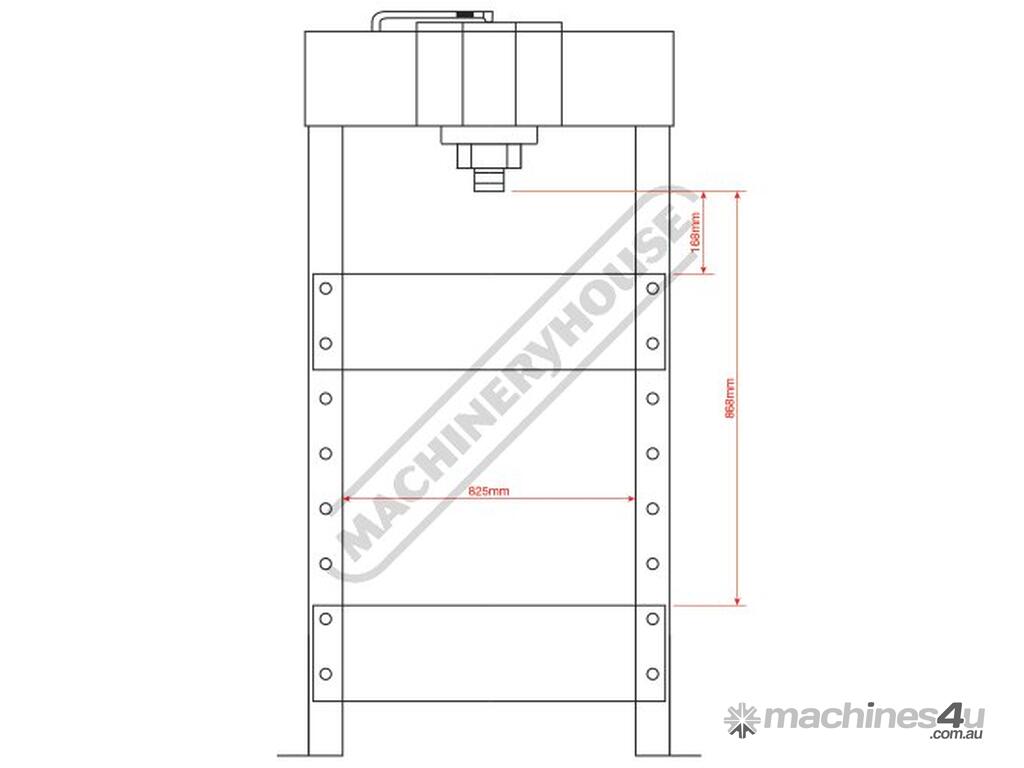

Width Between Front Posts (mm): 825
Width Between Side Posts (mm): 185
Table Top Opening - (Front to Back) (mm): 195
Ram To Table (Max.) (mm): 855
Cylinder Stroke (mm): 190
Ram Diameter (mm): Ø58
Piston Diameter (mm): Ø95
Minimum Air Flow Rate required (L/Min): 200
Motor Power (kW / hp): ~
Voltage (V): ~
Floor Space (W x D x H) (mm): 1550 x 1050 x 1720
Nett Weight (kg): 340
