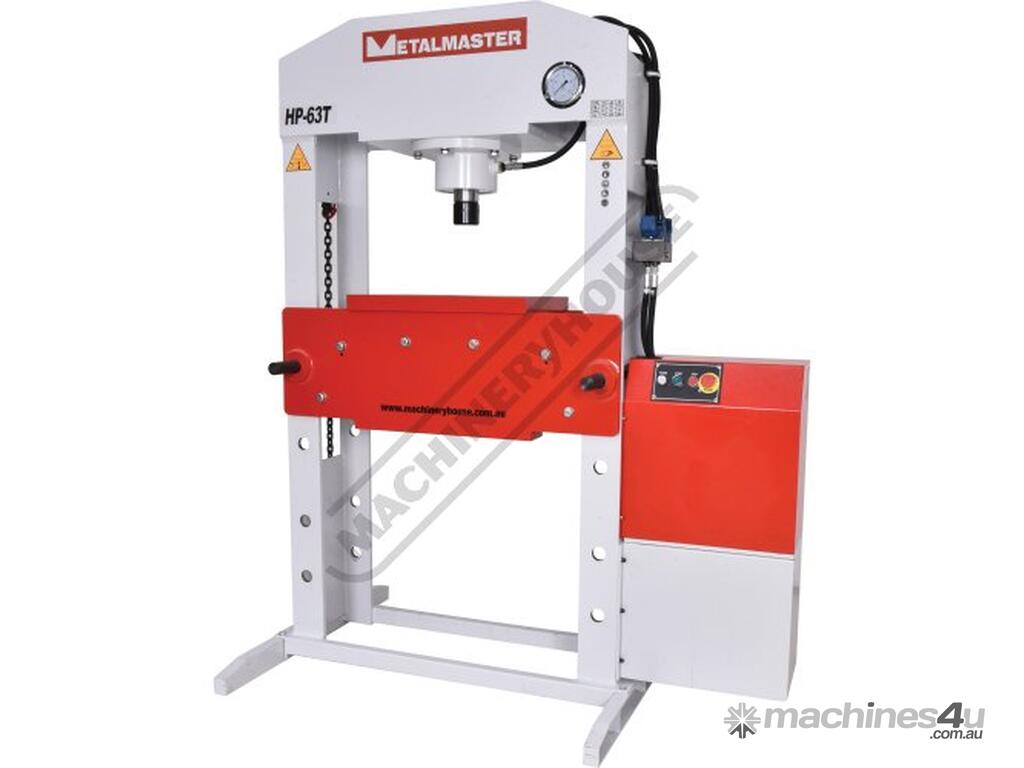

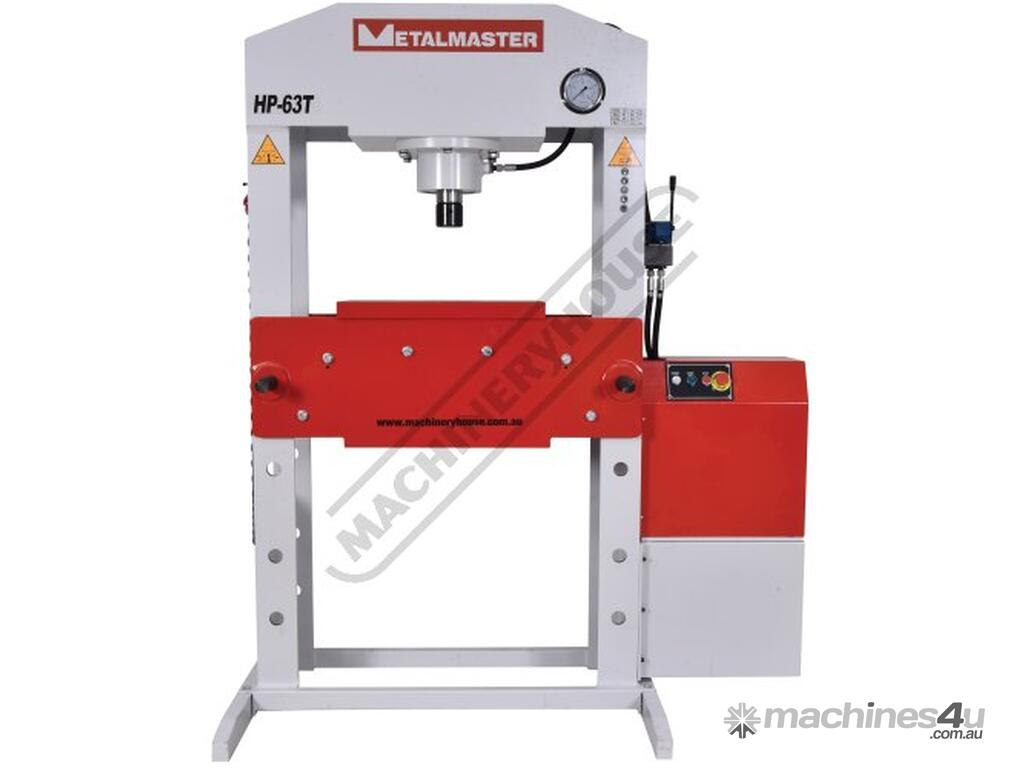

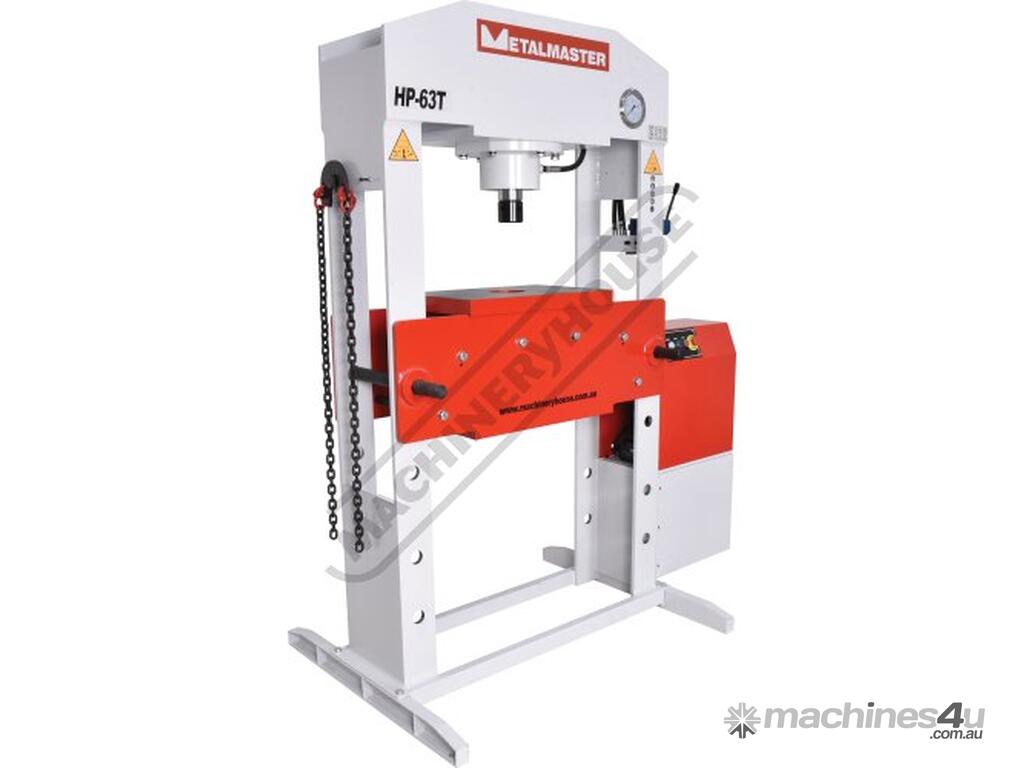

METALMASTER HP-63T Industrial Motorised Hydraulic Press - 63 Tonne Welded Steel Frame Construction Includes Heavy Steel Worktable & Bending Blocks
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: P400

The Metalmaster HP-63T, 63 Tonne electric/hydraulic press is ideal for pressing, bending, forming, straightening and a whole variety of operations. The hydraulic system is equipped with a pressure guage and a joystick lever to control the operation. A heavy one piece steel workplate and a pair of pressing blocks are supplied as standard equipment.

Features:
H frame design with welded steel frame construction
Electric/Hydraulic operation provides smooth consistent pressing action

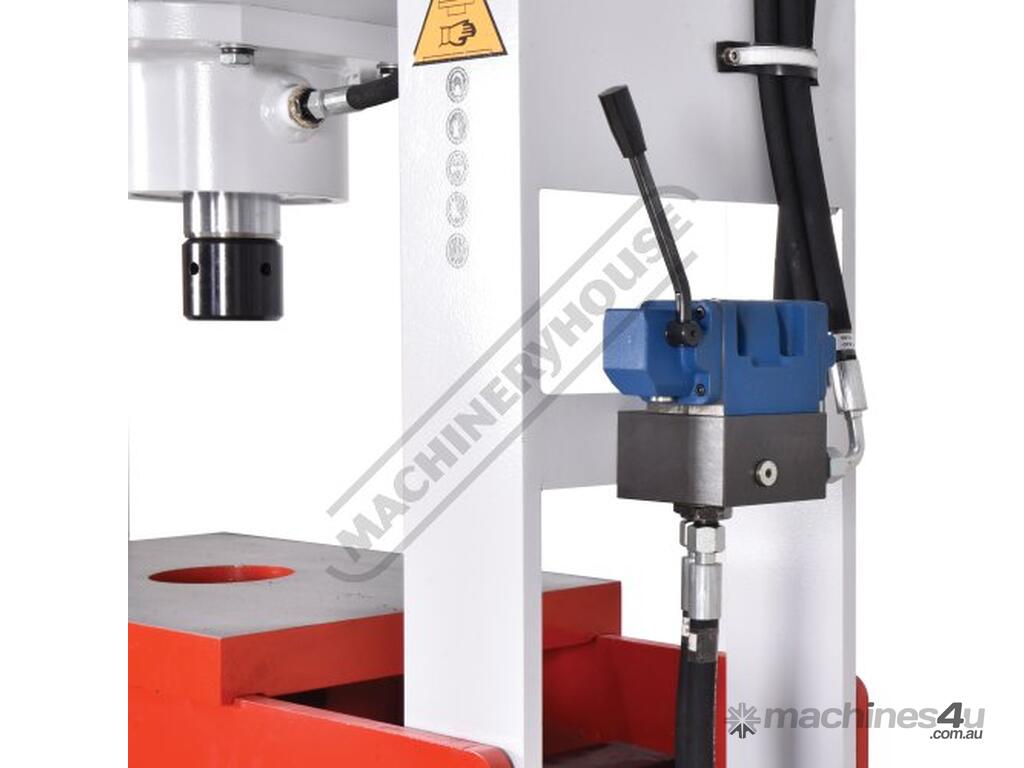

Joystick control for ram stroke and return
300mm Ram stroke
Ram speed down 7.7mm/sec returns 6.5mm/sec
Pressure gauge fitted for easy control of pressing operations
Height adjustable worktable with 5 adjustment positions
Heavy one piece steel work plate and pressing blocks

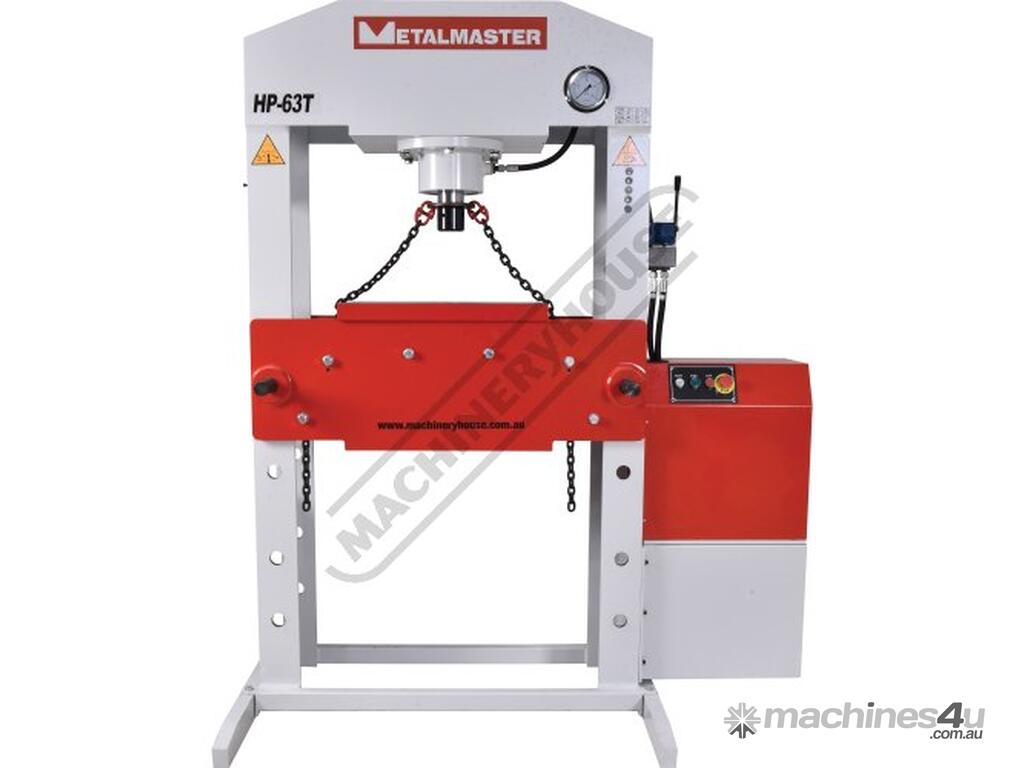

Work table height easily adjusted with the assiatnce of the ram

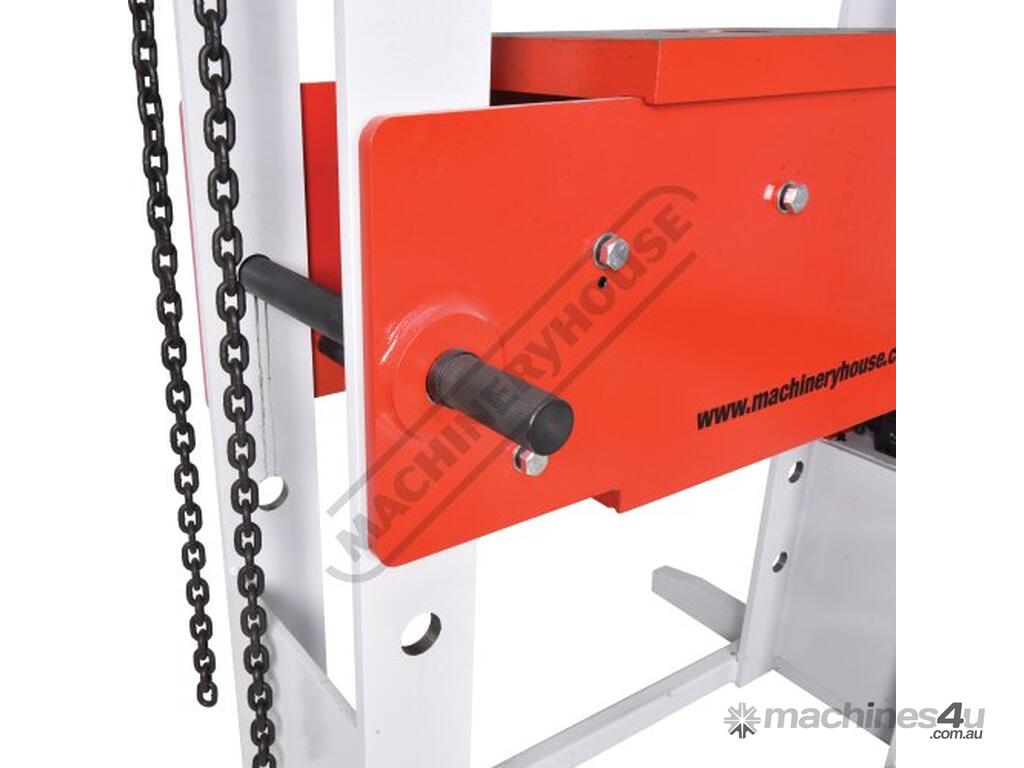

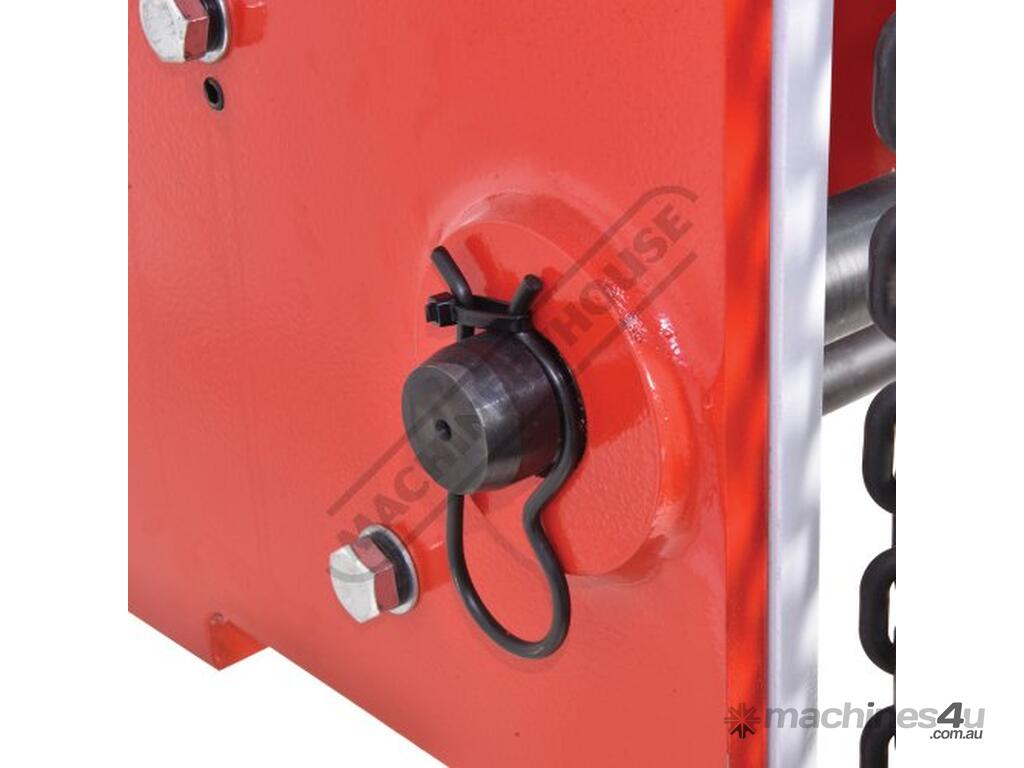

Reinforced table support holes with high tensile setting pins
Safety overload valve
Powerful TEFC motor
Ideal for any industrial workshop for the repair of axles shafts & press fit of bearings & bushings

Includes:
- Heavy one piece steel work plate
- Pair of double sided pressing blocks (Vee & Flat)

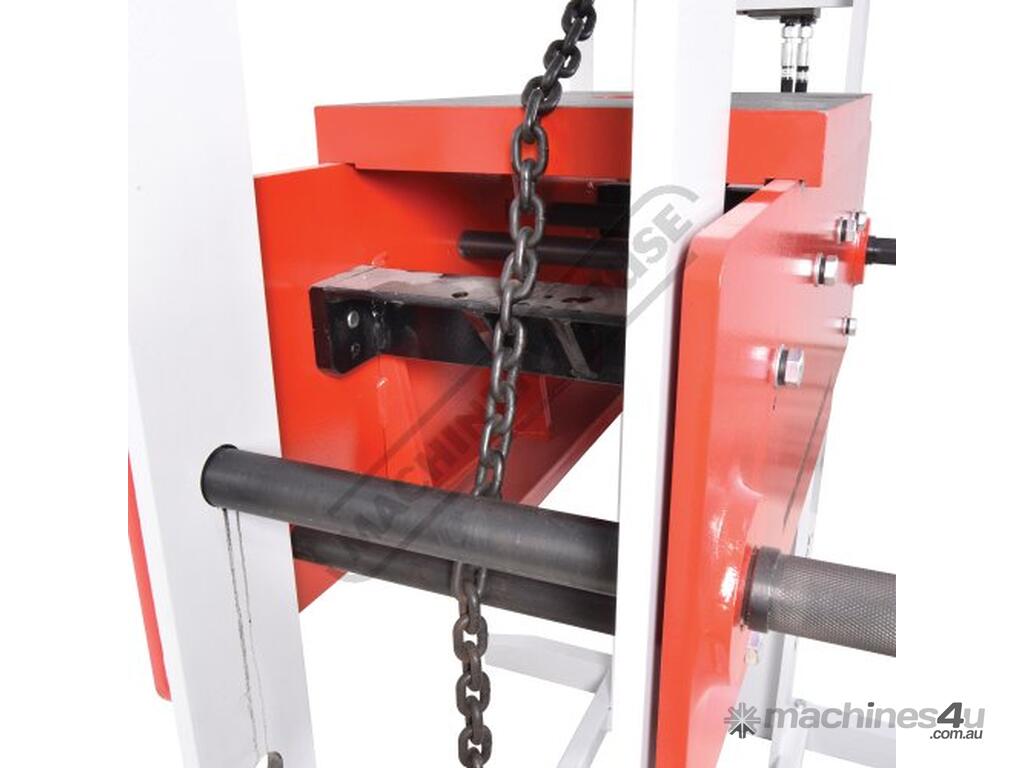

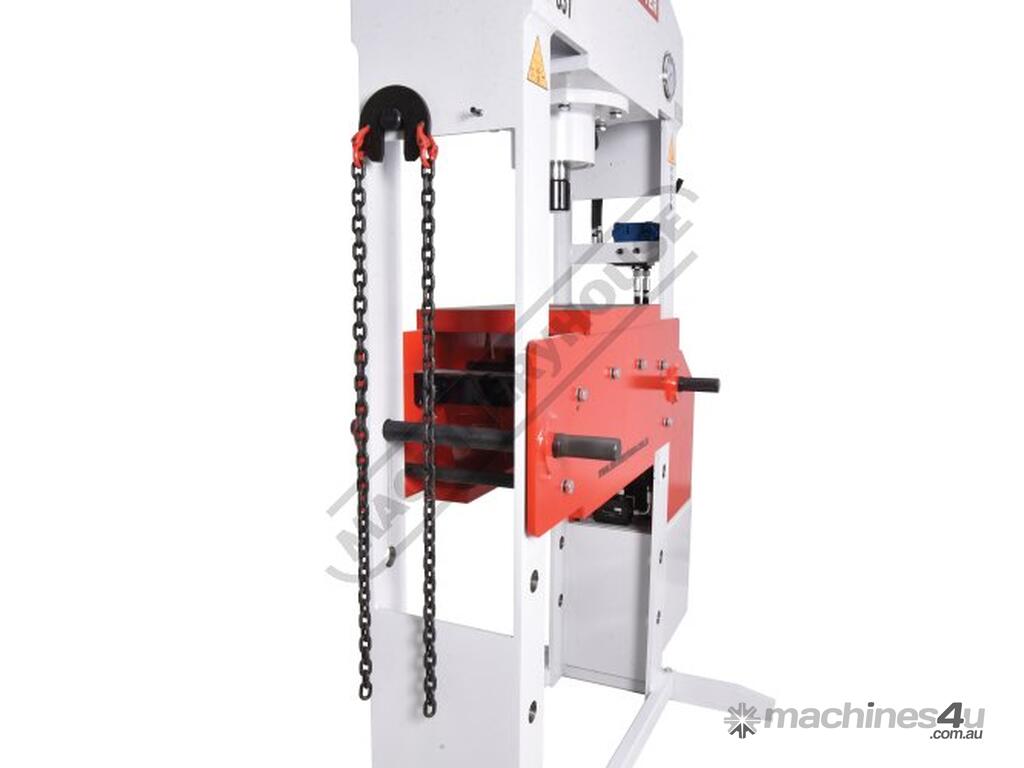

- Table raising and lowering chains



Specifications:
ORDER CODE: P400
MODEL: HP-63T
Pressing Capacity (Tonne): 63
Hydraulic Ram Operation (Type): Motorised System
Hydraulic Ram Operation (Type): ~
Sliding Ram (left-right) (Yes / No): No
Width Between Front Posts (mm): 895
Width Between Side Posts (mm): 275
Table Top Opening - (Front to Back) (mm): 325
Ram To Table (Max.) (mm): 900
Cylinder Stroke (mm): 300

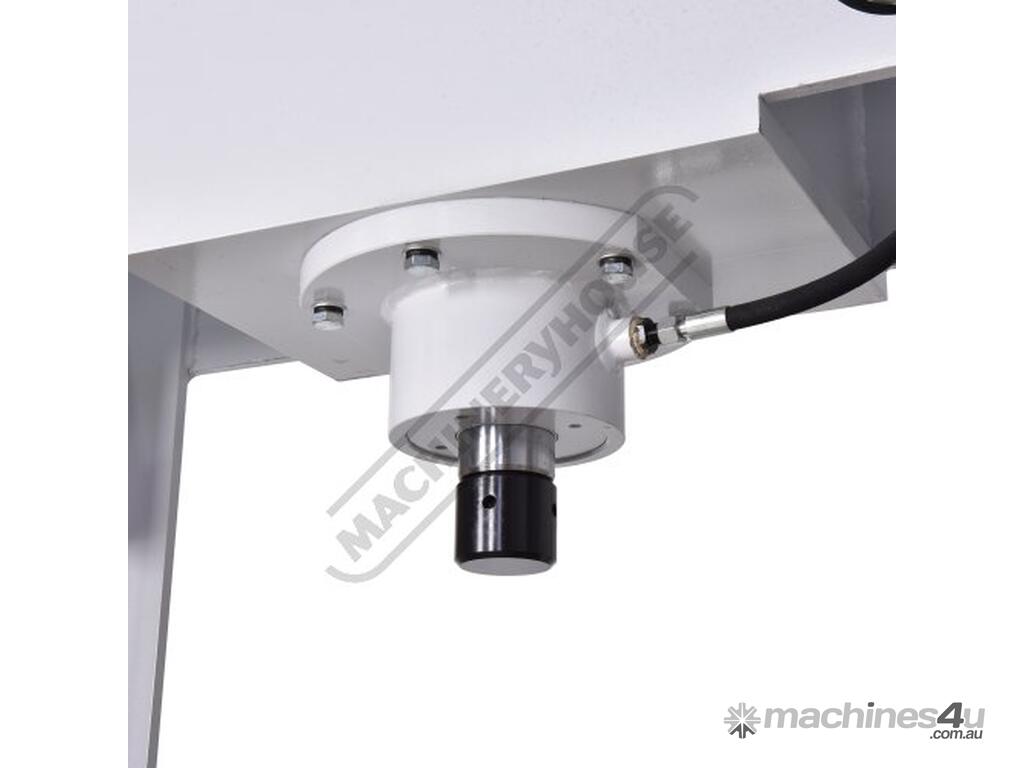

Ram Diameter (mm): Ø80
Piston Diameter (mm): ~
Minimum Air Flow Rate required (L/Min): ~
Motor Power (kW / hp): 4 / 5.3
Voltage (V): 415
Floor Space (W x D x H) (mm): 1700 x 1000 x 2070
Nett Weight (kg): 869
