HPF-20 Trade Hydraulic Press - 20 Tonne Robotic Welded Steel Frame Construction Includes Adjustable

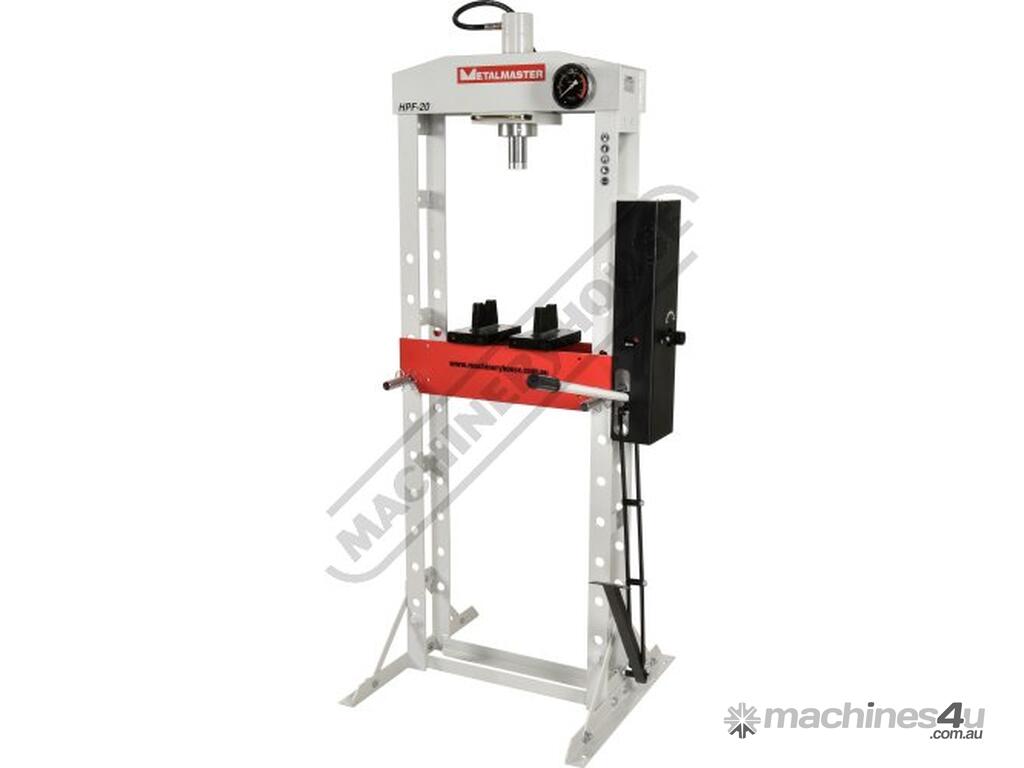

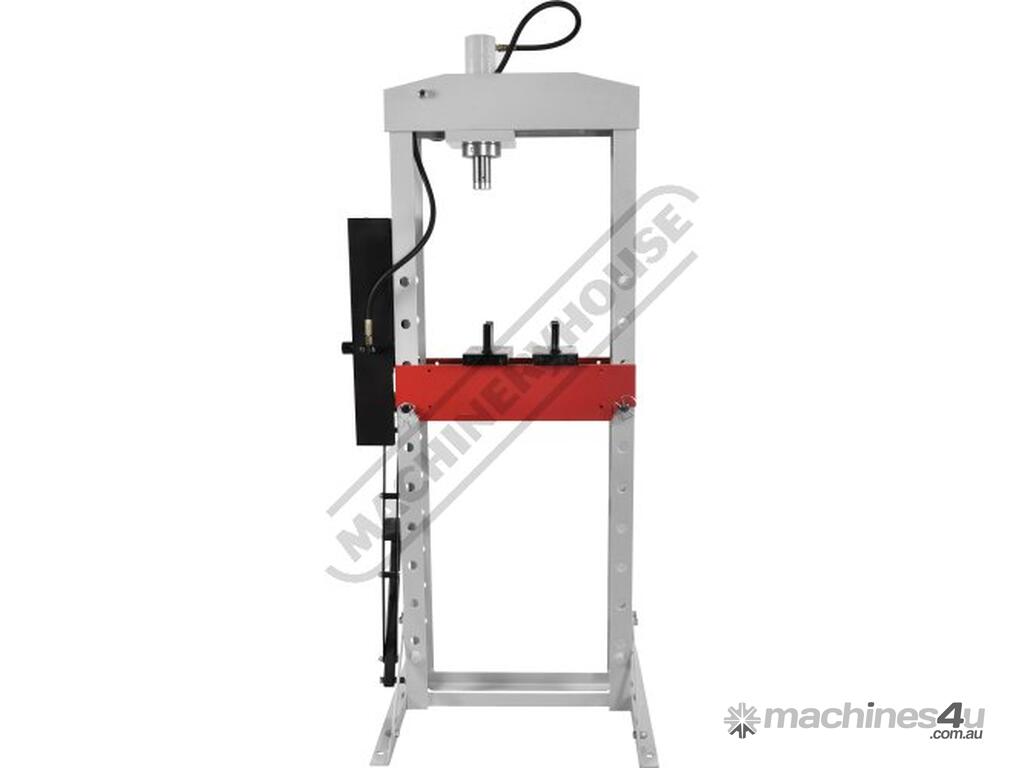

METALMASTER HPF-20 Trade Hydraulic Press - 20 Tonne Robotic Welded Steel Frame Construction Includes Adjustable Sliding Cylinder Ram, Foot & Hand Operated Pump, Pressure Gauge & Bending Vee Blocks
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: P150

The Metalmaster HPF-20 20 trade press has a variety of uses, ideal for removing and installing bushes, ball joints, bearings, gears, pulleys etc. The HPF-20 includes a convenient hand or foot operated pump that allows you to have both hands on your job when operating the foot pump.

This 20 tonne press has a fully robotic welded frame for the highest quality, accuracy and provides extra rigidity; and is a step above the other standard versions that's found in today's market. The HPF-20 press is supplied with a pressure gauge & two heavy duty pressing plates, making it ideal for mechanics or the serious home workshop.

Features:
Ideal for removing and installing - Bushing Ball-joints Bearings Gears Pulleys etc

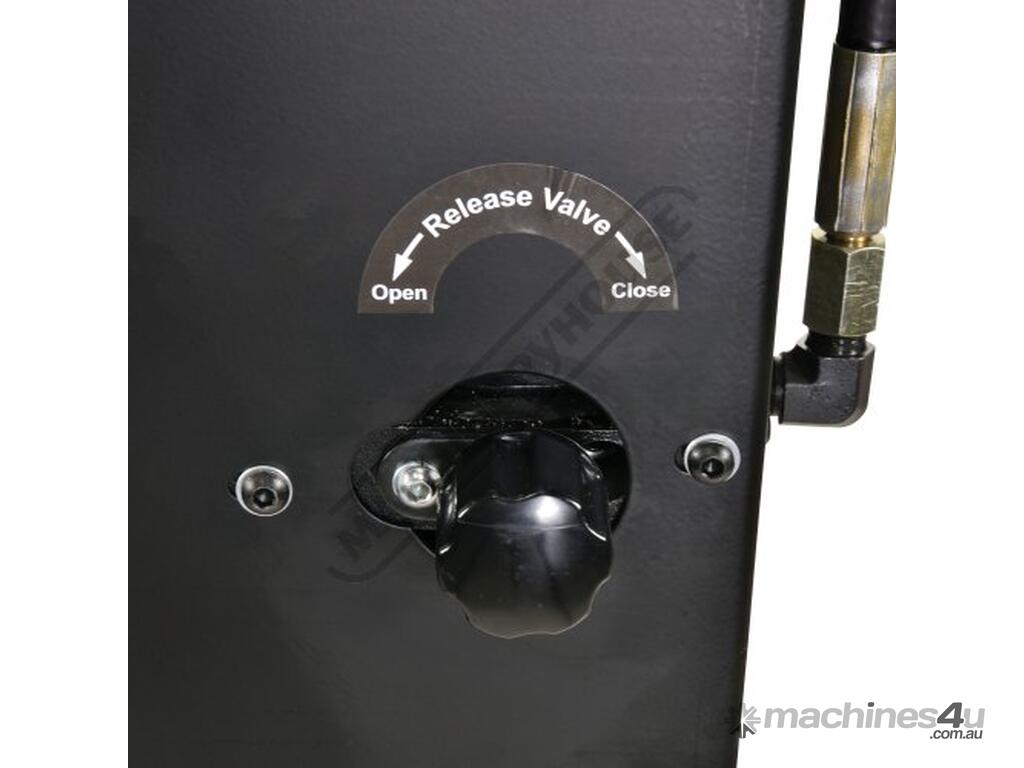

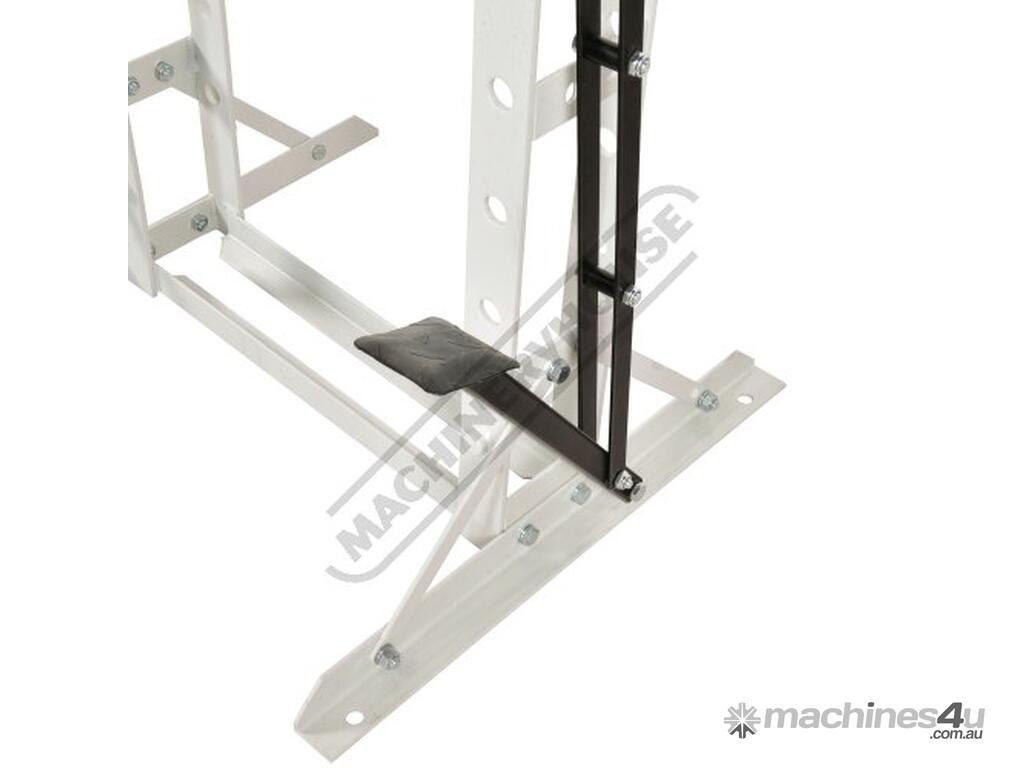

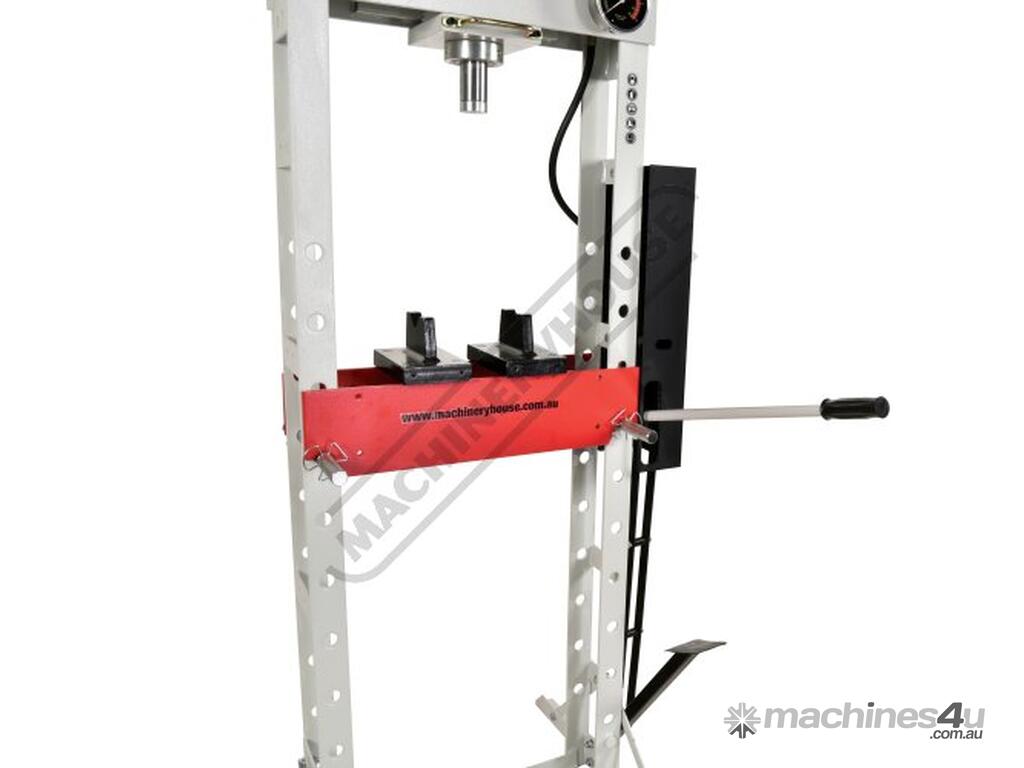

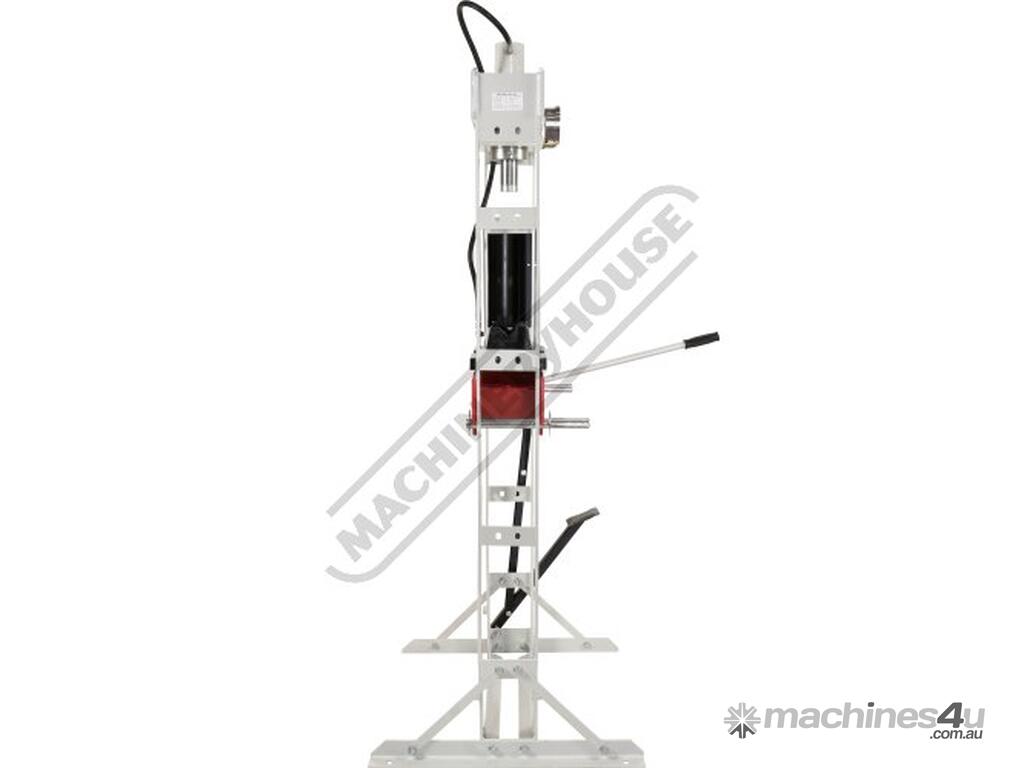

Foot or hand operated pump
Heavy duty steel construction with robotic welded frame
Hydraulics assembled in a temperature controlled clean room for maximum quality
Hydraulics individually factory tested prior to shipping.

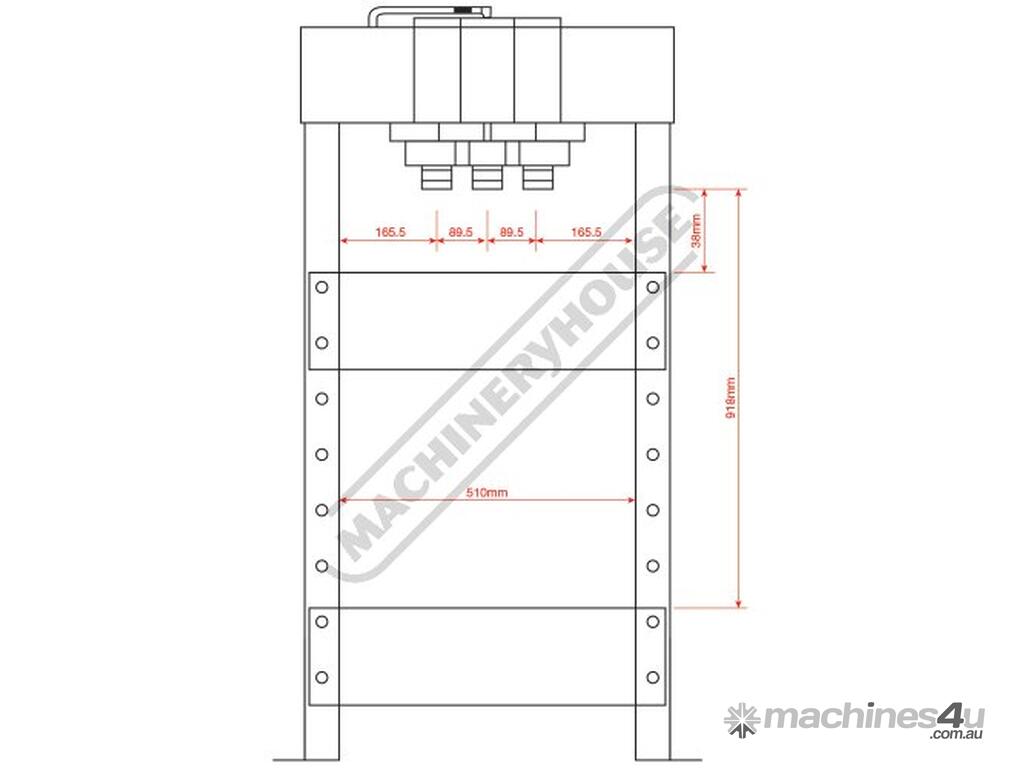

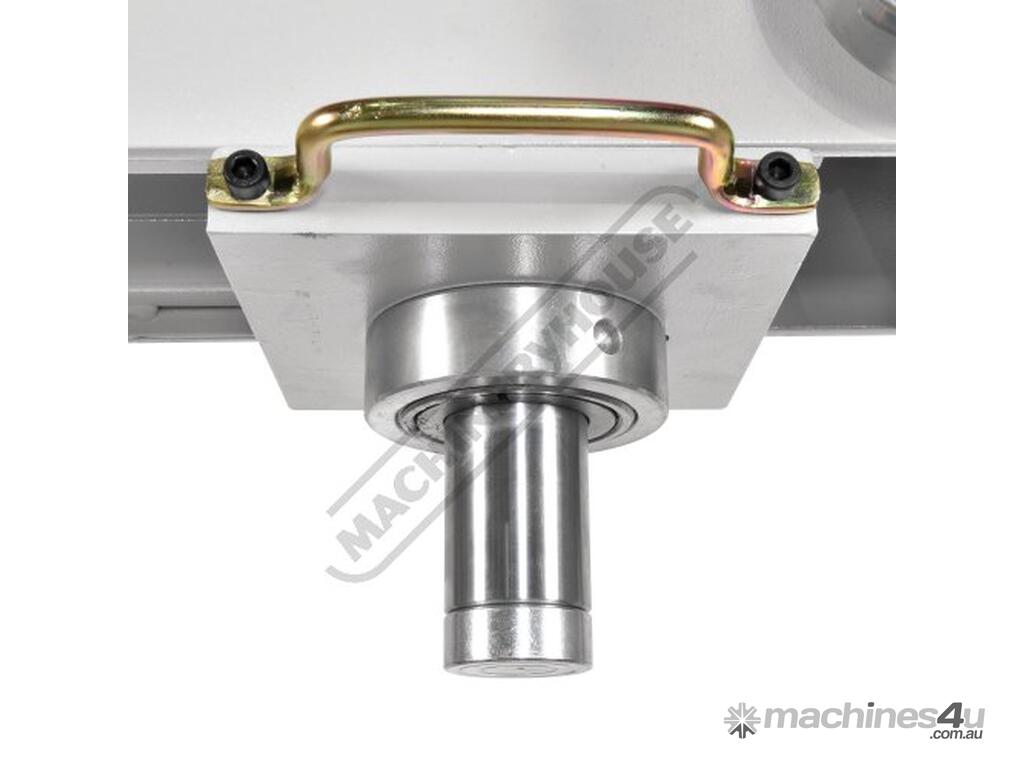

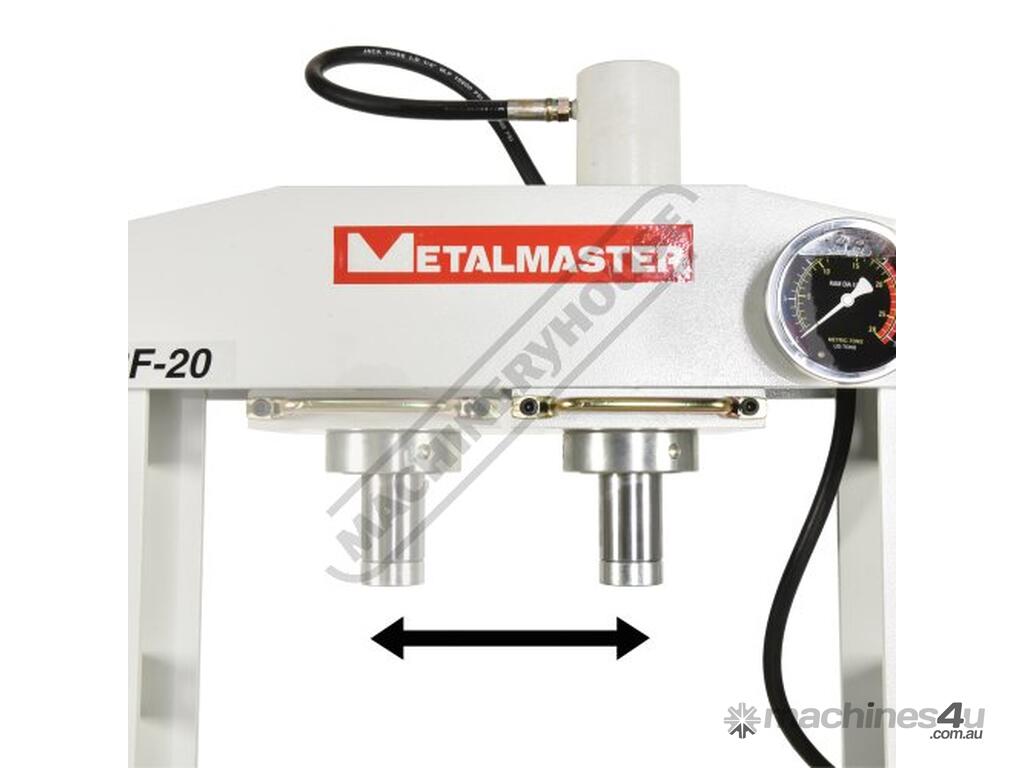

Adjustable sliding head up to 175mm travel between the vertical post

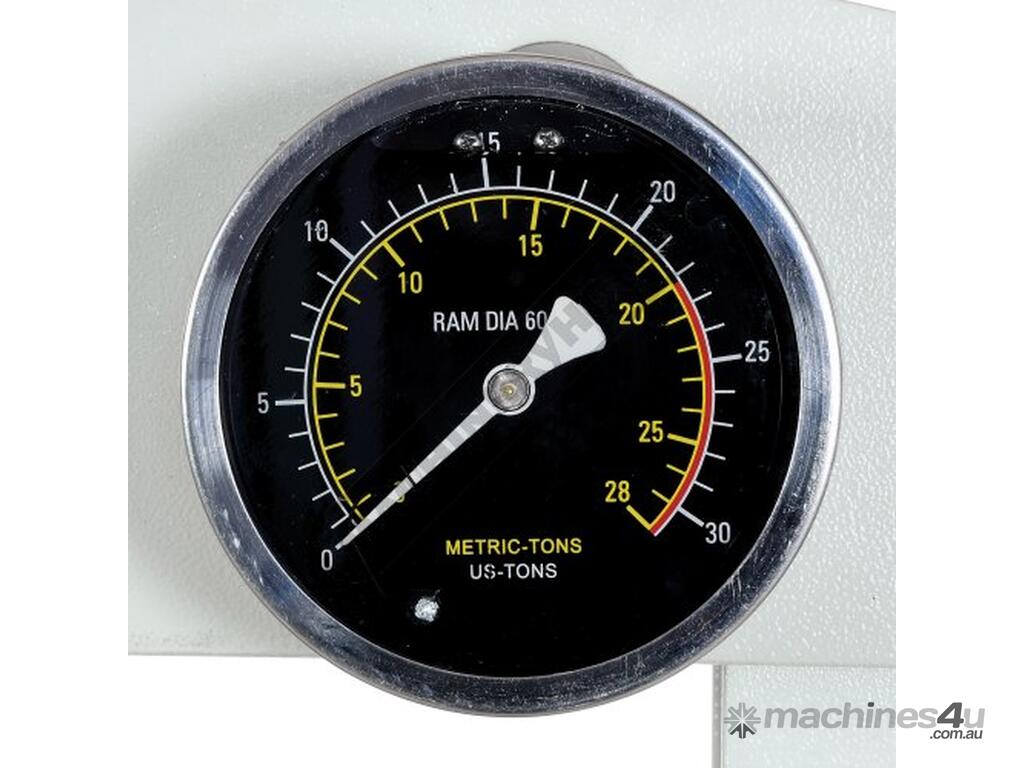

Metric / imperial pressure gauge included

Includes:

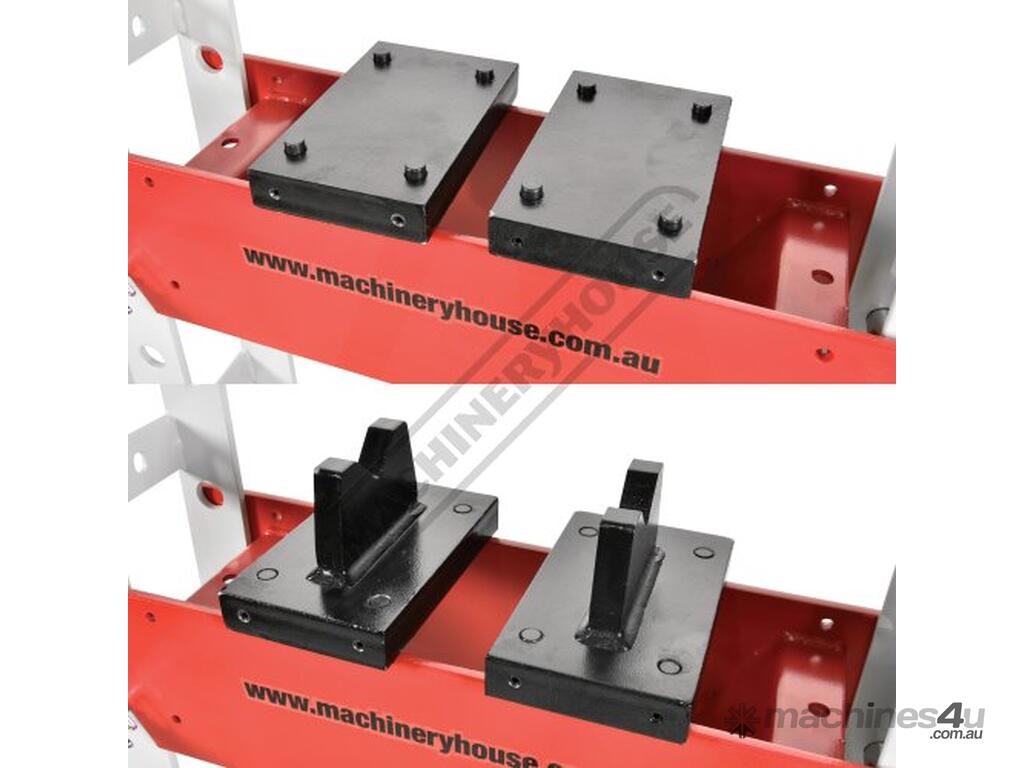

- Complete with vee blocks



Specifications:
ORDER CODE: P150
MODEL: HPF-20
Pressing Capacity (Tonne): 20
Hydraulic Ram Operation (Type): Manual Hand Lever /
Hydraulic Ram Operation (Type): Foot Pedal System
Sliding Ram (left-right) (Yes / No): Yes
Width Between Front Posts (mm): 510
Width Between Side Posts (mm): 132
Table Top Opening - (Front to Back) (mm): 152
Ram To Table (Max.) (mm): 1118
Cylinder Stroke (mm): 150
Ram Diameter (mm): Ø48
Piston Diameter (mm): Ø60
Minimum Air Flow Rate required (L/Min): ~
Motor Power (kW / hp): ~
Voltage (V): ~
Floor Space (W x D x H) (mm): 1000 x 800 x 1830
Nett Weight (kg): 147
