METALMASTER HPF-50 Industrial Hydraulic Press - 50 Tonne Robotic Welded Steel Frame Construction Includes Adjustable Sliding Cylinder Ram, Foot & Hand Operated Pump, Table Winch, Pressure Gauge & Bending Vee Blocks
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: P152

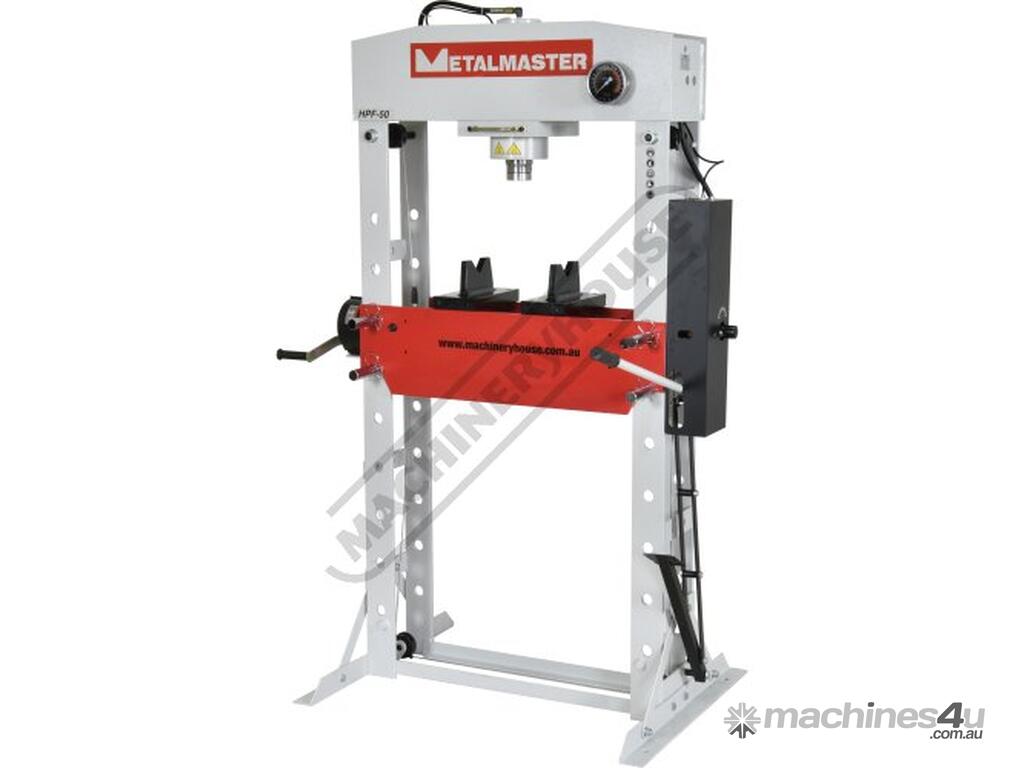

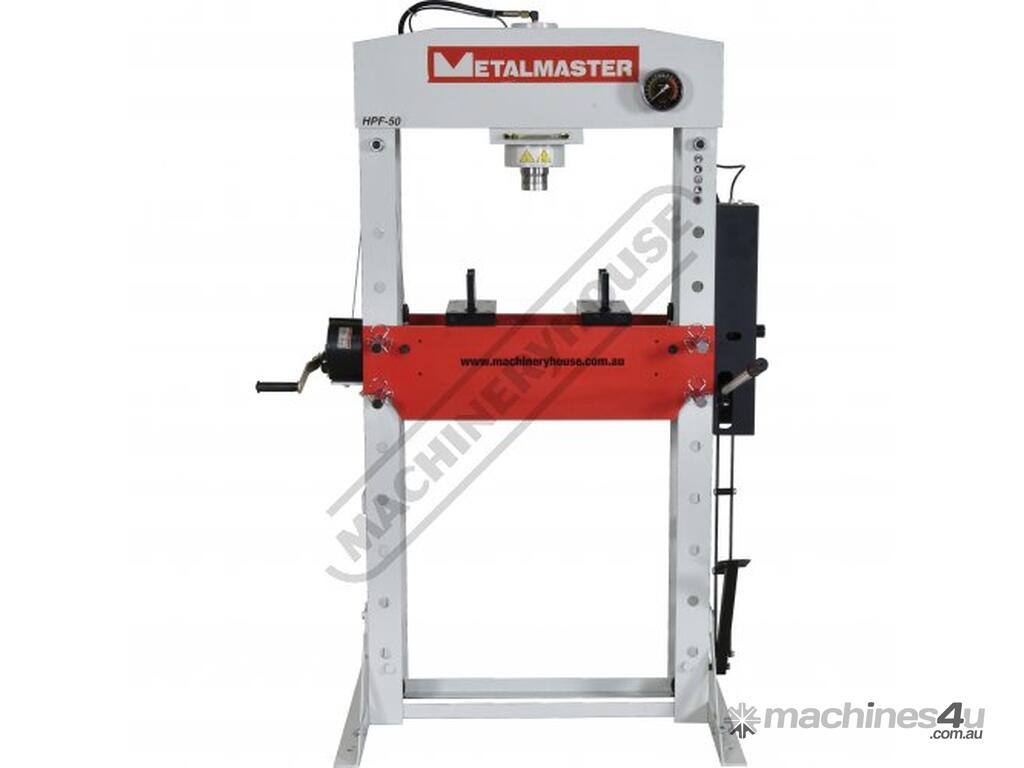

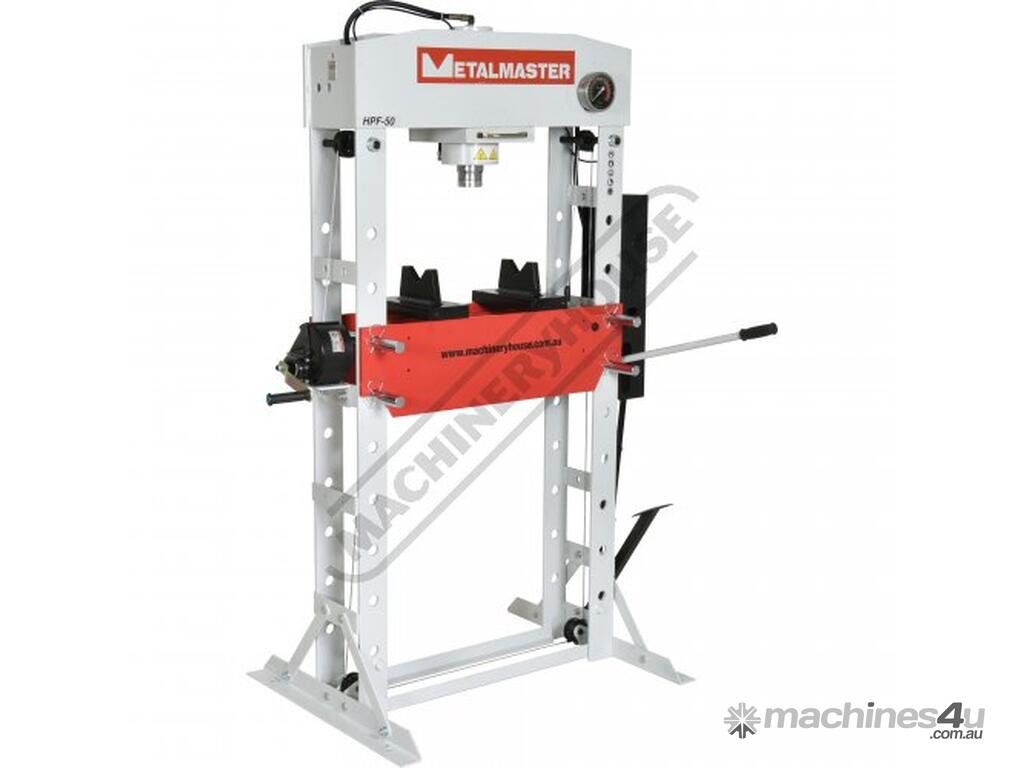

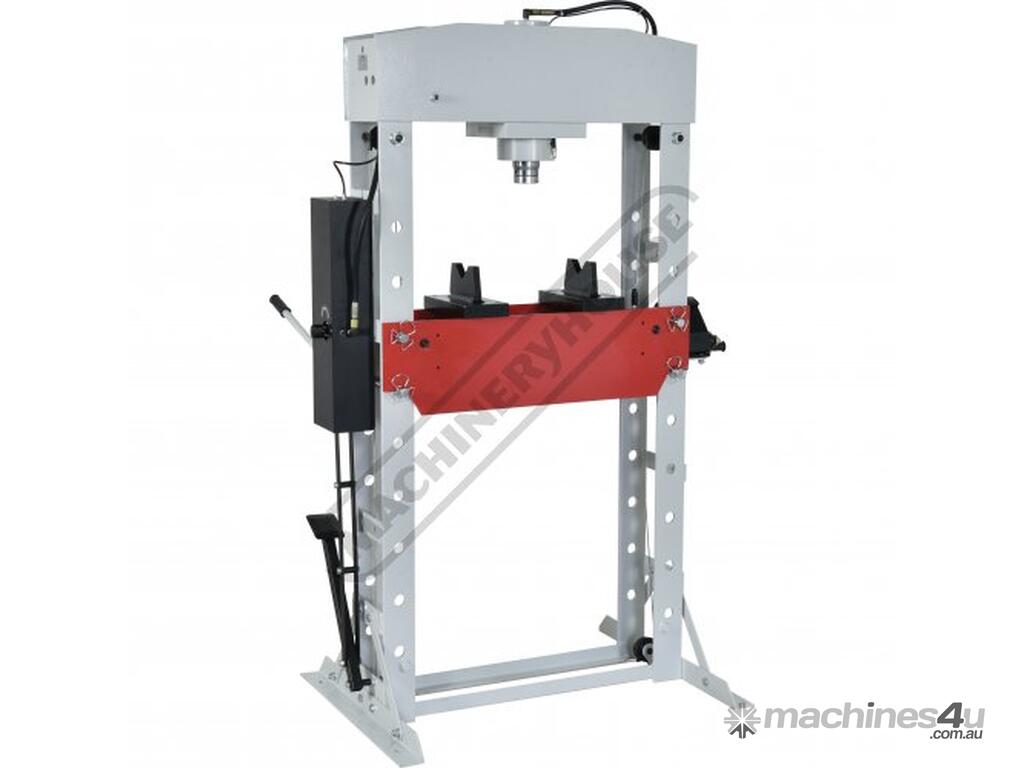

The Metalmaster HPF-50 50 tonne trade press is a versatile tool designed for a variety of applications, including the removal and installation of bushes, ball joints, bearings, gears, pulleys, and more. It features a convenient hand or foot-operated pump, allowing the operator to keep both hands on the workpiece while using the foot pump for ease of operation. Additionally, the hydraulic pump is equipped with an auto 2-stage hydraulic pump for a rapid advance and a slower working pressure.

This 50 tonne press has a fully robotic welded frame for the highest quality, accuracy and provides extra rigidity; and is a step above the other standard versions that's found in today's market. The HPF-50 press is supplied with a pressure gauge & two heavy duty pressing plates, making it ideal for professional mechanics or industrial workshops.

Features:
Ideal for removing and installing - Bushing Ball-joints Bearings Gears Pulleys etc

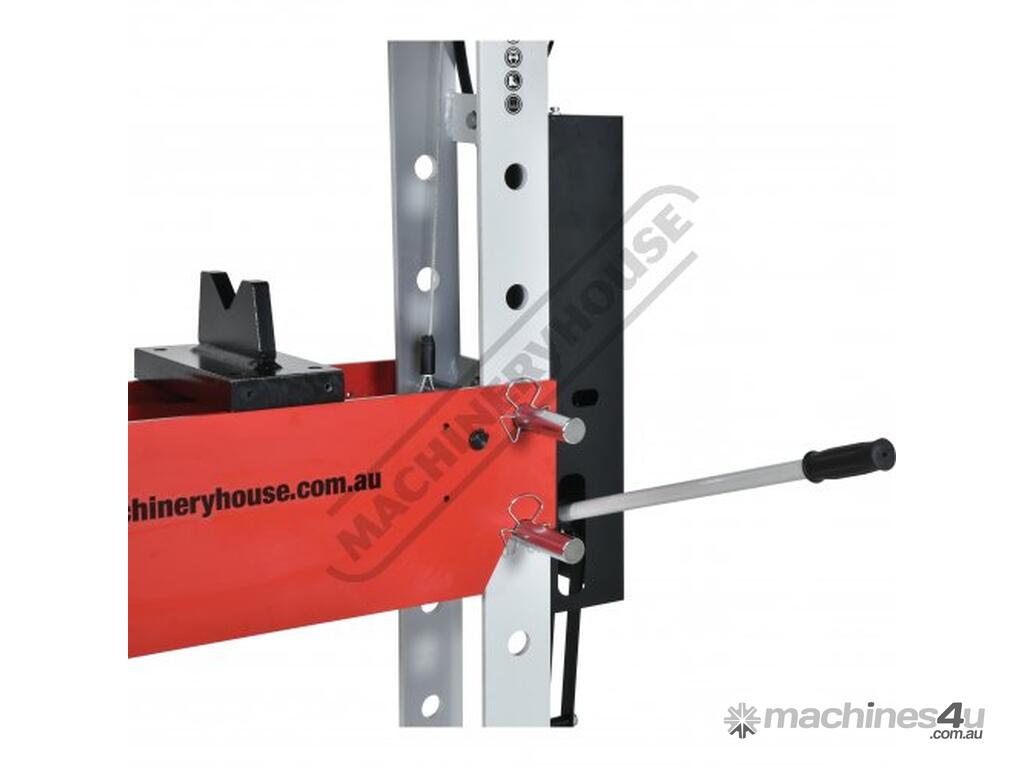

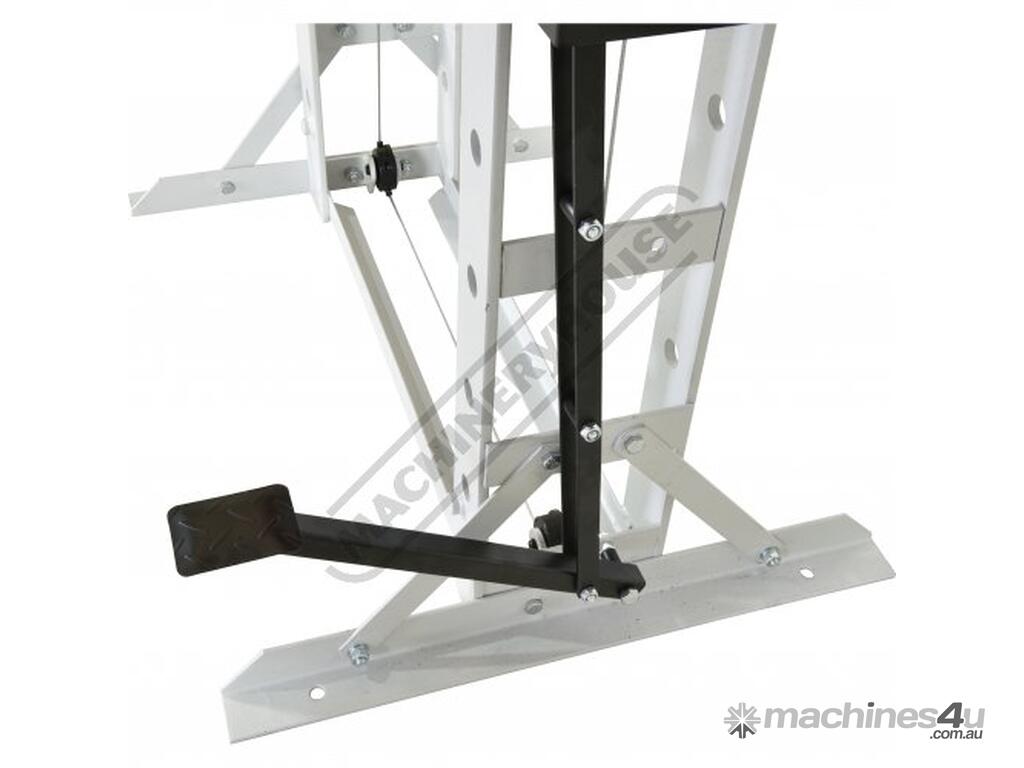

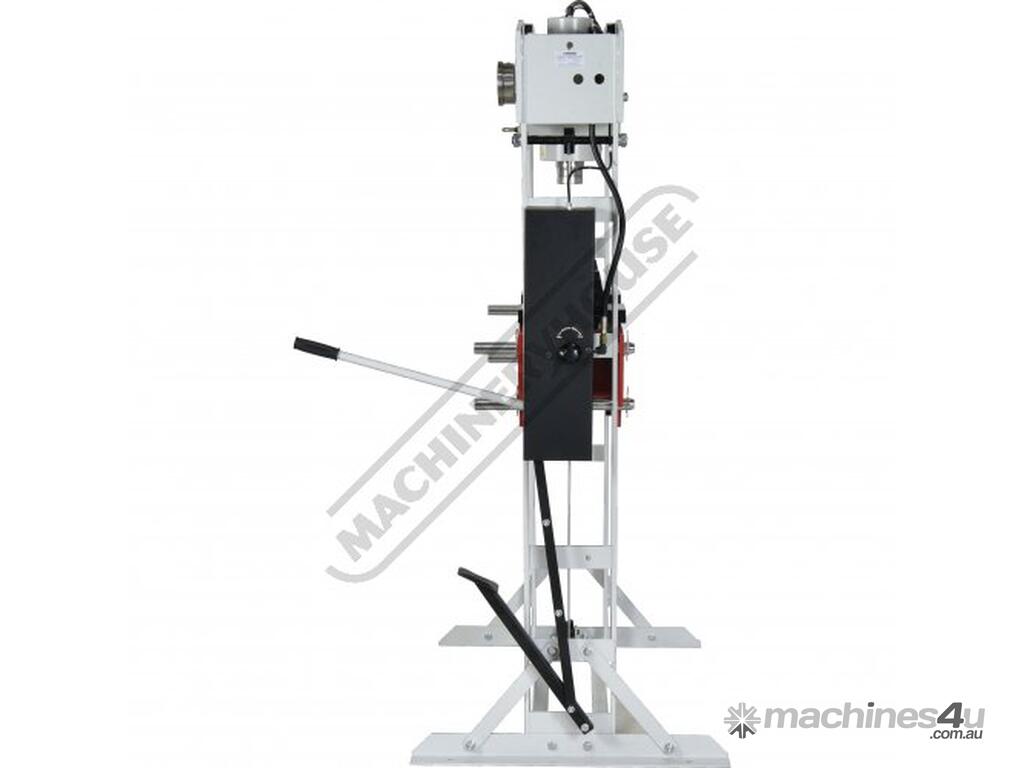

Foot or hand operated pump
Heavy duty steel construction with robotic fully welded frame
Auto 2-stage hydraulic pump for a rapid advance and a slower working pressure
Hydraulics assembled in a temperature controlled clean room for maximum quality
Hydraulics individually factory tested prior to shipping.

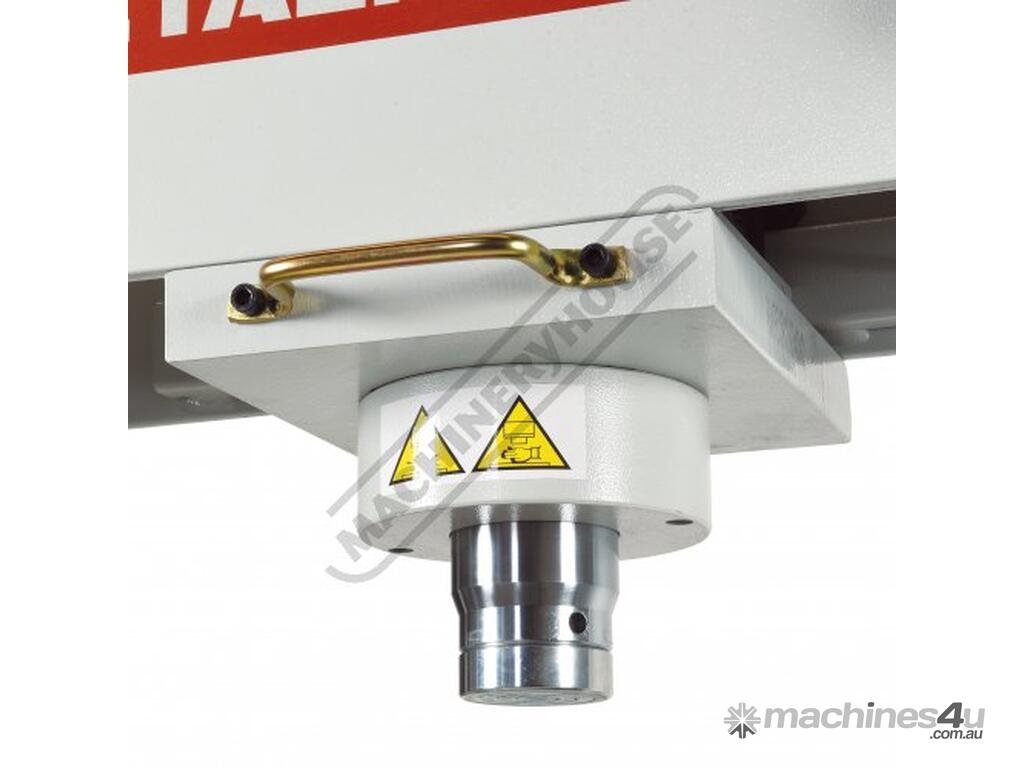

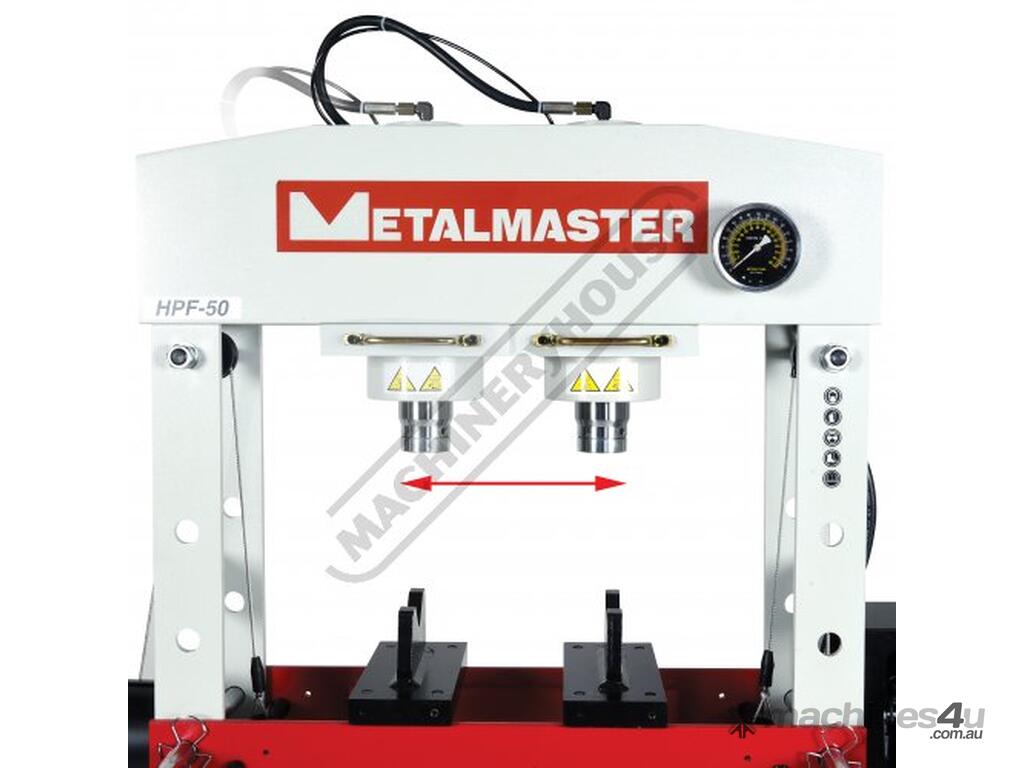

Adjustable sliding head up to 240mm travel between the vertical post

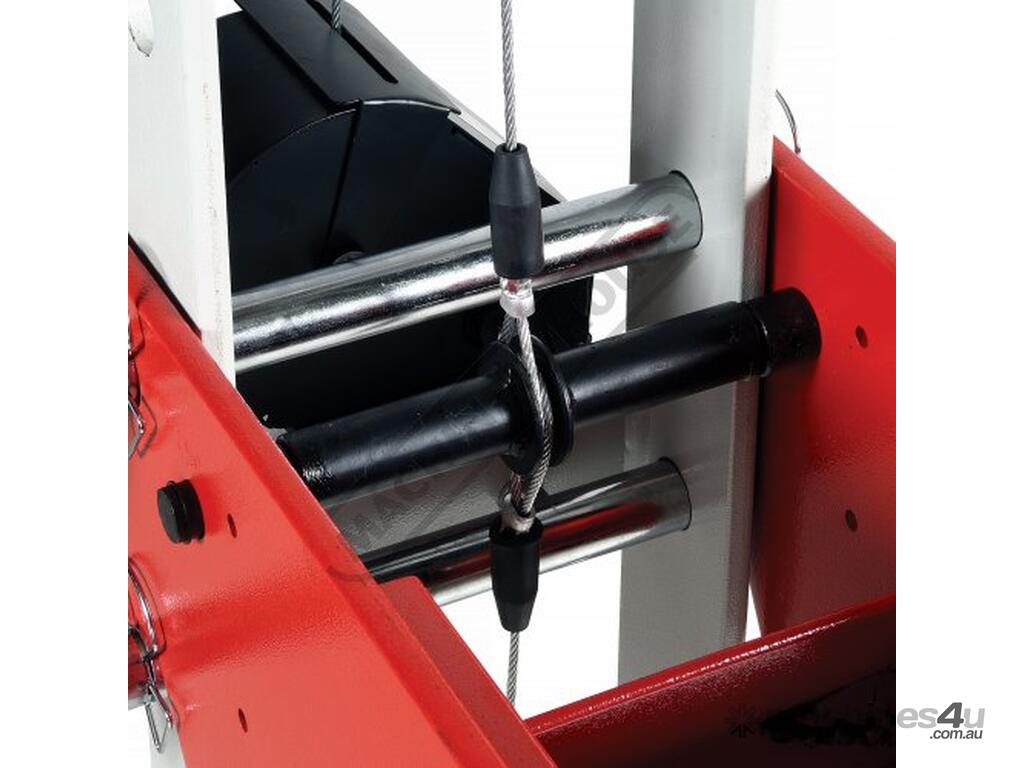

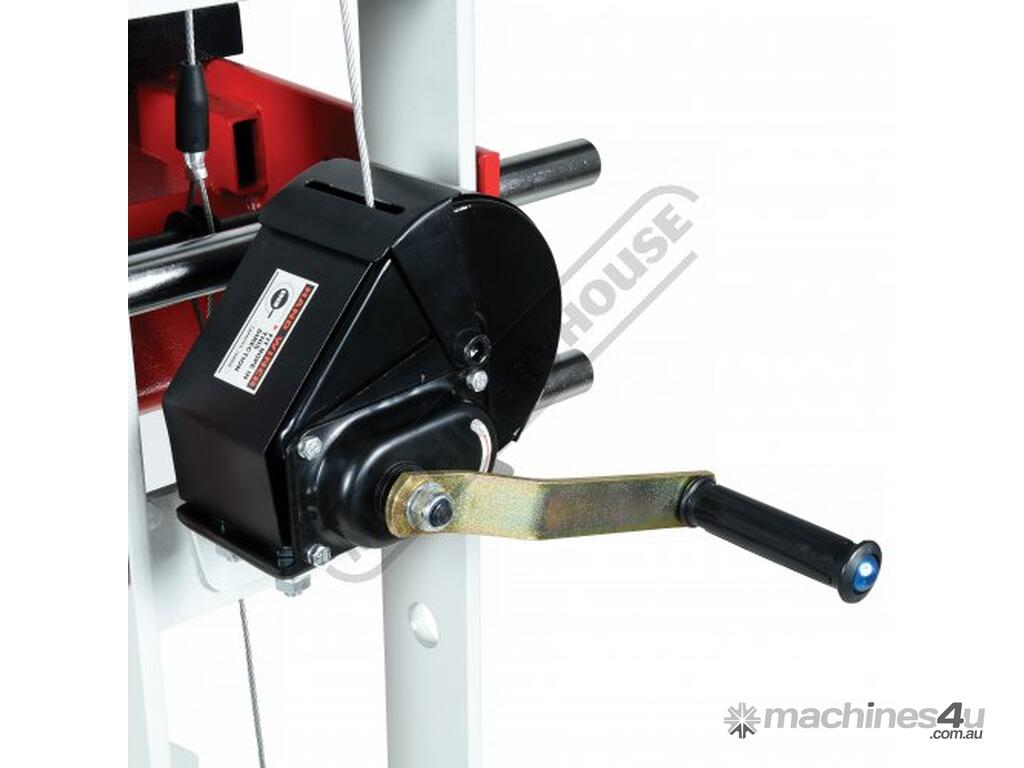

Table height adjusting winch included

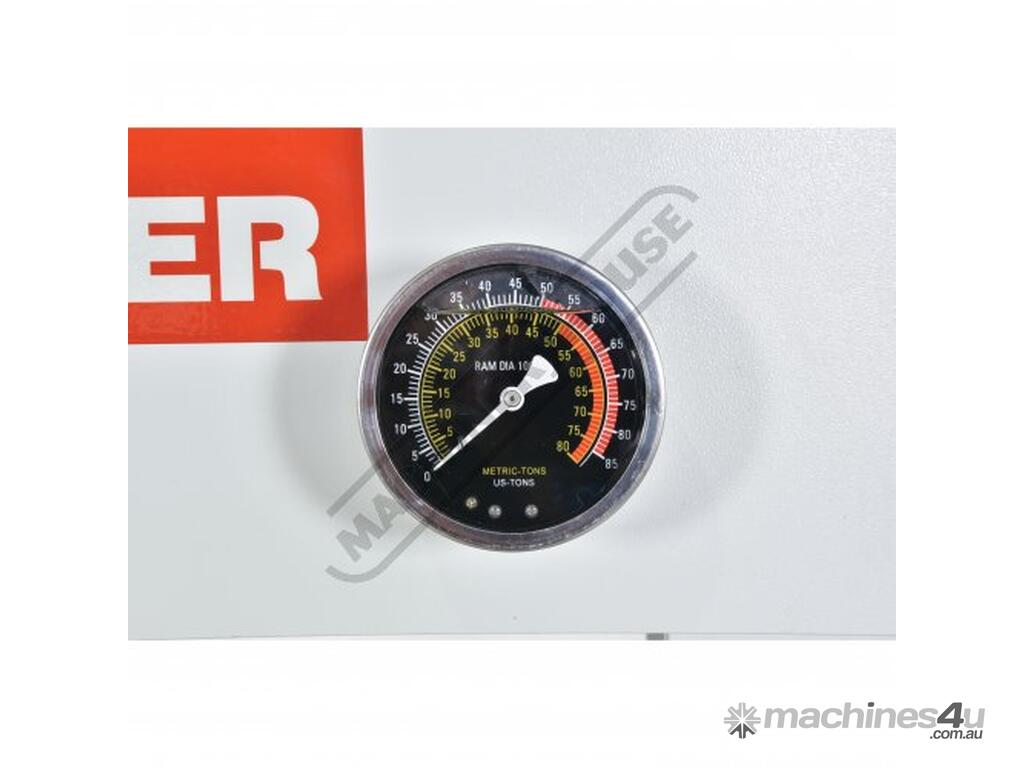

Metric / imperial pressure gauge included

Includes:

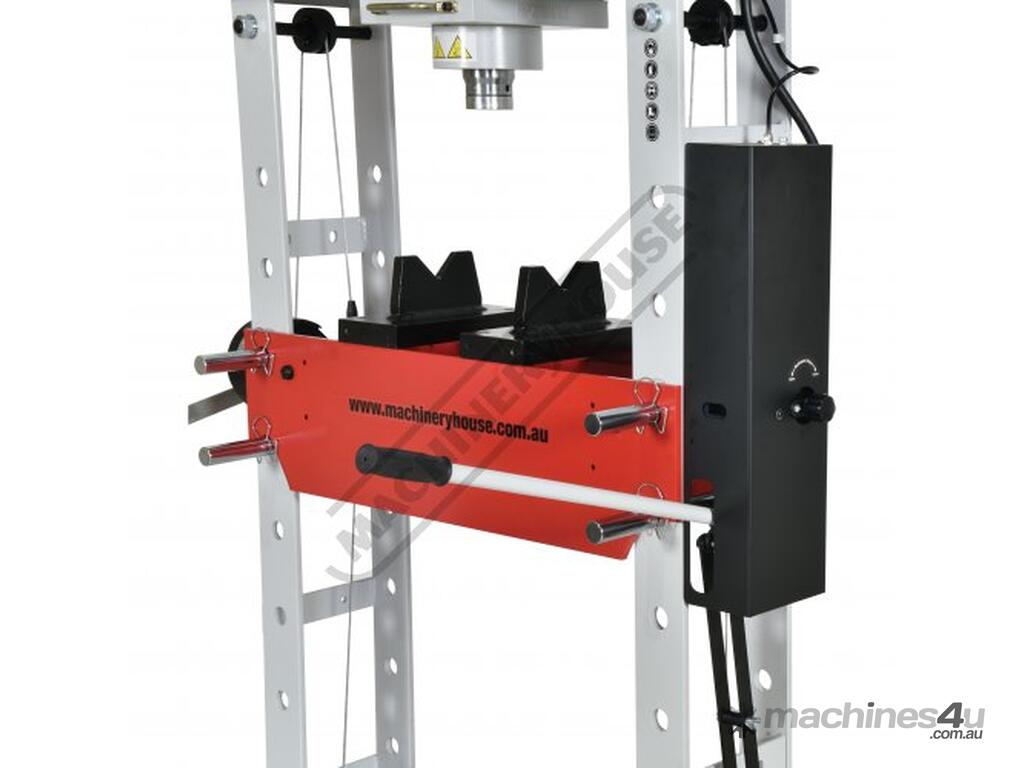

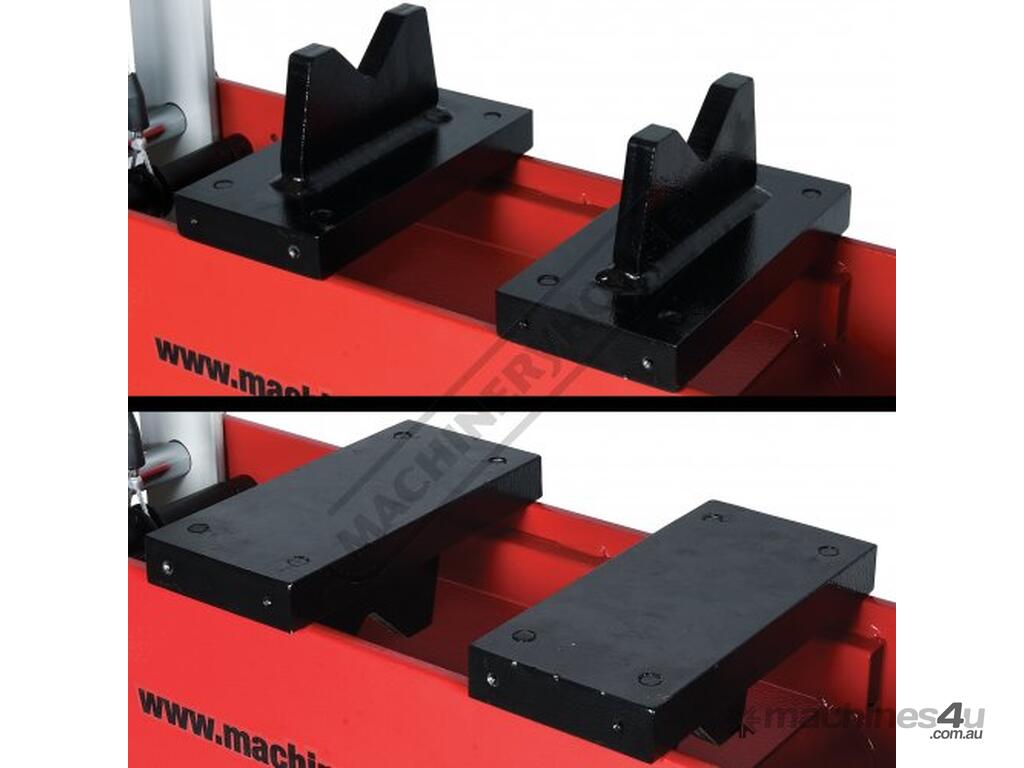

- Complete with vee blocks



Specifications:
ORDER CODE: P152
MODEL: HPF-50
Pressing Capacity (Tonne): 50
Hydraulic Ram Operation (Type): Manual Hand Lever /
Hydraulic Ram Operation (Type): Foot Pedal System
Sliding Ram (left-right) (Yes / No): Yes
Width Between Front Posts (mm): 730
Width Between Side Posts (mm): 205
Table Top Opening - (Front to Back) (mm): 185
Ram To Table (Max.) (mm): 1050
Cylinder Stroke (mm): 200
Ram Diameter (mm): Ø75
Piston Diameter (mm): Ø100
Minimum Air Flow Rate required (L/Min): ~
Motor Power (kW / hp): ~
Voltage (V): ~
Floor Space (W x D x H) (mm): 1360 x 800 x 1900
Nett Weight (kg): 340
