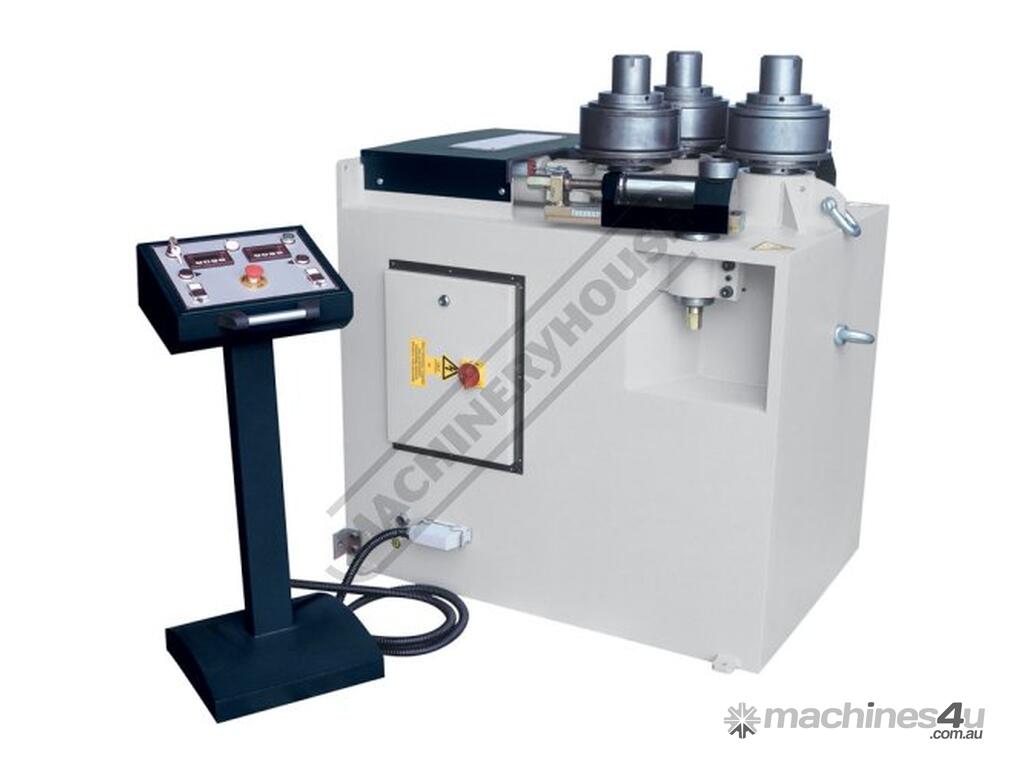

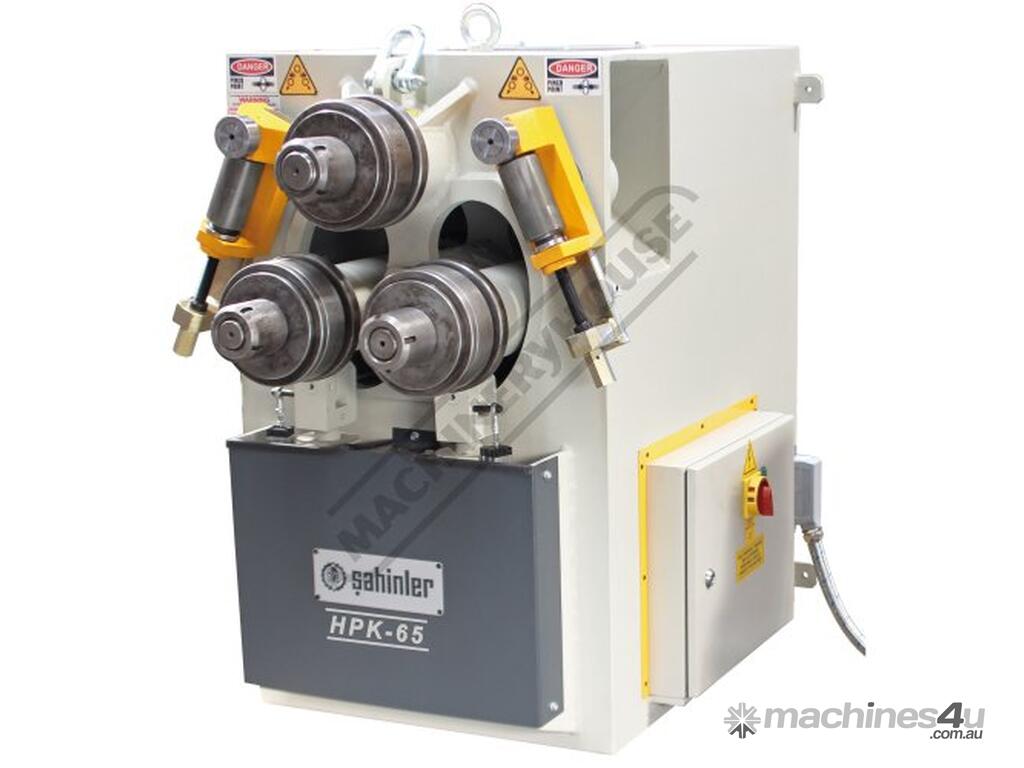

SAHINLER HPK-65 Section & Pipe Rolling Machine 60 x 60 x 6mm Angle Capacity Includes Digital Readout Display & Hydraulic Prebend Rolls
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: S754
Features:
Rolls are hardened & made from high quality steel
Drive shafts are hardened and ground with double taper roller bearing support
Machine can be set up in horizontal or vertical working position

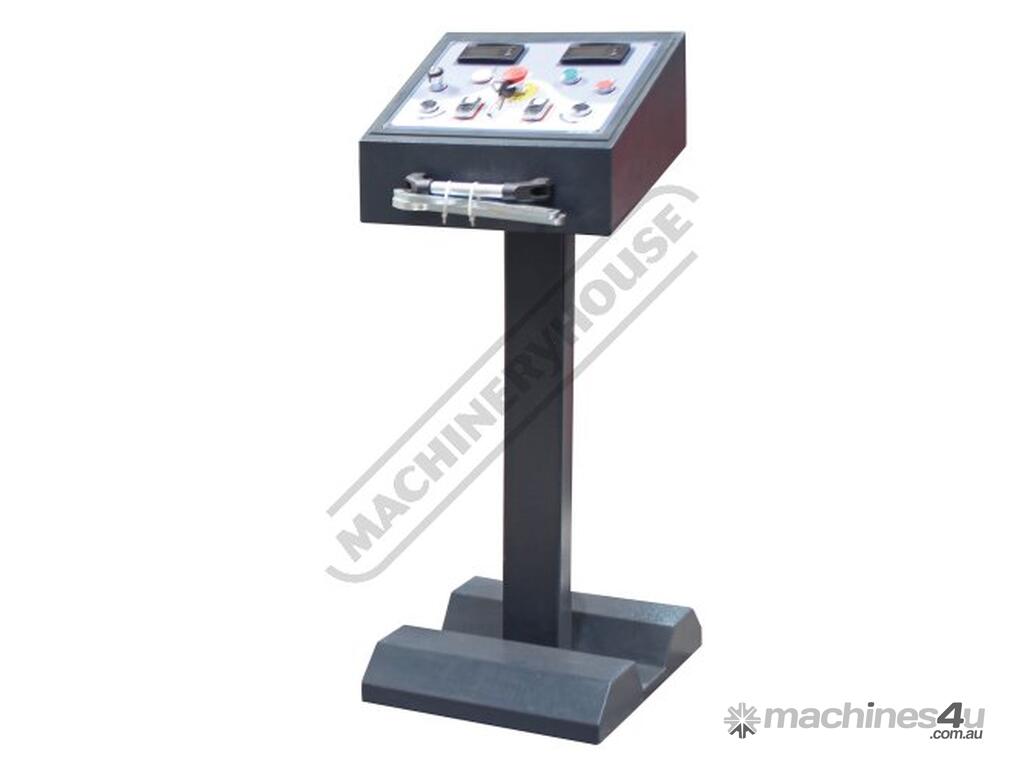

Roving foot pedal control with emergency stop
Three rollers are powered
European quality
Includes:
- Includes standard rolls and guide rolls
- Independently adjustable hydraulic bottom rollers for pre-bend
- Two digital readout display
- 3-Axis mechanical lateral angle guide rollers
Specifications:
ORDER CODE: S754
MODEL: HPK-65
Powered Driven Rolls (Qty): 3
Bending Rolls (Type): Hydraulic - Left & Right
Top Roll Shaft Diameter (Ø) (mm): ~
Lower Roll Shaft Diameter (Ø) (mm): ~
Top Roll Diameter (Ø) (mm): 180
Lower Roll Diameter (Ø) (mm): ~
Flat Bar Edge Capacity - MS (size / Ø) (mm): 60 x 10 / 500
Flat Bar Capacity - MS (size / Ø) (mm): 80 x 20 / 500
Square Bar Solid Capacity - MS (size / Ø) (mm): 32 x 32 / 400
Rectangle Tube Capacity - MS (size / Ø) (mm): 50 x 25 x 3 / 450*
Square Tube Capacity - MS (size / Ø) (mm): 45 x 45 x 3 / 600*
Round Bar Solid Capacity - MS (size / Ø) (mm): Ø35 / 350*
Round Tube Capacity - MS (size / Ø) (mm): Ø60 x 2 / 600*
Round Pipe Capacity - MS (size / Ø) (inch / mm): Ø2" x 3.91mm / 400mm*
Angle Capacity - MS (size / Ø) (mm): 60 x 60 x 6 / 650
Motor Power (kW / hp): 3 / 4
Voltage / Amperage (V / amp): 415
Dimensions (L x W x H) (mm): 1200 x 850 x 1200
Note: Requires Additional Tooling (No / Yes*): Yes*
Nett Weight (kg): 1000
