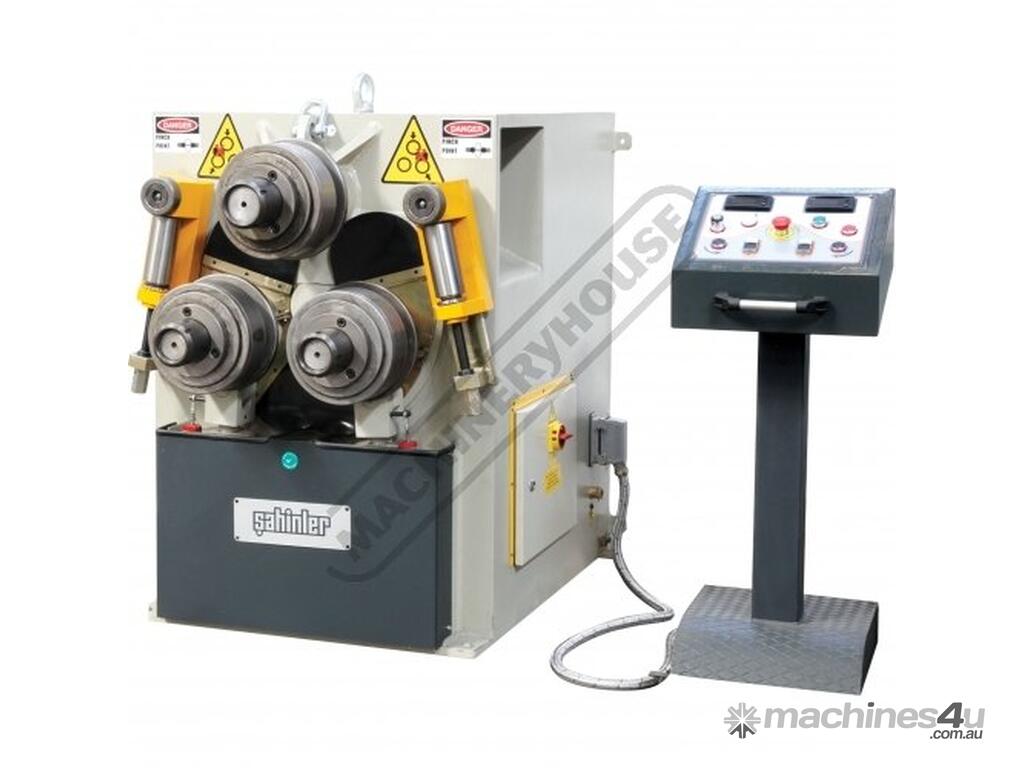

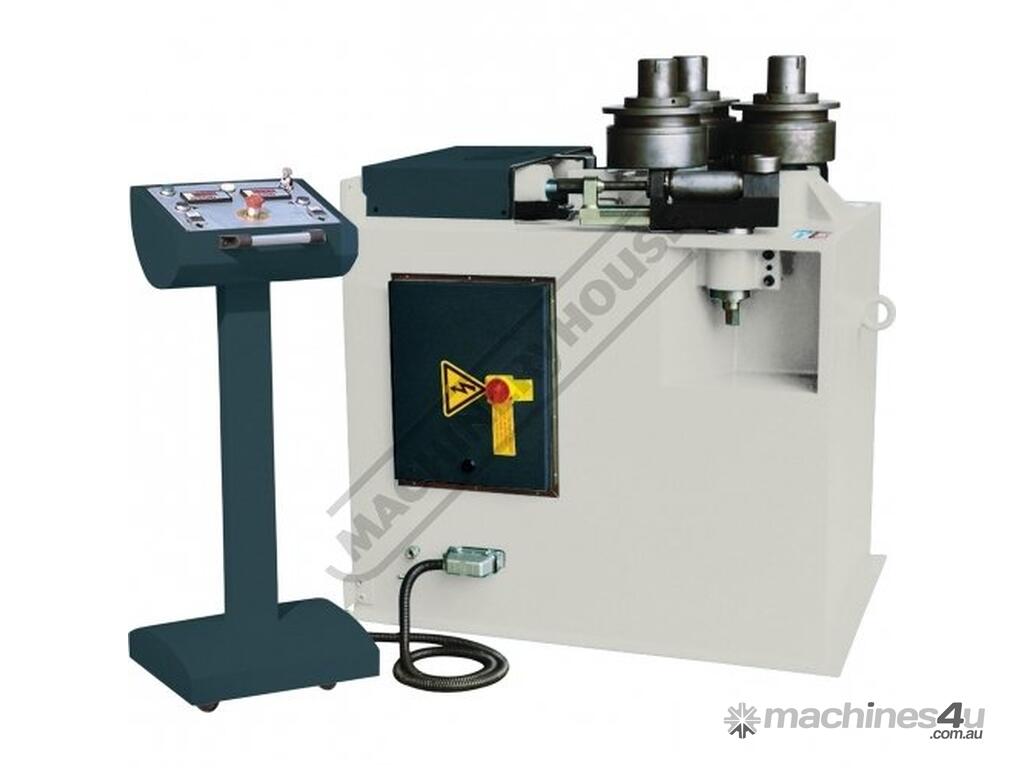

HPK-80 Section & Pipe Rolling Machine 80 x 80 x 8mm Angle Capacity Includes Digital Readout Display

SAHINLER HPK-80 Section & Pipe Rolling Machine 80 x 80 x 8mm Angle Capacity Includes Digital Readout Display & Hydraulic Prebend Rolls
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: S756

Features:
Rolls are hardened & made from high quality steel
Digital readouts with positioning control on each axis
Drive shafts are hardened and ground with double taper roller bearing support
Machine can be set up in horizontal or vertical working position
Roving foot pedal control with emergency stop
Three rollers are powered
European quality

Includes:
- Includes standard rolls and guide rolls
- Independently adjustable hydraulic bottom rollers for pre-bend
- Two digital readout display
- 3-Axis mechanical lateral angle guide rollers
-
-



Specifications:
ORDER CODE: S756
MODEL: HPK-80
Powered Driven Rolls (Qty): 3
Bending Rolls (Type): Hydraulic - Left & Right
Top Roll Shaft Diameter (Ø) (mm): 80
Lower Roll Shaft Diameter (Ø) (mm): 70
Top Roll Diameter (Ø) (mm): 245
Lower Roll Diameter (Ø) (mm): ~
Flat Bar Edge Capacity - MS (size / Ø) (mm): 80 x 20 / 800
Flat Bar Capacity - MS (size / Ø) (mm): 125 x 25 / 600
Square Bar Solid Capacity - MS (size / Ø) (mm): 45 x 45 / 500
Rectangle Tube Capacity - MS (size / Ø) (mm): 80 x 25 x 3 / 800*
Square Tube Capacity - MS (size / Ø) (mm): 70 x 70 x 3 / 1300*
Round Bar Solid Capacity - MS (size / Ø) (mm): Ø50 / 500*
Round Tube Capacity - MS (size / Ø) (mm): Ø100 x 2.5 / 1200*
Round Pipe Capacity - MS (size / Ø) (inch / mm): Ø3" x 5.48mm / 800mm*
Angle Capacity - MS (size / Ø) (mm): 80 x 80 x 8 / 800
Motor Power (kW / hp): 4 / 5.3
Voltage / Amperage (V / amp): 415
Dimensions (L x W x H) (mm): 1450 x 1000 x 1400
Note: Requires Additional Tooling (No / Yes*): Yes*
Nett Weight (kg): 1700
