HPK-80NC NC Section & Pipe Rolling Machine 80 x 80 x 8mm Angle Capacity Includes 3-Axis 7.7" Easy Vi

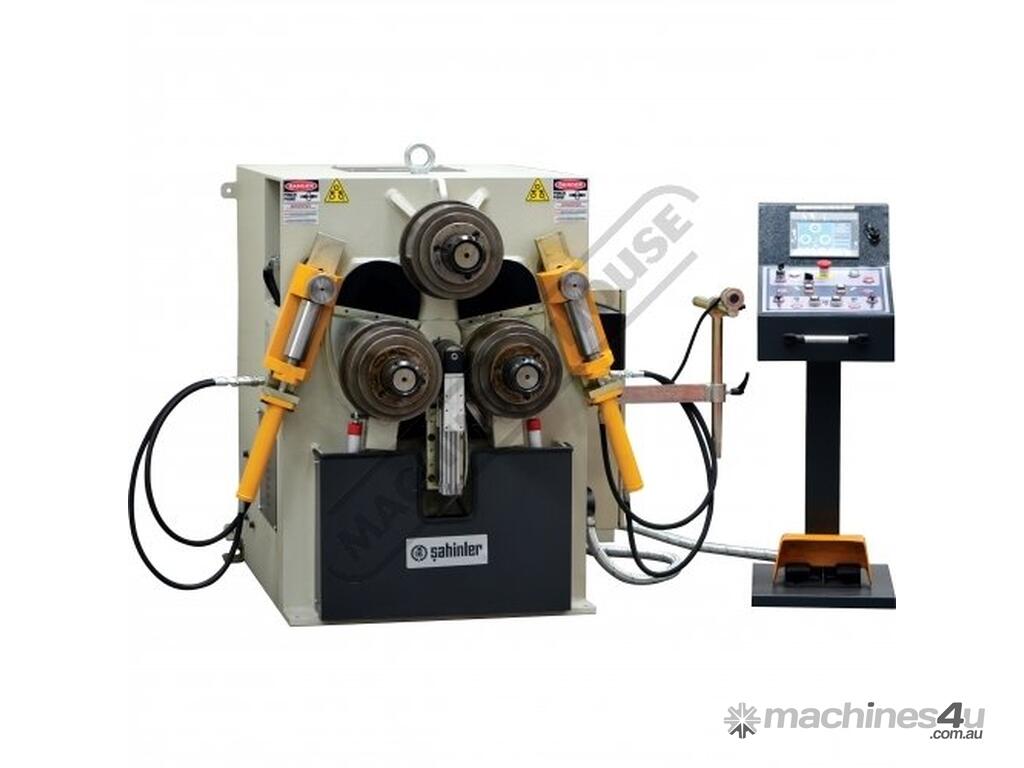

SAHINLER HPK-80NC NC Section & Pipe Rolling Machine 80 x 80 x 8mm Angle Capacity Includes 3-Axis 7.7" Easy View Control, Hydraulic Prebend Rolls & Side Guide Rollers
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: S756C

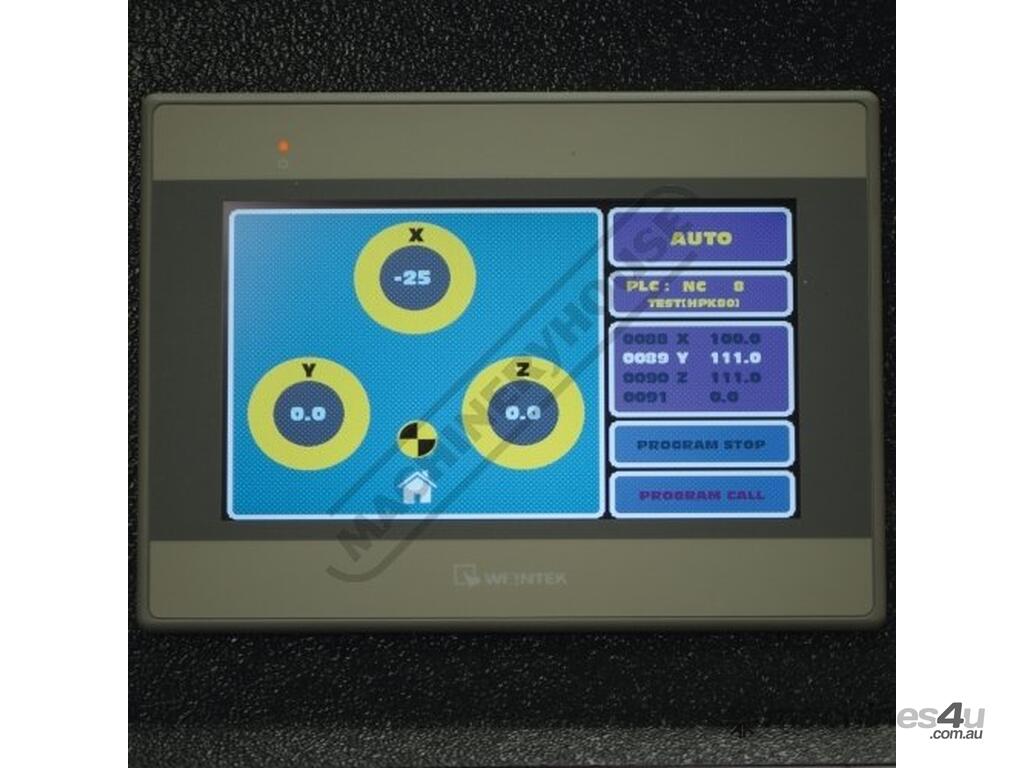

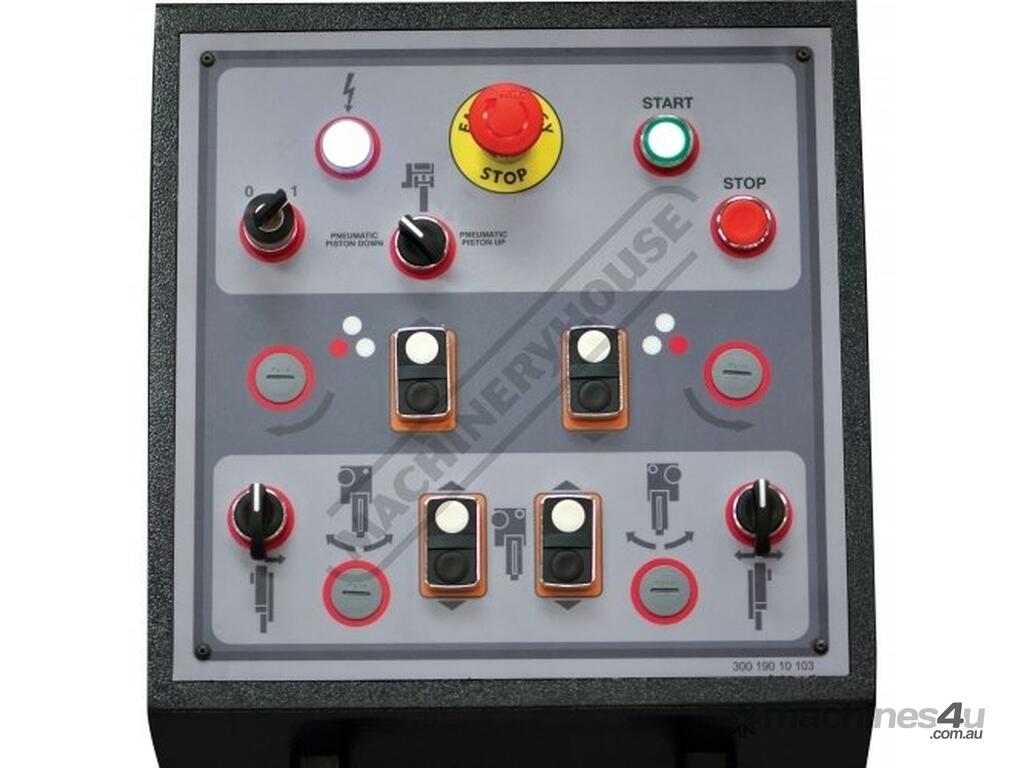

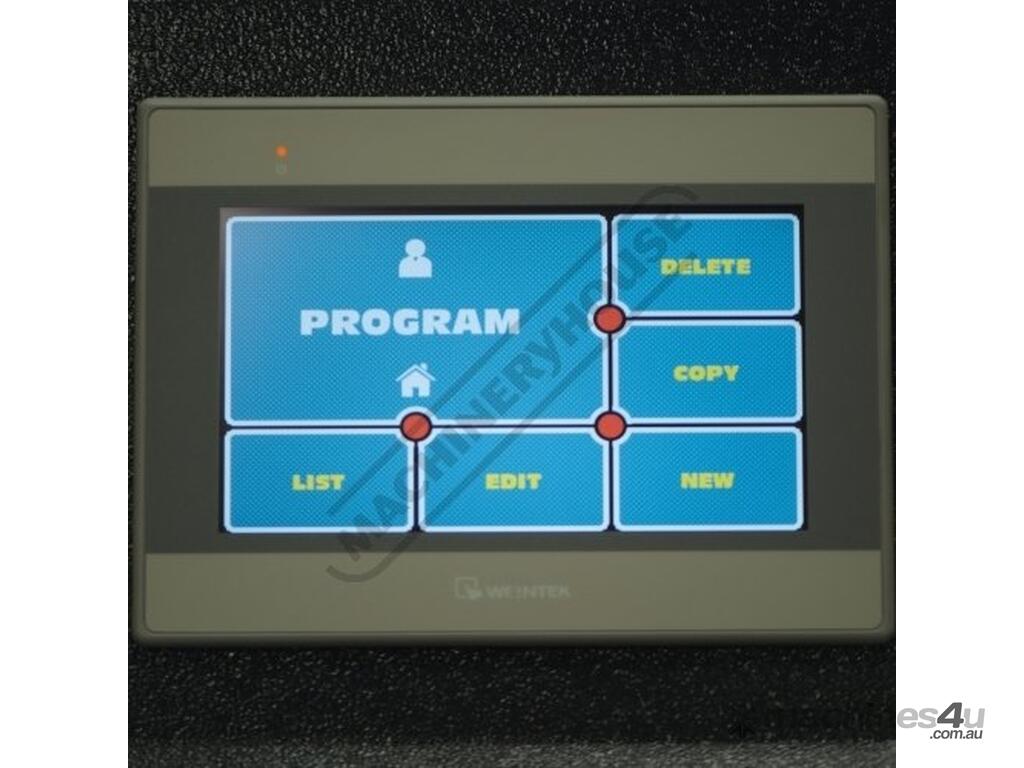

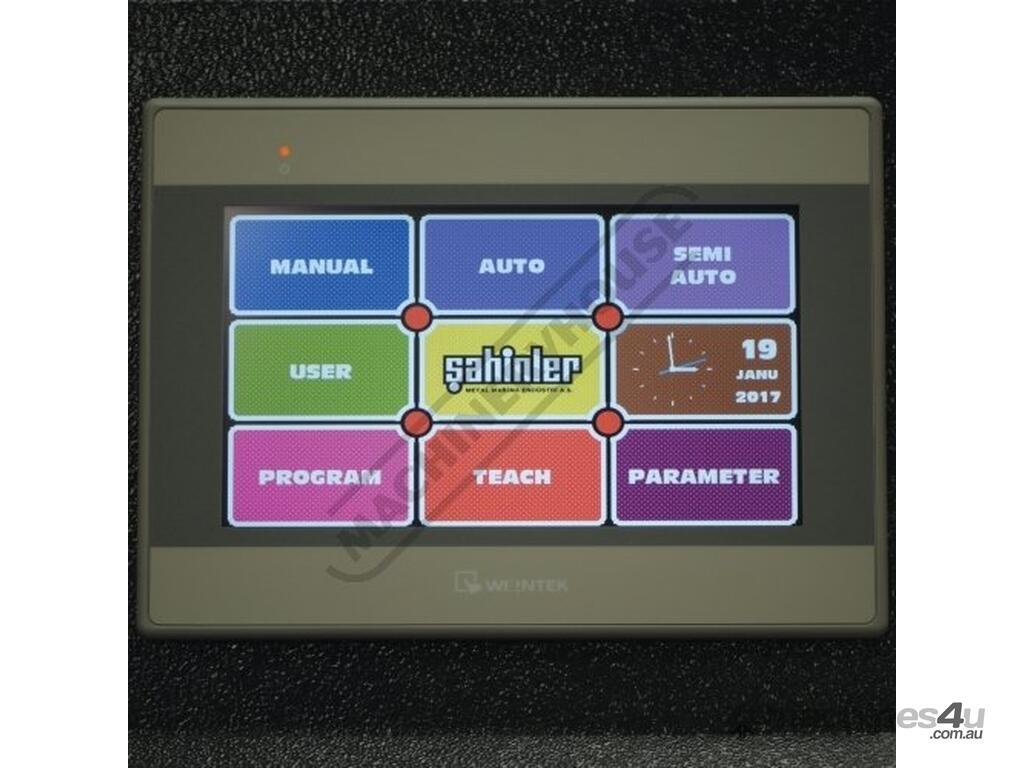

NC panel provides you to control an axis on manual, automatic or semi automatic mode, X & Y Axis can be moved by control buttons, X-Axis = rotation of left & right drive rollers and Y-Axis = up & down position of the top roller. NC control unit has store up to 500 programs with 200 lines on each program. The storage capacity can be increased to 10000 programs with the use of a USB flash memory stick.

Features:

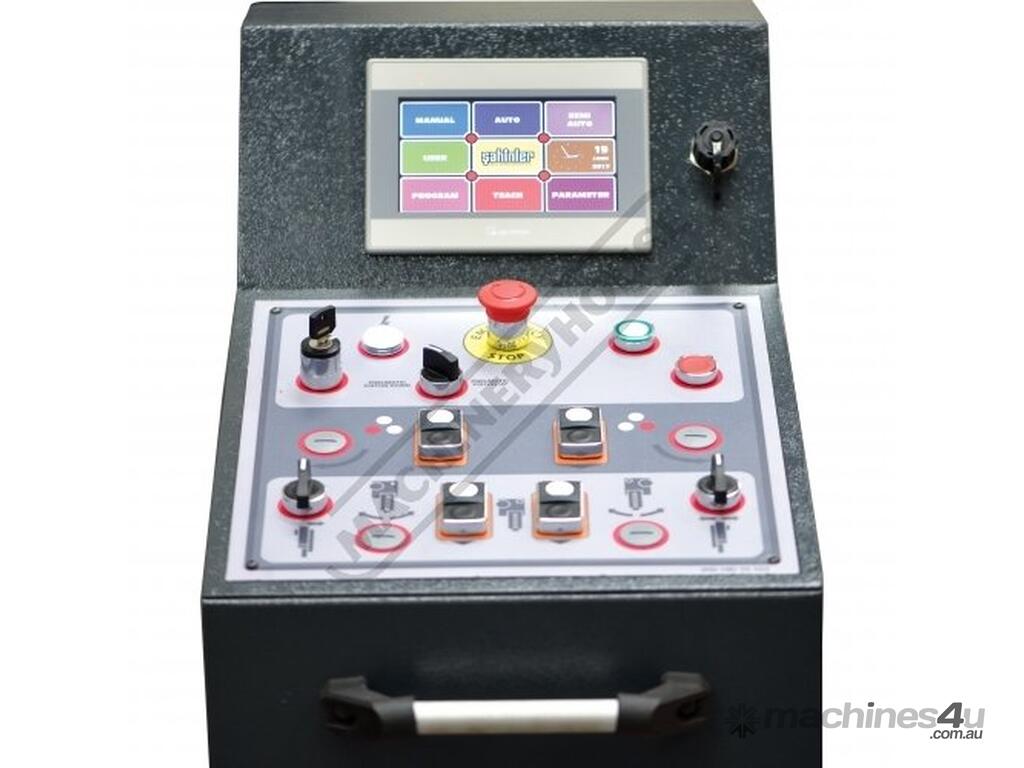

NC 3-Axis easy view 7.7" control panel

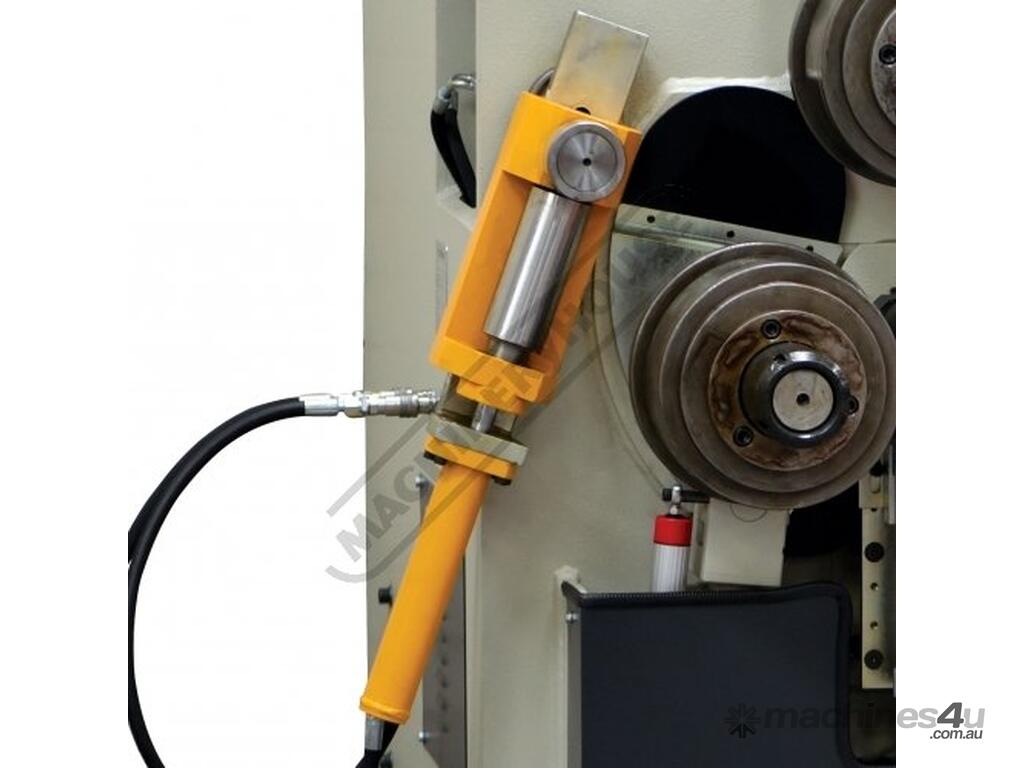

3 axis lateral angle guide rollers (2 axis hydraulic operated via pendant)
Rolls are hardened & made from high quality steel
Drive shafts are hardened and ground with double taper roller bearing support
Machine can be set up in horizontal or vertical working position
Roving foot pedal control with emergency stop
Three rollers are powered
European quality

Includes:
- Includes standard rolls

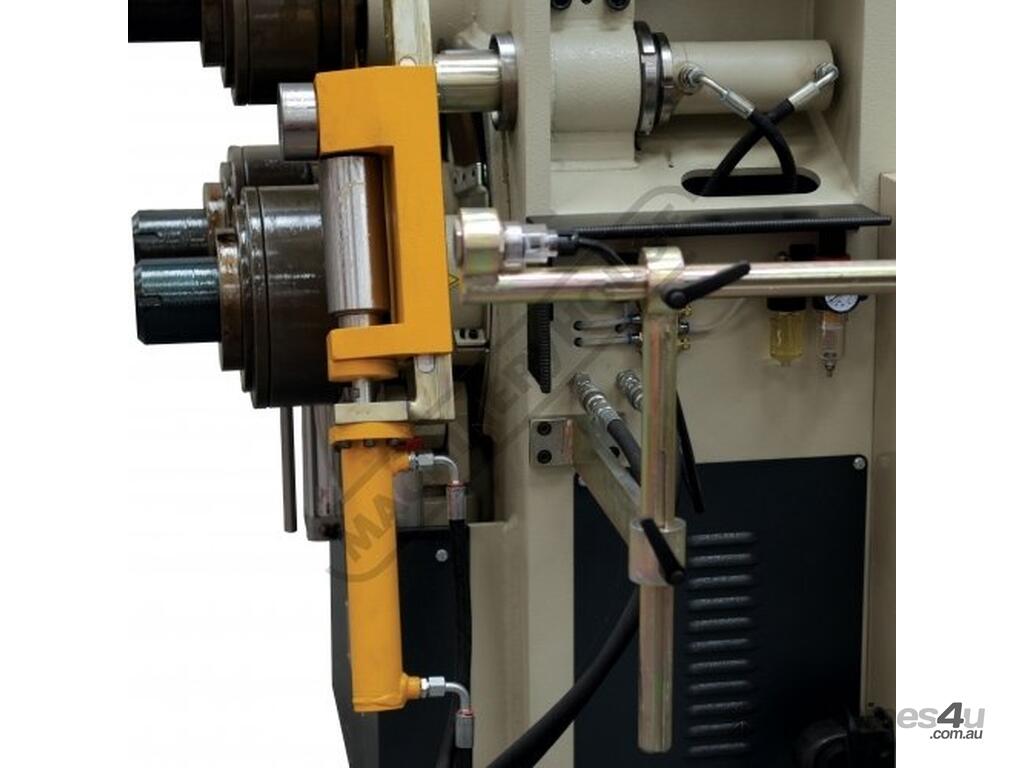

- Hydraulic lateral angle guide rollers
- Independently adjustable hydraulic bottom rollers for pre-bend



Specifications:
ORDER CODE: S756C
MODEL: HPK-80NC
Powered Driven Rolls (Qty): 3
Bending Rolls (Type): Hydraulic - Left & Right
Top Roll Shaft Diameter (Ø) (mm): 80
Lower Roll Shaft Diameter (Ø) (mm): 70
Top Roll Diameter (Ø) (mm): 245
Lower Roll Diameter (Ø) (mm): 245
Flat Bar Edge Capacity - MS (size / Ø) (mm): 80 x 20 / 800
Flat Bar Capacity - MS (size / Ø) (mm): 125 x 25 / 600
Square Bar Solid Capacity - MS (size / Ø) (mm): 45 x 45 / 500
Rectangle Tube Capacity - MS (size / Ø) (mm): 80 x 25 x 3 / 800*
Square Tube Capacity - MS (size / Ø) (mm): 70 x 70 x 3 / 1300*
Round Bar Solid Capacity - MS (size / Ø) (mm): Ø50 / 500*
Round Tube Capacity - MS (size / Ø) (mm): Ø100 x 2.5 / 1200*
Round Pipe Capacity - MS (size / Ø) (inch / mm): Ø3" x 5.48mm / 800mm*
Angle Capacity - MS (size / Ø) (mm): 80 x 80 x 8 / 800
Motor Power (kW / hp): 4 / 5.3
Voltage / Amperage (V / amp): 415
Dimensions (L x W x H) (mm): 1450 x 1000 x 1400
Note: Requires Additional Tooling (No / Yes*): Yes*
Nett Weight (kg): 1700


To Purchase Online Please Visit The Machineryhouse & Search For 'S756C'
