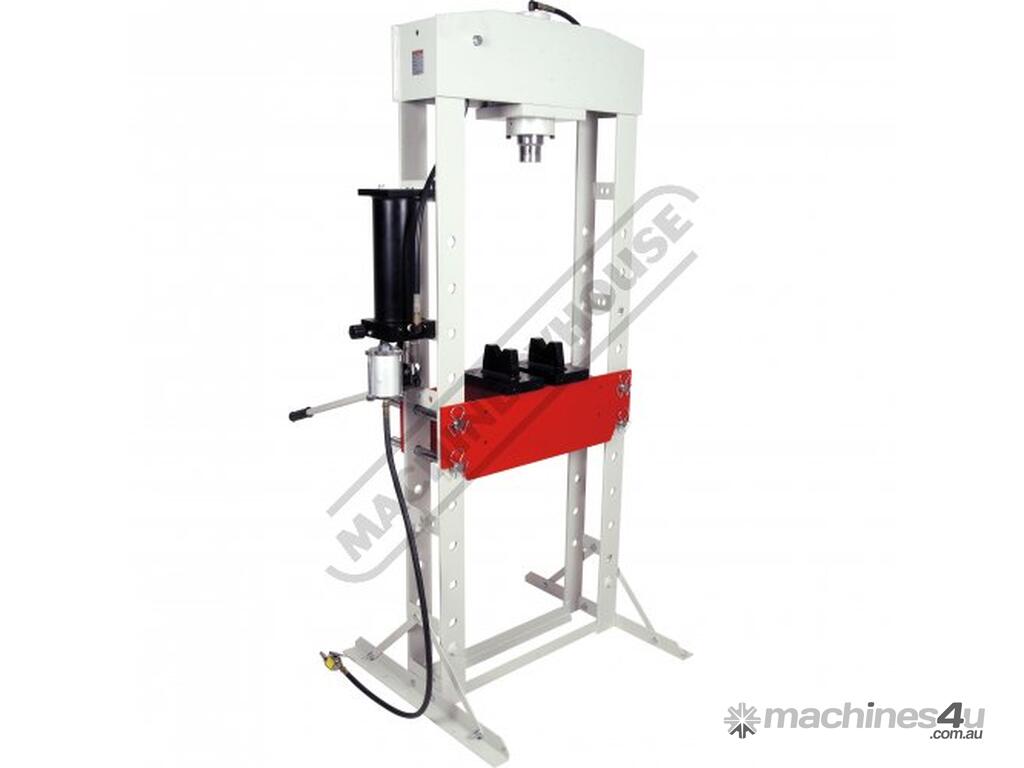

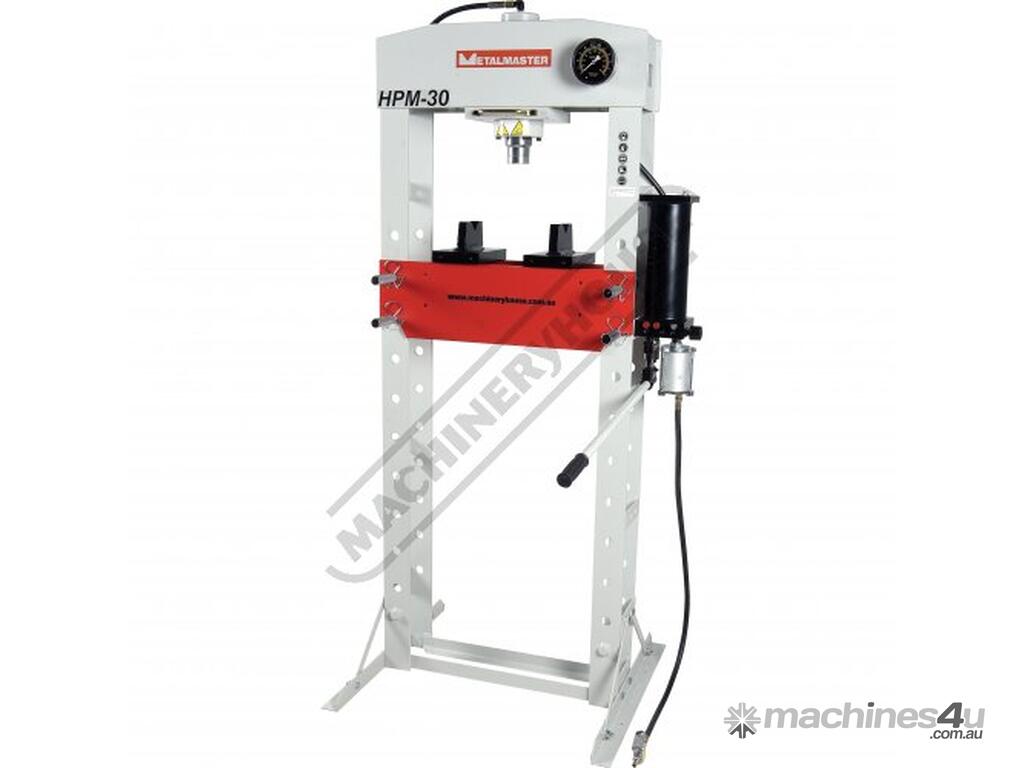

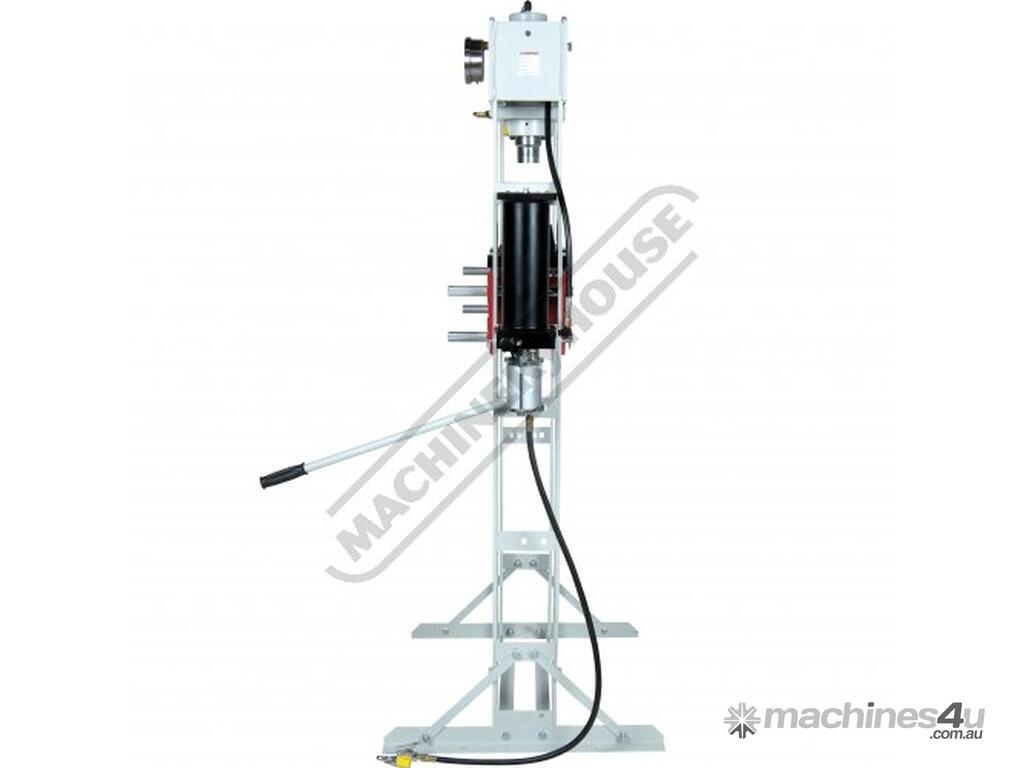

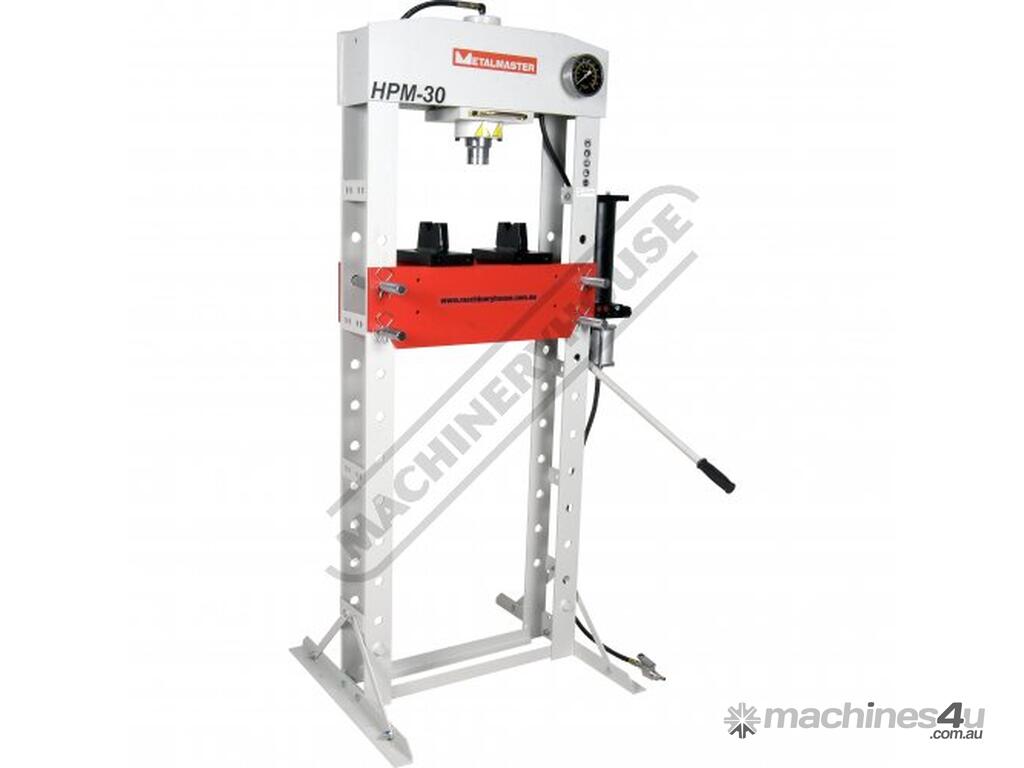

HPM-30 Trade Hydraulic & Pneumatic Press - 30 Tonne Robotic Welded Steel Frame Construction Includes

METALMASTER HPM-30 Trade Hydraulic & Pneumatic Press - 30 Tonne Robotic Welded Steel Frame Construction Includes Adjustable Sliding Cylinder Ram, Pressure Gauge & Bending Vee Blocks
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: P130M

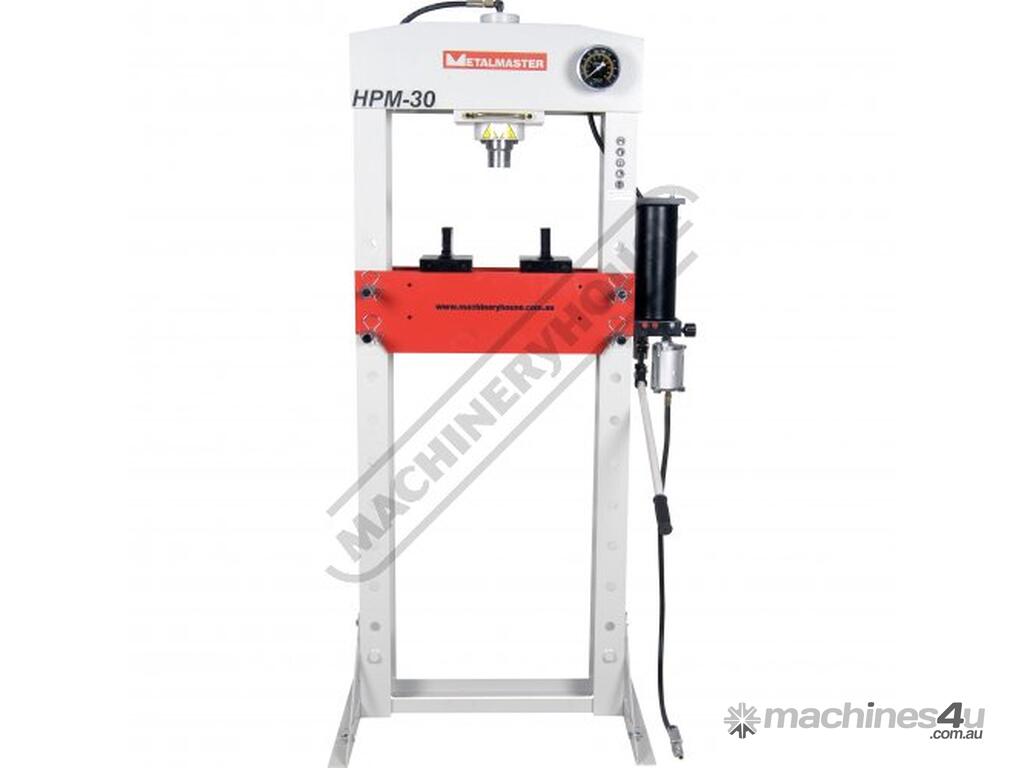

The Metalmaster HPM-30 30 tonne trade press has a variety of uses, ideal for removing and installing bushes, ball joints, bearings, gears, pulleys etc. The HPM-30 is pneumatically or hand operated for easy use and also has the added feature of a sliding head which can be moved to the side allowing for those offset pressing jobs.

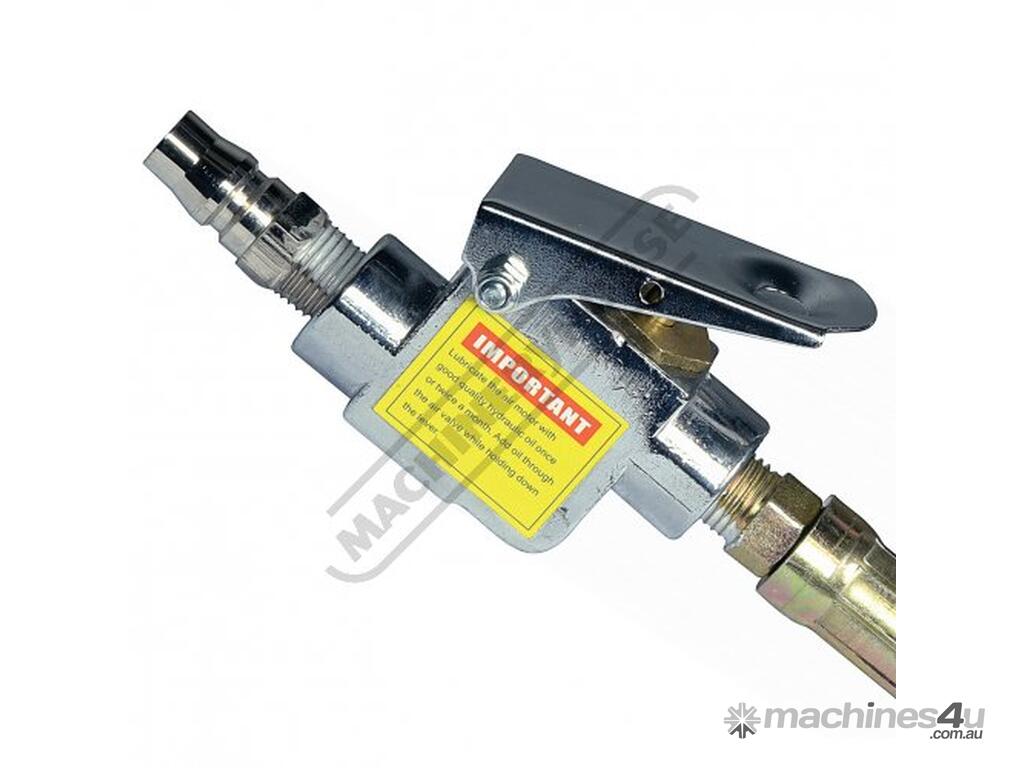

This 30 tonne press has a fully robotic welded frame for the highest quality, accuracy and extra rigidity. The press is supplied with a pressure gauge, two heavy duty pressing plates, and can be fitted with an optional pneumatic foot pedal, making it ideal for mechanics, farmers or the serious home workshop.

Features:
Ideal for removing and installing - Bushing Ball-joints Bearings Gears Pulleys etc

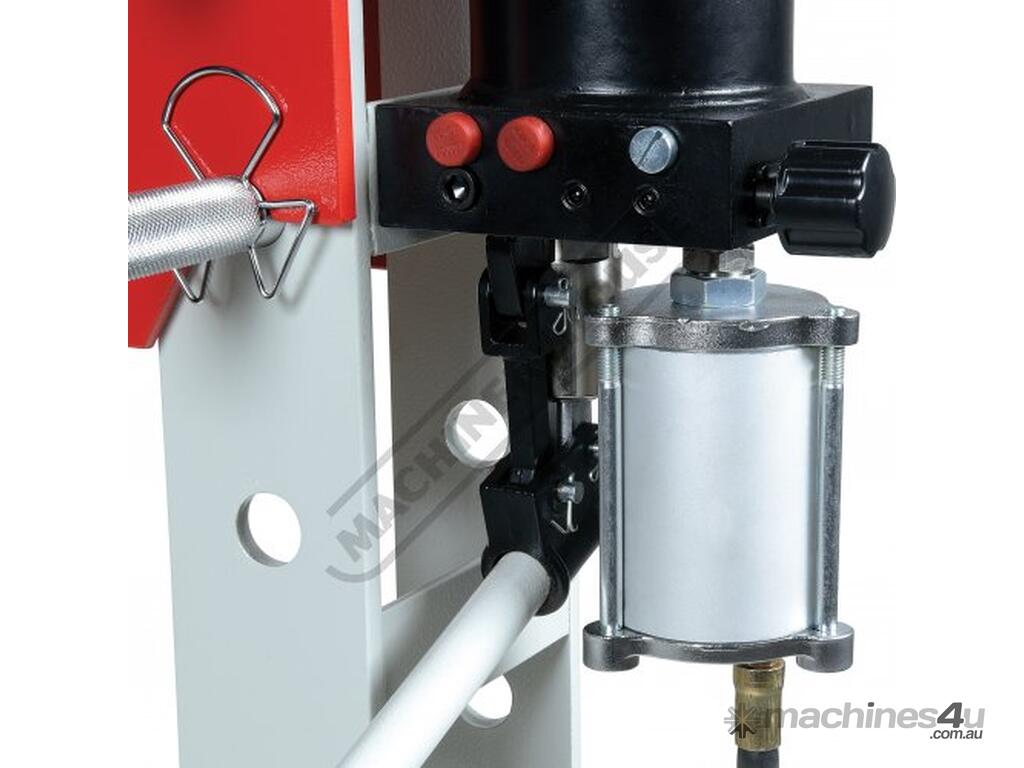

Pneumatic or hand operation
Heavy duty steel construction with robotic fully welded frame
Hydraulics assembled in a temperature controlled clean room for maximum quality
Hydraulics individually factory tested prior to shipping.

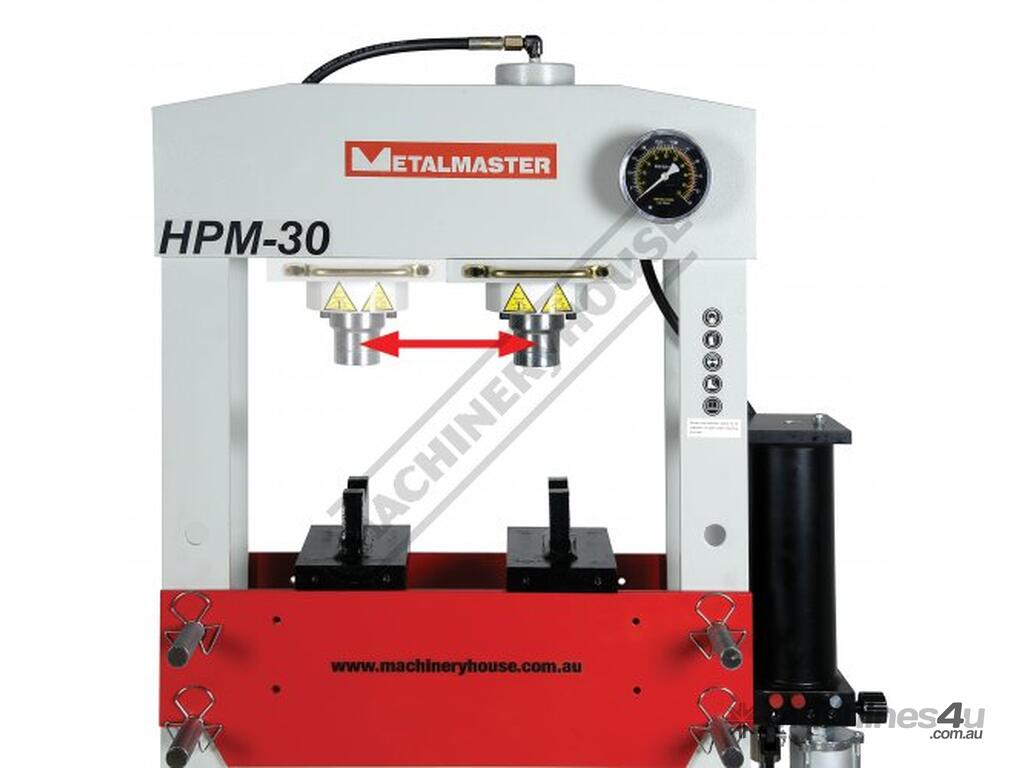

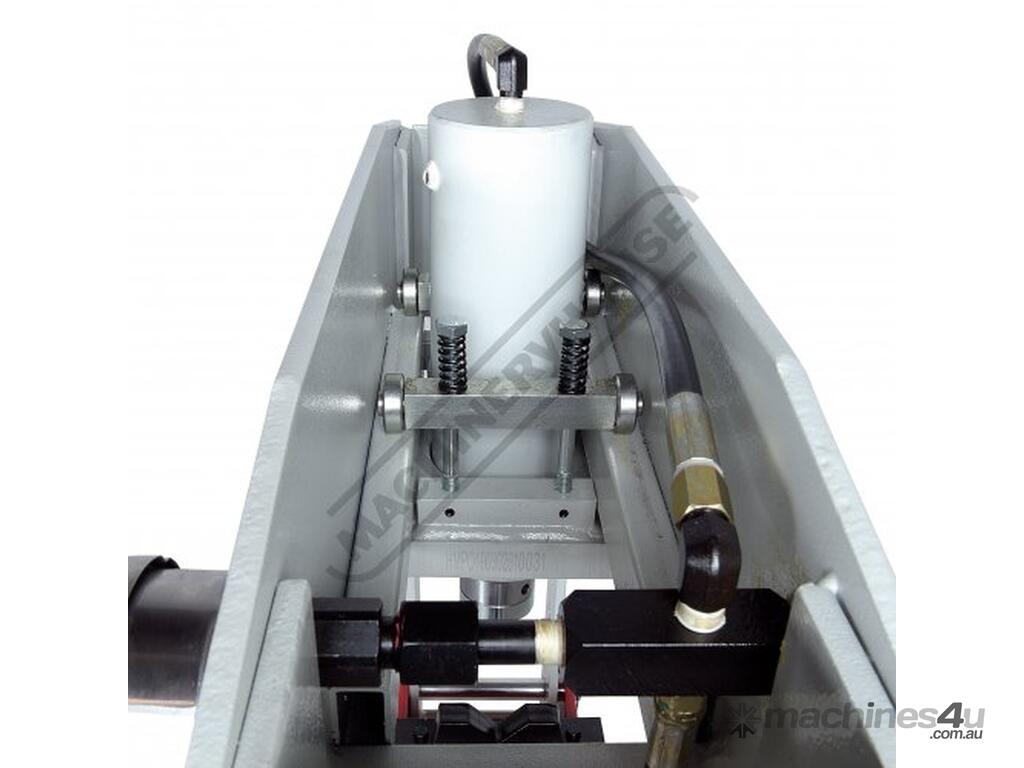

Adjustable sliding head up to 200mm travel between the vertical post

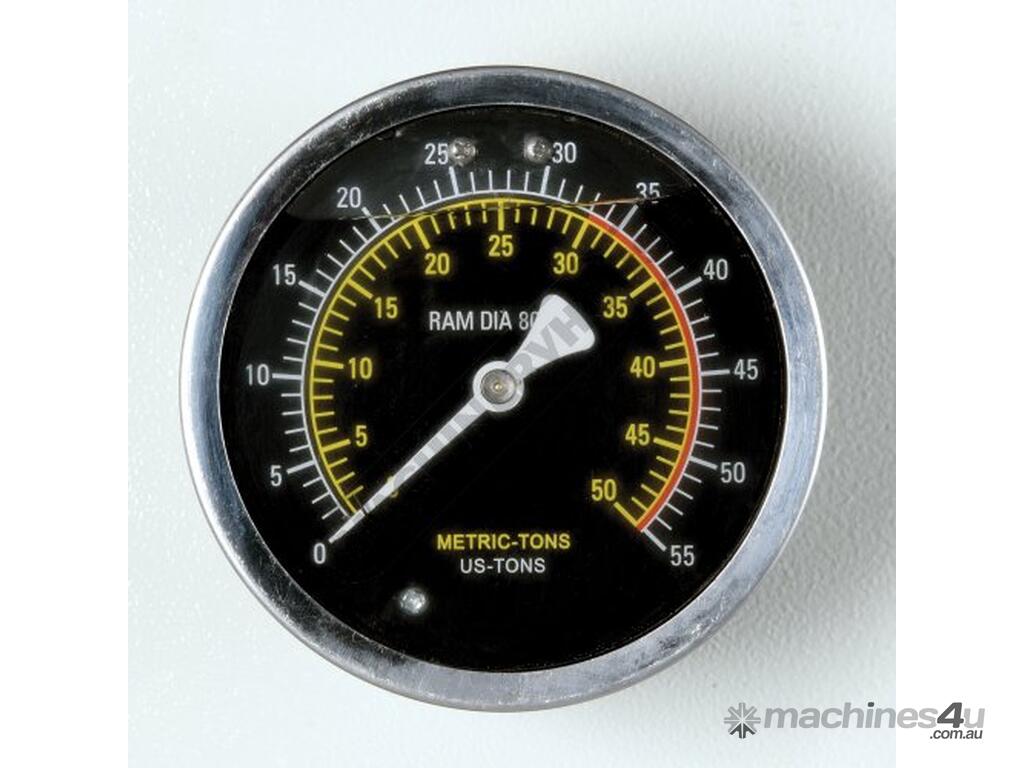

Metric / imperial pressure gauge included
NOTE: Minimum Air Flow Rate required is 200 liters/minute

Includes:

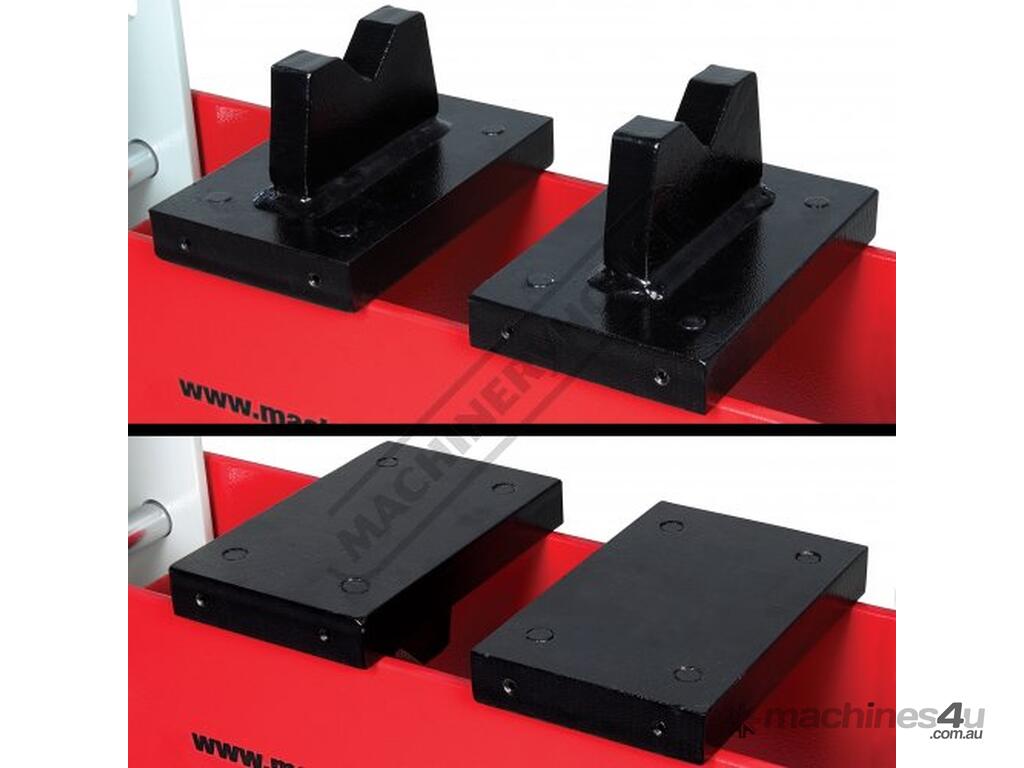

- Complete with vee blocks



Specifications:
ORDER CODE: P130M
MODEL: HPM-30
Pressing Capacity (Tonne): 30
Hydraulic Ram Operation (Type): Manual Hand Lever /
Hydraulic Ram Operation (Type): Pneumatic System
Sliding Ram (left-right) (Yes / No): Yes

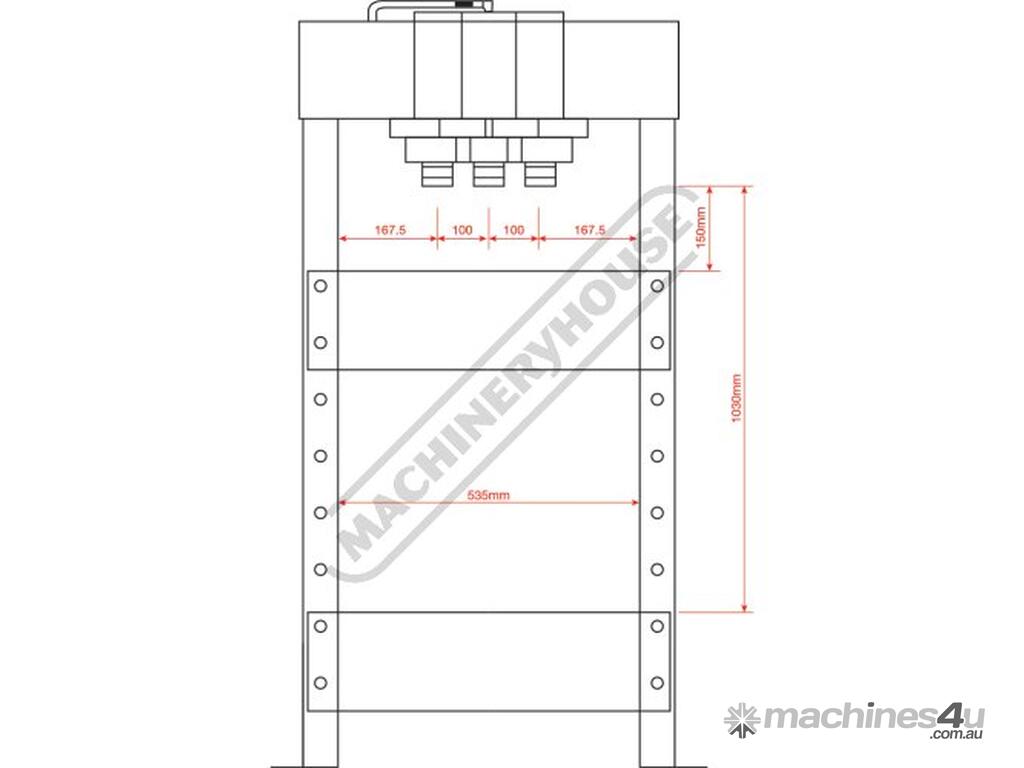

Width Between Front Posts (mm): 535
Width Between Side Posts (mm): 138
Table Top Opening - (Front to Back) (mm): 160
Ram To Table (Max.) (mm): 1035
Cylinder Stroke (mm): 155

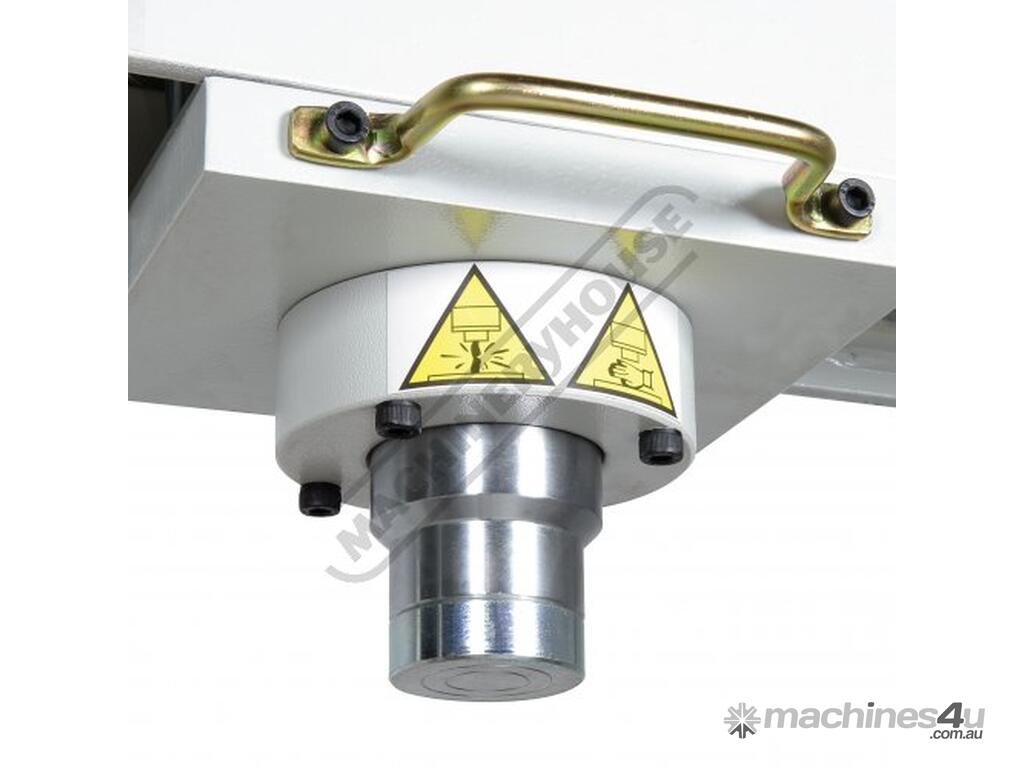

Ram Diameter (mm): Ø70
Piston Diameter (mm): Ø80
Minimum Air Flow Rate required (L/Min): 200
Motor Power (kW / hp): ~
Voltage (V): ~
Floor Space (W x D x H) (mm): 950 x 700 x 1800
Nett Weight (kg): 200
