HPM-300T Industrial Motorised Hydraulic Press with Movable Cylinder - 300 Tonne Welded Steel Frame C

METALMASTER HPM-300T Industrial Motorised Hydraulic Press with Movable Cylinder - 300 Tonne Welded Steel Frame Construction Includes Heavy Steel Worktable & Bending Blocks
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: P408M

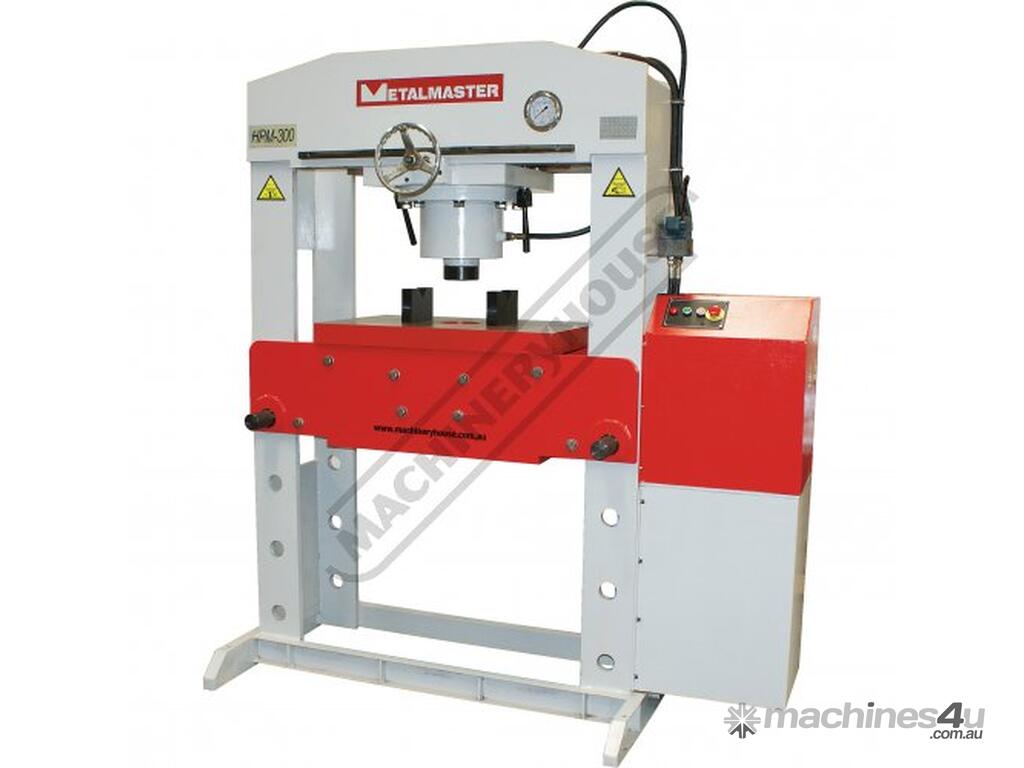

The Metalmaster HPM-300T, 300 Tonne electric/hydraulic press features a sliding cylinder which can be moved from side to side allowing for those offset pressing jobs. A heavy one piece steel workplate and a pair of pressing blocks are supplied as standard making this the ideal press for pressing, bending, forming, straightening and a whole variety of operations.

Features:
H frame design with welded steel frame construction

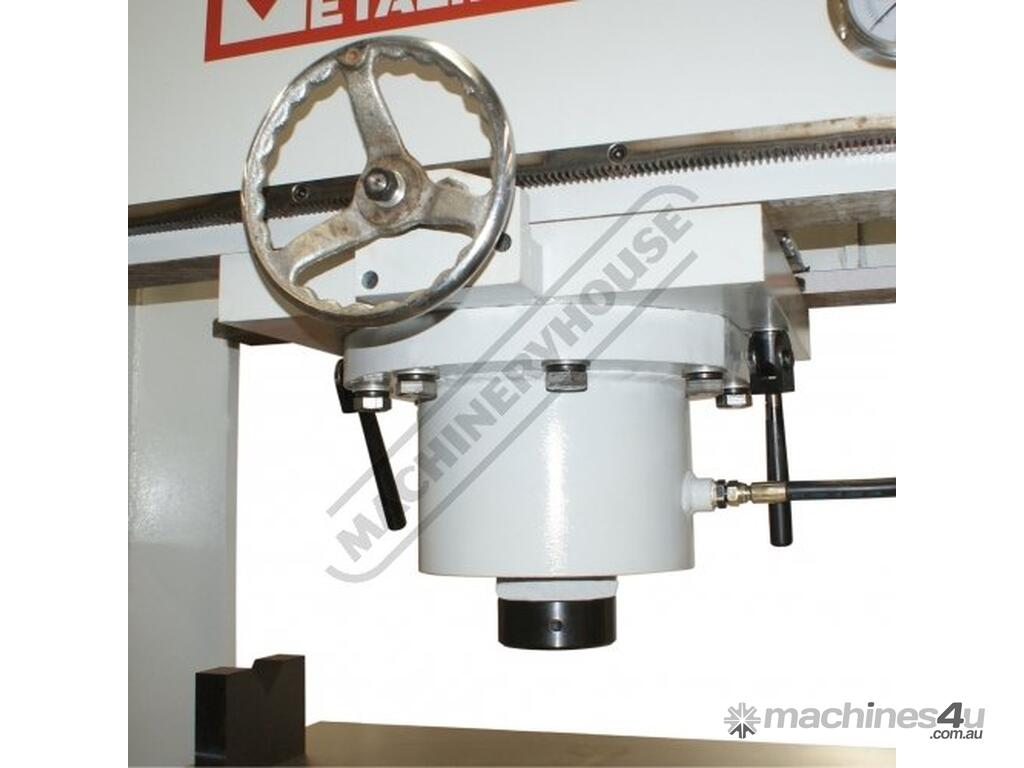

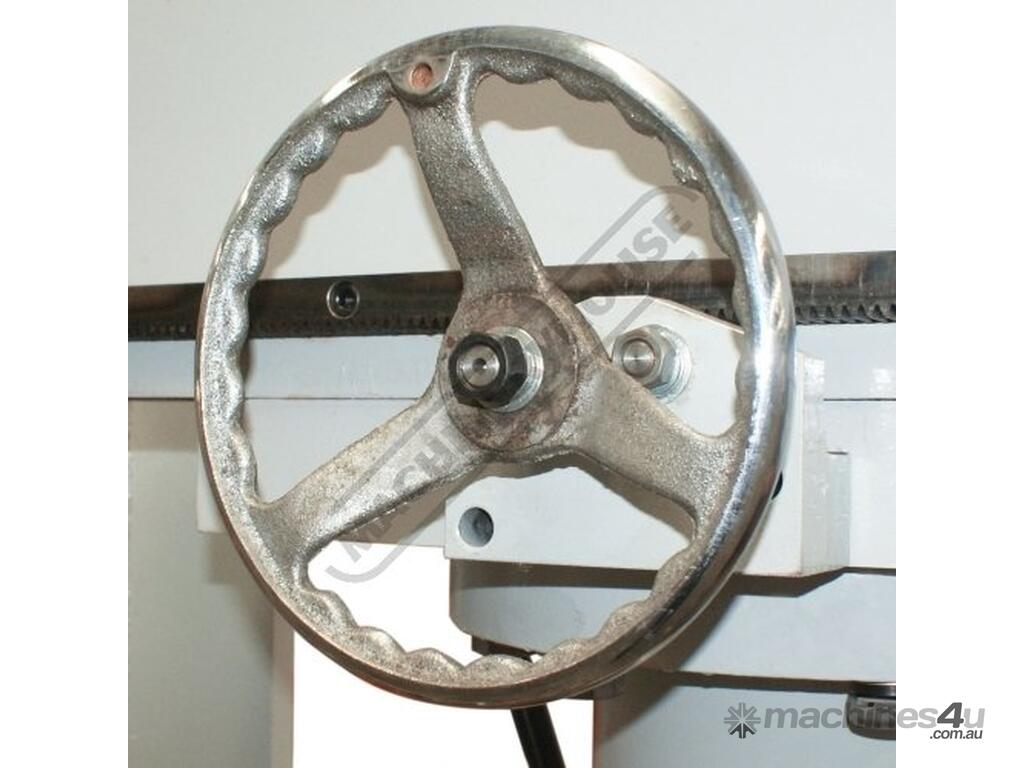

Movable cylinder (left-right) via crank hand wheel allows operator to reposition the cylinder for off centre work
Electric/Hydraulic operation provides smooth consistent pressing action

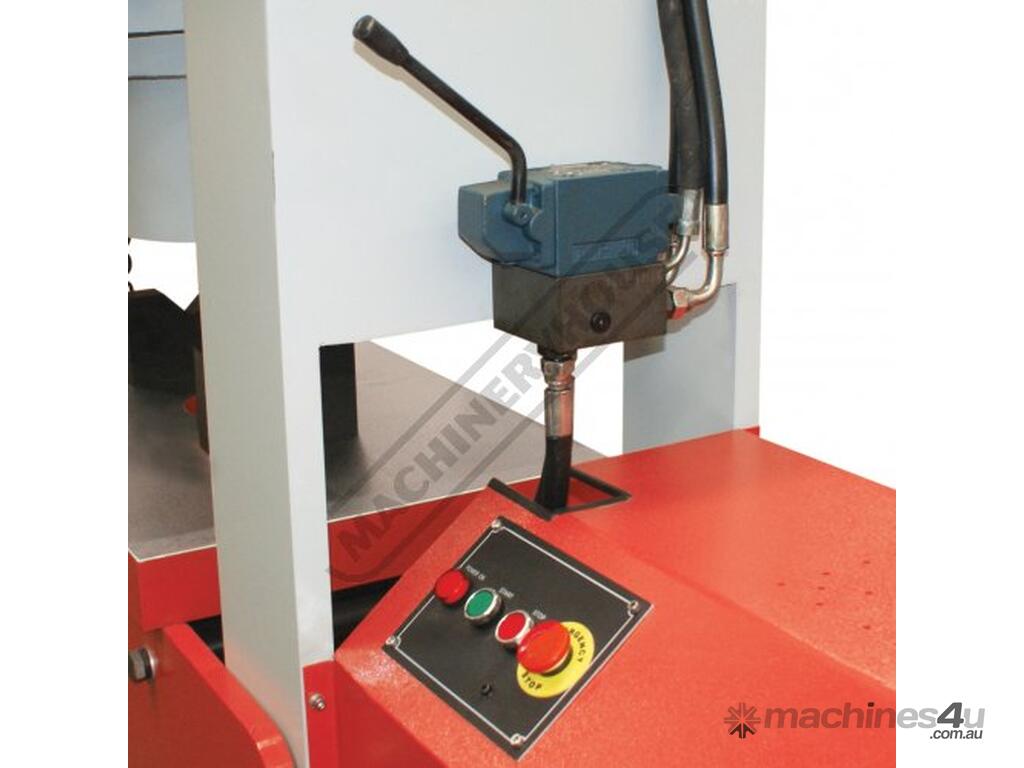

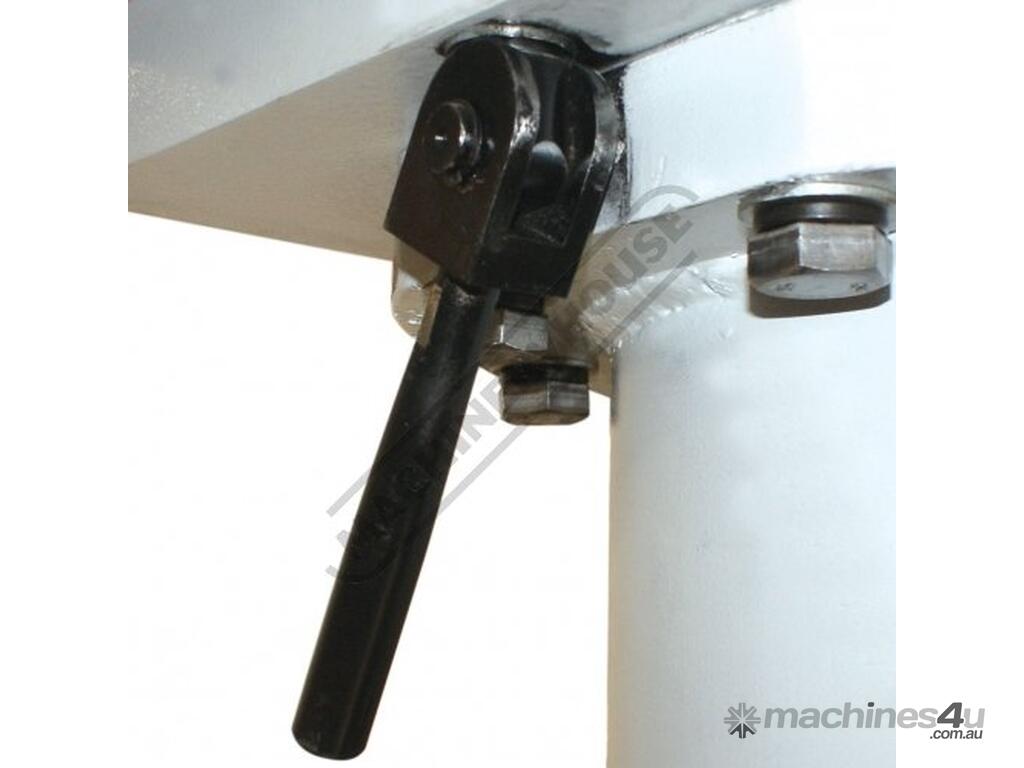

Joystick control for ram stroke and return
370mm Ram stroke
Ram speed down 8.4mm/sec returns 6.0mm/sec

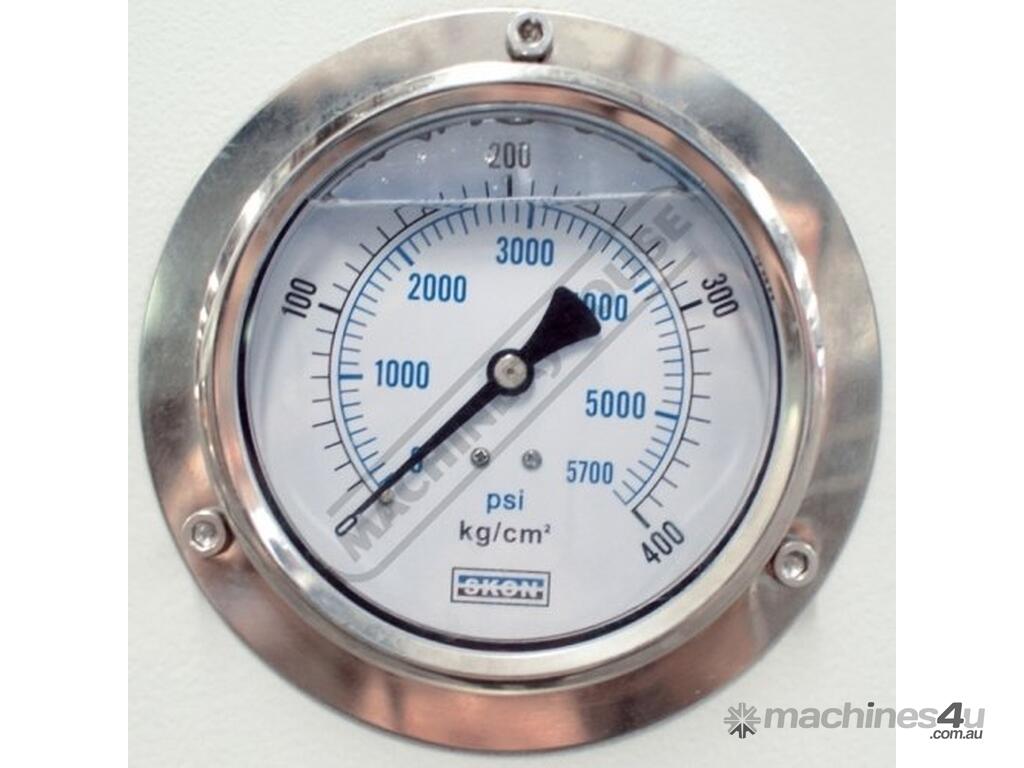

Pressure gauge fitted for easy control of pressing operations

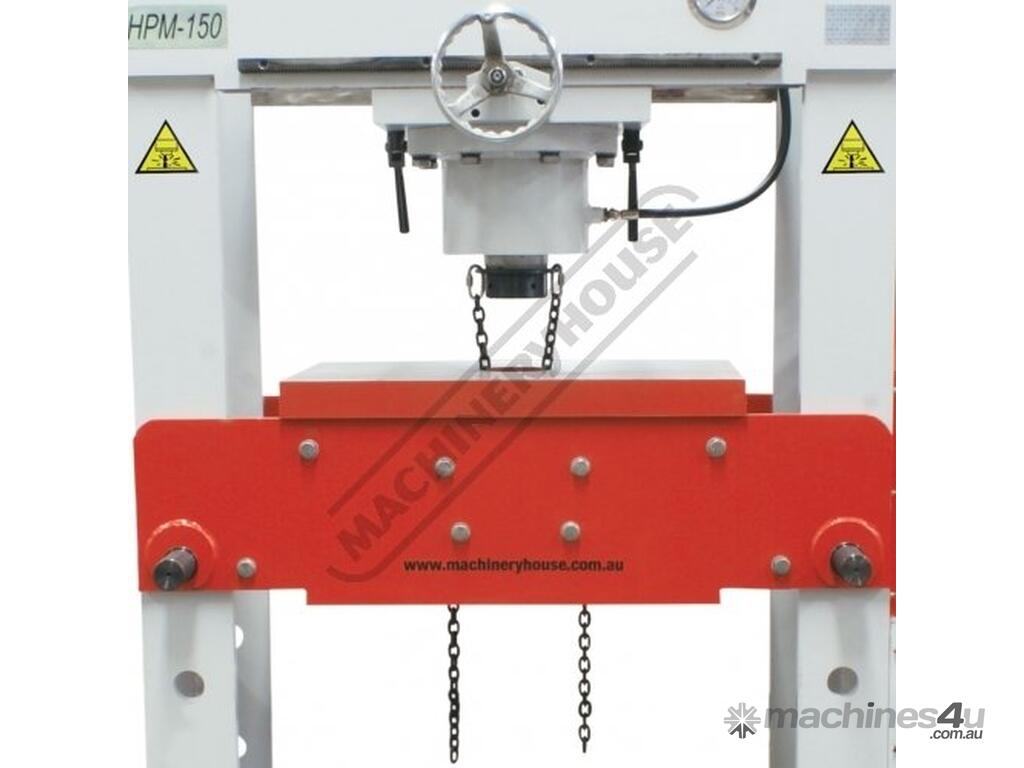

Height adjustable worktable with 4 adjustment positions
Heavy one piece steel work plate and pressing blocks
Work table height easily adjusted with the assiatnce of the ram

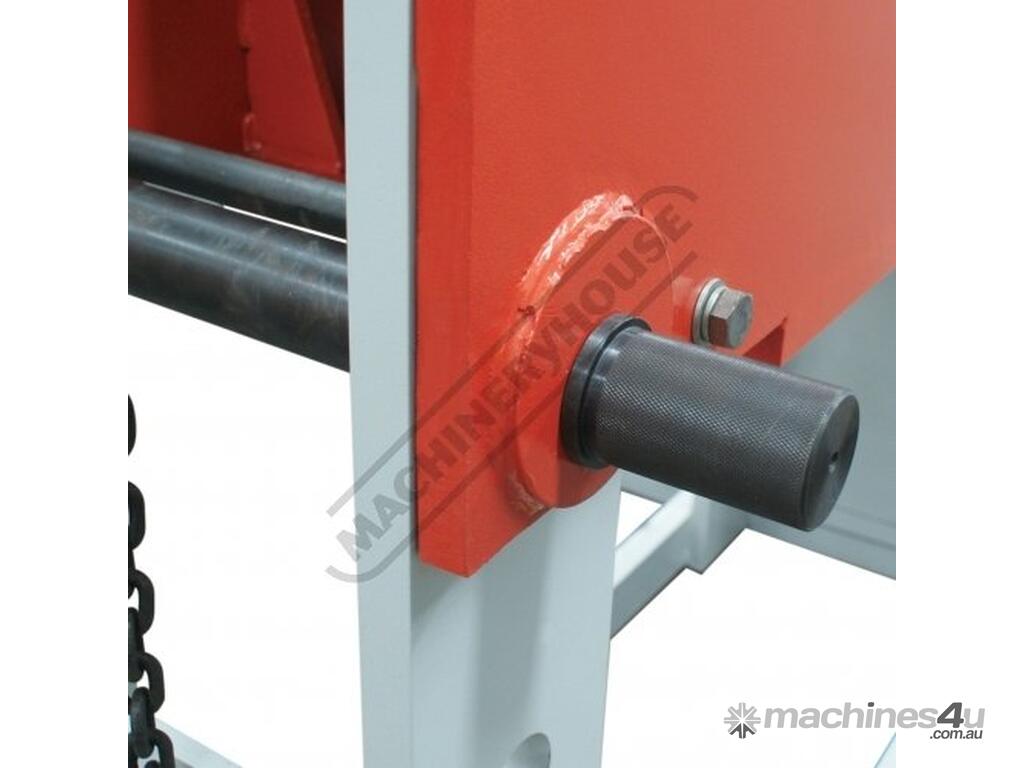

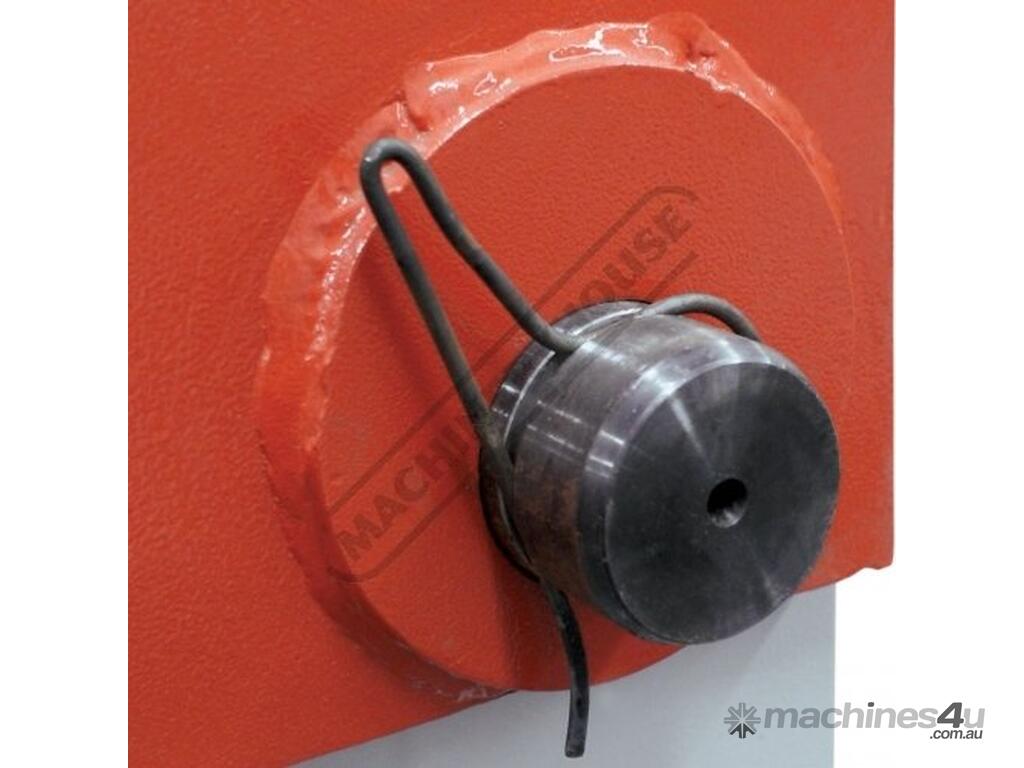

Reinforced table support holes with high tensile setting pins
Safety overload valve
Powerful TEFC motor
Ideal for any industrial workshop for the repair of axles shafts & press fit of bearings & bushings

Includes:
- Heavy one piece steel work plate

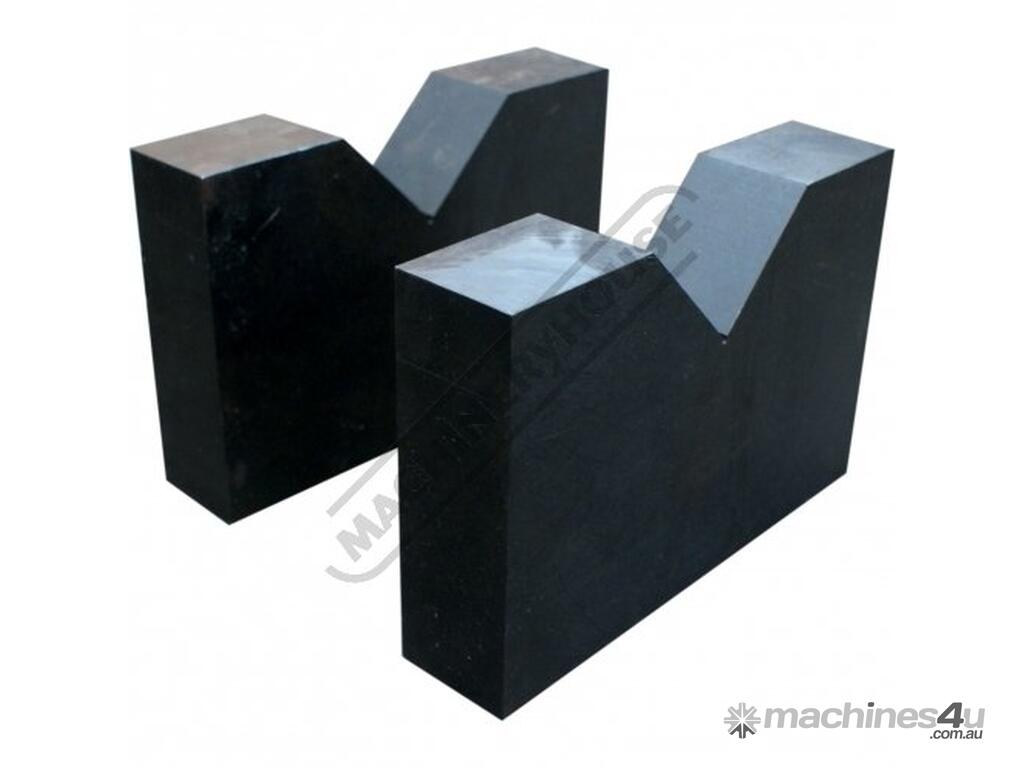

- Pair of double sided pressing blocks (Vee & Flat)
- Table raising and lowering chains



Specifications:
ORDER CODE: P408M
MODEL: HPM-300T
Pressing Capacity (Tonne): 300
Hydraulic Ram Operation (Type): Motorised System
Hydraulic Ram Operation (Type): ~
Sliding Ram (left-right) (Yes / No): Yes
Width Between Front Posts (mm): 1300
Width Between Side Posts (mm): 510
Table Top Opening - (Front to Back) (mm): 600
Ram To Table (Max.) (mm): 860
Cylinder Stroke (mm): 370
Ram Diameter (mm): Ø200
Piston Diameter (mm): ~
Minimum Air Flow Rate required (L/Min): ~
Motor Power (kW / hp): 22 / 30
Voltage (V): 415
Floor Space (W x D x H) (mm): 2380 x 1210 x 2525
Nett Weight (kg): 3900


To Purchase Online Please Visit The Machineryhouse & Search For 'P408M'
