HPM-50 Industrial Motorised Hydraulic Press - 50 Tonne Robotic Welded Steel Frame Construction Inclu

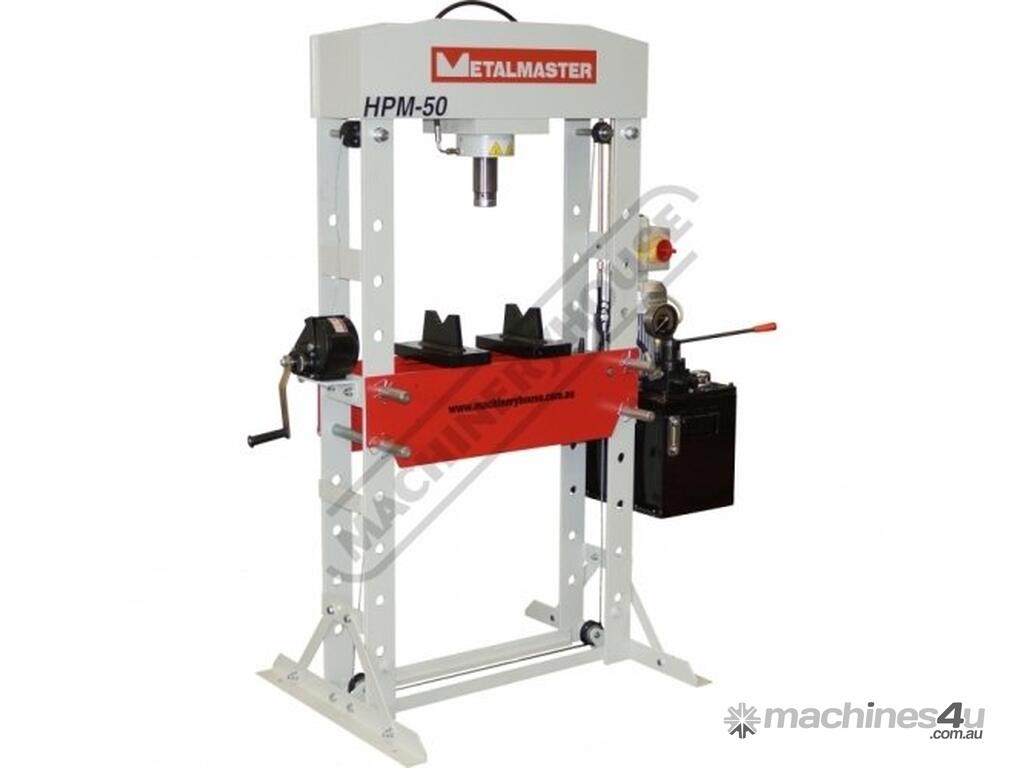

METALMASTER HPM-50 Industrial Motorised Hydraulic Press - 50 Tonne Robotic Welded Steel Frame Construction Includes Adjustable Sliding Cylinder Ram, Table Winch System, Pressure Gauge & Bending Vee Blocks
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: P131M

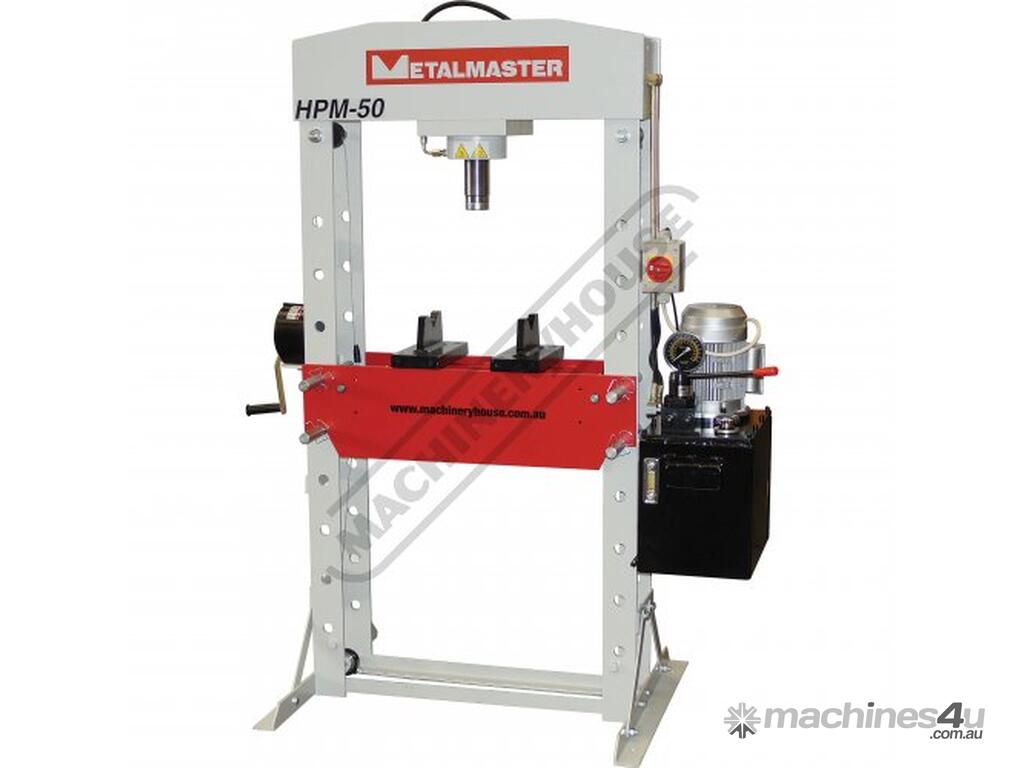

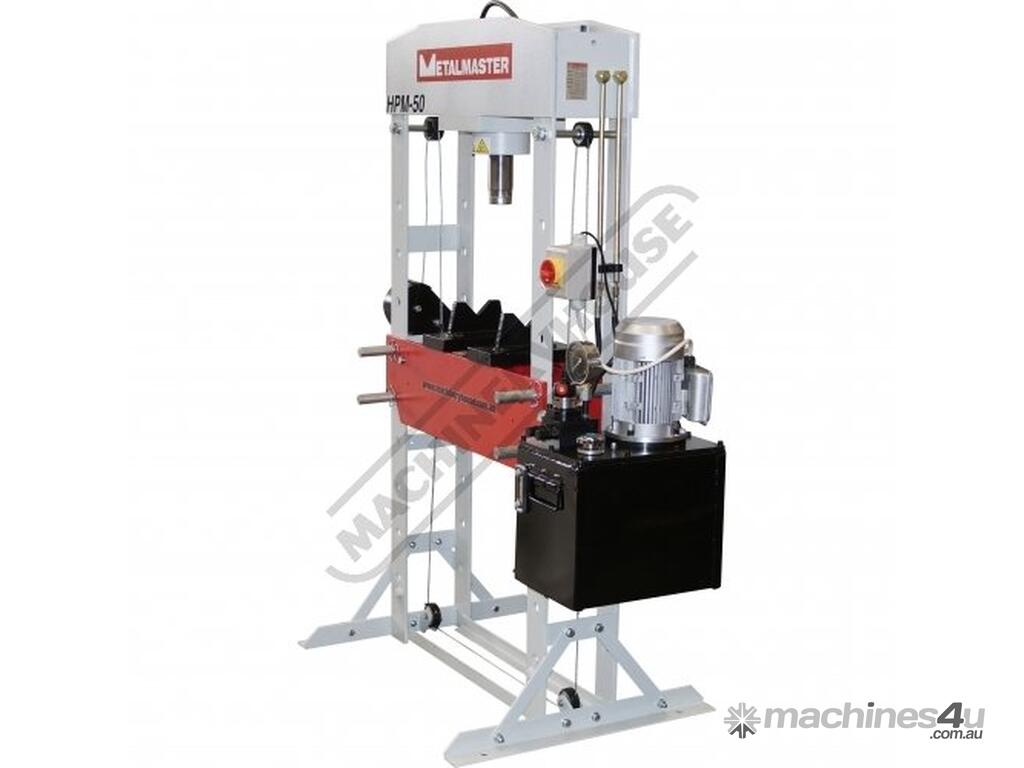

The Metalmaster HPM-50 50 tonne trade press has a variety of uses, ideal for removing and installing bushes, ball joints, bearings, gears, pulleys etc. The HPM-50 is 240 volt electric hydraulic operated for easy of use and also has the added feature of a sliding head which can be moved to the side allowing for those offset pressing jobs.

This 50 tonne press has a fully robotic welded frame for the highest quality, accuracy and extra rigidity. The press is supplied with a pressure gauge, two heavy duty pressing plates, making it ideal for professional mechanics or industrial workshops.

Features:

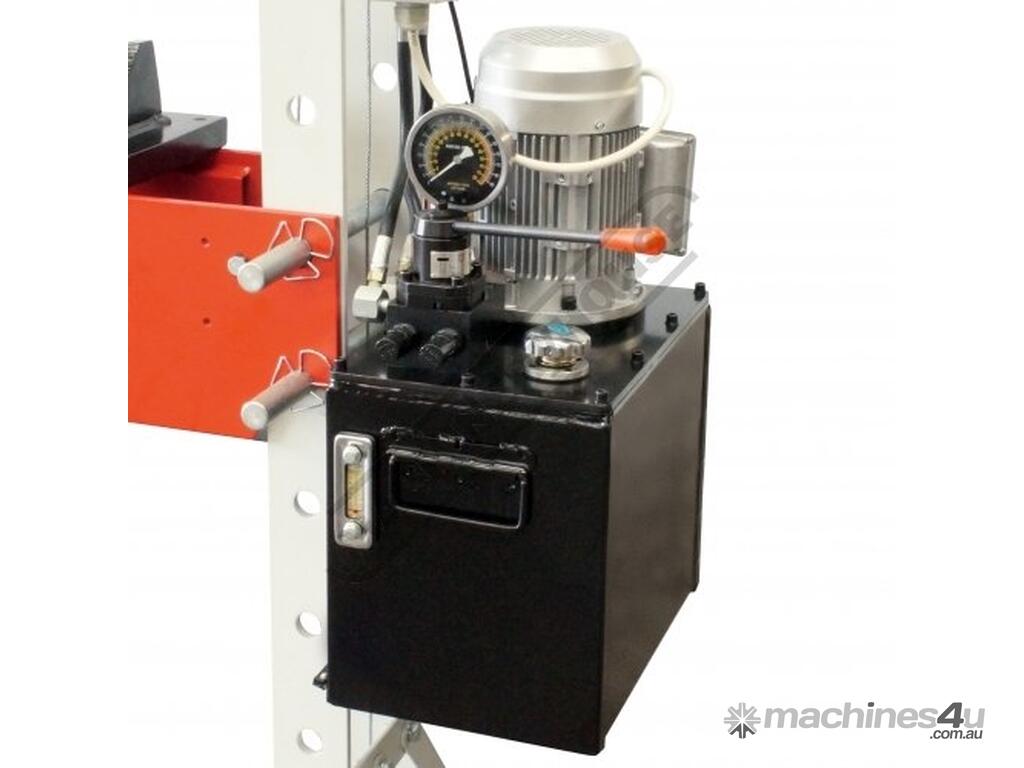

Electric hydraulic system with powerful 2 hp TEFC motor
Strong hydraulic cylinder ensures precise pressing during operation
Hydraulics assembled in a temperature controlled clean room for maximum quality
Hydraulics individually factory tested prior to shipping

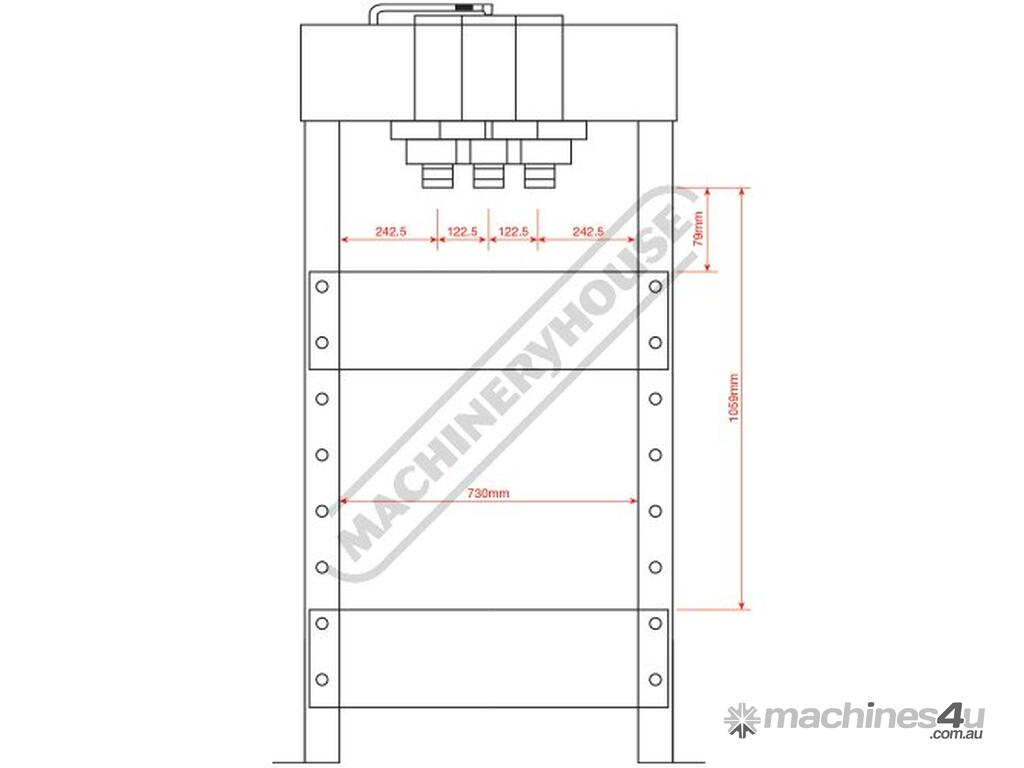

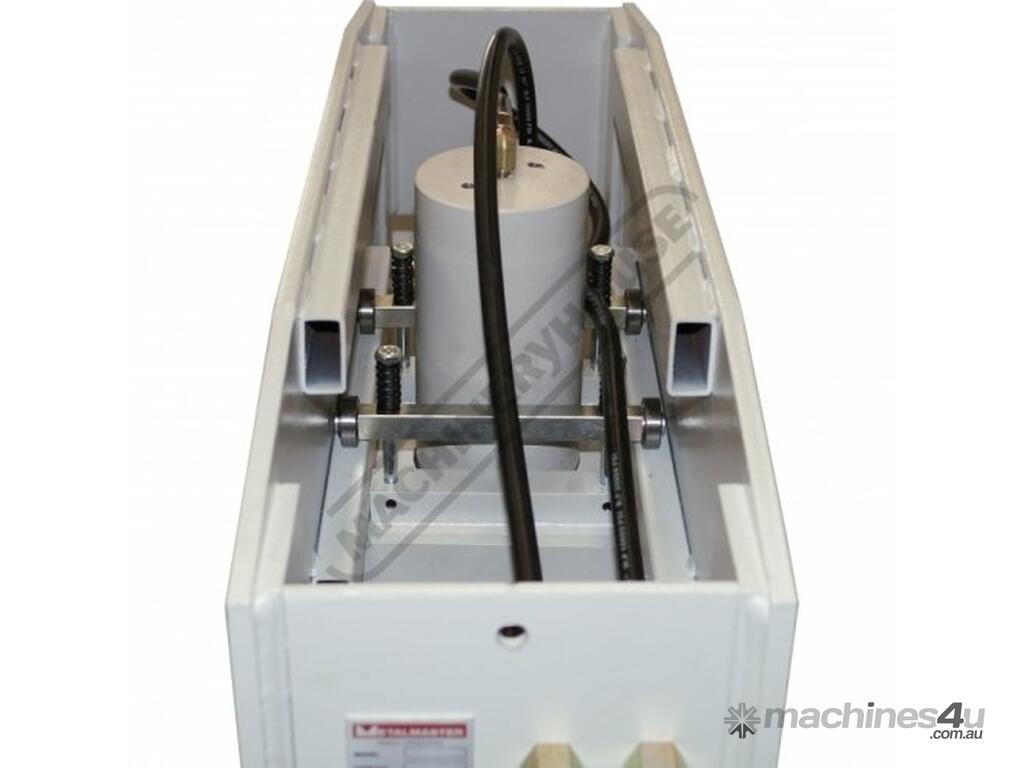

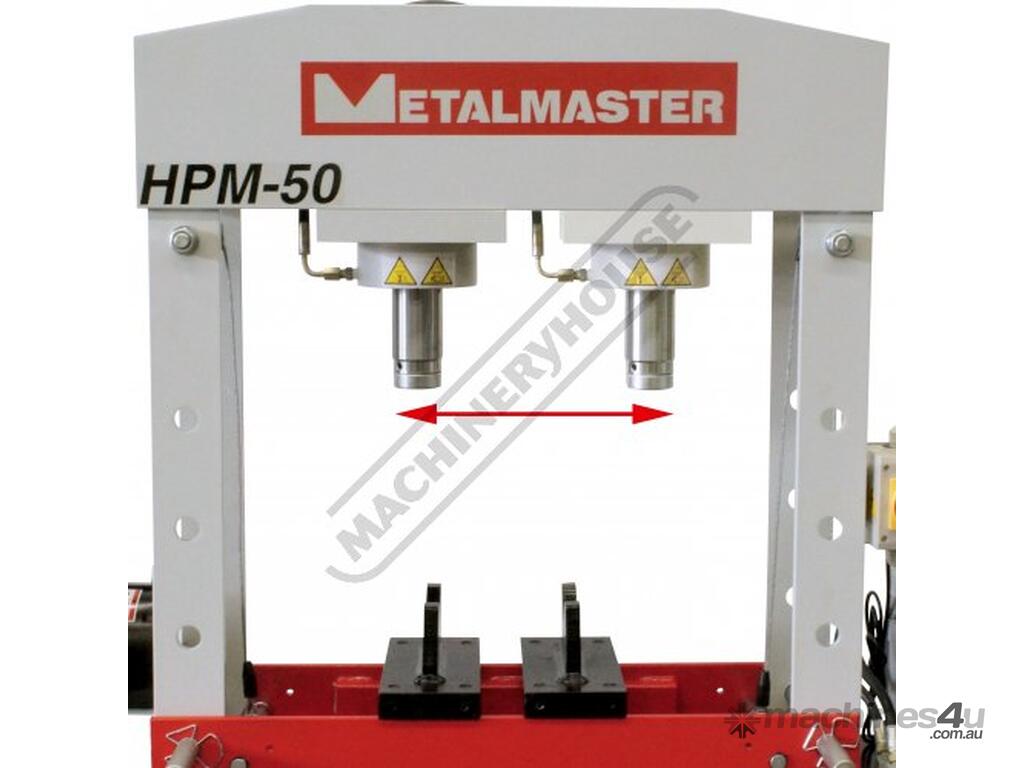

235mm Adjustable horizontal ram position

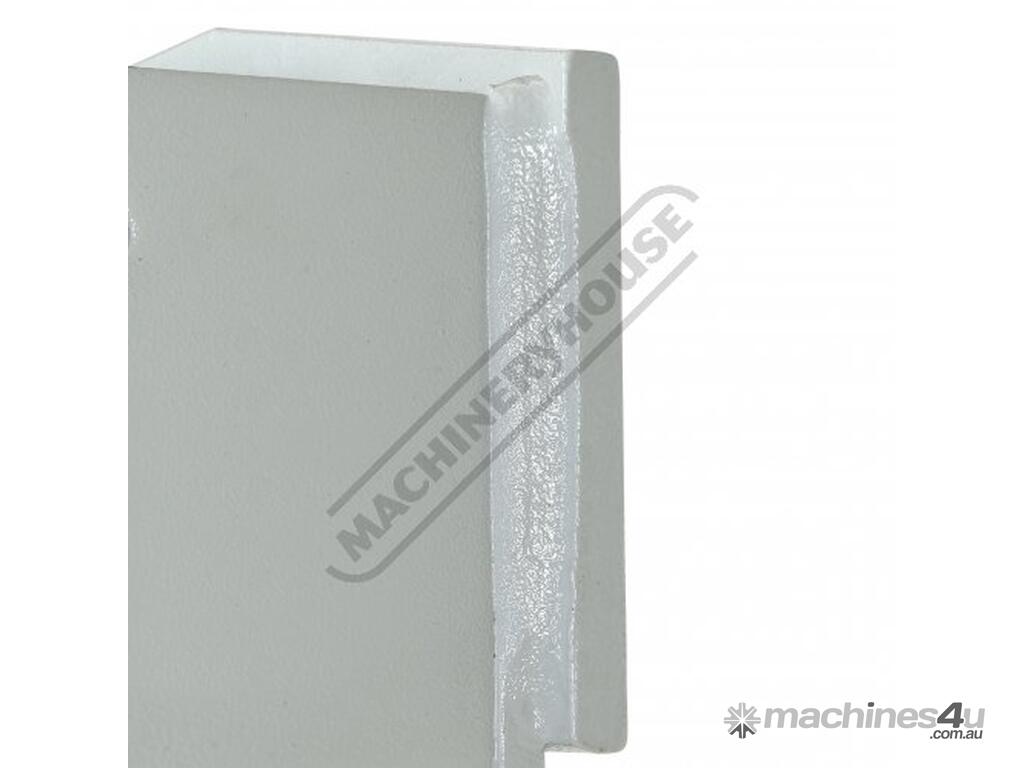

Heavy duty robotic welded steel fabricated frame

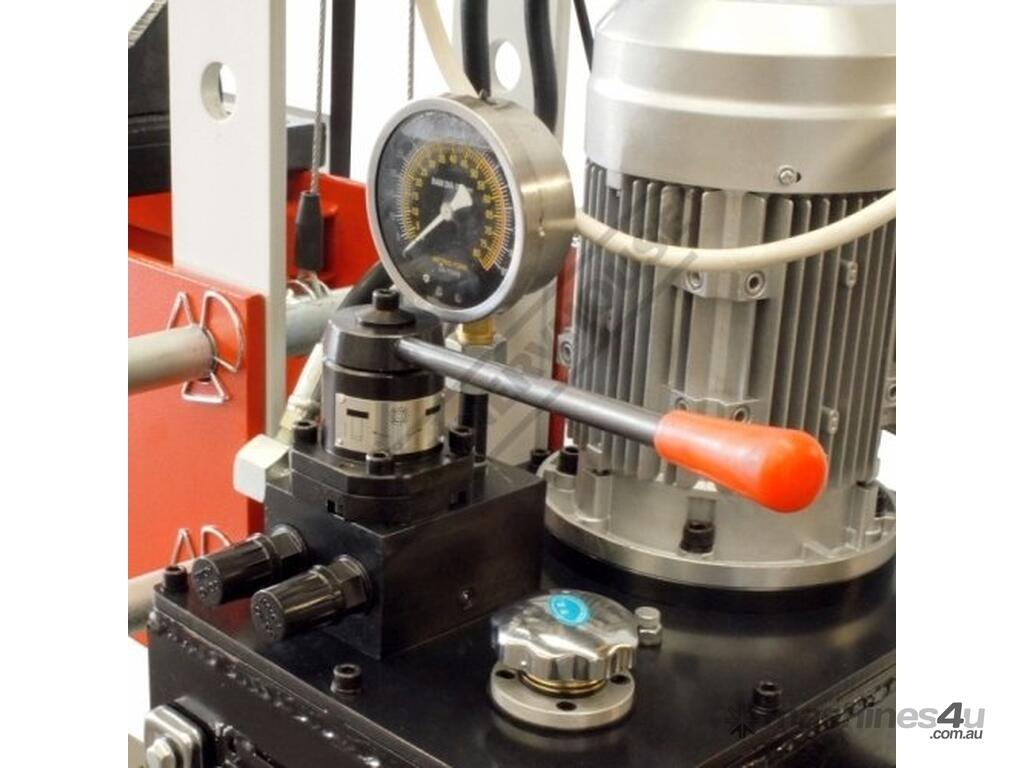

Hydraulic joystick control lever

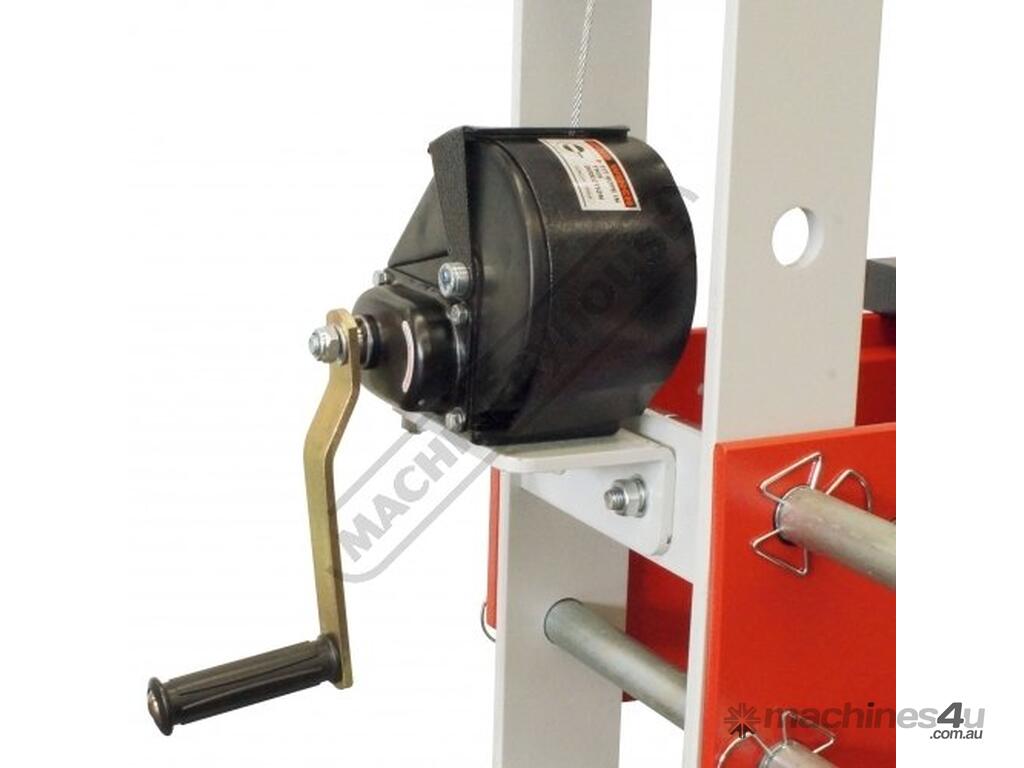

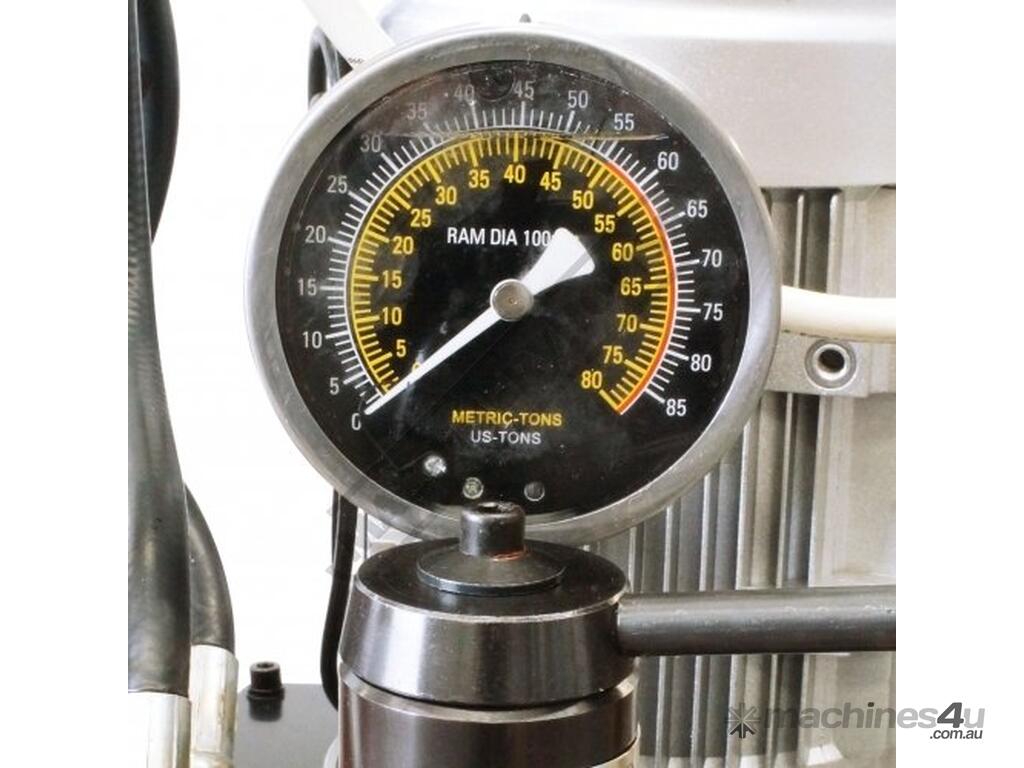

Fitted with table height winch & metric / imperial pressure gauge

Includes:

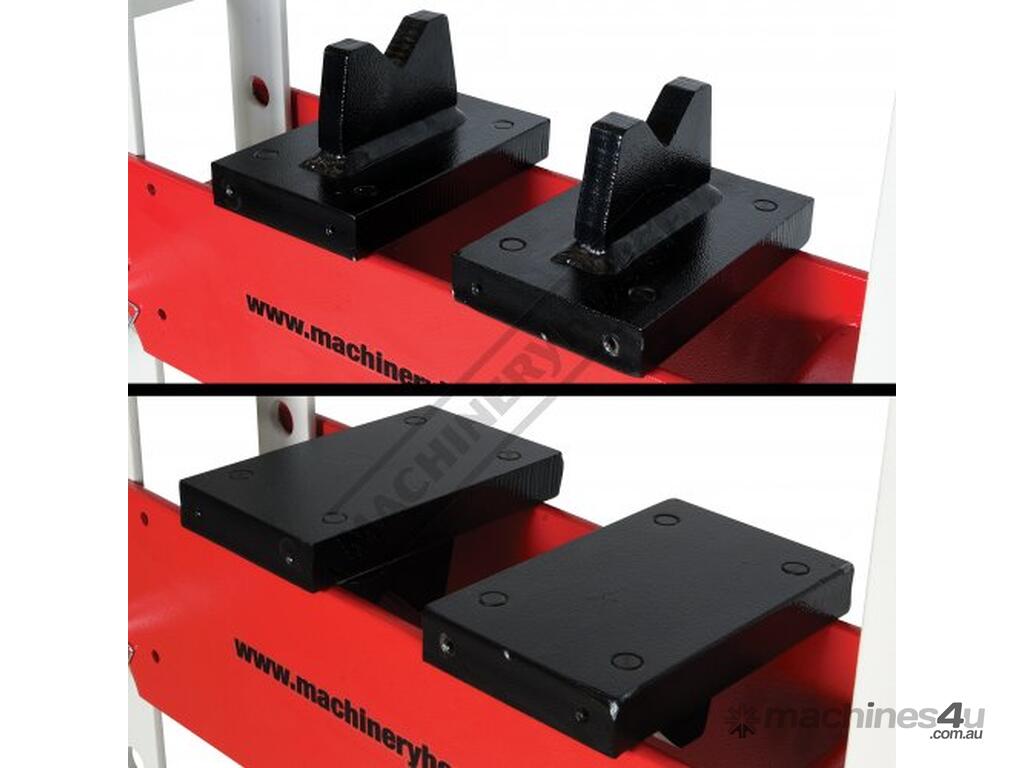

- Complete with vee blocks
- Hydraulic oil



Specifications:
ORDER CODE: P131M
MODEL: HPM-50
Pressing Capacity (Tonne): 50
Hydraulic Ram Operation (Type): Motorised System
Hydraulic Ram Operation (Type): ~
Sliding Ram (left-right) (Yes / No): Yes
Width Between Front Posts (mm): 730
Width Between Side Posts (mm): 205
Table Top Opening - (Front to Back) (mm): 185
Ram To Table (Max.) (mm): 1050
Cylinder Stroke (mm): 200
Ram Diameter (mm): Ø75
Piston Diameter (mm): ~
Minimum Air Flow Rate required (L/Min): ~
Motor Power (kW / hp): 1.5 / 2
Voltage (V): 240
Floor Space (W x D x H) (mm): 1530 x 800 x 1840
Nett Weight (kg): 409
