METALMASTER HPM-63T Industrial Motorised Hydraulic Press with Movable Cylinder - 63 Tonne Welded Steel Frame Construction Includes Heavy Steel Worktable & Bending Blocks
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: P400M

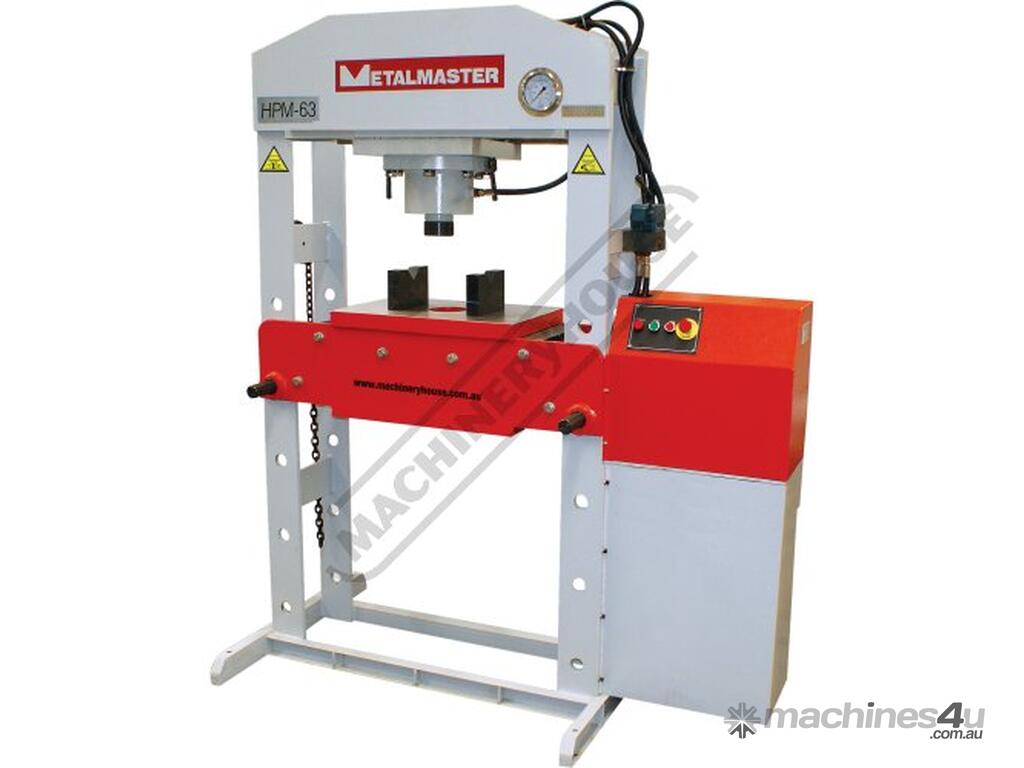

The Metalmaster HPM-63T, 63 Tonne electric/hydraulic press features a sliding cylinder which can be moved from side to side allowing for those offset pressing jobs. A heavy one piece steel workplate and a pair of pressing blocks are supplied as standard making this the ideal press for pressing, bending, forming, straightening and a whole variety of operations.
Features:
H frame design with welded steel frame construction

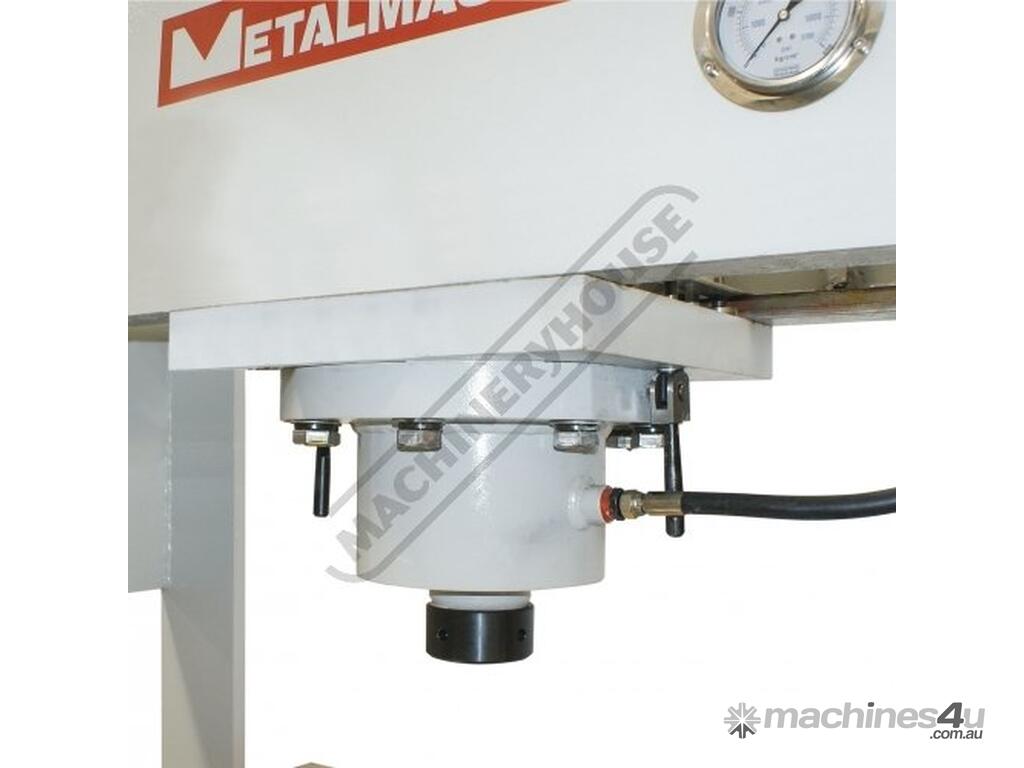

Movable cylinder (left-right) allows operator to reposition the cylinder for off centre work
Electric/Hydraulic operation provides smooth consistent pressing action

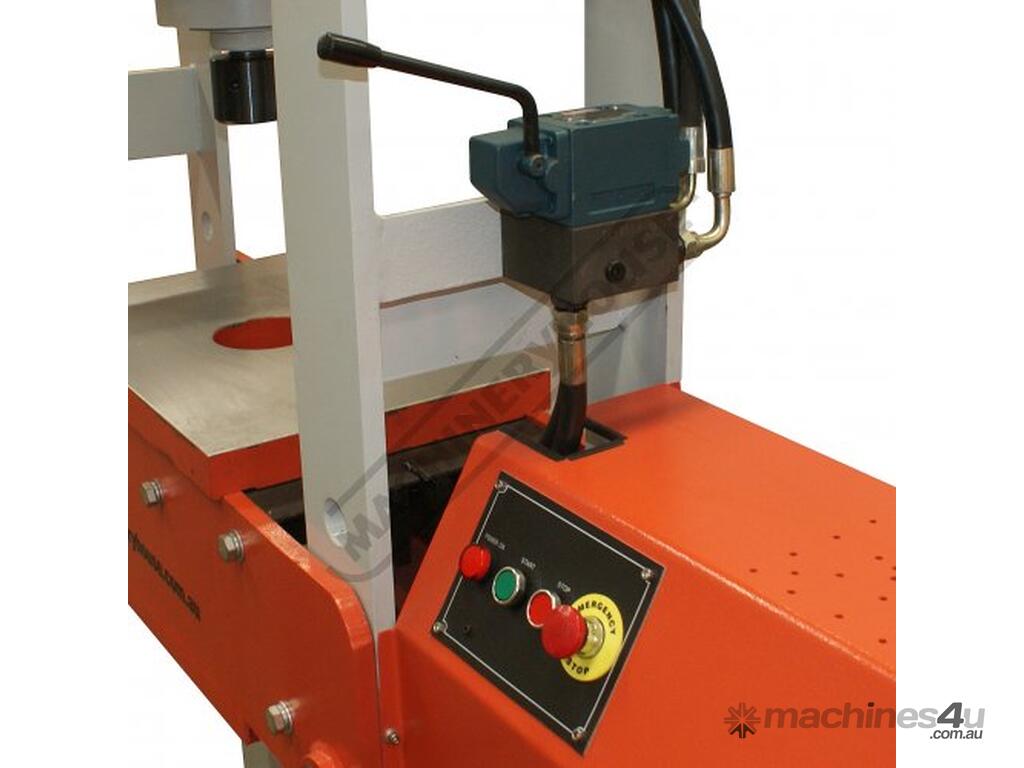

Joystick control for ram stroke and return
300mm Ram stroke
Ram speed down 6.7mm/sec returns 5.9mm/sec

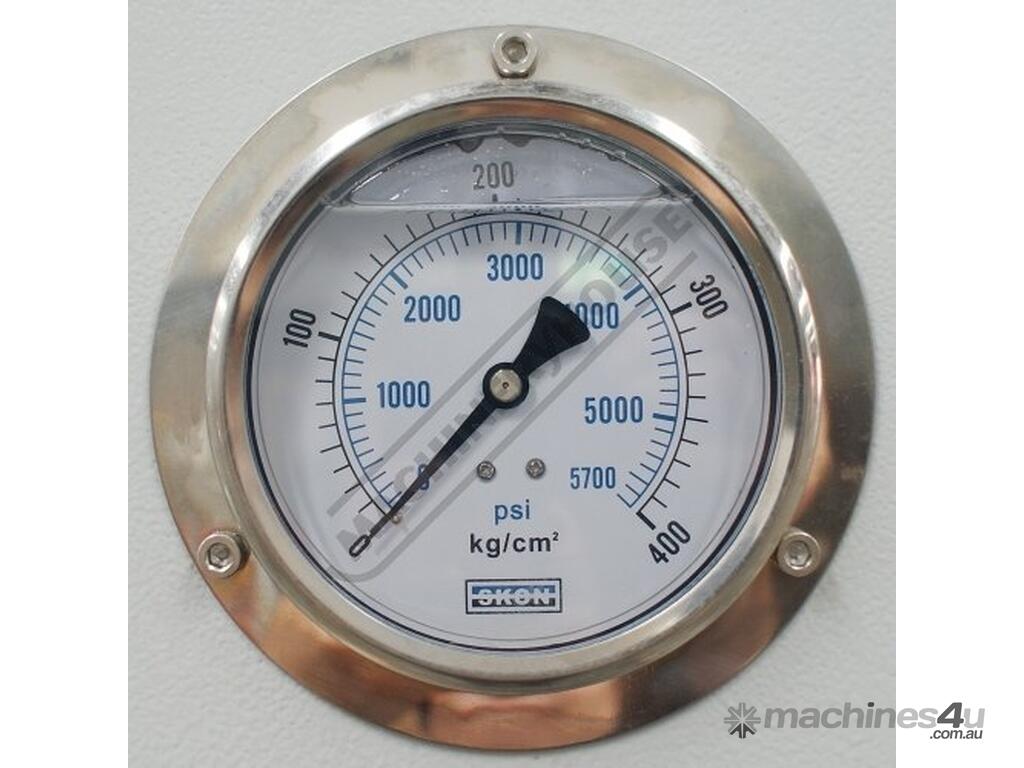

Pressure gauge fitted for easy control of pressing operations
Height adjustable worktable with 5 adjustment positions
Heavy one piece steel work plate and pressing blocks
Work table height easily adjusted with the assiatnce of the ram

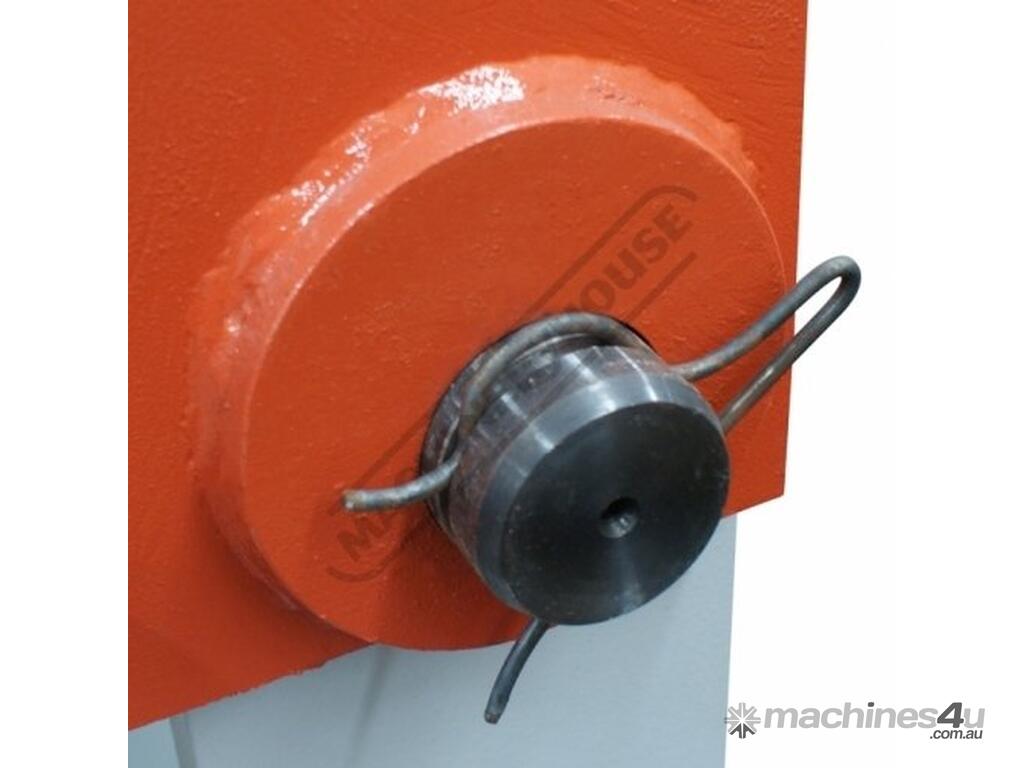

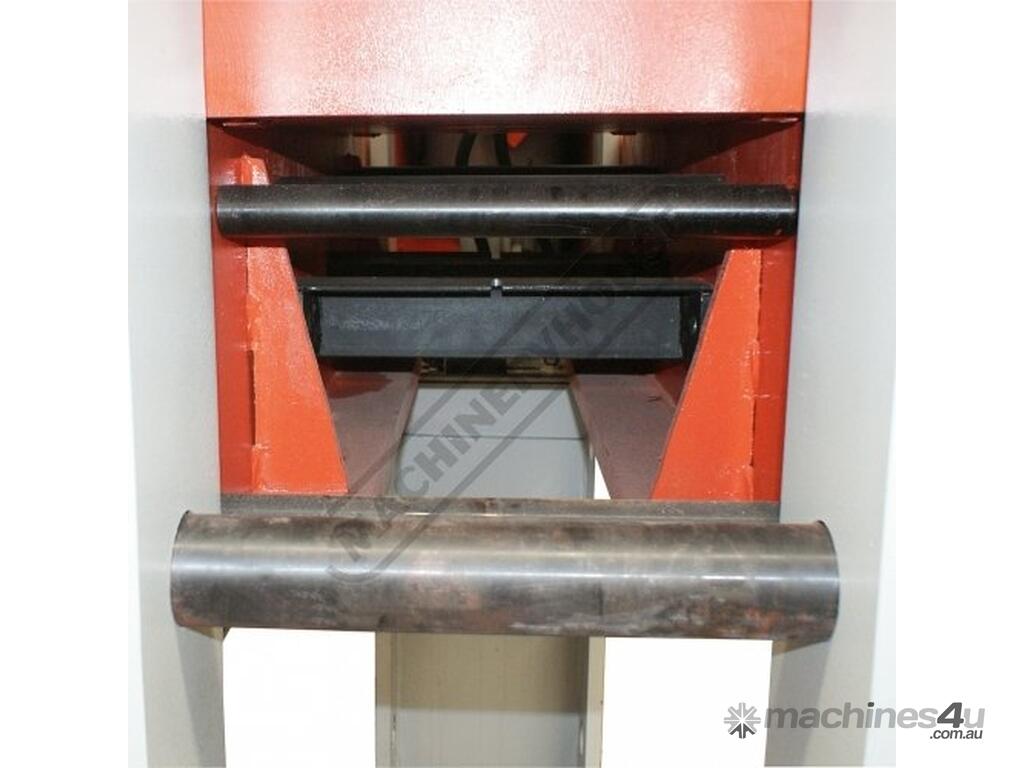

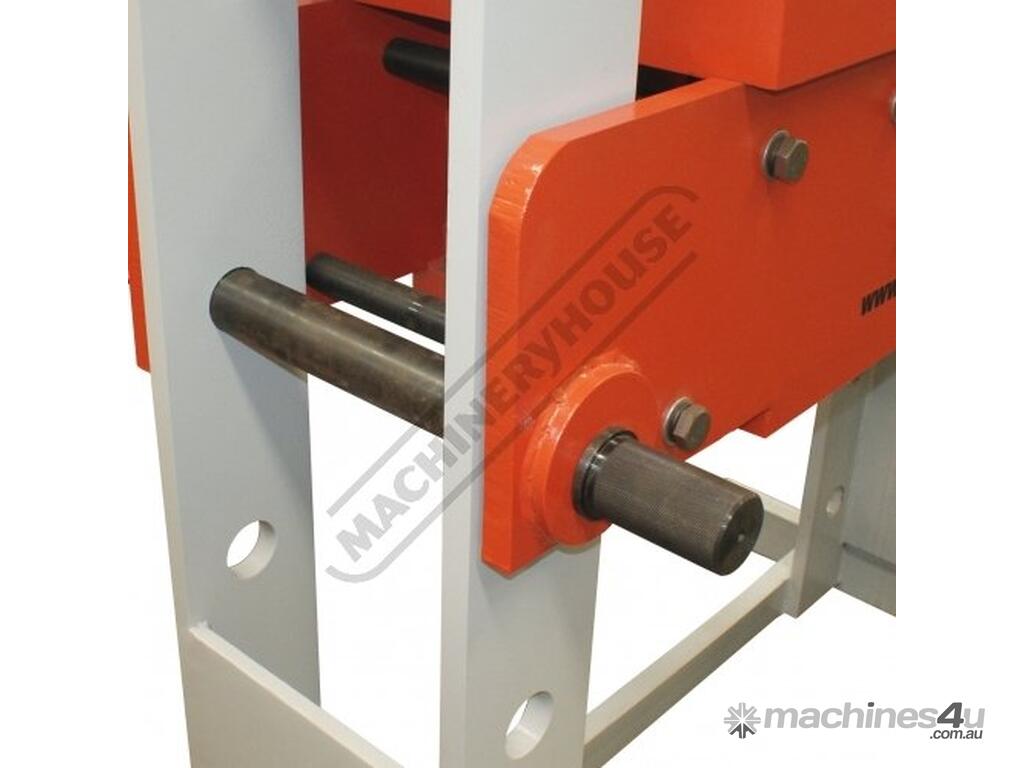

Reinforced table support holes with high tensile setting pins
Safety overload valve
Powerful TEFC motor
Ideal for any industrial workshop for the repair of axles shafts & press fit of bearings & bushings
Includes:
- Heavy one piece steel work plate
- Pair of double sided pressing blocks (Vee & Flat)
- Table raising and lowering chains
Specifications:
ORDER CODE: P400M
MODEL: HPM-63T
Pressing Capacity (Tonne): 63
Hydraulic Ram Operation (Type): Motorised System
Hydraulic Ram Operation (Type): ~
Sliding Ram (left-right) (Yes / No): Yes
Width Between Front Posts (mm): 895
Width Between Side Posts (mm): 275
Table Top Opening - (Front to Back) (mm): 325
Ram To Table (Max.) (mm): 900
Cylinder Stroke (mm): 300
Ram Diameter (mm): Ø80
Piston Diameter (mm): ~
Minimum Air Flow Rate required (L/Min): ~
Motor Power (kW / hp): 4 / 5.3
Voltage (V): 415
Floor Space (W x D x H) (mm): 1700 x 1000 x 2070
Nett Weight (kg): 912
