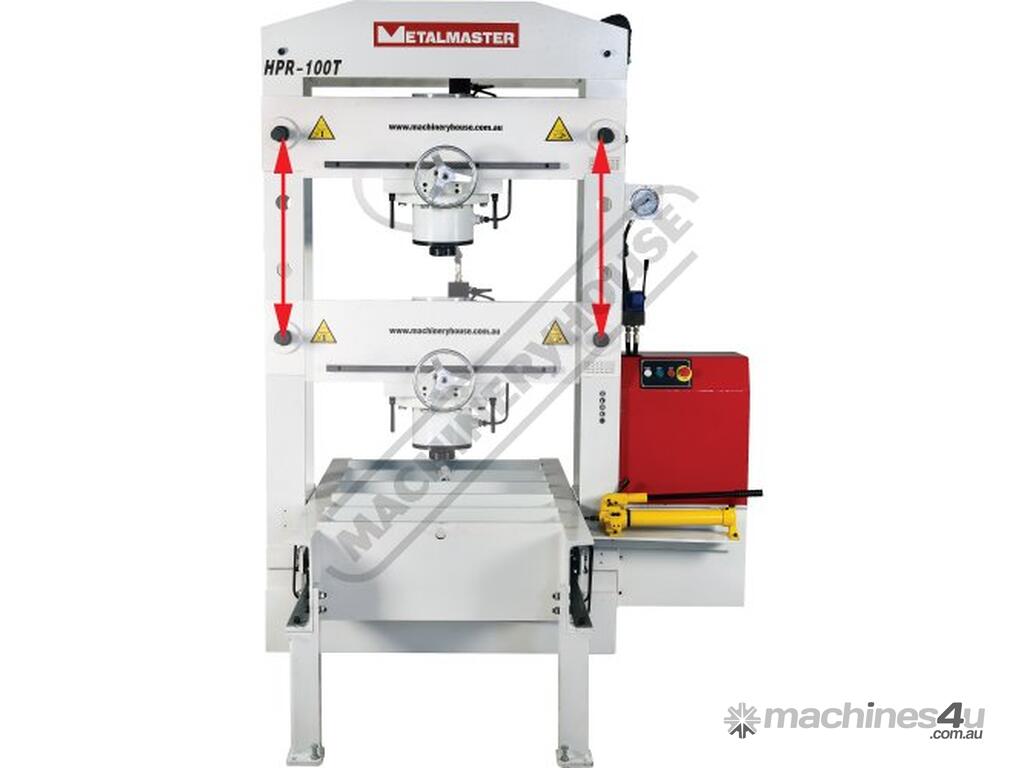

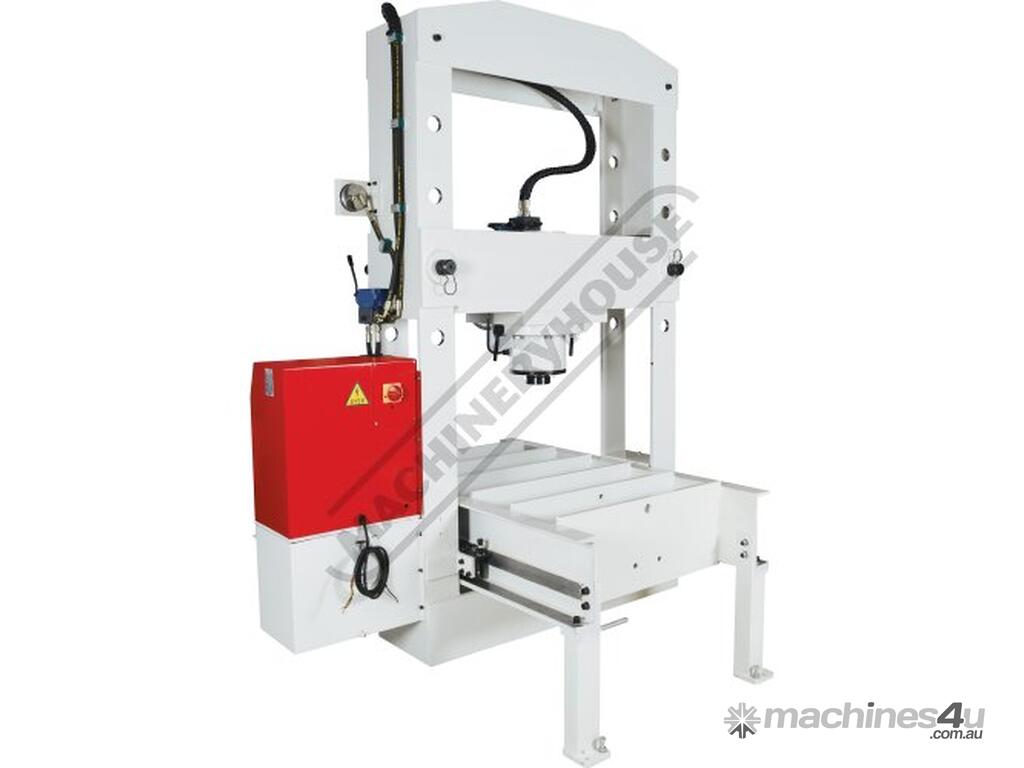

METALMASTER HPR-100T Industrial Motorised Hydraulic Roll Frame Press with Movable Cylinder - 100 Tonne Heavy Duty 1680 x 1040mm Stationary Bed Includes Sliding Roll Frame & Movable Cylinder
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: P402T

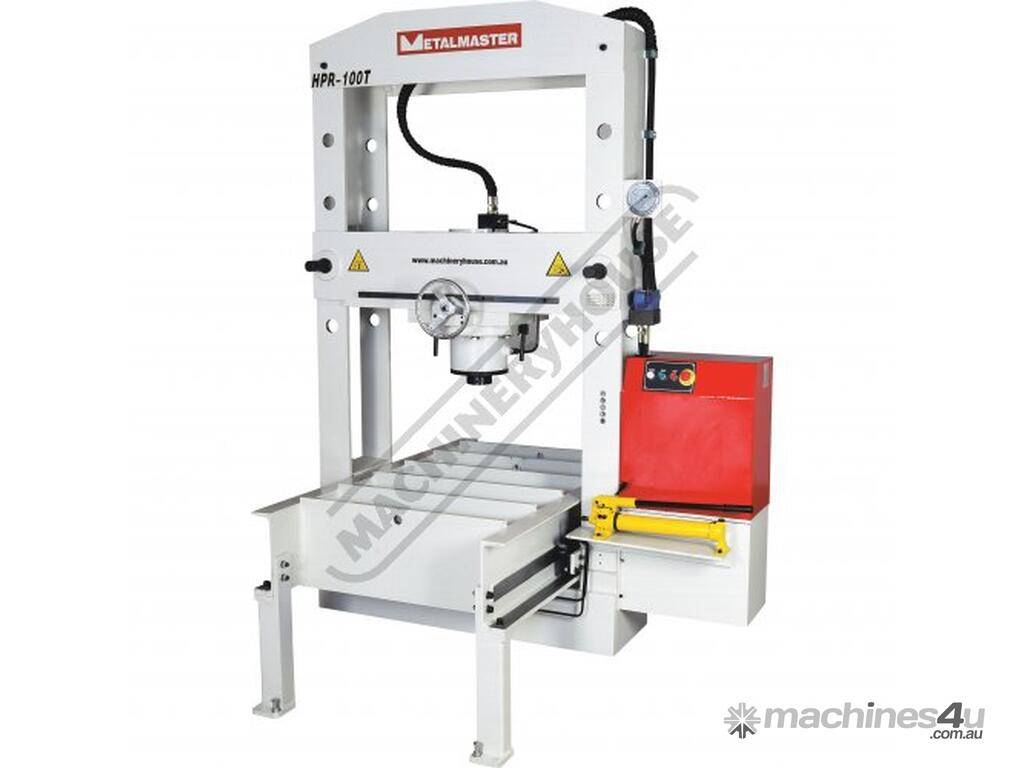

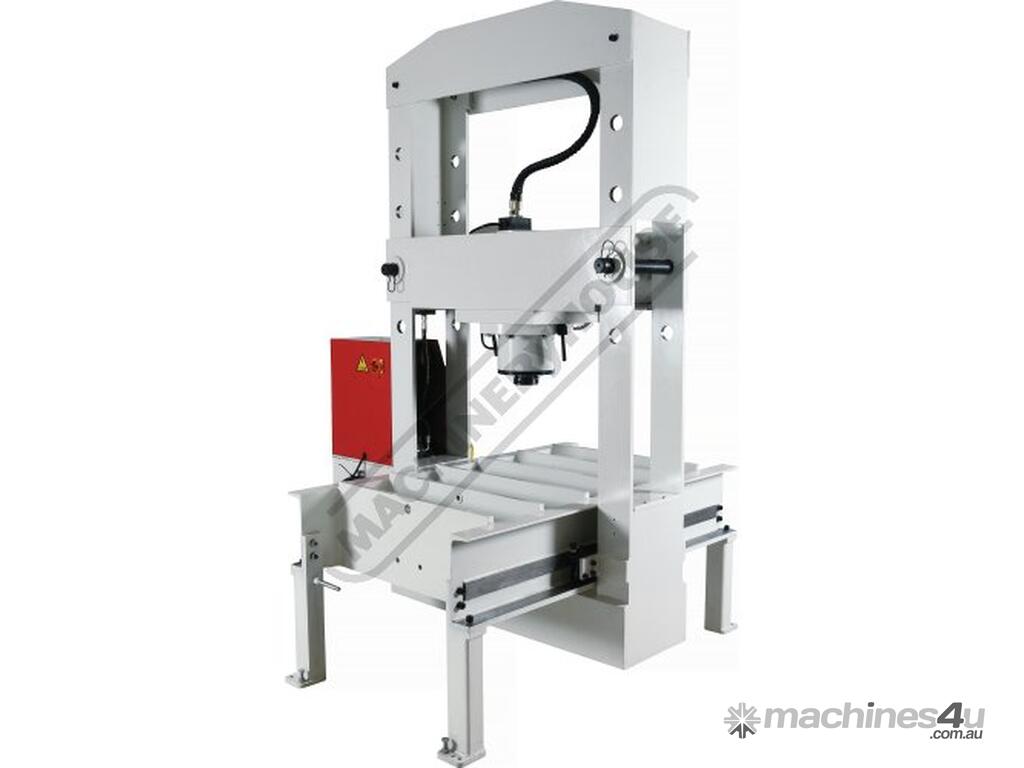

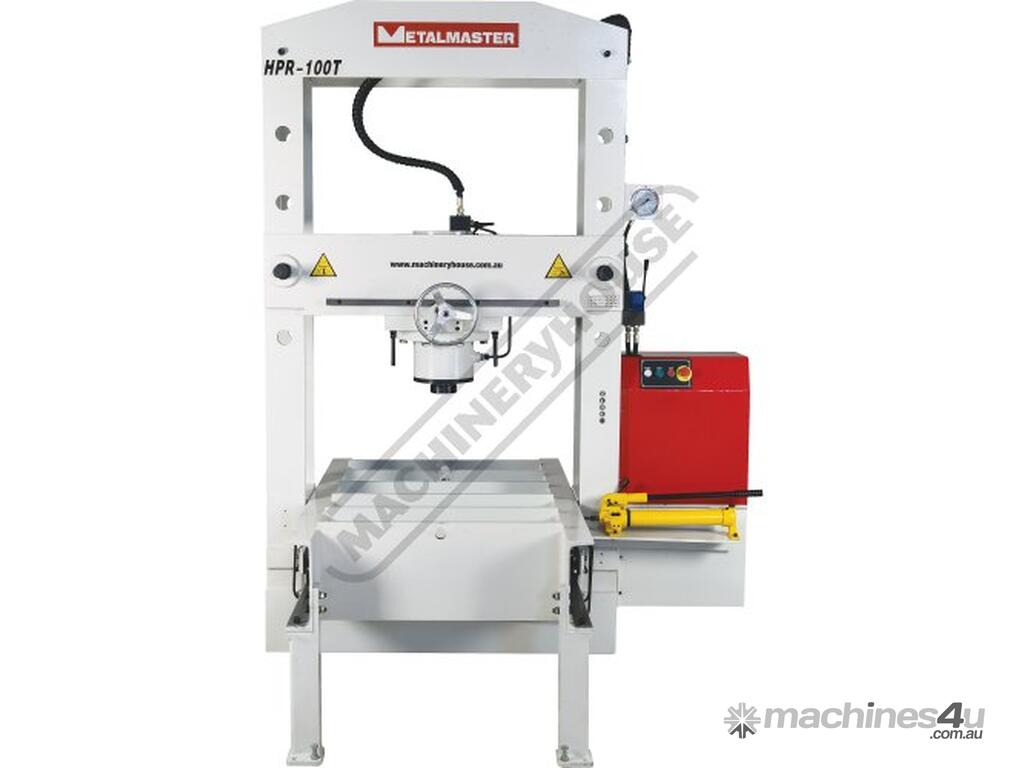

The HP-100T unique roll frame press with moveable head is designed to support heavy loads with its stationary bed. The press frame can slide back & forth & be positioned along the 1680mm table bed, whilst the ram can also slide left to right into the desired position required for those awkward offset jobs, making this press very handy to have in any heavy vehicle repair workshop or manufacturer.

Features:
Easy to use and powerful press for most applications & ideal for the repair of axles shafts & press fit of bearings & bushings

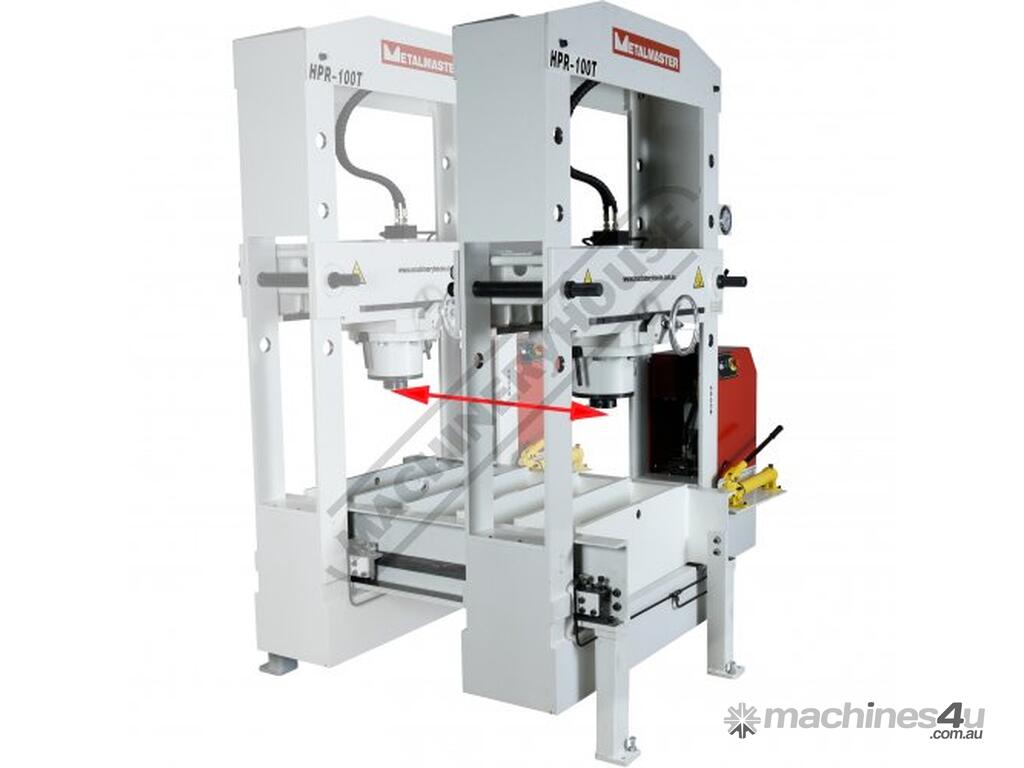

Press frame can be repositioned by easily sliding back & forth along table bed and travel a total of 1020mm

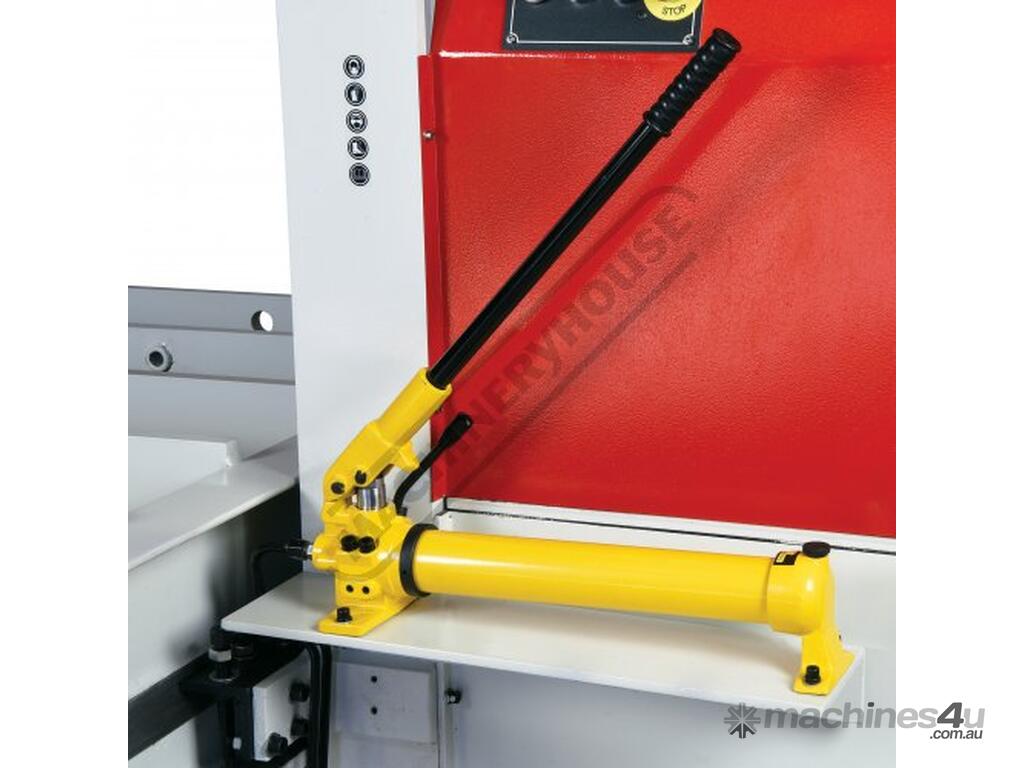

Press frame is locked with an independent hydraulic hand pump system

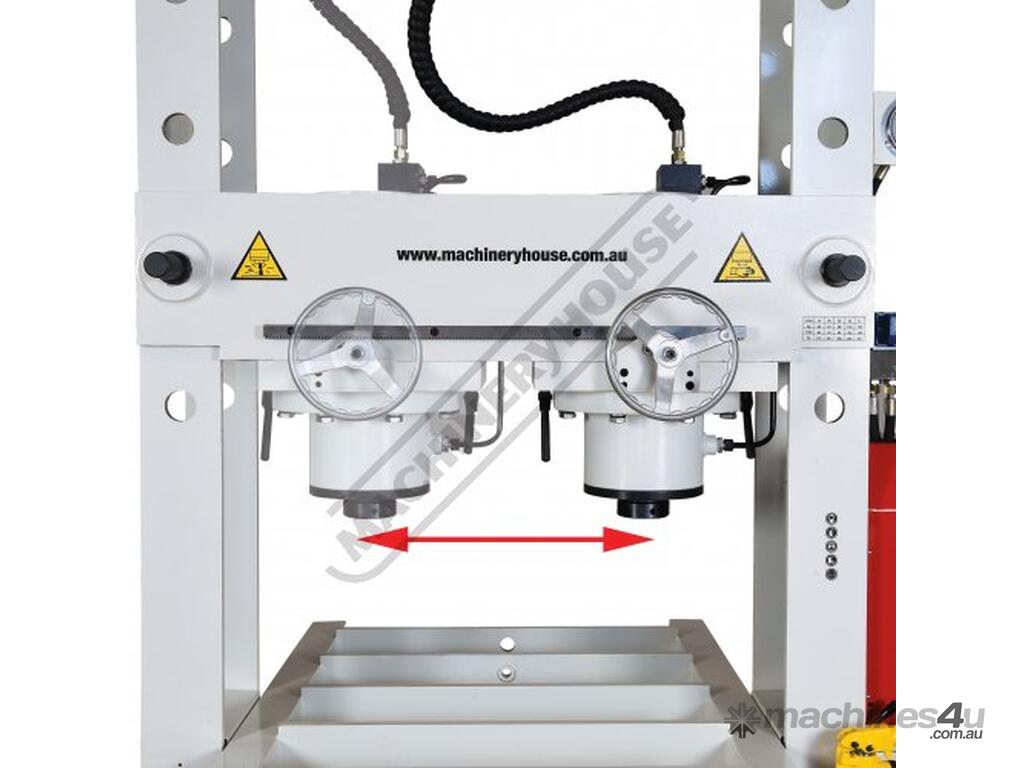

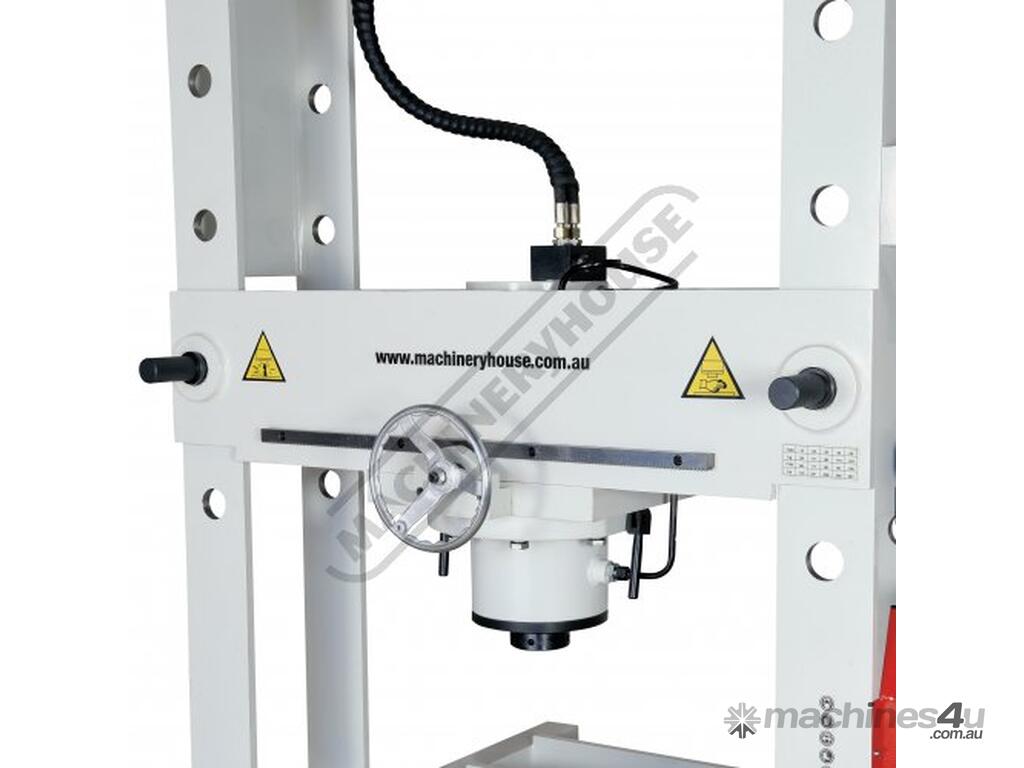

Ram can be repositioned via crank hand wheel slides left or right 550mm
Ram speed down 7.9mm/sec returns 9.0mm/sec

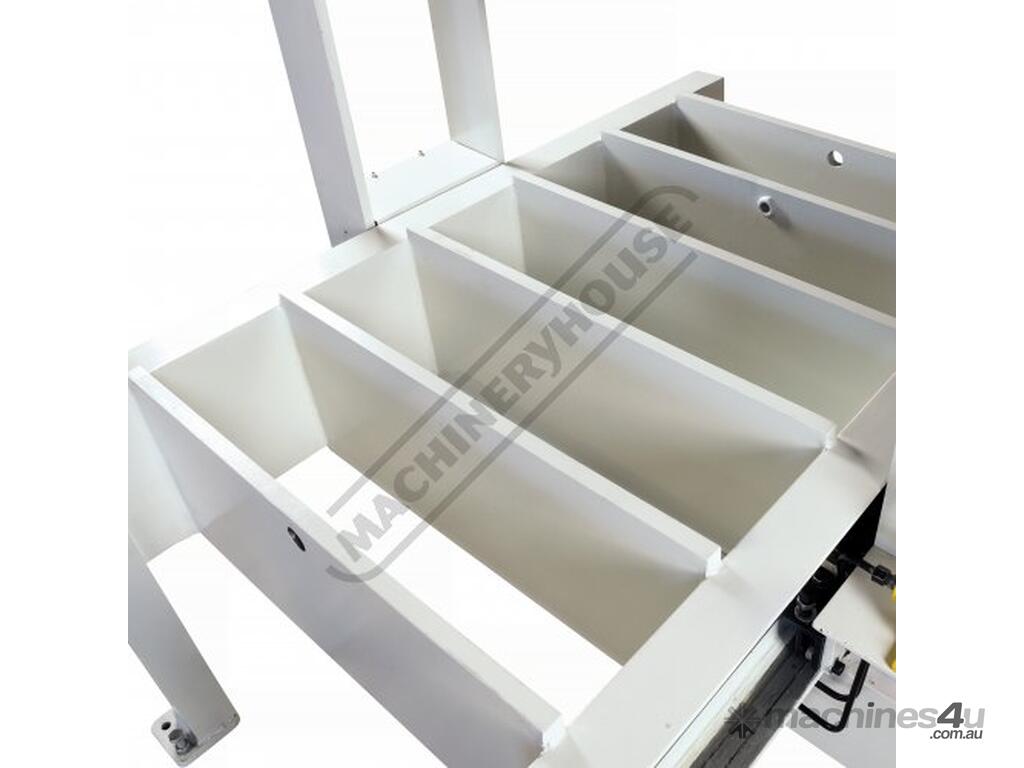

Heavy duty stationary bed 1680 x 1040mm
Heavy duty welded steel fabricated frame

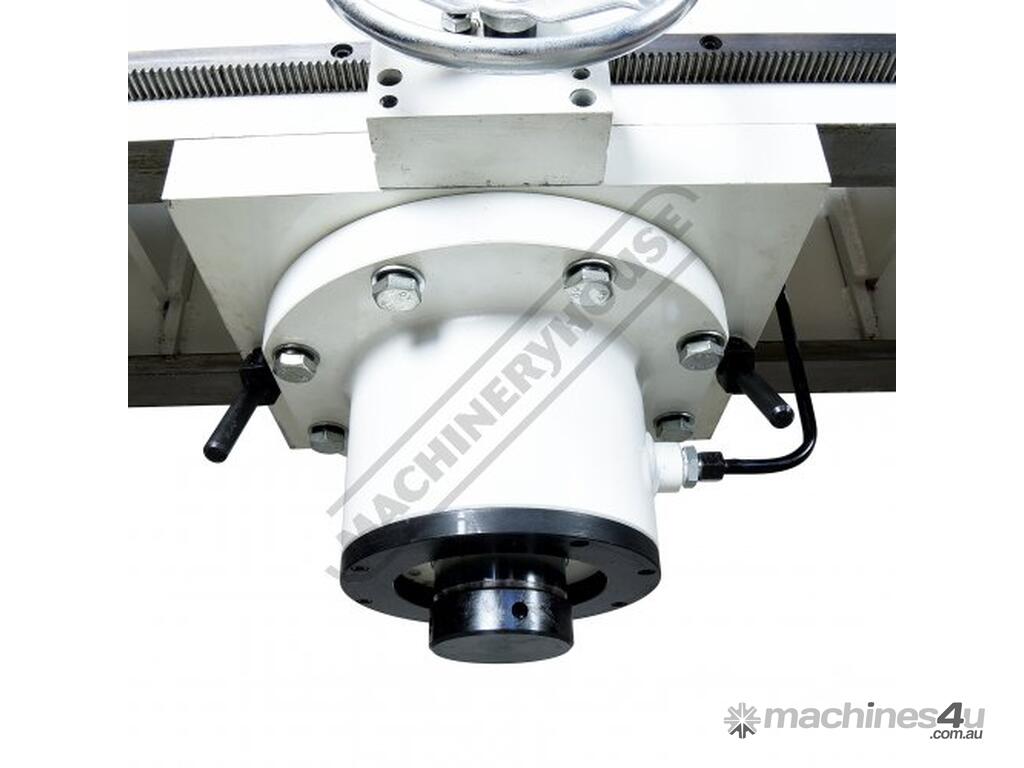

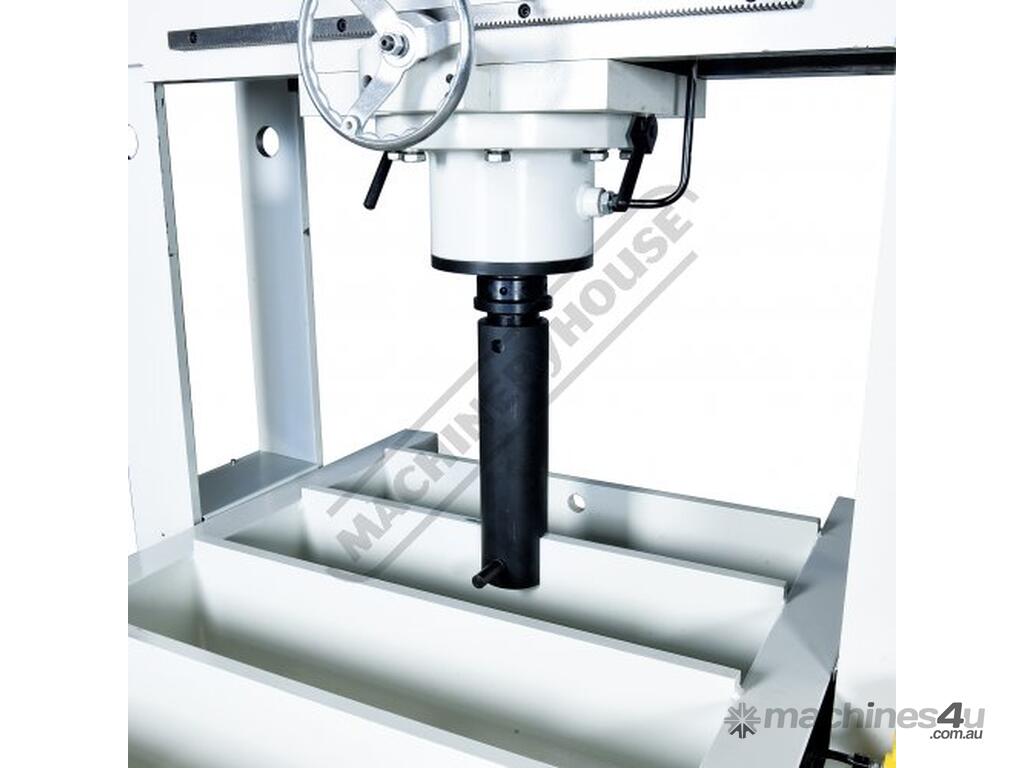

Strong hydraulic cylinder ensures precise pressing during operation

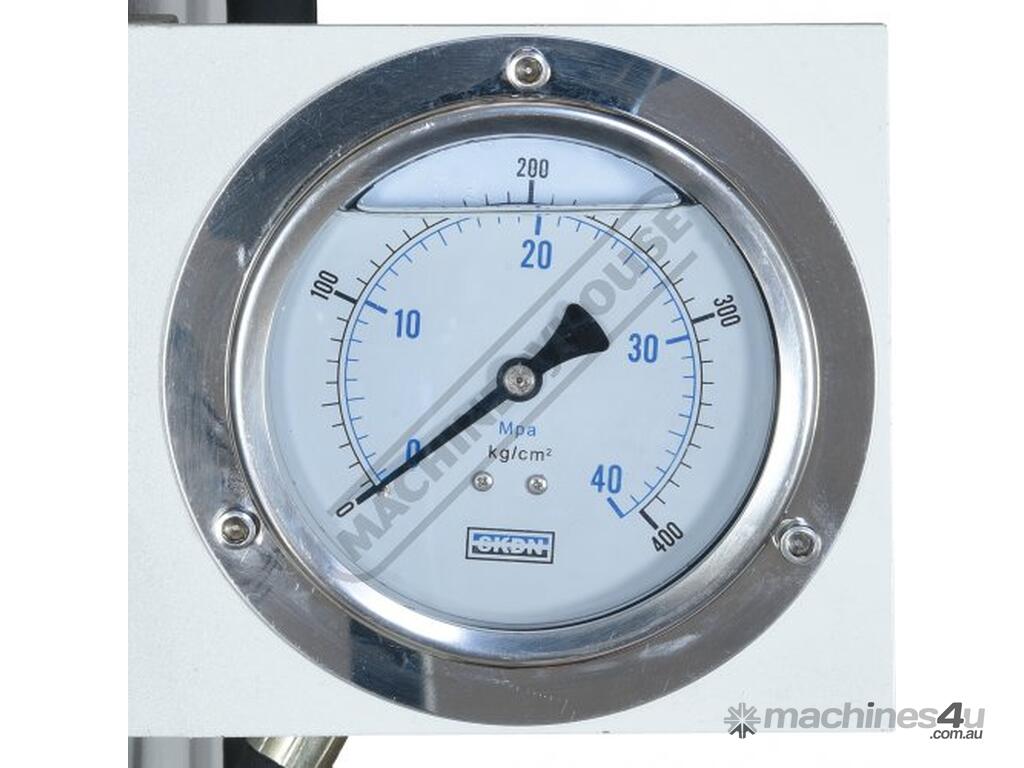

Fitted with pressure gauge
Safety overload valve

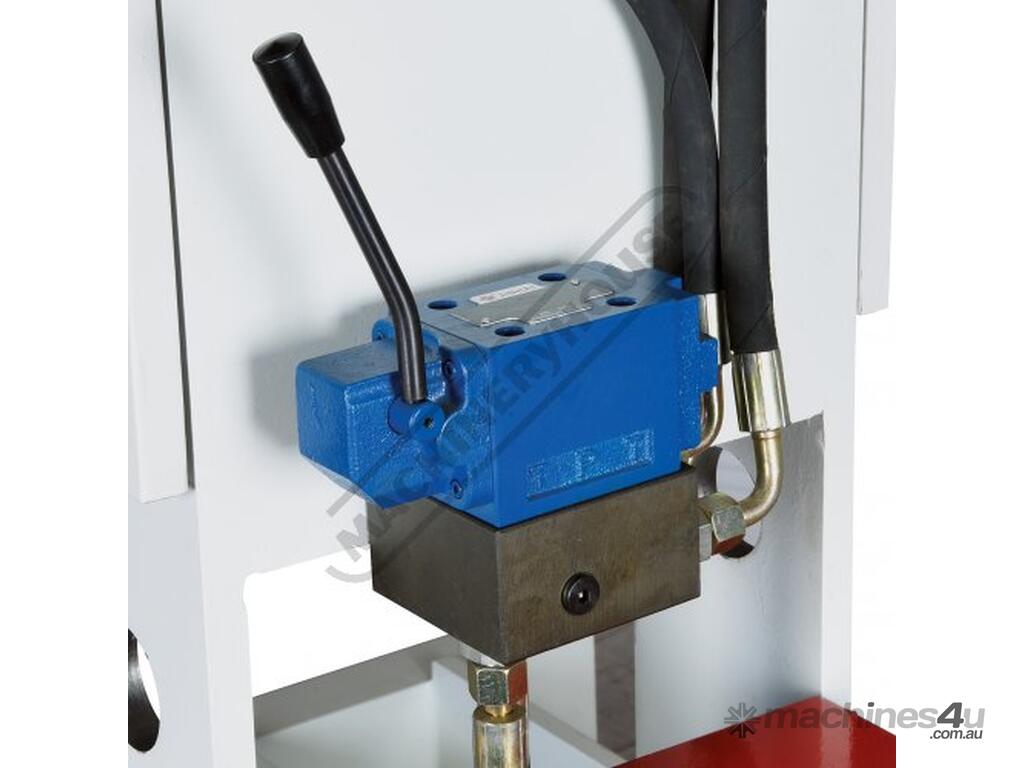

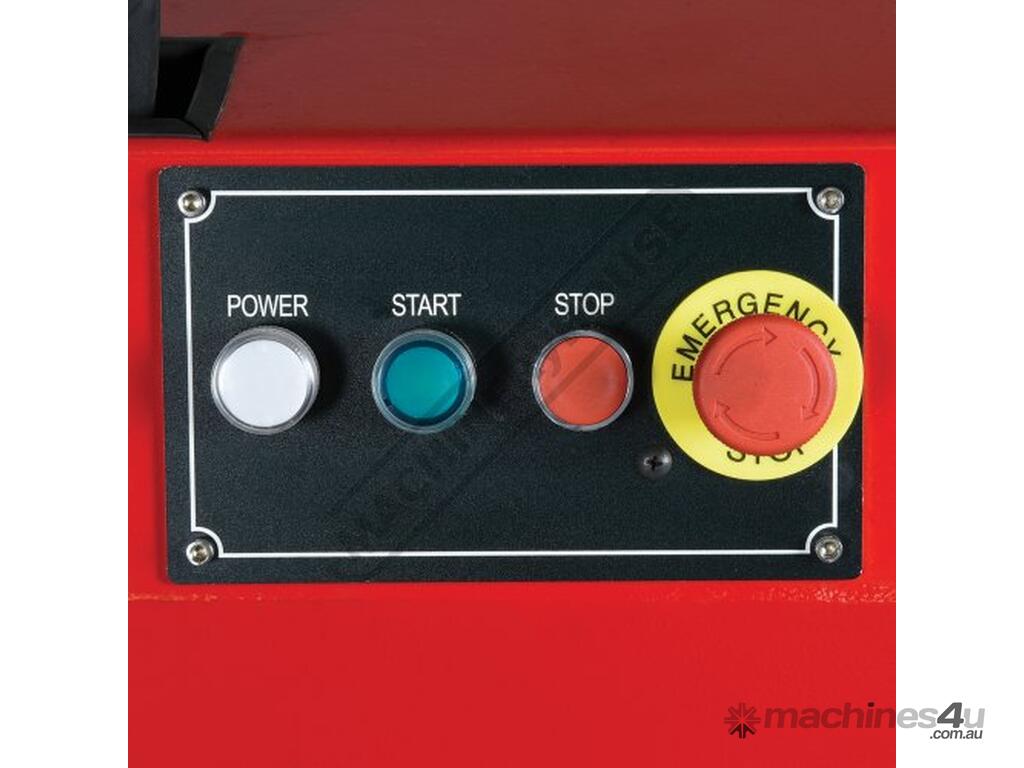

Hydraulic joystick control lever
Powerful TEFC motor
Heavy duty one piece table bed

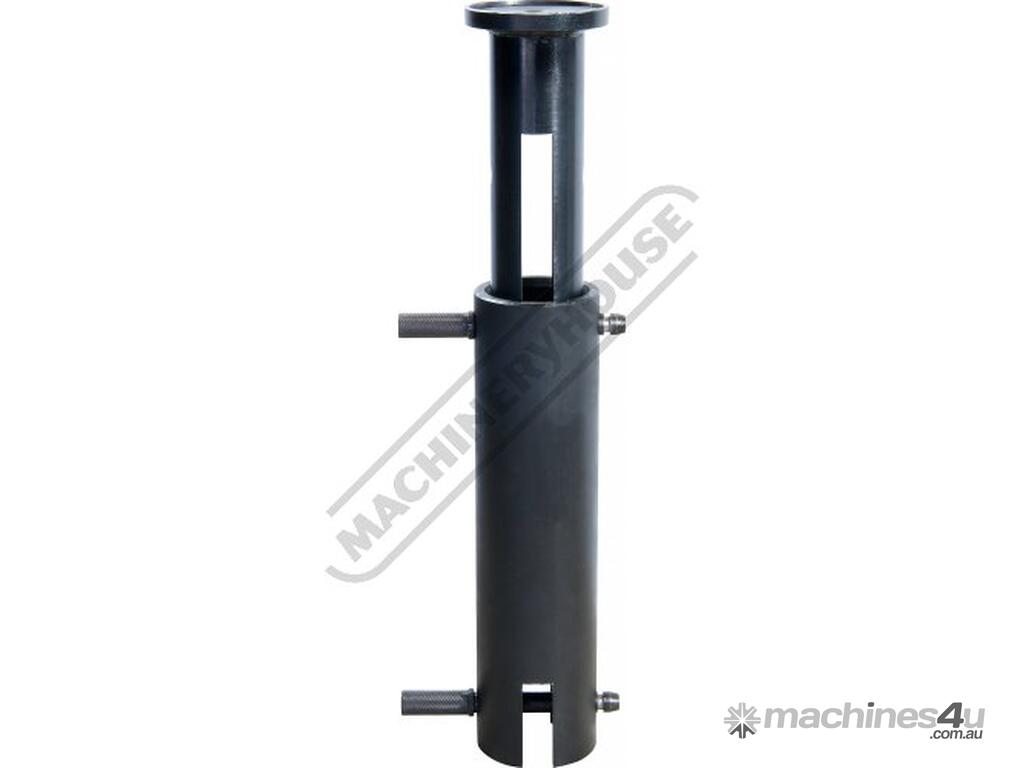

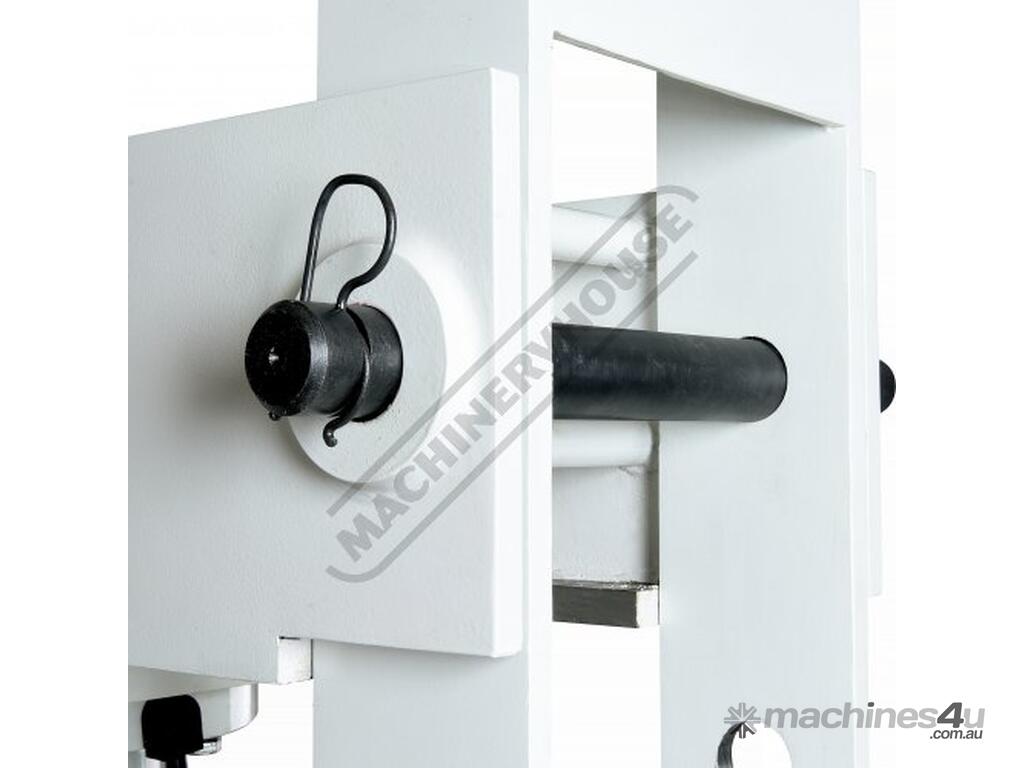

Press head can be adjusted for height using with adaptor and hydraulic ram


Pre-Commissioning:
1. Press is run & tested prior delivery
2. Hydraulic oil is included with machine


Specifications:
ORDER CODE: P402T
MODEL: HPR-100T
Pressing Capacity (Tonne): 100
Hydraulic Ram Operation (Type): Motorised System
Hydraulic Ram Operation (Type): ~
Sliding Ram (left-right) (Yes / No): Yes
Width Between Front Posts (mm): 1060
Width Between Side Posts (mm): 310
Table Top Opening - (Front to Back) (mm): ~
Ram To Table (Max.) (mm): 890
Cylinder Stroke (mm): 350
Ram Diameter (mm): Ø100
Piston Diameter (mm): ~
Minimum Air Flow Rate required (L/Min): ~
Motor Power (kW / hp): 7.5 / 10
Voltage (V): 415
Floor Space (W x D x H) (mm): 1780 x 1865 x 2655
Nett Weight (kg): 1960
