HS120 Table Saw 550 x 800mm Steel Table Ø315mm Saw Blade

SCHEPPACH HS120 Table Saw 550 x 800mm Steel Table Ø315mm Saw Blade
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: W443

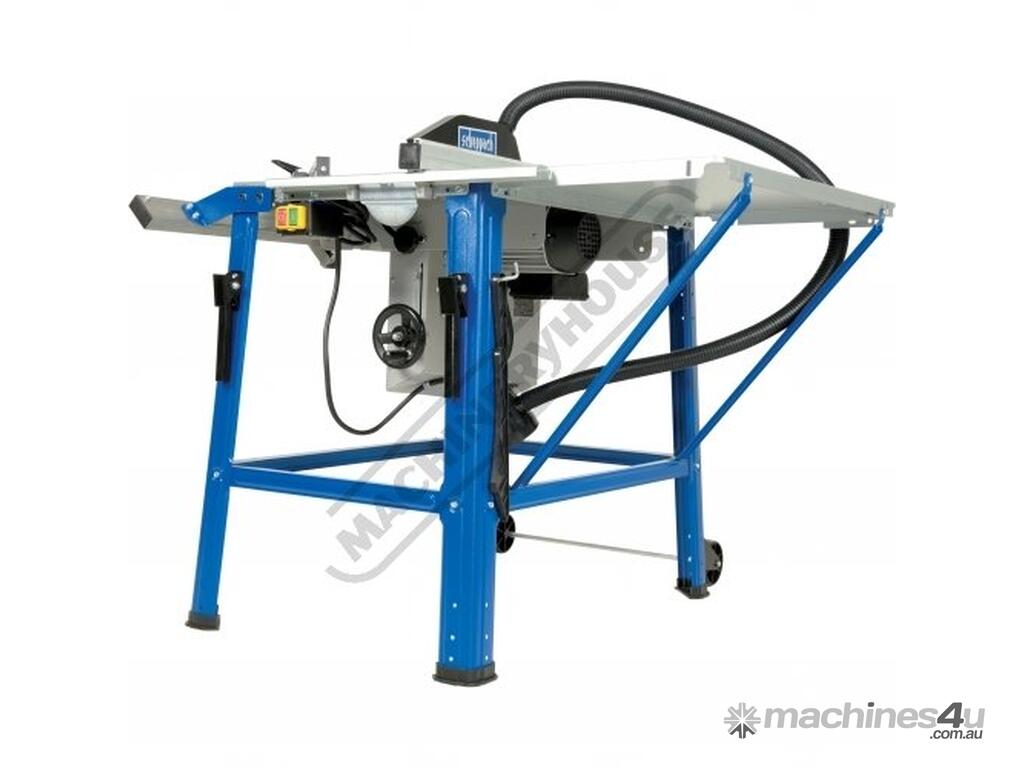

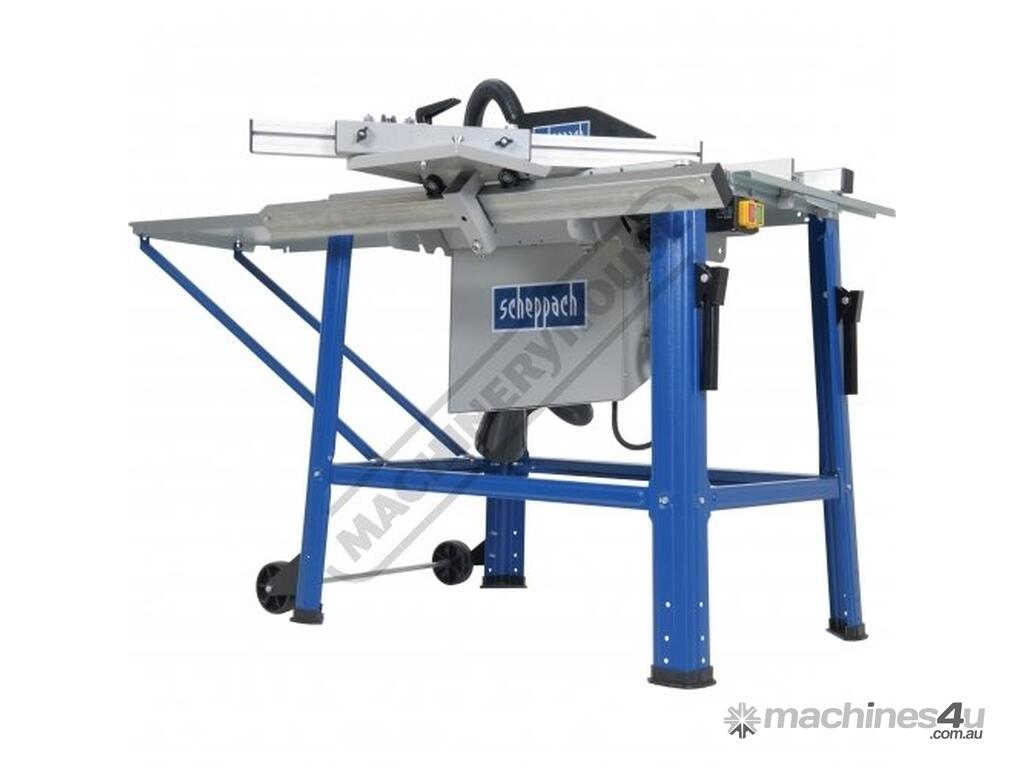

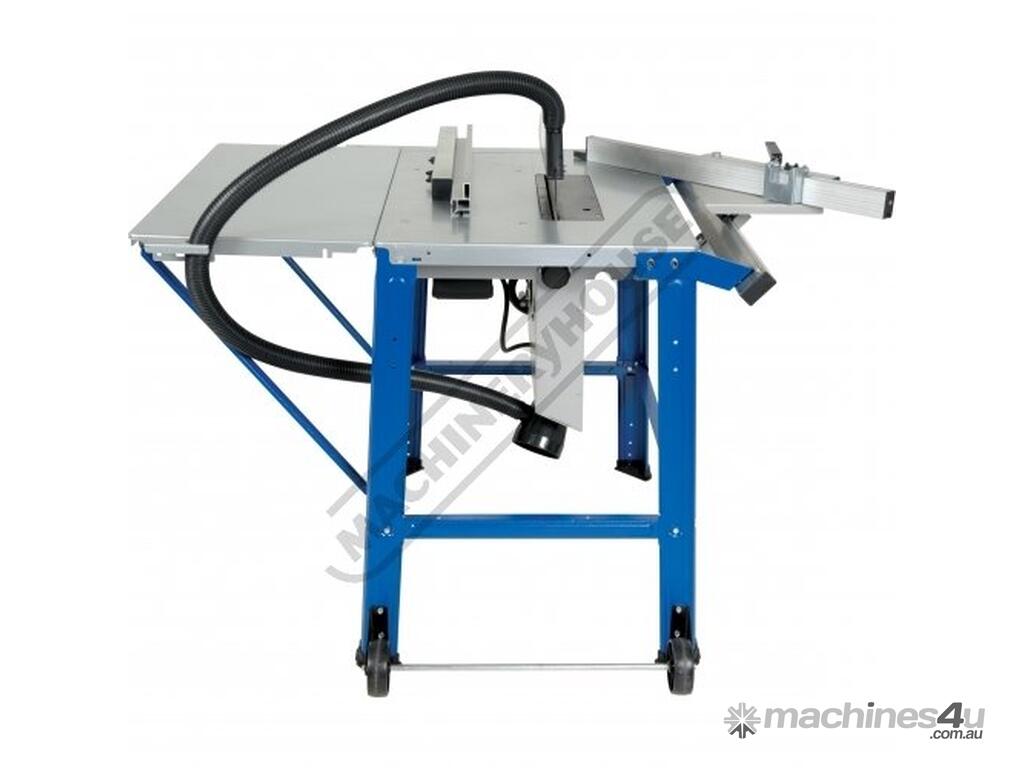

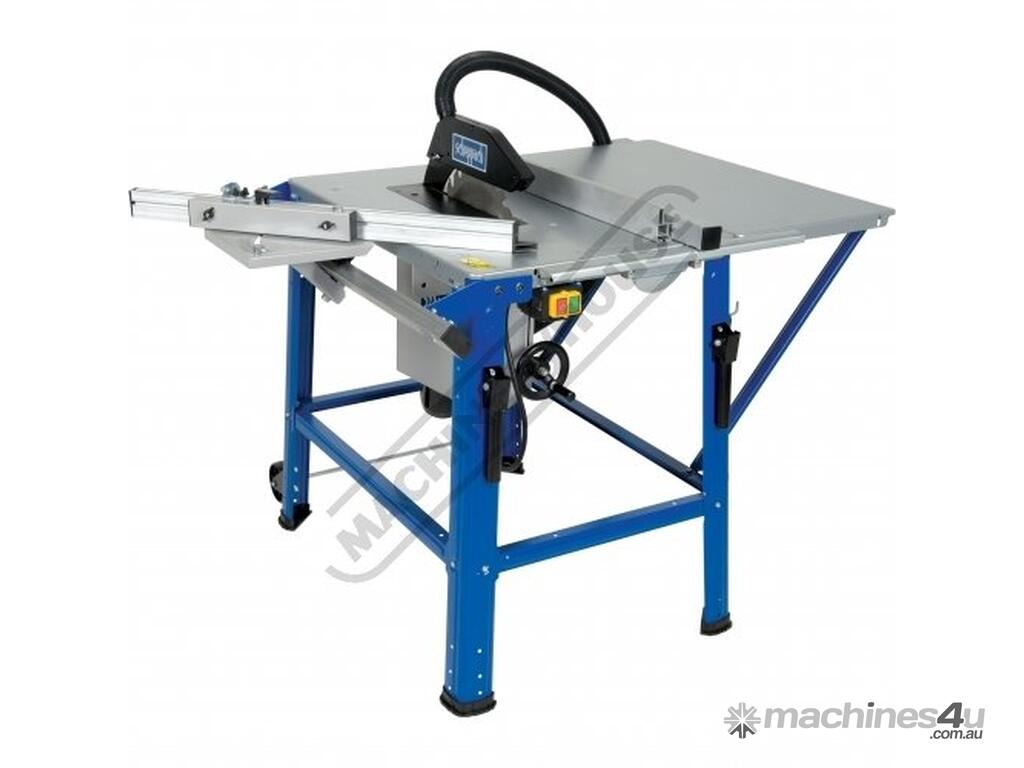

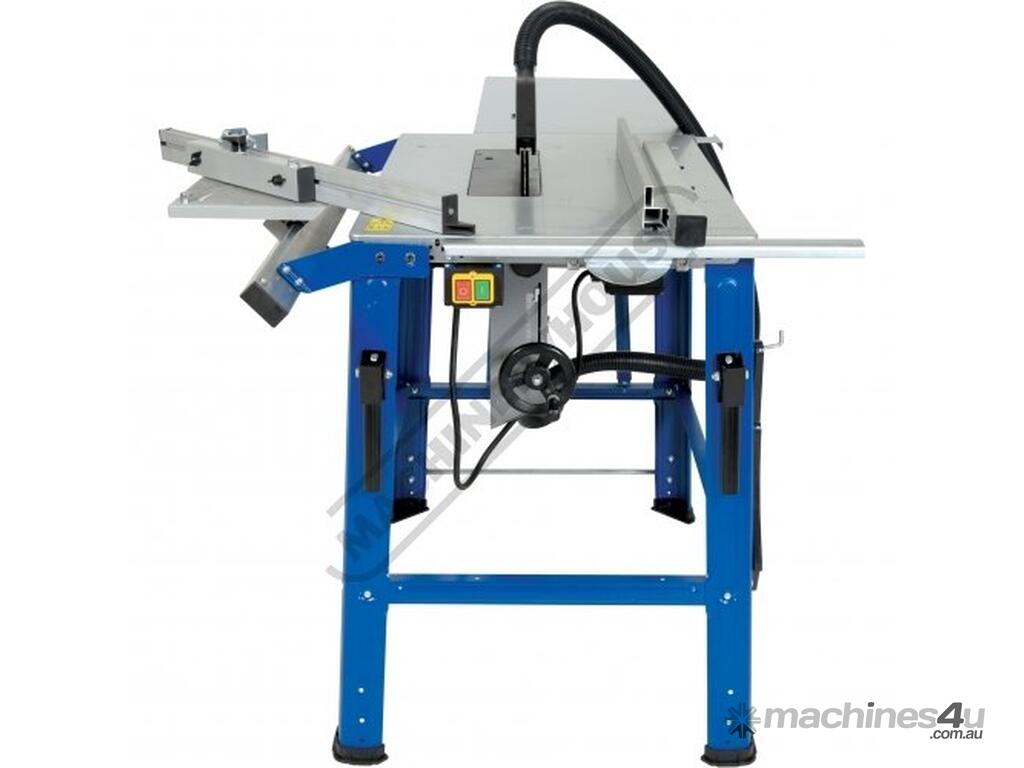

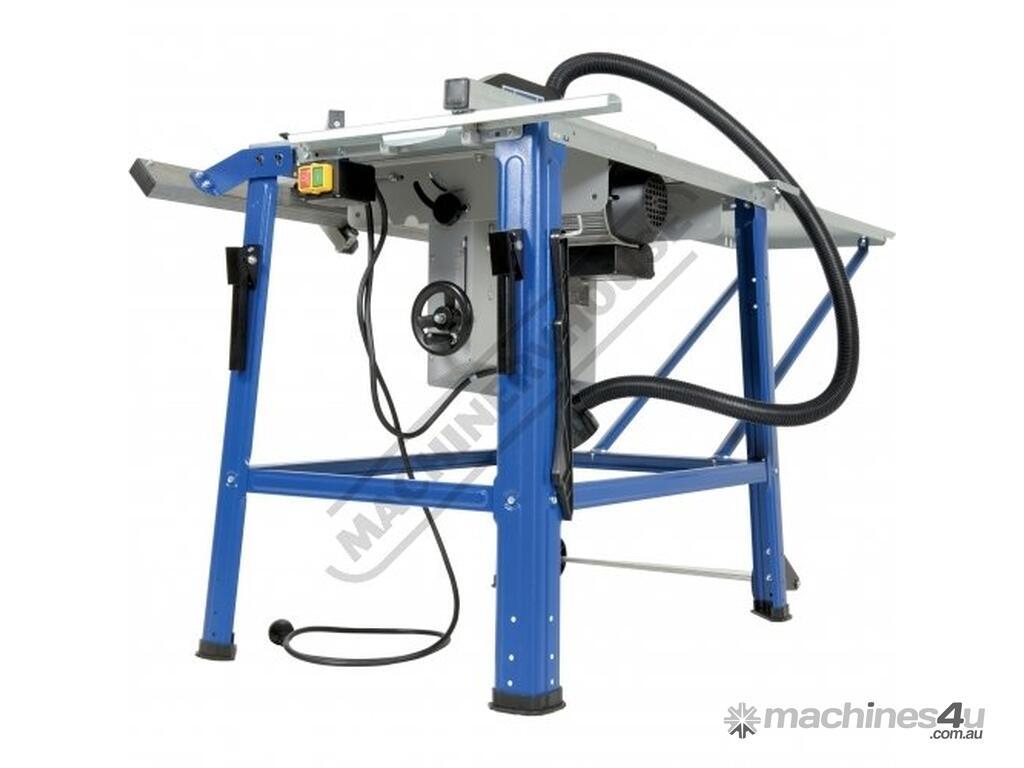

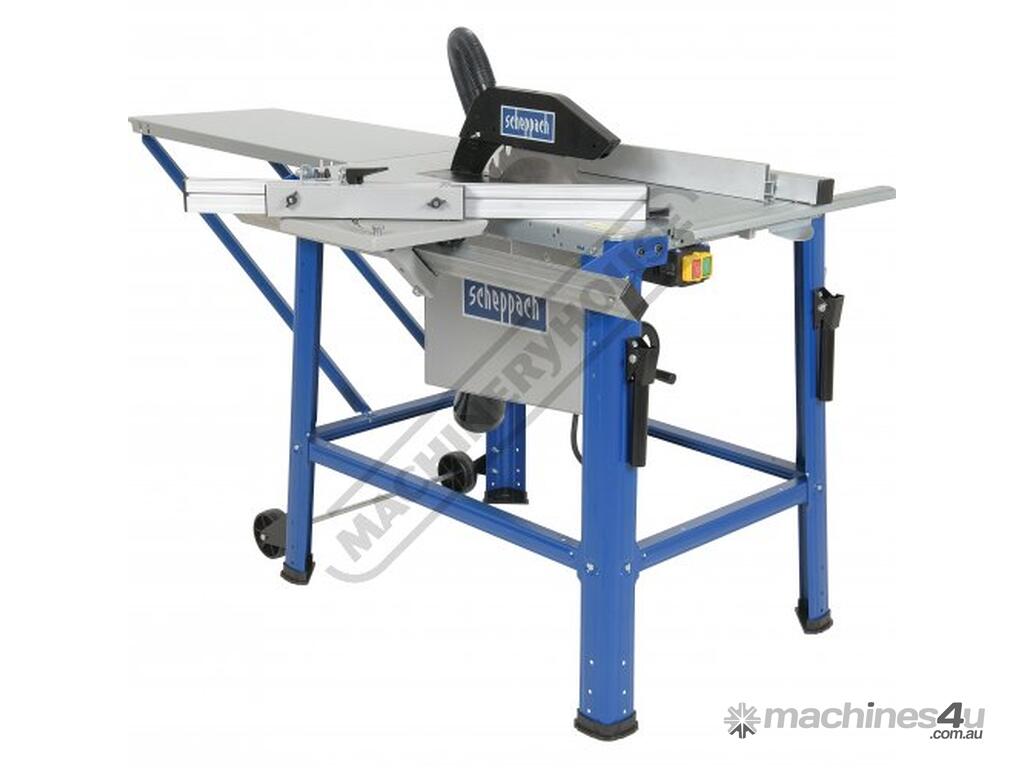

SCHEPPACH HS120 240V SAW BENCH WITH SLIDING TABLE

Ideal for sawing solid timbers, boards and other wood-like materials in the workshop or construction sites. Their generous specification fulfils the need for ripping, cross cutting, angle and compound angle cuts.

The HS120 has a long life quality TCT saw blade coupled to a power 2.2kW / 3hp motor with a brake, and also includes a solid fence for increased accuracy and is capable to rip, bevel and perform various compound mitre cuts. This table saws represent amazing "value for money".

Features:
German design & technology
Portable on wheels - ideal for site work or home work shop
550 x 800mm steel work table with 400 x 800mm table extension mountable to either side or rear of table

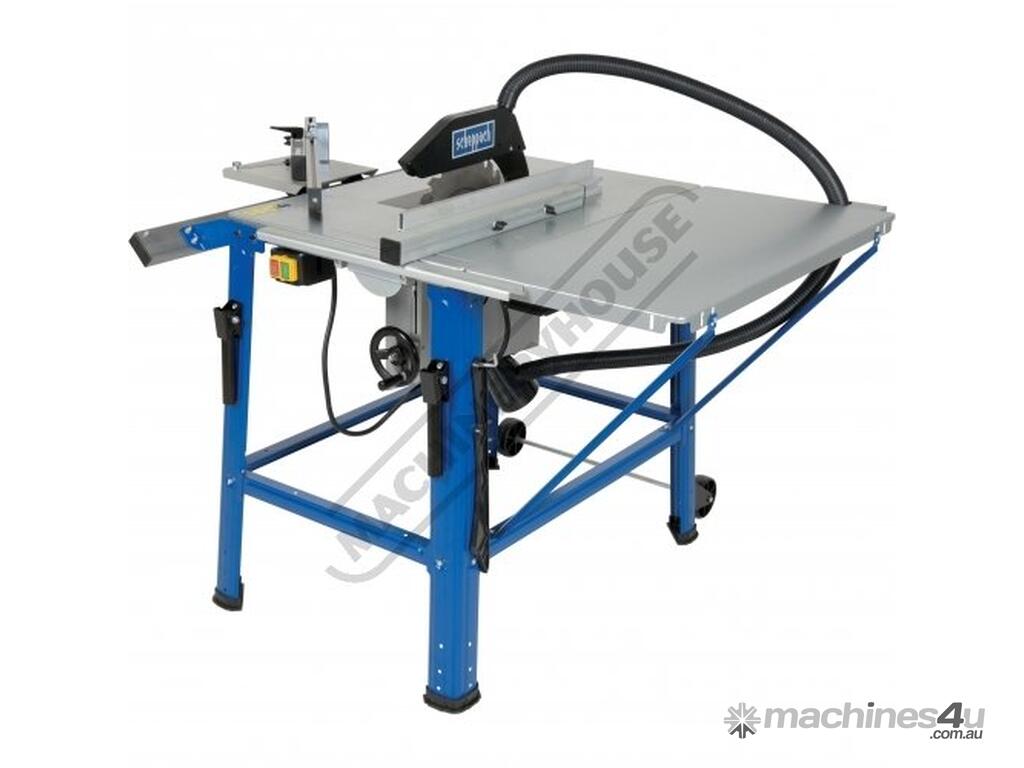

Large 950 x 800mm work table with side extension

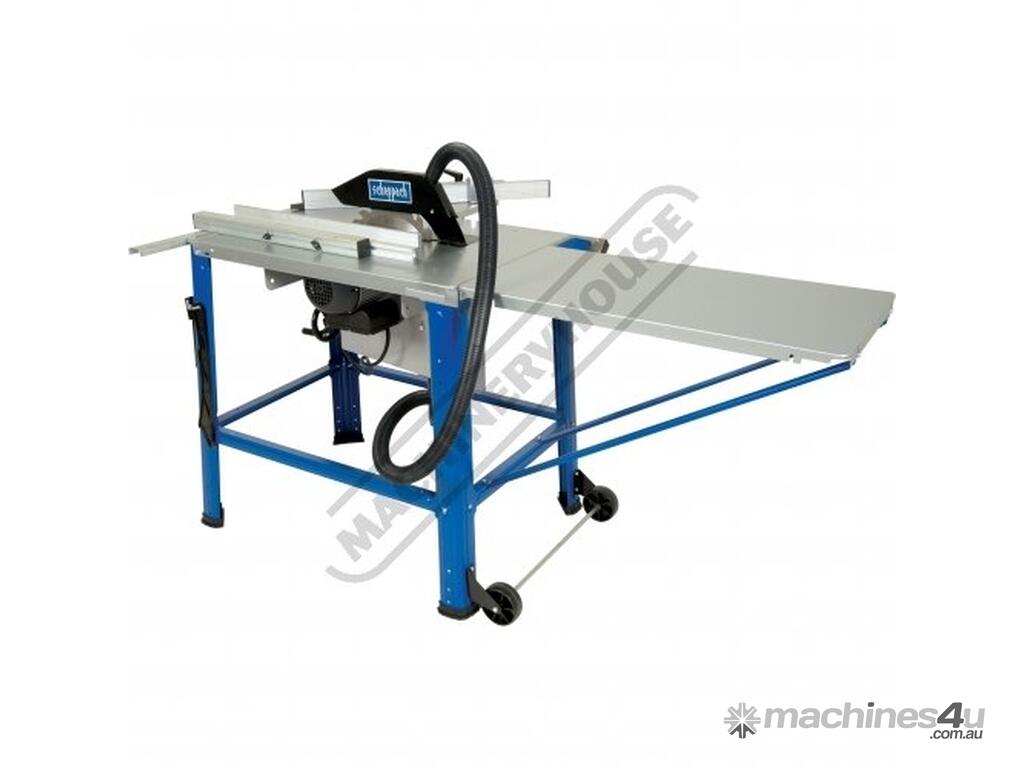

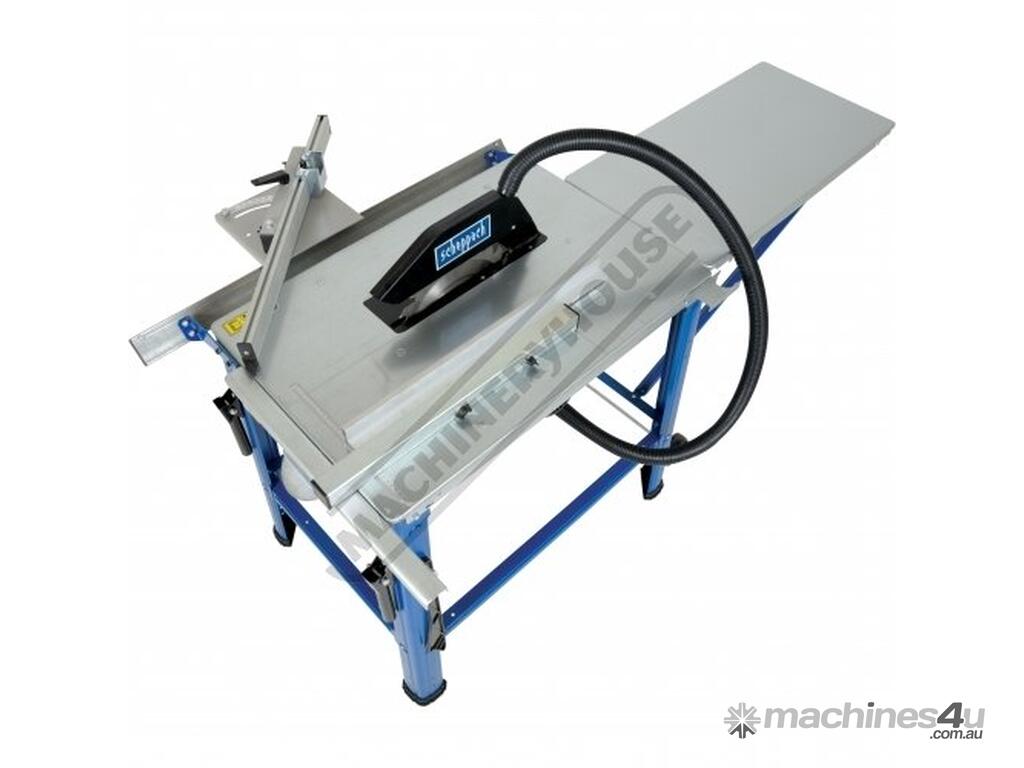

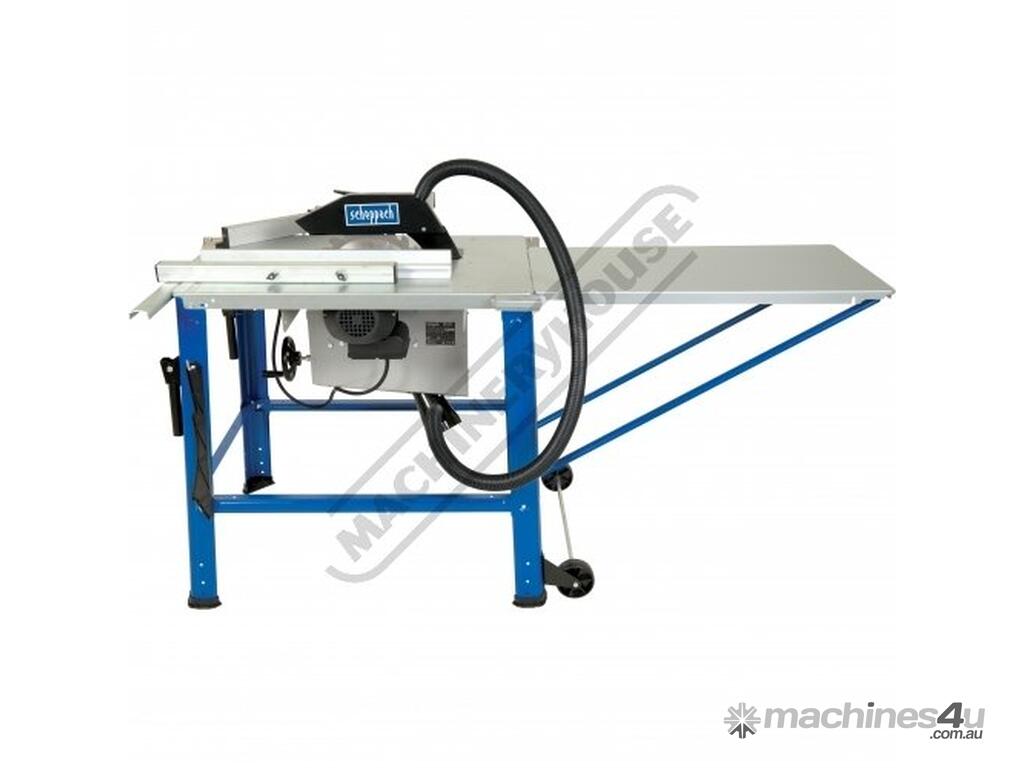

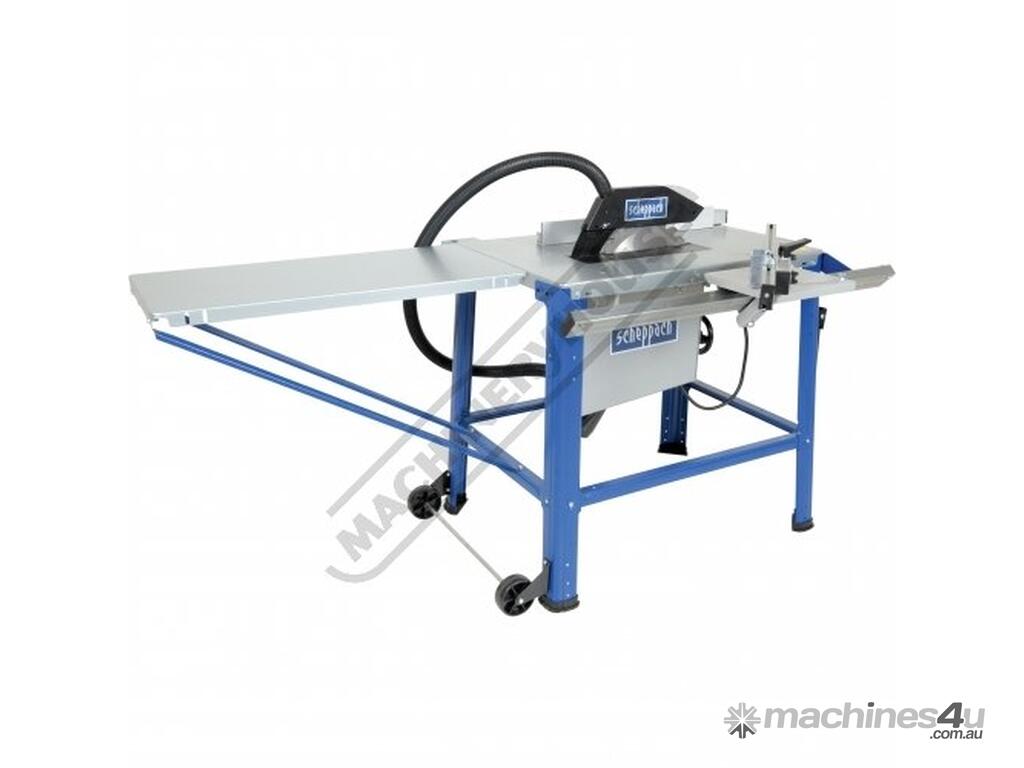

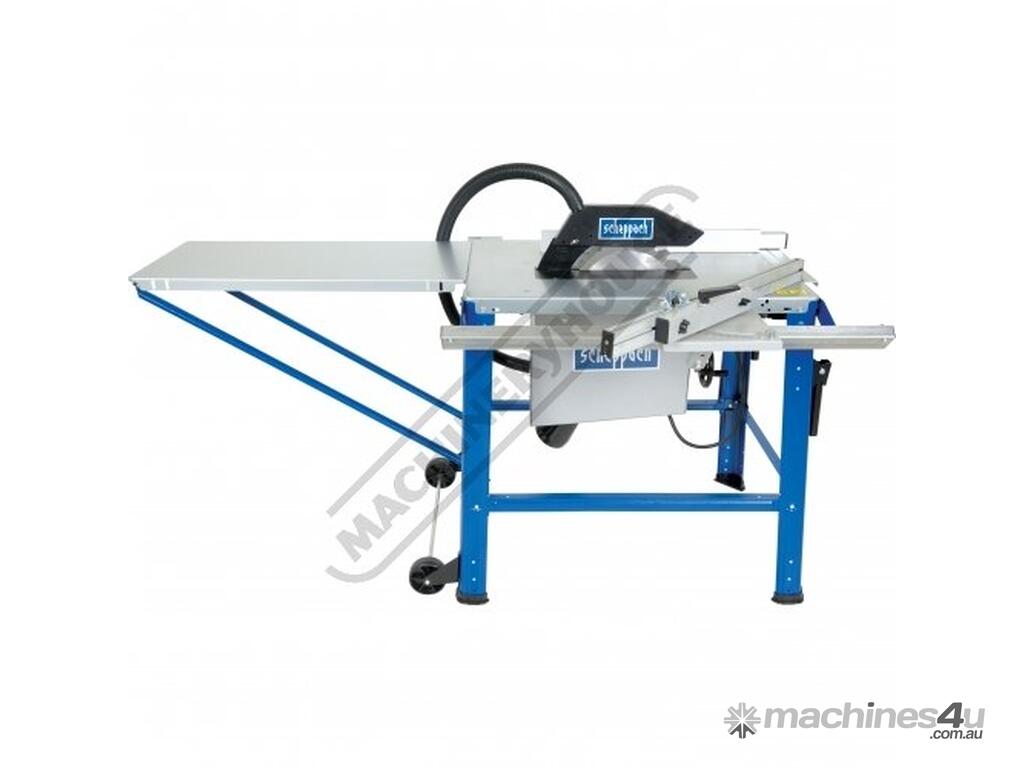

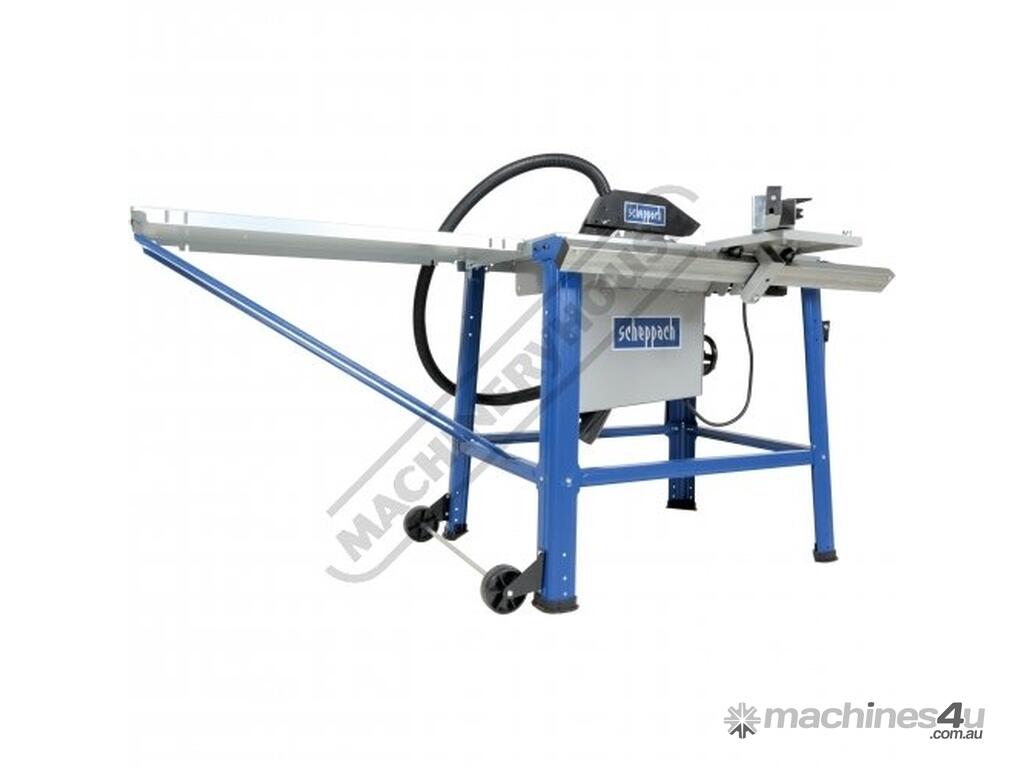

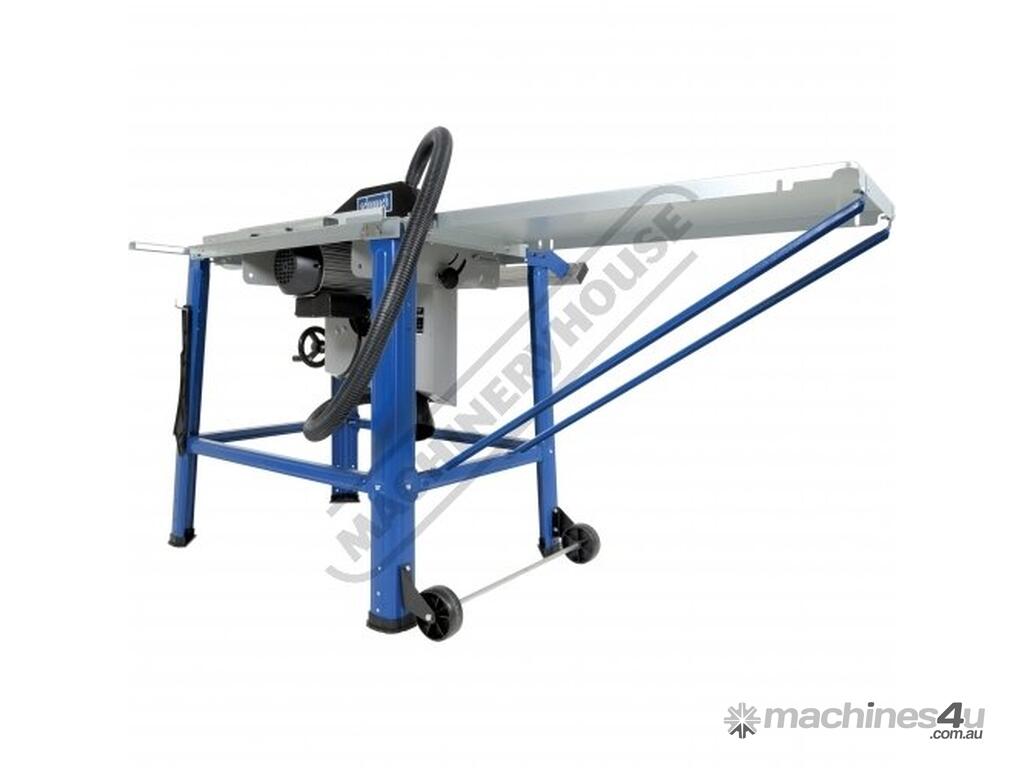

Large 550 x 1600mm work table with rear extension
Powerful 2.2kW / 3hp 240V induction motor with brake
83mm depth of cut 90º
49mm depth of cut 45º
800mm work table height
Sturdy powder-coated sheet steel design and galvanised table-top

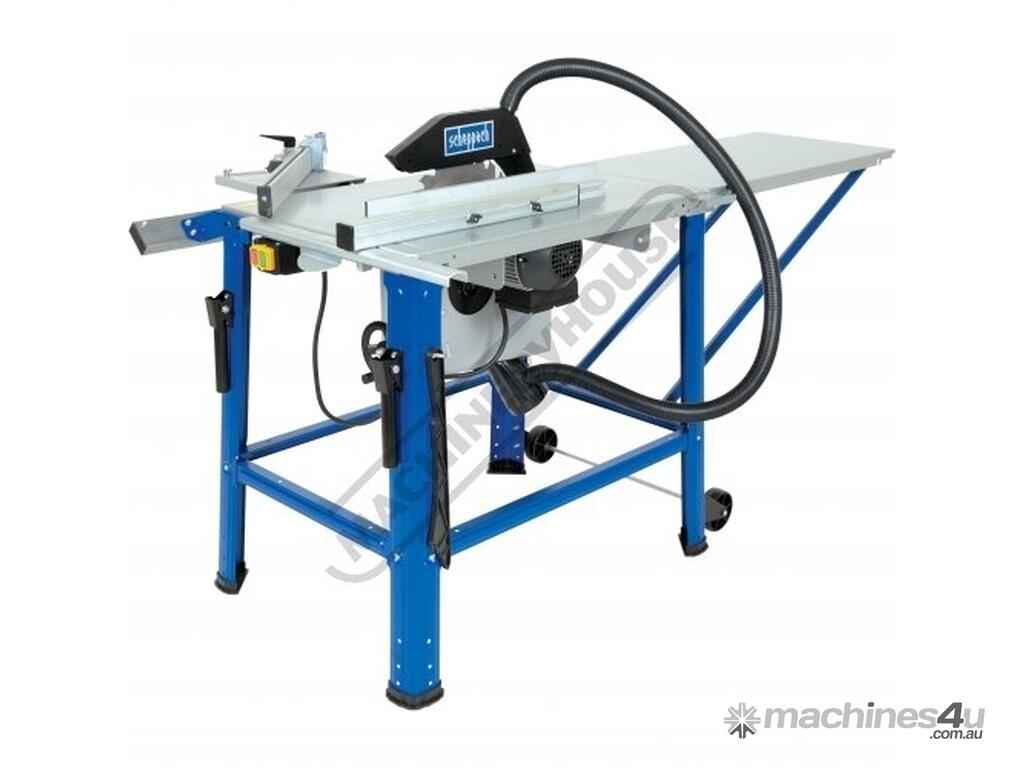

Blade guard connected to dust port outlet
Ø100mm dust port outlet located under blade housing
Adjustable blade height by hand wheel

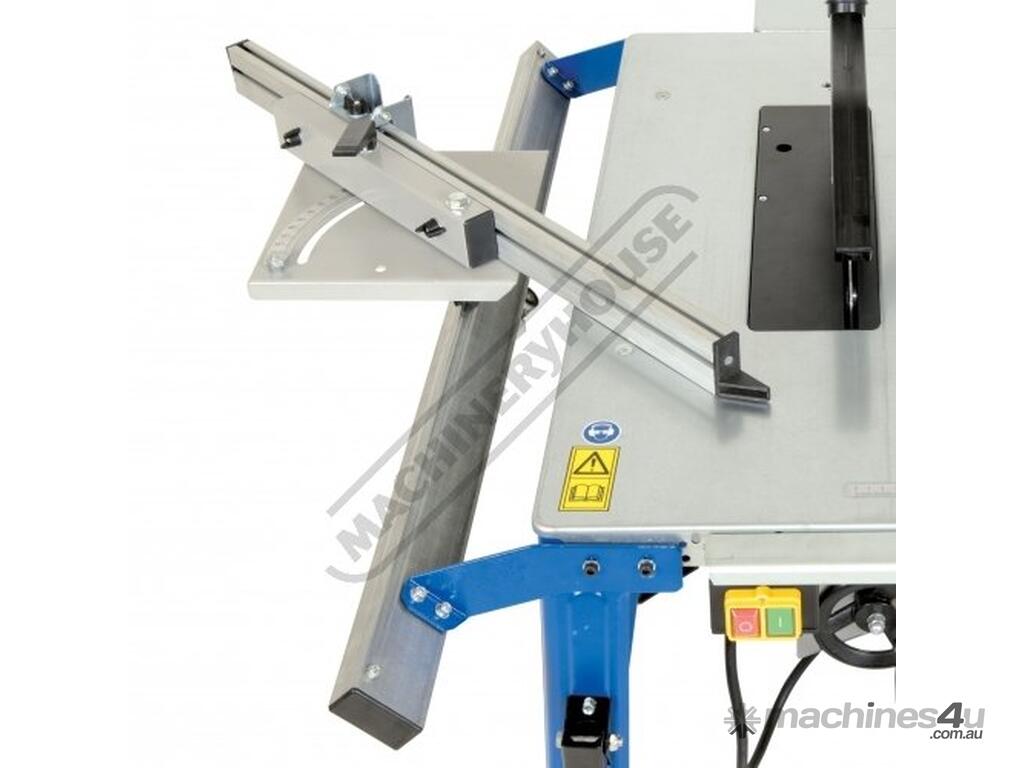

Equipped with a sliding & mitre guide table length extension

Includes:
- Ø315mm x 24 Teeth TCT saw blade
- Blade guard with dust outlet
- Cross-cut fence

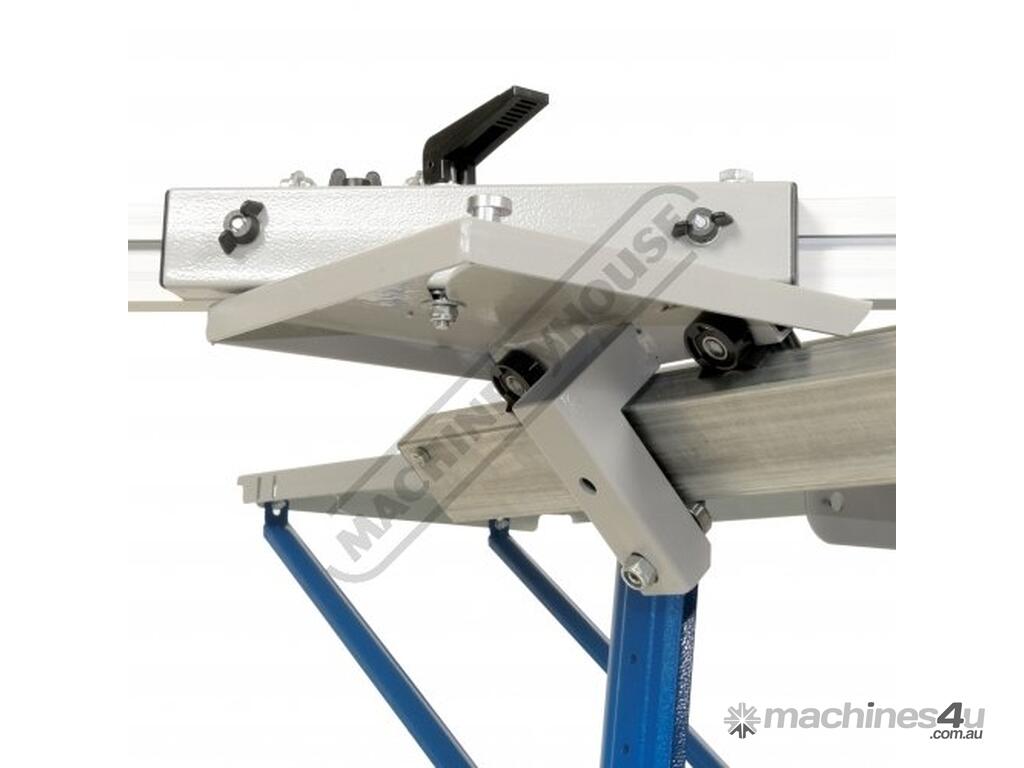

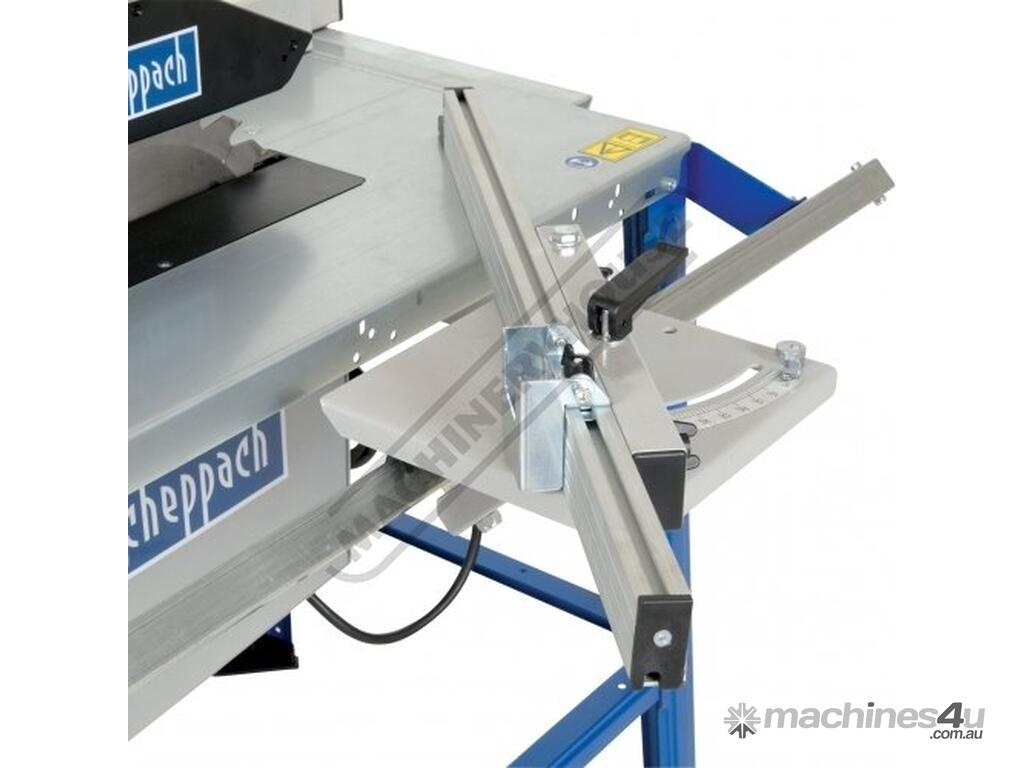

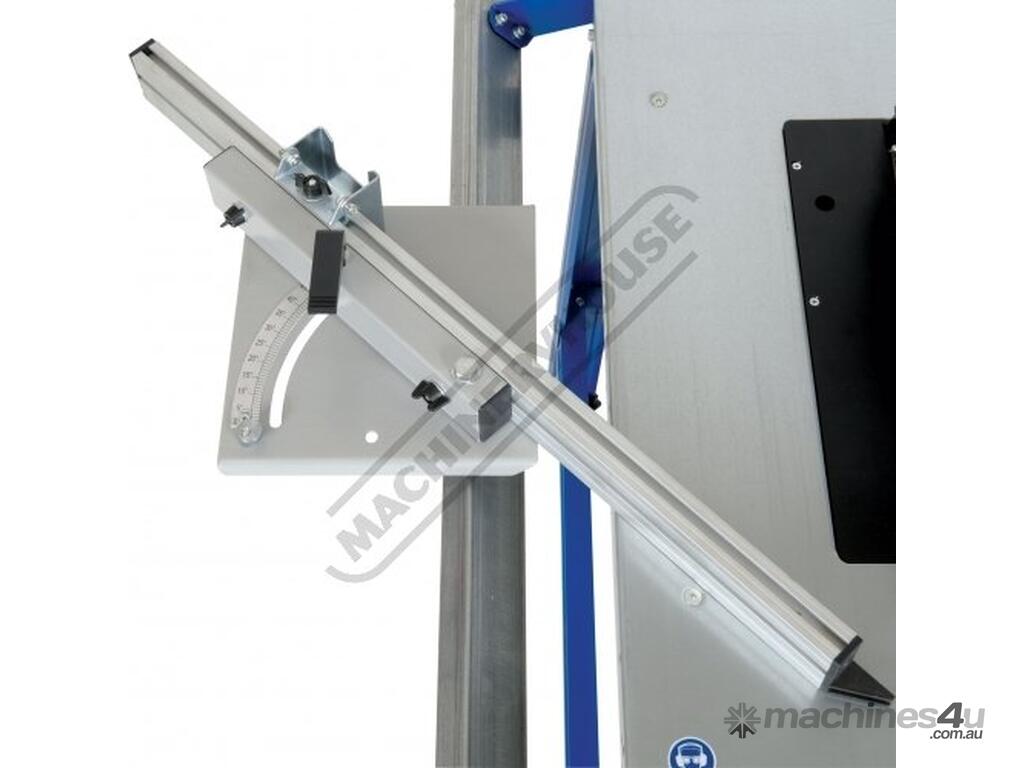

- Sliding table with mitre guide
- Extension table
- Stand



Specifications:
ORDER CODE: W443
MODEL: HS120 with Sliding Table
Blade Diameter (mm): Ø315
Table Size (W x H) (mm): 550 x 800
Table Size With Extensions (mm): 950 x 800
Max. Depth Of Cut 90º & 45º (mm): 83 / 49
Scribe Blade Diameter (mm): ~
Tilt Arbor To 45º: Yes
Sliding Table Stroke (mm): 200
Cross Cut with Flip Over Stop (mm): 750
Cross Cut with Extension Stop (mm): ~
Rip Capacity (mm): 260
Motor Power (kW / hp): 2.2 / 3
Voltage / Amperage (V / amp): 240 / 10
Floor Space Required (W x D x H) (mm): 1600 x 1100 x 1050
Weight (nett) (kg): 65
