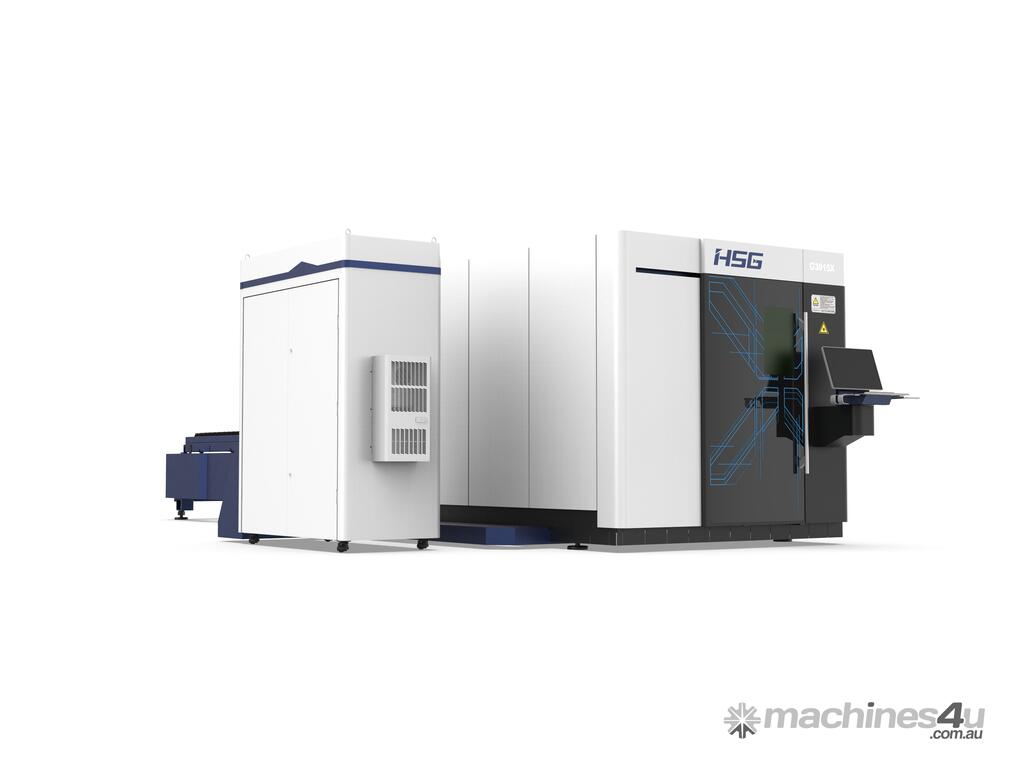

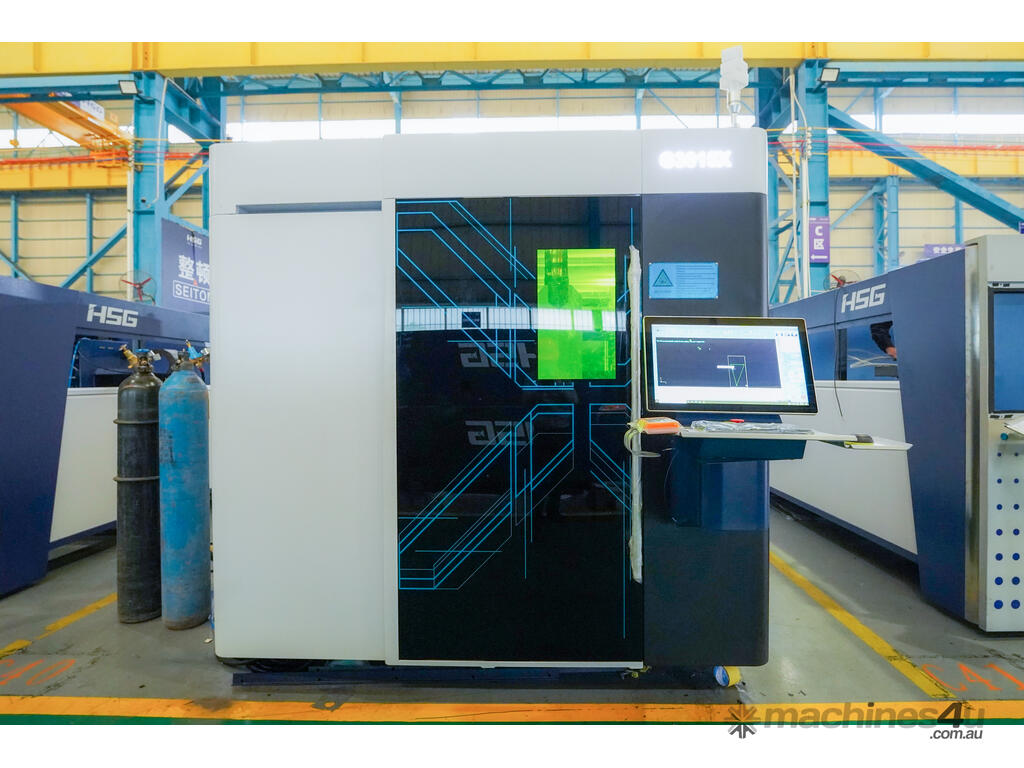

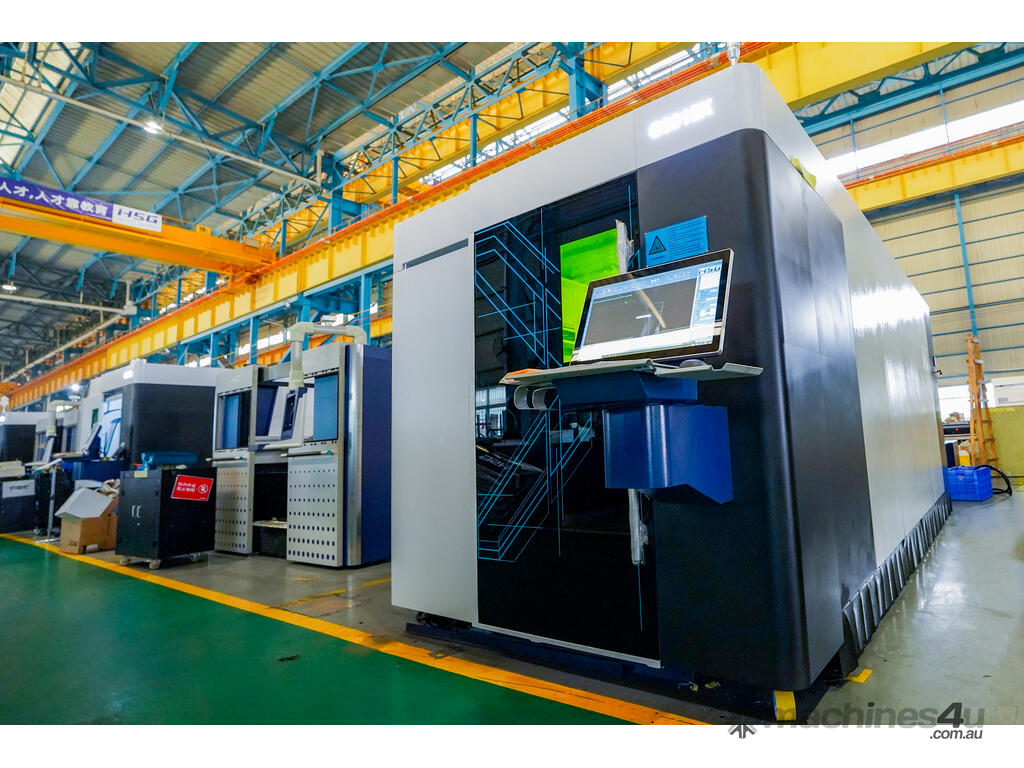

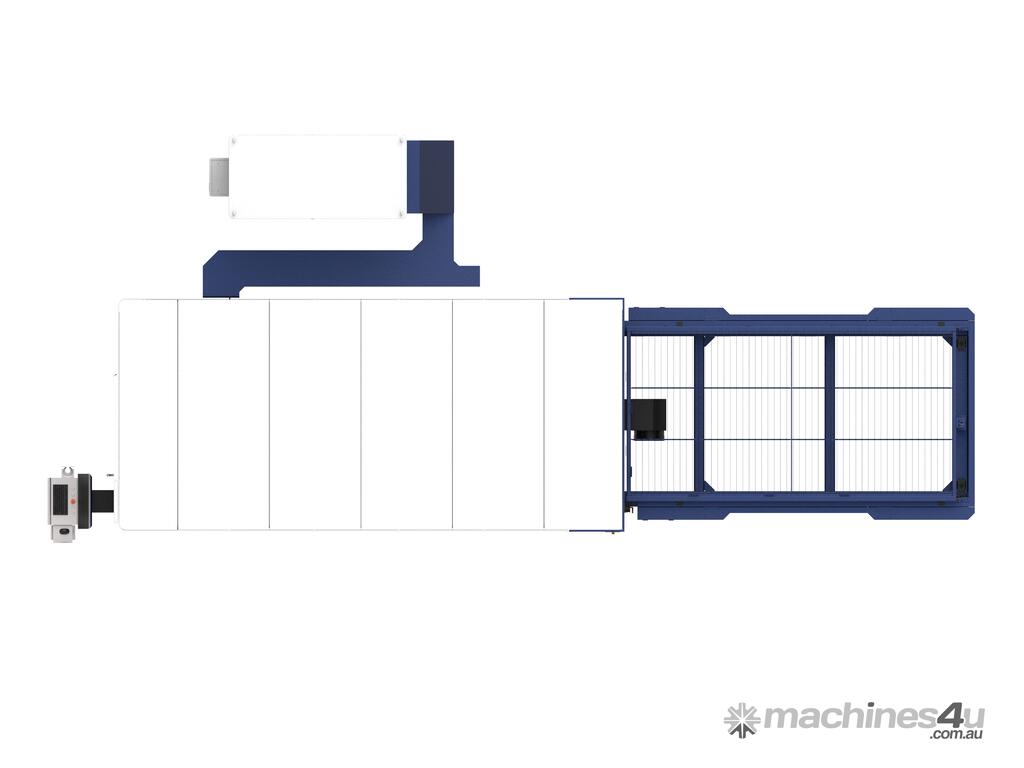

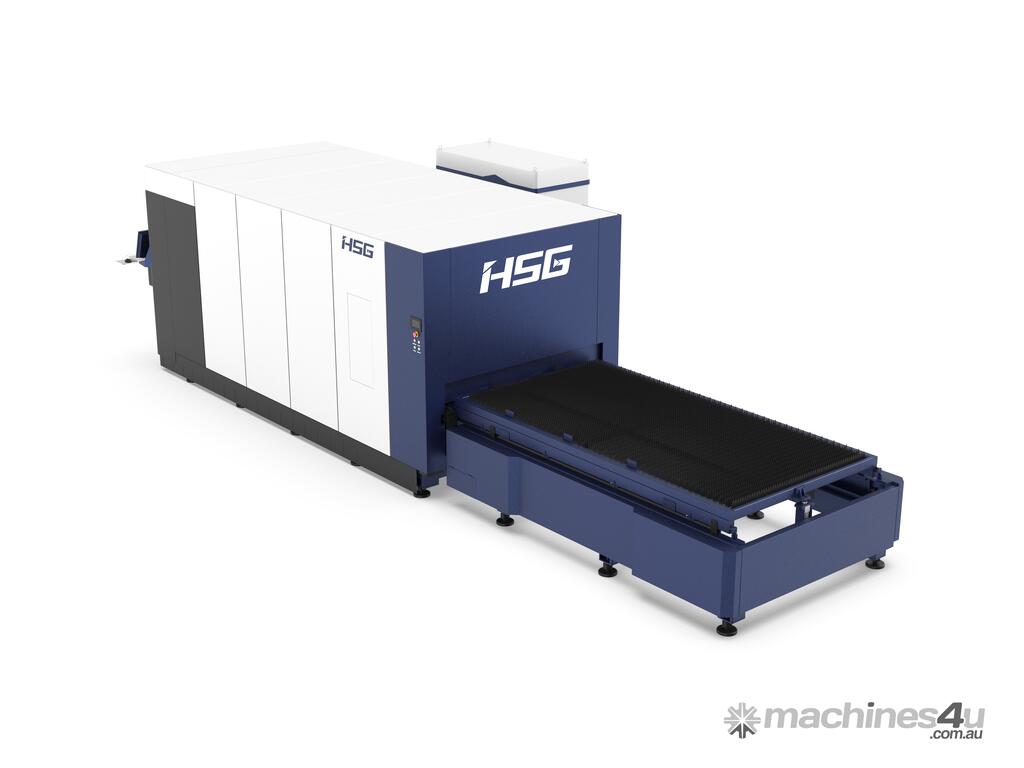

HSG GX3015 FIBER LASER CUTTING MACHINE with 4kW IPG laser source
2 YEARS WARRANTY – TURNKEY PRICE AVAILABLE FROM ALPHA CNC

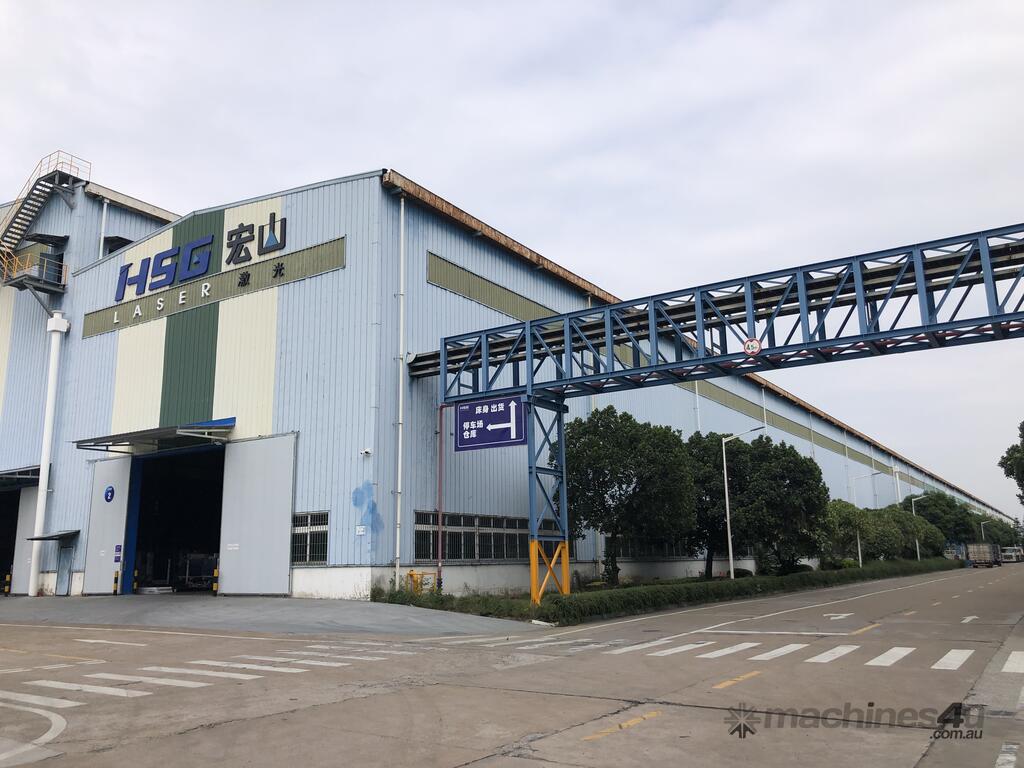

HSG Laser, founded in 2006, as a national hi-tech enterprise with an eye to R&D, production and sales of laser equipment, is now mainly dedicated to serve global customers with intelligent metal forming solutions.

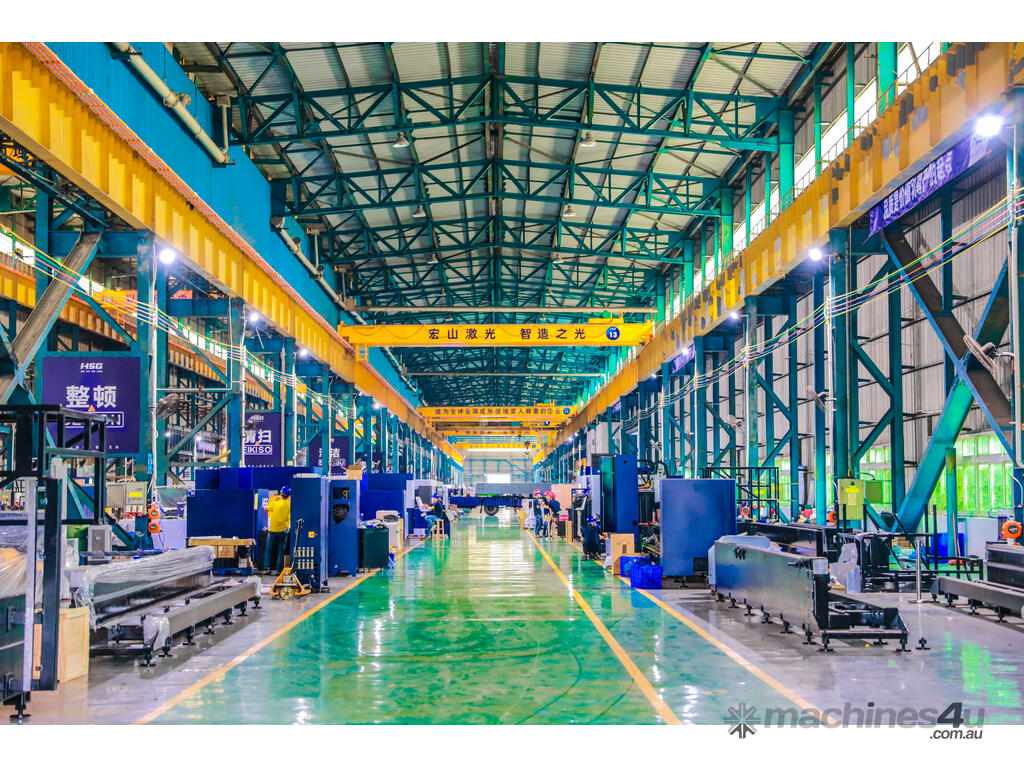

HSG Laser has built 2 wholly-owned subsidiaries in Germany and Japan, 4 standardized intelligent equipment manufacturing bases and 20+ operation service centers in China, as well as 30+ agency service outlets around the world.
SPECIFICATION:
Feature/Model: G3015X
Working Area (L*W): 3048 * 1524mm
X/Y Axis Positioning Accuracy: ±0.05mm/m
X/Y Axis Repositioning Accuracy: ±0.03mm
CNC controller: HSG-X2000S based on Cypcut FSCUT2000
Gear box: WITTENSTEIN ALPHA
Rack and pinion: WITTENSTEIN ALPHA
Servo motor: Panasonic
Max. Moving Speed: 140m/min
Max. Acc. Speed: 1.5G
Laser Power: 2000W~6000W
Machine Weight: 7500kg
Overall Dimensions (L*W*H): 8900x2260x2200mm
THE BEST PERFORMER IN COST PERFORMANCE

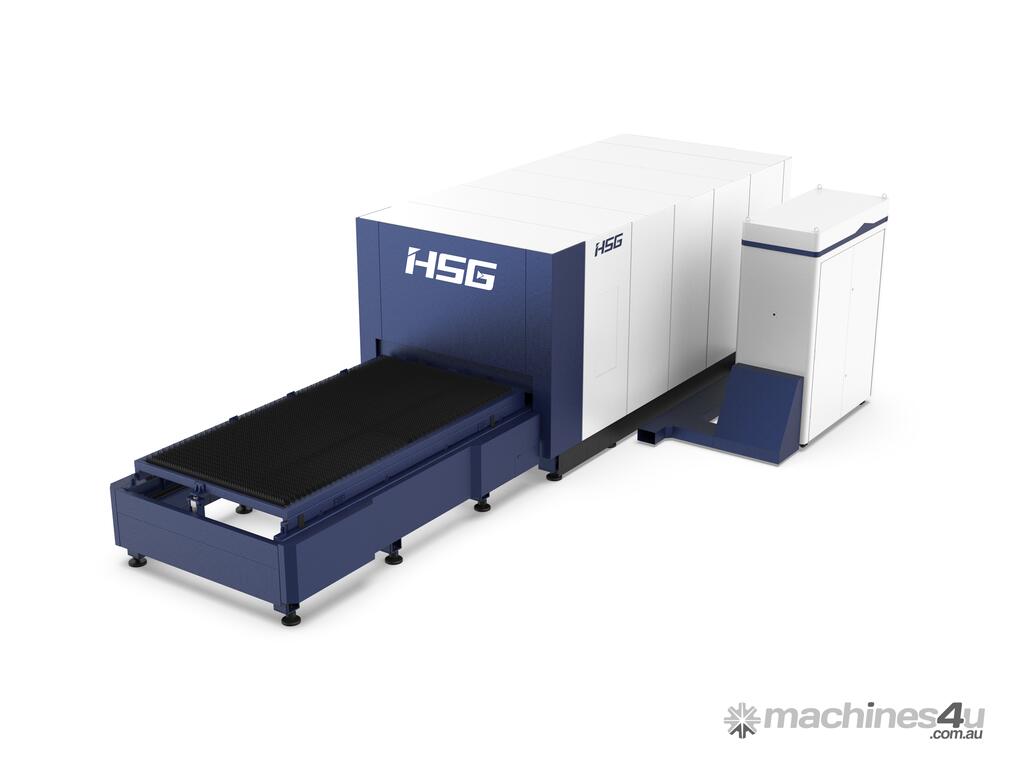

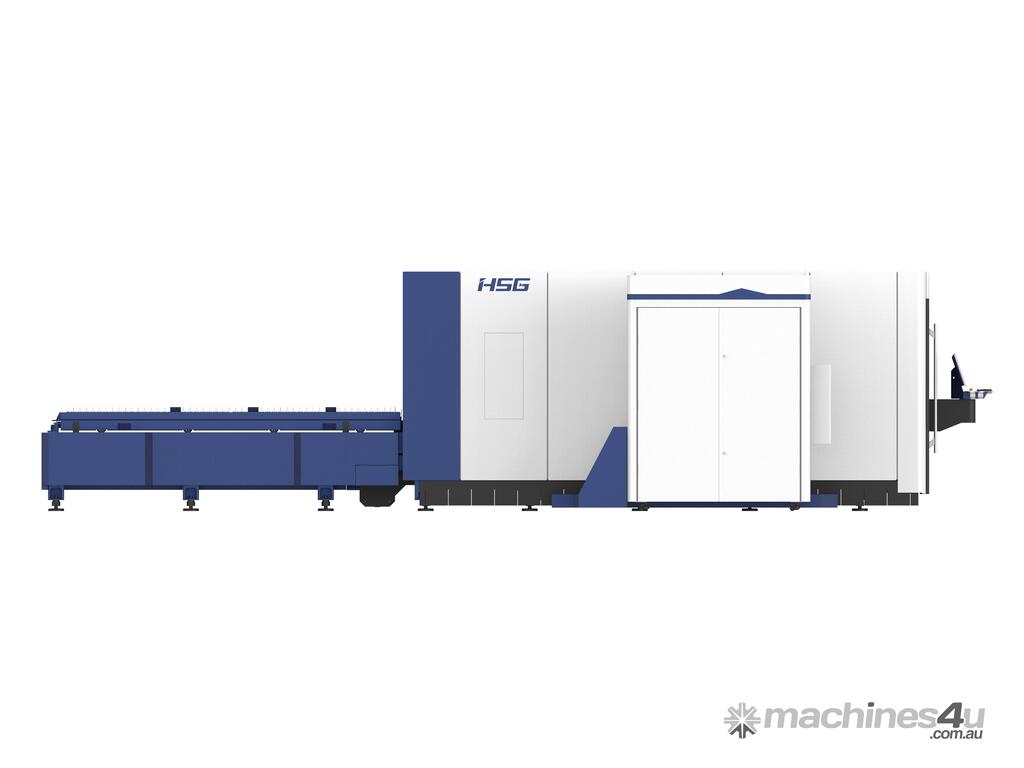

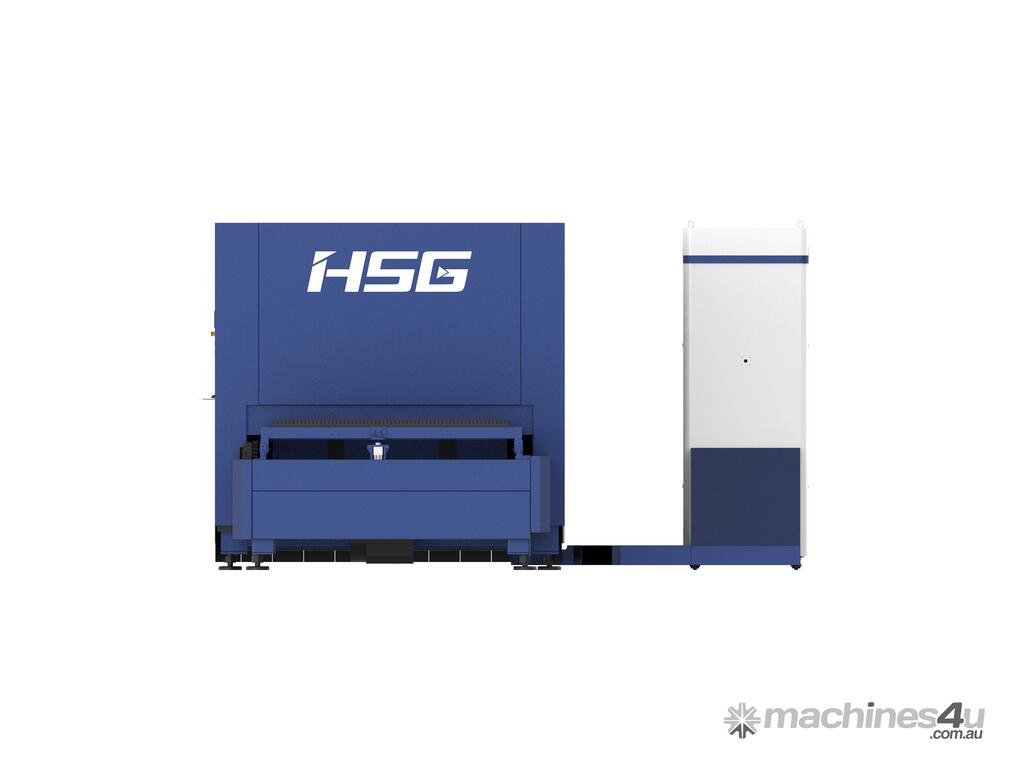

GX is a top-selling model among machines with double exchange platforms in laser cutting industry. It is easily packed in 40HQ standard container. The full-protective design is EU CE-compliant. Cutting safety, machine details and environmental protection are highly valued. GX II, based on ?rst generation, is regarded as the best performer in cost performance by its speed increase and con?guration upgrade.
MADE OF HIGH-QUALITY CARBON STEEL
Compared with general carbon steel, the high-quality material is relatively pure with less impurity and has good mechanical properties and rigidity. Due to thermal treatment, it is featured by less heat absorption, rapid heat dissipation and deformation prevention, which will remain stable even after long-term working at high speed.
FIRM IN STRUCTURE, HIGH PRECISION, MORE STABLE
The machine bed is covered with 6mm anti-burning manganese steel plate to prevent thermal deformation. Due to 500Mpa tensile strength and welding stress elimination by lonnealing and vibration aging, the machine bed will keep high precision and stability for over 50 years.
SEMI-HOLLOW MACHINE BED
Our machine bed is designed as semi-hollow to lessen the area heated by laser and keep the bed unchanged. The built-in butter?y valve damper can protect air ducts from scorching and prolong the service life of machine bed.
ZONING VENTILATION SYSTEM
Strong suction and good ventilation effects
KLINGE AUTOFOCUS CUTTING HEAD
-Cool down automatically for long-term cutting
-Automatic obstacle avoidance
-Automatic dust prevention
-Automatic abnormal warning
-Easy replacement and maintenance
