BP Side Loaders – Diesel & LPG

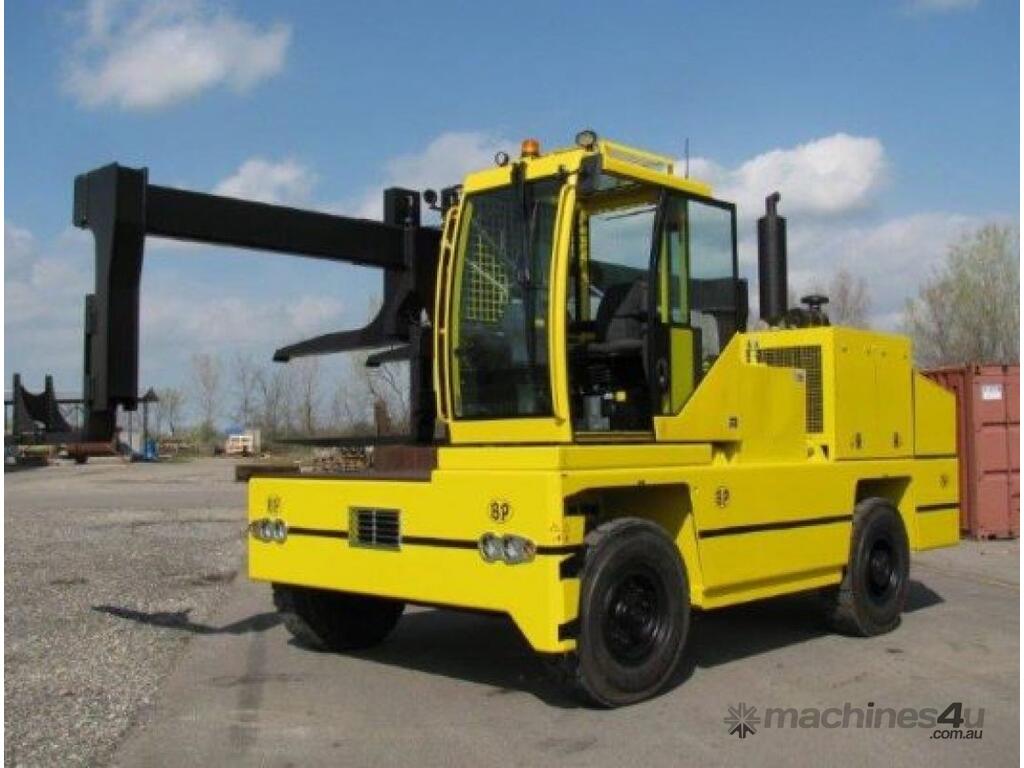

The HT12 Side Loader has a turbo diesel engine and pneumatic tires to ensure it is fully operational in a wide range of work environments, inside or outside, whatever the weather, and on tough terrain. It is a powerful machine that is incredible for safely and efficiently handling heavy and bulky loads.
FEATURES & BENEFITS
Turbo diesel engine
Pneumatic tires
Traction is hydrodynamic “power shift“ with 3 speeds forwards and 3 reverse reaching a max. speed of 25 Km/h.
Two front steering wheels with power steering (servo assisted):
Differential system on the rear axle
Special steel profiles of lifting mast with traverse guide rollers mounted on high resistence bearings
Complete road circulating lighting
Equipped with all mandatory Safety Devices and Systems as specified by EEC Equipment Directive 98/37, 89/336, 92/31, 2004/108
Supplied with Usage and Maintenance Instruction Book, Spare Parts Catalogue and Certificate of Conformity To EEC Equipment Directive 98/37, 89/336, 92/31, 2004/108
SPECIFICATIONS
Capacity: (kg):
12,000
Fork Length (mm):
1400/1500/1600/1800/2000
Load Center (mm):
700/750/800/900/1000
Tyres:
Pneumatic 12.00×20
Engine:
Perkins 1104D-E44TA Turbo 106 kW a 2200 rpm
Transmission:
Hydrodinamic DANA-CLARK 20000
Tilting:
Chassis
