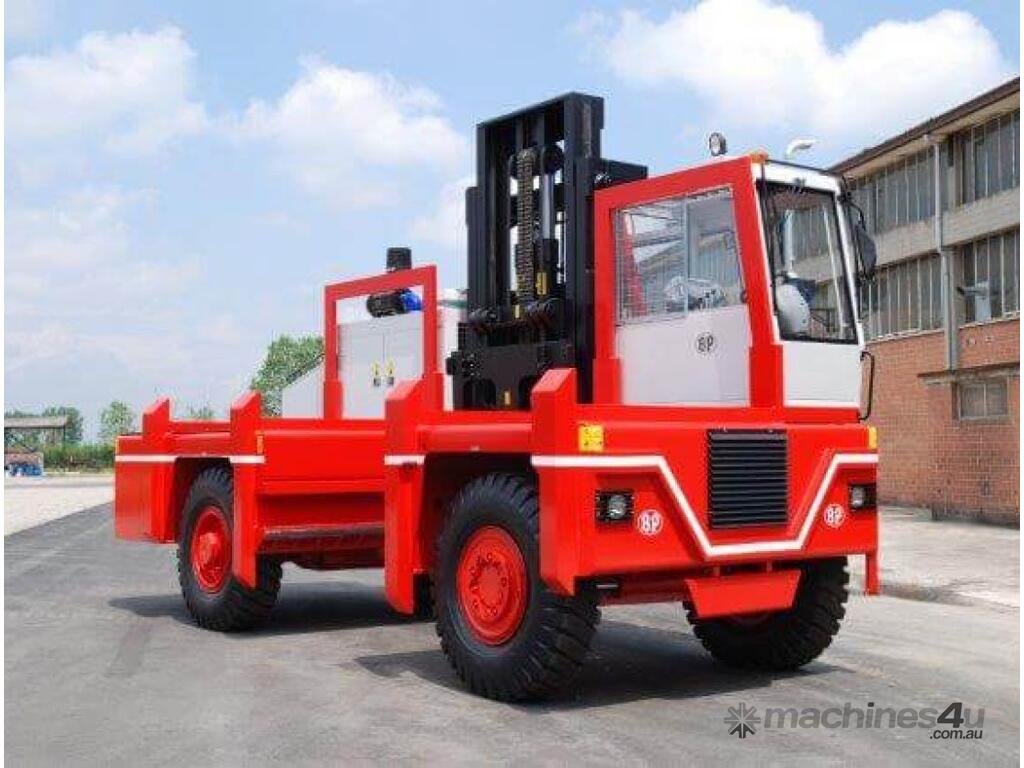

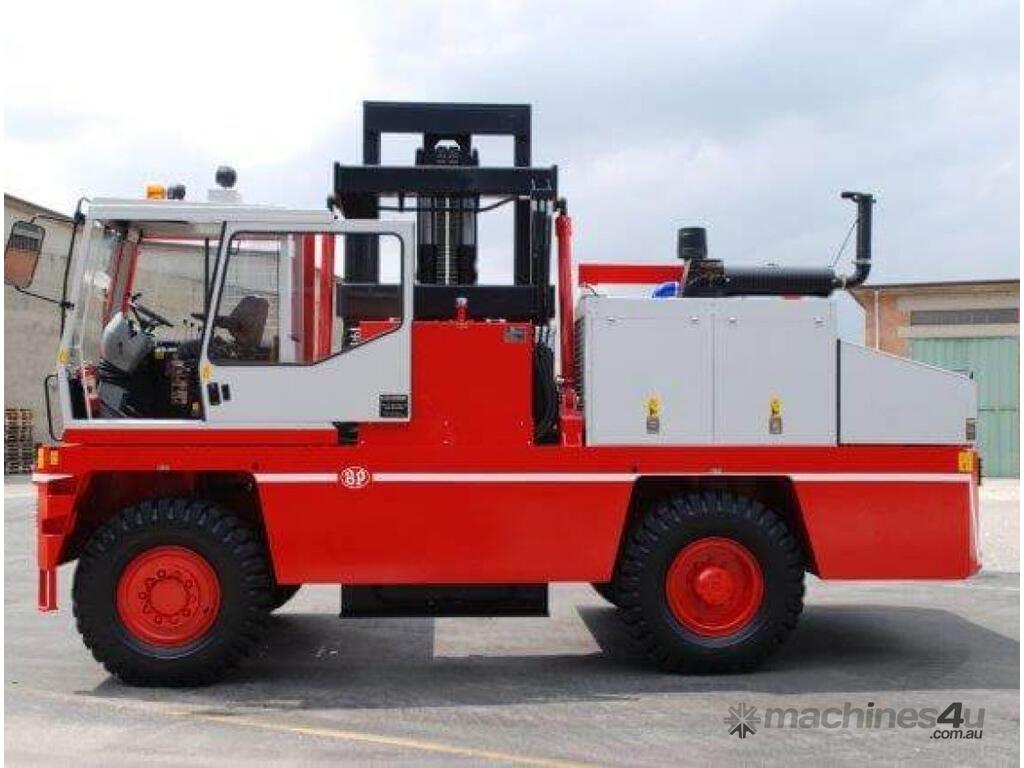

HT15 - Side Loader - Hire

BP Side Loaders – Diesel & LPG

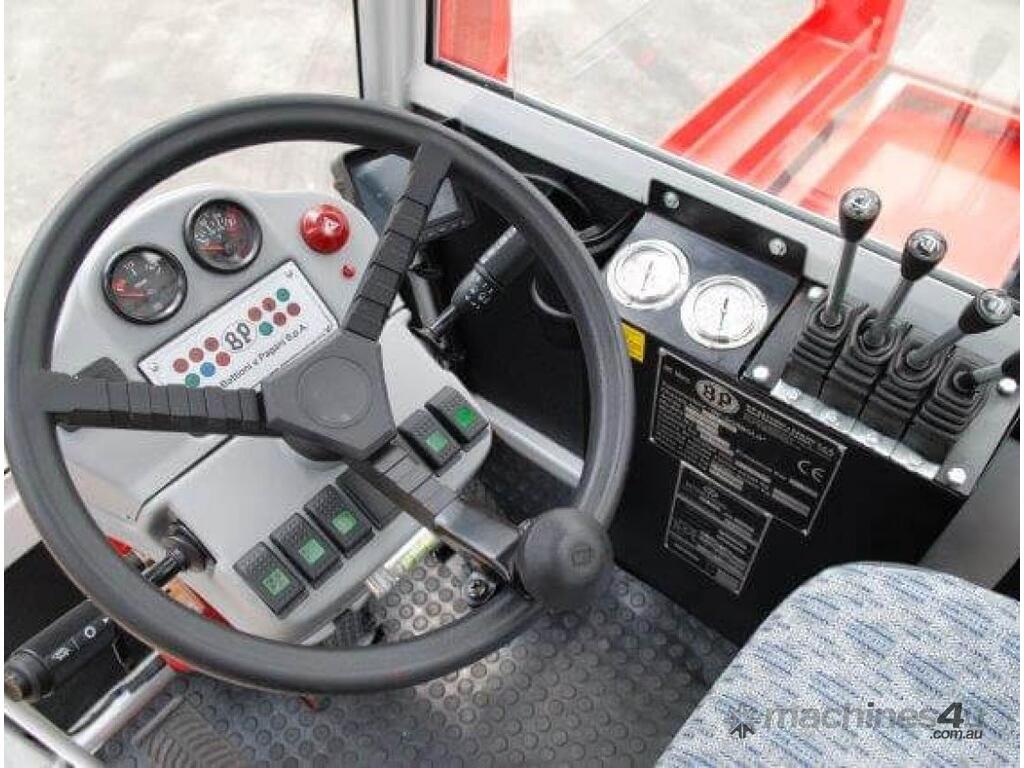

The HT15 Side Loader is fast, efficient, easy-to-use and, above all, incredibly safe. The cabin is designed with an operator-centric lens, offering ergonomic setup and silent blocks for noise cancellation. It has power steering and joystick/lever position that is crafted to support the operator for short and long periods of time. Its hydraulic movements are quick and simple.

FEATURES & BENEFITS

Turbo diesel engine
Pneumatic tires
Traction is hydrodynamic “power shift“ with 3 speeds forwards and 3 reverse reaching a max. speed of 25 Km/h
Two front steering wheels with power steering (servo assisted):
Hydraulic mono cylinder front axle enabling narrow steering
Rear axle with double reduction group and high resistance special steel half shafts providing for maximum torque to the wheels
Separate service brake circuits on the front and rear axles with brake pedal control
Hydraulic service brake with disc servo assisted braking on the front wheels and with bath oil disc servo assisted braking on the rear wheels
Dust protection filter for hydraulic system cleaning
Special steel profiles of lifting mast with traverse guide rollers mounted on high resistance bearings
Reinforced special steel profiles protecting the cabin side and the engine bonnet
Reverse alarm
Working lights and rotating yellow lamp on cabin roof
Complete road circulation lighting
Equipped with all mandatory Safety Devices and Systems as specified by EEC Equipment Directive 89/392
Supplied with Usage and Maintenance Instruction Book, Spare Parts Catalogue and Certificate of Conformity To EEC Equipment Directive 89/392


SPECIFICATIONS

Capacity: (kg):
15,000
Fork Length (mm):
1500/1600/1800/2000/2500
Load Center (mm):
750/800/900/1000/1250
Tyres:
Pneumatic 14.00×24
Engine:
Perkins 1106D-E66TA Turbo 129 KW – 2200 rpm
Transmission:
Hydrodinamic DANA-CLARK 32000
Tilting:
Chassis
